Model Details

CBFC-500-AIR

Printer Friendly

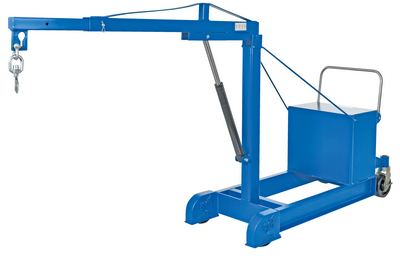

CBFC-500-AIR

Steel Air Counter Balance Floor Crane 500 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • Air powered for simple shop use
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Total Ship Wt.(lbs.): 1259 (only 1 package) Size: 29"W x 135.125"L x 102"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 Uniform Capacity extended 51-1/4" (lb.): 400
Uniform Capacity extended 63-5/16" (lb.): 300 Lowered Arm Fully Extended (in.): 5 Raised Arm Fully Extended (in.): 90
Base Length (in.): 70 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CBFC-500-AIR
CBFC-500-AIR

Steel Air Counter Balance Floor Crane 500 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • Air powered for simple shop use
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Dimensions: 29"W x 135.125"L x 102"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215221856 GTIN: 00691215221856
Warranty: -- Shipping Weight: 1259 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 Uniform Capacity extended 51-1/4" (lb.): 400
Uniform Capacity extended 63-5/16" (lb.): 300 Lowered Arm Fully Extended (in.): 5 Raised Arm Fully Extended (in.): 90
Base Length (in.): 70 Base Width (in.): 29 Boom Length Minimum/Maximum (in.): 53-1/2 to 77-1/2
Design: Counter Balance Function: Floor Crane Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
Rigid Caster Material: Glass-Filled Nylon Swivel Caster w/Side Brake Quantity/Diameter/Width (in.): (2)8 x 3 Swivel Caster Material: Phenolic
