Model Details

D-CK4-MR6-2

Printer Friendly
D-CK4-MR6-2

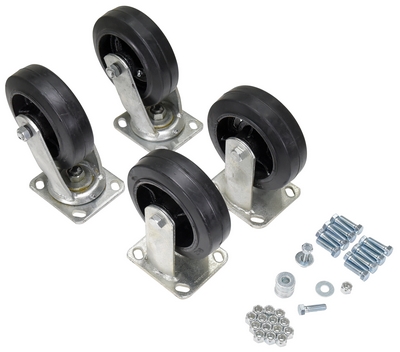

Mold On Rubber Caster Kit 6 In. x 2 In. 2400 Lb. Capacity Black

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Total Ship Wt.(lbs.): 29 (only 1 package) Size: 2"W x 6"L x 6"H Color: Black

Uniform Capacity (lb.): 2,400 Caster Quantity/Diameter/Width (in.): (4) 6 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 7-1/2 Hex Bolt (qty.): 16 Flat Washer (qty.): 16
Lock Nut (qty.): 16 Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: D-CK4-MR6-2
D-CK4-MR6-2

Mold On Rubber Caster Kit 6 In. x 2 In. 2400 Lb. Capacity Black

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Dimensions: 2"W x 6"L x 6"H Sell UOM: ST-Set Color: Black
Material: Mold-on-Rubber UPC: 691215227056 GTIN: 00691215227056
Warranty: -- Shipping Weight: 29 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity (lb.): 2,400 Caster Quantity/Diameter/Width (in.): (4) 6 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 7-1/2 Hex Bolt (qty.): 16 Flat Washer (qty.): 16
Lock Nut (qty.): 16 Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4
