Casters For Self-Dumping Hoppers (D & H)
model: D-CK4-GFN8-2
Casters For Self-Dumping Hoppers (D & H)Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.
H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"
D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"
R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.
**Weight of hopper must be considered when calculating usable capacity**
D-100-LD + D-CK4-GFN-2 + PLID-D-100
 |
Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes. Casters are shipped uninstalled to prevent freight damage.
H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style hopper for 6" casters is 3-3/4"
D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style hopper for 6" casters is 7-1/2", 8" casters 9-1/2"
R series hopper: Any caster kit for D-Style Hoppers will work with R Hoppers.
**Weight of hopper must be considered when calculating usable capacity**
D-100-LD + D-CK4-GFN-2 + PLID-D-100
|
D-CK4-C33D
D-CK4-C33D
D-CK4-C23C
H-CK3-C11C
H-CK3-C24C
H-CK4-C24C
H-CK4-PU6-2
D-CK4-C34C
D-CK4-C15D
D-CK4-PU6-2
D-CK4-C24C
H-CK3-GFN6-2
D-CK4-MR6-2
D-CK4-GFN8-2
D-CK4-C34C
| Upgraded Hopper Caster Kit Model #'s |
Caster Image |
Size | Total Capacity |
New Tread Type |
Casters In Kit |
Description | Added Benefits |
| FOR H-SERIES HOPPERS, -25, -50 | |||||||
| H-CK3-C11C |  |
6X2 | 1800 | HIGH QUALITY TPR (DK) (GRAY) | CST-F34-6X2DK-S (1) | CST-F34-6X2DK-R (2) | Made of high grade thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. | HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY |
| H-CK3-C12C |  |
6X2 | 2700 | HIGH GRADE POLY (DT) (GREEN) | CST-F34-6X2DT-S (1) | CST-F34-6X2DT-R (2) | Made with a hi-tech proprietary polyurethane tread (DT) and designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. | HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY |
| H-CK3-C13C |  |
6X2 | 3750 | PREMIUM GRADE POLY (SI) (ORANGE) | CST-F34-6X2SI-S (1) | CST-F34-6X2SI-R (2) | Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED |REJECTS DEBRIS | EXCELLENT FLOOR PRESERVATION | SMOOTH & QUIET RIDE | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR (WHEEL) WARRANTY |
| H-CK3-C24C |  |
6X2 | 3750 | HIGH GRADE GFN (RX) (BLACK) | CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) | Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| H-CK3-C23C |  |
6X2 | 6000 | HIGH GRADE HD GFN (RX) (BLACK) | CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| FOR H-SERIES HOPPERS, -100, -150 | |||||||
| H-CK4-C11C | |
6X2 | 2400 | HIGH QUALITY TPR (DK) (GRAY) | CST-F34-6X2DK-S (1) | CST-F34-6X2DK-R (2) | CST-F34-6X2DK-SWB (1) | Made of high grade thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. | HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR (WHEEL) WARRANTY |
| H-CK4-C12C | |
6X2 | 3600 | HIGH GRADE POLY (DT) (GREEN) | CST-F34-6X2DT-S (1) | CST-F34-6X2DT-R (2)| CST-F34-6X2DT-SWB (1) | Made with a hi-tech proprietary polyurethane tread (DT) and designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. | HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR (WHEEL) WARRANTY |
| H-CK4-C13C | |
6X2 | 5000 | PREMIUM GRADE POLY (SI) (ORANGE) | CST-F34-6X2SI-S (1) | CST-F34-6X2SI-R (2) | CST-F34-6X2SI-SWB (1) | Made with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED |REJECTS DEBRIS | EXCELLENT FLOOR PRESERVATION | SMOOTH & QUIET RIDE | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR (WHEEL) WARRANTY |
| H-CK4-C24C | |
6X2 | 5000 | HIGH GRADE GFN (RX) (BLACK) | CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) | CST-HLD2-6X2GFN-SWB (1) | Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| H-CK4-C23C |  |
6X2 | 8000 | HIGH GRADE HD GFN (RX) (BLACK) | CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) | Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| FOR D-SERIES HOPPERS | |||||||
| D-CK4-C32C | |
6X2 | 2400 | HIGH QUALITY TPR (DK) (GRAY) | CST-F40-6X2DK-S (1) | CST-F40-6X2DK-R (2) | CST-F40-6X2DK-SWB (1) | Robust kingpinless series matched with high-tech thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. | KINGPINLESS | HIGH-GRADE NON-MARKING TREAD | EXCEPTIONAL SMOOTH RIDE PERFORMANCE | GREAT FLOOR PRESERVATION | DEFLECTS DEBRIS (INCLUDING METAL SHAVINGS) | MAXIMUM WEATHER ABILITY | 3 YEAR WARRANTY |
| D-CK4-C32D |  |
8X2 | 2700 | HIGH QUALITY TPR (DK) (GRAY) | CST-F40-8X2DK-S (1) | CST-F40-8X2DK-R (2) | CST-F40-8X2DK-SWB (1) | Robust kingpinless rigging matched with high-tech thermoplastic rubber, TPR (DK). This proprietary tread is not only resistant to abrasion, but also reduces the force required for movement. Made in Taiwan. | NON-MARKING | CHEMICAL & MOISTURE RESISTANT | SMOOTH RIDE PERFORMANCE | QUIET OPERATION | PRECISION BALL BEARINGS |
| D-CK4-C33C |  |
6X2 | 3600 | HIGH GRADE POLY (DT) (GREEN) | CST-F40-6X2DT-S (1) | CST-F40-6X2DT-R (2) | CST-F40-6X2DT-SWB (1) | Robust kingpinless rigging matched with a hi-tech proprietary polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. | KINGPINLESS | HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR WARRANTY |
| D-CK4-C33D |  |
8X2 | 4000 | HIGH GRADE POLY (DT) (GREEN) | CST-F40-8X2DT-S (1) | CST-F40-8X2DT-R (2) | CST-F40-8X2DT-SWB (1) | Robust kingpinless series matched with a hi-tech proprietary polyurethane tread (DT). Designed with a new liquid cast flow affusion that ensures a 100% mechanical bond to core and "zero" trapped air. Made in Taiwan. | KINGPINLESS | HI-TECH NON-MARKING TREAD | EASY ROLL PERFORMANCE | 100% MECHANICAL BOND TO CORE | LONGER LASTING TREAD LIFE | RESISTS DEBRIS | GREAT FLOOR PRESERVATION | 3 YEAR WARRANTY |
| D-CK4-C34C |  |
6X2 | 6000 | PREMIUM GRADE POLY (SI) (ORANGE) | CST-F40-6X2SI-S (1) | CST-F40-6X2SI-R (2) | CST-F40-6X2SI-SWB (1) | Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. | KINGPINLESS | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED | SMOOTH & QUIET RIDE | EXCELLENT FLOOR PRESERVATION | REJECTS DEBRIS | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| D-CK4-C34D |  |
8X2 | 8000 | PREMIUM GRADE POLY (SI) (ORANGE) | CST-F40-8X2SI-S (1) | CST-F40-8X2SI-R (2) | CST-F40-8X2SI-SWB (1) | Robust kingpinless series matched with a premium HD polyurethane tread (SI). Ideal for applications where superior strength and ergonomic performance is a must. Industry leading capacity. Reduces the force required for movement and deflects debris (including metal shavings). Made in Taiwan. | KINGPINLESS | NON-MARKING | 100% MAINTENANCE-FREE | LESS PUSH/PULL FORCE REQUIRED | SMOOTH & QUIET RIDE | EXCELLENT FLOOR PRESERVATION | REJECTS DEBRIS | WATER RESISTANT ALUMINUM CORE | 6203 PREMIUM PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| D-CK4-C15C |  |
6X2 | 6000 | PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE) | CST-FXE-6X2DSI-S (2) | CST-FXE-6X2DSI-R (2) | The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced. | REDUCES PUSH/PULL FORCE BY UP TO 62% |HIGH-QUALITY NON-MARKING PROPRIETARY TREAD | 100% MAINTENANCE-FREE | STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY | DUAL WHEELS - FOR PRECISE TURNING RADIUS | INDUSTRY LEADING CAPACITY | 6203 PREMIUM SEALED PRECISION BALL BEARINGS | LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE | HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH | 3 YEAR WARRANTY |
| D-CK4-C15D |  |
8X2 | 8000 | PREMIUM GRADE "DUAL" WHEEL POLY (SI) (ORANGE) | CST-FXE-8X2DSI-S (2) | CST-FXE-8X2DSI-R (2) | The new X-Treme Ergo is an industry leader in ERGONOMIC PERFORMANCE. Made of premium grade polyurethane, the independent dual wheels allow for sharp turns with the smallest radius. Coupled with an industry changing "double" precision raceway, for one of the tightest swivels produced. | REDUCES PUSH/PULL FORCE BY UP TO 62% |HIGH-QUALITY NON-MARKING PROPRIETARY TREAD | 100% MAINTENANCE-FREE | STATE OF THE ART "DOUBLE" PRECISION SEALED RACEWAY | DUAL WHEELS - FOR PRECISE TURNING RADIUS | INDUSTRY LEADING CAPACITY | 6203 PREMIUM SEALED PRECISION BALL BEARINGS | LIGHT-WEIGHT RUST RESISTANT ALUMINUM CORE | HIGH QUALITY, RUST RESISTANT CHROME PLATED FINISH | 3 YEAR WARRANTY |
| D-CK4-C24C | |
6X2 | 5000 | HIGH GRADE GFN (RX) (BLACK) | CST-HLD2-6X2GFN-S (1) | CST-HLD2-6X2GFN-R (2) | CST-HLD2-6X2GFN-SWB (1) | Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| D-CK4-C24D |  |
8X2 | 5000 | HIGH GRADE GFN (RX) (BLACK) | CST-HLD2-8X2GFN-S (1) | CST-HLD2-8X2GFN-R (2) | CST-HLD2-8X2GFN-SWB (1) | Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | LIGHTWEIGHT DESIGN | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE | ENVIRONMENTALLY FRIENDLY |SEALED GROUND |
| D-CK4-C23C | |
6X2 | 8000 | HIGH GRADE HD GFN (RX) (BLACK) | CST-HHD-6X2GFN-S (1) | CST-HHD-6X2GFN-R (2) | CST-HHD-6X2GFN-SWB (1) | Made of high-tech proprietary glass filled nylon (RX) and matched with a kingpinless rigging. Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than ductile steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Made in Canada. | KINGPINLESS | INDUSTRY LEADING CAPACITY | LIGHTWEIGHT DESIGN | NON-MARKING HIGH-QUALITY PROPRIETARY TREAD | ABSORBS IMPACT | MOISTURE RESISTANT | EASY ROLL PERFORMANCE |SEALED GROUND PRECISION BALL BEARINGS | 3 YEAR WARRANTY |
| Weight Of Hopper Must Be Considered When Calculating Usable Capacity | |||||||
| Casters for Self-Dumping Hoppers | ||||||||
| Model | Image | Caster Size | Capacity (lbs.) | Caster Description | Qty. Per Order | Wt. (lbs.) | ||
| Caster for H-Style Hoppers, -25 & -50 | ||||||||
| H-CK3-C11C |  |
 |
6"x2" | 1,800 | Thermoplastic Rubber | 3 | 18 | |
| H-CK3-C12C |  |
|
6"x2" | 2,700 | Pure Polyurethane | 3 | 18 | |
| H-CK3-C13C |  |
|
6"x2" | 3,750 | Polyurethane | 3 | 18 | |

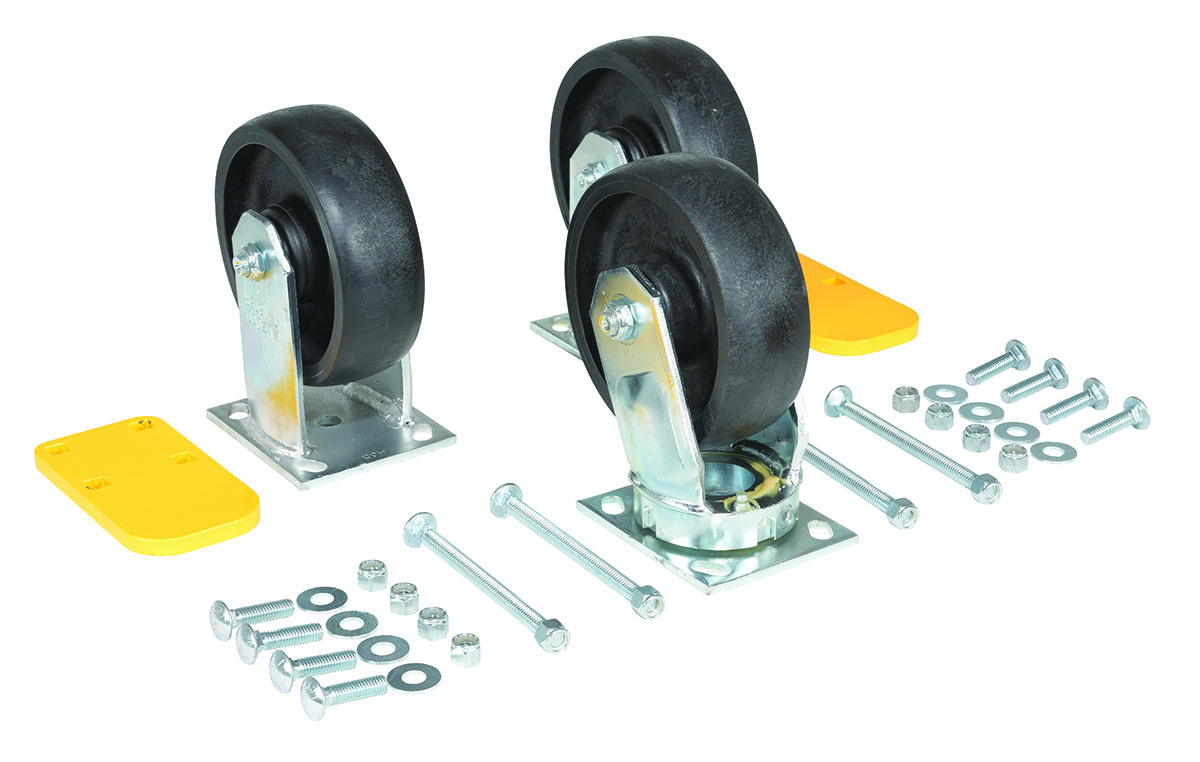

| H-CK3-C23C |  |
|
6"x2" | 8,000 | Glass Filled Nylon | 3 | 22 | |
| H-CK3-C24C |  |
|
6"x2" | 3,750 | Glass Filled Nylon | 3 | 21 | |

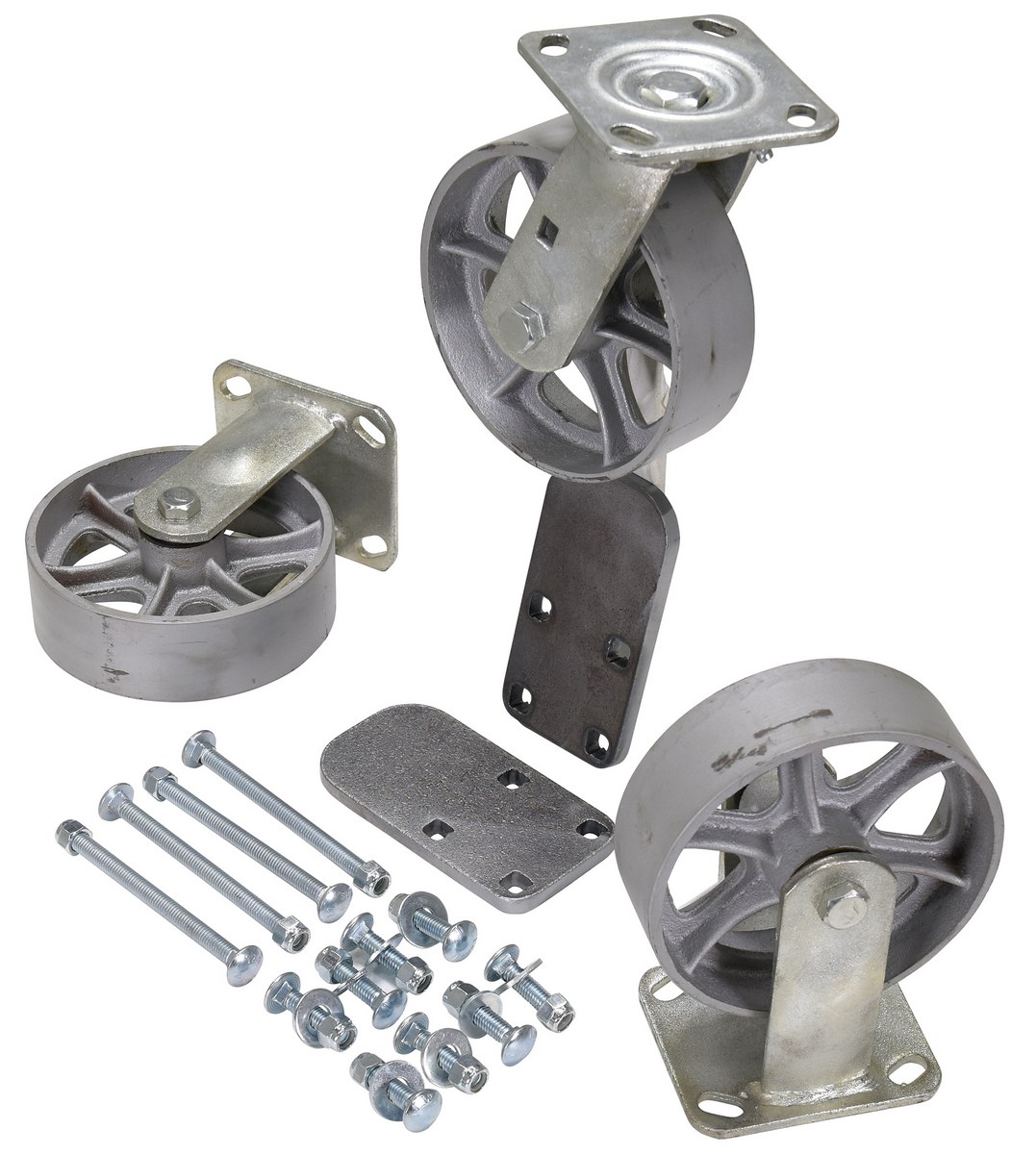

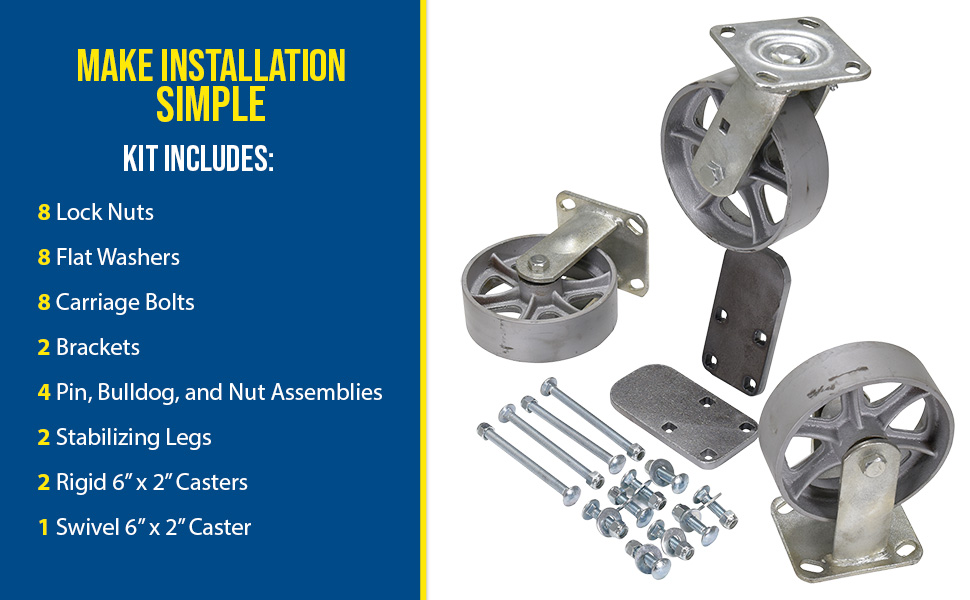

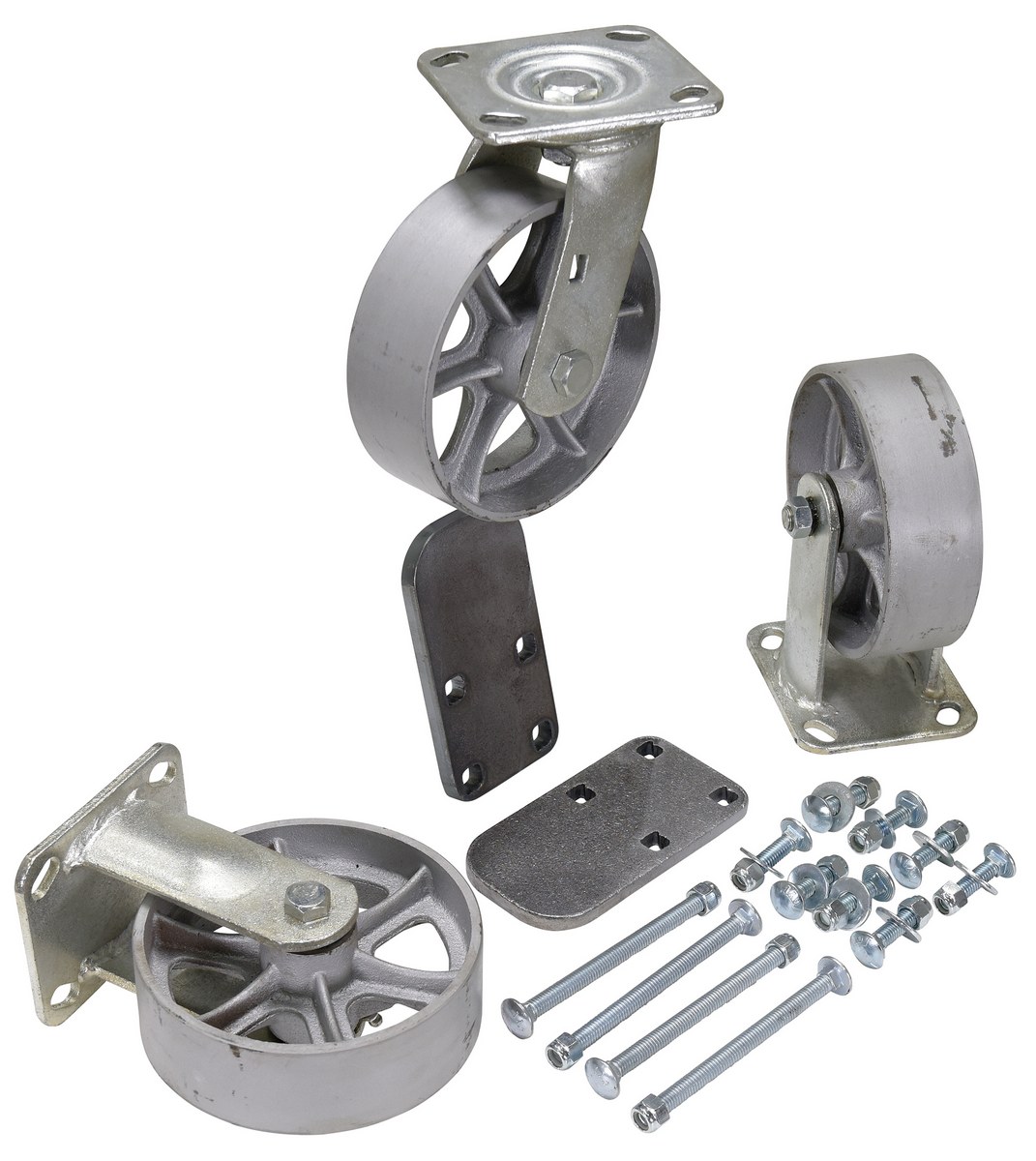

| H-CK3-SC6-2 |  |
|
6"x2" | 3,600 | Semi-Steel | 3 | 27 | |

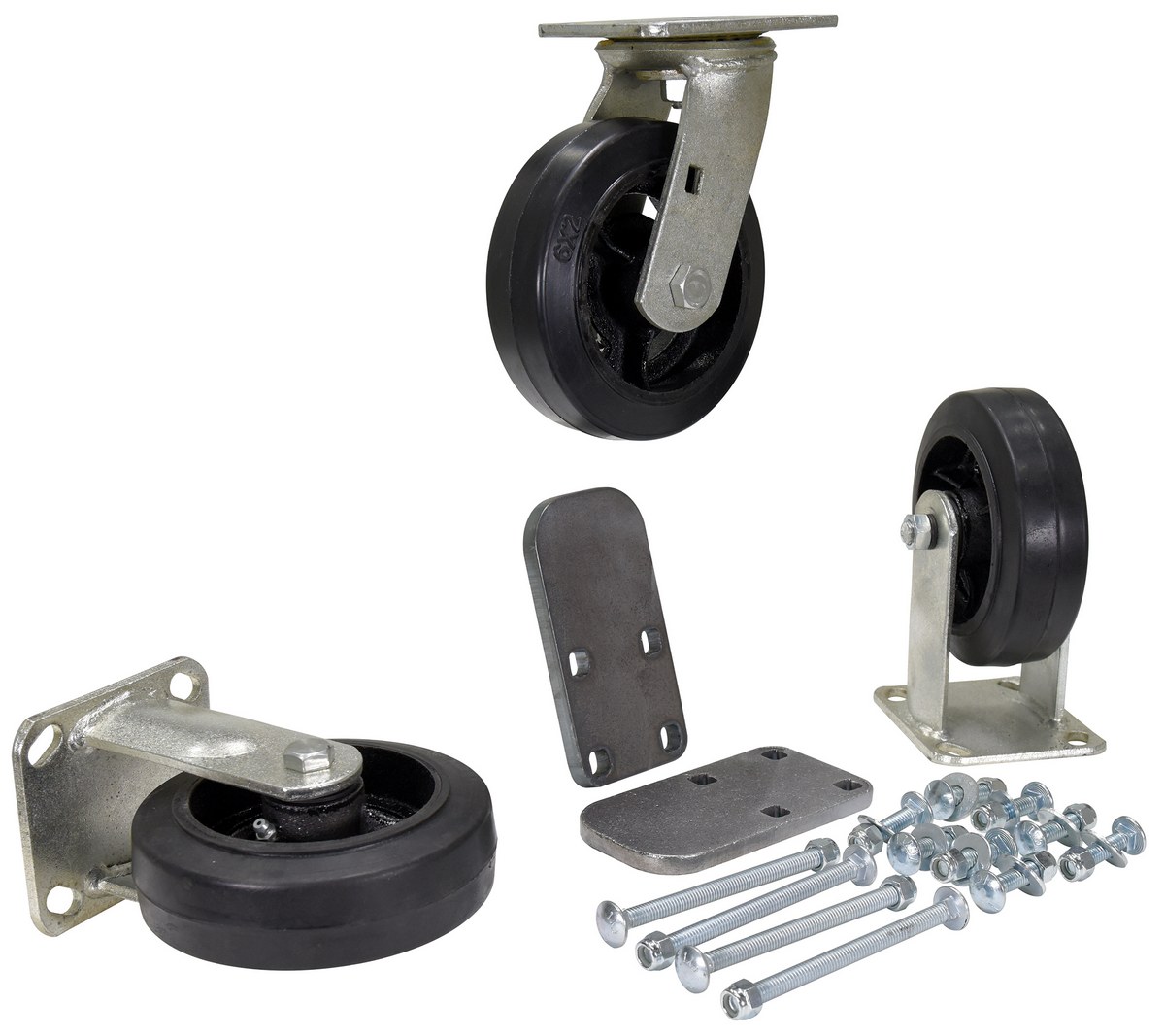

| H-CK3-MR6-2 |  |
|
6"x2" | 1,800 | Mold-On-Rubber | 3 | 25 | |

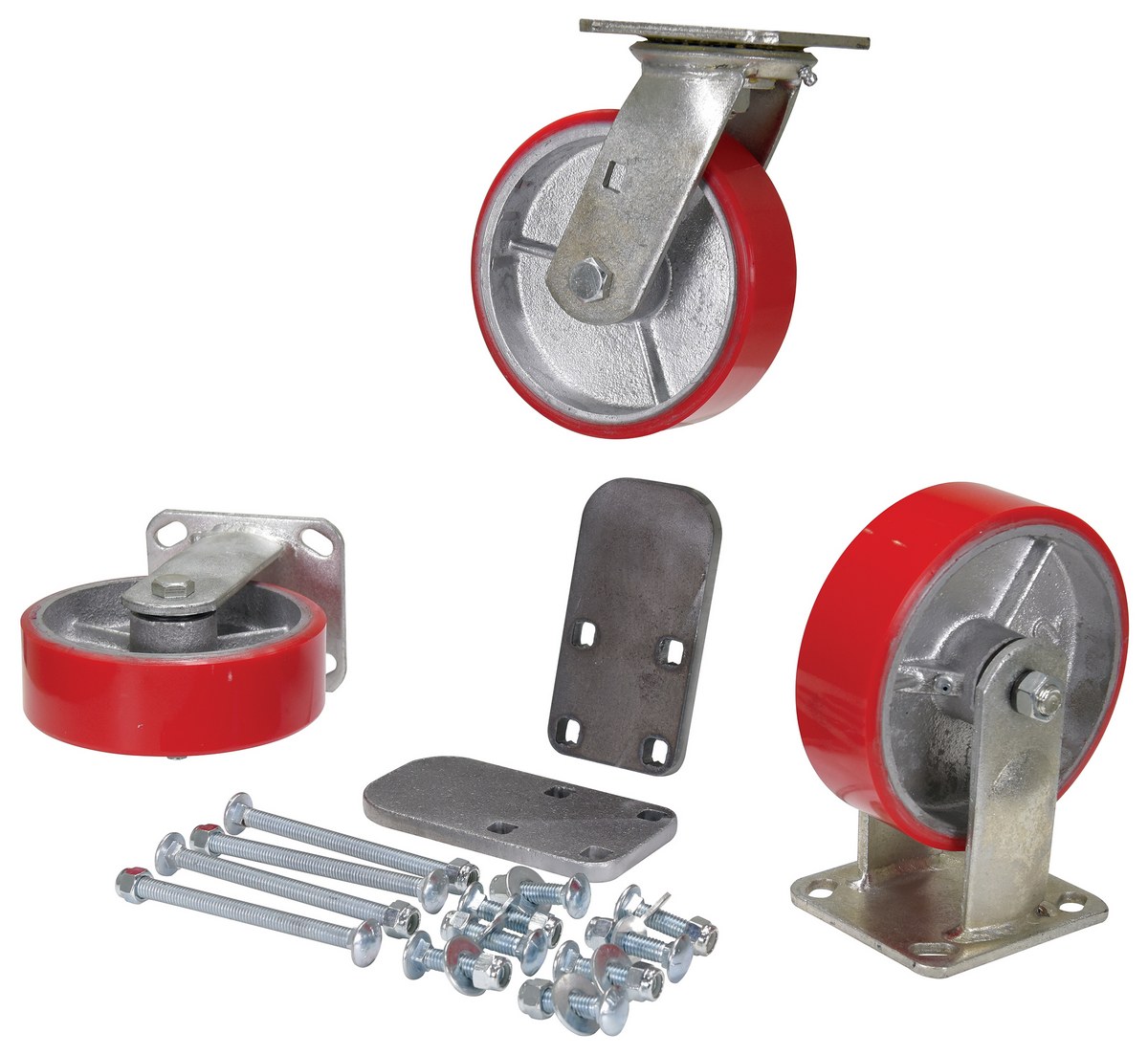

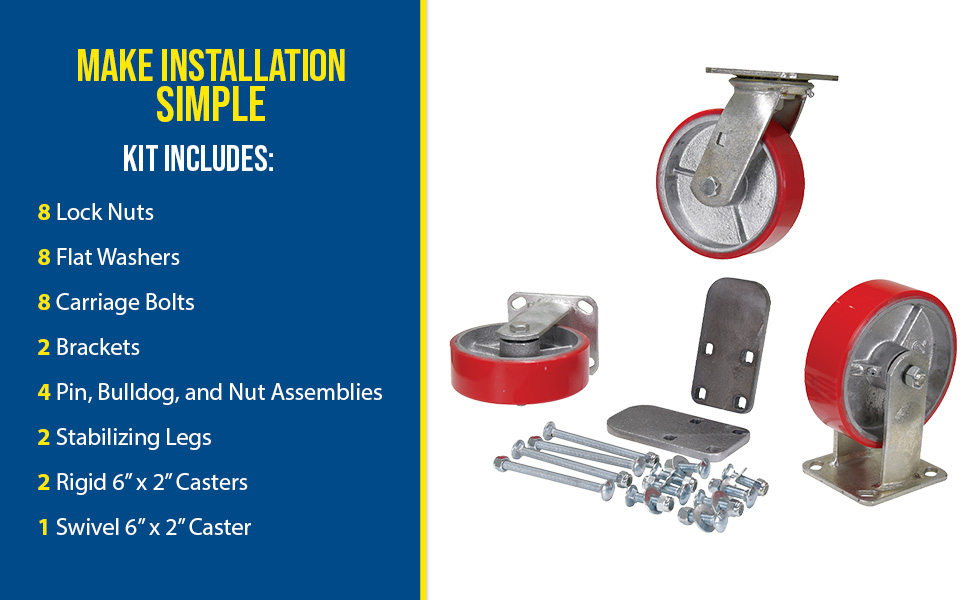

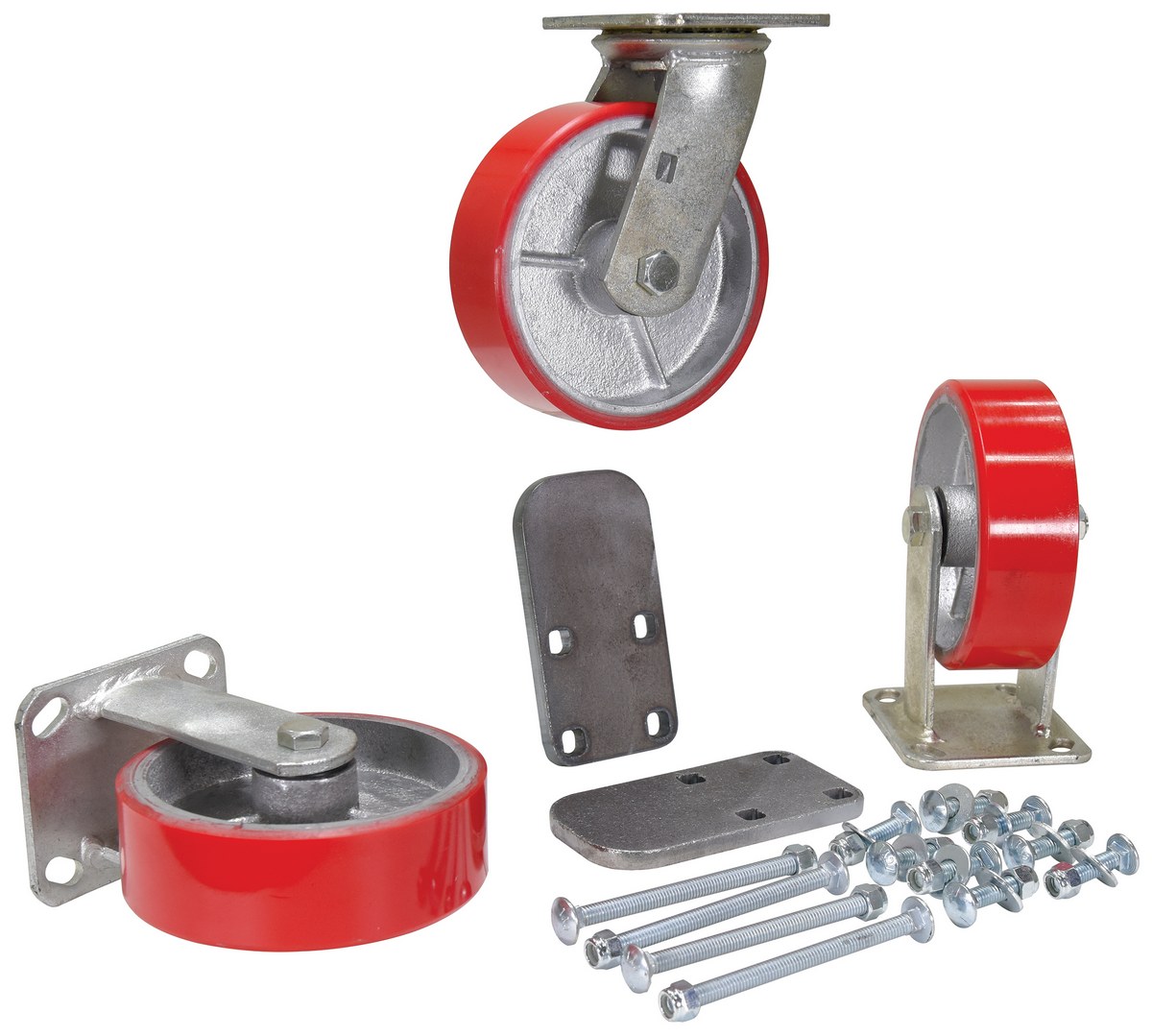

| H-CK3-PU6-2 |  |
|
6"x2" | 3,600 | Poly-On-Steel | 3 | 26 | |

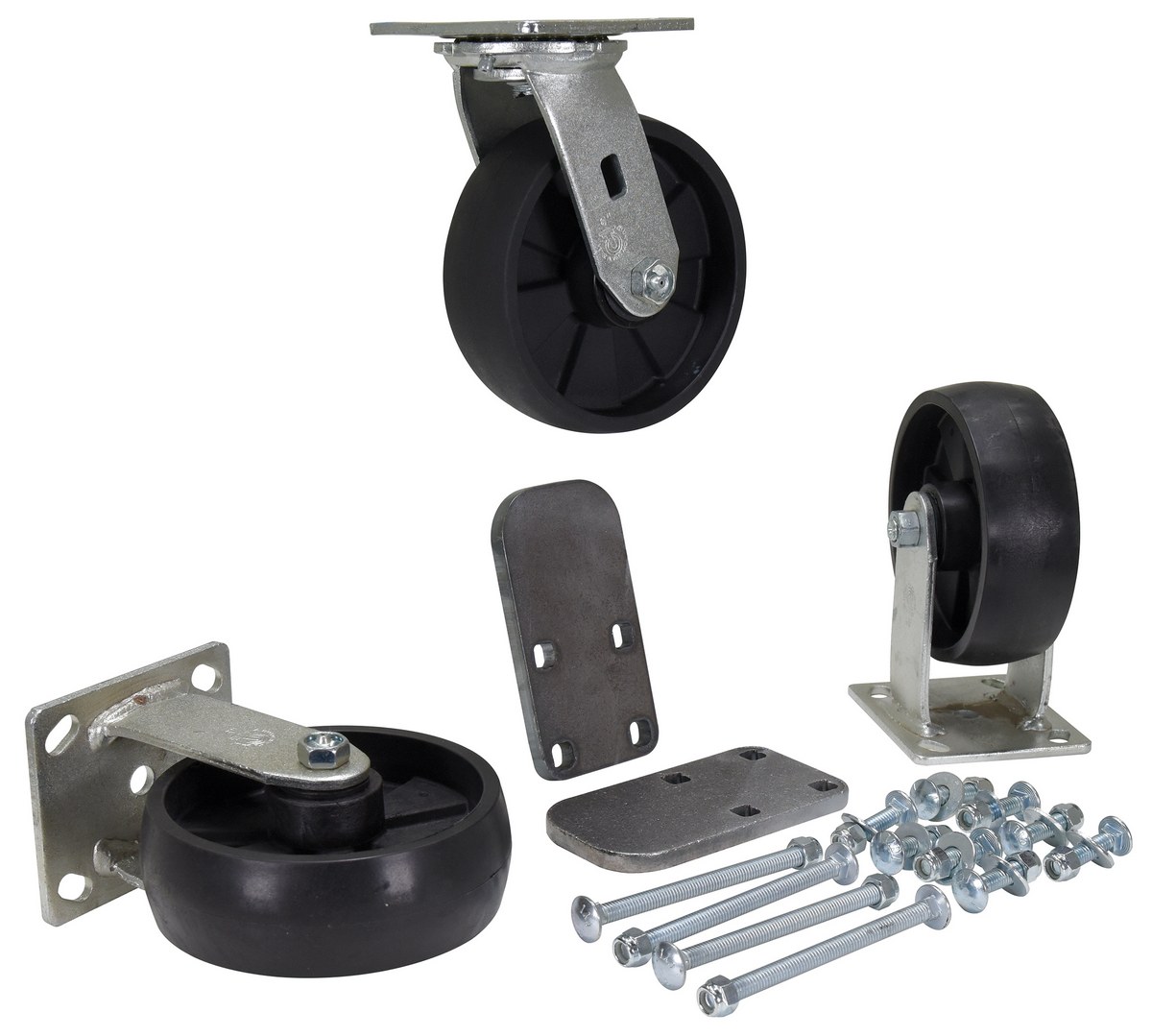

| H-CK3-GFN6-2 |  |
|
6"x2" | 3,600 | Glass Filled Nylon | 3 | 17 | |

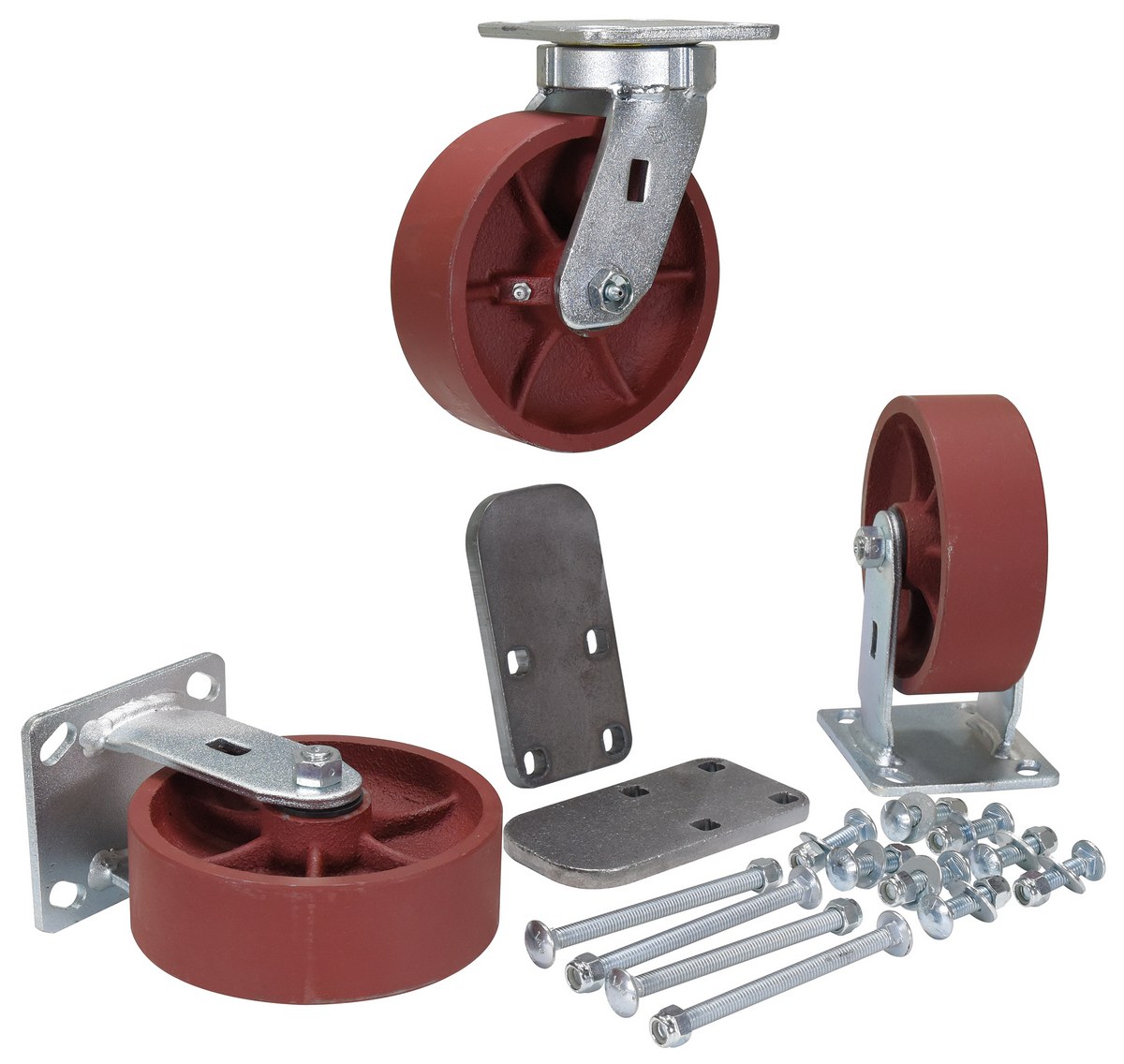

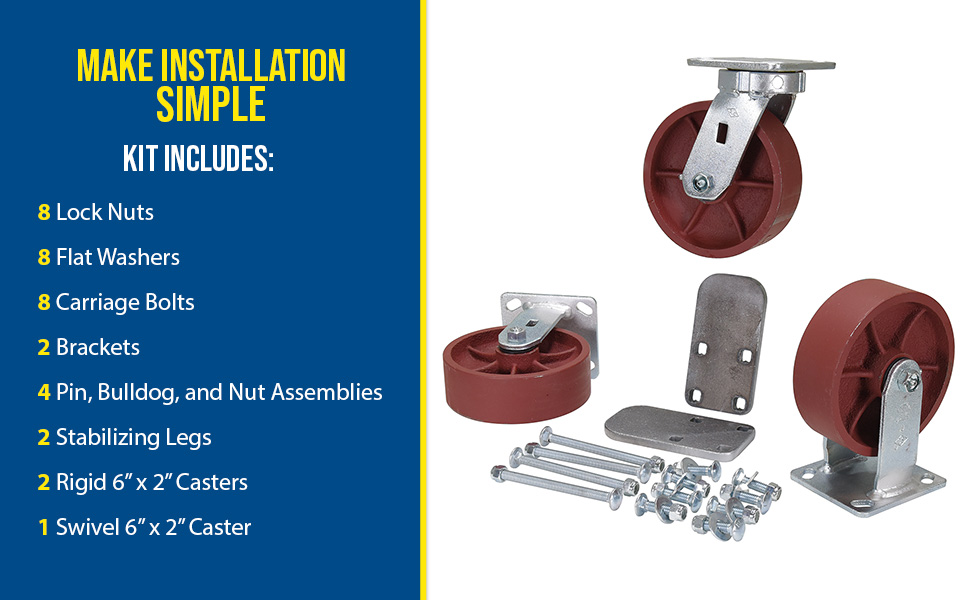

| H-CK3-SC6-2HD |  |
|
6"x2" | 6,000 | Ductile Steel | 3 | 35 | |
| Caster for H-Style Hoppers, -100 & -150 | ||||||||
| H-CK4-C11C |
|
|
6"x2" | 2,400 | Thermoplastic Rubber | 4 | 24 | |
| H-CK4-C12C |  |
|
6"x2" | 3,600 | Pure Polyurethane | 4 | 24 | |

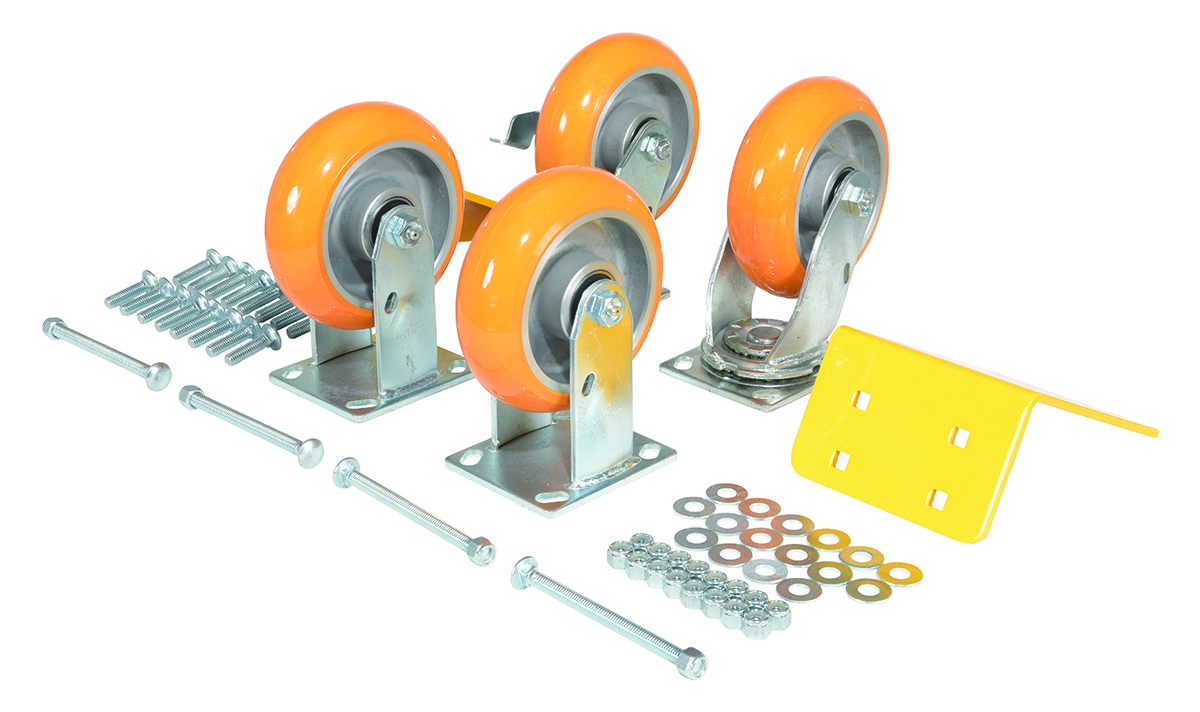

| H-CK4-C13C |  |
|
6"x2" | 5,000 | Polyurethane | 4 | 24 | |

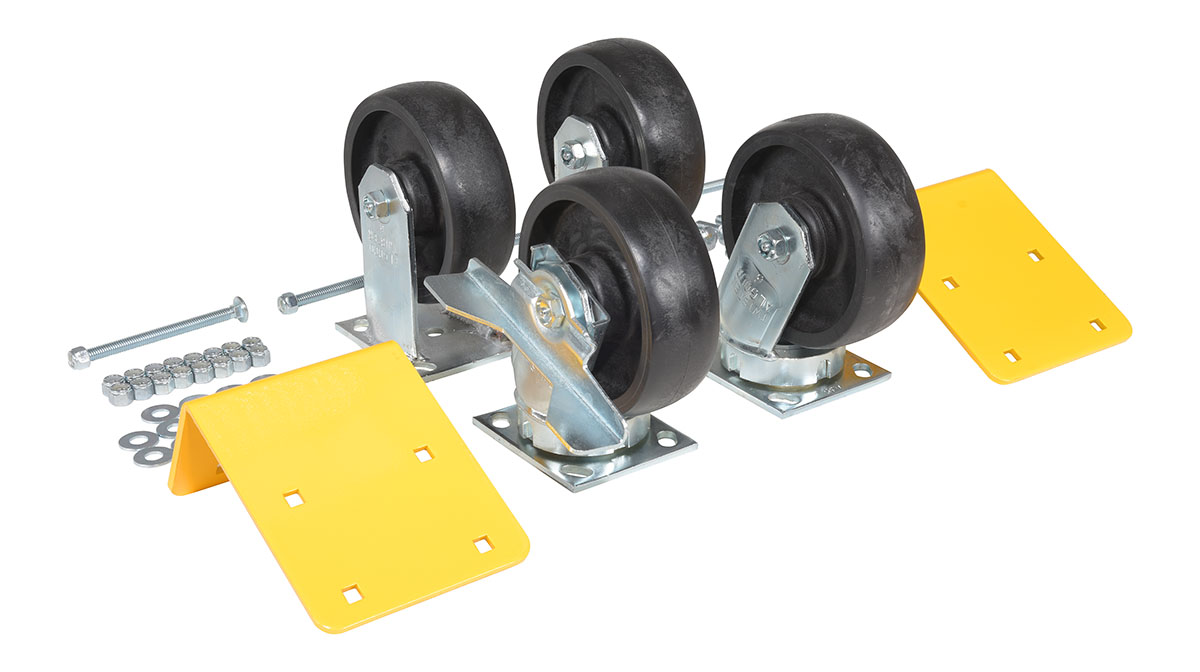

| H-CK4-C23C |  |
|
6"x2" | 8,000 | Glass Filled Nylon | 4 | 30 | |

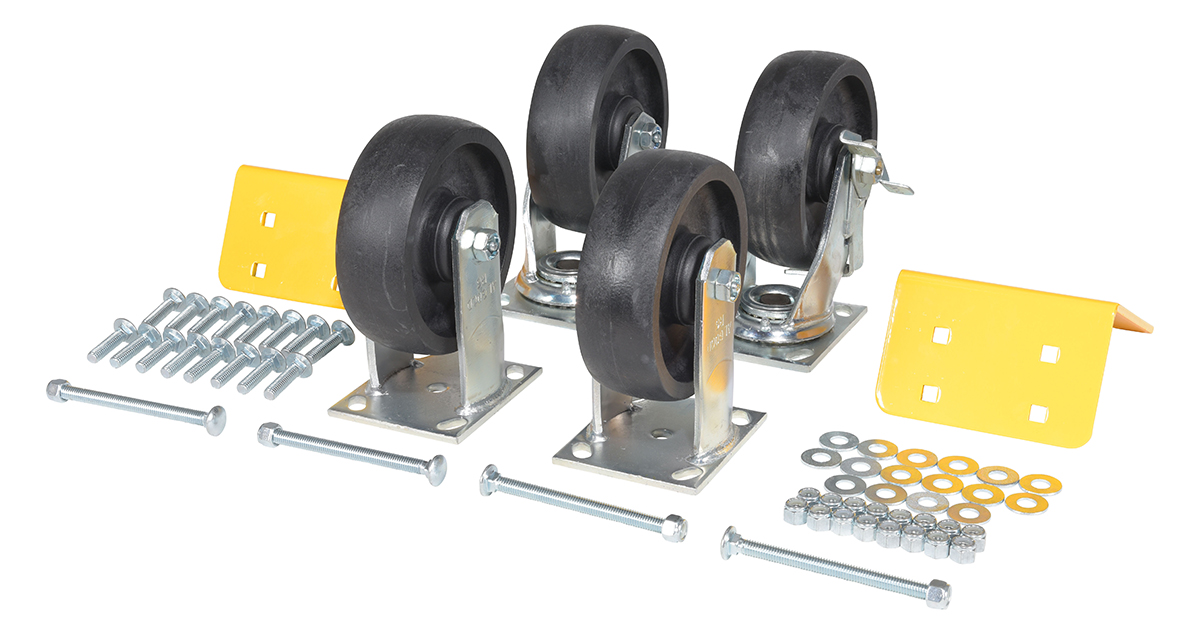

| H-CK4-C24C |  |
|
6"x2" | 5,000 | Glass Filled Nylon | 4 | 28 | |

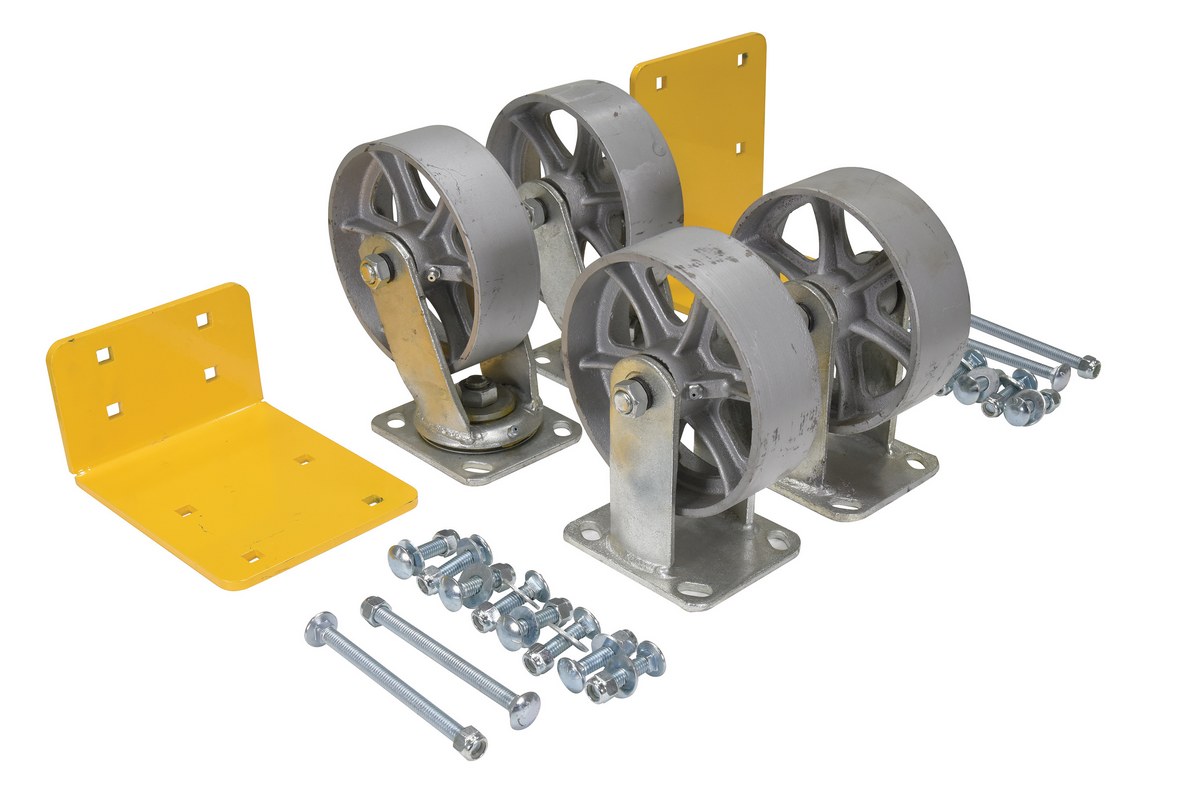

| H-CK4-SC6-2 |  |
|
6"x2" | 4,800 | Semi-Steel | 4 | 31 | |

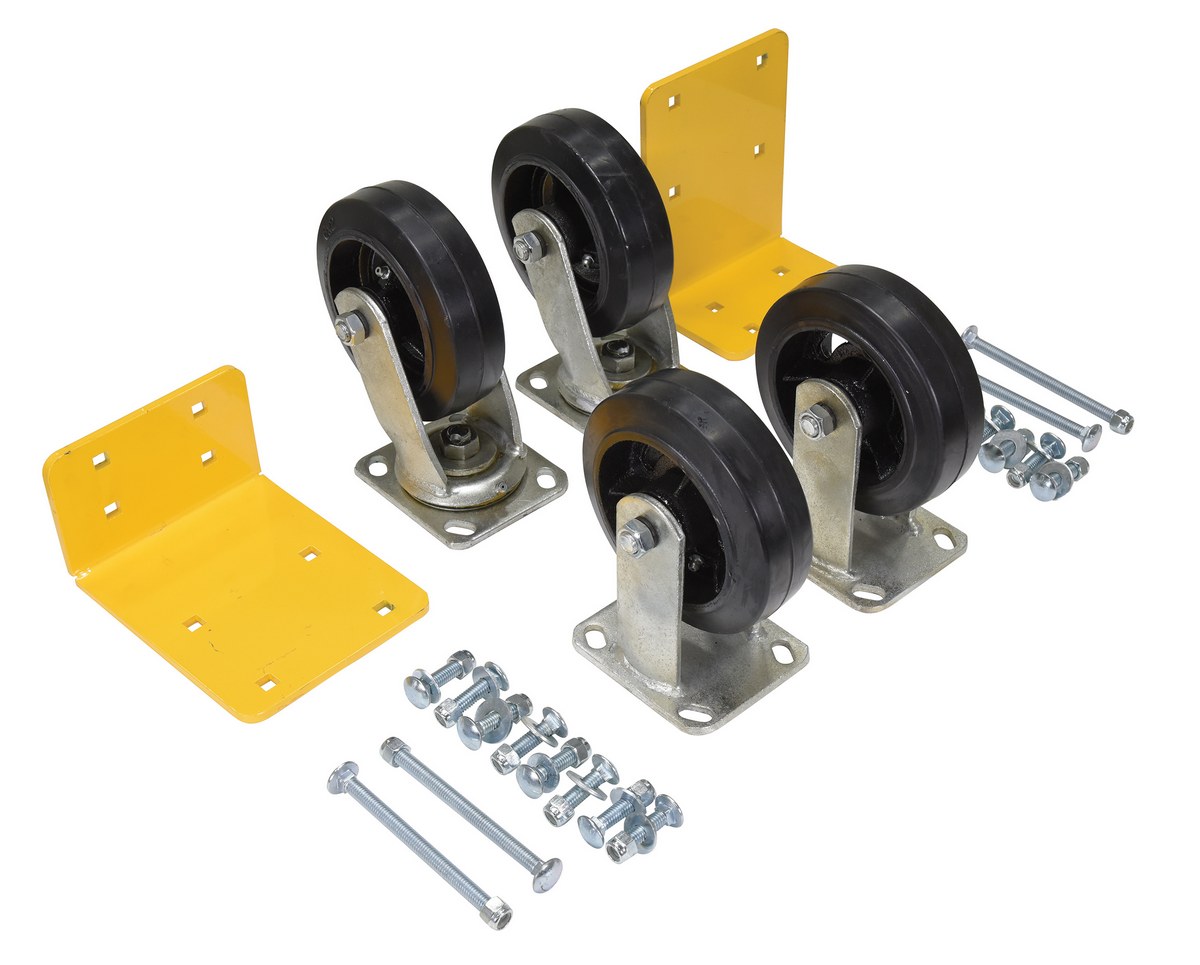

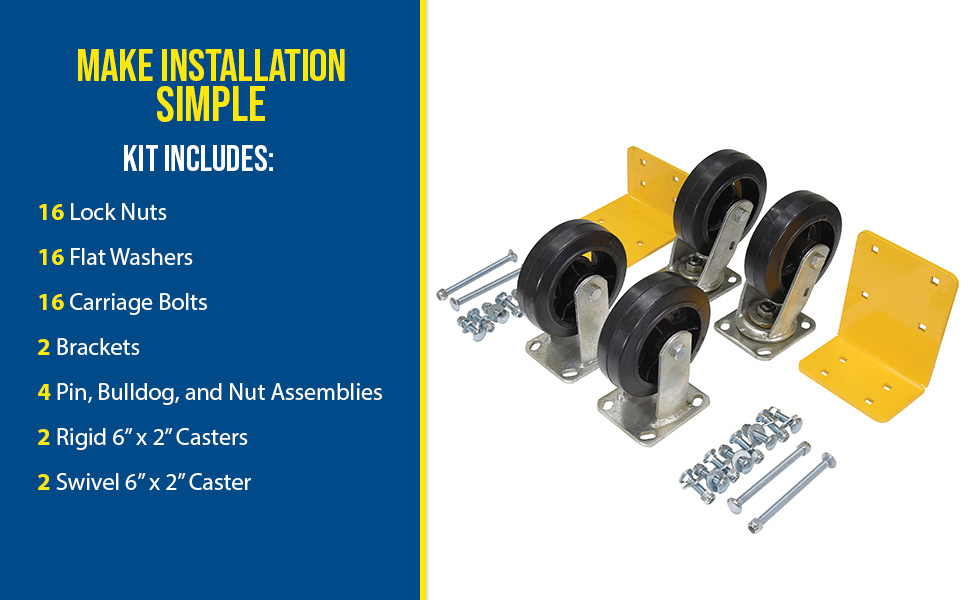

| H-CK4-MR6-2 |  |
|
6"x2" | 2,400 | Mold-On-Rubber | 4 | 28 | |

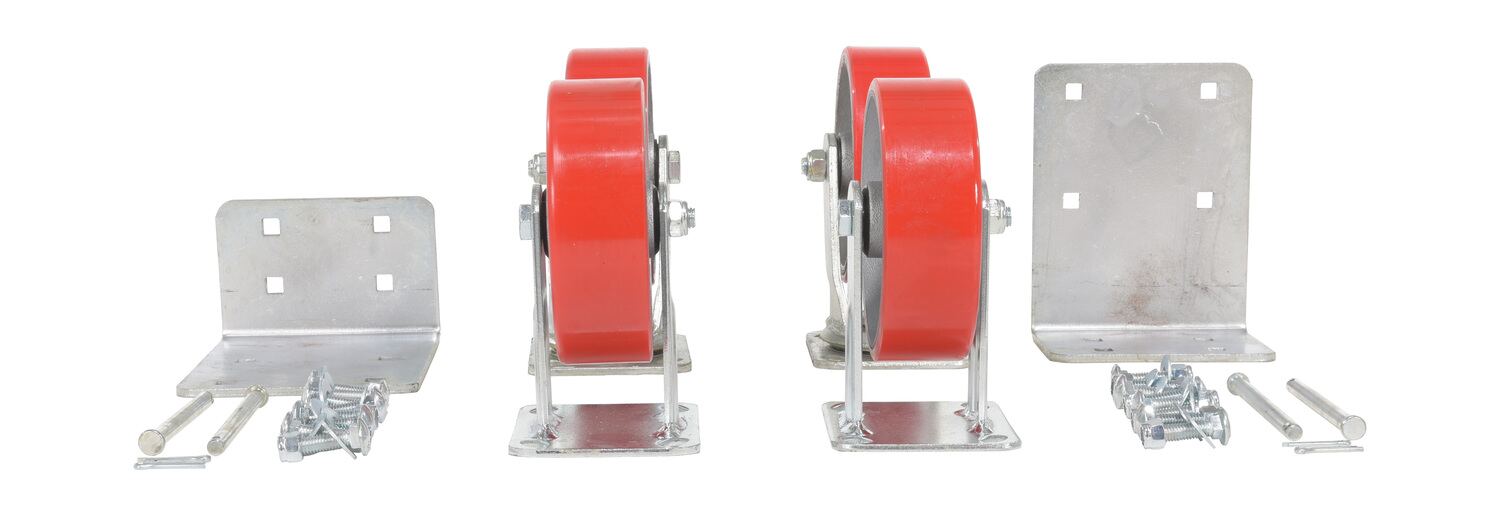

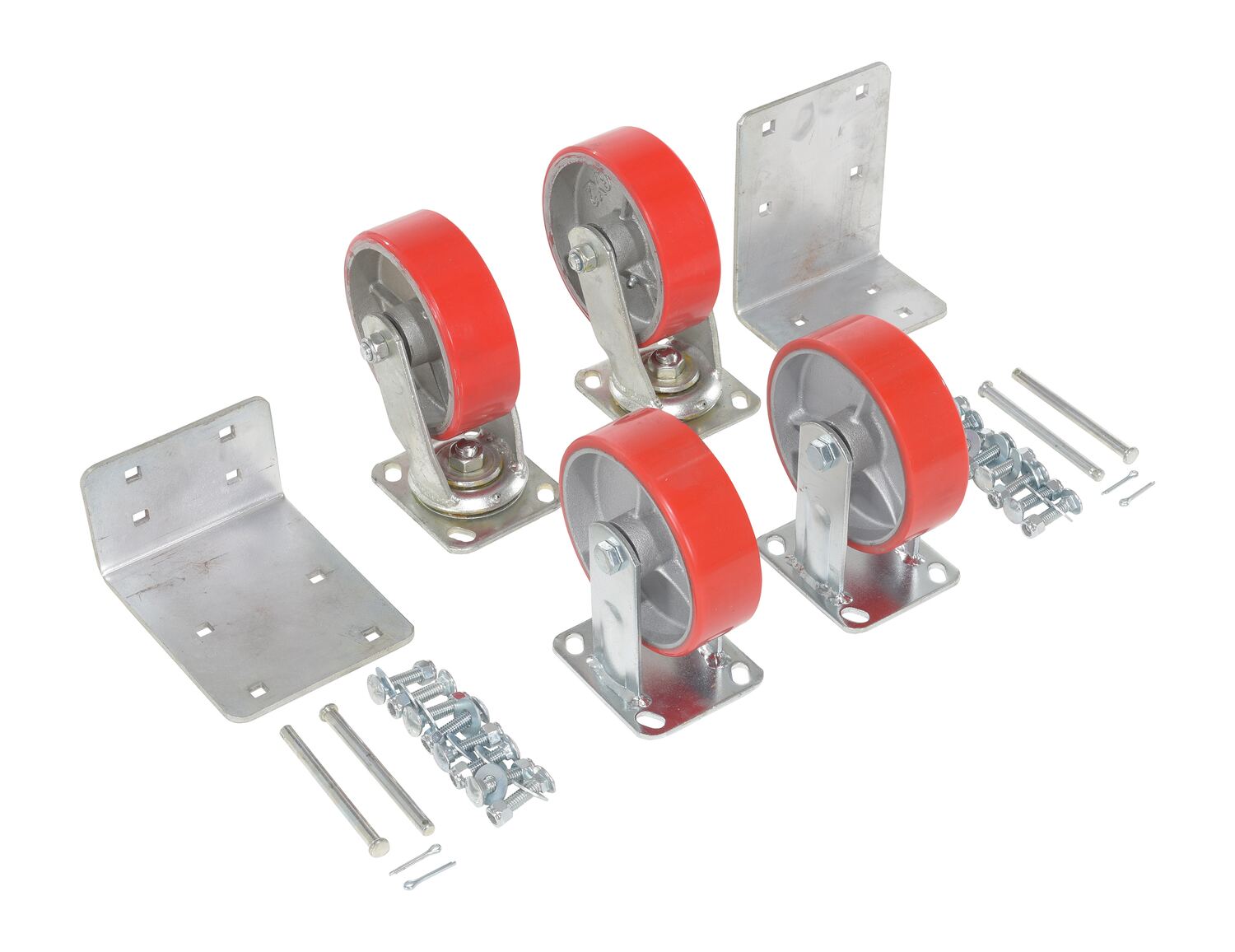

| H-CK4-PU6-2 |  |
|
6"x2" | 4,800 | Poly-On-Steel | 4 | 30 | |

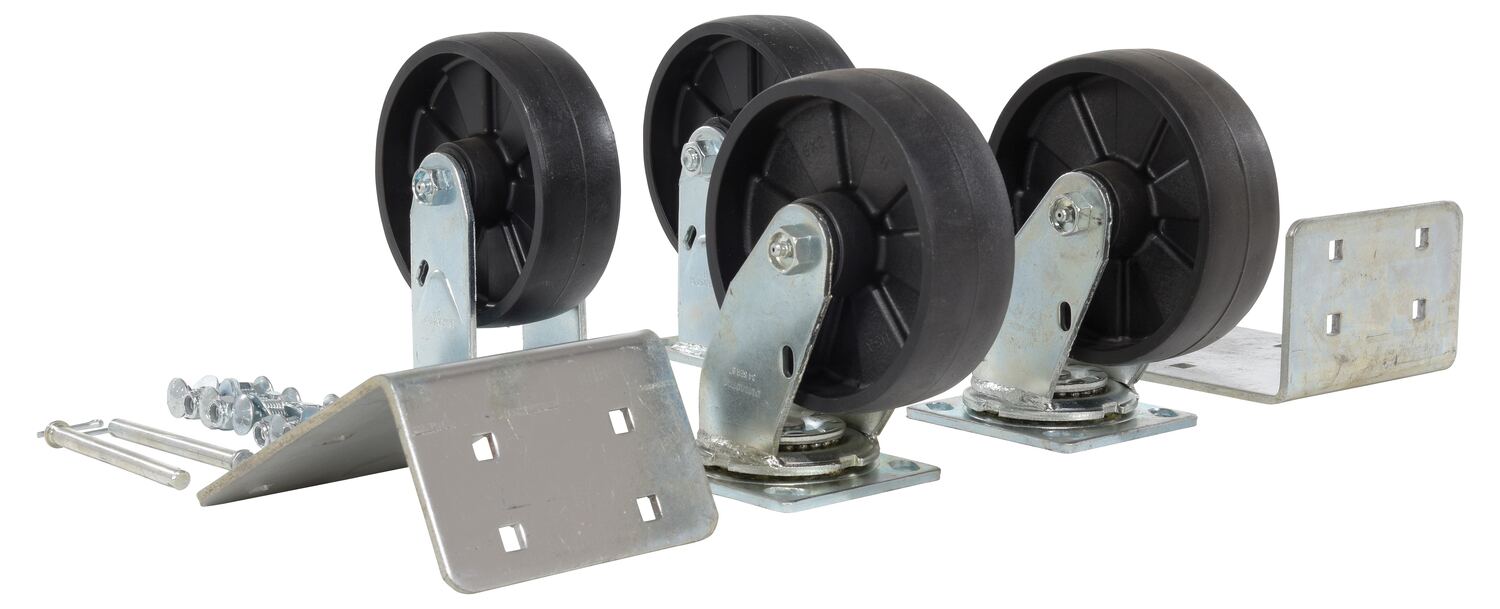

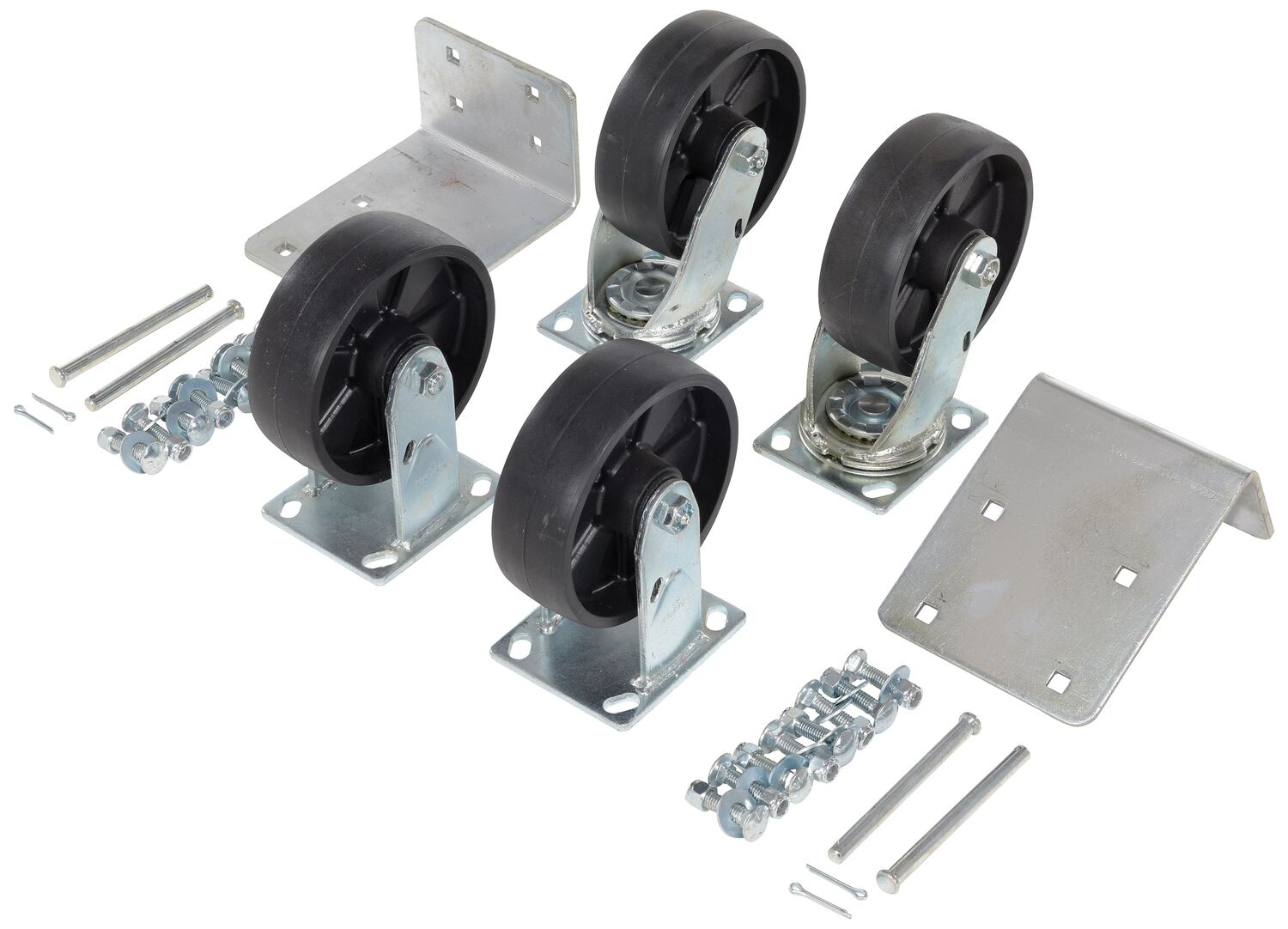

| H-CK4-GFN6-2 |  |
|
6"x2" | 4,800 | Glass Filled Nylon | 4 | 18 | |

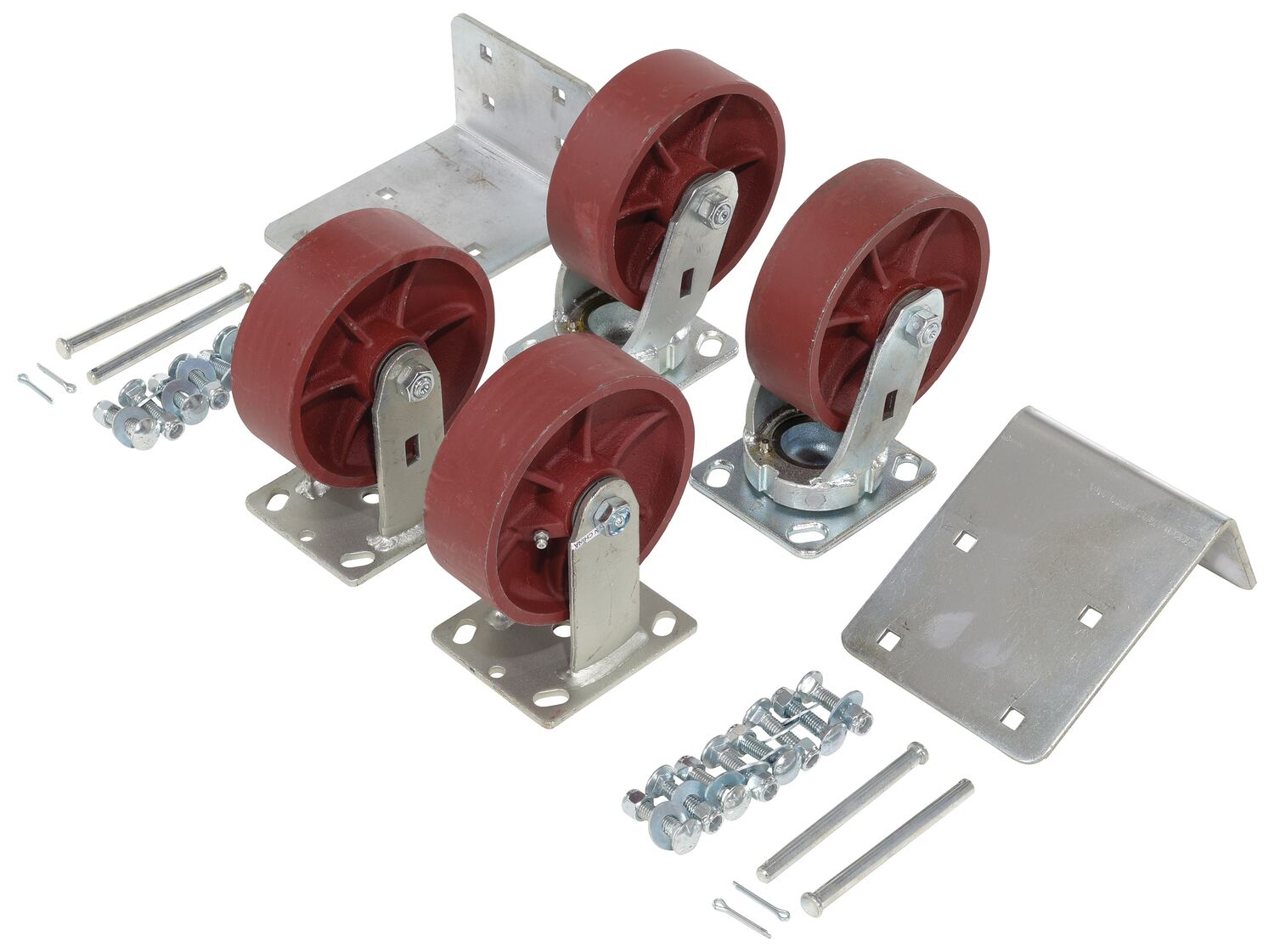

| H-CK4-SC6-2HD |  |
|
6"x2" | 8,000 | Ductile Steel | 4 | 42 | |
| Caster for D-Style Hoppers | ||||||||

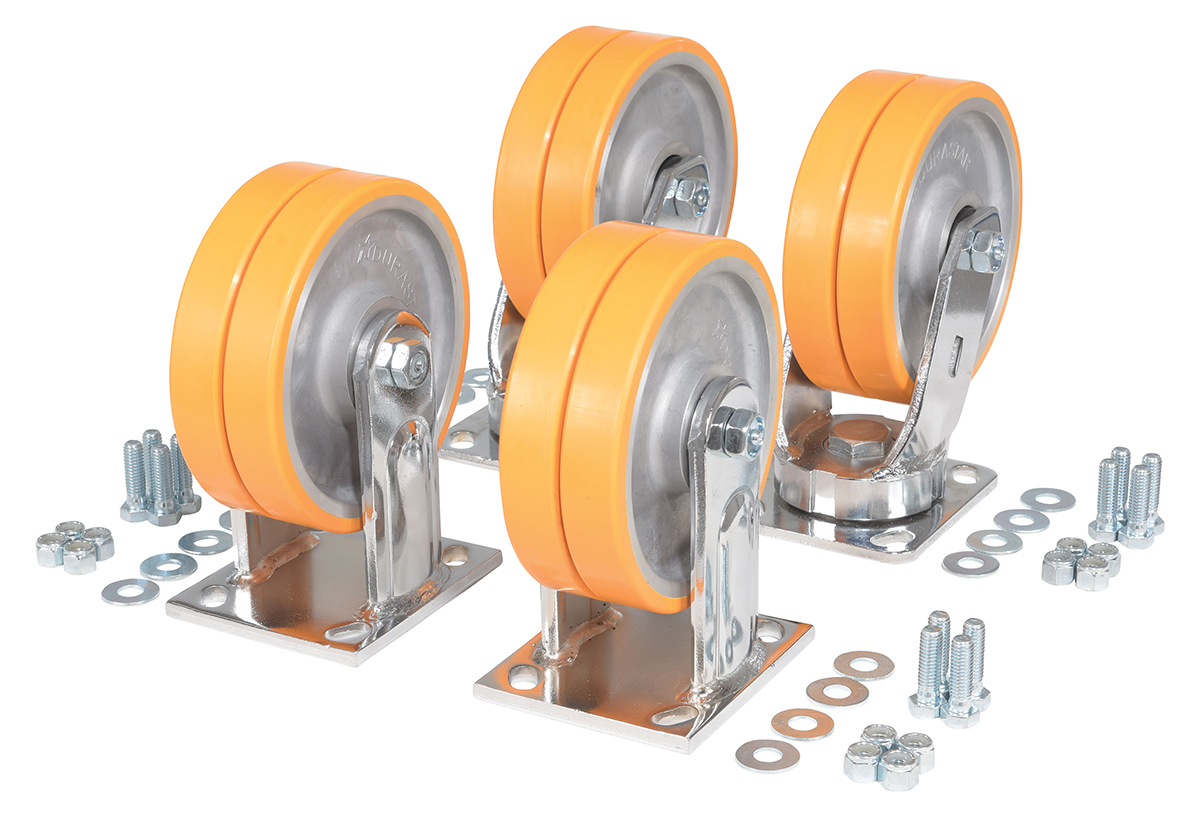

| D-CK4-C15C |  |
|
6"x2" | 6,000 | Dual Polyurethane | 4 | 7.2 | |
| D-CK4-C15D |  |
|
8"x2" | 8,000 | Dual Polyurethane | 4 | 8.75 | |

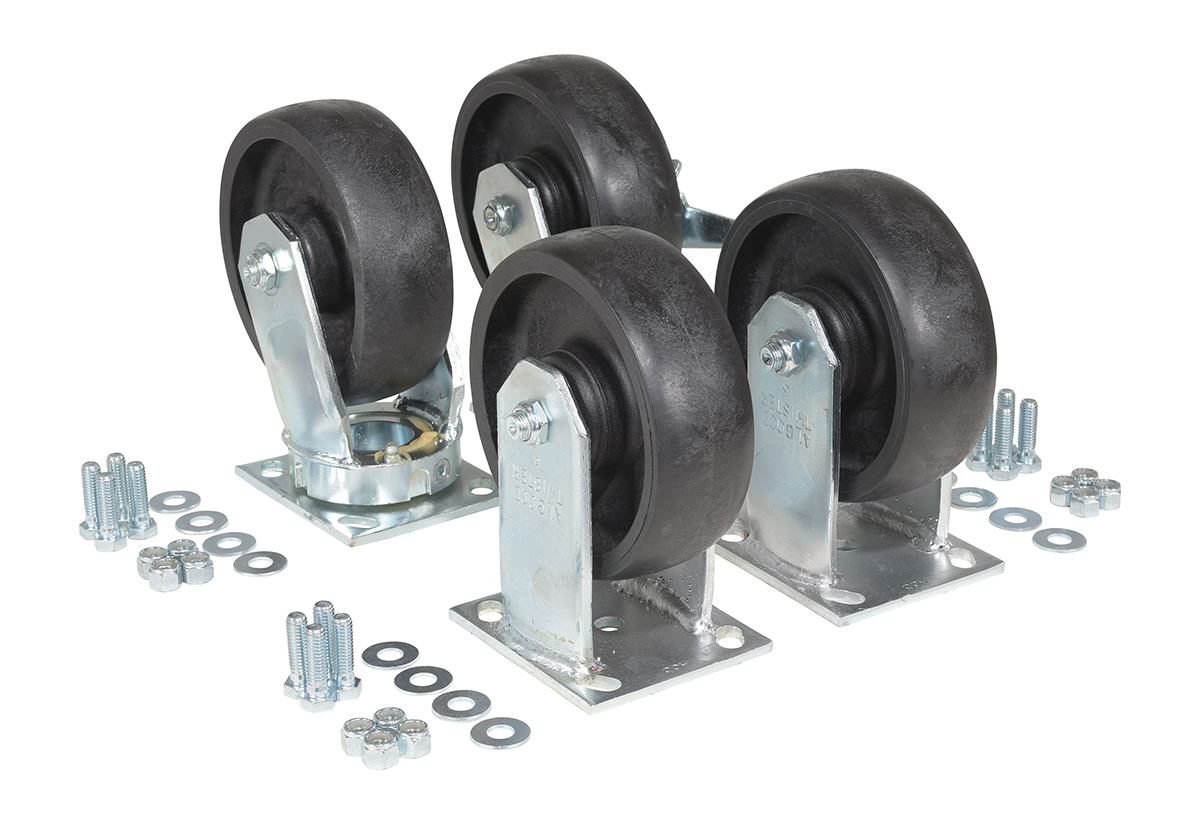

| D-CK4-C23C |  |
|
6"x2" | 8,000 | Glass Filled Nylon | 4 | 5.72 | |
| D-CK4-C24C |  |
|
8"x2" | 5,000 | Glass Filled Nylon | 4 | 5.43 | |

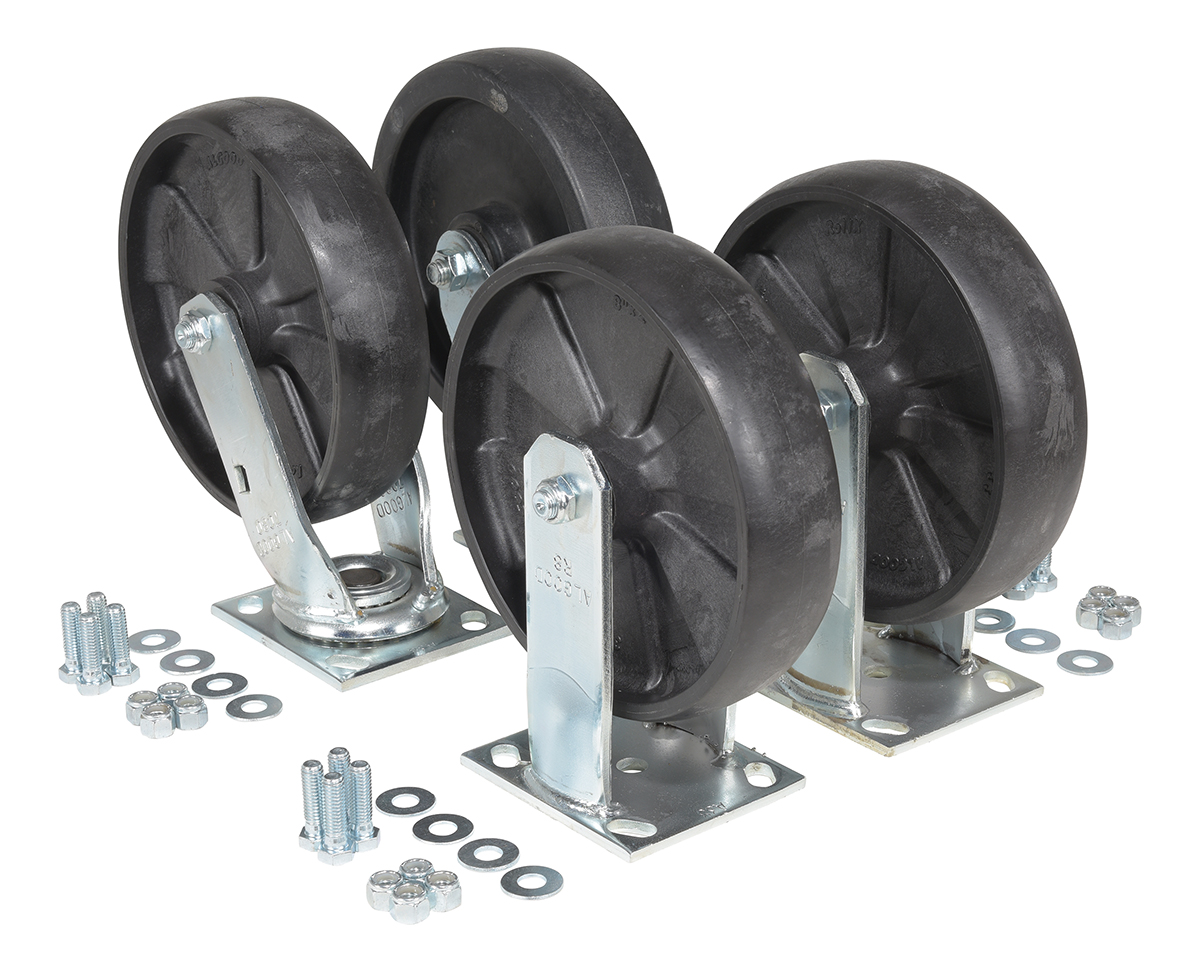

| D-CK4-C24D |  |
|
8"x2" | 5,000 | Glass Filled Nylon | 4 | 5.88 | |
| D-CK4-C32C |  |
|
6"x2" | 2,400 | Thermoplastic Rubber (TPR) | 4 | 6 | |
| D-CK4-C32D |  |
|
8"x2" | 2,400 | Thermoplastic Rubber (TPR) | 4 | - | |
| D-CK4-C33C |  |
|
6"x2" | 3,600 | Pure Polyurethane | 4 | 6 | |
| D-CK4-C33D |  |
|
8"x2" | 4,000 | Pure Polyurethane | 4 | 7.25 | |
| D-CK4-C34C |  |
|
6"x2" | 6,000 | Elastic Polyurethane | 4 | 6.75 | |

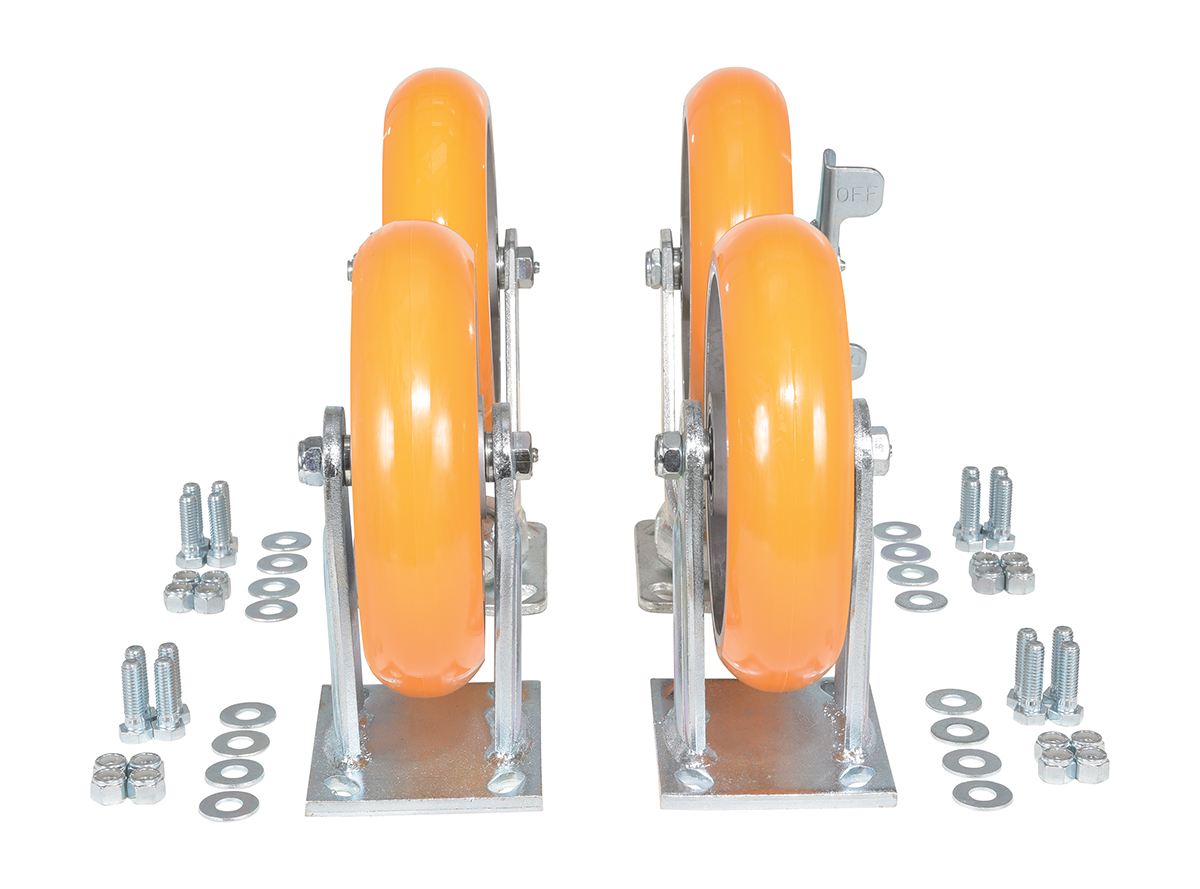

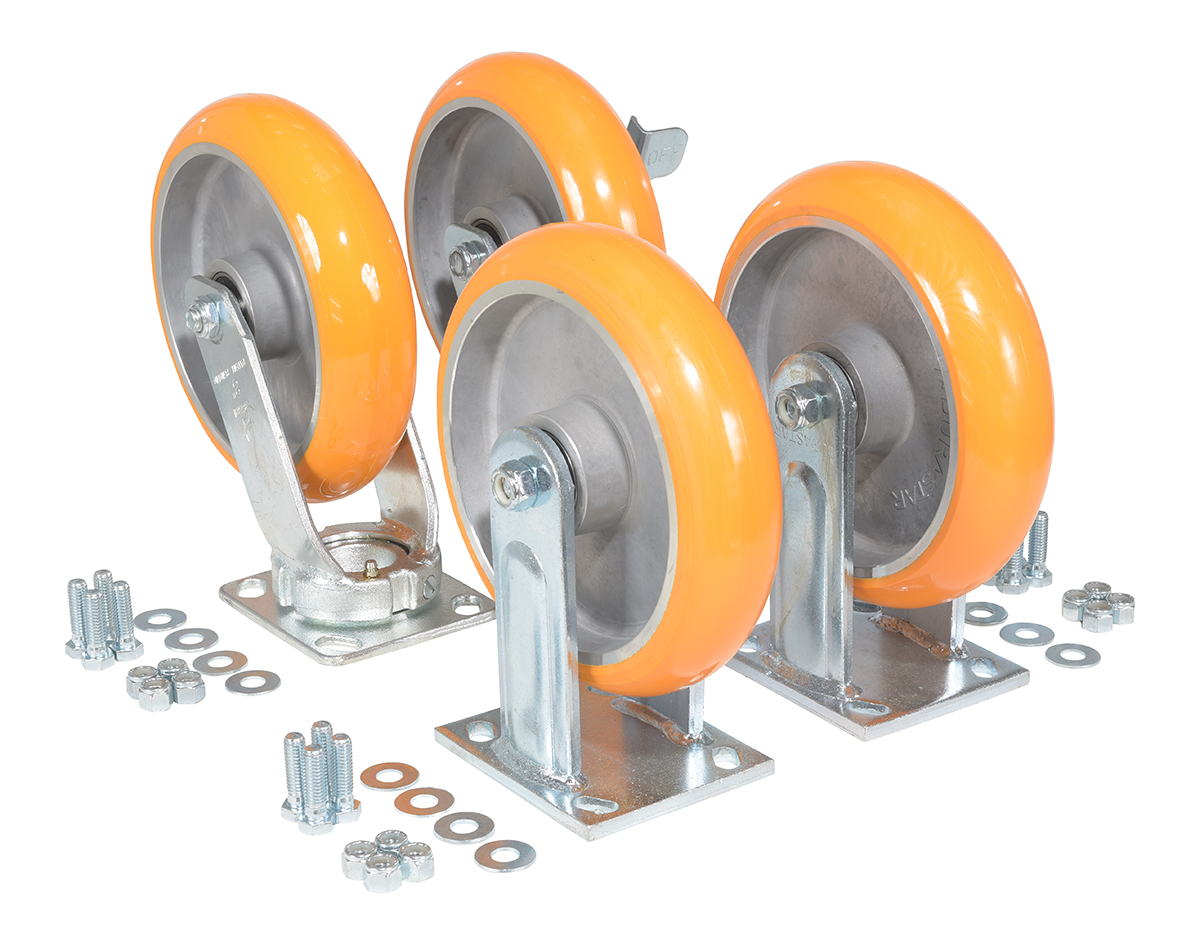

| D-CK4-C34D |  |
|
8"x2" | 8,000 | Elastic Polyurethane | 4 | 8.25 | |

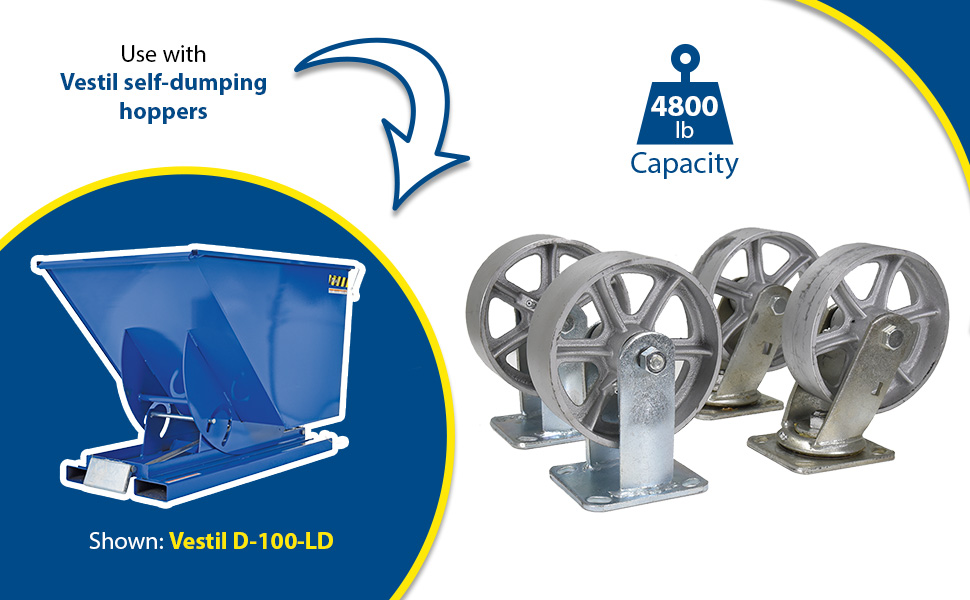

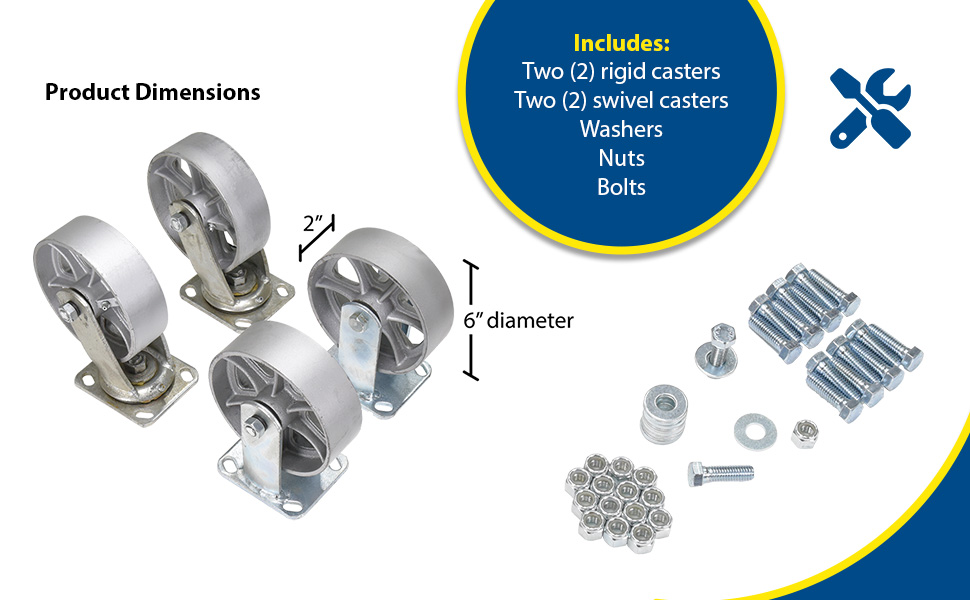

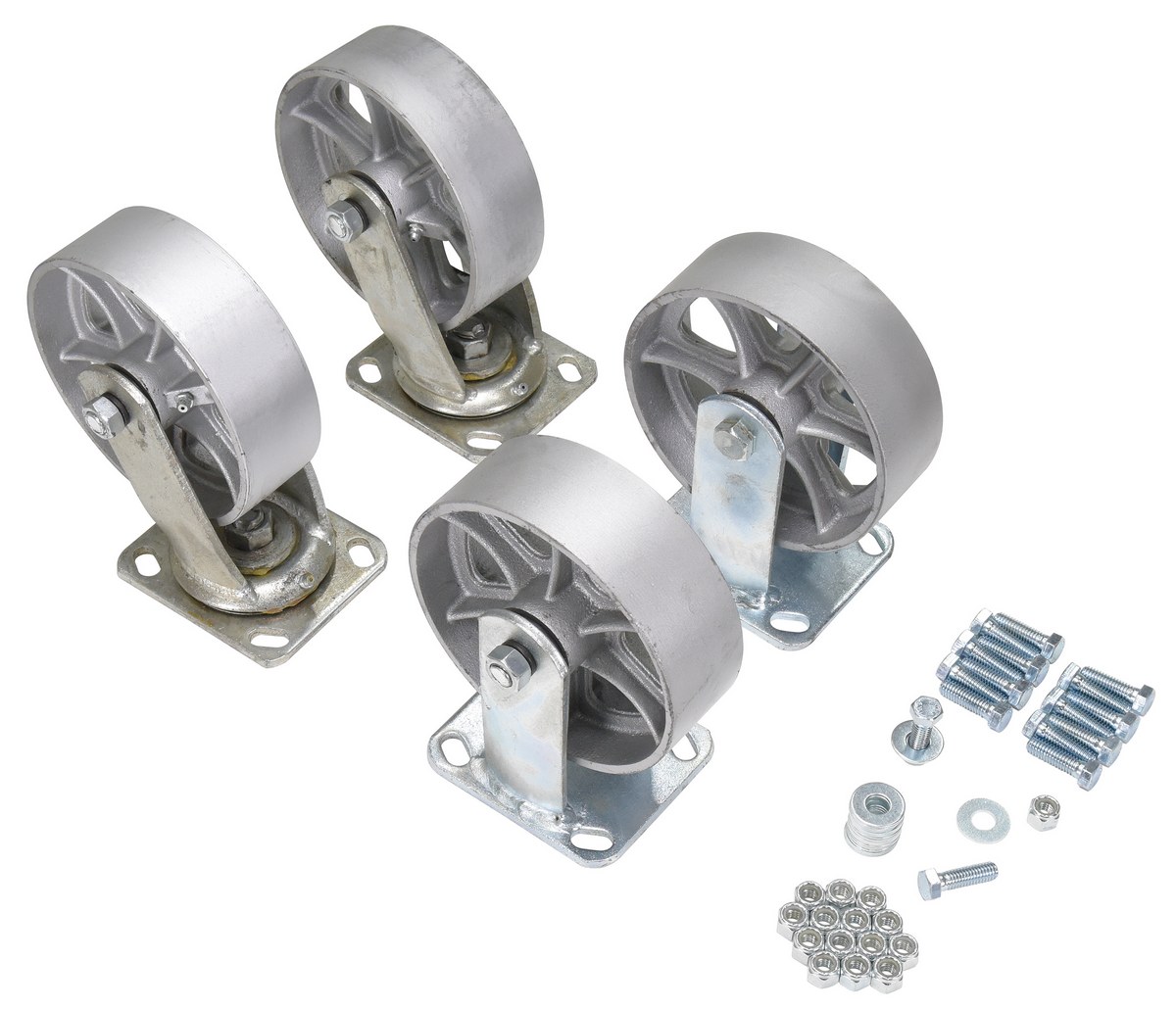

| D-CK4-SC6-2 |  |
|
6"x2" | 4,800 | Semi-Steel | 4 | 19 | |

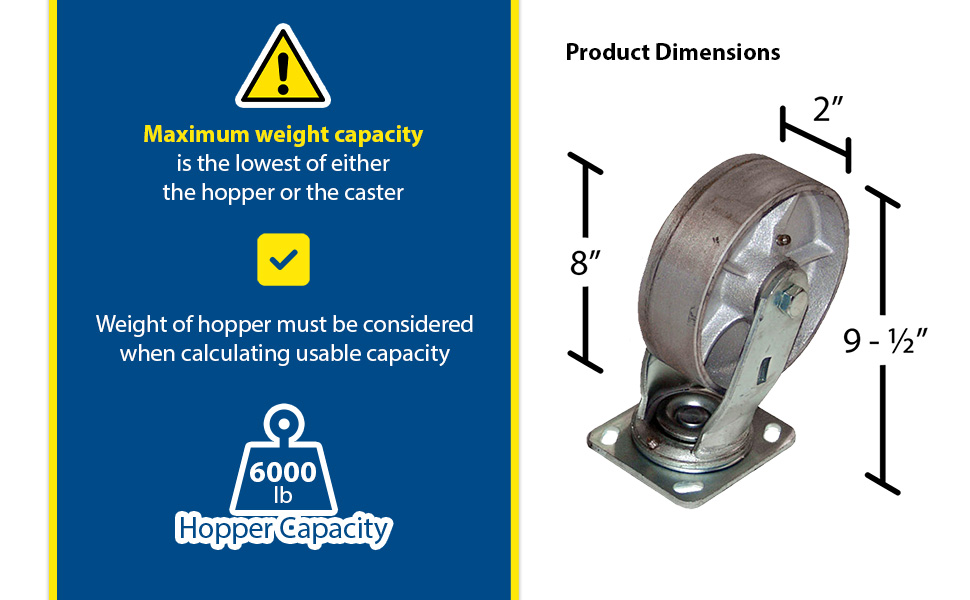

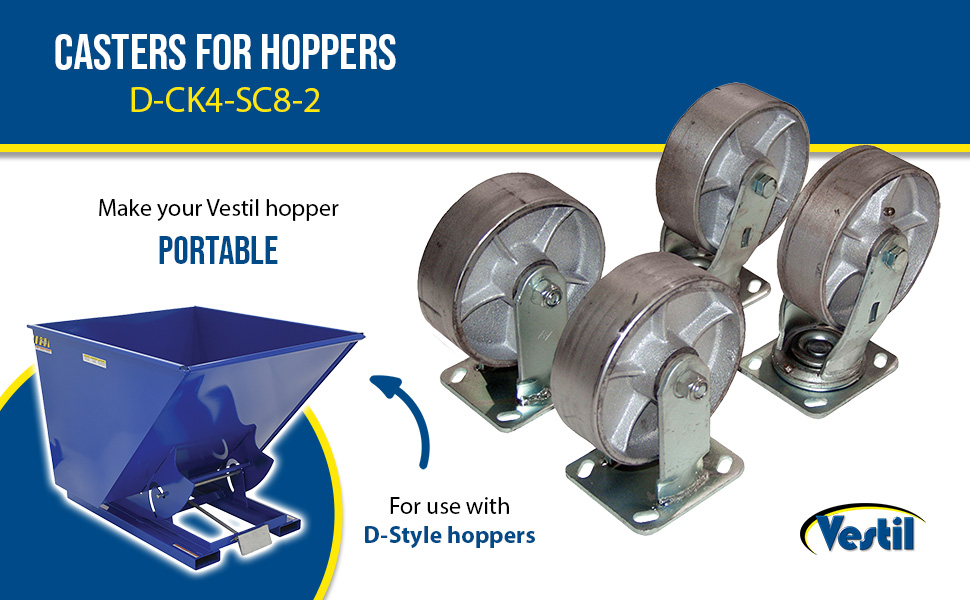

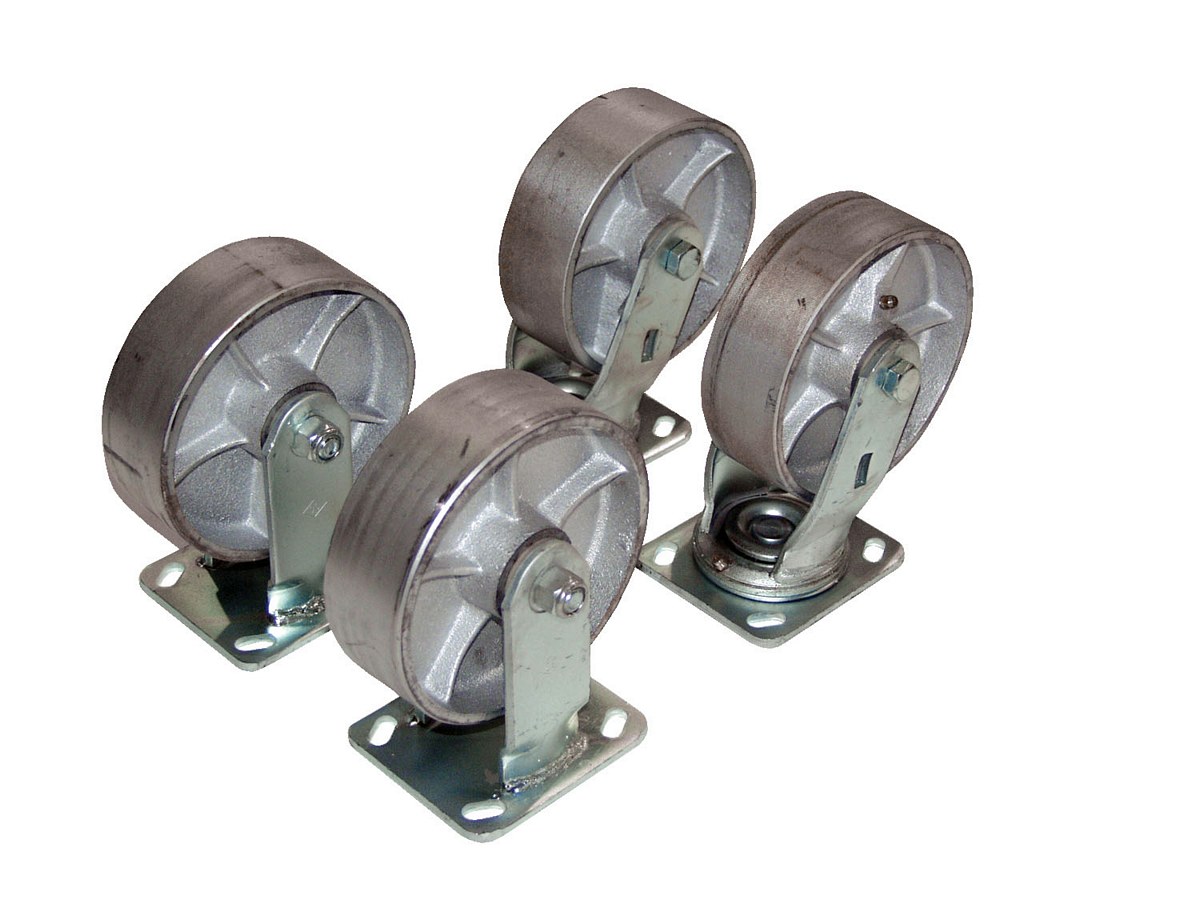

| D-CK4-SC8-2 |  |
|
8"x2" | 4,800 | Semi-Steel | 4 | 22 | |

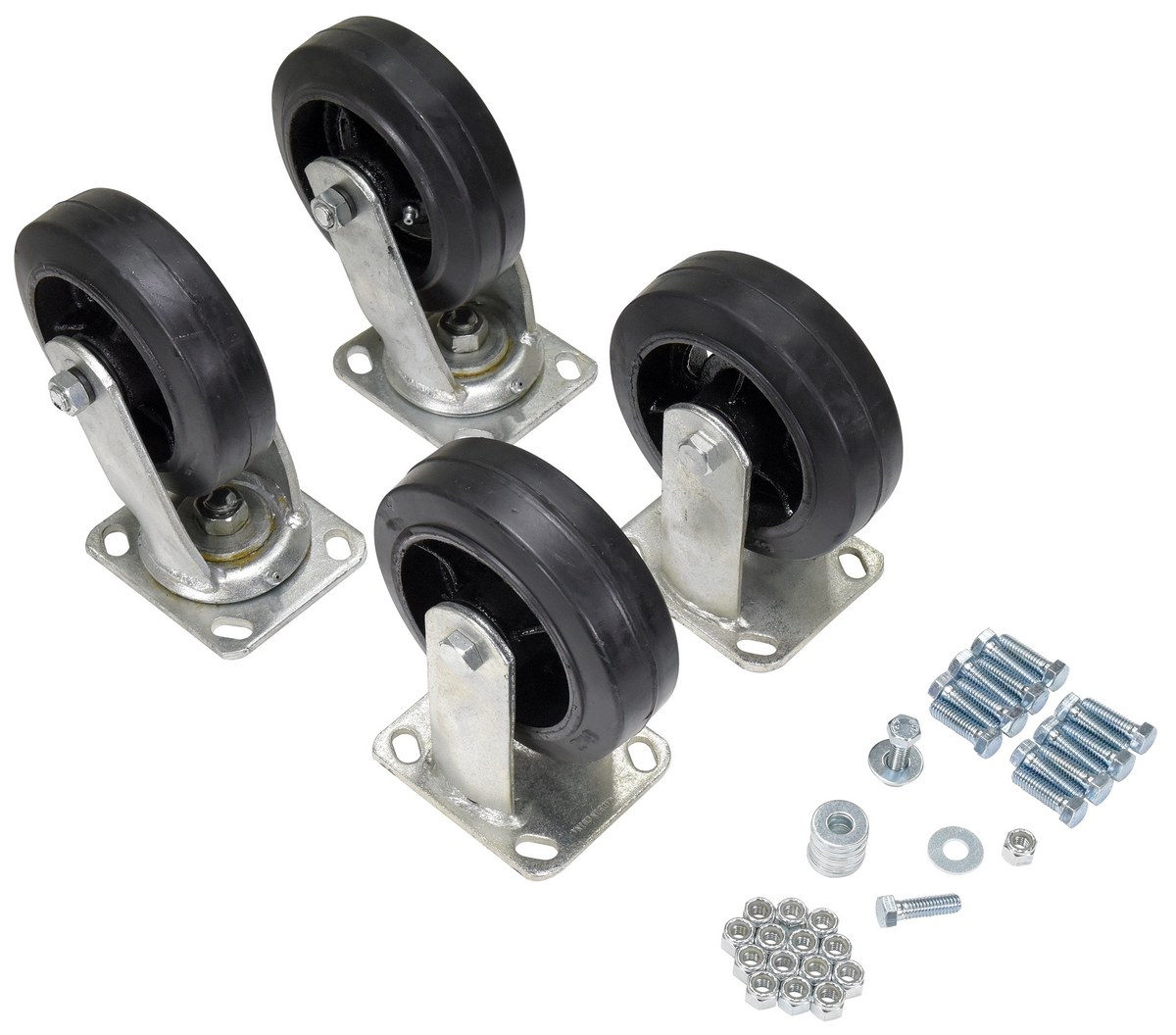

| D-CK4-MR6-2 |  |
|
6"x2" | 2,400 | Mold-On-Rubber | 4 | 29 | |

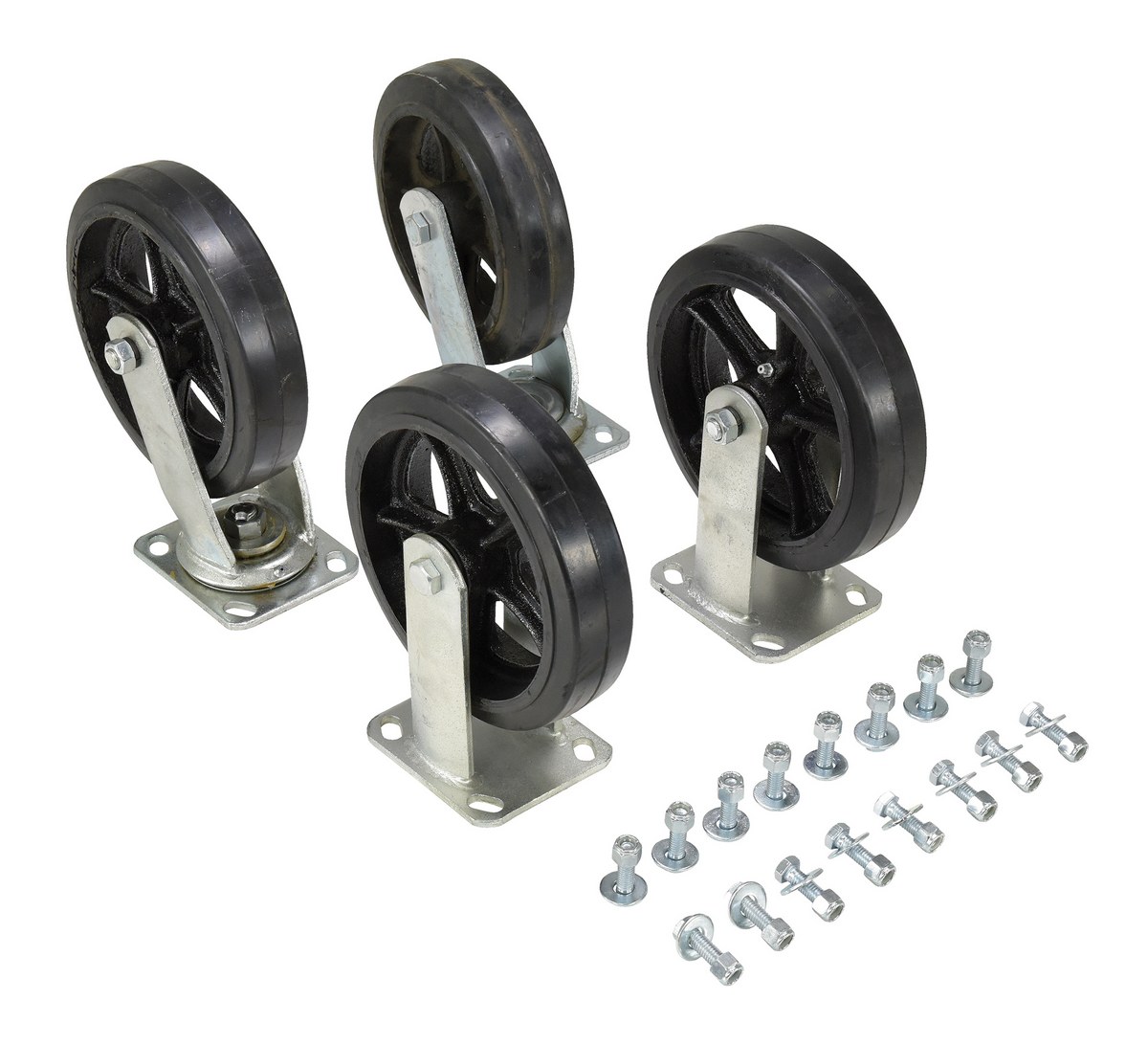

| D-CK4-MR8-2 |  |
|
8"x2" | 2,400 | Mold-On-Rubber | 4 | 37 | |

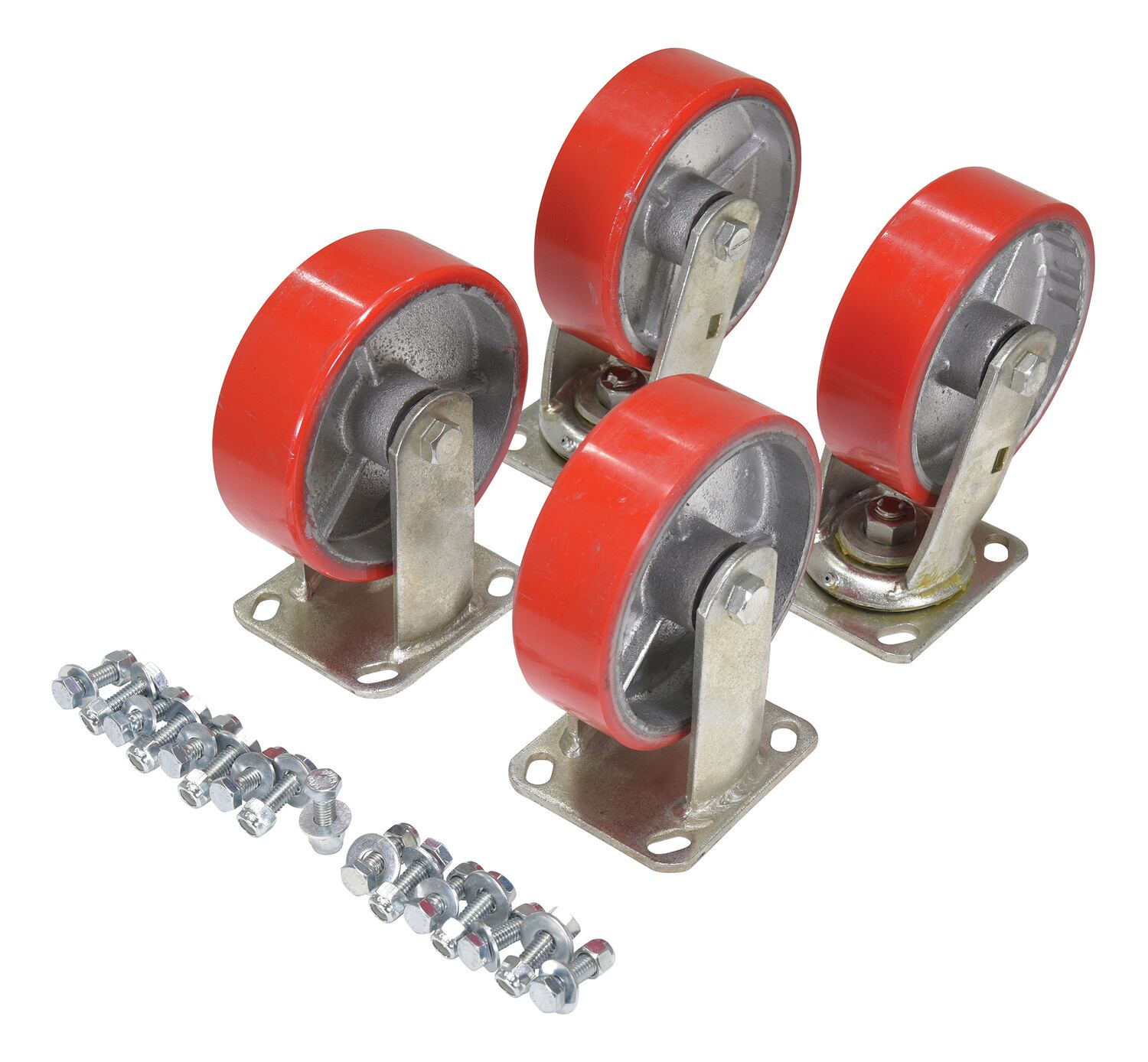

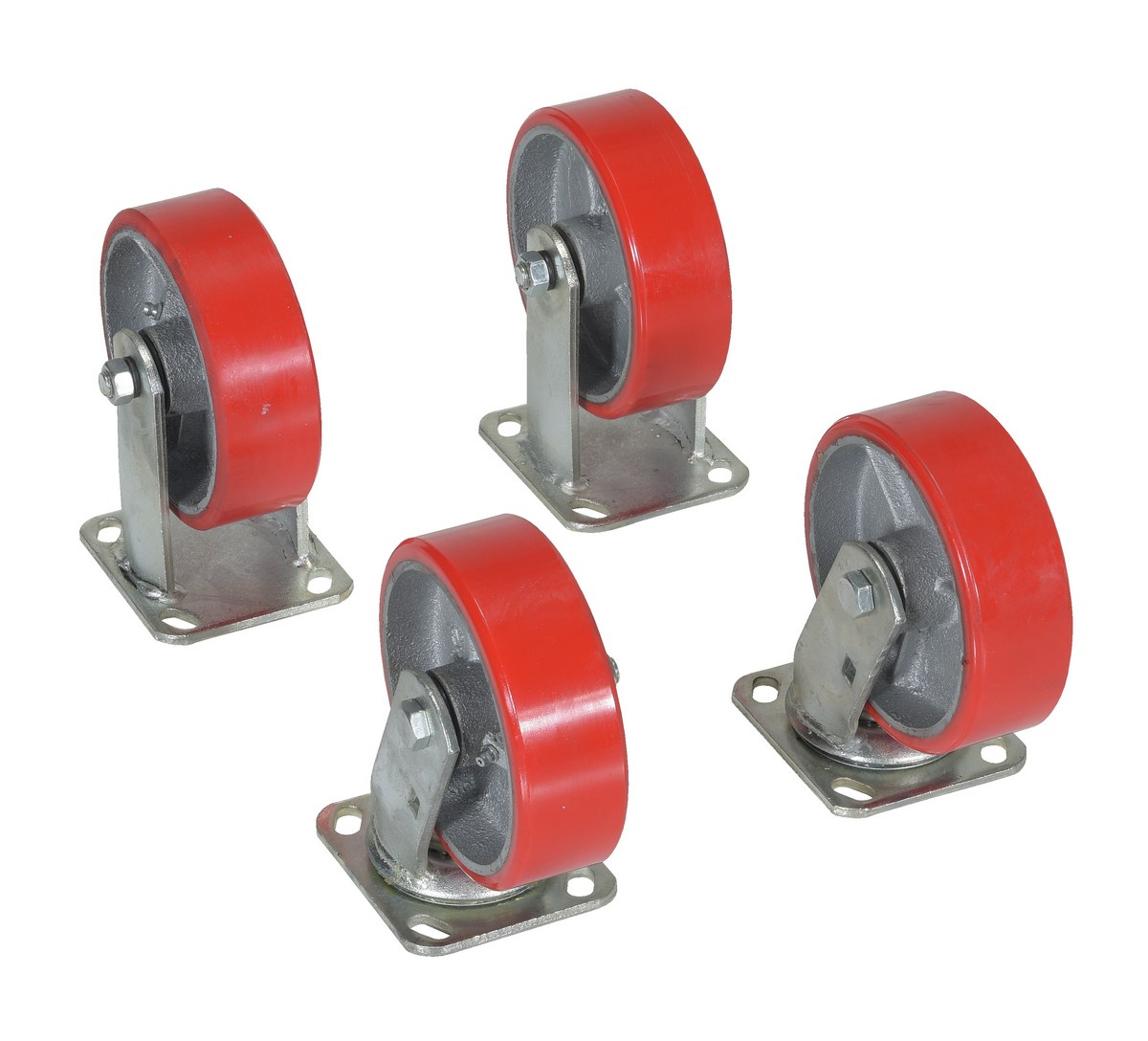

| D-CK4-PU6-2 |  |
|
6"x2" | 4,800 | Poly-On-Steel | 4 | 31 | |
| D-CK4-PU8-2 |  |
|
8"x2" | 5,000 | Poly-On-Steel | 4 | 42 | |

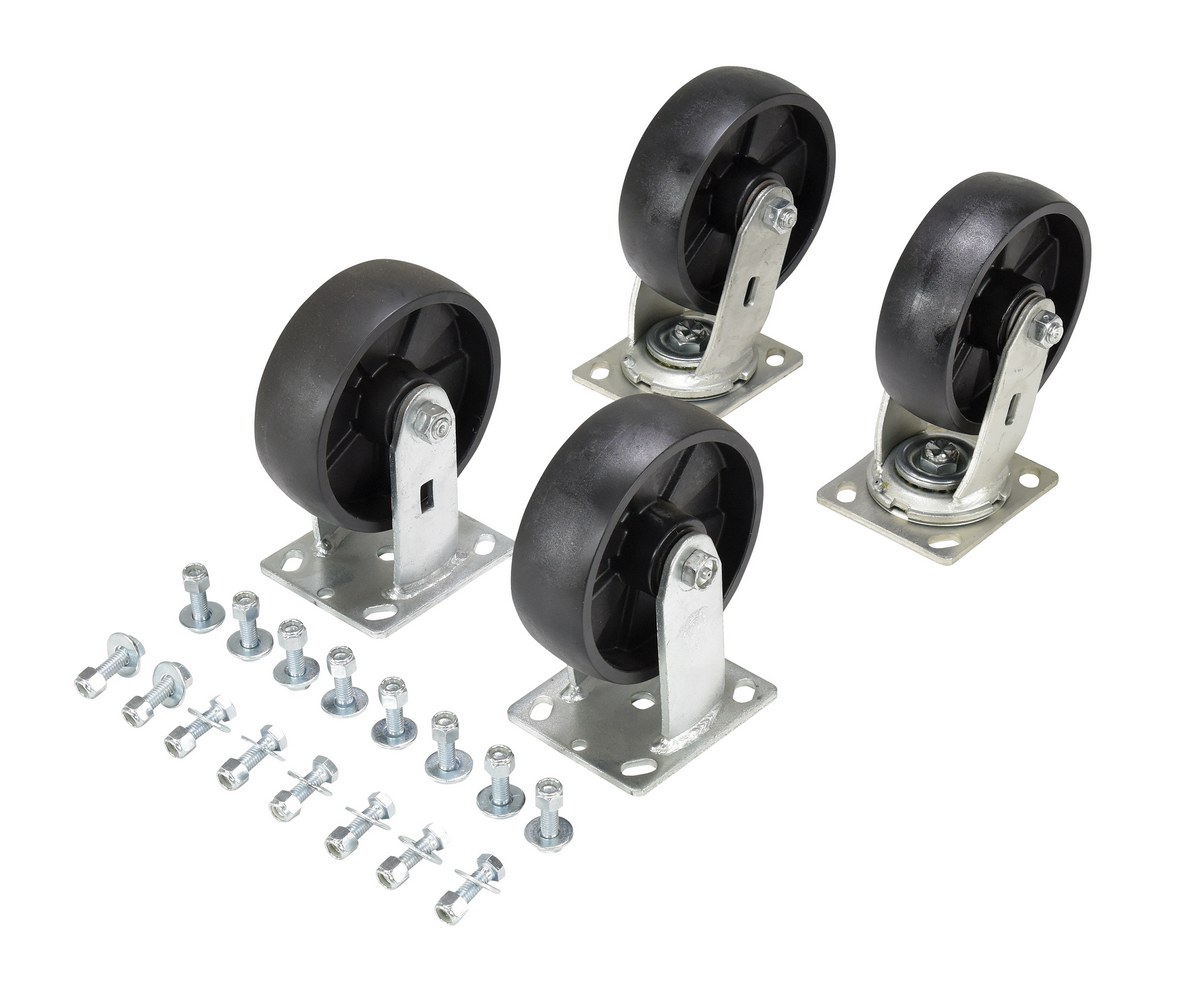

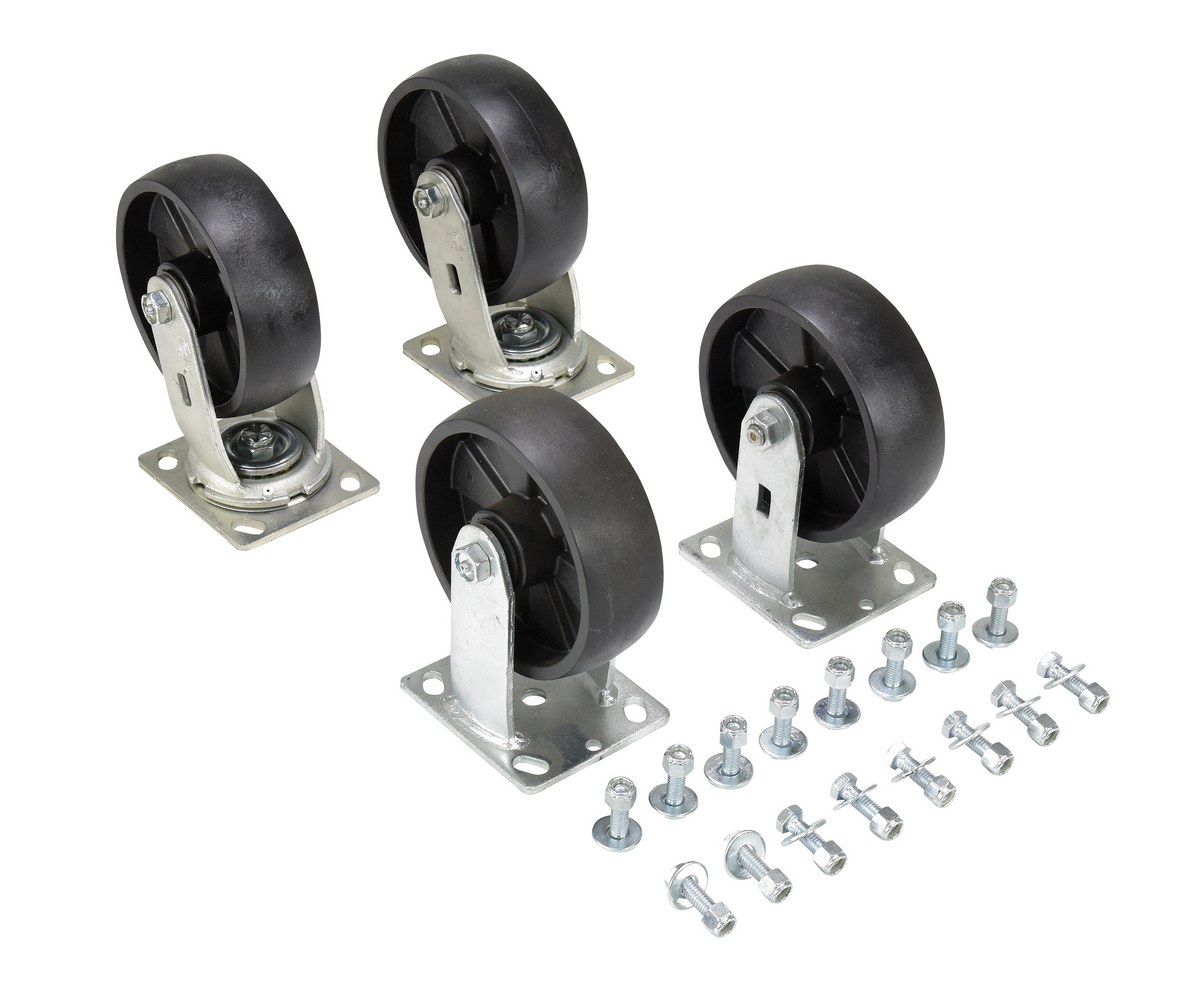

| D-CK4-GFN6-2 |  |
|
6"x2" | 4,800 | Glass Filled Nylon | 4 | 19 | |

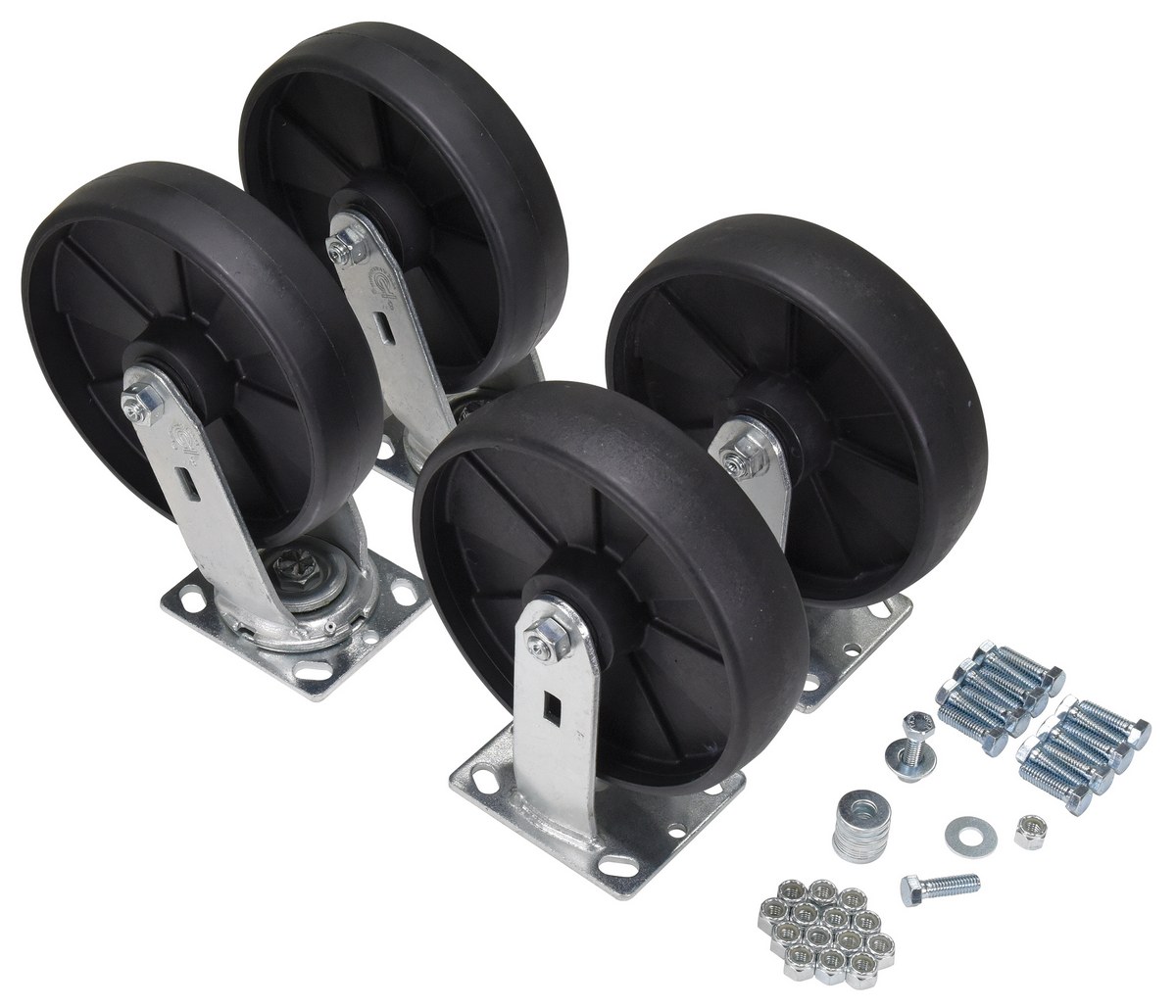

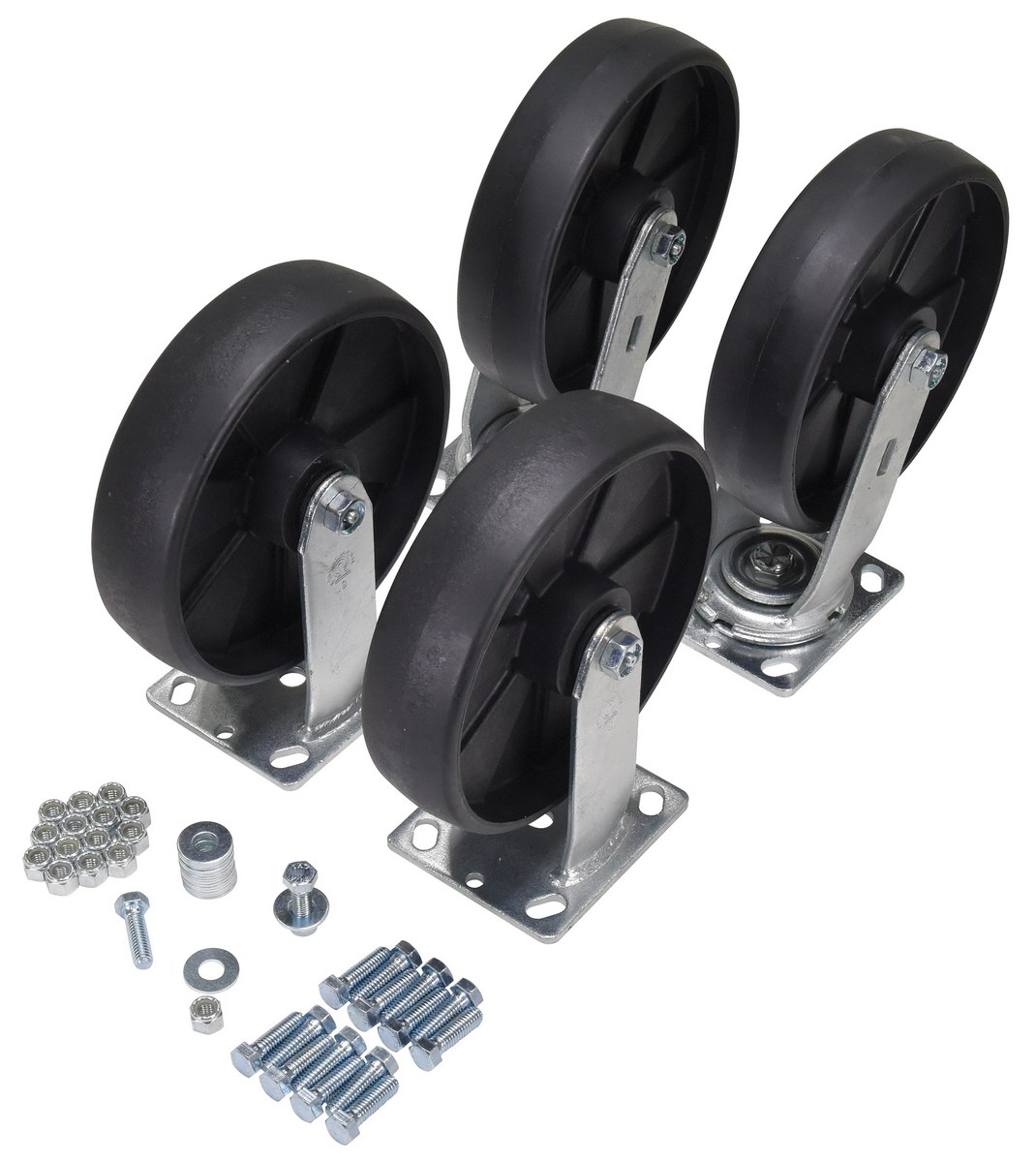

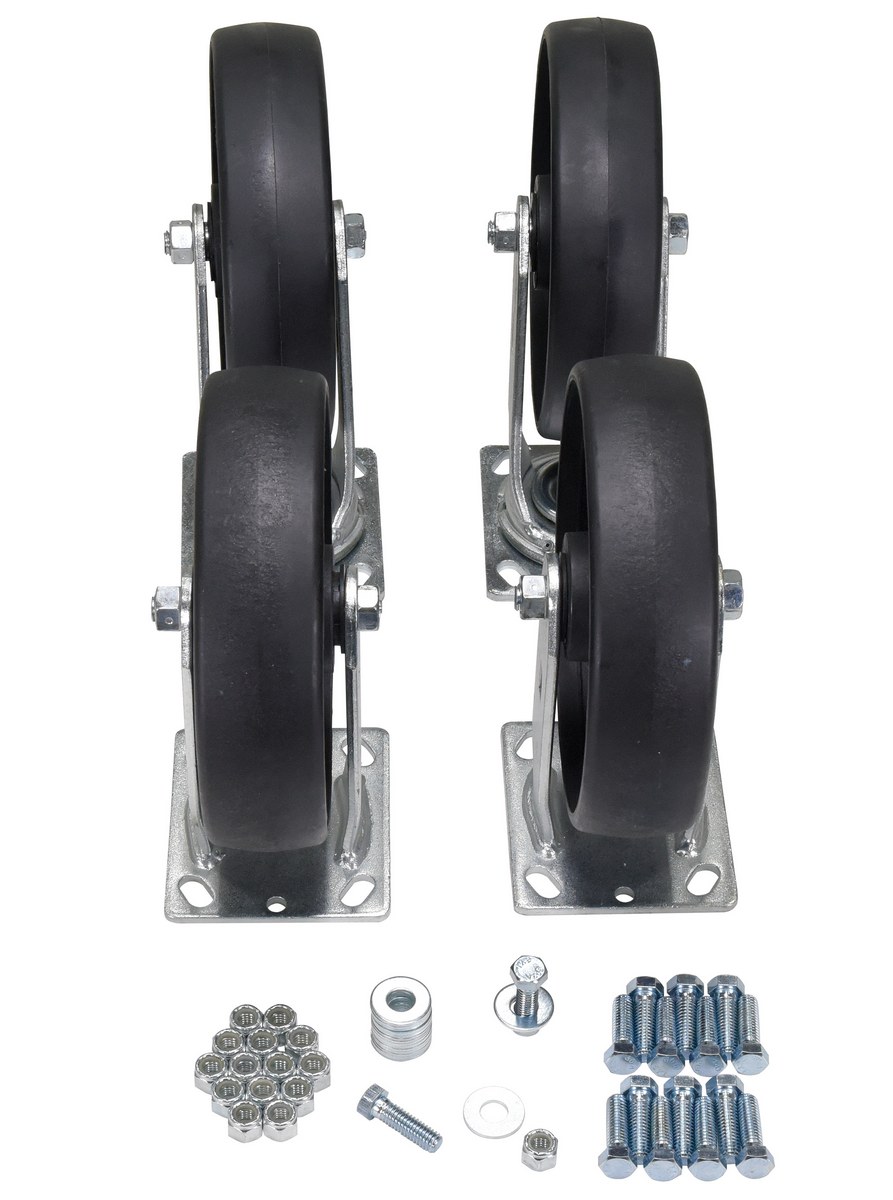

| D-CK4-GFN8-2 |  |
|
8"x2" | 5,000 | Glass Filled Nylon | 4 | 22 | |

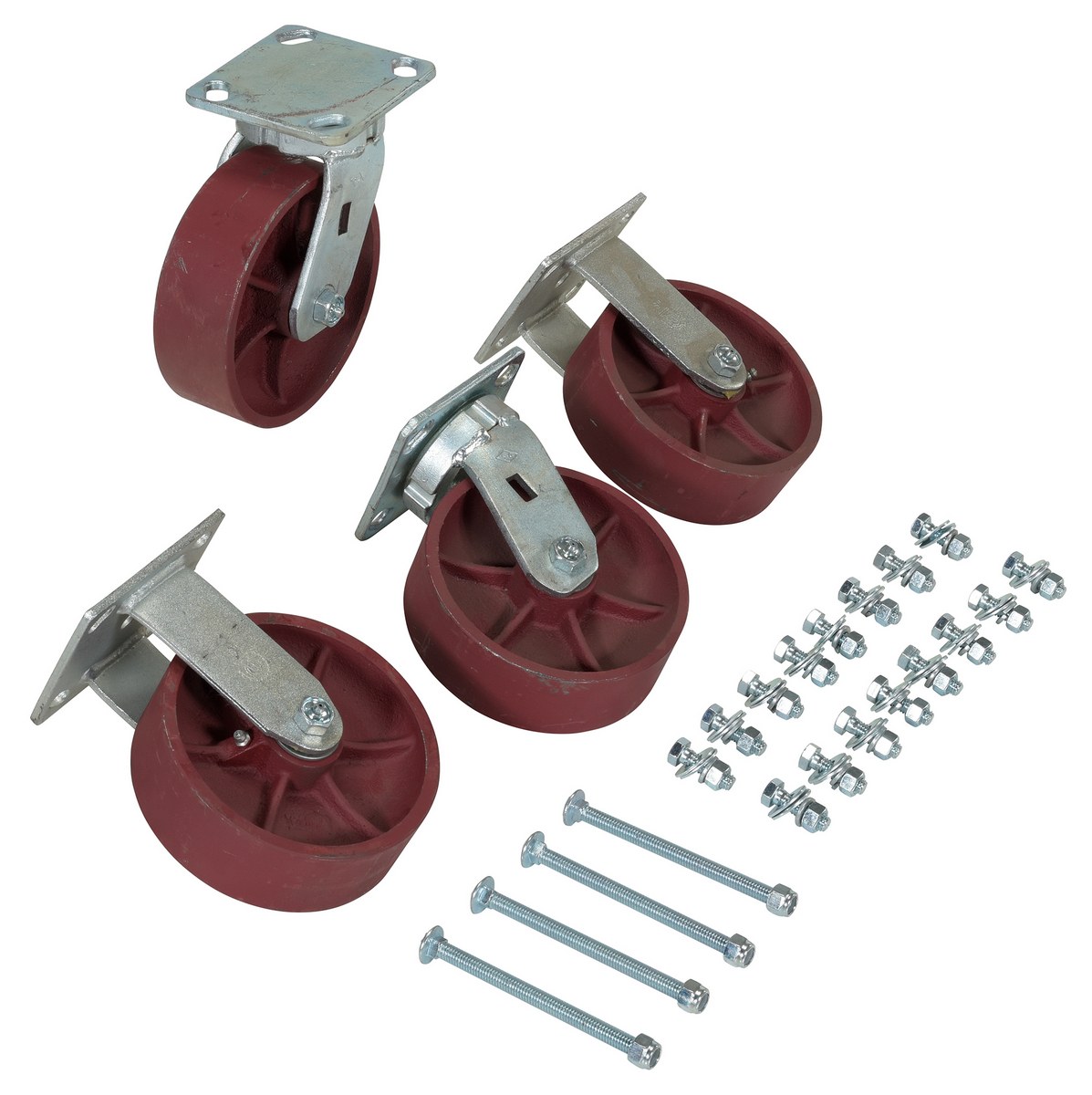

| D-CK4-SC6-2HD |  |
|
6"x2" | 8,000 | Ductile Steel | 4 | 43 | |
|
**Weight of hopper must be considered when calculating usable capacity** |
||||||||
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.
A: The caster kit options with 3 casters would be compatible with the H-33 series and H-75 series hoppers.
