D-CK4-SC8-2

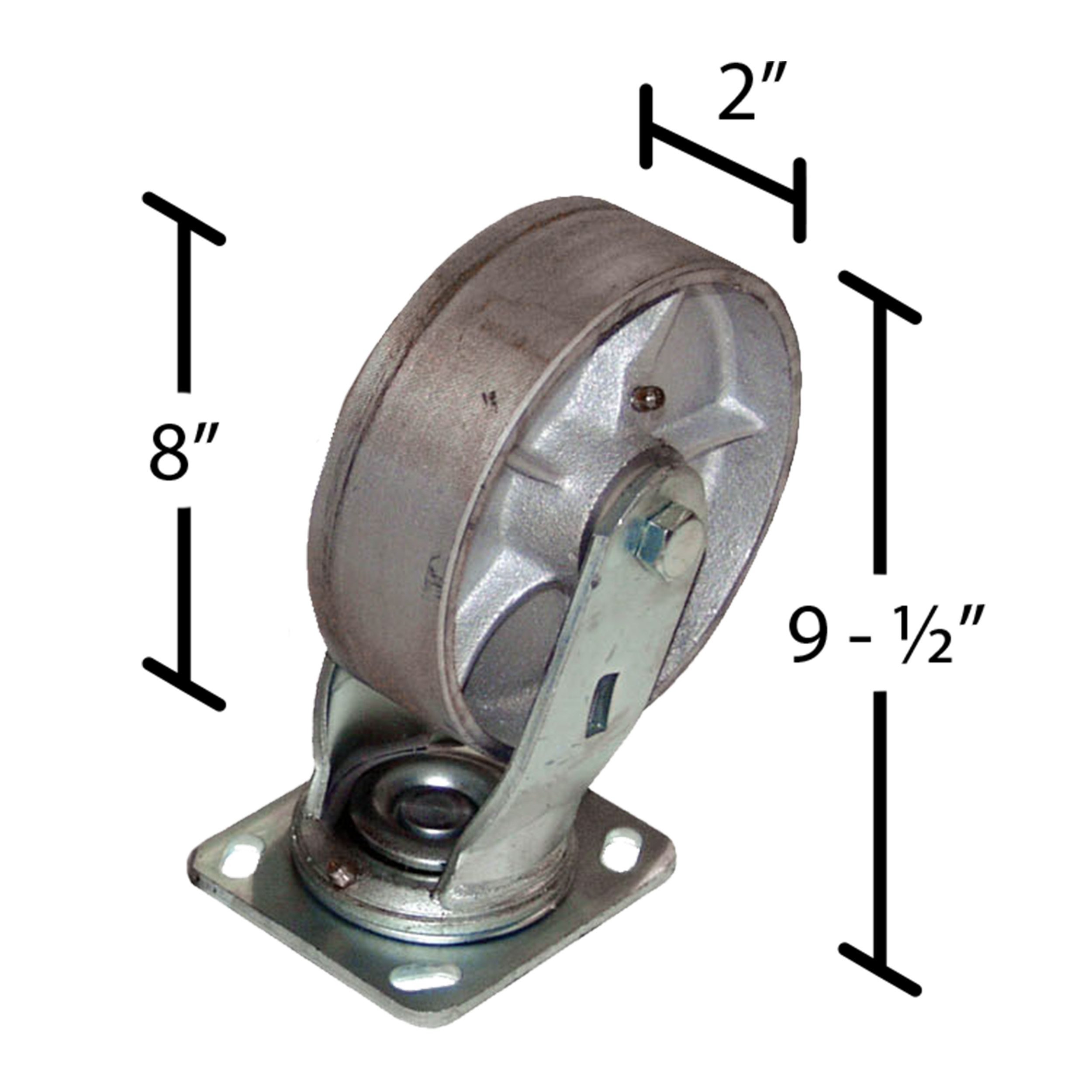

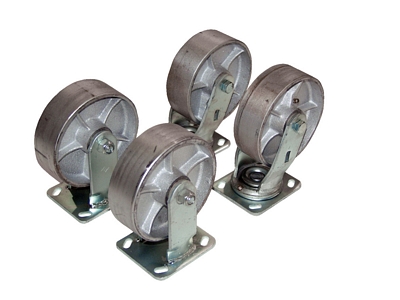

Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Silver

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Total Ship Wt.(lbs.): 42 (only 1 package) Size: 2"W x 8"L x 8"H Color: Silver

Uniform Capacity (lb.): 4,800 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 9-1/2 Hex Bolt (qty.): 16 Flat Washer (qty.): 16
Lock Nut (qty.): 16 Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: D-CK4-SC8-2
D-CK4-SC8-2

Semi Steel Caster Kit 8 In. x 2 In. 4800 Lb. Capacity Silver

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Dimensions: 2"W x 8"L x 8"H Sell UOM: ST-Set Color: Silver
Material: Semi-Steel UPC: 691215227049 GTIN: 00691215227049
Warranty: -- Shipping Weight: 42 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity (lb.): 4,800 Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 9-1/2 Hex Bolt (qty.): 16 Flat Washer (qty.): 16
Lock Nut (qty.): 16 Top Plate Dimensions (in.): 4 x 4-1/2 Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4
