Model Details

DCT-75-4WFP

Printer Friendly
DCT-75-4WFP

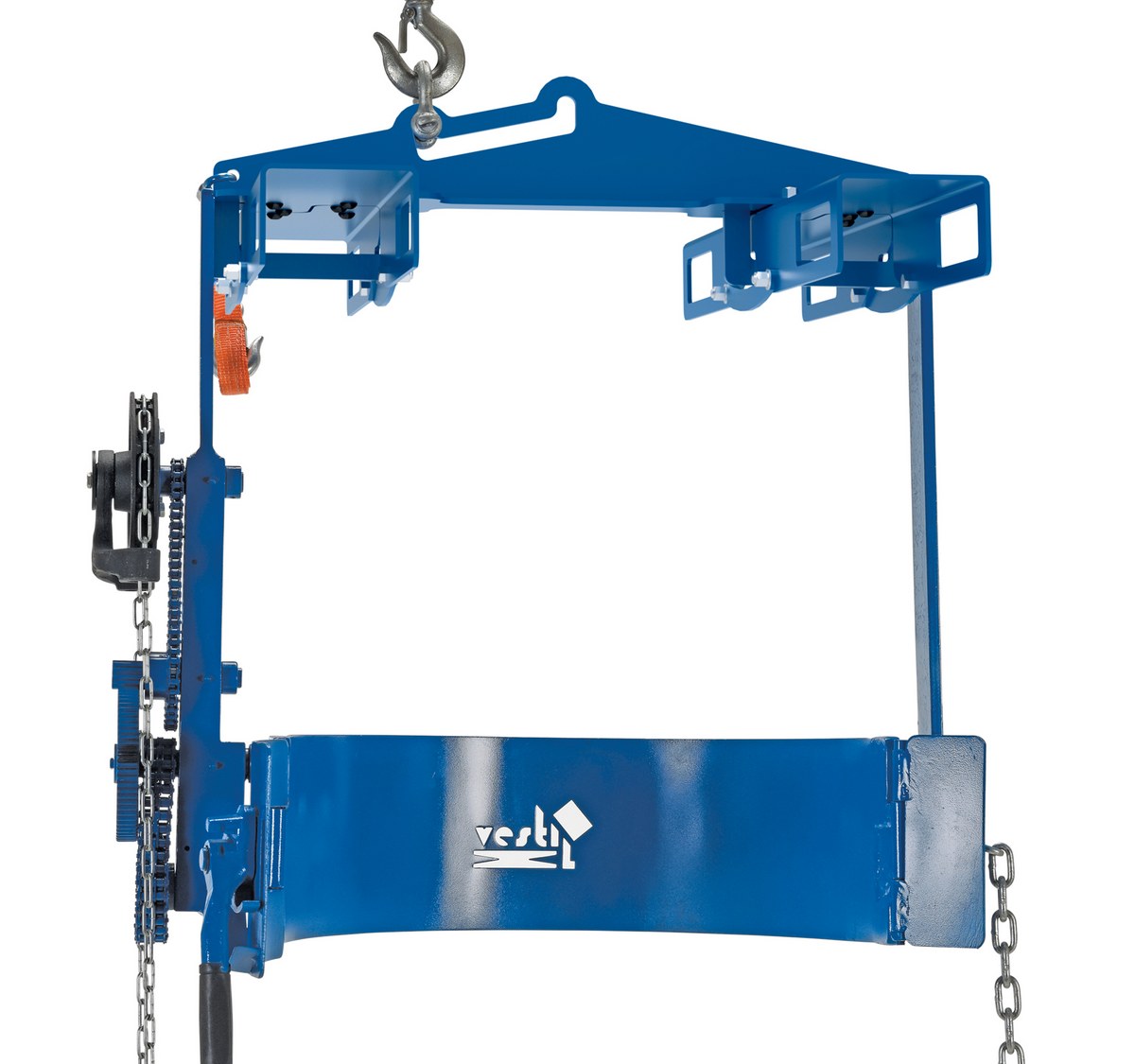

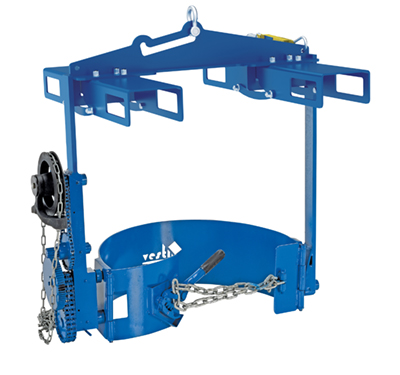

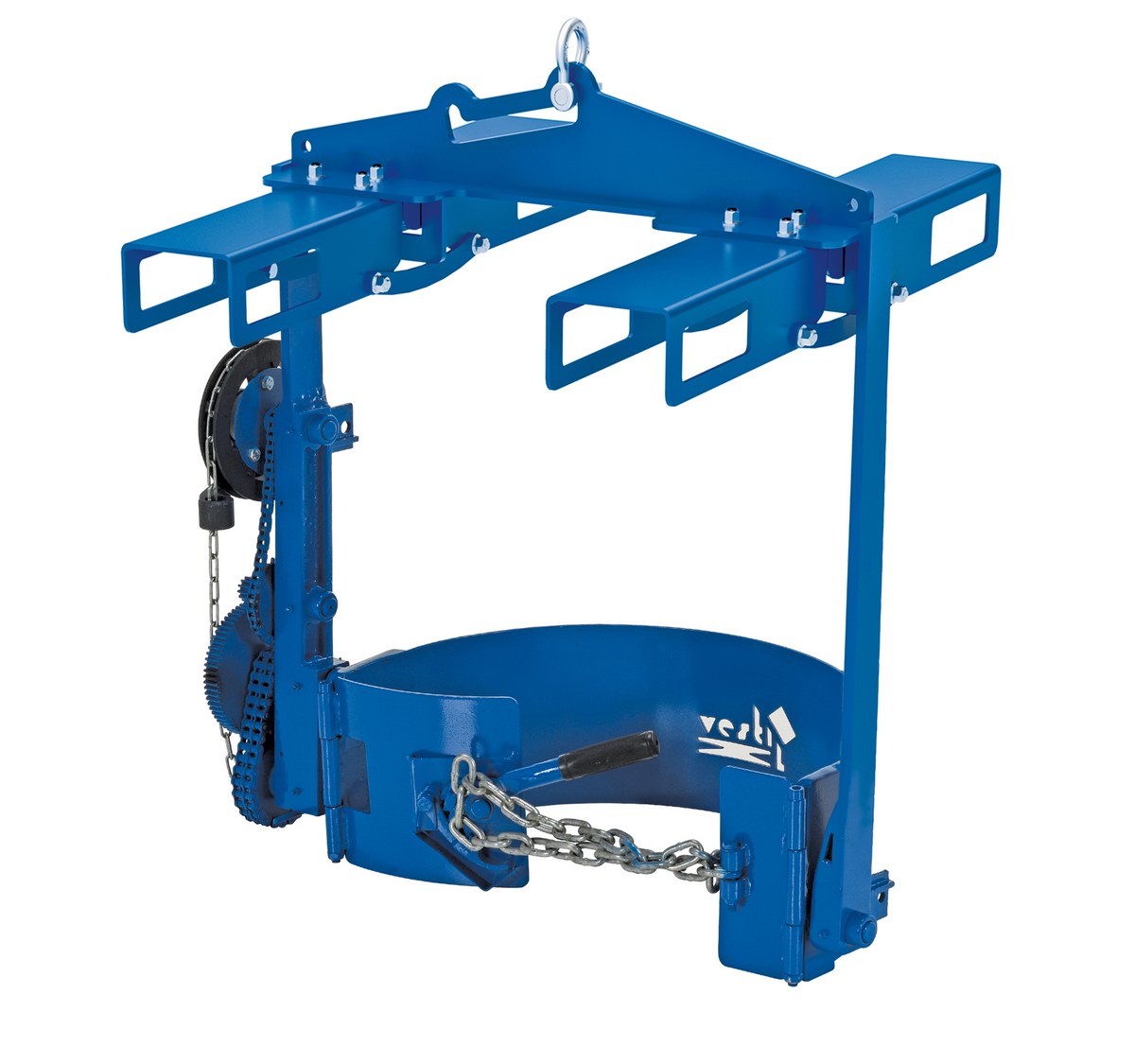

Steel Hoist Mounted Drum Carrier/Rotator with Four Way Pocket 55 Gallon 800 Lb. Capacity Blue

The drum carrier/rotator rotates and positions a fully loaded steel drum with ease. It can be either mounted to a hoist or fork truck. Unit features a chain crank that allows the operator to rotate drums that are out of reach. Drums are held in place with a drum locking system. Drum must be full to rotate at rated capacity. Four way fork pockets give the user a broader choice during the lifting and rotating motions.

  • Rotates and positions fully loaded steel drum with ease
  • It can be either mounted to a hoist or fork truck
  • Features chain crank allowing rotation of drums that are out of reach
  • Drums are held in place with a drum locking system
Total Ship Wt.(lbs.): 171 (only 1 package) Size: 33.8125"W x 28.75"L x 33.75"H Color: Blue

Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum Rotates (degrees): 360
Rotation Method: Chain Chain Length (ft.): 15 Fork Pockets Width/Height (in.): 5 x 1-9/16, 5-1/2 x 1-15/16
OSHA: 1910.179

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DCT-75-4WFP
DCT-75-4WFP

Steel Hoist Mounted Drum Carrier/Rotator with Four Way Pocket 55 Gallon 800 Lb. Capacity Blue

The drum carrier/rotator rotates and positions a fully loaded steel drum with ease. It can be either mounted to a hoist or fork truck. Unit features a chain crank that allows the operator to rotate drums that are out of reach. Drums are held in place with a drum locking system. Drum must be full to rotate at rated capacity. Four way fork pockets give the user a broader choice during the lifting and rotating motions.

  • Rotates and positions fully loaded steel drum with ease
  • It can be either mounted to a hoist or fork truck
  • Features chain crank allowing rotation of drums that are out of reach
  • Drums are held in place with a drum locking system
Dimensions: 33.8125"W x 28.75"L x 33.75"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215321488 GTIN: 00691215321488
Warranty: -- Shipping Weight: 171 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Accepts: 55-gallon steel drum Rotates (degrees): 360
Rotation Method: Chain Chain Length (ft.): 15 Fork Pockets Width/Height (in.): 5 x 1-9/16, 5-1/2 x 1-15/16
OSHA: 1910.179
