EHE-3

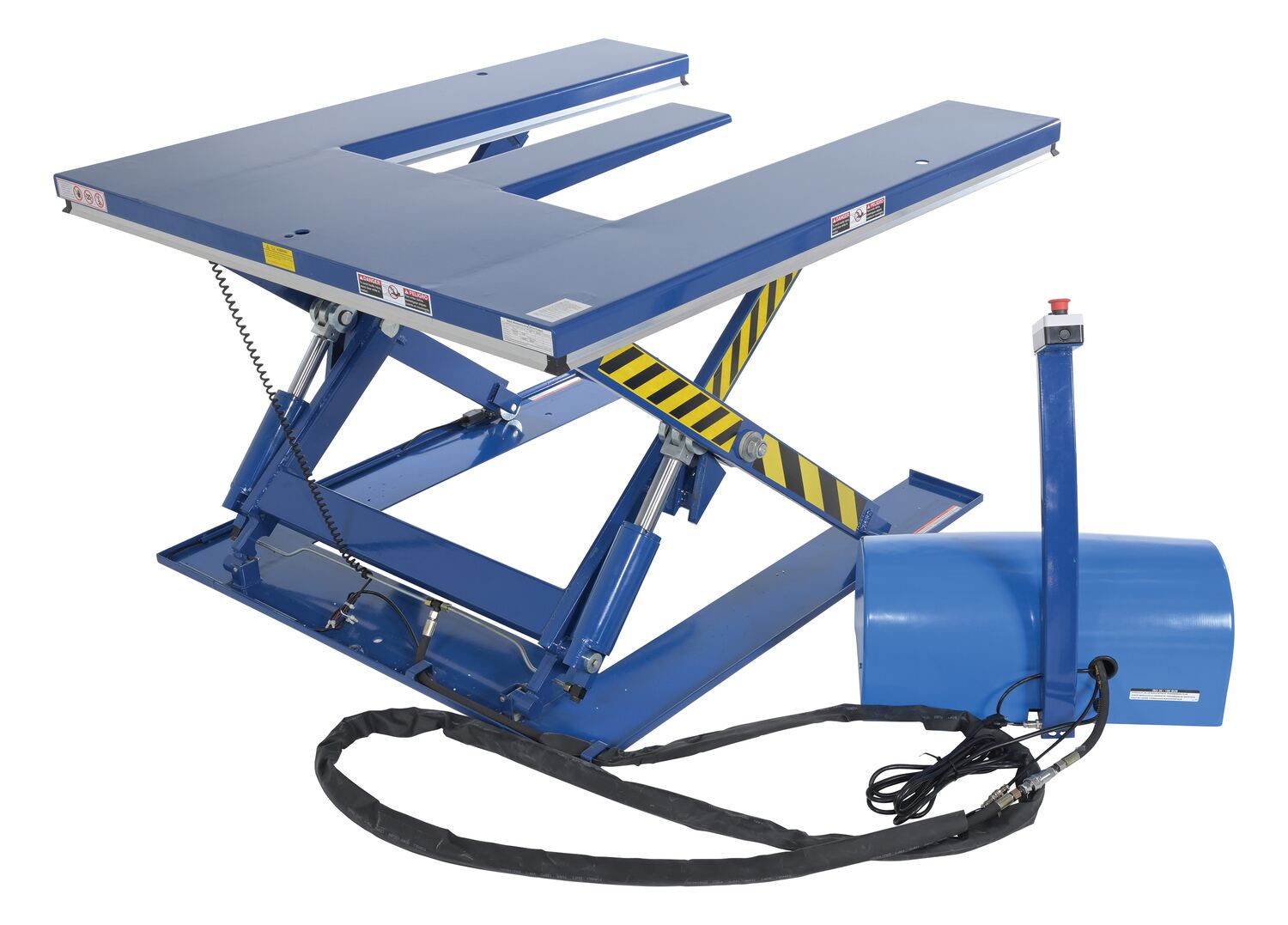

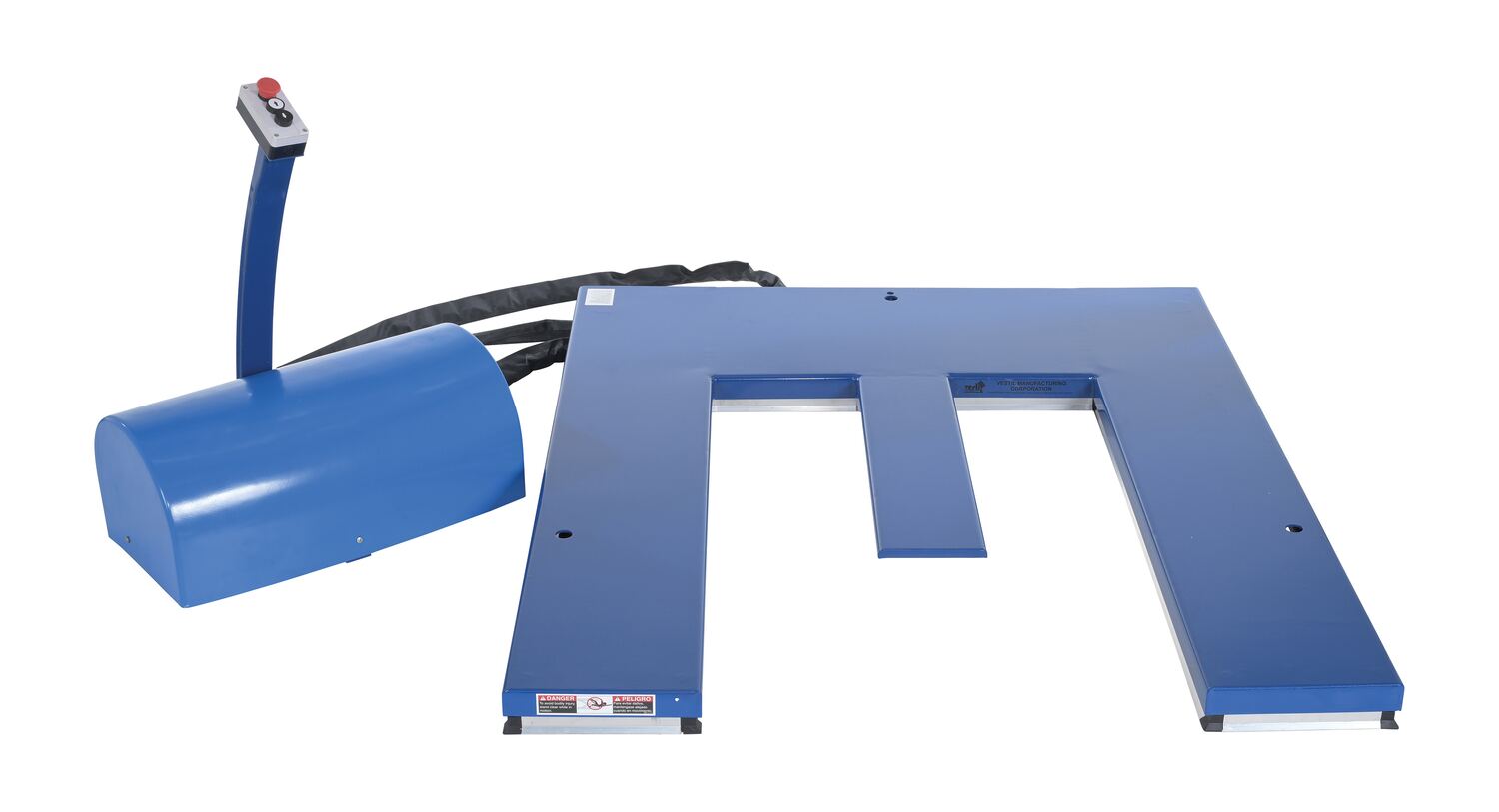

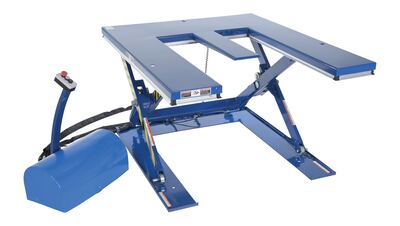

Steel Low Profile Electric Lift Table E Type 63 In. x 53-1/2 In. x 4-1/4 In. 3000 Lb. Capacity Blue

The low profile electric lift tables are ideal for the manufacturing and distribution facilities. The unique, steel constructed "E" design provides a center support beam to prevent the lifted product from deflecting downward in the center. Numerous protective features include electric toe guards, velocity cylinders, and emergency stop buttons, providing personnel with the utmost safety. An external power pack is equipped with a pressure relief valve which prevents overloading while controlling lowering speed. To raise and lower the unit, simply utilize the "up and down" push button design on the 24V control box for precise ergonomic positioning of product.

  • Ergonomically stable control box height
  • Lift products to minimize bending and twisting
  • Easy to use controls for efficiency
  • Unique design provides more surface area
Total Ship Wt.(lbs.): 805 (only 1 package) Size: 53.5"W x 63"L x 4.25"H Color: Blue

Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 Voltage/Phase: 115/Single
Control Box Voltage: 24 Deck Inside Width (in.): 29-3/4 Deck Inside Length (in.): 44-1/4
Remote Power Unit Width (in.): 14-3/4 Remote Power Unit Length (in.): 26-3/4 Remote Power Unit Height (in.): 9-1/2
Lift Speed (sec.): 22.5 Horse Power (HP): 2.0 Platform Material: Steel
Controller Cord Length (ft): 8 Operation Method: Hand Operated Maximum Travel Distance (in): 29.25

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHE-3
EHE-3

Steel Low Profile Electric Lift Table E Type 63 In. x 53-1/2 In. x 4-1/4 In. 3000 Lb. Capacity Blue

The low profile electric lift tables are ideal for the manufacturing and distribution facilities. The unique, steel constructed "E" design provides a center support beam to prevent the lifted product from deflecting downward in the center. Numerous protective features include electric toe guards, velocity cylinders, and emergency stop buttons, providing personnel with the utmost safety. An external power pack is equipped with a pressure relief valve which prevents overloading while controlling lowering speed. To raise and lower the unit, simply utilize the "up and down" push button design on the 24V control box for precise ergonomic positioning of product.

  • Ergonomically stable control box height
  • Lift products to minimize bending and twisting
  • Easy to use controls for efficiency
  • Unique design provides more surface area
Dimensions: 53.5"W x 63"L x 4.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215112406 GTIN: 00691215112406
Warranty: -- Shipping Weight: 805 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Raised Height (in.): 33-1/2 Voltage/Phase: 115/Single
Control Box Voltage: 24 Deck Inside Width (in.): 29-3/4 Deck Inside Length (in.): 44-1/4
Remote Power Unit Width (in.): 14-3/4 Remote Power Unit Length (in.): 26-3/4 Remote Power Unit Height (in.): 9-1/2
Lift Speed (sec.): 22.5 Horse Power (HP): 2.0 Platform Material: Steel
Controller Cord Length (ft): 8 Operation Method: Hand Operated Maximum Travel Distance (in): 29.25
