Low Profile Electric Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

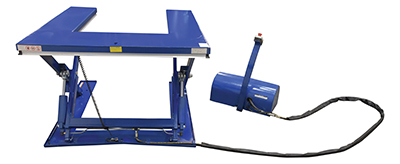

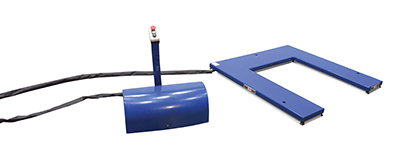

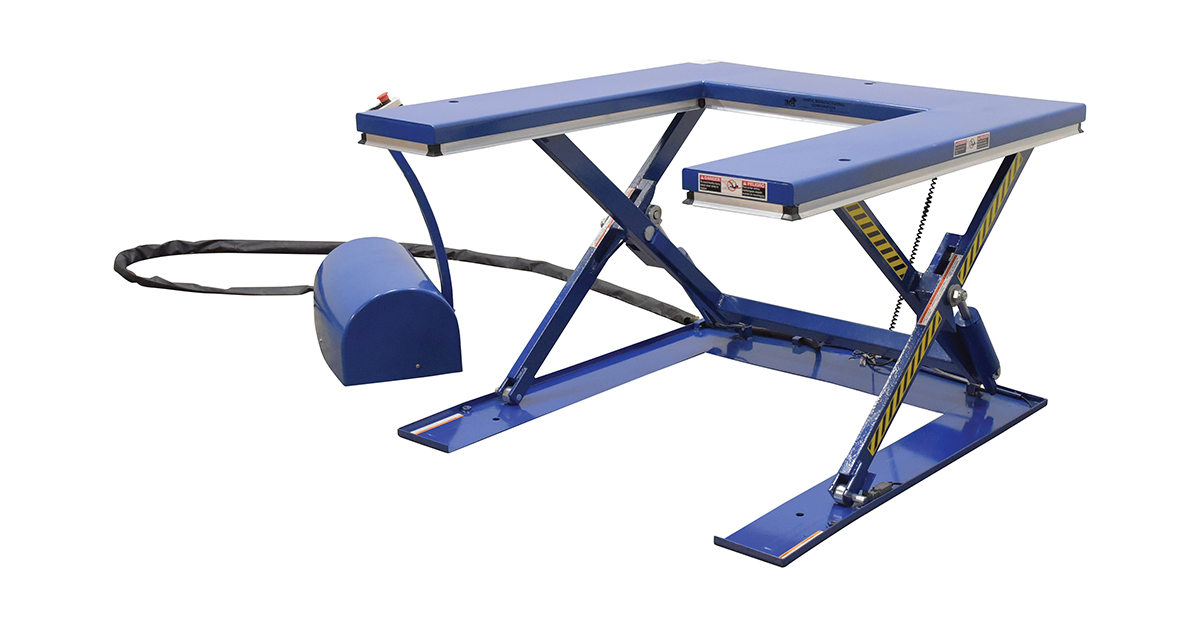

EHU-2_E.jpg EHU-2_I.jpg EHU-2_A.jpg EHU-2_B.jpg

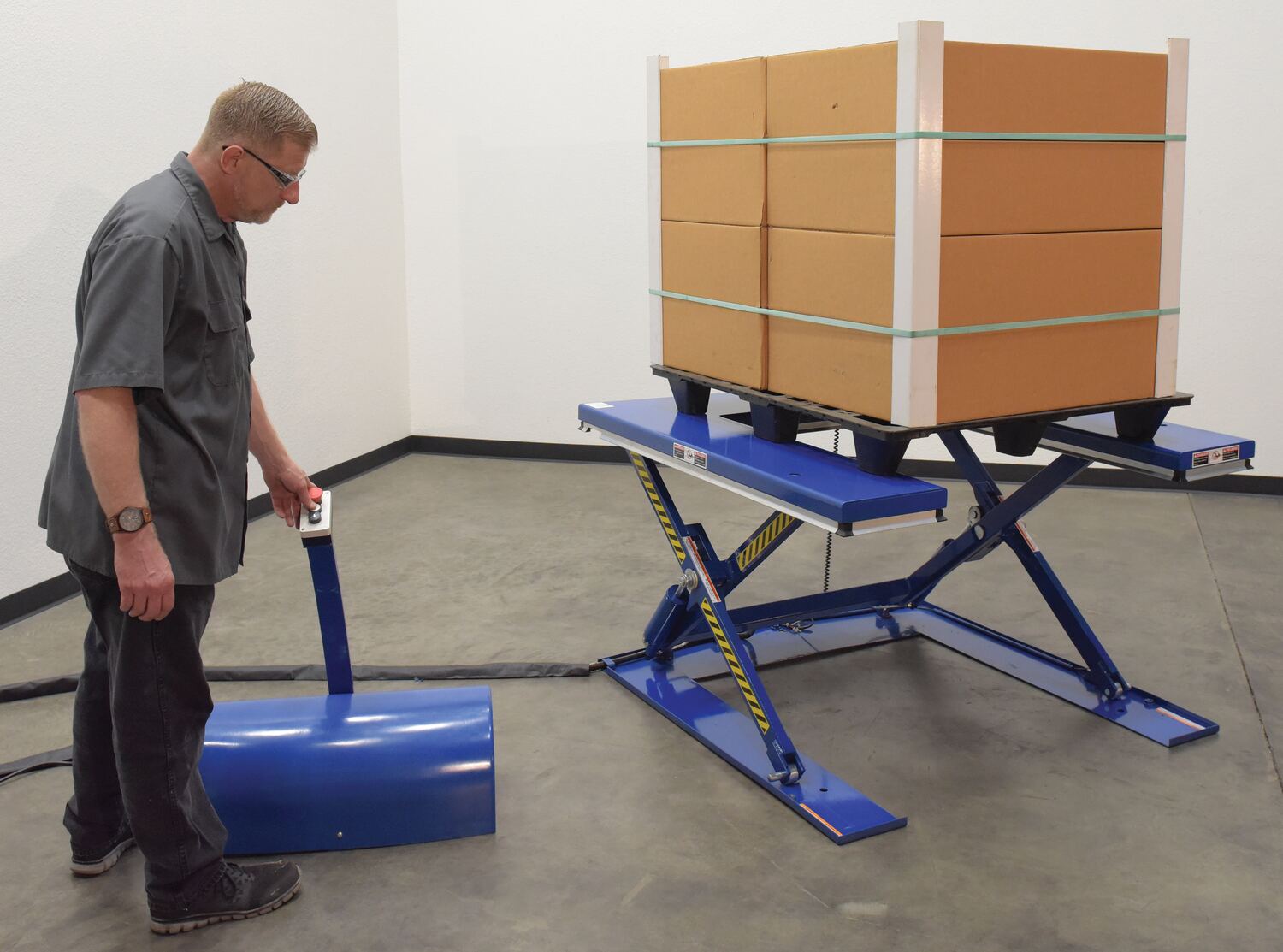

EHU-2_J.jpg EHU-2_D.jpg EHU-2_G.jpg EHU-2_H.jpg
Low Profile Electric Lift Tables

model: EHU-2



Featured Ergonomic Solutions


Counter-Balanced Pallet Master/Servers
Self-Elevating Lift Carts
ULMA Stainless Steel Tilt Master
Ground Lift Scissor Tables with Handrails
Single Fork Electric Pallet Truck w/ Scale
Narrow Mast Stackers with Powered Drive and Powered Lift
Long Deck Carts
Ergonomic Work Chair and Stool
Electric Hydraulic Trash Can Dumpers
model chart

Product Family Overview

Print Friendly
Low Profile Electric Lift Tables
SERIES: EHU, EHE

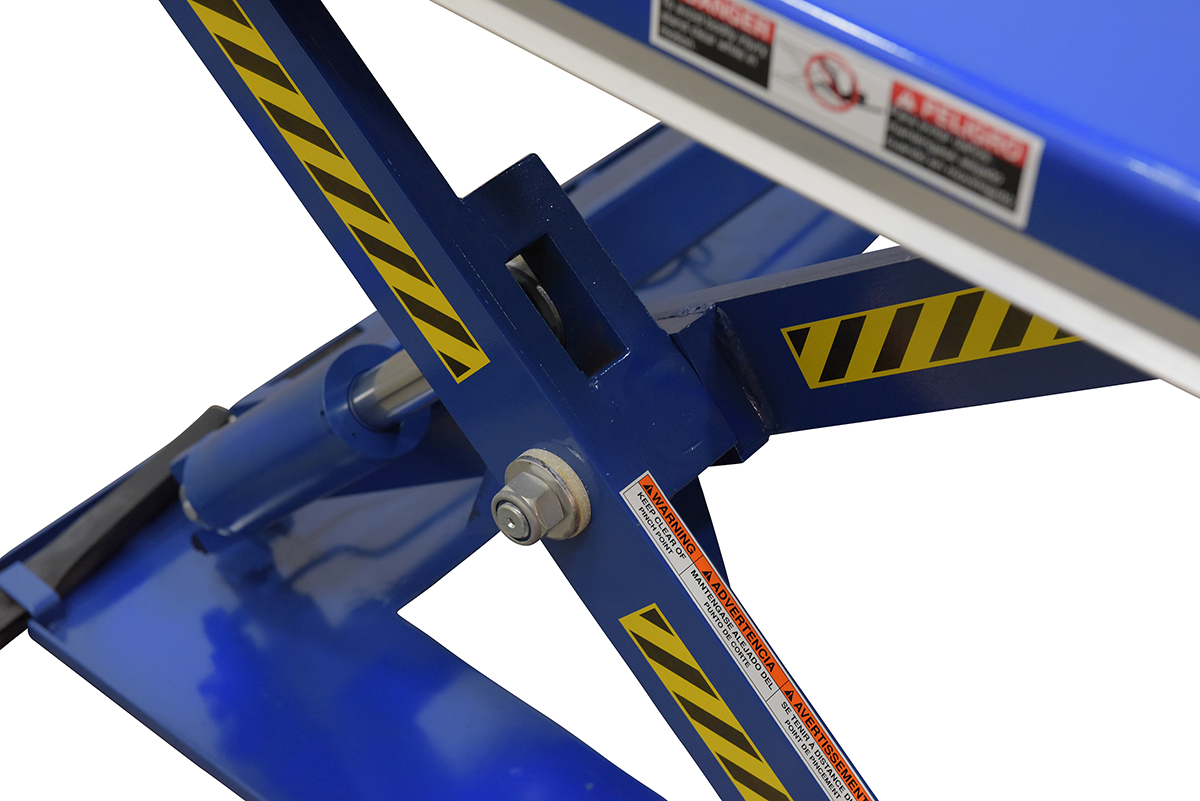

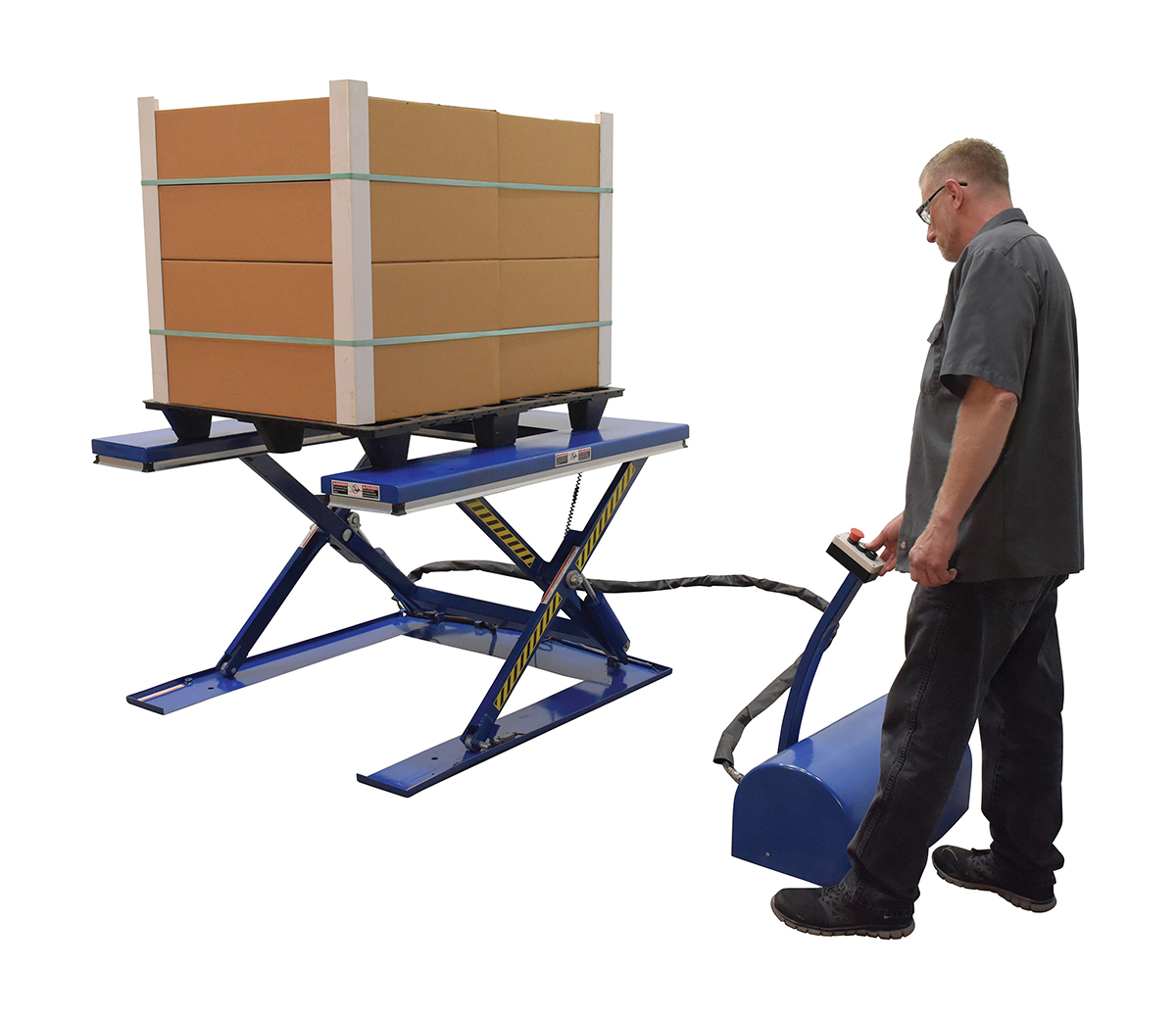

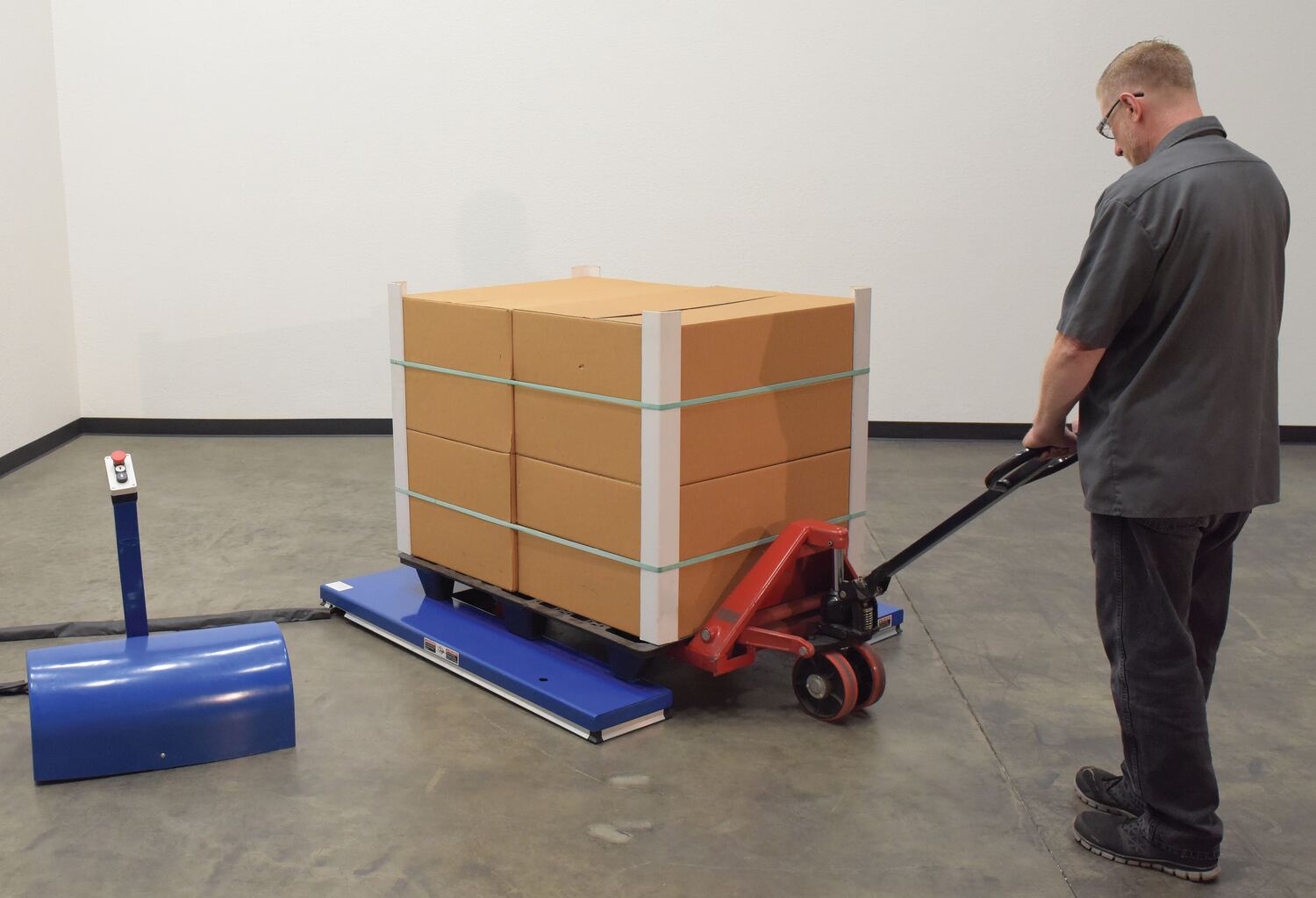

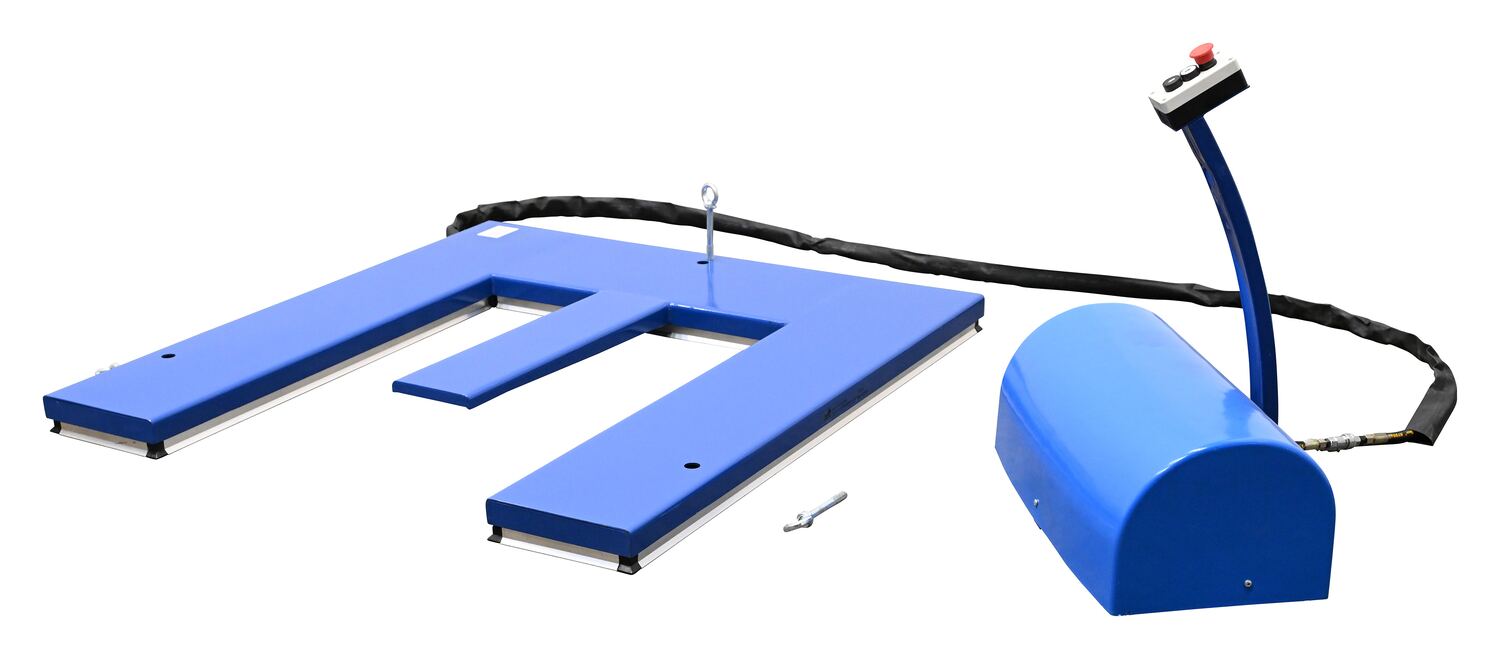

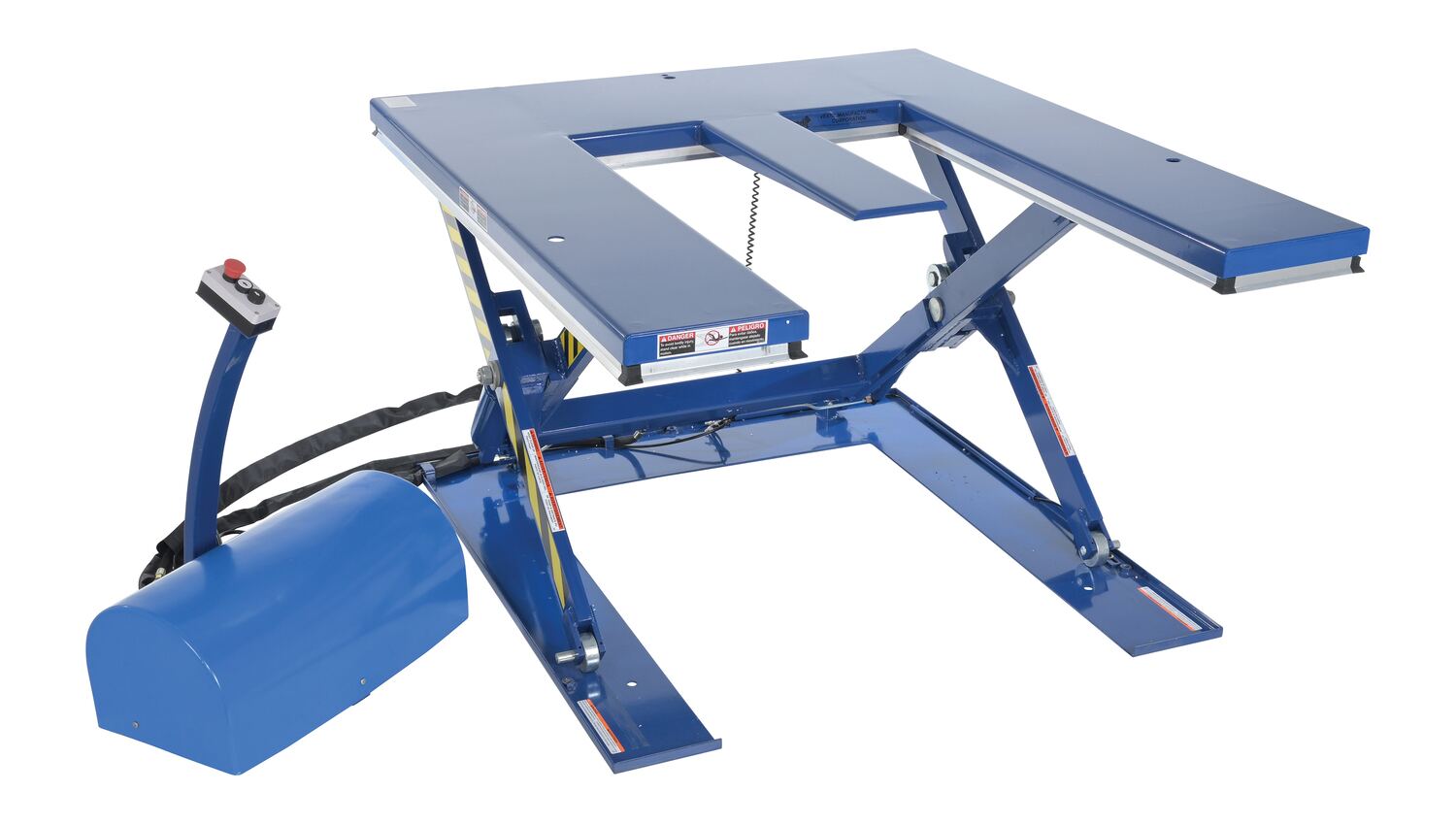

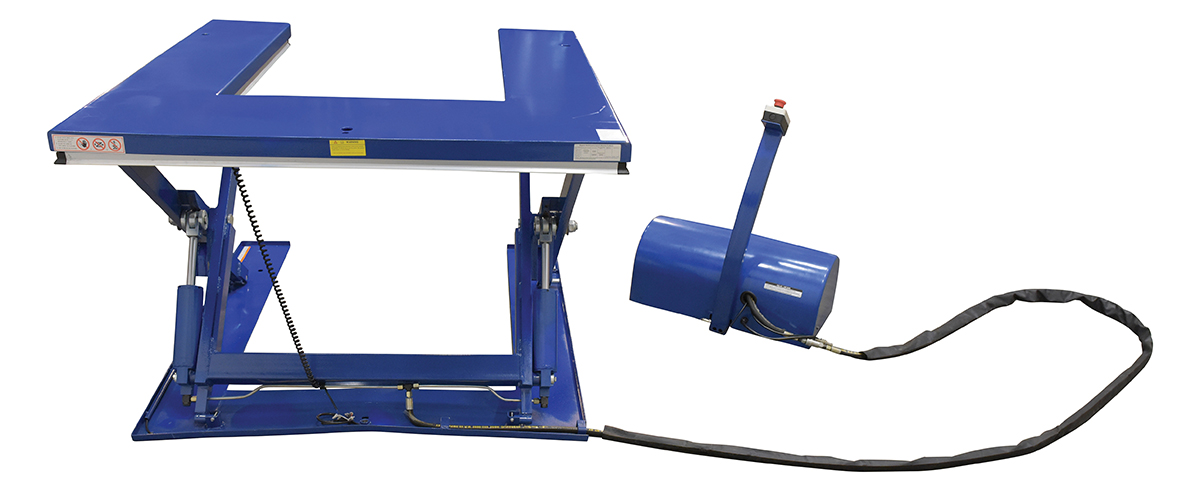

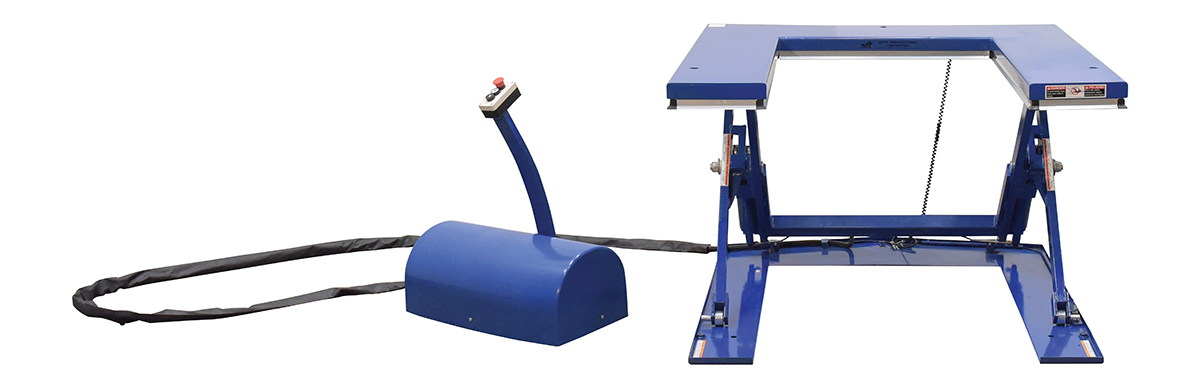

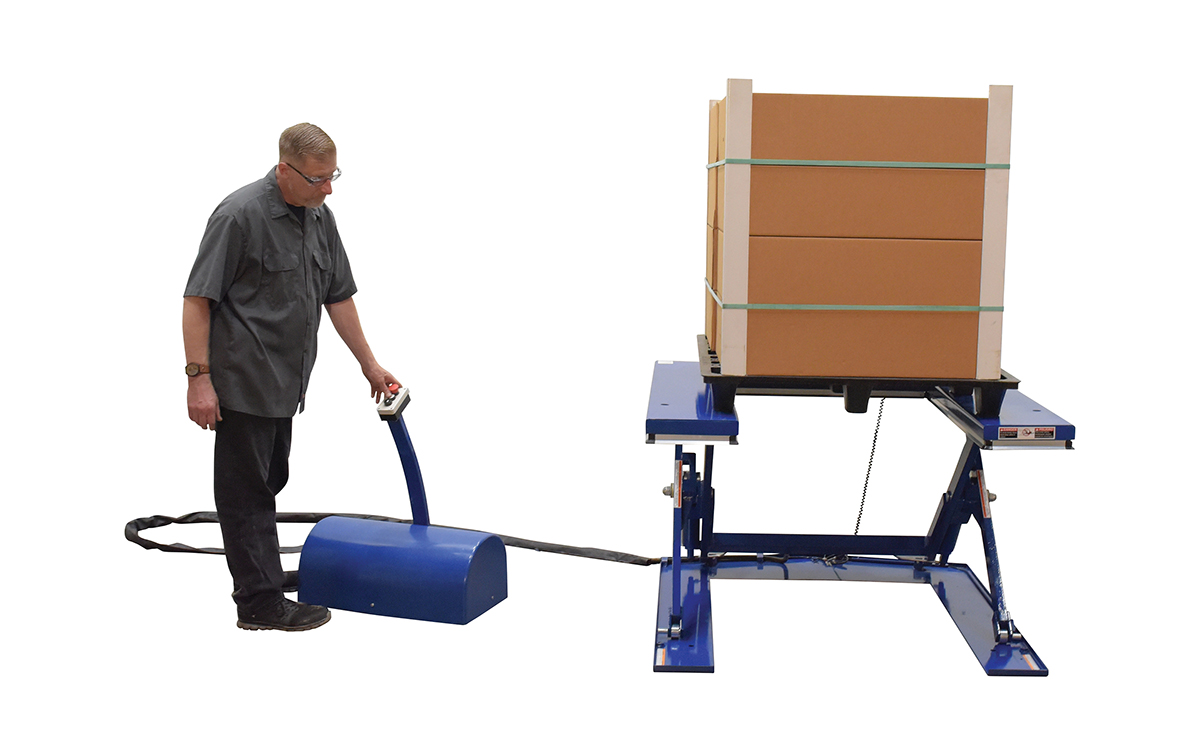

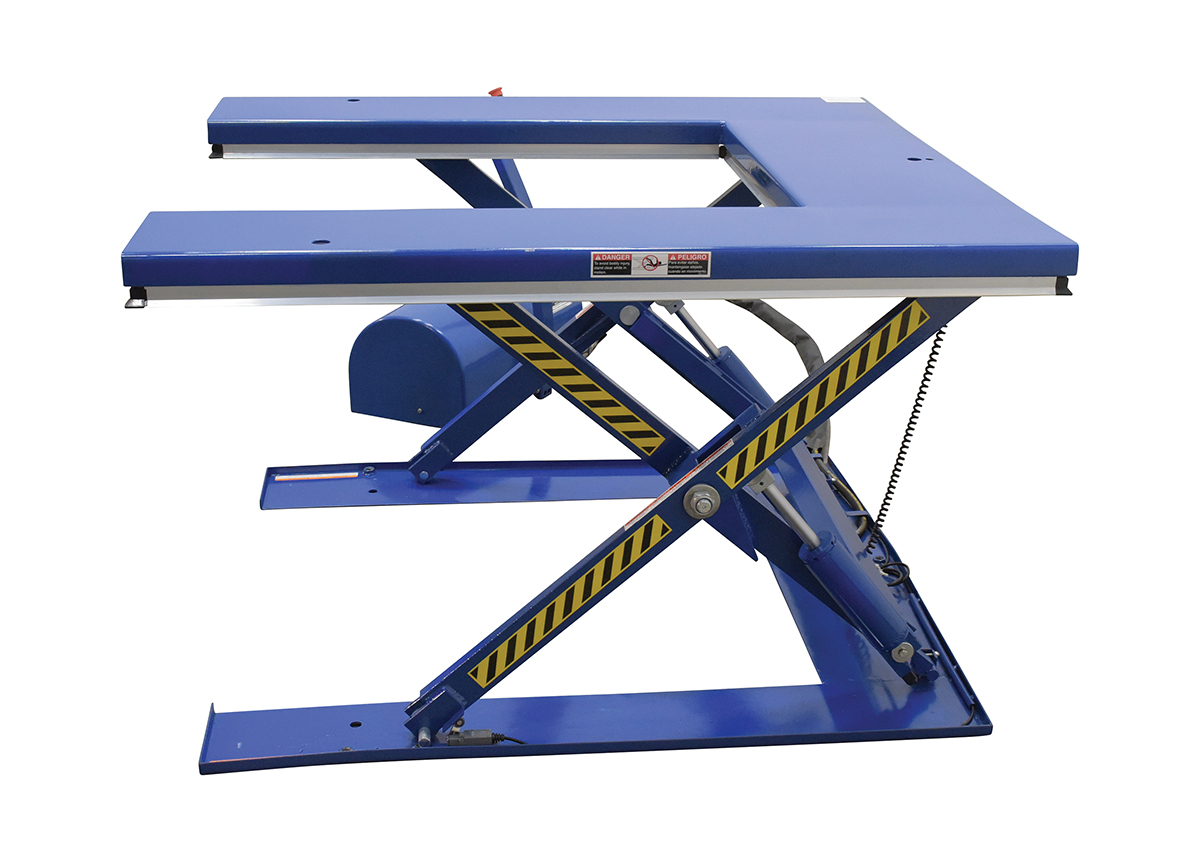

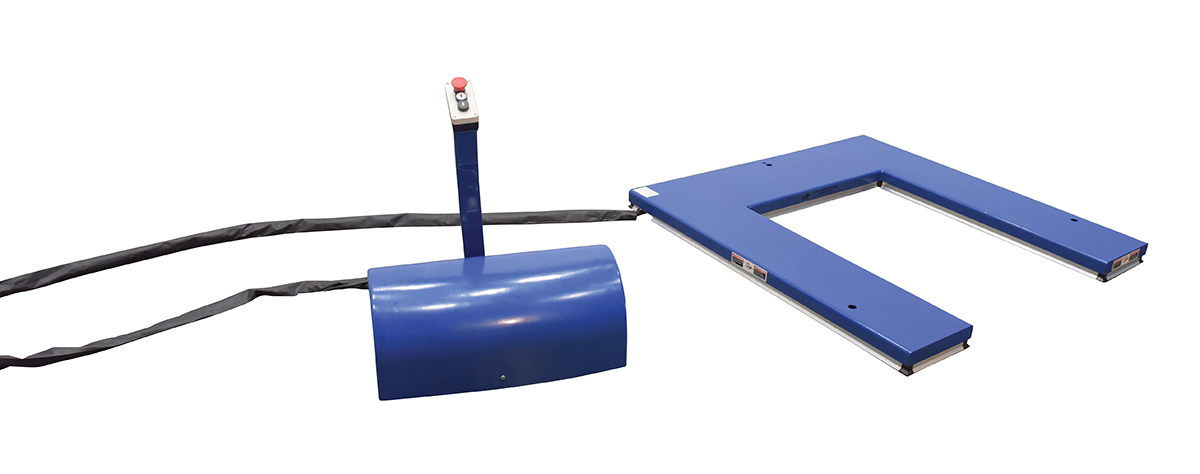

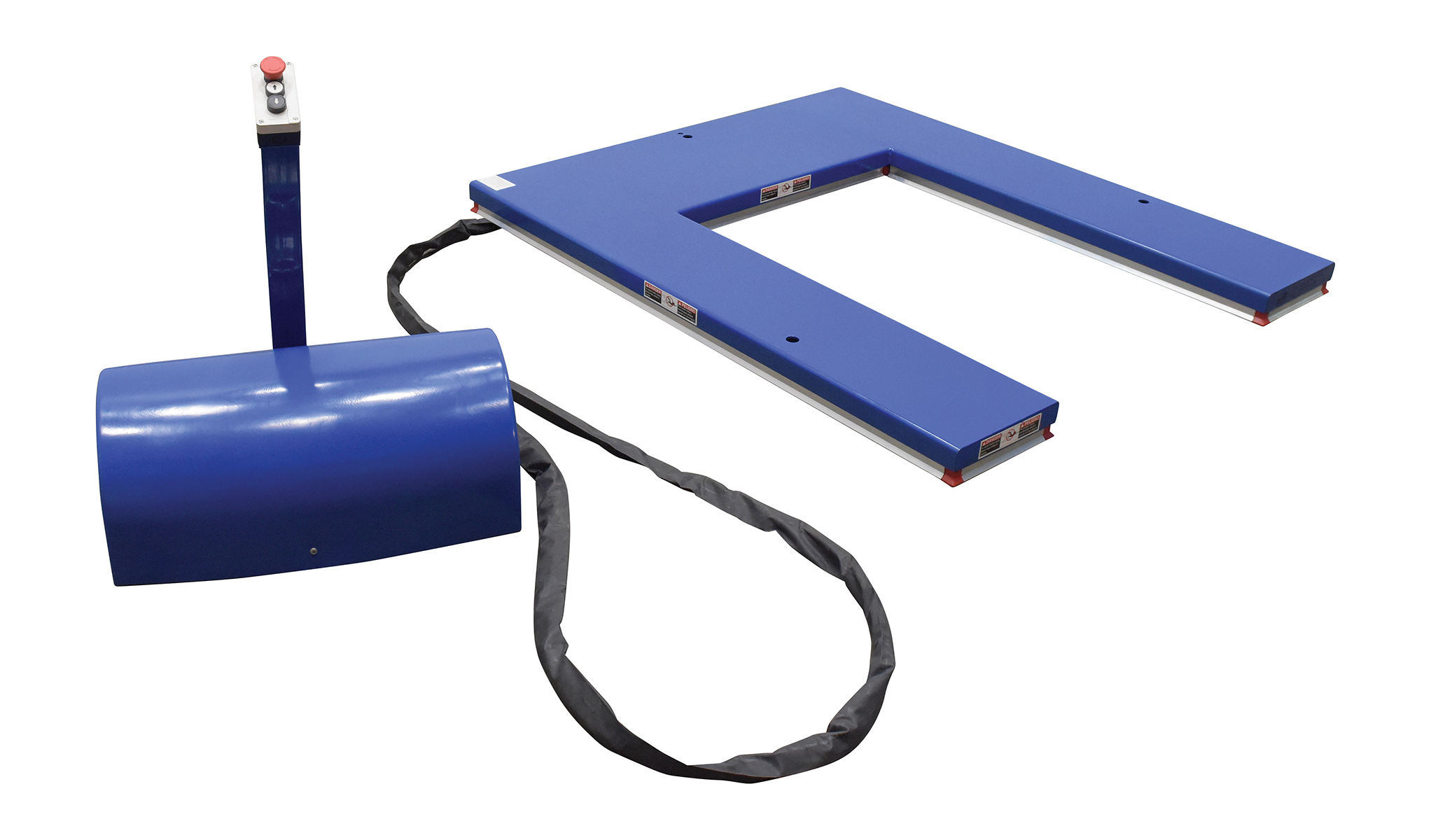

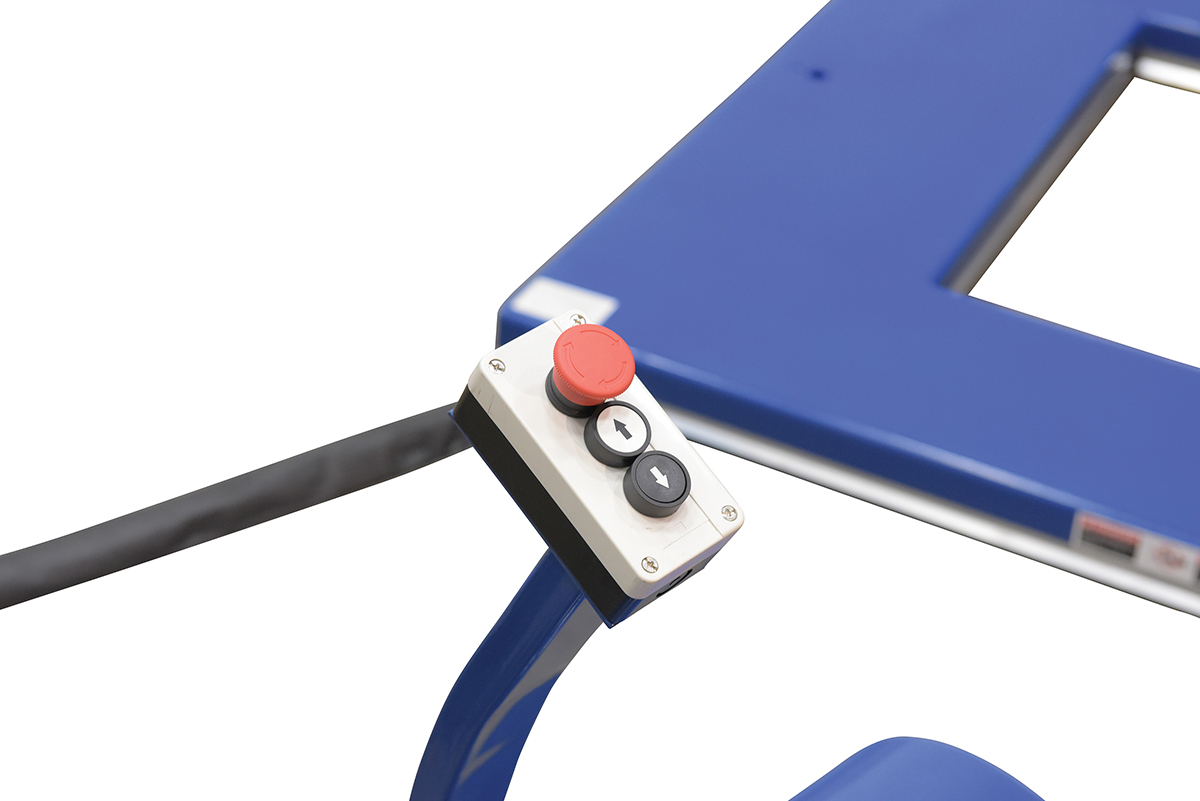

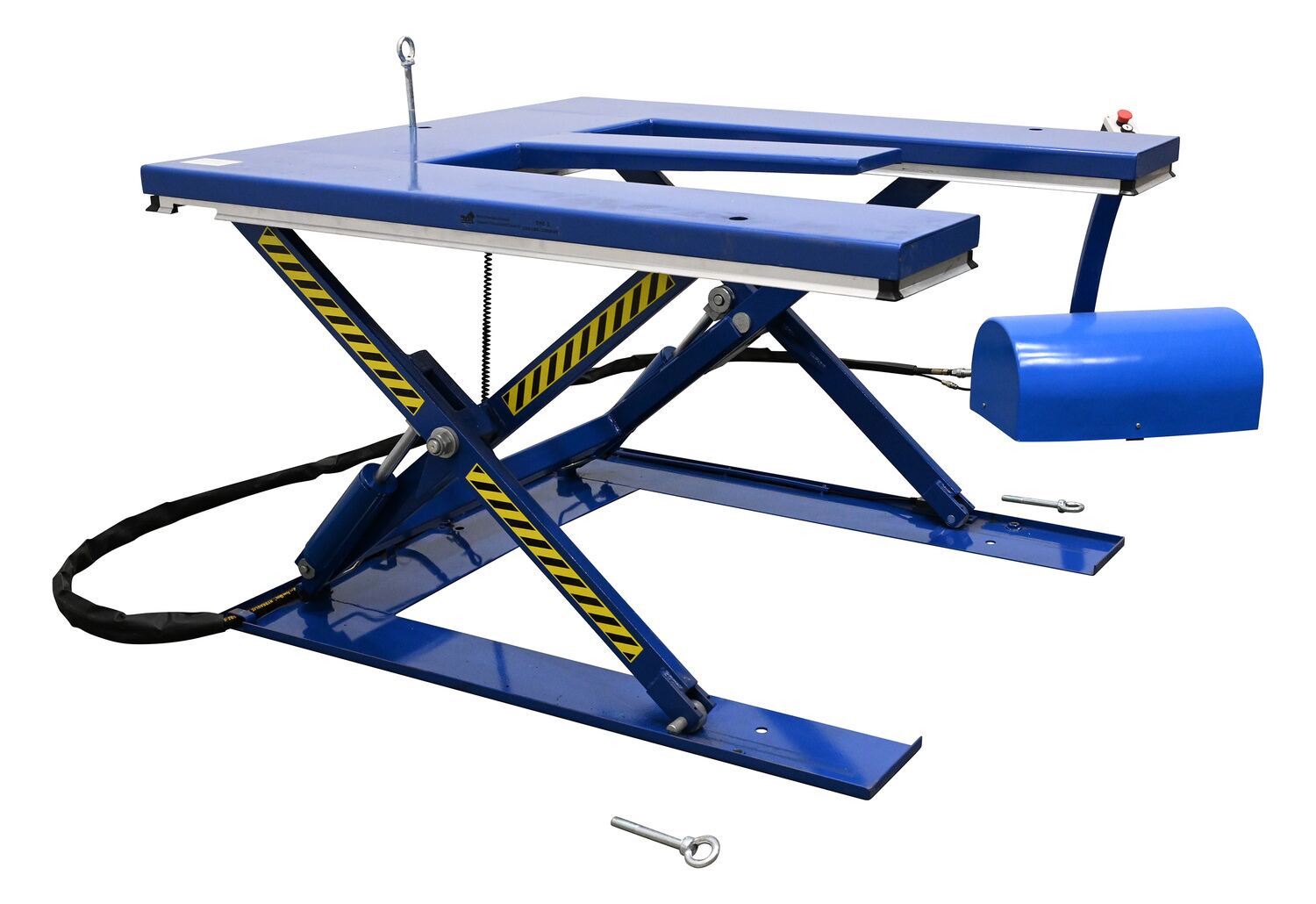

The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.

The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.

Other Lift & Tilt Tables

 Hydraulic Motorcycle Lift Hinge & Sliding Tilt Tables Double Scissor Lift Tables Air Bag Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

EHU-2

EHU-2

EHU-3

EHU-3

EHU-2

EHU-2

EHU-2

EHU-2

EHU-3

EHU-3

EHU-3

EHU-3

EHU-2

EHU-2

EHE-2

EHE-2

EHU-2

EHU-2

EHU-2

EHU-2

EHU-3

EHU-3

EHU-2

EHU-2

EHE-2

EHE-2

EHE-2

EHE-2

EHE-2

EHE-2

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHE-2 EHE-21 Year Limited WarrantySteel Low Profile Electric Lift Table E Type 56 In. x 52-3/4 In. x 3-1/2 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2		718
EHE-3 EHE-31 Year Limited WarrantySteel Low Profile Electric Lift Table E Type 63 In. x 53-1/2 In. x 4-1/4 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2		805
EHU-12-SS

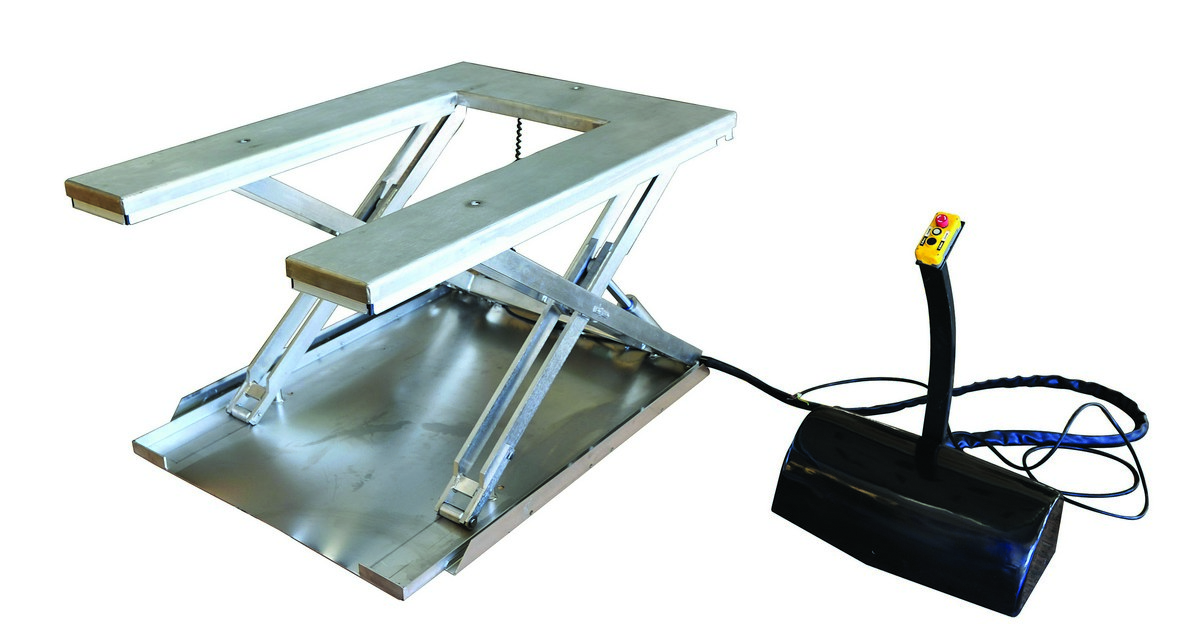

EHU-12-SS1 Year Limited WarrantyStainless Steel Low Profile Electric U 1200 lb. Capacity Table SilverUniform Capacity (lbs): 1,200
Maximum Height (in): 33.375		592
EHU-2 EHU-21 Year Limited WarrantySteel U Type Electric Lift Table 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2		592
EHU-3 EHU-31 Year Limited WarrantySteel U Type Electric Lift Table 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2		832

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHE-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2

EHE-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2

EHU-12-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 1,200
Maximum Height (in): 33.375
Uniform Capacity (lbs): 1,200
Maximum Height (in): 33.375

EHU-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 2000
Raised Height (in.): 33-1/2

EHU-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
Uniform Capacity (lb.): 3000
Raised Height (in.): 33-1/2
For More Details of the Option Click the Red Model Button
Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Low Profile Electric Lift Tables PDF's will open in a new window when clicked.

Manuals


EHU
Owners Manual

EHE
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHE-2

EHE-3

EHU-2

EHU-3

Testing Certificates


EHE-2

EHE-3

EHU-12-SS

EHU-2

EHU-3

SDS Sheets

Hydraulic Oil SDS Sheet for: EHE-2
Hydraulic Oil SDS Sheet for: EHU-2
Hydraulic Oil SDS Sheet for: EHU-3

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Is the EHU-2 CSA compliant?

A: No. The EHU-2 is not CSA compliant.

Q: Can an accordion skirt be added to these tables?

A: No. Accordion skirts are no available for these tables.

Q: What type of stainless steel is the EHU-12-SS?

A: 304 stainless steel

Q: What parts of model EHU-12-SS are NOT stainless steel?

A: The Power unit and the Hydraulic Hoses are not stainless steel.

Q: What is the Amp draw for the EHU-3?

A: 18.5 Amps
