Model Details

EHLTT-4848-4-47

Printer Friendly
EHLTT-4848-4-47

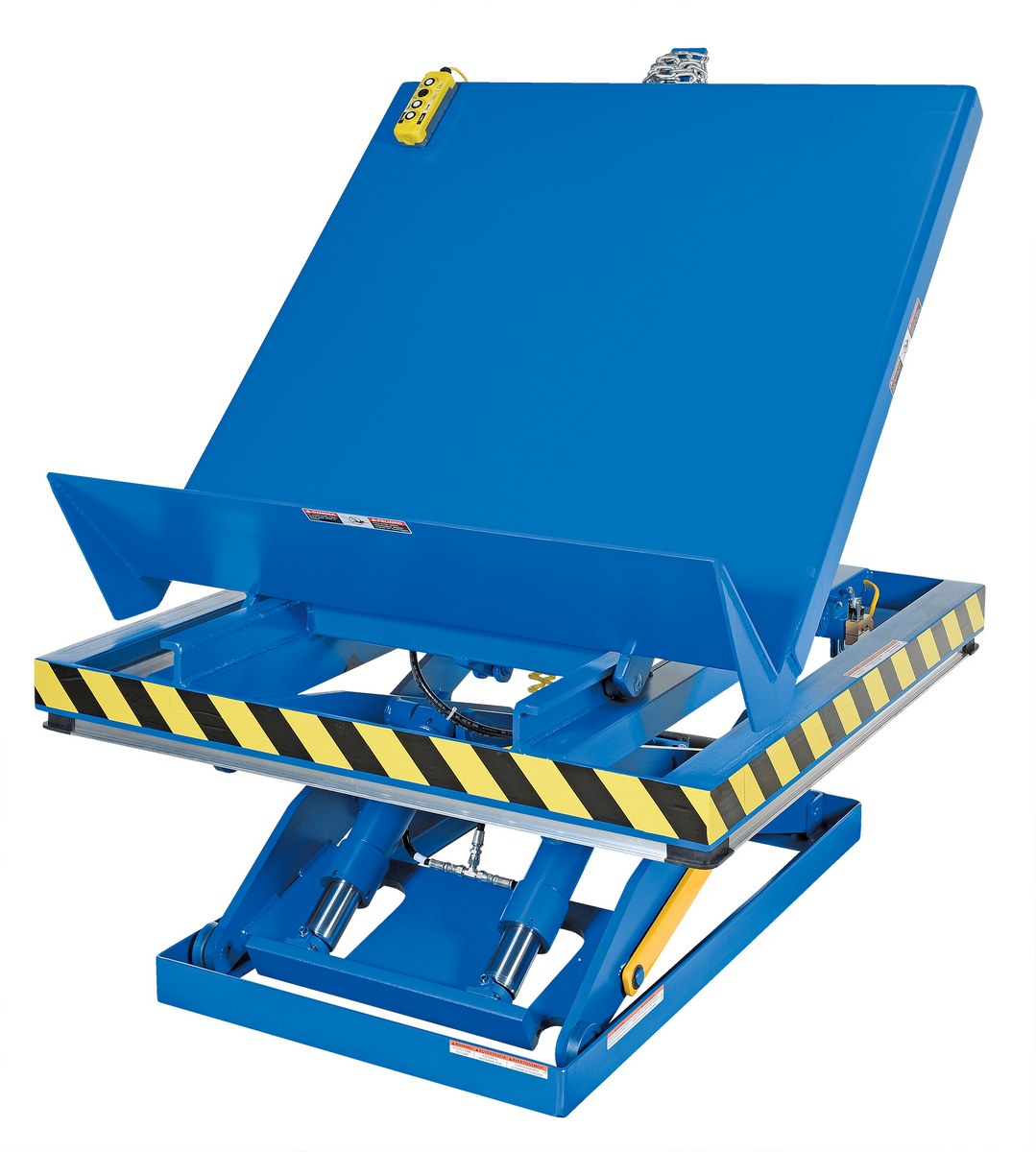

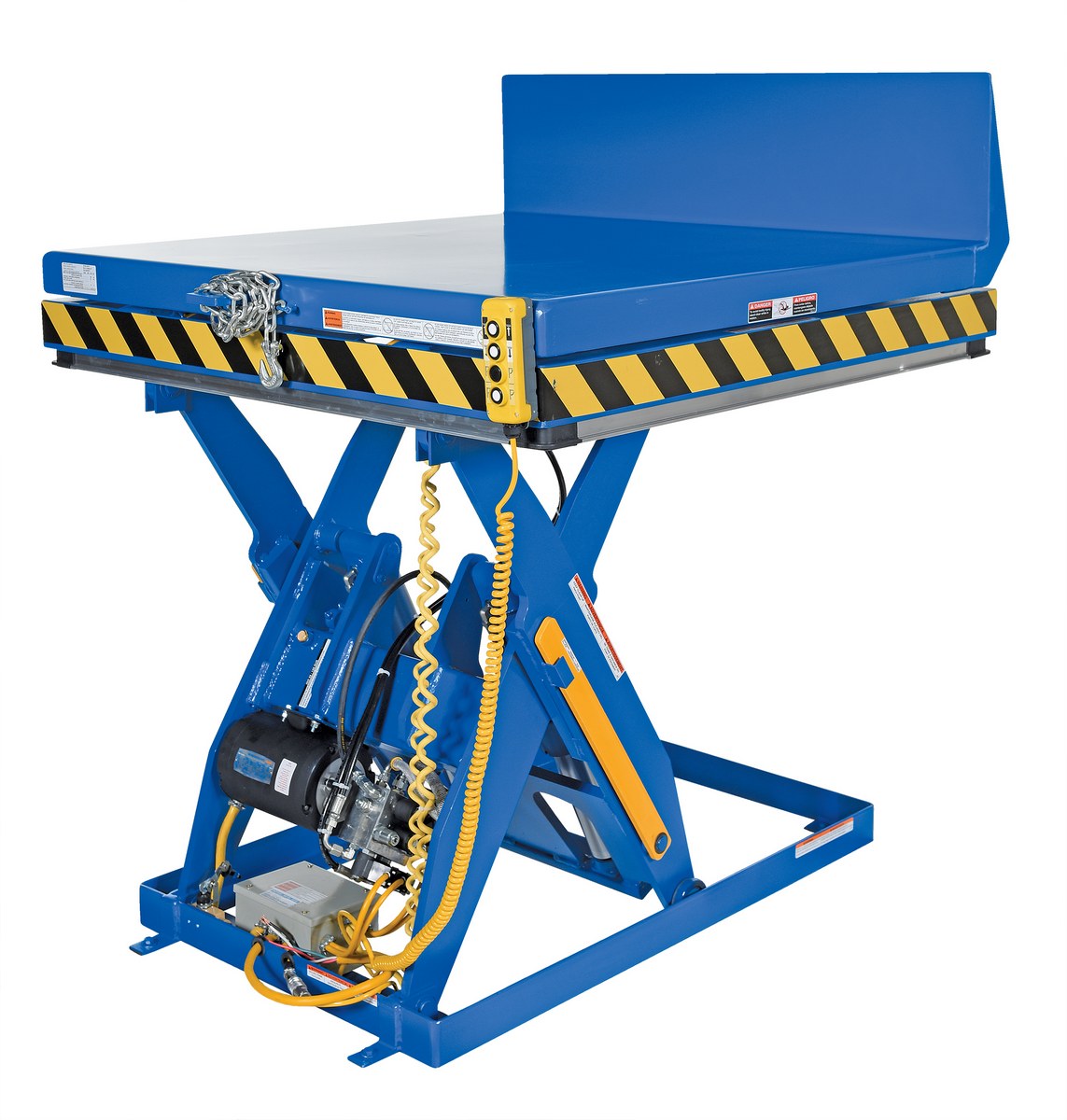

Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity Blue

The lift and tilt scissor lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include an electric toe guard to protect workers from pinch points during lowering of the table, velocity fuses to hold platform position in the event of a hose or fitting failure, four (4) push-button hand pendent control, upper limit switch to stop travel at maximum height and reduce motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.

  • Restraining chain and lip keep the load in place during tilting
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • End tilt is standard with a side tilt available
Total Ship Wt.(lbs.): 1292 (only 1 package) Size: 48"W x 56"L x 23"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Lowered Height (in.): 11 Raised Height (in.): 47
Platform Width (in.): 48 Platform Length (in.): 48 Deck Lip Height (in.): 12
Coil Cord Length (in.): 96 End Tilt (degrees): 45 Standard Voltage/Phase: 460/3
Lift Raised/Lowered (Seconds): 22/13 Tilt Raised/Lowered (Seconds): 27/15

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTT-4848-4-47
EHLTT-4848-4-47

Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity Blue

The lift and tilt scissor lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include an electric toe guard to protect workers from pinch points during lowering of the table, velocity fuses to hold platform position in the event of a hose or fitting failure, four (4) push-button hand pendent control, upper limit switch to stop travel at maximum height and reduce motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.

  • Restraining chain and lip keep the load in place during tilting
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • End tilt is standard with a side tilt available
Dimensions: 48"W x 56"L x 23"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215018043 GTIN: 00691215018043
Warranty: -- Shipping Weight: 1292 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Lowered Height (in.): 11 Raised Height (in.): 47
Platform Width (in.): 48 Platform Length (in.): 48 Deck Lip Height (in.): 12
Coil Cord Length (in.): 96 End Tilt (degrees): 45 Standard Voltage/Phase: 460/3
Lift Raised/Lowered (Seconds): 22/13 Tilt Raised/Lowered (Seconds): 27/15
