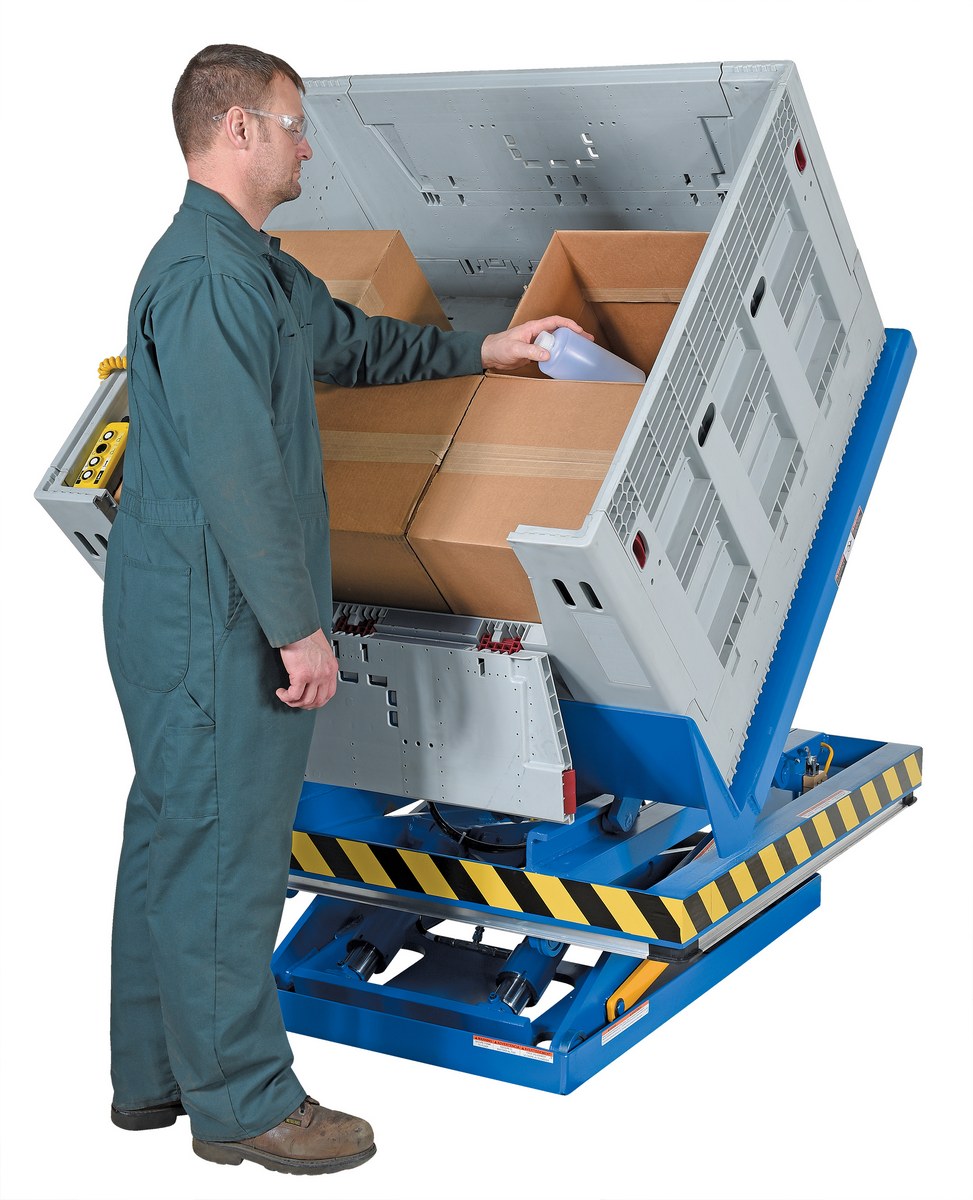

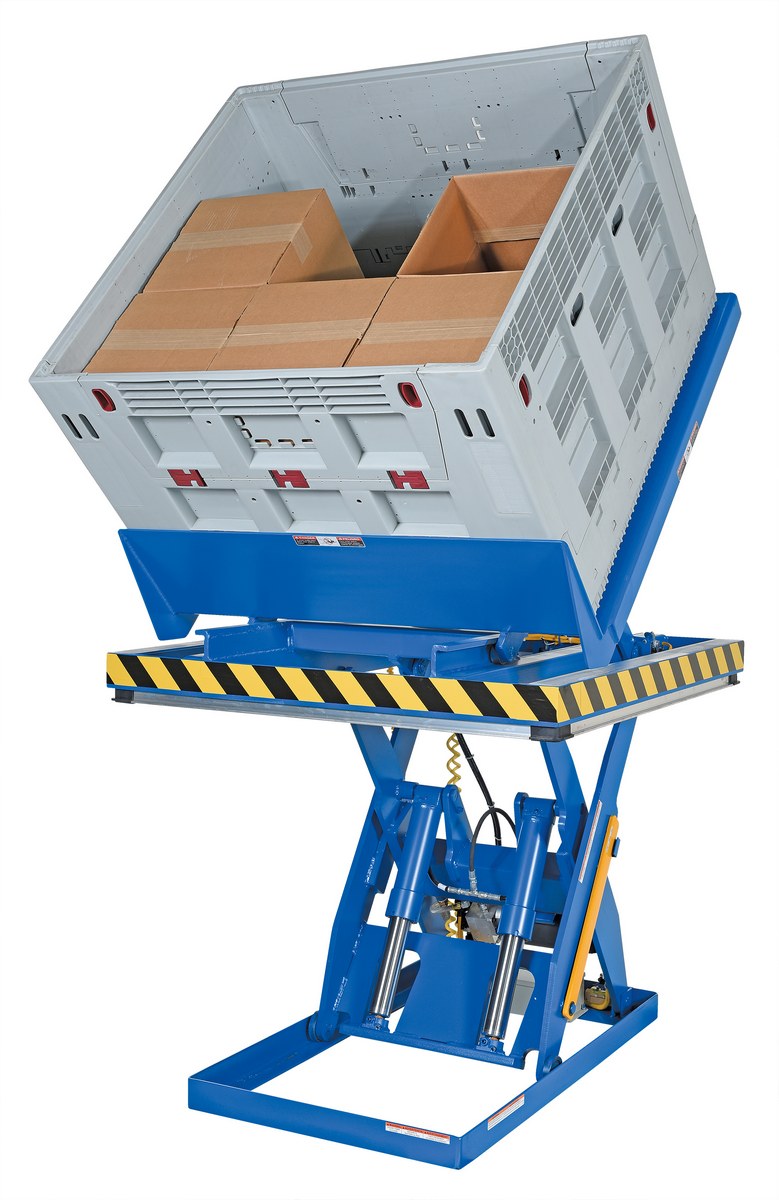

EHLTT-4848-4-47_E.jpg EHLTT-4848-4-47_A.jpg EHLTT-4848-4-47_F.jpg EHLTT-4848-4-47_B.jpg
EHLTT-4848-4-47_C.jpg EHLTT-4848-4-47_D.jpg EHLTT-4848-4-47_1.jpg
Lift & Tilt Scissor Tables

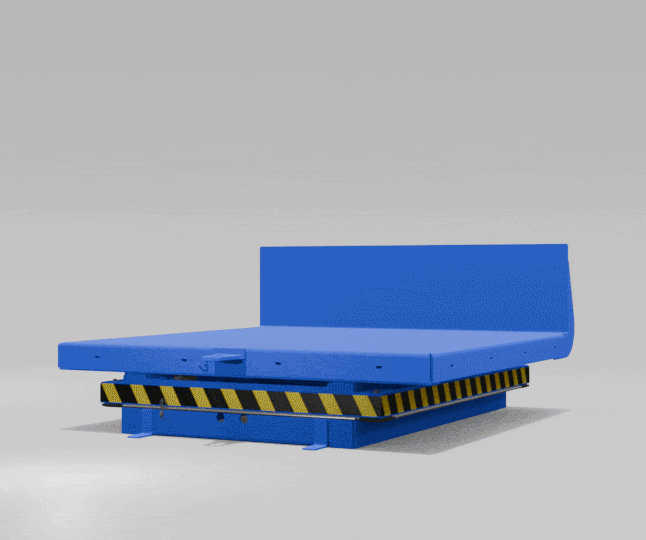

model: EHLTT-4848-4-47



Featured Ergonomic Solutions


Electric Powered Stacker
Linearizer Electric Worker Platforms
Pallet Master/Servers
Pallet Truck with Adjustable Forks
Ergonomic Work Chair and Stool
Electric/Hydraulic Corner Tilters
Scissor Carts with Built-In Scale
Electric Order Pickers
Single Scissor Lift & Tilt Tables
model chart

Product Family Overview

Print Friendly
Lift & Tilt Scissor Tables
SERIES: EHLTT

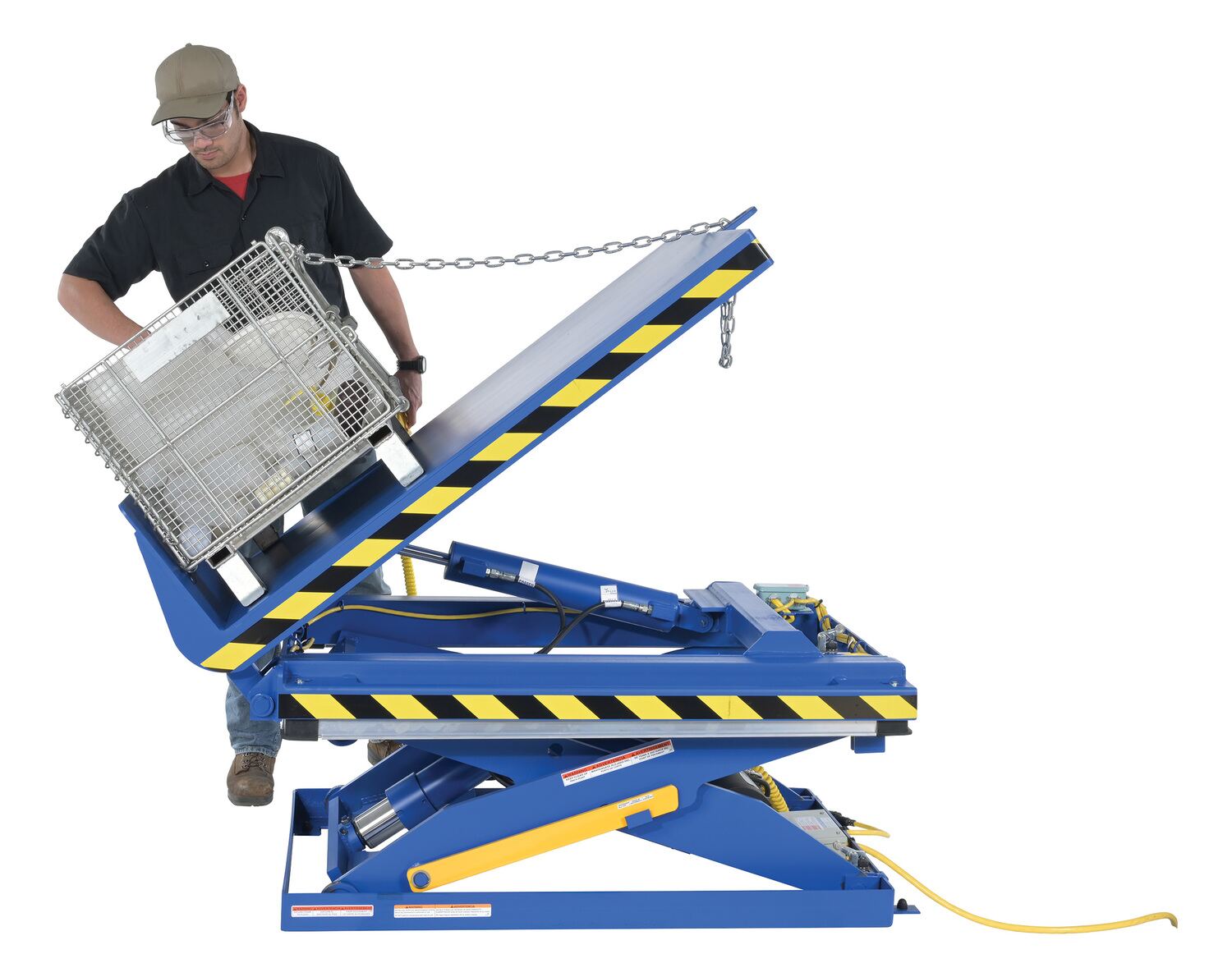

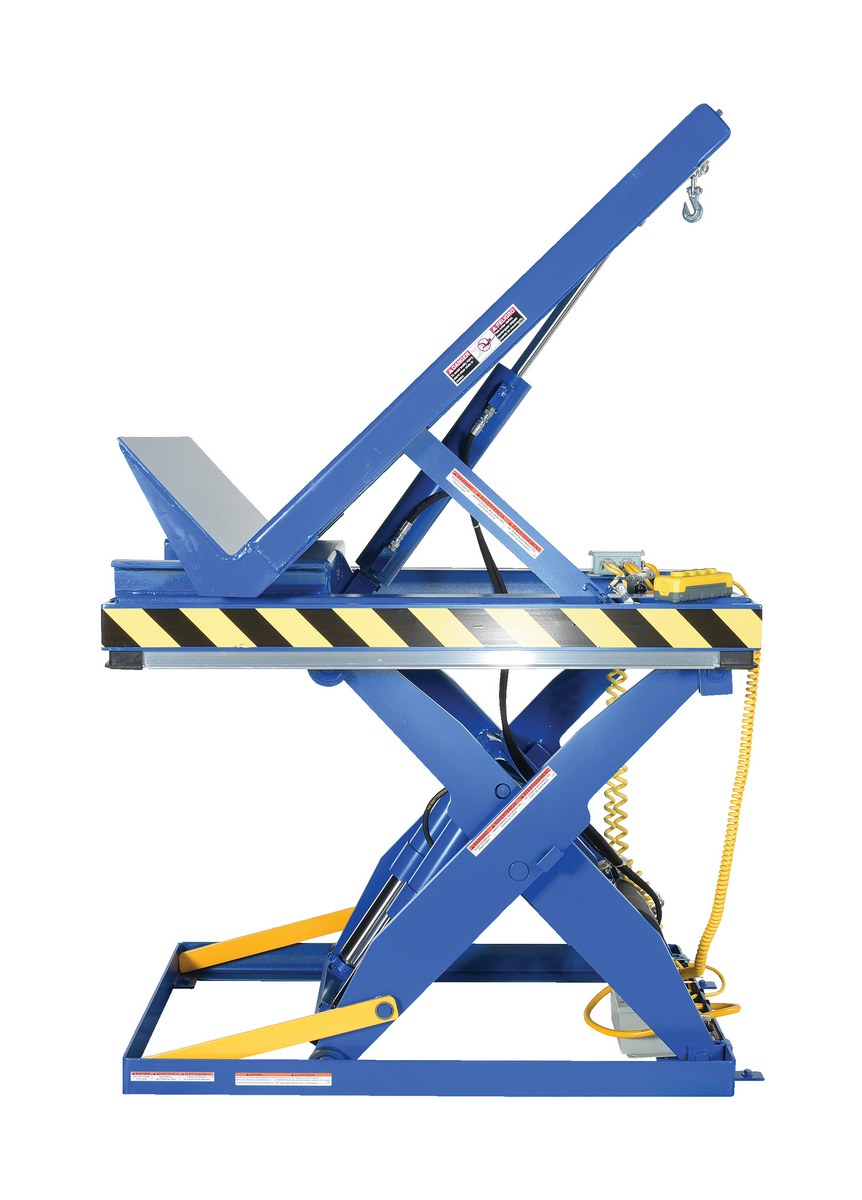

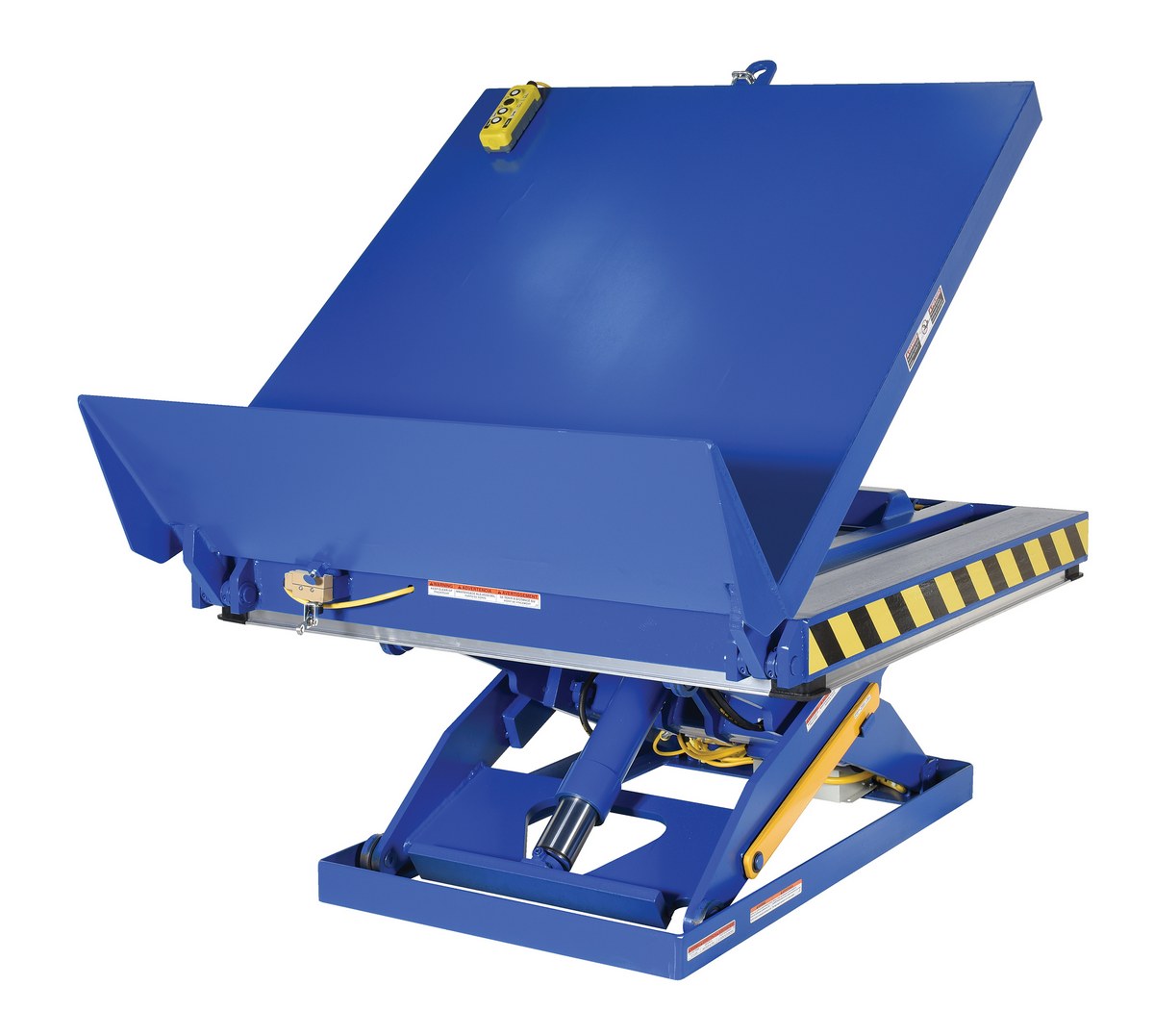

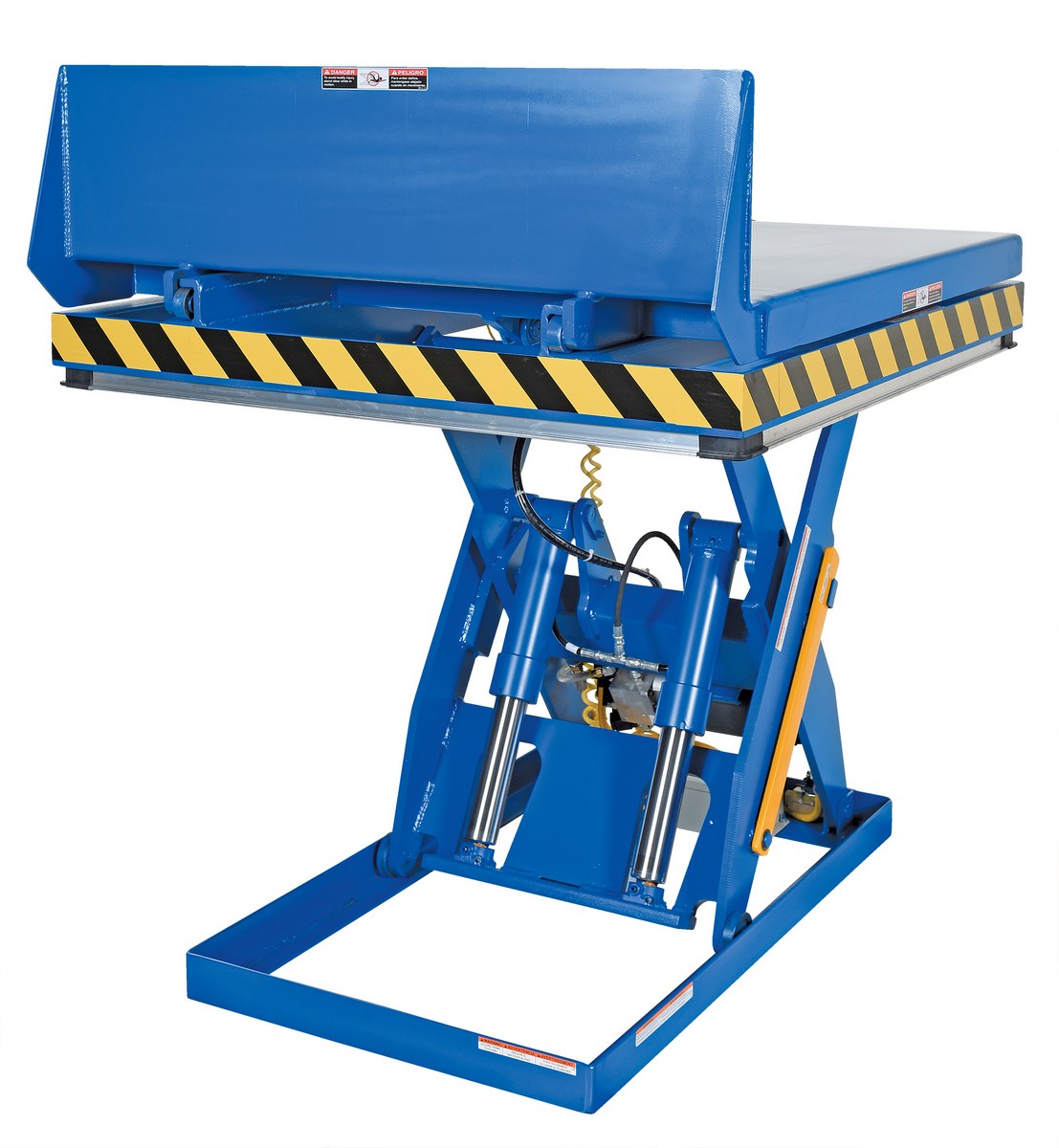

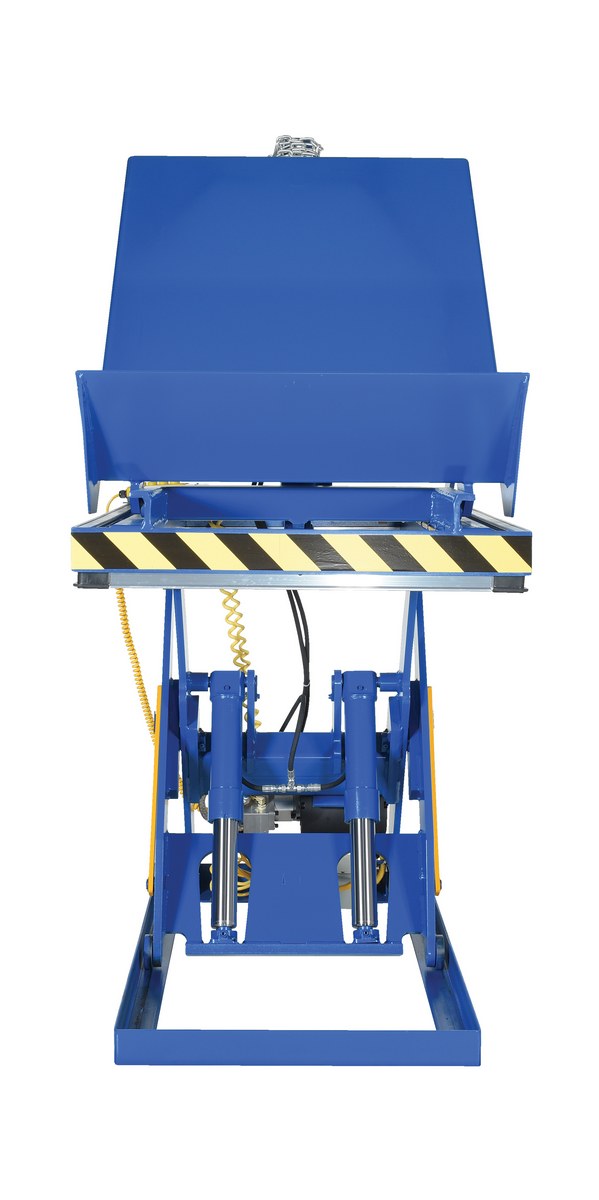

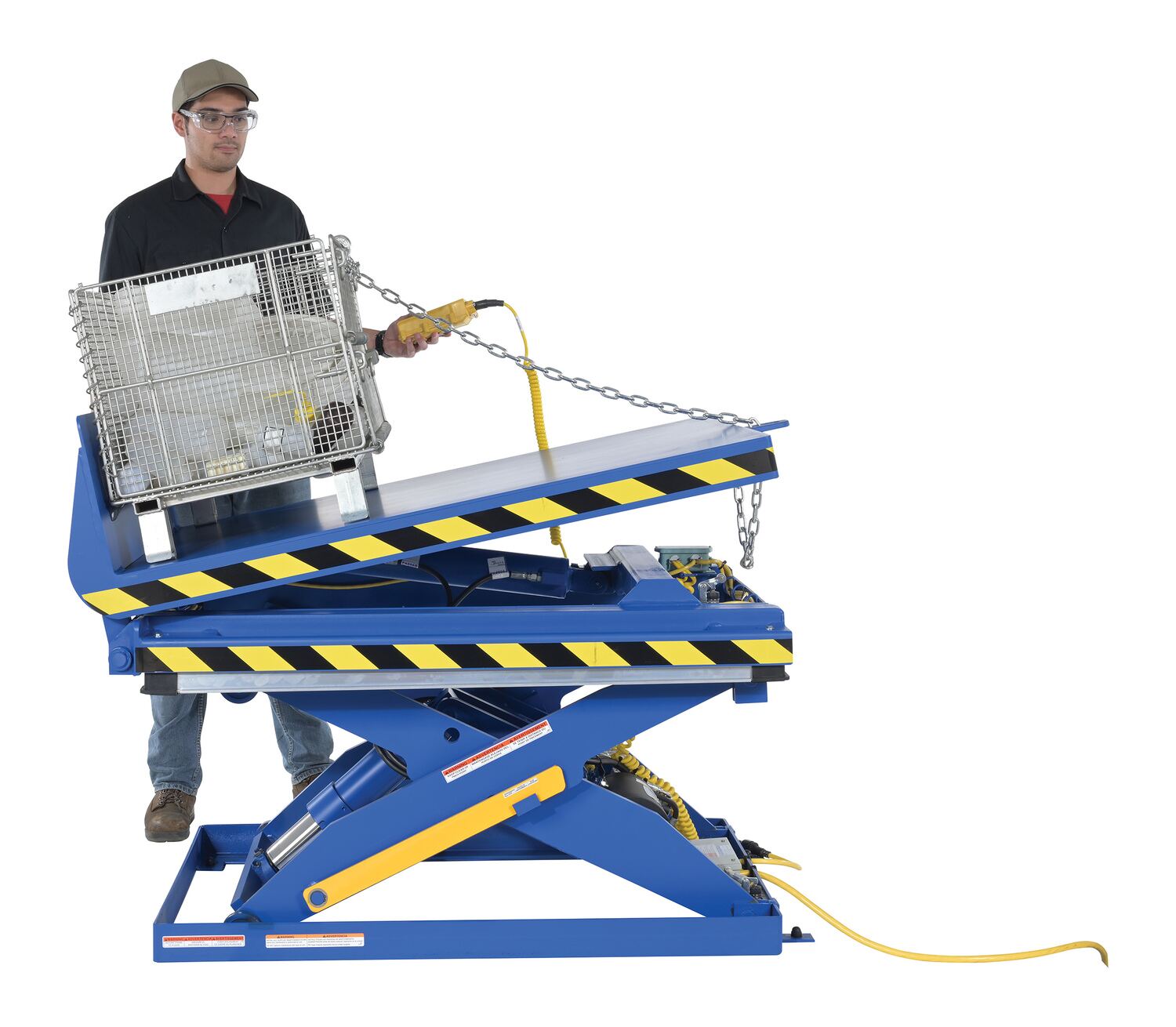

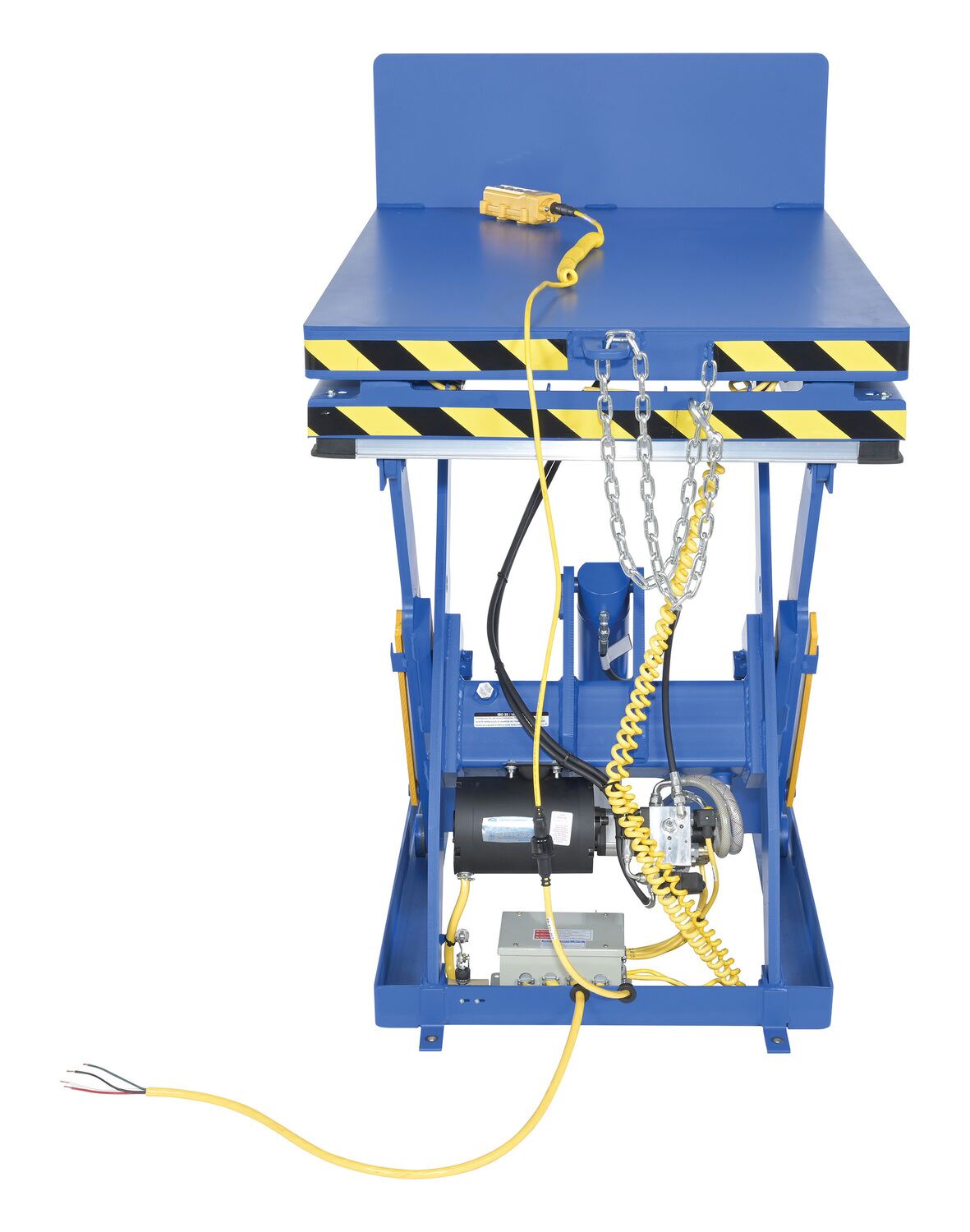

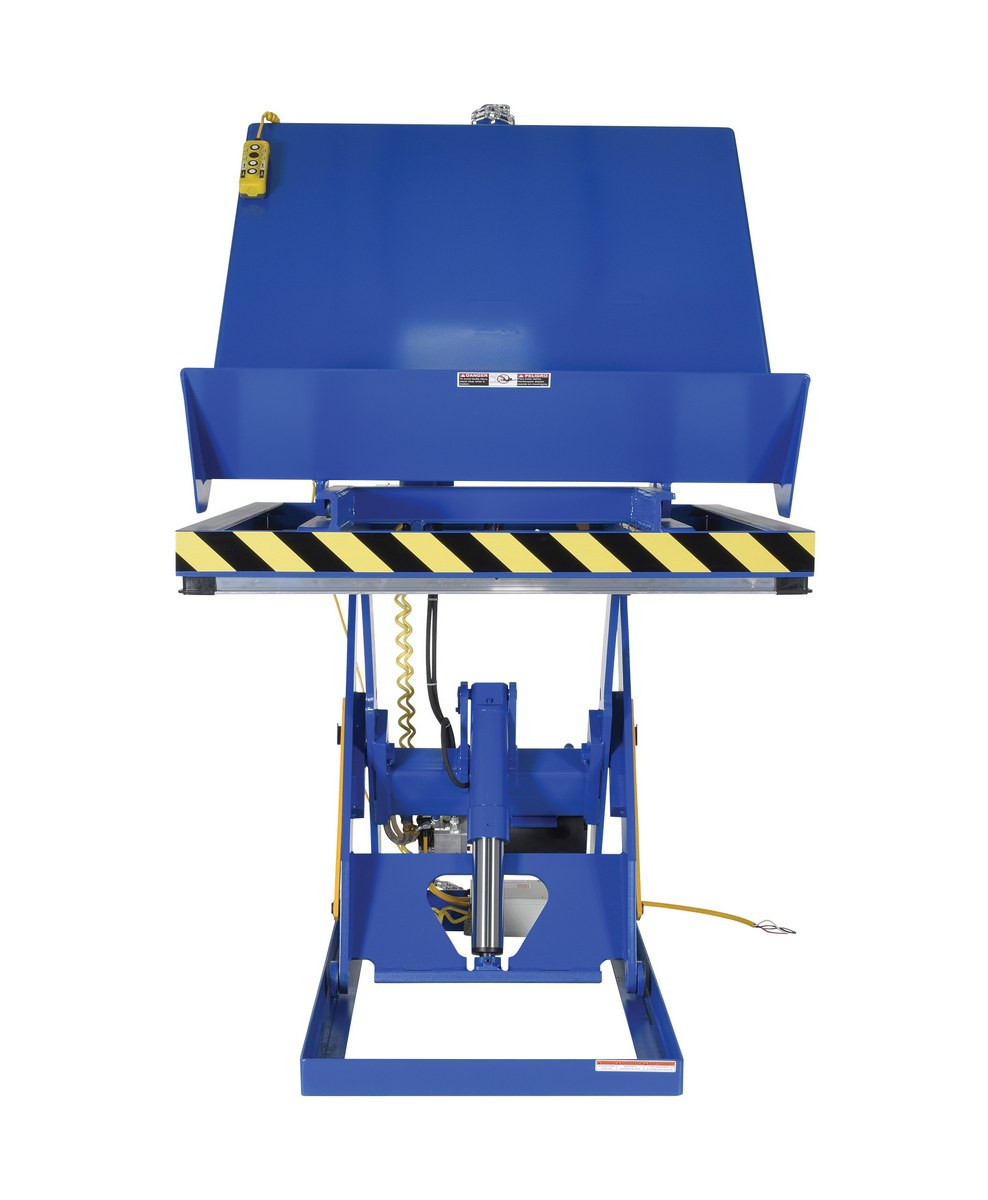

Performs both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.


shown with optional Accordian Skirt

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
  • Slot lock and restraint chain.

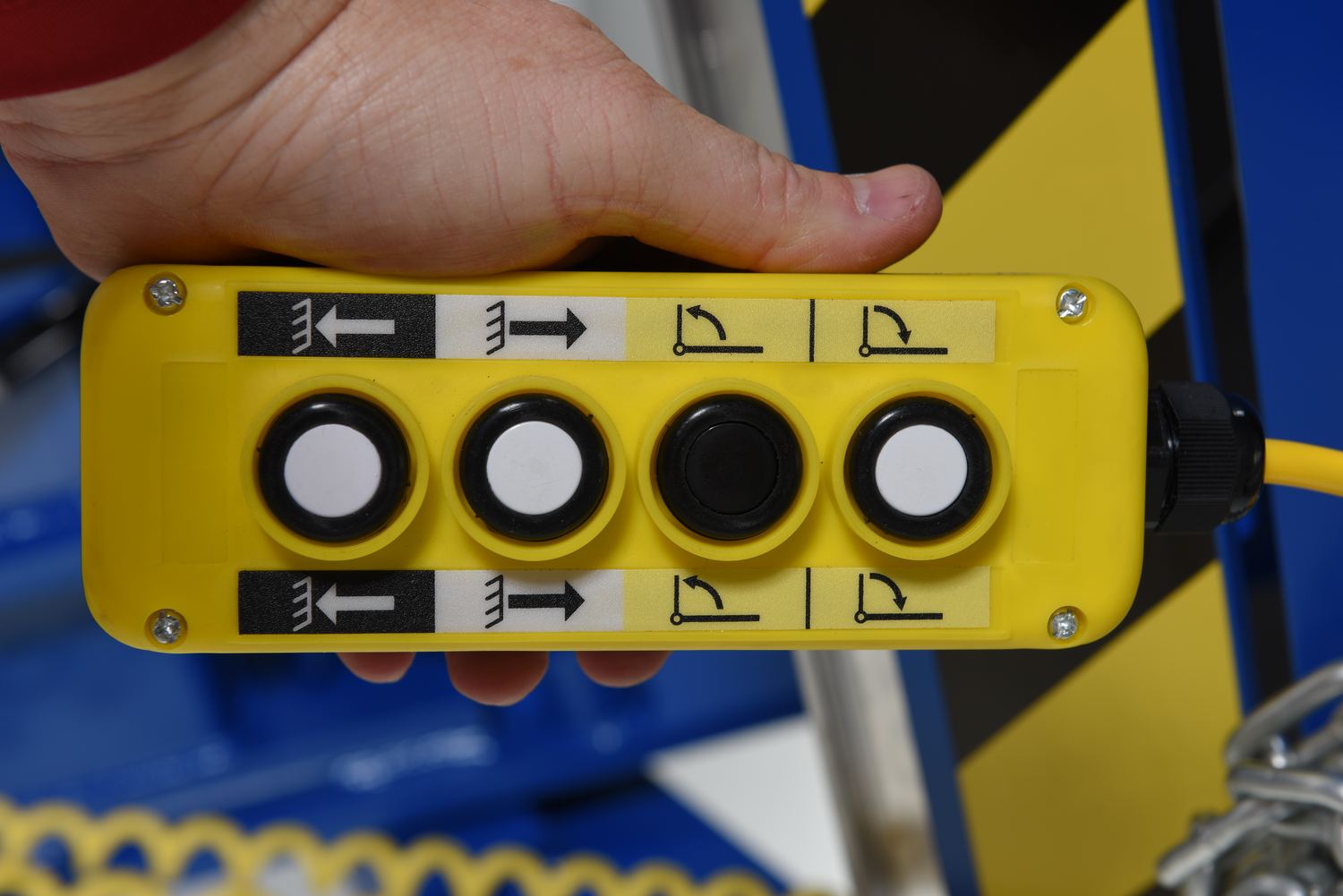

  • NEMA-4 hand control provides a weatherproof case for years of durability.
  • Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard
  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

Performs both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.


shown with optional Accordian Skirt

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
  • Slot lock and restraint chain.
  • NEMA-4 hand control provides a weatherproof case for years of durability.
  • Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard
  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

Other Lift & Tilt Tables

 Integral Scale for Scissor Tables Electric Hydraulic Scissor Lift Tables Manual Built-In Carousel for Scissor Tables Air Bag Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

EHLTT-4848-3-47

EHLTT-4848-3-47

EHLTT-4848-4-47

EHLTT-4848-4-47

EHLTT-H-3648-2-47

EHLTT-H-3648-2-47

EHLTT-3648-2-47

EHLTT-3648-2-47

EHLTT-4848-4-47

EHLTT-4848-4-47

EHLTT-4848-3-47

EHLTT-4848-3-47

EHLTT-3648-4-47

EHLTT-3648-4-47

EHLTT-3648-4-47

EHLTT-3648-4-47

EHLTT-H-3648-2-47

EHLTT-H-3648-2-47

EHLTT-4848-2-47

EHLTT-4848-2-47

EHLTT-3648-3-47

EHLTT-3648-3-47

EHLTT-4848-2-47

EHLTT-4848-2-47

EHLTT-4848-3-47

EHLTT-4848-3-47

EHLTT-4848-2-47

EHLTT-4848-2-47

EHLTT-4848-4-47

EHLTT-4848-4-47

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHLTT-3648-1-47
EHLTT-3648-1-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 36 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 11		1208

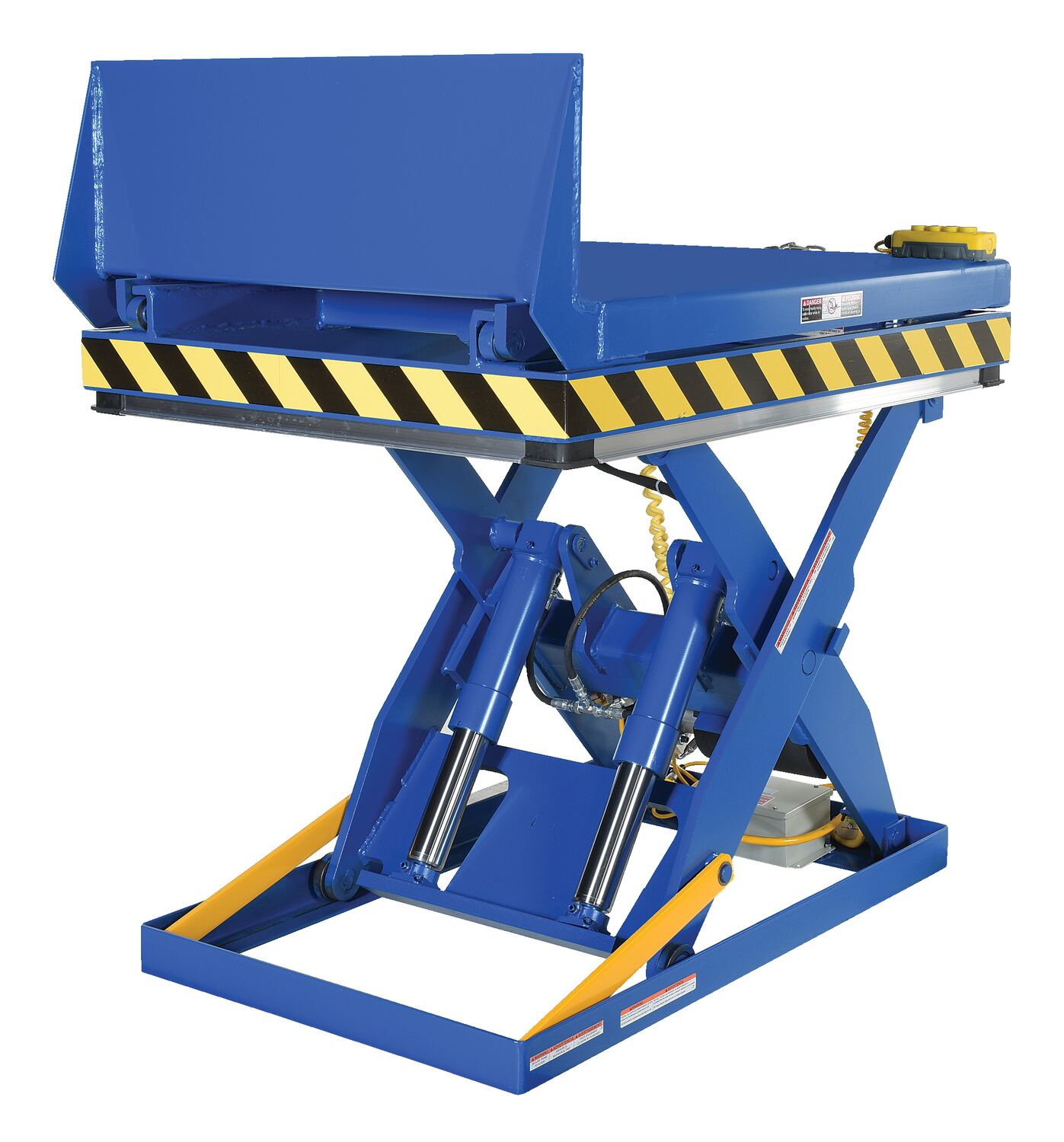

EHLTT-3648-2-47
EHLTT-3648-2-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11		1204
EHLTT-3648-3-47
EHLTT-3648-3-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 36 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 11		1299

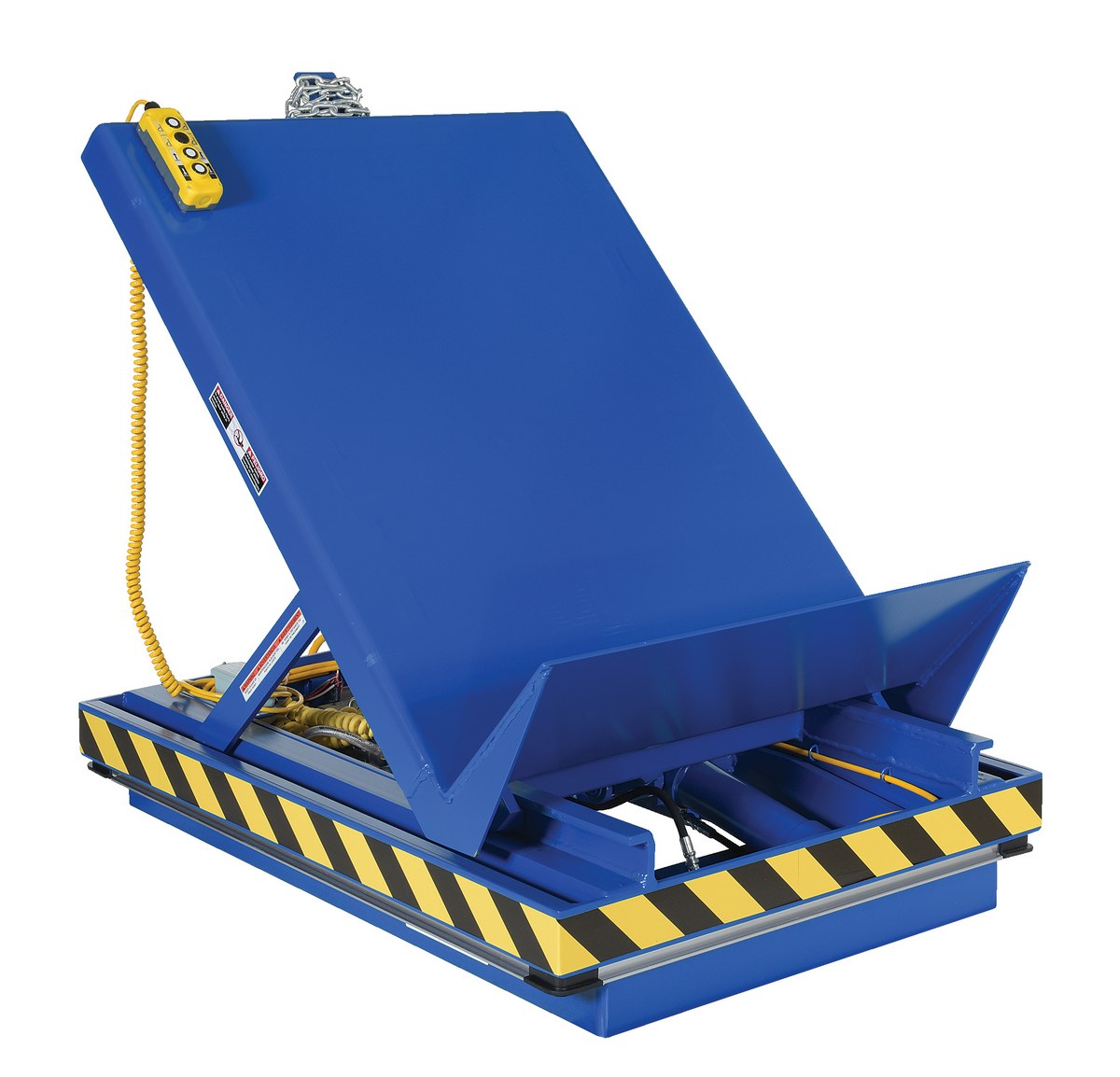

EHLTT-3648-4-47
EHLTT-3648-4-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 36 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 11		1206

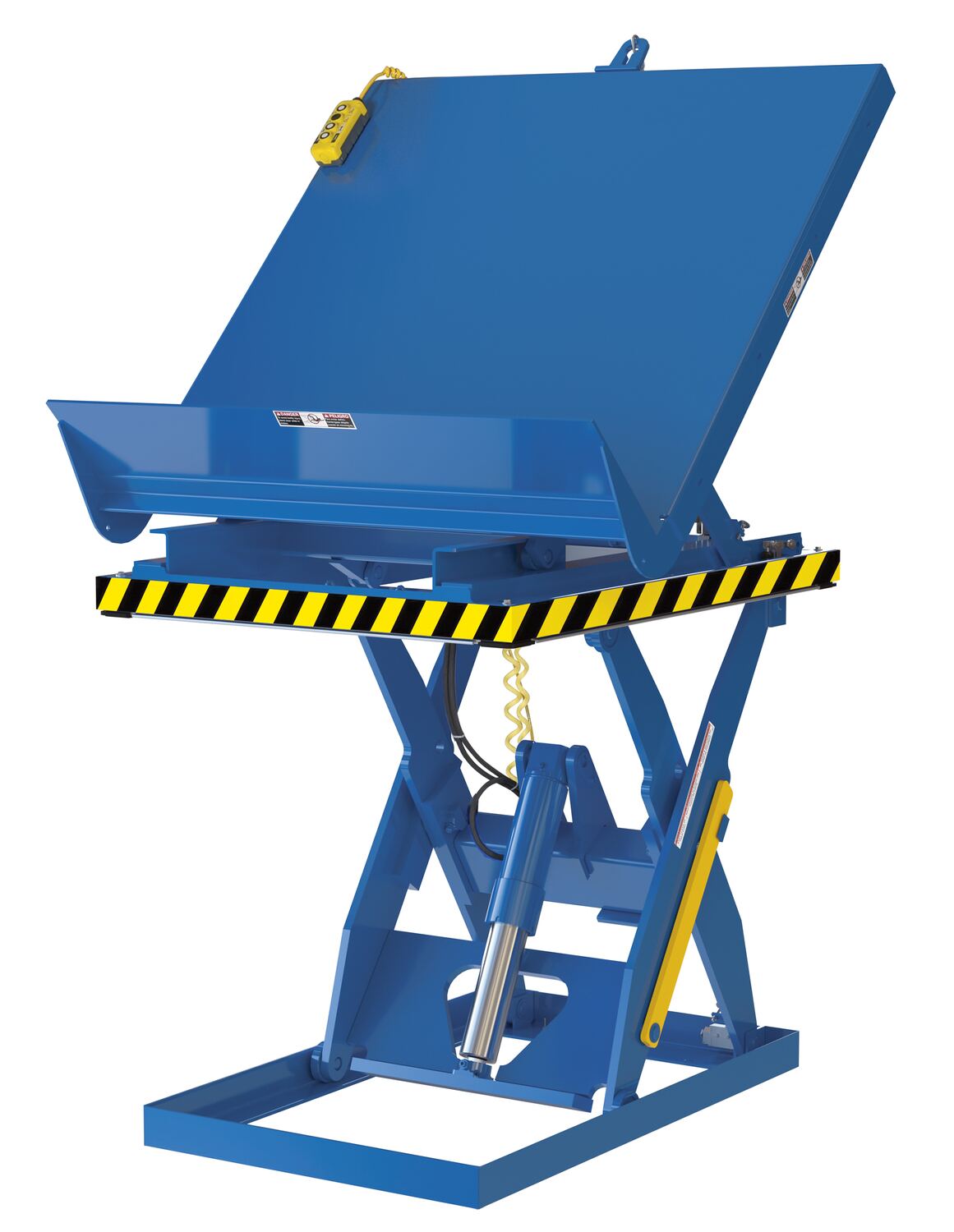

EHLTT-4848-1-47
EHLTT-4848-1-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 48 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 11		1228

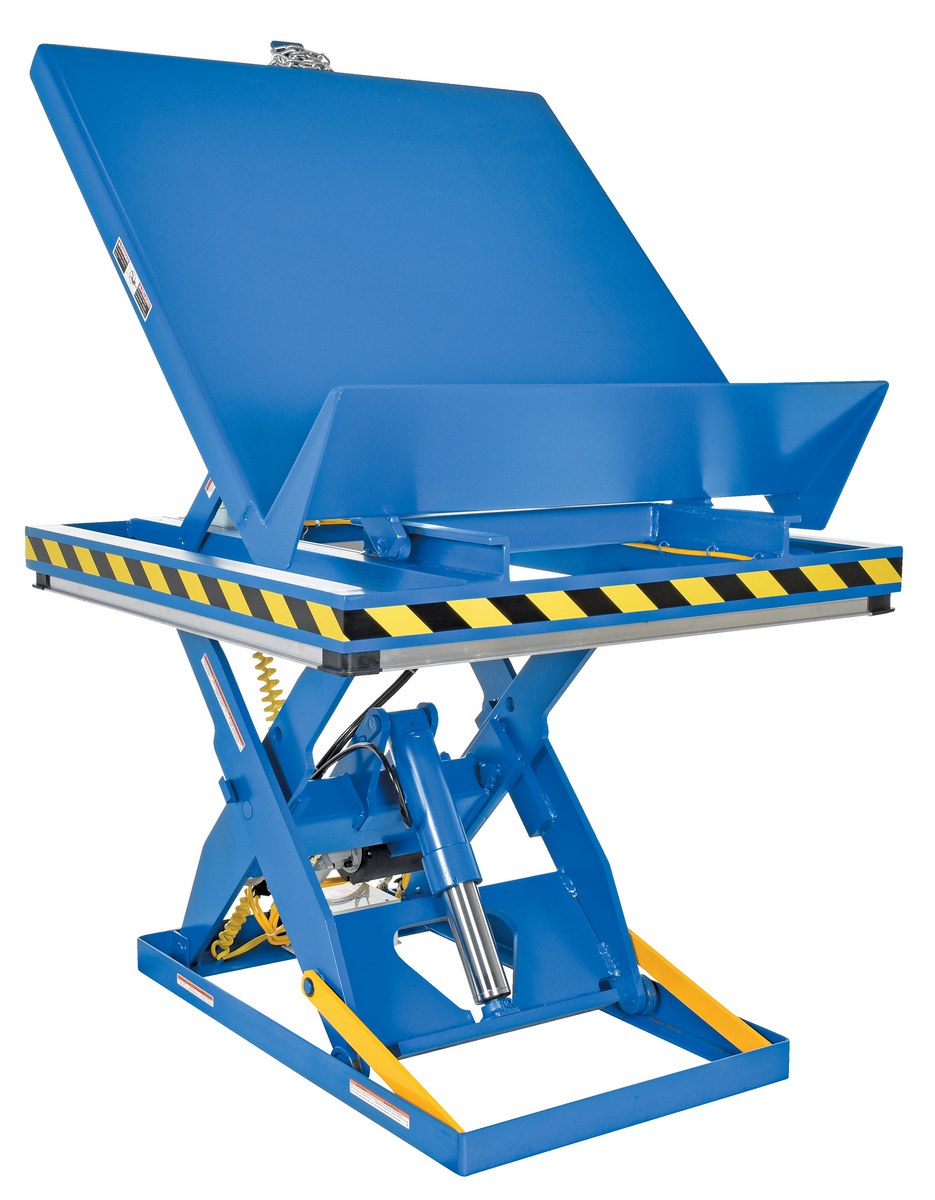

EHLTT-4848-2-47
EHLTT-4848-2-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11		1235
EHLTT-4848-3-47
EHLTT-4848-3-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 48 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 11		1251

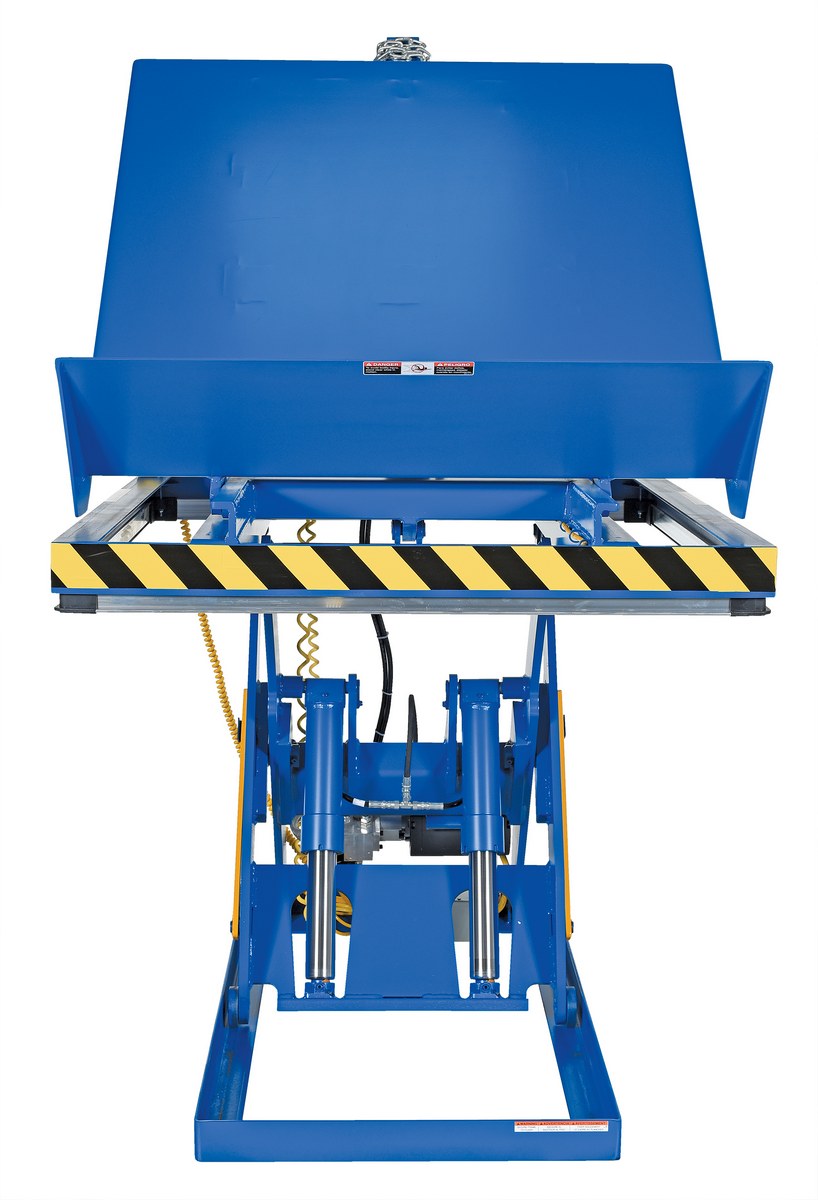

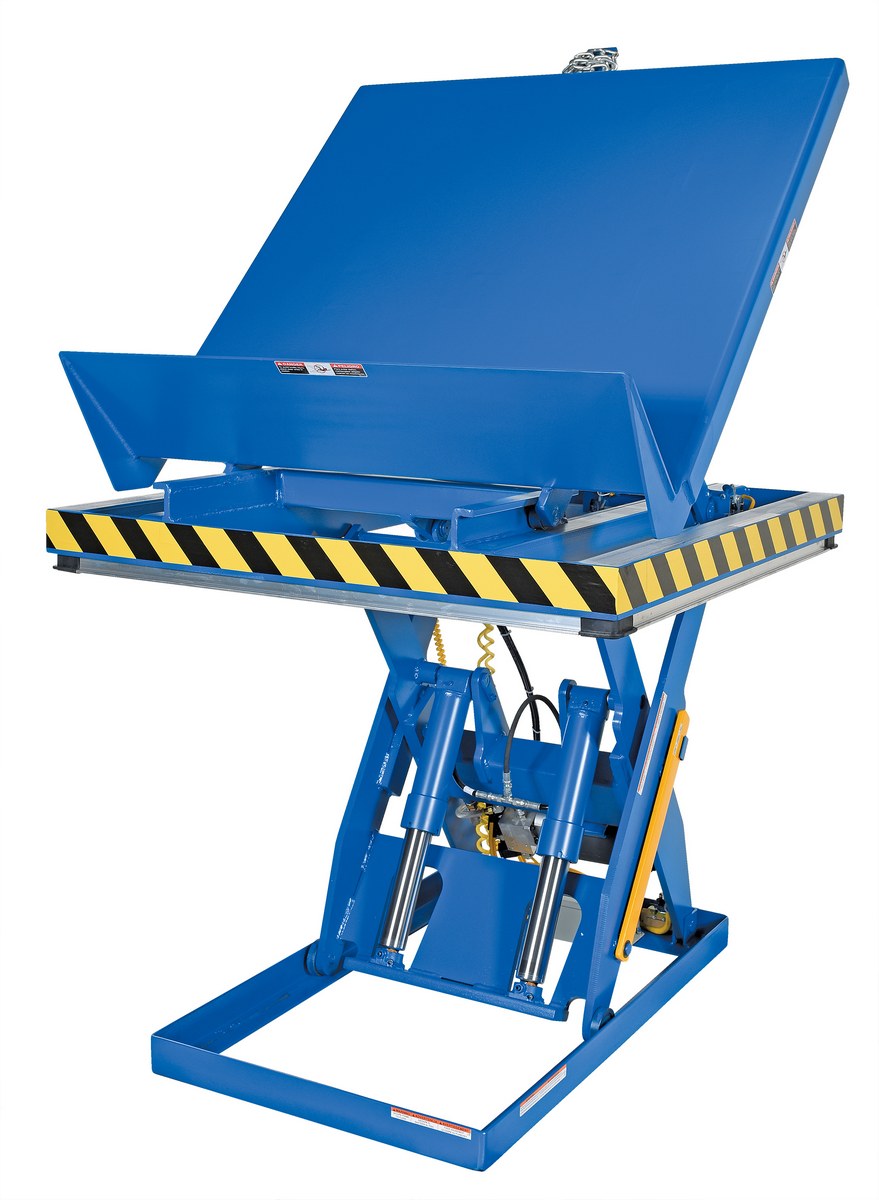

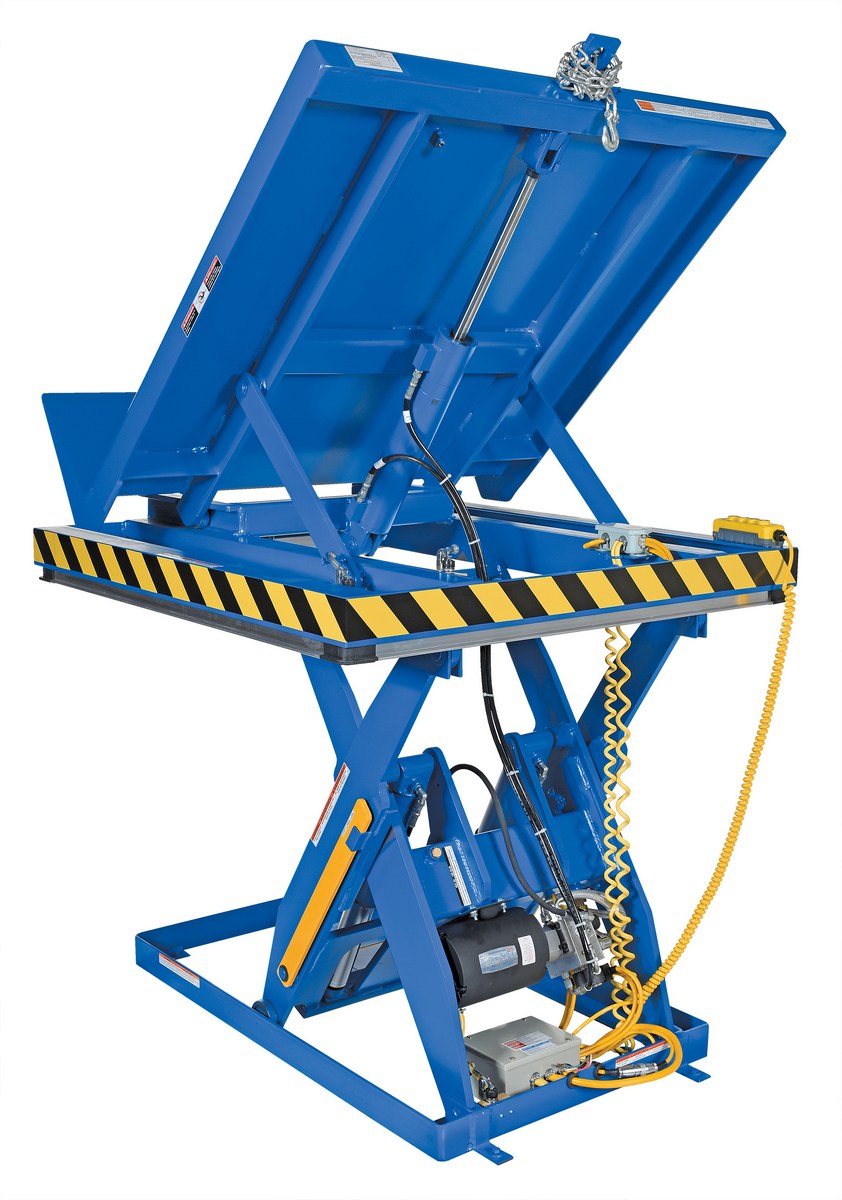

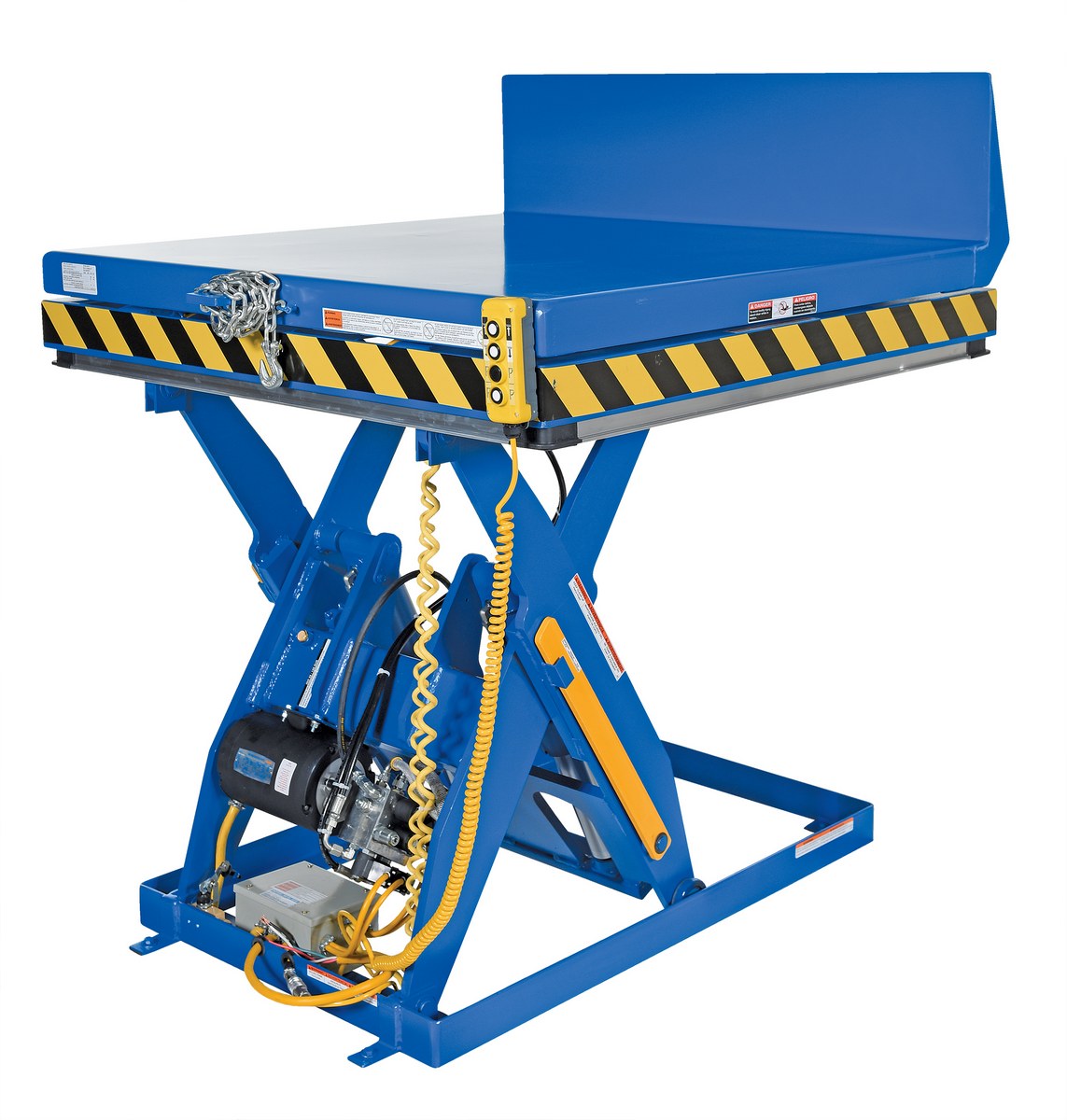

EHLTT-4848-4-47
EHLTT-4848-4-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 11		1292
EHLTT-4848-5-47
EHLTT-4848-5-471 Year Limited WarrantySteel Lift and End Tilt Scissor Table 48 In. x 48 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Lowered Height (in.): 13		1571

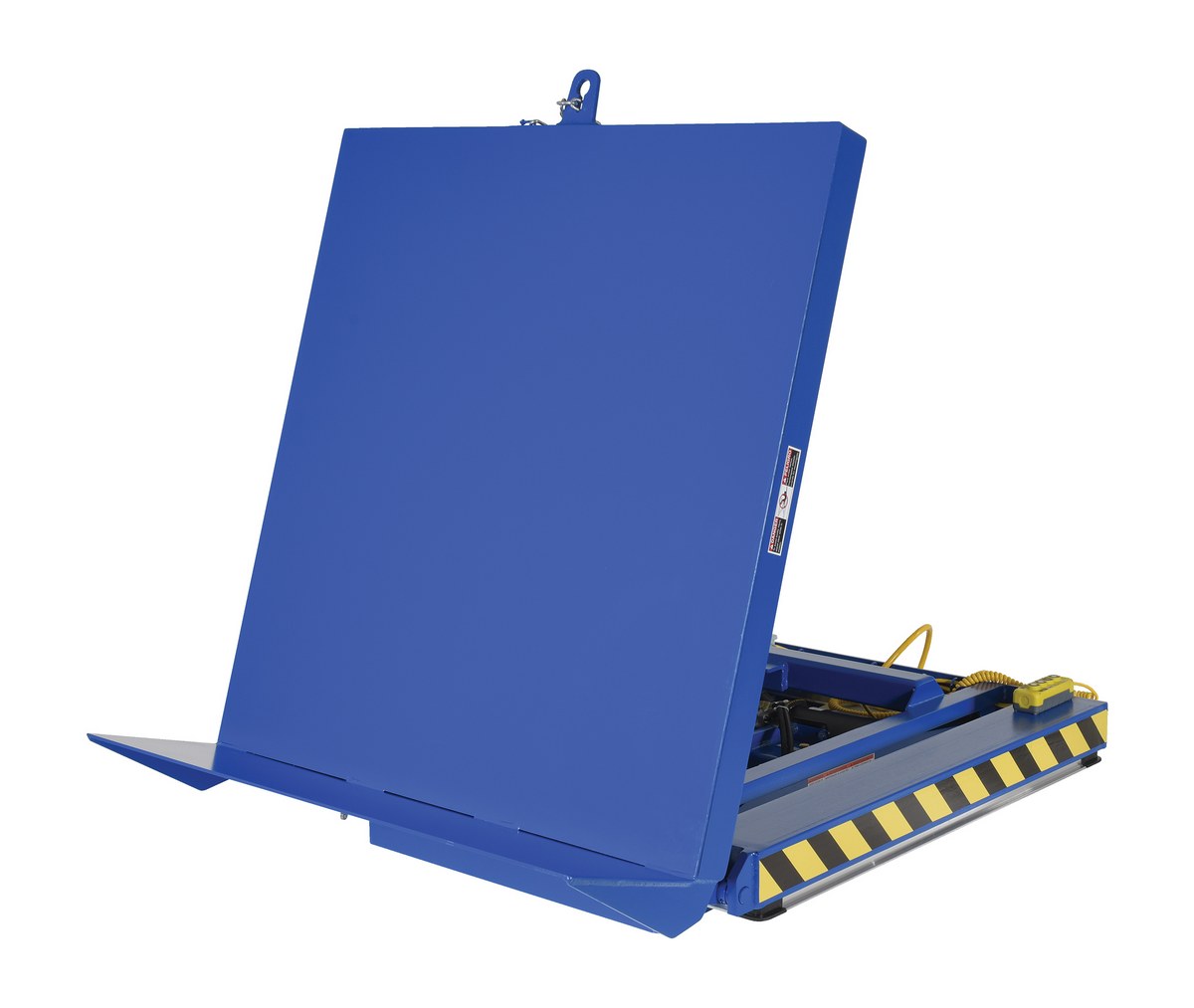

EHLTT-H-3648-2-47
EHLTT-H-3648-2-471 Year Limited WarrantySteel Lift and Hinge Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4		1179
EHLTT-H-4848-2-47
EHLTT-H-4848-2-471 Year Limited WarrantySteel Lift and Hinge Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4		1268

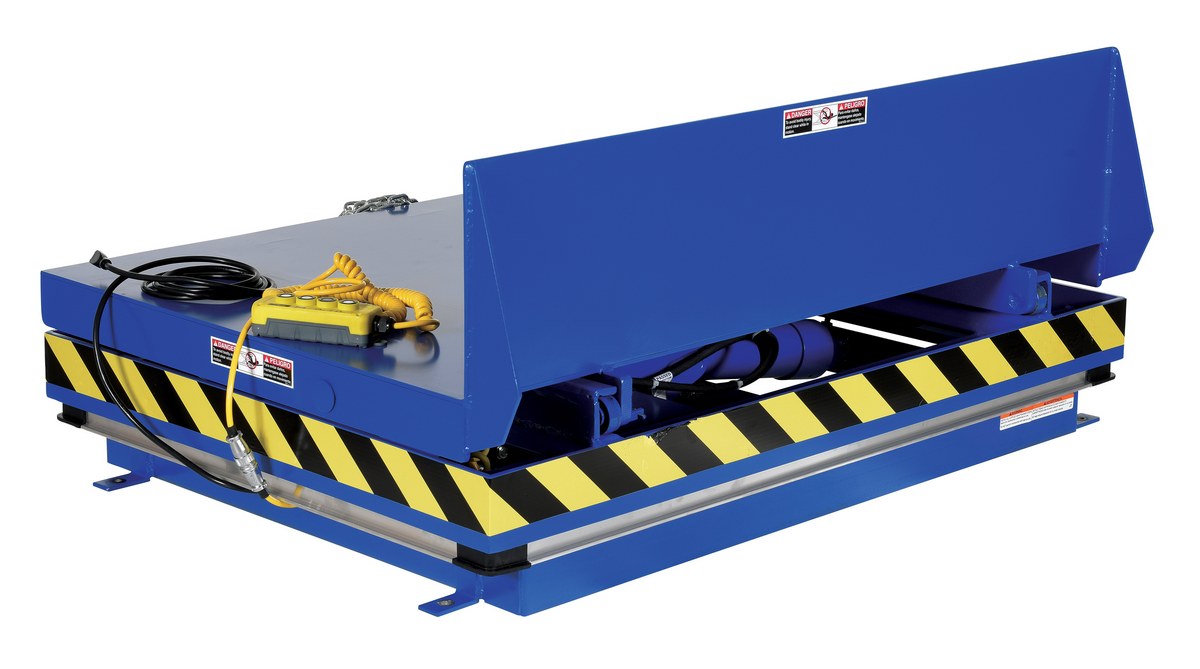

EHLTTS-3654-2-48
EHLTTS-3654-2-481 Year Limited WarrantySteel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 12		1238

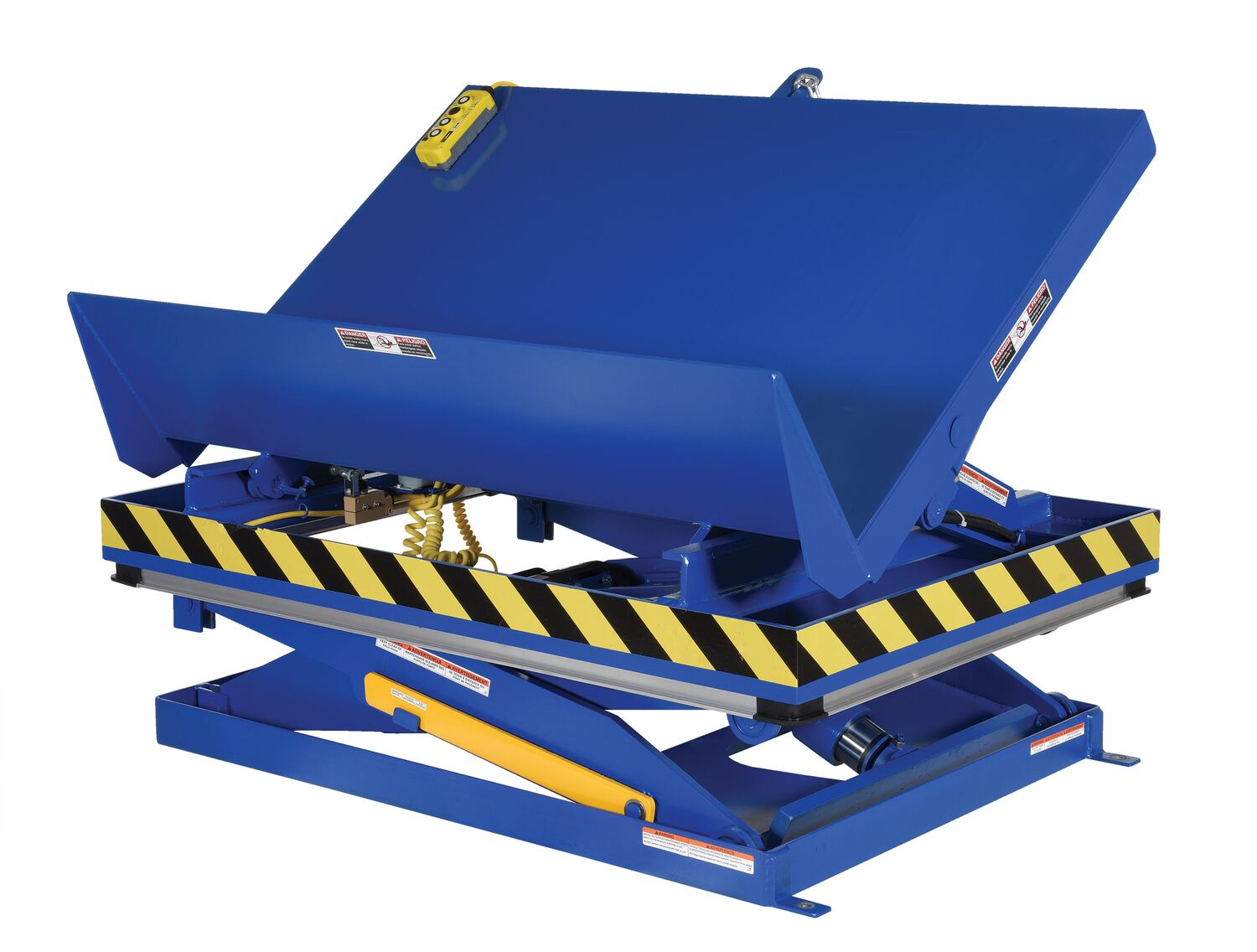

EHLTTS-3654-4-48
EHLTTS-3654-4-481 Year Limited WarrantySteel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 12		1500

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLTT-3648-1-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11

EHLTT-3648-2-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11

EHLTT-3648-3-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11

EHLTT-3648-4-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11

EHLTT-4848-1-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11
Uniform Capacity (lb.): 1000
Lowered Height (in.): 11

EHLTT-4848-2-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11

EHLTT-4848-3-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11
Uniform Capacity (lb.): 3000
Lowered Height (in.): 11

EHLTT-4848-4-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11
Uniform Capacity (lb.): 4000
Lowered Height (in.): 11

EHLTT-4848-5-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Lowered Height (in.): 13
Uniform Capacity (lb.): 5000
Lowered Height (in.): 13

EHLTT-H-3648-2-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4

EHLTT-H-4848-2-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4
Uniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4

EHLTTS-3654-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 12
Uniform Capacity (lb.): 2000
Lowered Height (in.): 12

EHLTTS-3654-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Lowered Height (in.): 12
Uniform Capacity (lb.): 4000
Lowered Height (in.): 12
For More Details of the Option Click the Red Model Button
EHLTT-ROTARY-WMPB 1 Year Limited WarrantyFactory Installed Air/Oil Power With Pneumatic Push Button For EHLTT ModelsBrand / Model Compatibility: EHLTT-H-4848-2-48
Additional Contents: Factory Installed Power Unit		36

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Lift & Tilt Scissor Tables PDF's will open in a new window when clicked.

Manuals


EHLTT
Owners Manual

Survey Sheets


EHLTT
Survey Sheet

Approval Drawings


EHLTT-3648-1-47

EHLTT-3648-2-47

EHLTT-3648-3-47

EHLTT-3648-4-47

EHLTT-4848-1-47

EHLTT-4848-2-47

EHLTT-4848-3-47

EHLTT-4848-4-47

EHLTT-4848-5-47

EHLTT-H-3648-2-47

EHLTT-H-4848-2-47

EHLTTS-3654-2-48

EHLTTS-3654-4-48

Testing Certificates


EHLTT-3648-1-47

EHLTT-3648-2-47

EHLTT-3648-3-47

EHLTT-3648-4-47

EHLTT-4848-1-47

EHLTT-4848-2-47

EHLTT-4848-3-47

EHLTT-4848-4-47

EHLTT-4848-5-47

EHLTT-H-3648-2-47

EHLTT-H-4848-2-47

EHLTT-ROTARY-WMPB

EHLTTS-3654-2-48

EHLTTS-3654-4-48

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTT-3648-1-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-2-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-3-47
Hydraulic Oil SDS Sheet for: EHLTT-3648-4-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-1-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-2-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-3-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-4-47
Hydraulic Oil SDS Sheet for: EHLTT-4848-5-47
Hydraulic Oil SDS Sheet for: EHLTT-H-3648-2-47
Hydraulic Oil SDS Sheet for: EHLTT-H-4848-2-47
Hydraulic Oil SDS Sheet for: EHLTTS-3654-2-48
Hydraulic Oil SDS Sheet for: EHLTTS-3654-4-48

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.

Q: Is there an air powered option for this table?

A: For air powered option, the part number would be ROTARY-DA-HHPB.




Related or Similar Products:

Ground Lift Scissor Tables
Product

Ground Lift Scissor Tables

Zero Lift & Tilt Tables
Product

Zero Lift & Tilt Tables

Single Scissor Lift & Tilt Tables
Product

Single Scissor Lift & Tilt Tables

Lift & Tilt Workstation Tables
Product

Lift & Tilt Workstation Tables

Portable Uni-Tilts
Product

Portable Uni-Tilts

Hinge & Sliding Tilt Tables
Product

Hinge & Sliding Tilt Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Lift & Tilt Scissor Tables




Performs both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.


shown with optional Accordian Skirt

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
  • Slot lock and restraint chain.
  • NEMA-4 hand control provides a weatherproof case for years of durability.
  • Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard
  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

Model # Description Attributes Net Wt.
(lbs)
EHLTT-3648-1-47 EHLTT-3648-1-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 11		1208
EHLTT-3648-2-47 EHLTT-3648-2-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11		1204
EHLTT-3648-3-47 EHLTT-3648-3-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 11		1299
EHLTT-3648-4-47 EHLTT-3648-4-47Steel Lift and End Tilt Scissor Table 36 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 11		1206
EHLTT-4848-1-47 EHLTT-4848-1-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 11		1228
EHLTT-4848-2-47 EHLTT-4848-2-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11		1235

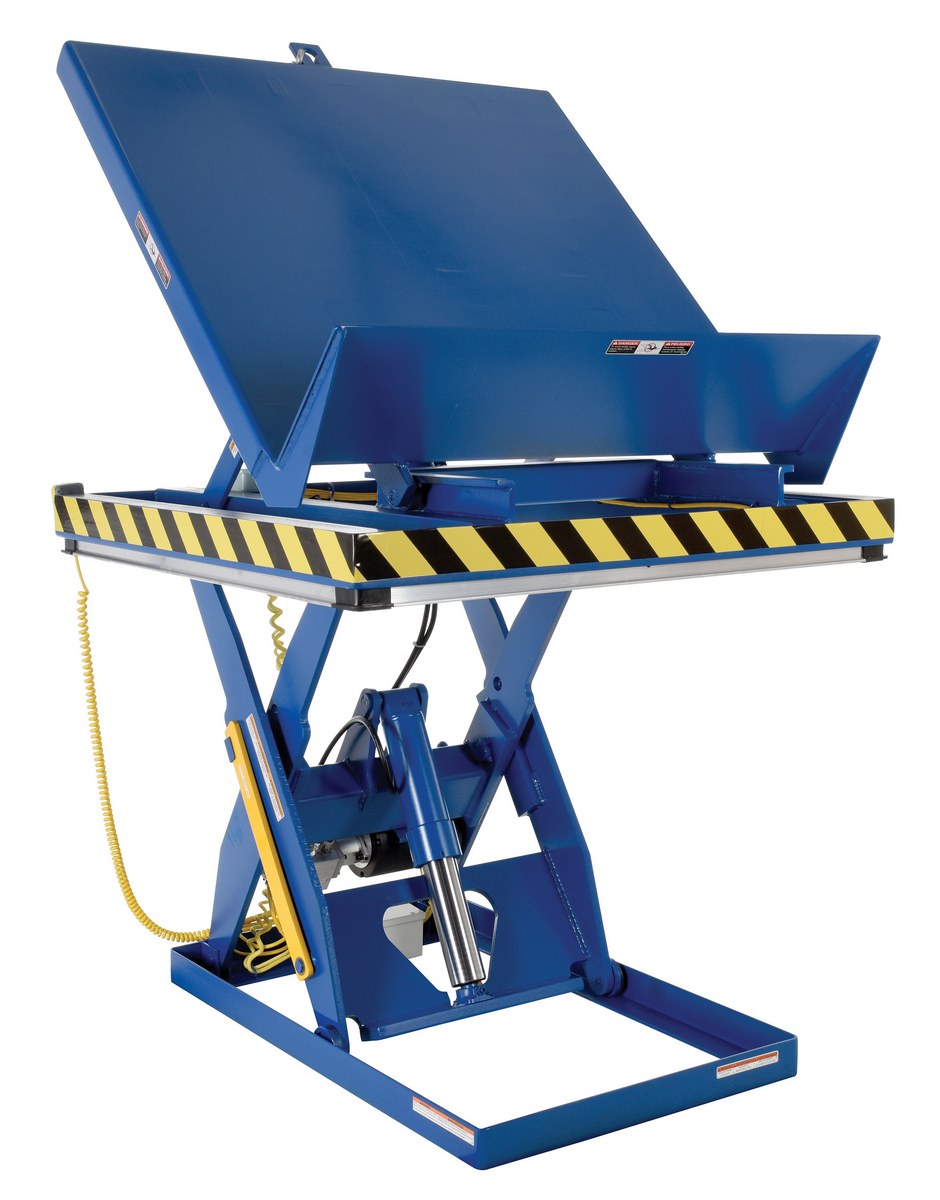

EHLTT-4848-3-47 EHLTT-4848-3-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 11		1251

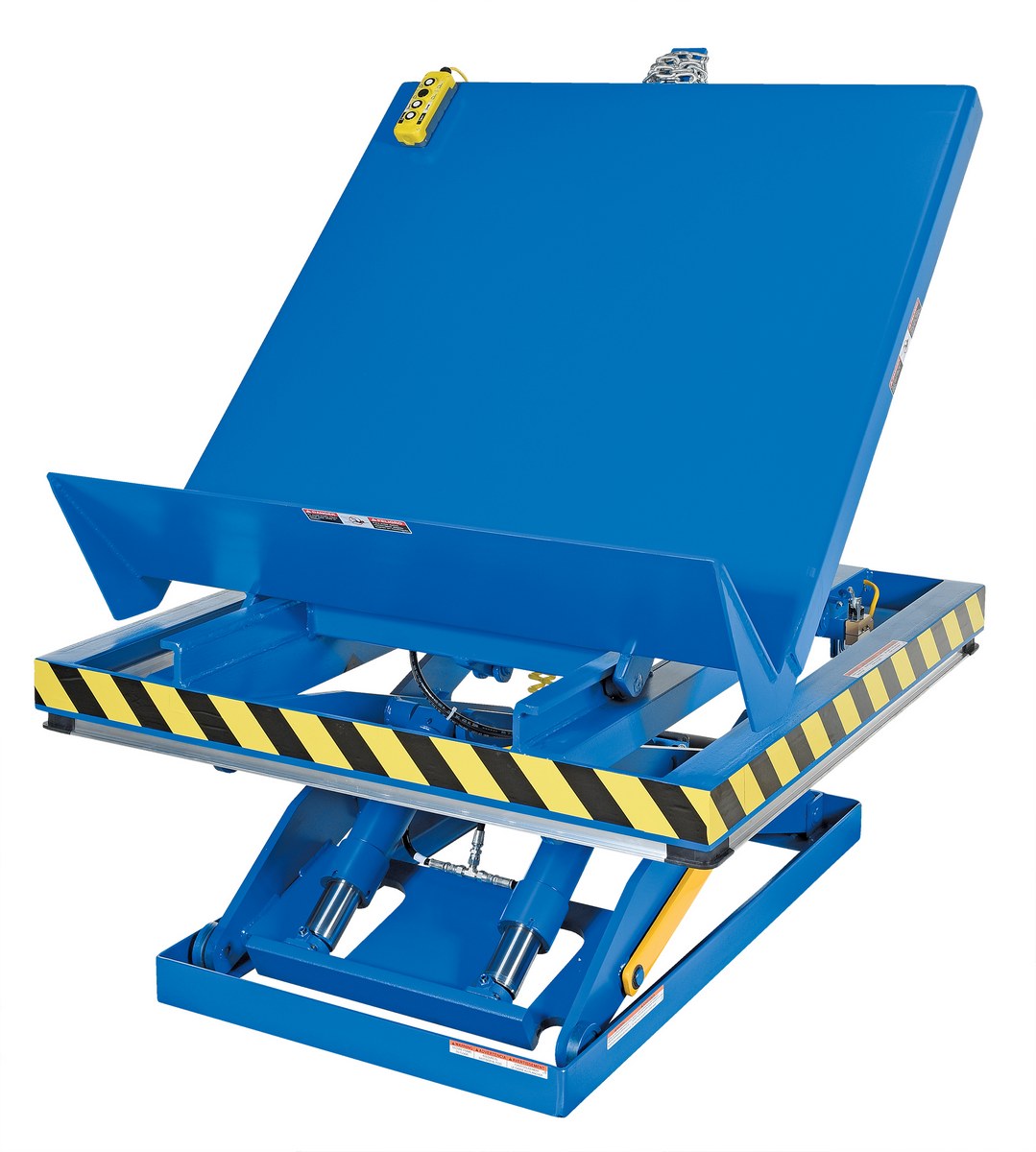

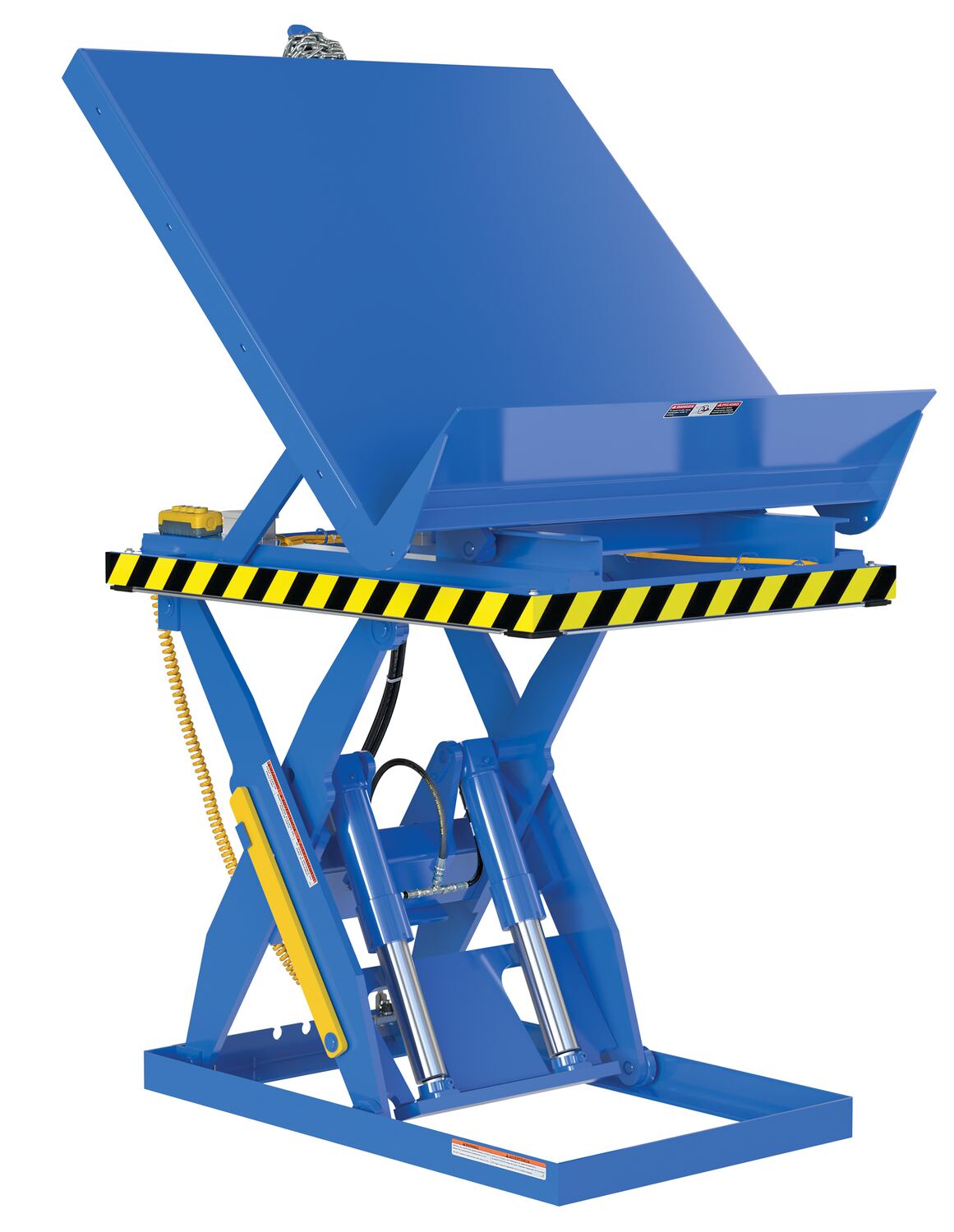

EHLTT-4848-4-47 EHLTT-4848-4-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 11		1292
EHLTT-4848-5-47 EHLTT-4848-5-47Steel Lift and End Tilt Scissor Table 48 In. x 48 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5000
Lowered Height (in.): 13		1571

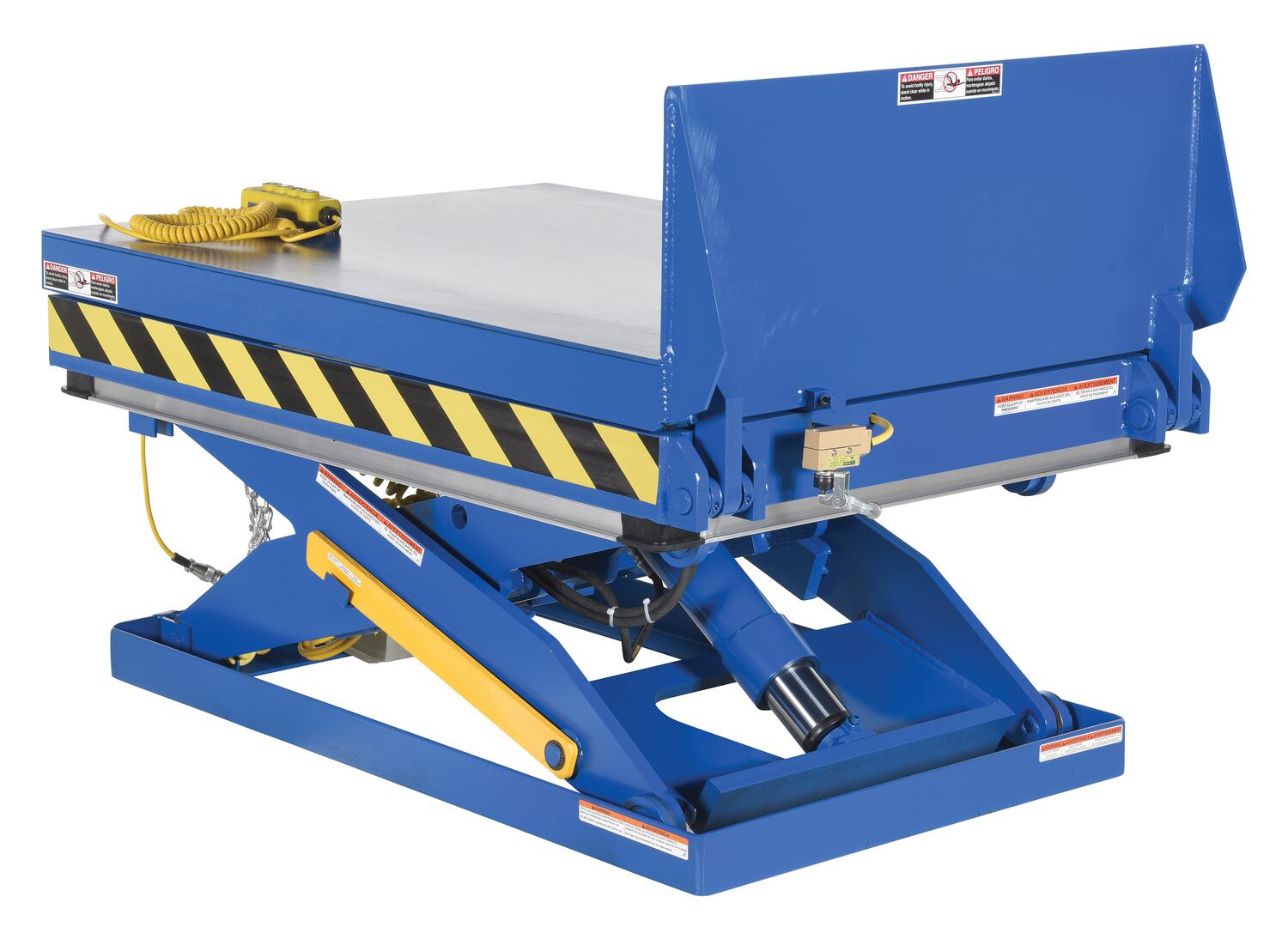

EHLTT-H-3648-2-47 EHLTT-H-3648-2-47Steel Lift and Hinge Tilt Scissor Table 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4		1179
EHLTT-H-4848-2-47 EHLTT-H-4848-2-47Steel Lift and Hinge Tilt Scissor Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 11-1/4		1268

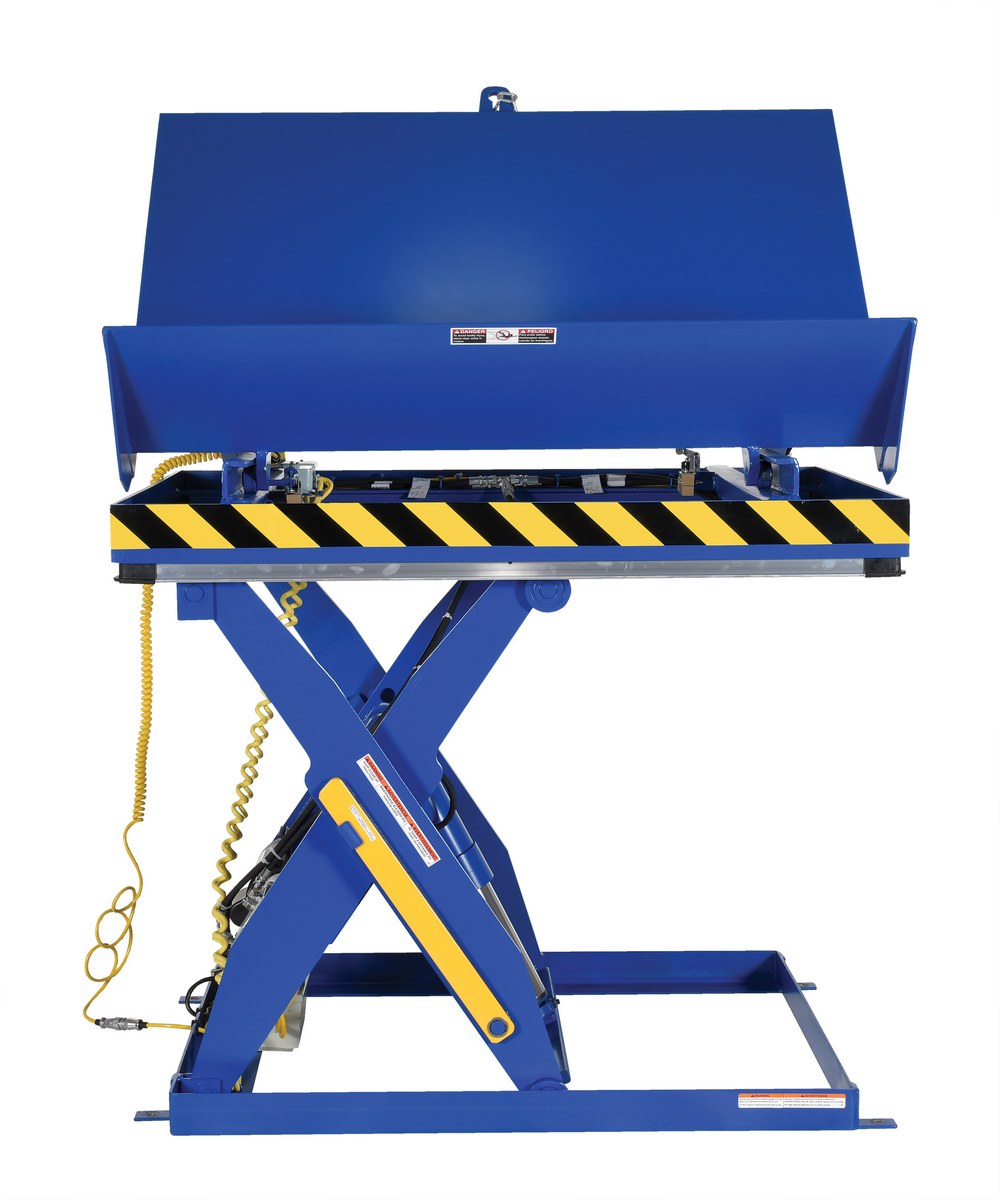

EHLTTS-3654-2-48 EHLTTS-3654-2-48Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 12		1238
EHLTTS-3654-4-48 EHLTTS-3654-4-48Steel Lift and Side Link Tilt Scissor Table 36 In. x 54 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Lowered Height (in.): 12		1500

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
