Model Details

EHU-12-SS

EHU-12-SS

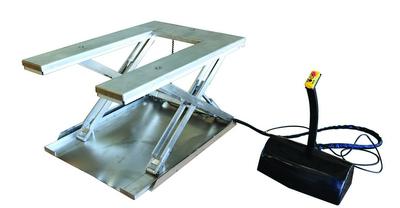

Stainless Steel Low Profile Electric U 1200 lb. Capacity Table Silver

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons.

  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
Total Ship Wt.(lbs.): 592 (only 1 package) Size: 49.875"W x 59"L x 3.375"H Color: Silver Non-Returnable

Uniform Capacity (lbs): 1,200 Maximum Height (in): 33.375 Minimum Height (in): 3.375
Maximum Travel Distance (in): 30 Operation Method: Push Button Overload Protection: Yes
Lifting Speed (sec/ft): 20 Horsepower (hp): 1.5 Phase: Single Phase
Voltage (V): 110 Portable: No Number of Casters / Wheels: No Wheels / Casters
Power Source: Electric - Corded

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHU-12-SS


EHU-12-SS

Stainless Steel Low Profile Electric U 1200 lb. Capacity Table Silver

The low profile electric lift tables with the unique, steel constructed, "U" design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The up and down push button raises and lowers the unit and is located on the control box. Safety features include toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons.

  • Low profile "U" type electric lift table has an open center that enables a pallet truck to place a load on the platform
  • Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed
  • Up and down push button raises and lowers the unit
  • Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety
Dimensions: 49.875"W x 59"L x 3.375"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215320320 GTIN: 00691215320320
Warranty: -- Shipping Weight: 592 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs): 1,200 Maximum Height (in): 33.375 Minimum Height (in): 3.375
Maximum Travel Distance (in): 30 Operation Method: Push Button Overload Protection: Yes
Lifting Speed (sec/ft): 20 Horsepower (hp): 1.5 Phase: Single Phase
Voltage (V): 110 Portable: No Number of Casters / Wheels: No Wheels / Casters
Power Source: Electric - Corded
