H-33-HS

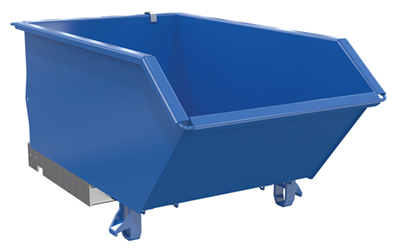

Steel High Strength Low Profile Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

A Low Profile self-dumping steel Hopper features a low profile design essential for convenient loading and unloading. Dumping with a fork truck is quick and simple and by using the cable mechanism, unloading is quick and efficient. When finished, and lowered to the ground, the unit returns to an upright and locked position. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Never stack hoppers more than 3 high. A baked in powder-coat finish diminishes scraps and minimizes abrasion, while adding toughness.

  • Hopper is able to be dumped from seat of fork truck
  • High strength steel for added lifting support
  • Fork pockets are capped on the end to allow for dumping
  • Perfect for fitting in low height areas
Total Ship Wt.(lbs.): 222 (only 1 package) Size: 27"W x 49"L x 22.4375"H Color: Blue

Uniform Capacity (lb.): 6,000 Steel: High Strength Volume (cu. yrd.): 1/3
Fork Pocket Center (in.): 11-5/8 Usable Fork Pocket Length (in.): 22 Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2 Pull Cable Length (ft.): 4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: H-33-HS
H-33-HS

Steel High Strength Low Profile Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

A Low Profile self-dumping steel Hopper features a low profile design essential for convenient loading and unloading. Dumping with a fork truck is quick and simple and by using the cable mechanism, unloading is quick and efficient. When finished, and lowered to the ground, the unit returns to an upright and locked position. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Never stack hoppers more than 3 high. A baked in powder-coat finish diminishes scraps and minimizes abrasion, while adding toughness.

  • Hopper is able to be dumped from seat of fork truck
  • High strength steel for added lifting support
  • Fork pockets are capped on the end to allow for dumping
  • Perfect for fitting in low height areas
Dimensions: 27"W x 49"L x 22.4375"H Sell UOM: EA-Each Color: Blue
Material: High Strength Steel UPC: 691215344470 GTIN: 00691215344470
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Steel: High Strength Volume (cu. yrd.): 1/3
Fork Pocket Center (in.): 11-5/8 Usable Fork Pocket Length (in.): 22 Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2 Pull Cable Length (ft.): 4
