Product Family Overview


High Strength Self-Dumping Steel Hoppers
SERIES: H-HS, D-HS

100,000 PSI Yield Strength and 110,000 PSI Tensile Strength vs 36,000 PSI Yield Strength on standard hoppers!

High Strength hoppers are designed to provide years of dependable service in the toughest applications- heavy scrap of all types (metal, glass, stone, etc.) machine shops, fabrication, glass industries, commercial construction and hundreds more!

H-Style high strength hoppers are made with material that provides greater impact resistance to dents and punctures, while still have all the best features of standard H-Style hoppers! They feature a full 90 degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping. Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

D-Style high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life

Check out our Standard H Series and D Series Hoppers!

Caster Options | Optional Lids

100,000 PSI Yield Strength and 110,000 PSI Tensile Strength vs 36,000 PSI Yield Strength on standard hoppers!

High Strength hoppers are designed to provide years of dependable service in the toughest applications- heavy scrap of all types (metal, glass, stone, etc.) machine shops, fabrication, glass industries, commercial construction and hundreds more!

H-Style high strength hoppers are made with material that provides greater impact resistance to dents and punctures, while still have all the best features of standard H-Style hoppers! They feature a full 90 degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping. Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

D-Style high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life

Check out our Standard H Series and D Series Hoppers!

Caster Options | Optional Lids

Additional Models In This Family

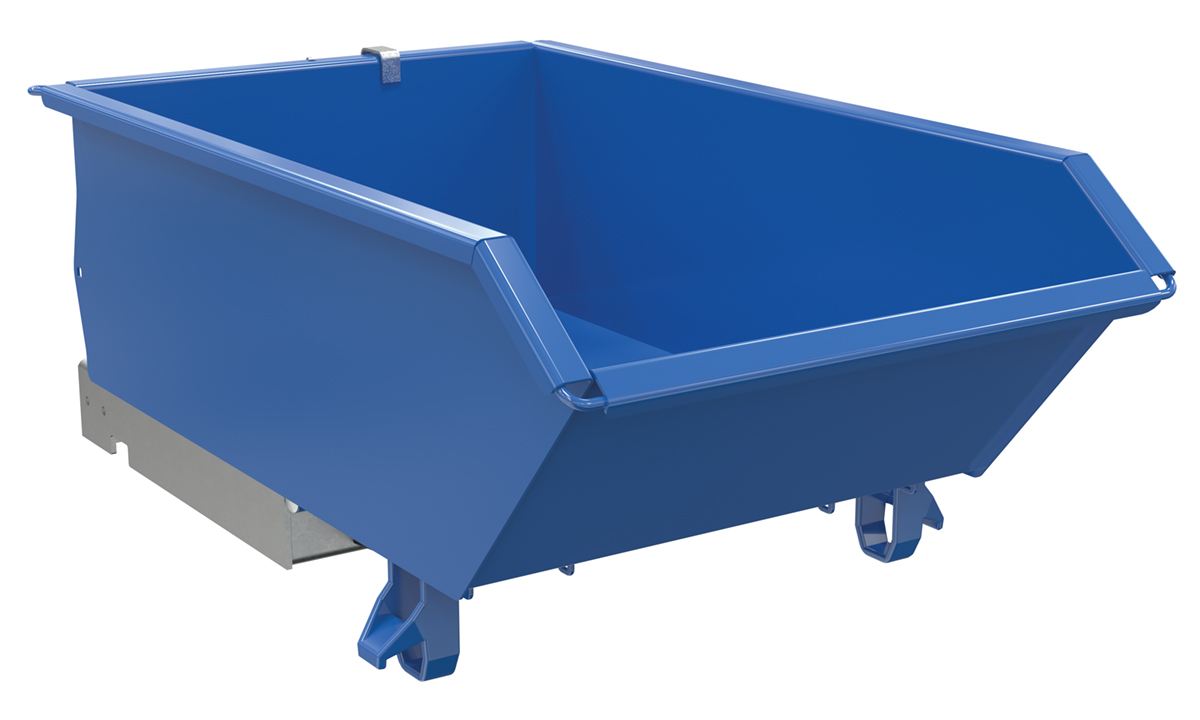

H-25-HS

model H-25-HS

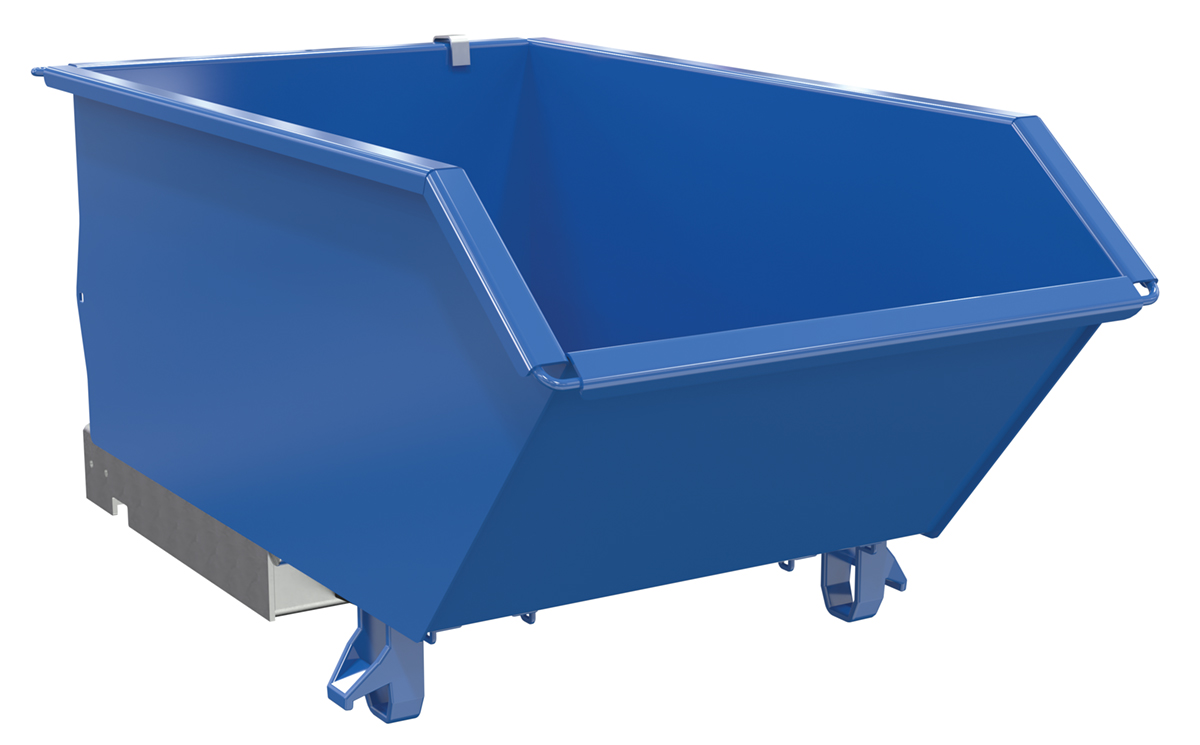

H-33-HS

model H-33-HS

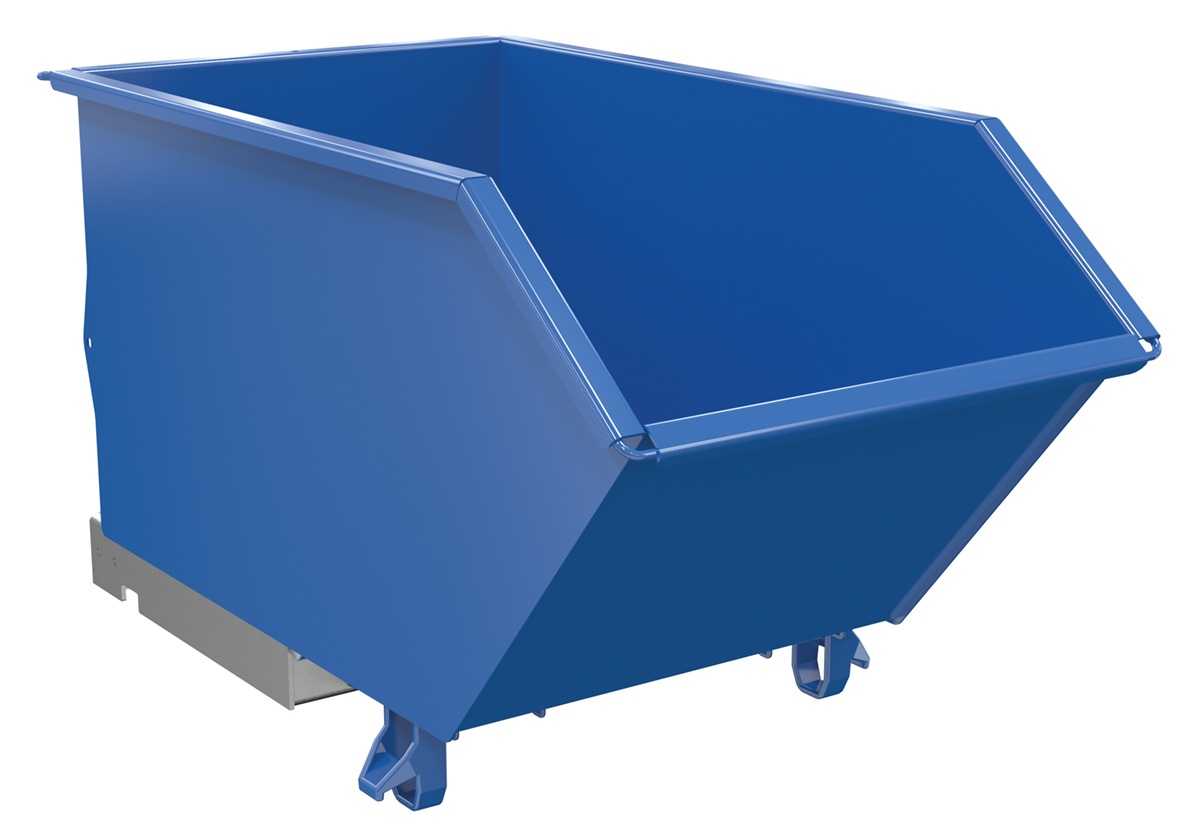

H-50-HS

model H-50-HS

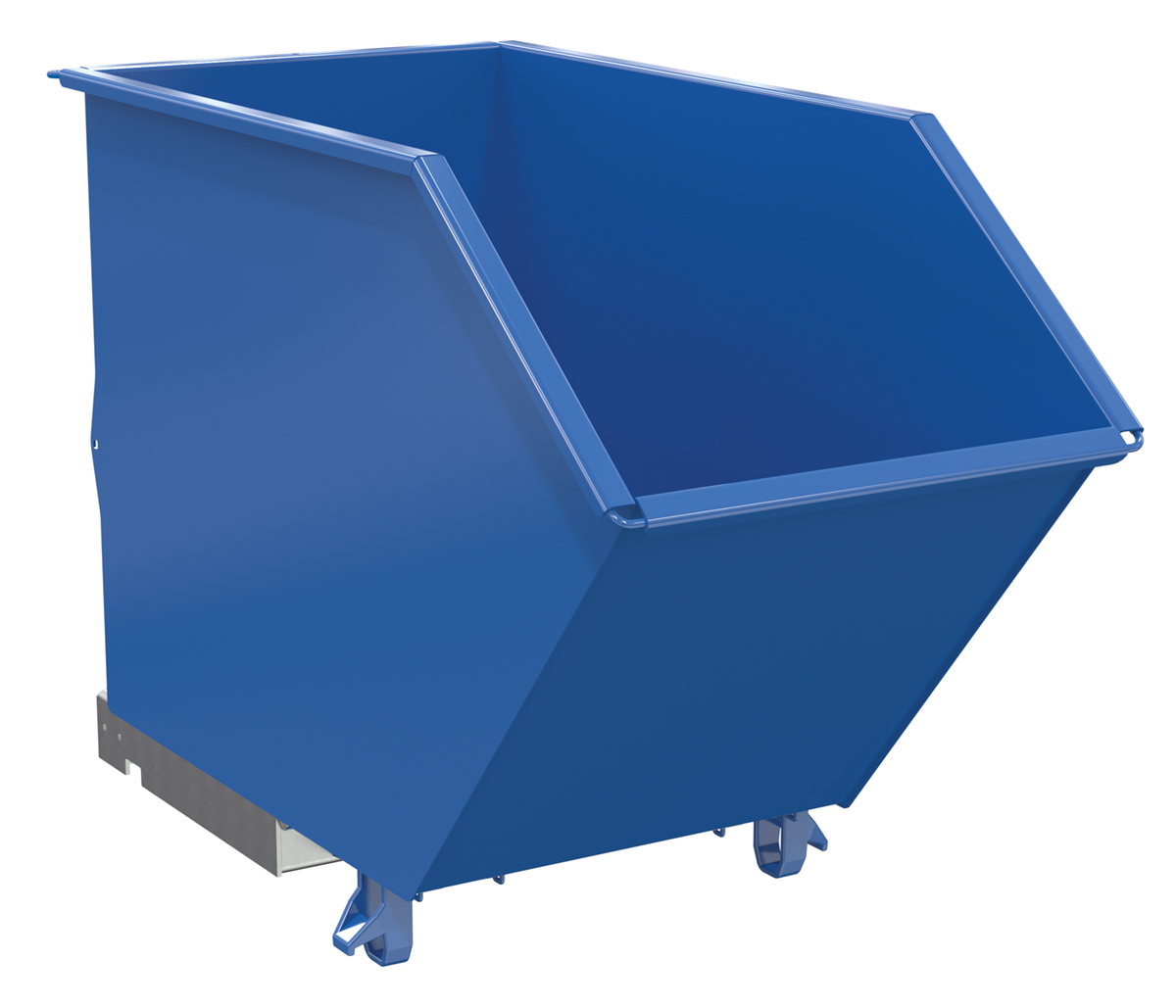

H-75-HS

model H-75-HS

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
D-200-HS NEW D-200-HS90 Days Limited Limited WarrantySteel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel: High Strength
708
H-100-HS H-100-HS90 Days Limited WarrantySteel High Strength Low Profile Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
362
H-25-HS H-25-HS90 Days Limited WarrantySteel High Strength Low Profile Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
207
H-33-HS H-33-HS90 Days Limited WarrantySteel High Strength Low Profile Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
222
H-50-HS H-50-HS90 Days Limited WarrantySteel High Strength Low Profile Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
243
H-75-HS H-75-HS90 Days Limited WarrantySteel High Strength Low Profile Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
305

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

H-100-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel: High Strength
Uniform Capacity (lb.): 6,000
Steel: High Strength

H-25-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel: High Strength
Uniform Capacity (lb.): 6,000
Steel: High Strength

H-33-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel: High Strength
Uniform Capacity (lb.): 6,000
Steel: High Strength

H-50-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel: High Strength
Uniform Capacity (lb.): 6,000
Steel: High Strength

H-75-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Steel: High Strength
Uniform Capacity (lb.): 6,000
Steel: High Strength

D-200-HS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Steel: High Strength
Uniform Capacity (lb.): 4,000
Steel: High Strength
For More Details of the Option Click the Red Model Button
Model Image PDF Description Wt. (lbs.)
Caster Options - Caster options for H style hoppers -
Optional Lids - Lid options for H style hoppers -
PLID-INSTALL PLID-INSTALL - Factory Installation of Hopper Lid -
* H-DPLG-75 and H-DPLG-2 Options include leak proof chute welds
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

High Strength Self-Dumping Steel Hoppers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


H-100-HS

H-25-HS

H-33-HS

H-50-HS

H-75-HS

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





High Strength Self-Dumping Ste...




100,000 PSI Yield Strength and 110,000 PSI Tensile Strength vs 36,000 PSI Yield Strength on standard hoppers!

High Strength hoppers are designed to provide years of dependable service in the toughest applications- heavy scrap of all types (metal, glass, stone, etc.) machine shops, fabrication, glass industries, commercial construction and hundreds more!

H-Style high strength hoppers are made with material that provides greater impact resistance to dents and punctures, while still have all the best features of standard H-Style hoppers! They feature a full 90 degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping. Minimize fatigue and injury during loading! The low profile front edge provides an unobstructed path for item placement!

D-Style high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

  • High-Strength material provides greater impact resistance
  • Resists and dents and punctures from dropped materials
  • Great for use in foundry environments
  • Promotes extended product life

Check out our Standard H Series and D Series Hoppers!

Caster Options | Optional Lids



Model # Description Attributes Net Wt.
(lbs)
D-200-HS D-200-HSSteel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Steel: High Strength
708
H-100-HS H-100-HSSteel High Strength Low Profile Hopper 1 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
362
H-25-HS H-25-HSSteel High Strength Low Profile Hopper 1/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
207
H-33-HS H-33-HSSteel High Strength Low Profile Hopper 1/3 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
222
H-50-HS H-50-HSSteel High Strength Low Profile Hopper 1/2 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
243
H-75-HS H-75-HSSteel High Strength Low Profile Hopper 3/4 Cubic Yard 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Steel: High Strength
305

Options


Model Image PDF Description Wt. (lbs.)
Caster Options - Caster options for H style hoppers -
Optional Lids - Lid options for H style hoppers -
PLID-INSTALL PLID-INSTALL - Factory Installation of Hopper Lid -
* H-DPLG-75 and H-DPLG-2 Options include leak proof chute welds
