Model Details

HDGR-8-42

Printer Friendly
HDGR-8-42

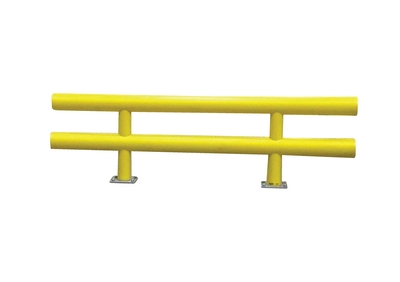

Steel Heavy Duty Guard Rail 96 In. x 42 In. 12,000 Lb. Capacity Yellow

The Heavy Duty guard rail is ideal for protecting material handling appliances and products. The heavy duty guard rail pipe is tucked inside a durable HDPE plastic sheath for longevity. Rail is attachable to surface by a four bolt mount for easy, precise positioning when meeting specific needs. Varying lengths available upon request.

  • Heavy duty guard rail is ideal for protecting appliances and products
  • Rail pipe is tucked inside a durable HDPE plastic sheath for longevity
  • Features a four bolt mount for easy and precise positioning
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 512 (only 1 package) Size: 10"W x 96"L x 42"H Color: Yellow Non-Returnable

Crash Rating (lb.) at 8 MPH: 12000 Steel Rails (in./schedule): 6/40 Steel Posts (in./schedule): 4/80
HDPE Thickness (in.): 1/4 HDPE temperature minimum/maximum (Fahrenheit): (-40) to 210 Nominal Wall Thickness (in.): 1/4
Base Plate Length (in.): 10 Base Plate Width (in.): 10 Base Plate Thickness (in.): 5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDGR-8-42
HDGR-8-42

Steel Heavy Duty Guard Rail 96 In. x 42 In. 12,000 Lb. Capacity Yellow

The Heavy Duty guard rail is ideal for protecting material handling appliances and products. The heavy duty guard rail pipe is tucked inside a durable HDPE plastic sheath for longevity. Rail is attachable to surface by a four bolt mount for easy, precise positioning when meeting specific needs. Varying lengths available upon request.

  • Heavy duty guard rail is ideal for protecting appliances and products
  • Rail pipe is tucked inside a durable HDPE plastic sheath for longevity
  • Features a four bolt mount for easy and precise positioning
  • Use in industrial applications for optimal results
Dimensions: 10"W x 96"L x 42"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215103282 GTIN: 00691215103282
Warranty: -- Shipping Weight: 512 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Crash Rating (lb.) at 8 MPH: 12000 Steel Rails (in./schedule): 6/40 Steel Posts (in./schedule): 4/80
HDPE Thickness (in.): 1/4 HDPE temperature minimum/maximum (Fahrenheit): (-40) to 210 Nominal Wall Thickness (in.): 1/4
Base Plate Length (in.): 10 Base Plate Width (in.): 10 Base Plate Thickness (in.): 5/8
