Model Details

LP-4000T-39

Printer Friendly
LP-4000T-39

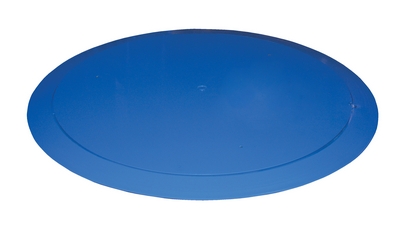

Steel Thin Spin 47-11/16 In Diameter 4000 Lb. Capacity Blue

The thin spin is a pallet truck loadable carousel. When confronted with minimum floor space and only a hand pallet truck, the thin spin low-profile carousel is ideal for loading and unloading pallet applications. The unit is pallet truck loadable because of its sleek overall height. The detest lock restricts carousel rotation when not in use.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Total Ship Wt.(lbs.): 189 (only 1 package) Size: 47.6875"W x 47.6875"L x 0.875"H Color: Blue

Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LP-4000T-39
LP-4000T-39

Steel Thin Spin 47-11/16 In Diameter 4000 Lb. Capacity Blue

The thin spin is a pallet truck loadable carousel. When confronted with minimum floor space and only a hand pallet truck, the thin spin low-profile carousel is ideal for loading and unloading pallet applications. The unit is pallet truck loadable because of its sleek overall height. The detest lock restricts carousel rotation when not in use.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space
Dimensions: 47.6875"W x 47.6875"L x 0.875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215027670 GTIN: 00691215027670
Warranty: -- Shipping Weight: 189 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Usable Diameter (in.): 39 Effective Ramping Length (in.): 4-3/8
Slope Degree: 11 Starting Force at Full Capacity (lb.): 35 Maintaining Force at Full Capacity (lb.): 25
Rotation Degree: 360
