Thin Spins

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

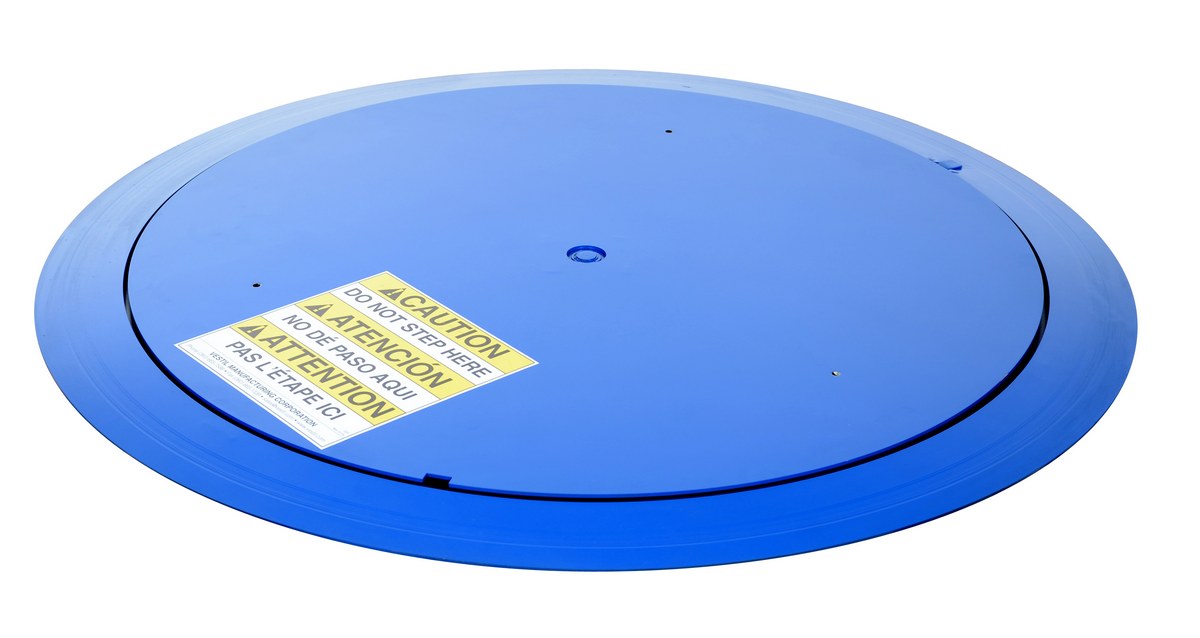

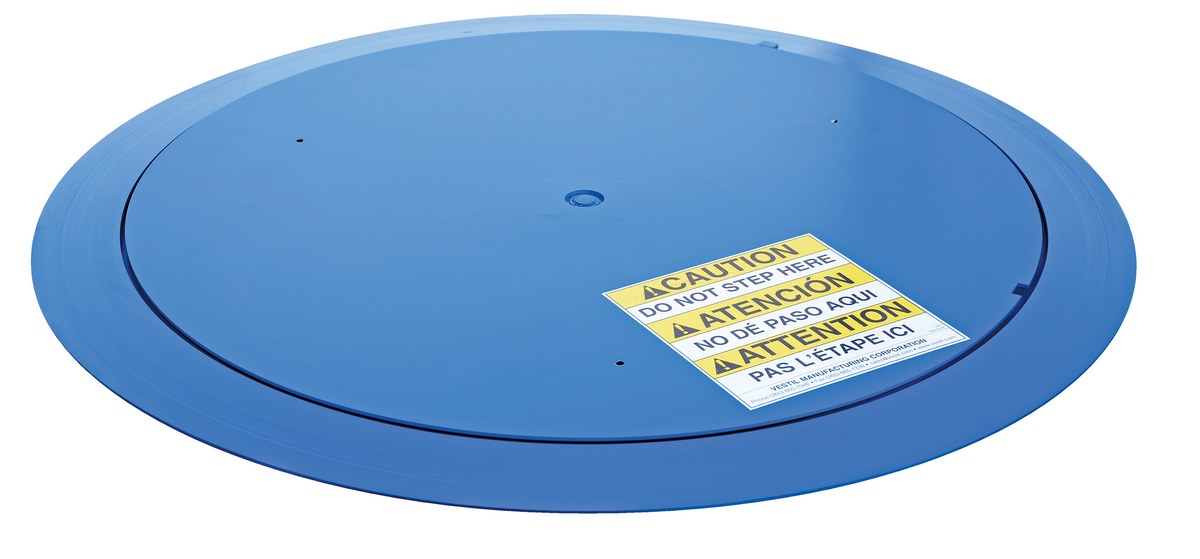

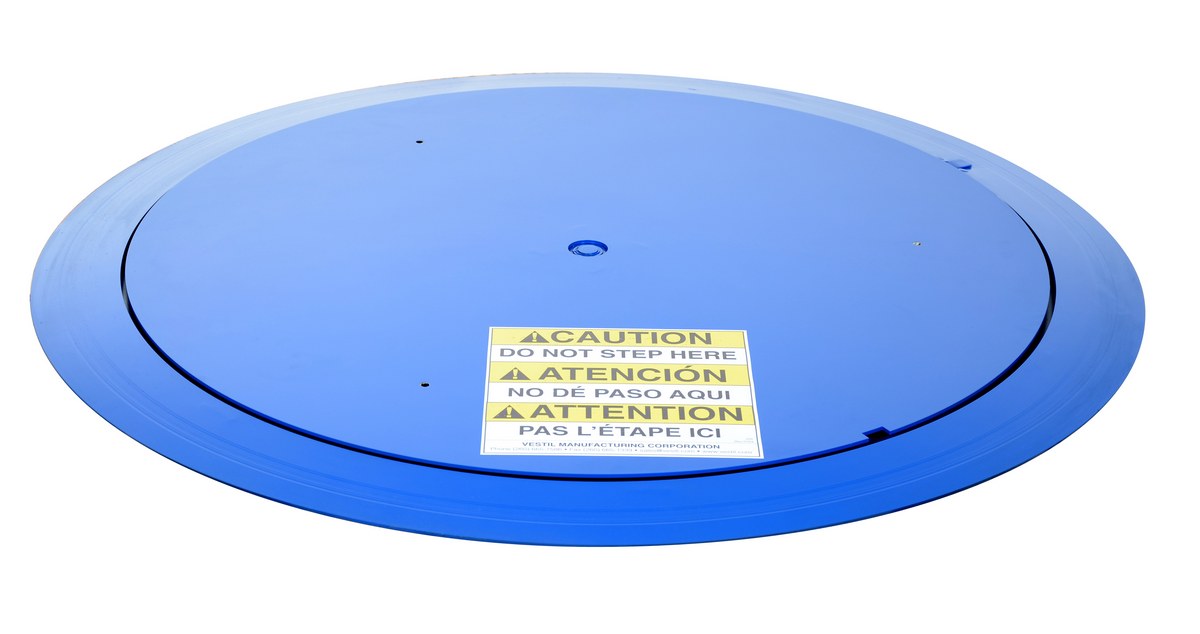

LP-4000T-45_A.jpg LP-4000T-45_B.jpg LP-4000T-45_C.jpg
Thin Spins

model: LP-4000T-45



Featured Packaging Equipment


Galvanized Welded Wire Pallets
Low Profile Scales & Ramps
Thin Spins
Powered Turntables
Portable Bench Scale - Legal for Trade
Powered Stretch Wrap Machines
Stretch Wrap Machines
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
Portable Floor Scales
model chart

Product Family Overview

Print Friendly
Thin Spins
SERIES: LP-4000T

When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.

* Low-Profile design is ideal for use with Pallet Trucks

Optional Lifting Loop:
An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space

When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.

* Low-Profile design is ideal for use with Pallet Trucks

Optional Lifting Loop:
An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.

  • Precision ball bearings allow for manual 360 degrees rotation
  • Locking device prevents unnecessary rotation
  • Pallet truck loadable due to its sleek overall height
  • Unique design works well when there is minimum floor space

Other Carousels

 Stand Alone Powered Carousels Powered Photography Carousel Heavy-Duty King Pin Carousels Powered Turntables

Additional Models In This Family
view entire Image Gallery

LP-4000T

model LP-4000T

LP-4000T-39

model LP-4000T-39

LP-4000T-SS

model LP-4000T-SS

LP-LL

model LP-LL

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

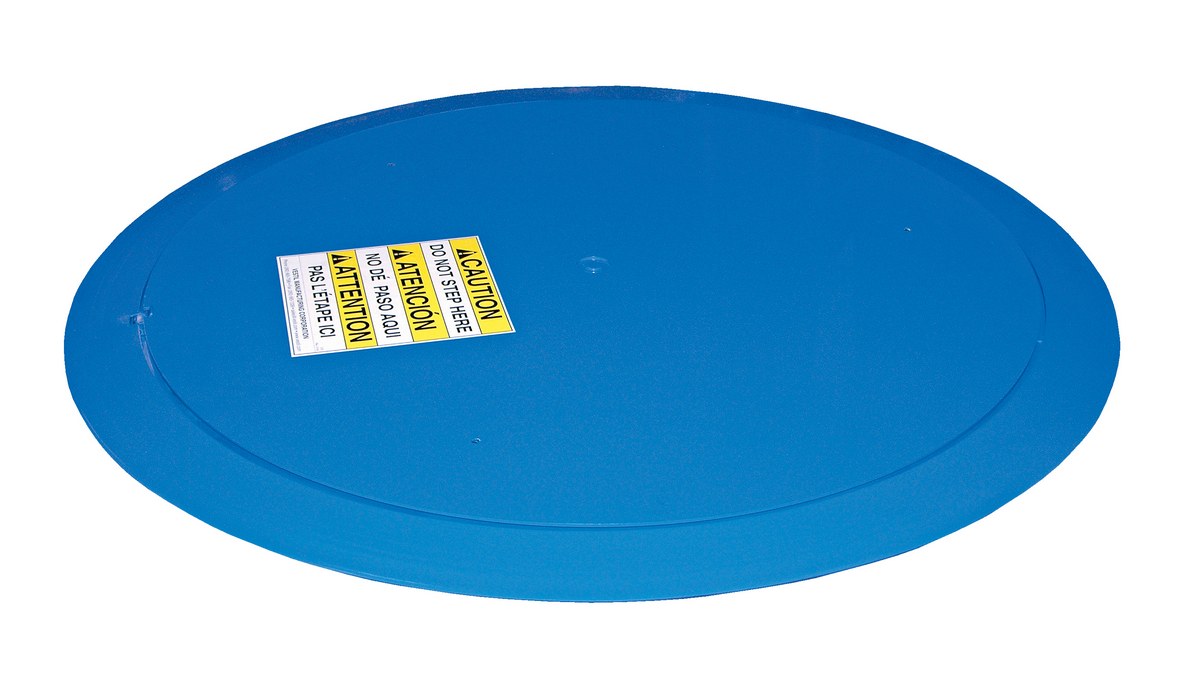

LP-4000T LP-4000T90 Days Limited WarrantySteel Thin Spin 59-11/16 In Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Diameter (in.): 51		270

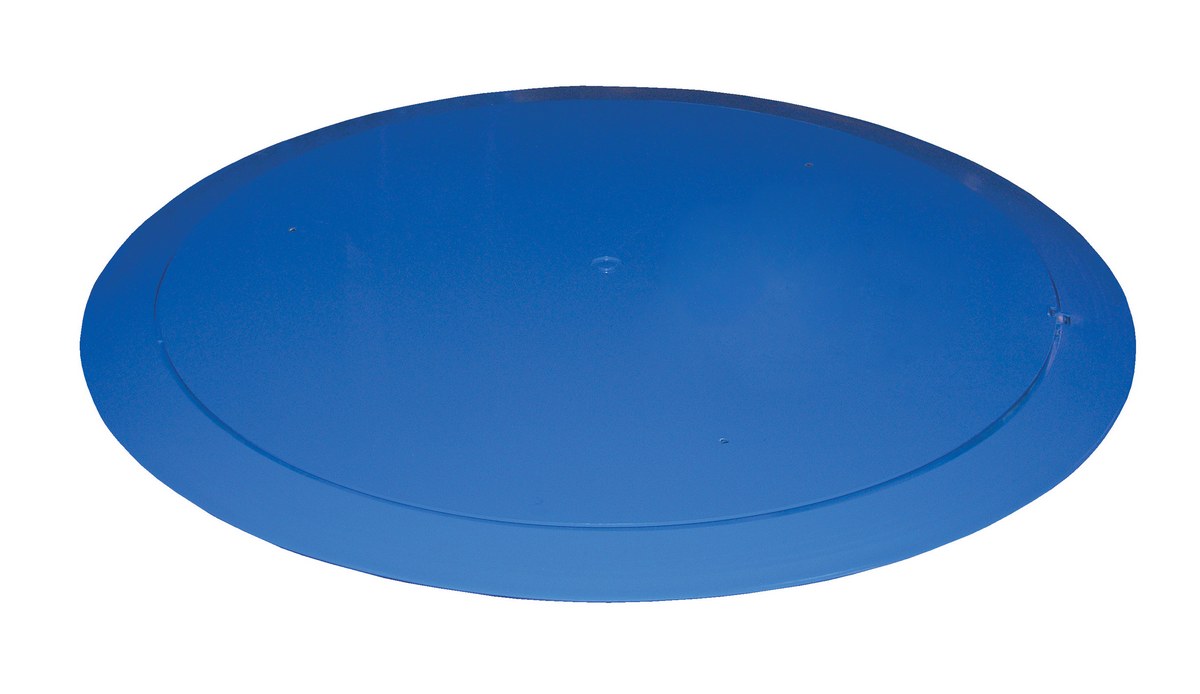

LP-4000T-39 LP-4000T-3990 Days Limited WarrantySteel Thin Spin 47-11/16 In Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Diameter (in.): 39		189
LP-4000T-39-SS
LP-4000T-39-SS90 Days Limited WarrantyStainless Steel Thin Spin 47-11/16 In. Diameter 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Usable Diameter (in.): 39		206
LP-4000T-45 LP-4000T-4590 Days Limited WarrantySteel Thin Spin 53-11/16 In Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Diameter (in.): 45		257
LP-4000T-45-SS
LP-4000T-45-SS90 Days Limited WarrantyStainless Steel Thin Spin 53-11/16 In. Diameter 4000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Usable Diameter (in.): 45		253

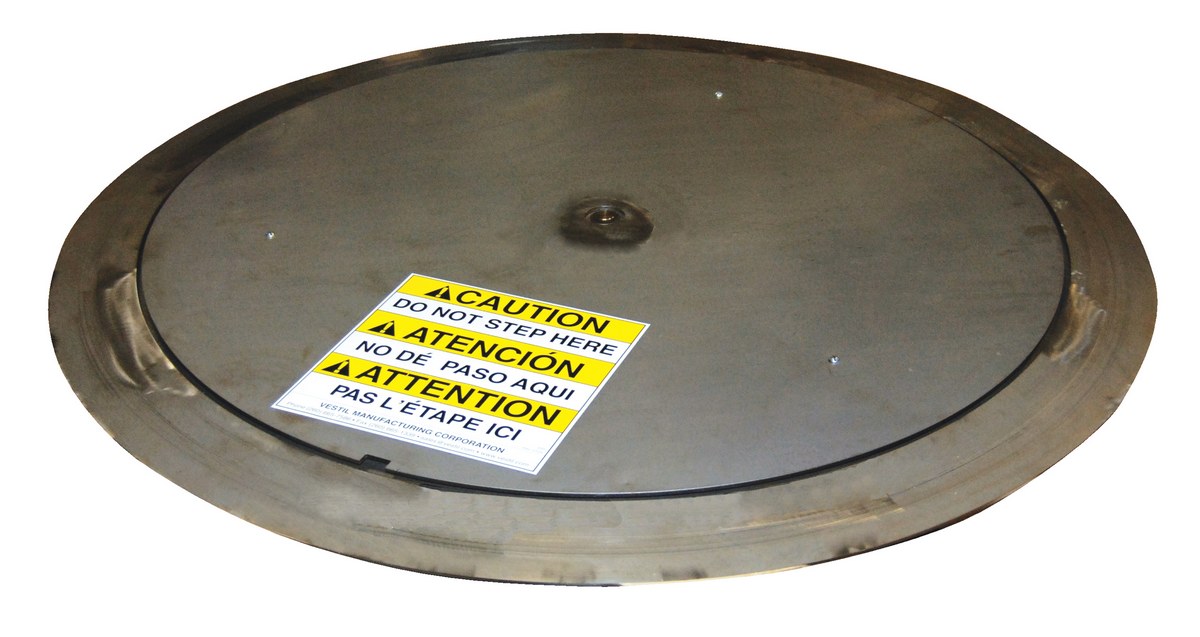

LP-4000T-SS
LP-4000T-SS90 Days Limited WarrantyStainless Steel Thin Spin 59-11/16 In. Diameter 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Diameter (in.): 51		300

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LP-4000T
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51

LP-4000T-39
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39

LP-4000T-39-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 39

LP-4000T-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45

LP-4000T-45-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 45

LP-4000T-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
Uniform Capacity (lb.): 4,000
Usable Diameter (in.): 51
For More Details of the Option Click the Red Model Button

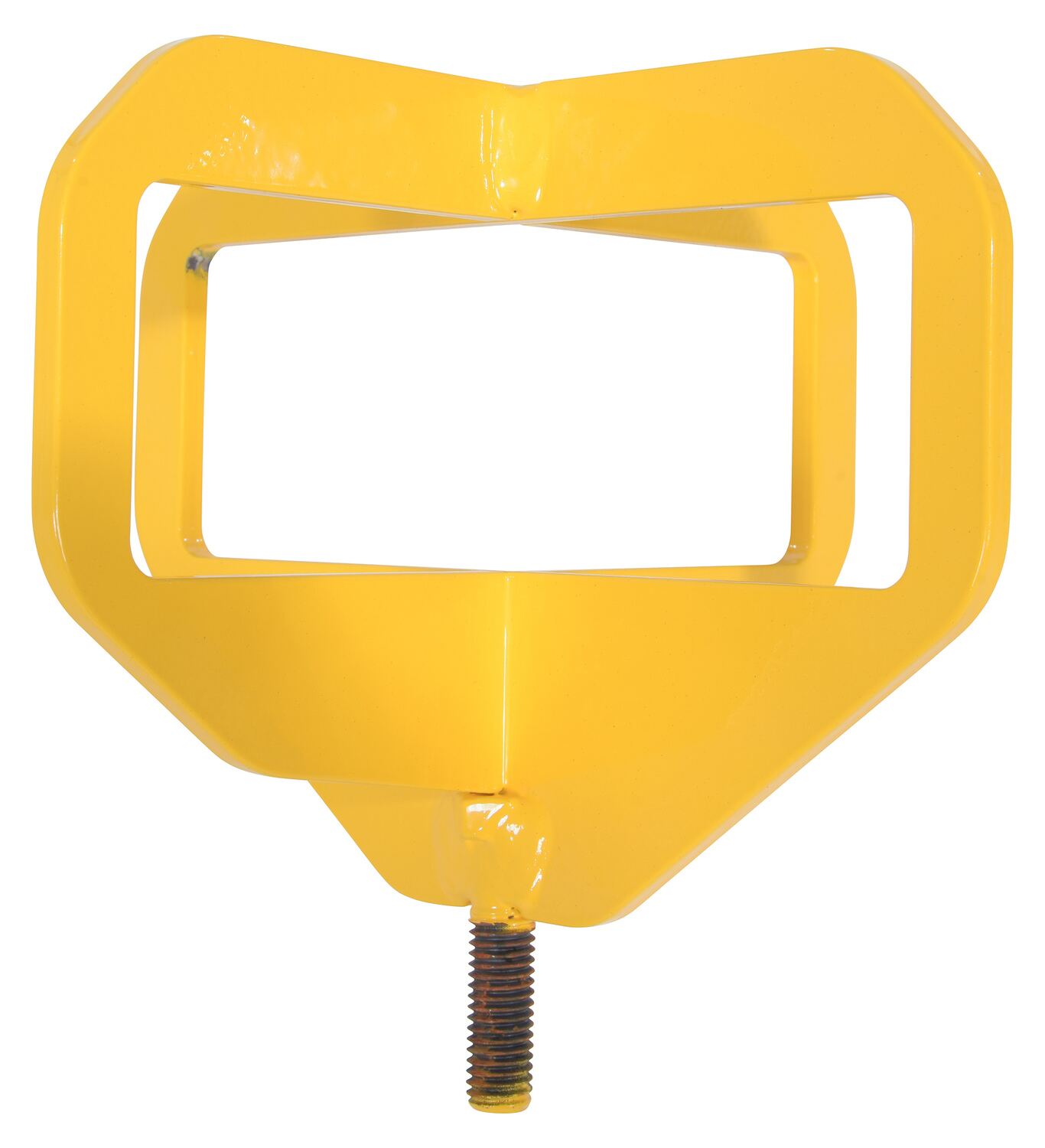

LP-LL NEW LP-LL90 Days Limited WarrantySteel Thin Spin Lifting Loop YellowFinish: Powder Coat
Fork Pocket Width (in.): 5		6

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Thin Spins PDF's will open in a new window when clicked.

Manuals


LP-4000
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LP-4000T

LP-4000T-39

LP-4000T-39-SS

LP-4000T-45

LP-4000T-45-SS

LP-4000T-SS

LP-LL

Testing Certificates


LP-4000T

LP-4000T-39

LP-4000T-39-SS

LP-4000T-45

LP-4000T-45-SS

LP-4000T-SS

LP-LL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: We are in the food industry and are interested in the stainless steel thin spin. Is it designed for washdown?

A: The stainless steel thin spins models LP-4000T-SS,LP-4000T-45-SS and LP-4000T-39-SS are not designed for washdown. Water would collect and pool in the grooves that contain the ball bearings.

Q: How do you move these carousels? Is there something to use to lift them?

A: We recommend wedging something between the floor and the carousel (crowbar, prying tool, etc...) and just lift it up a bit so forks can insert under the carousel to lift it .

Q: Do you have other sizes or capacities?

A: No, we are not able to offer custom diameters.

Q: What material are the ball bearings?

A: The ball bearings in the LP-4000T-39-SS are 9/16" stainless steel.
