Model Details

S-118-AA-DM

Printer Friendly
S-118-AA-DM

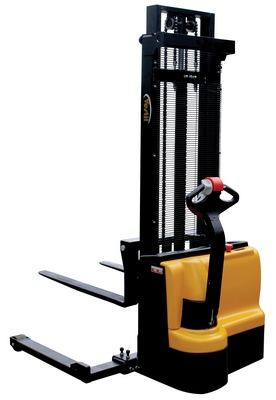

Steel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Total Ship Wt.(lbs.): 1329 (only 1 package) Size: 50"W x 69"L x 78"H Color: Black / Yellow

Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Fork Width Min./Max. (in.): 8.3 - 26-3/4
Fork Length (in.): 42 Individual Fork Width (in.): 4 Fork Center (in.): 13-1/2
Lowered Height (in.): 2-1/8 Raised Height (in.): 118 Battery: (2) 12V
Drive Motor: DC 24V Lift Motor: DC 24V Front Rigid Caster Diameter/Width (in.): 4x3
Rear Swivel Caster Diameter/Width(in.): 6x2 Rear Drive Wheel Diameter/Width (in.): 10x3

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-118-AA-DM
S-118-AA-DM

Steel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 50"W x 69"L x 78"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215114554 GTIN: 00691215114554
Warranty: -- Shipping Weight: 1329 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Fork Width Min./Max. (in.): 8.3 - 26-3/4
Fork Length (in.): 42 Individual Fork Width (in.): 4 Fork Center (in.): 13-1/2
Lowered Height (in.): 2-1/8 Raised Height (in.): 118 Battery: (2) 12V
Drive Motor: DC 24V Lift Motor: DC 24V Front Rigid Caster Diameter/Width (in.): 4x3
Rear Swivel Caster Diameter/Width(in.): 6x2 Rear Drive Wheel Diameter/Width (in.): 10x3
