Double Mast Stackers with Powered Drive and Powered Lift

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

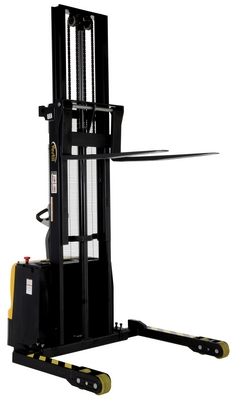

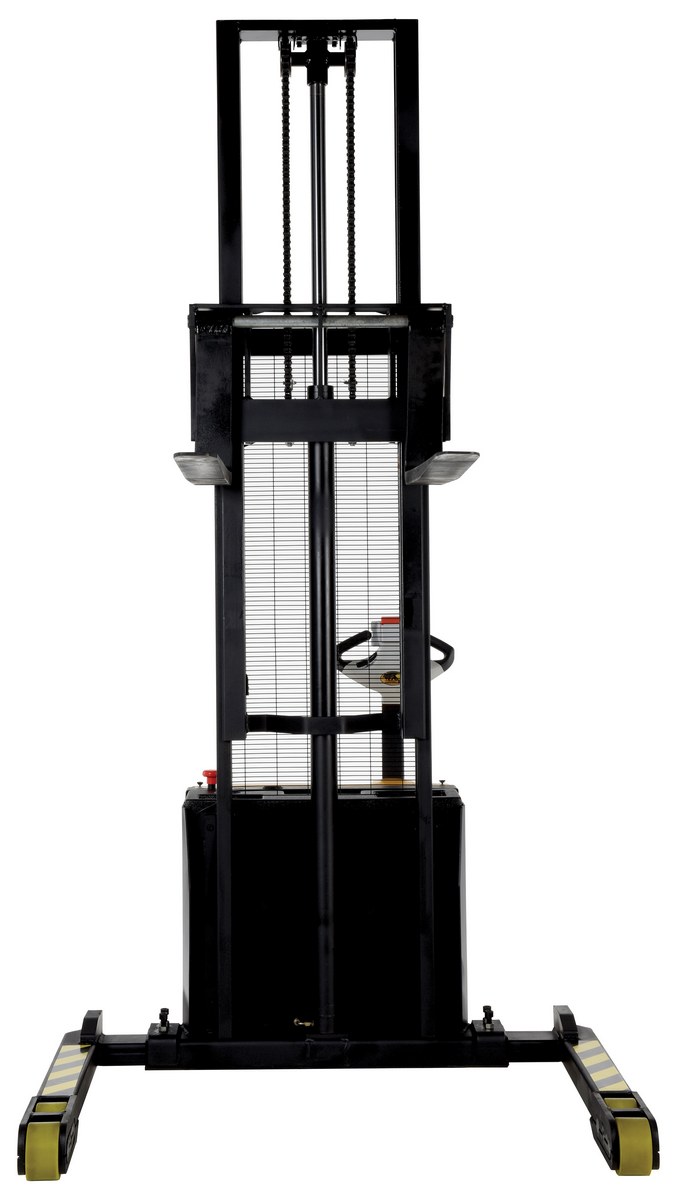

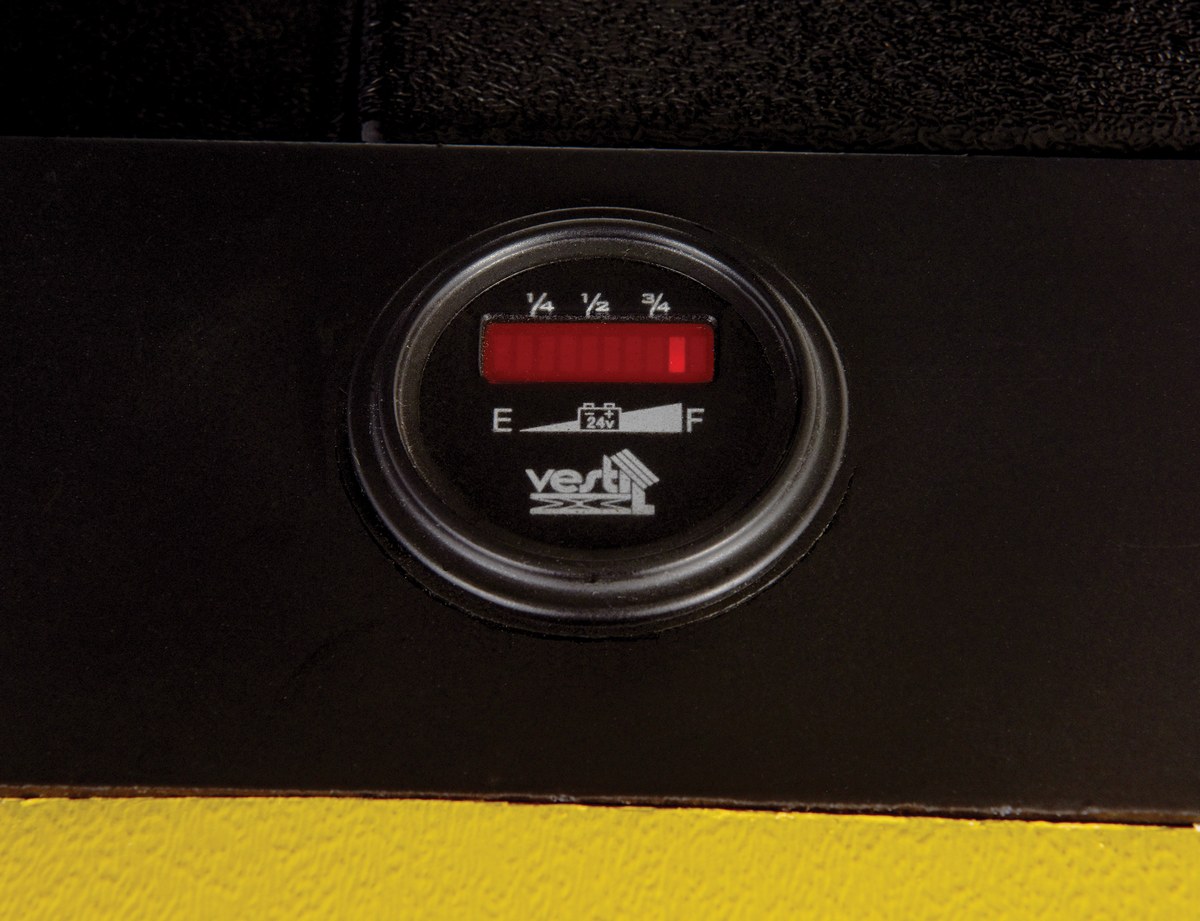

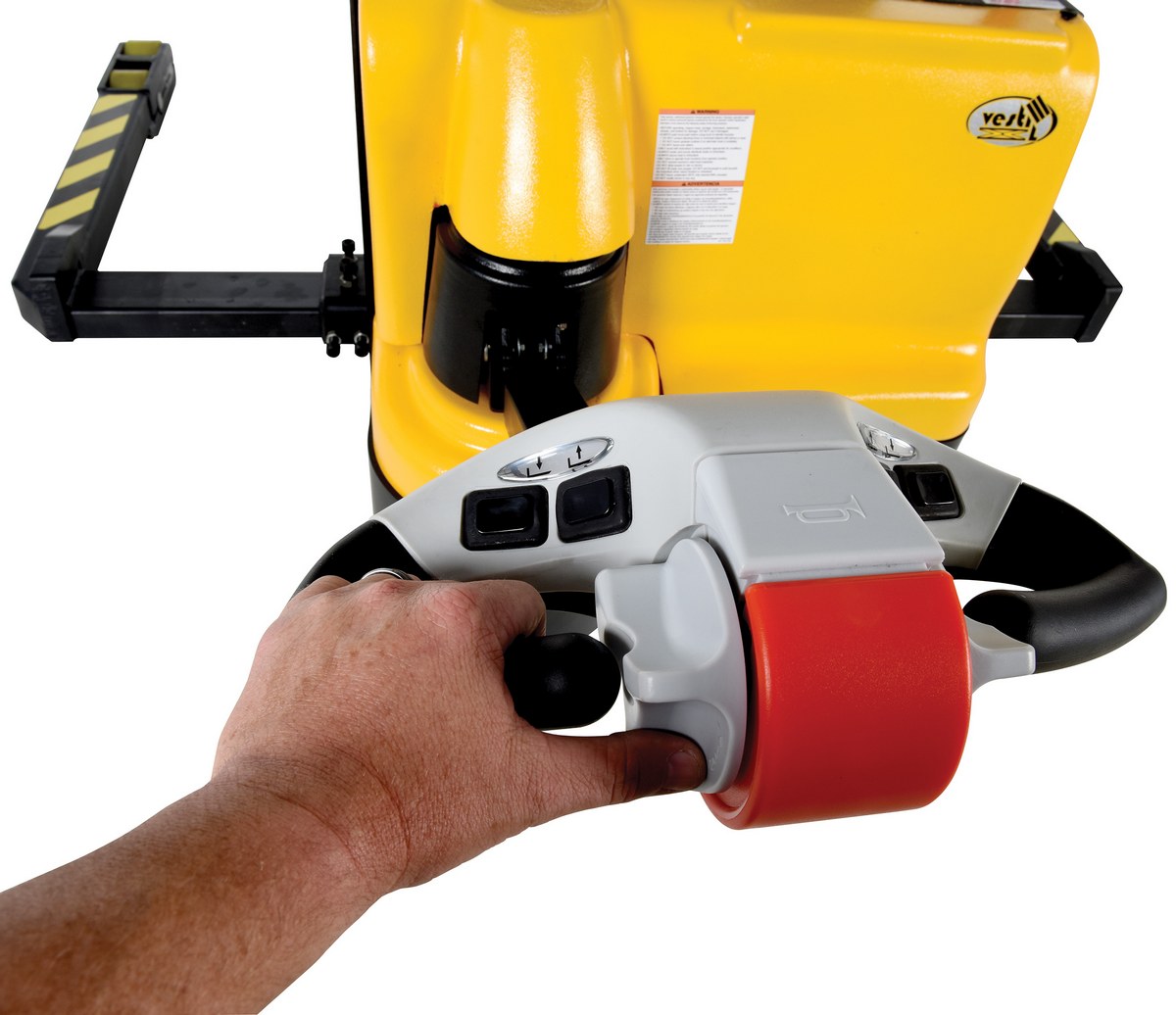

S3-125-AA_A.jpg S3-125-AA_C.jpg S3-125-AA_G.jpg S3-125-AA_F.jpg

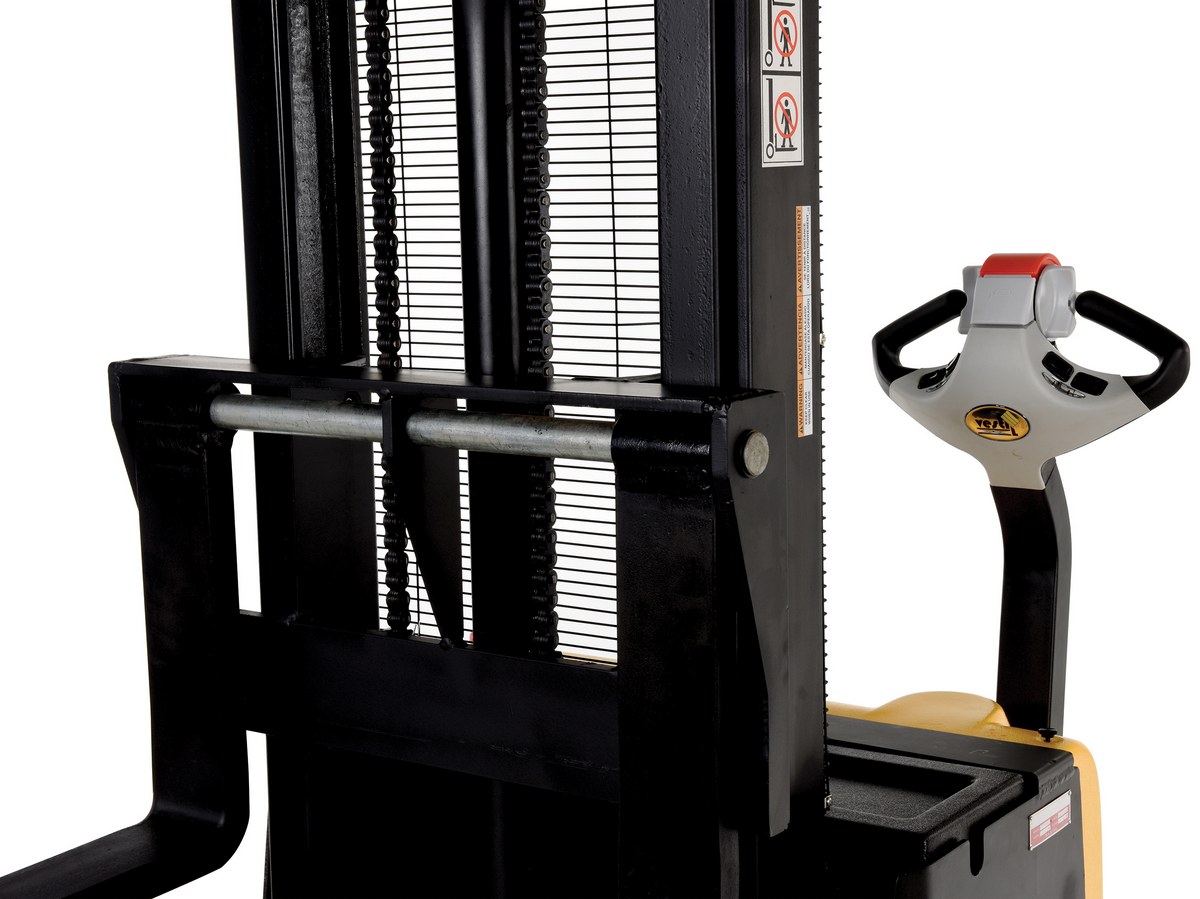

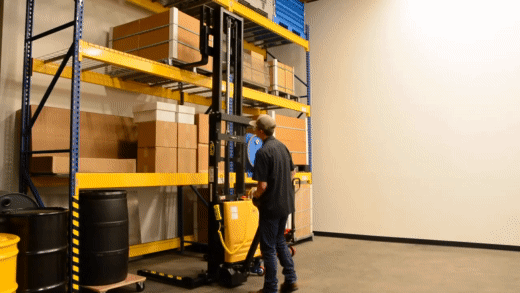

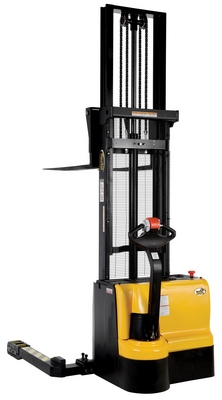

S3-125-AA_E.jpg S3-125-AA_H.jpg S3-125-AA_J.jpg S3_Z.gif

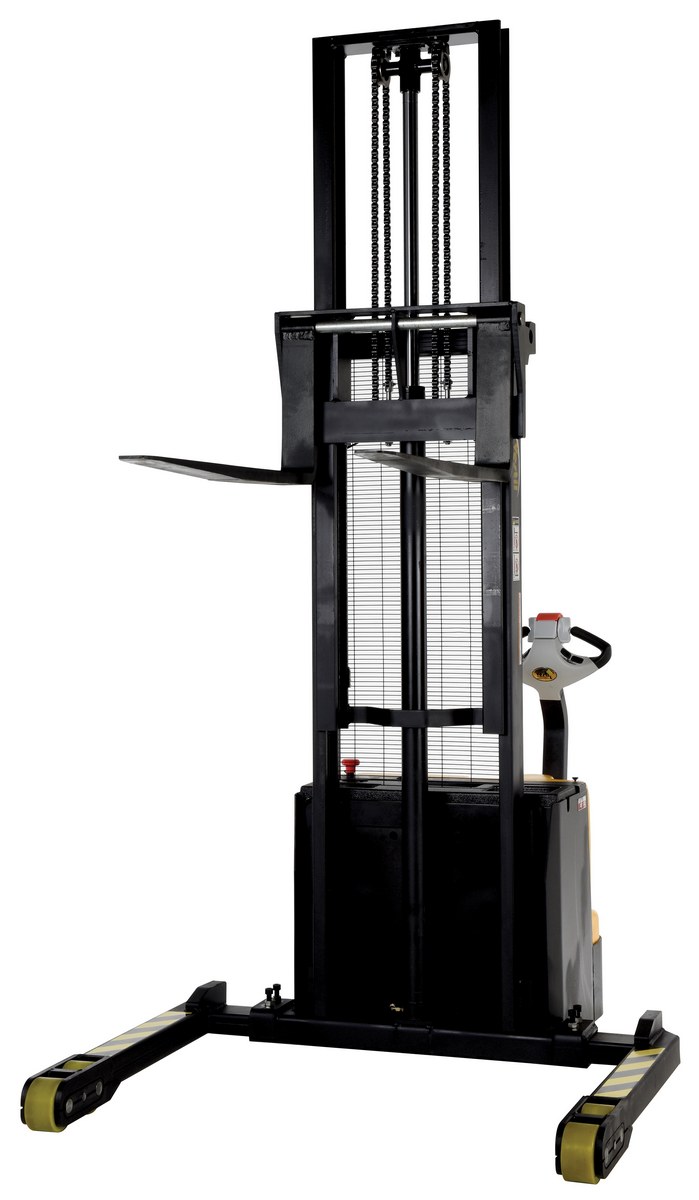

Double Mast Stackers with Powered Drive and Powered Lift

model: S3-125-AA



Featured Ergonomic Solutions


Pallet Master/Servers
Single Fork Electric Pallet Truck w/ Scale
Pallet Trucks with Digital Scale
ULMA Stainless Steel Tilt Master
Expandable Roller Conveyors
Hydraulic Elevating Carts
Lite Load Lifts
Powered All Terrain Stackers and Pallet Trucks
Dumpers
model chart

Product Family Overview

Print Friendly
Double Mast Stackers with Powered Drive and Powered Lift
SERIES: S

Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

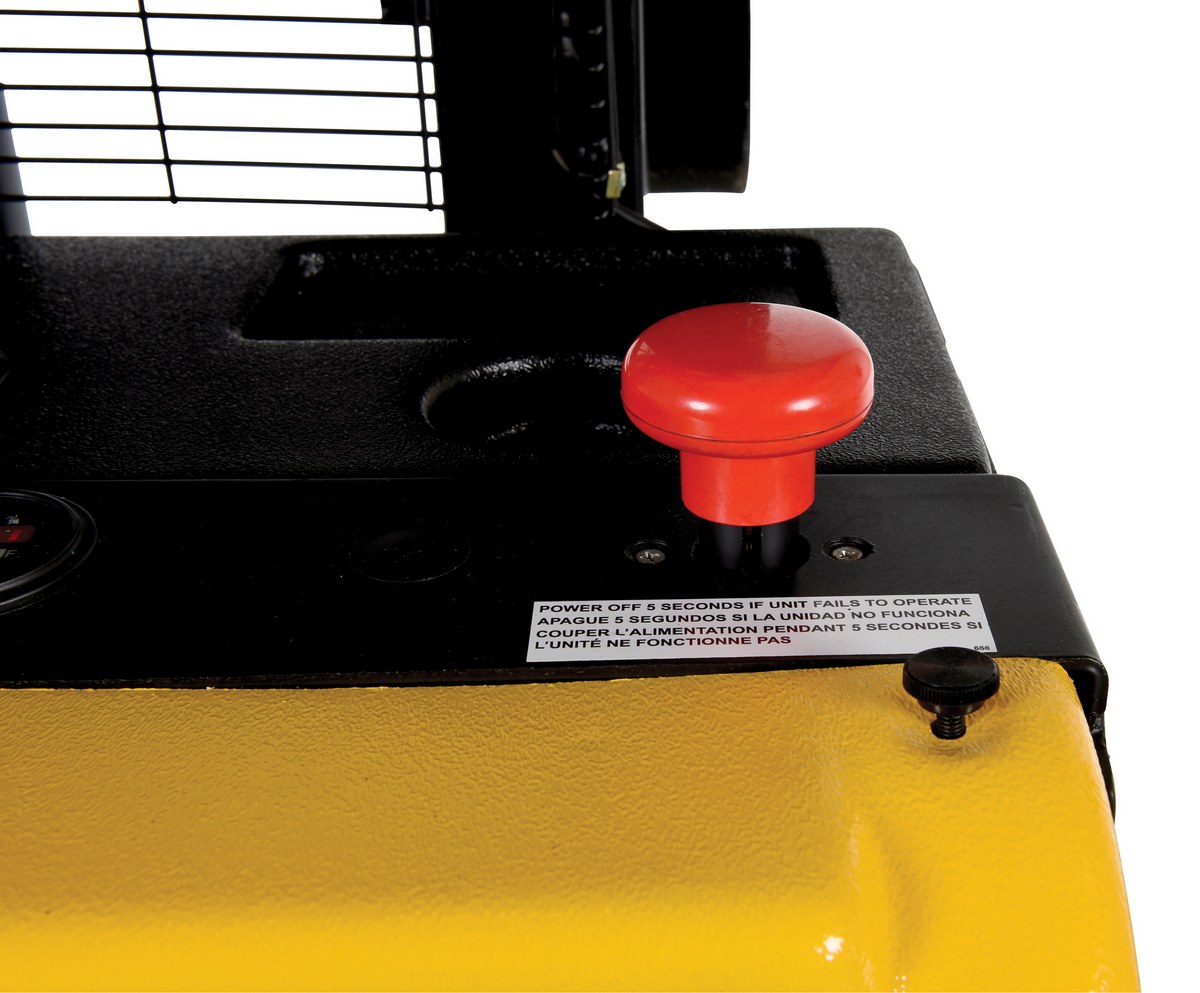

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.


Drum Roll Reel Forks

Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.


Drum Roll Reel Forks

Other Stackers

 Basket & Skid Stackers Counter-Balanced Powered Drive Lifts Double Mast Stackers with Powered Drive and Powered Lift Narrow Mast Stackers with Powered Drive and Powered Lift

Additional Models In This Family
view entire Image Gallery

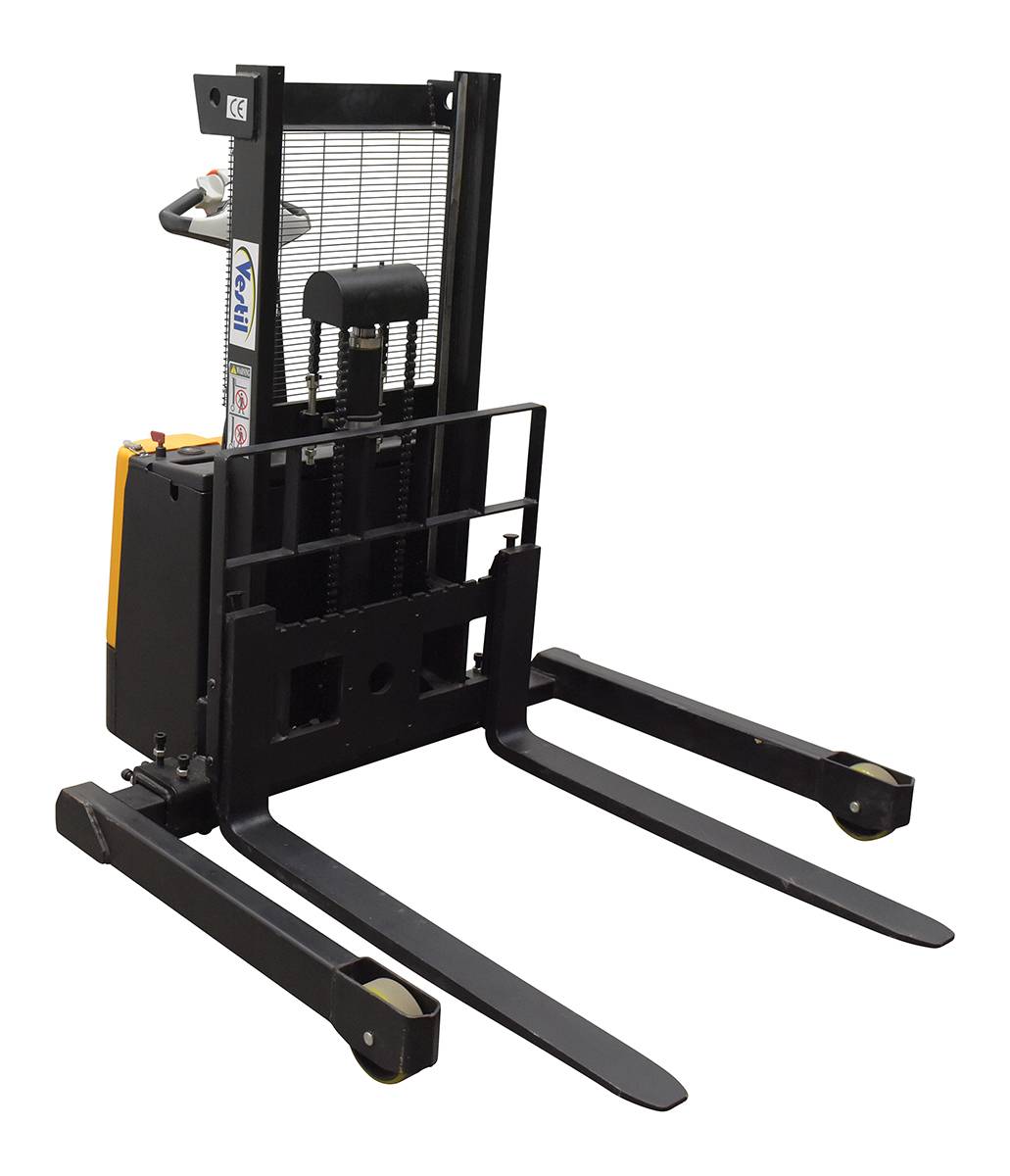

S3-43-AA

S3-43-AA

S3-125-AA

S3-125-AA

S3-118-AA

S3-118-AA

S-125-AA-DM

S-125-AA-DM

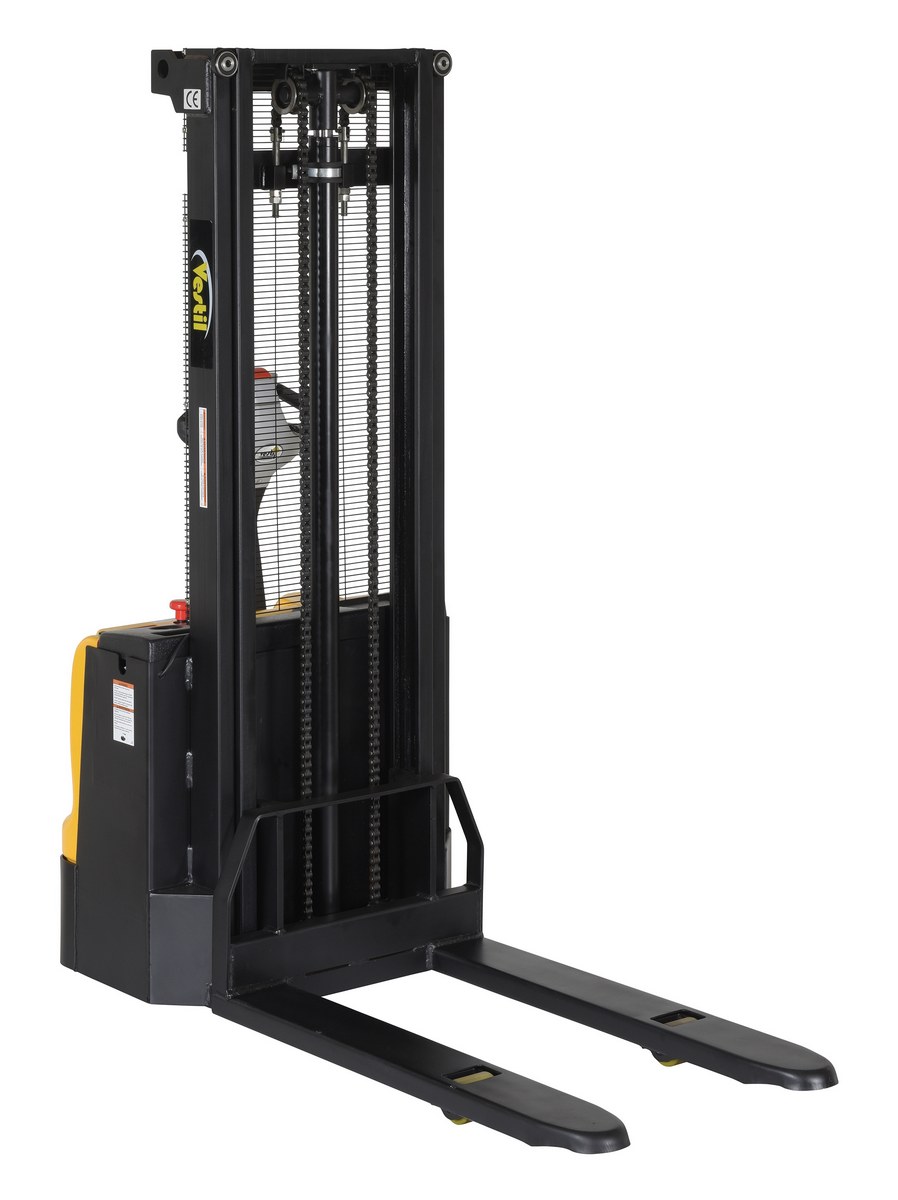

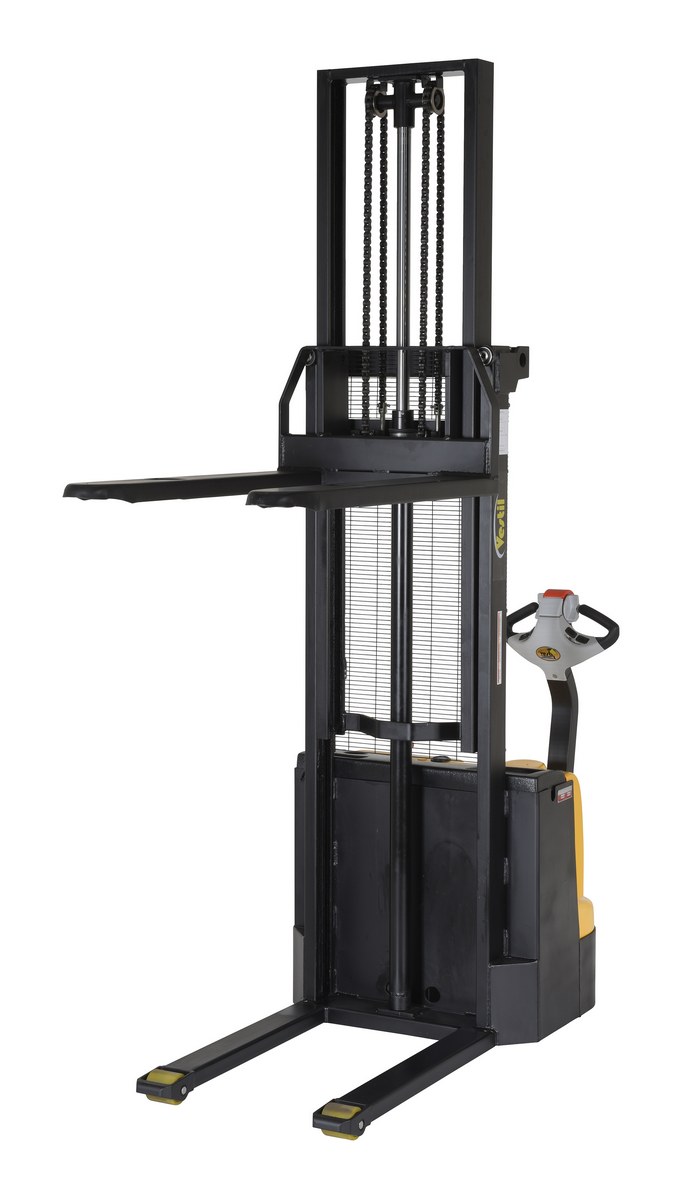

S-118-FF-DM

S-118-FF-DM

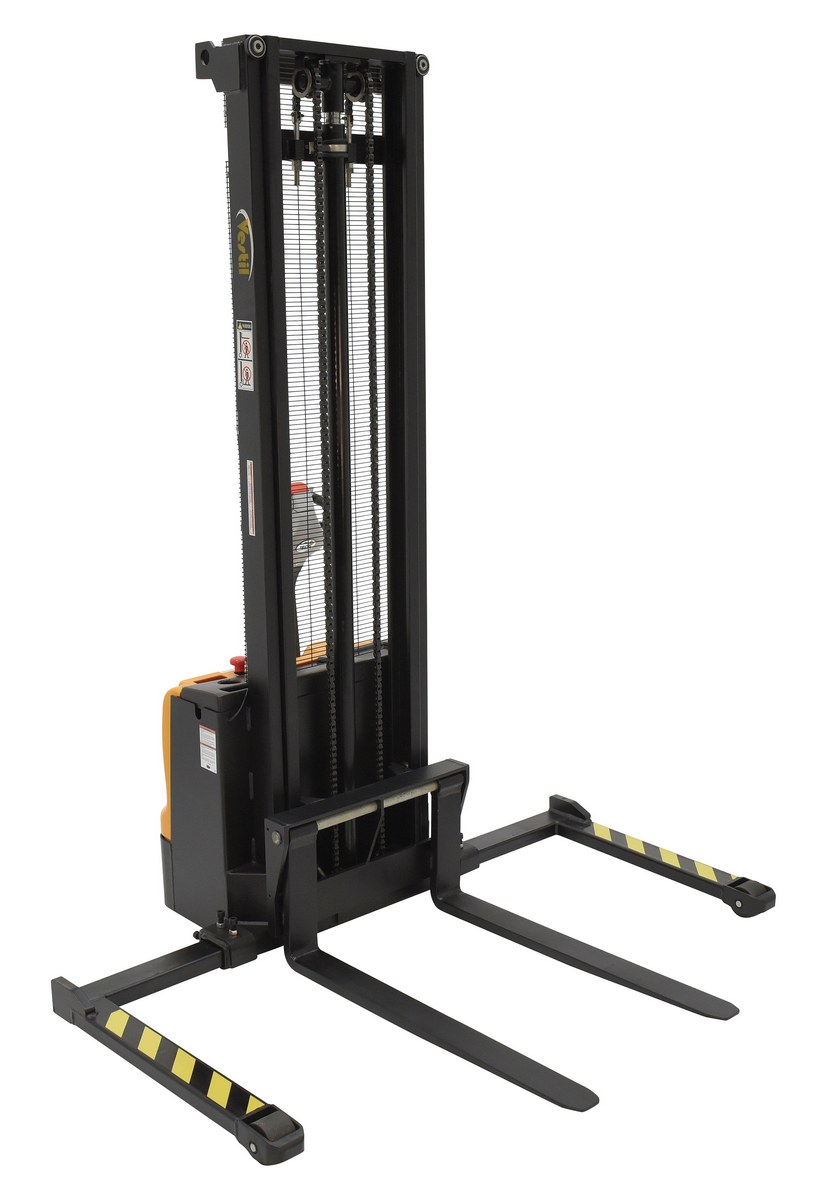

S-150-AA-DM

S-150-AA-DM

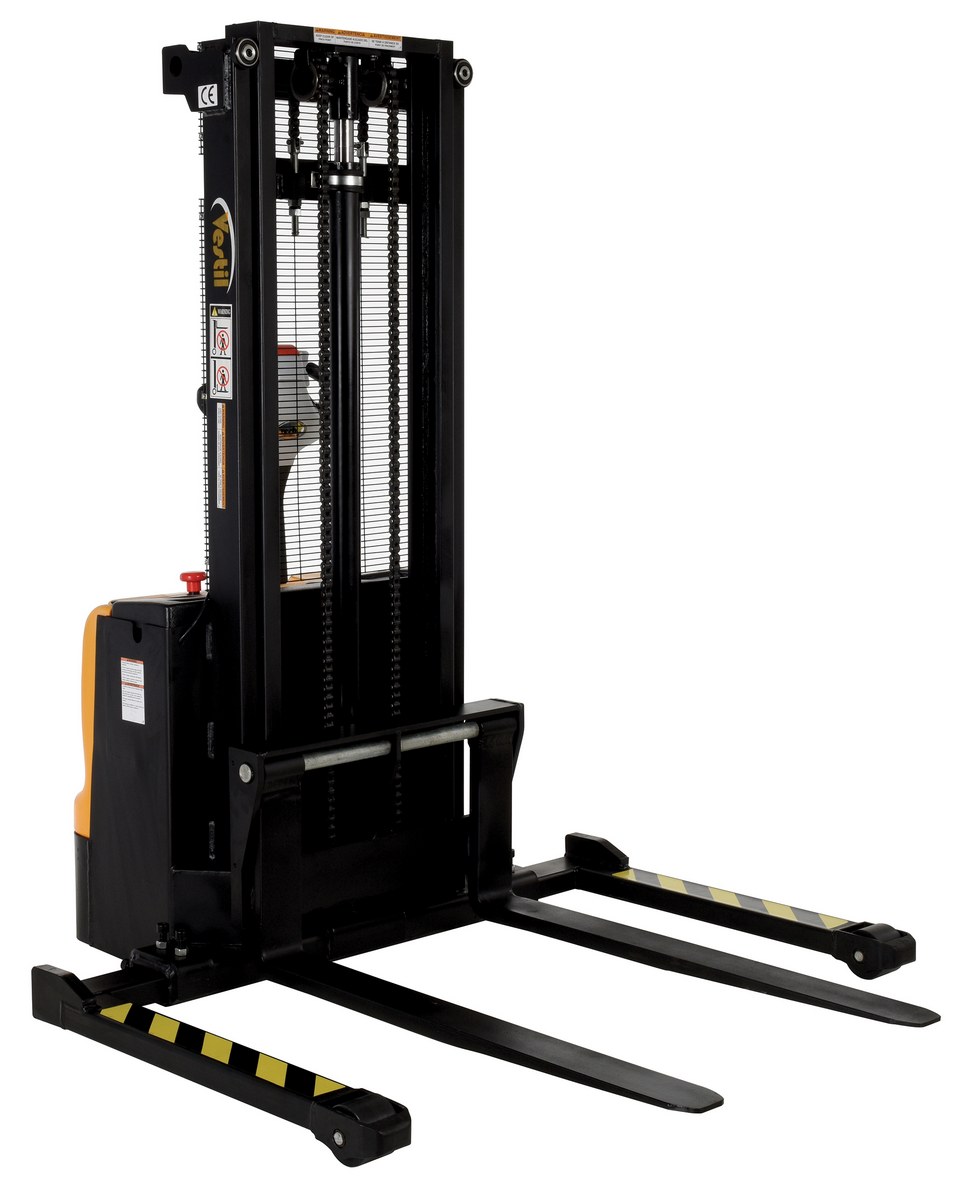

S-101-AA-DM

S-101-AA-DM

S-150-AA-DM

S-150-AA-DM

S3-43-AA

S3-43-AA

S-125-AA-DM

S-125-AA-DM

S3-125-AA

S3-125-AA

S3-125-AA

S3-125-AA

S3-43-AA

S3-43-AA

S-118-FF-DM

S-118-FF-DM

S-150-AA-DM

S-150-AA-DM

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

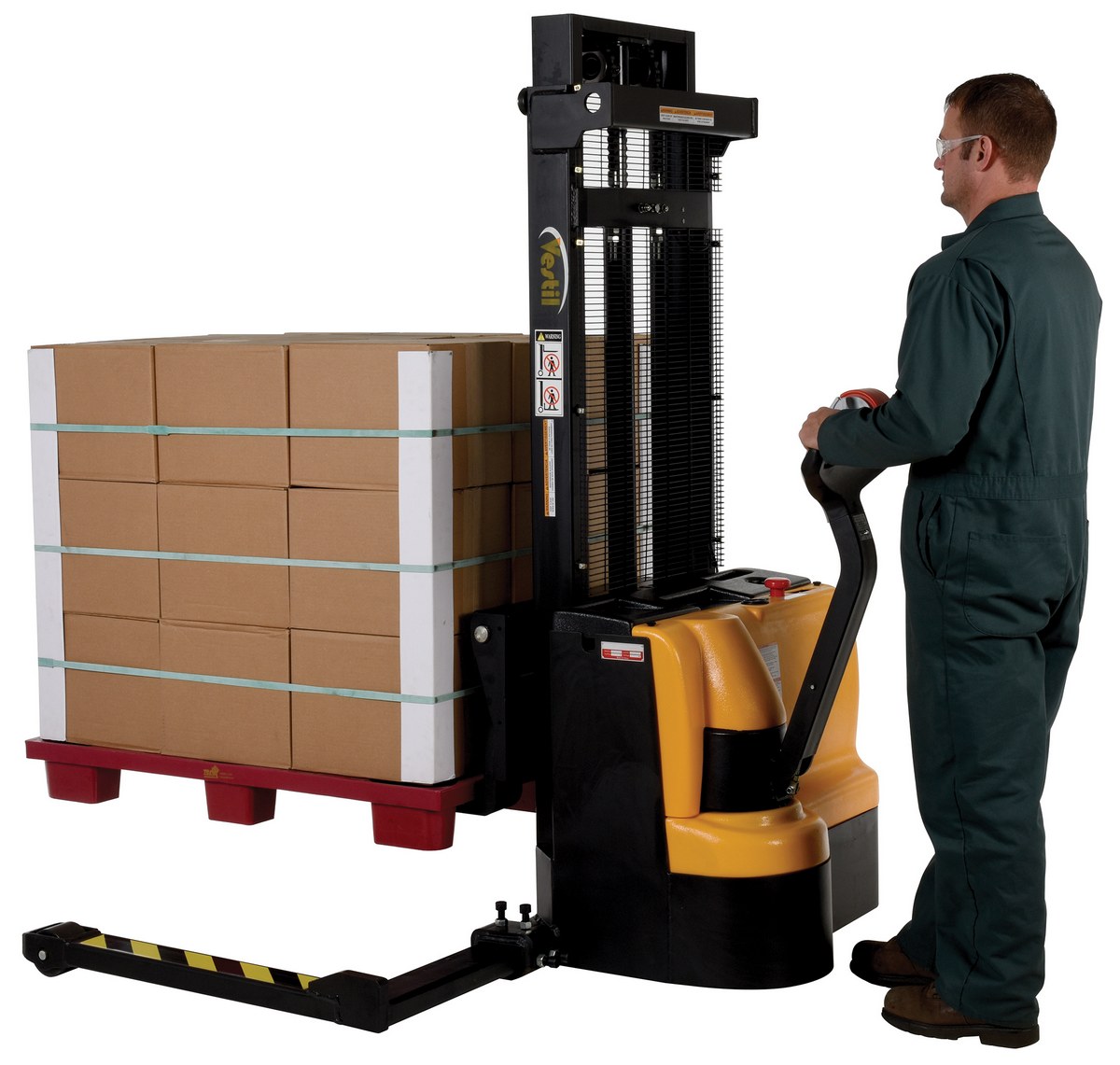

S-101-AA-DM S-101-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 101 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500		1480
S-118-AA-DM S-118-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1329
S-118-FF-DM
S-118-FF-DM1 Year Limited WarrantySteel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500		1330

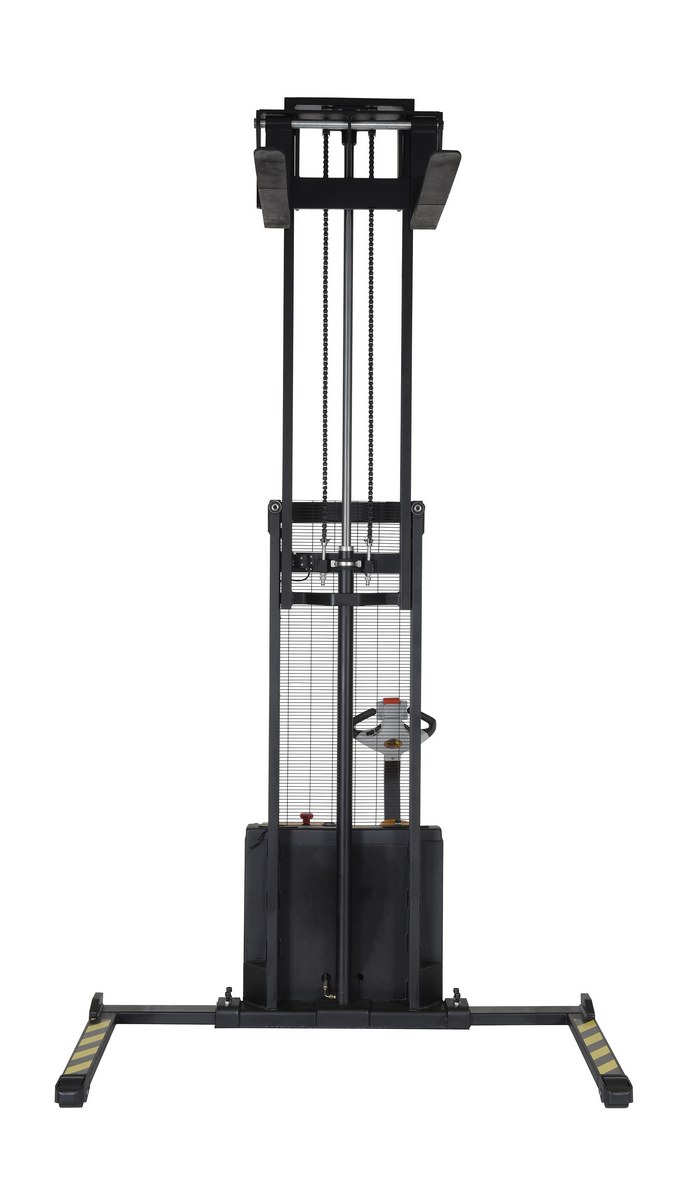

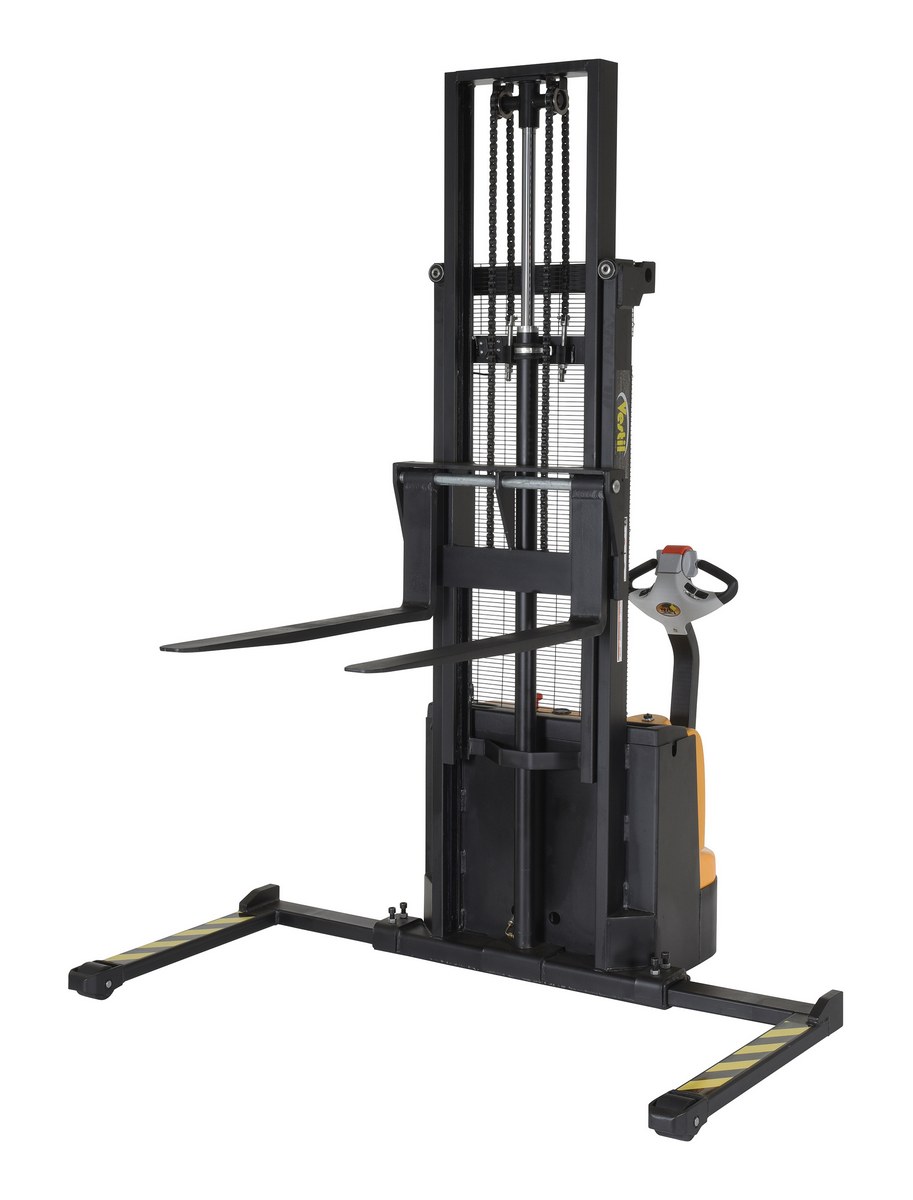

S-125-AA-DM S-125-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1482
S-150-AA-DM S-150-AA-DM1 Year Limited WarrantySteel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / YellowUniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500		1582
S3-118-AA S3-118-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 118 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		1868

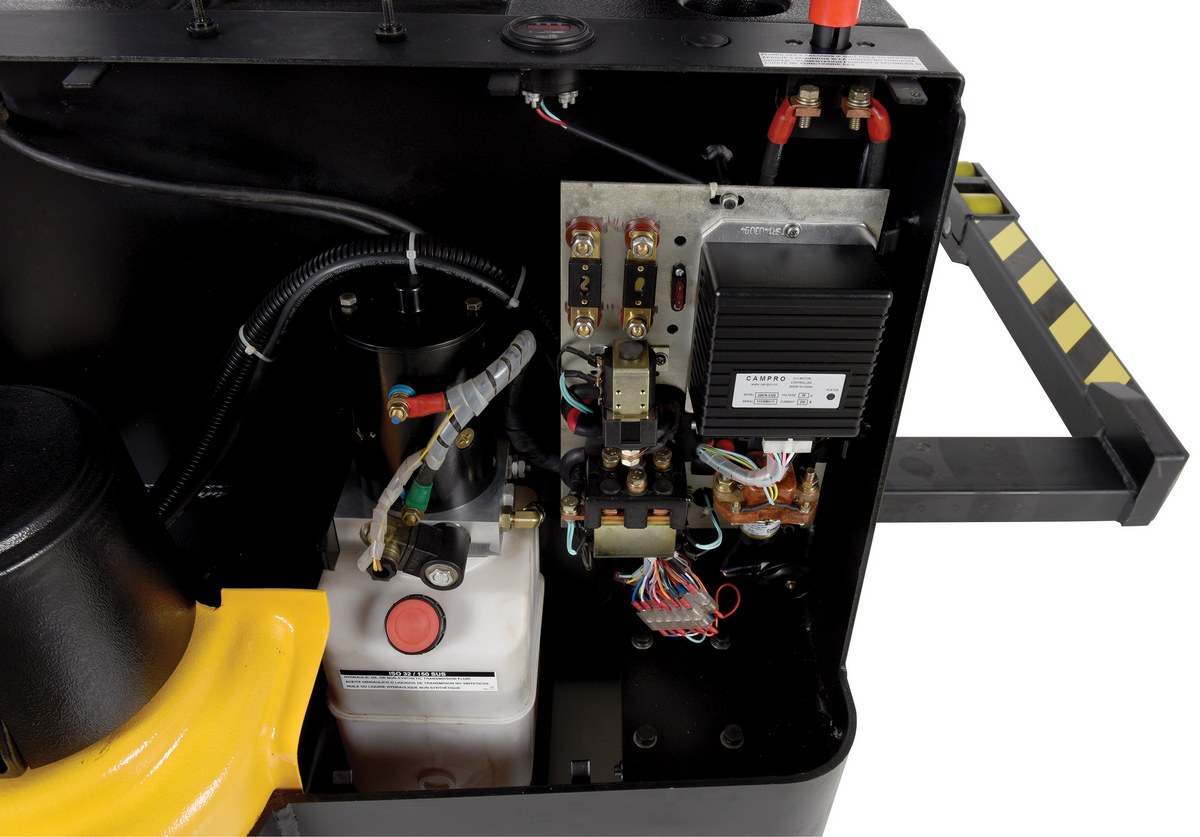

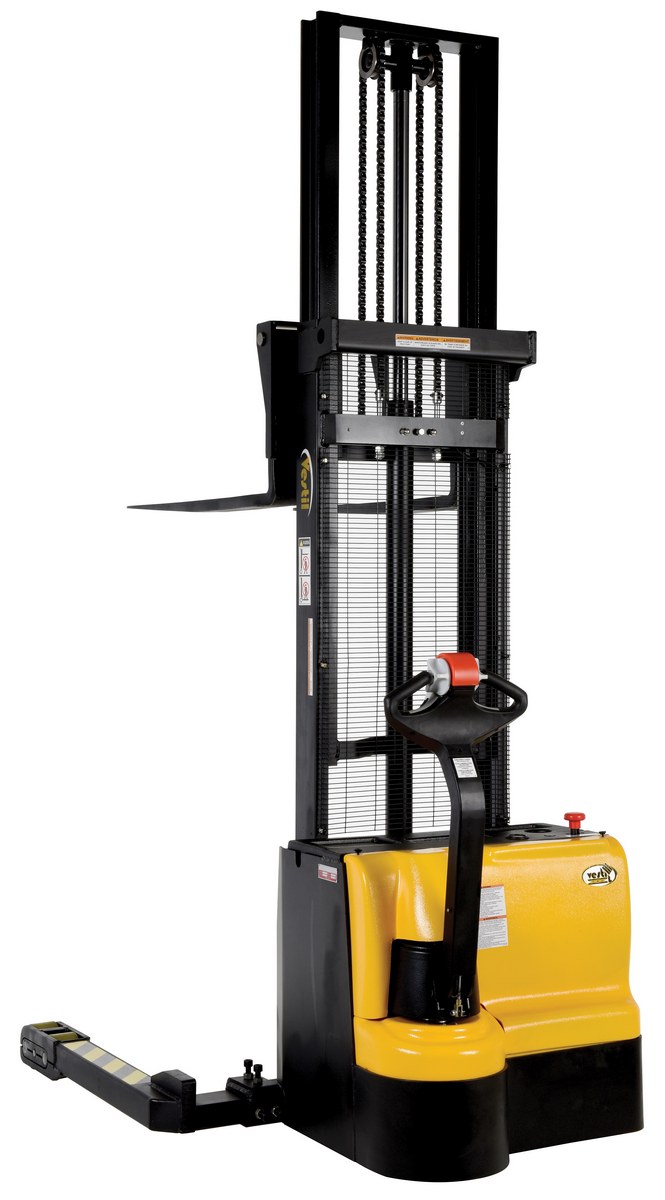

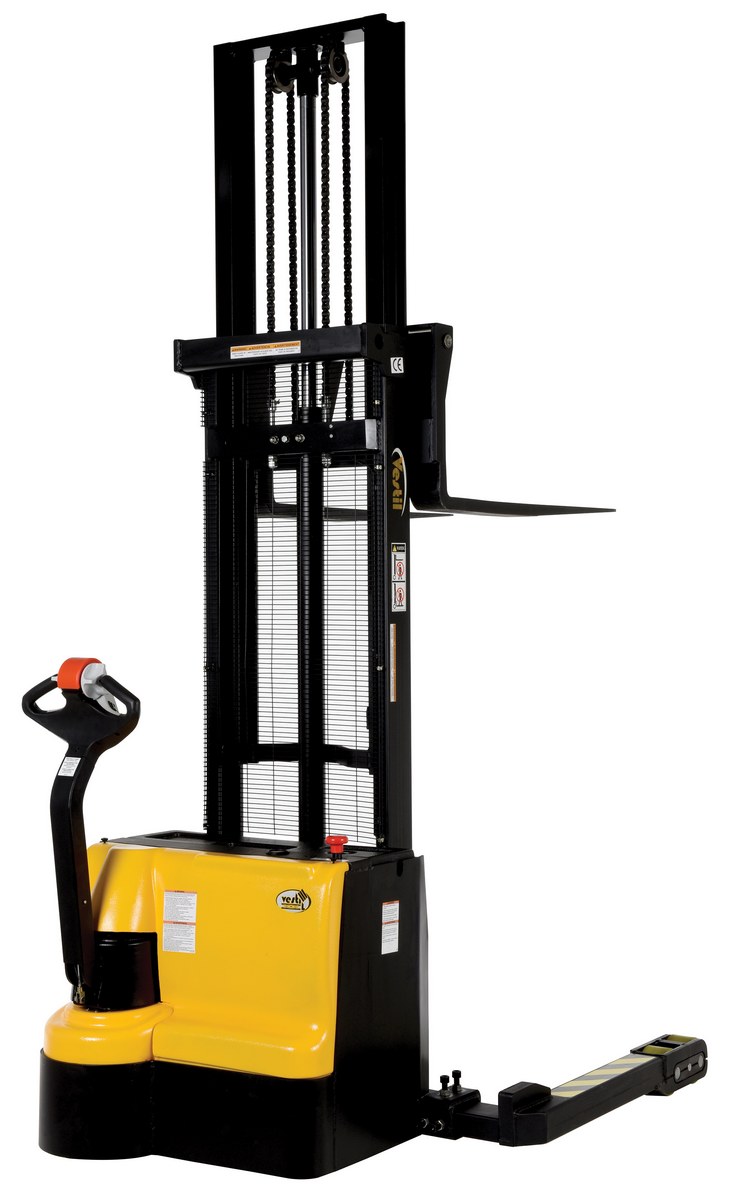

S3-125-AA S3-125-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 125 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500		2038

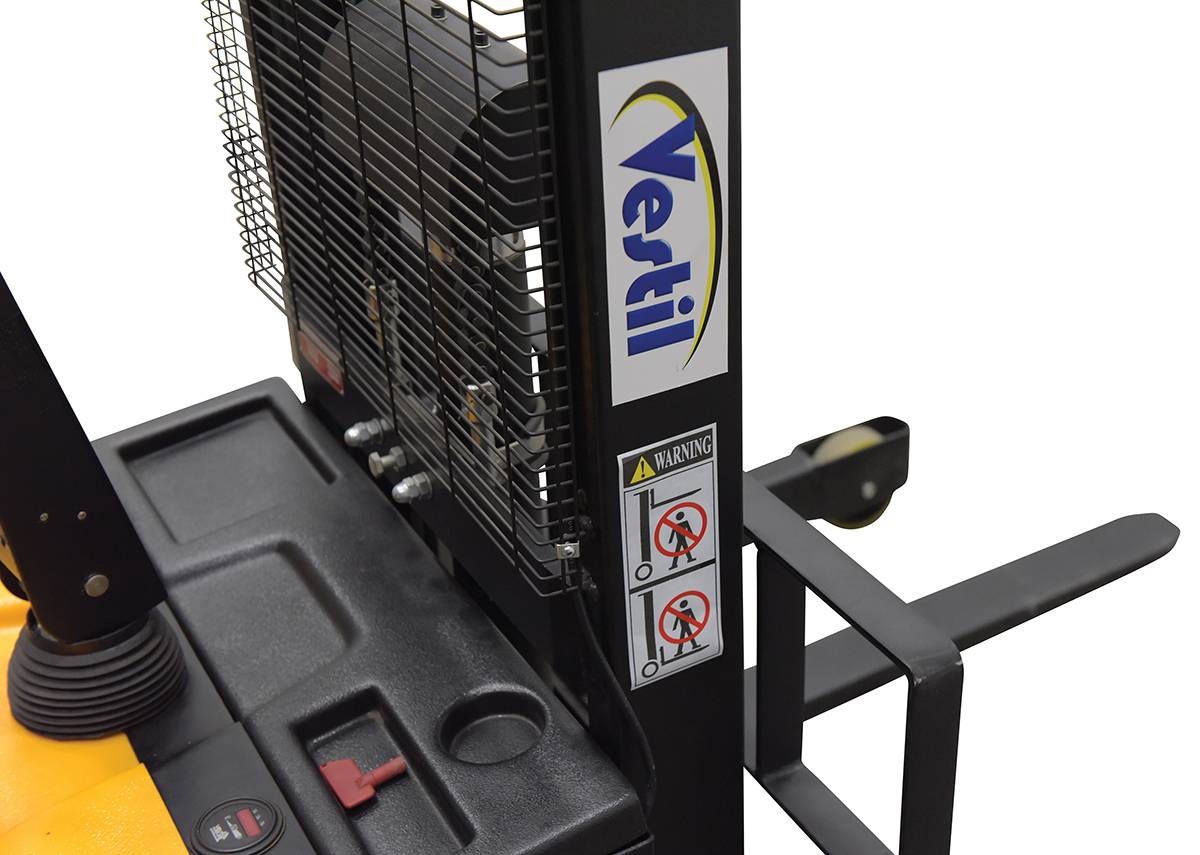

S3-43-AA S3-43-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 43 In. Raised Height 3,000 Lb. Capacity Black / YellowPower: 24V DC
Power Unit: Internal Lead Acid Battery		1564
S3-62-AA S3-62-AA1 Year Limited WarrantySteel Adjustable Double Mast Stacker 62 In. Raised Height 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4		1564

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-101-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 101 in Raised Height (lb.): 1500

S-118-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S-118-FF-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity 62 in to 118 in Raised Height (lb.): 1500

S-125-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S-150-AA-DM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200
Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500

S3-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500

S3-125-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 3,000
Uniform Capacity 62 in to 118 in Raised Height (lb.): 2,500

S3-43-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power: 24V DC
Power Unit: Internal Lead Acid Battery
Power: 24V DC
Power Unit: Internal Lead Acid Battery

S3-62-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
For More Details of the Option Click the Red Model Button

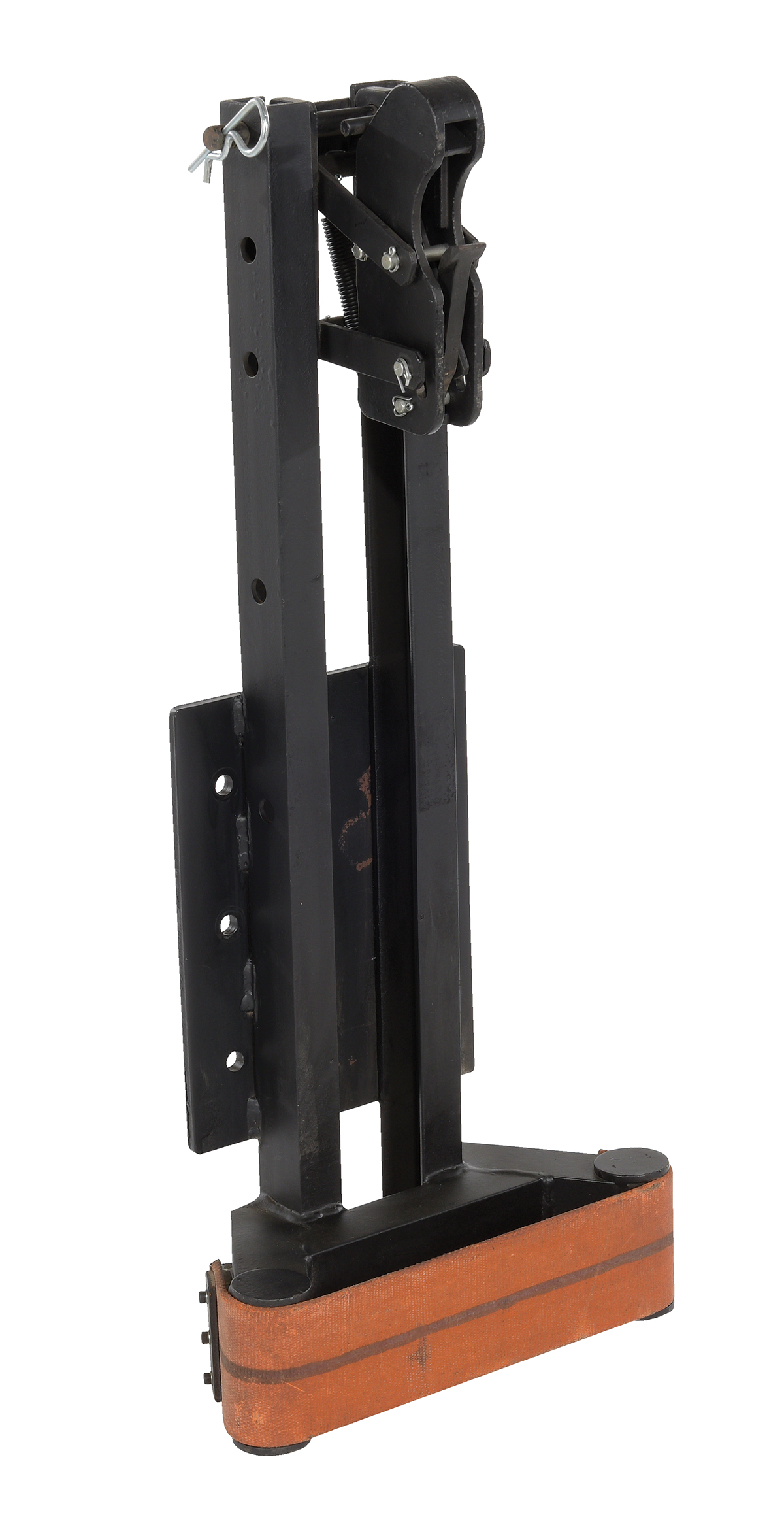

S3-SDG-RF S3-SDG-RF90 Days Limited WarrantySteel Single Drum Gripper Attachment 700 Lb. Capacity BlackUniform Capacity (Lbs.): 700
Overall Length (in.): 32		62
Model Image Description Wt (lbs.)
AGM-UPG-2-12V

AGM Battery Upgrade (2x12V) must be purchased with new unit 80
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Double Mast Stackers with Powered Drive and Powered Lift PDF's will open in a new window when clicked.

Manuals


S3
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


S-118-AA-DM

S-118-FF-DM

S-150-AA-DM

S3-118-AA

S3-125-AA

S3-62-AA

Testing Certificates


S-101-AA-DM

S-118-AA-DM

S-118-FF-DM

S-125-AA-DM

S-150-AA-DM

S3-118-AA

S3-125-AA

S3-43-AA

S3-62-AA

S3-SDG-RF

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-101-AA-DM
Hydraulic Oil SDS Sheet for: S-101-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA-DM
Hydraulic Oil SDS Sheet for: S-118-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-FF-DM
Hydraulic Oil SDS Sheet for: S-118-FF-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-125-AA-DM
Hydraulic Oil SDS Sheet for: S-125-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-150-AA-DM
Hydraulic Oil SDS Sheet for: S-150-AA-DM
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-118-AA
Hydraulic Oil SDS Sheet for: S3-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-125-AA
Hydraulic Oil SDS Sheet for: S3-125-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-43-AA
Hydraulic Oil SDS Sheet for: S3-43-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S3-62-AA
Hydraulic Oil SDS Sheet for: S3-62-AA

Other PDF's


Double Mast Stacker Mailing Brochure

Double Mast Stacker Mailing Brochure(2)

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: At what point when the forks are raised does the overall height begin to increase?

A: When the forks are raised 1" the overall mast will increase by 1/2". Overall height is proportional with the fork height.

Q: I am looking for the dimensions of the adjustable legs. I want to be sure it can straddle a pallet.

A: The inside dimensions of the adjustable legs are 40"-50".

Q: We are interested in the drum attachment. Will it work with the S3-43-AA, S3-62-AA, S3-118-AA, S3-125-AA?

A: The S3-SDG-RF works with the S3-43-AA (only).
