Model Details

S-125-AA-DM

S-125-AA-DM

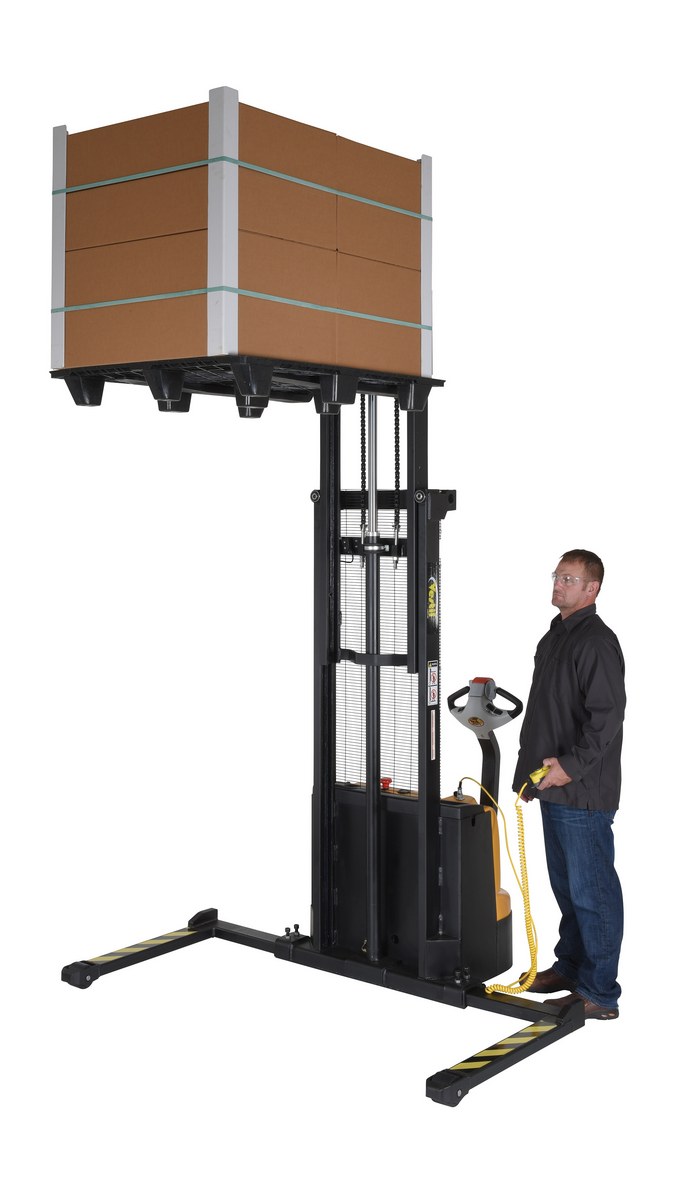

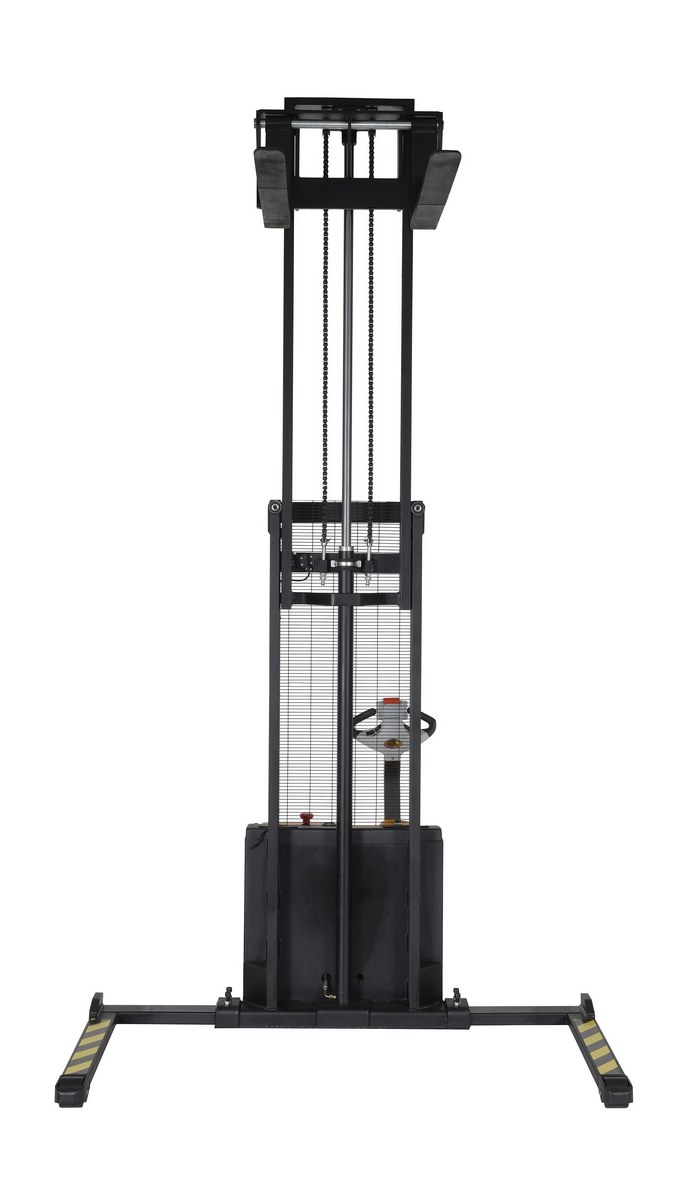

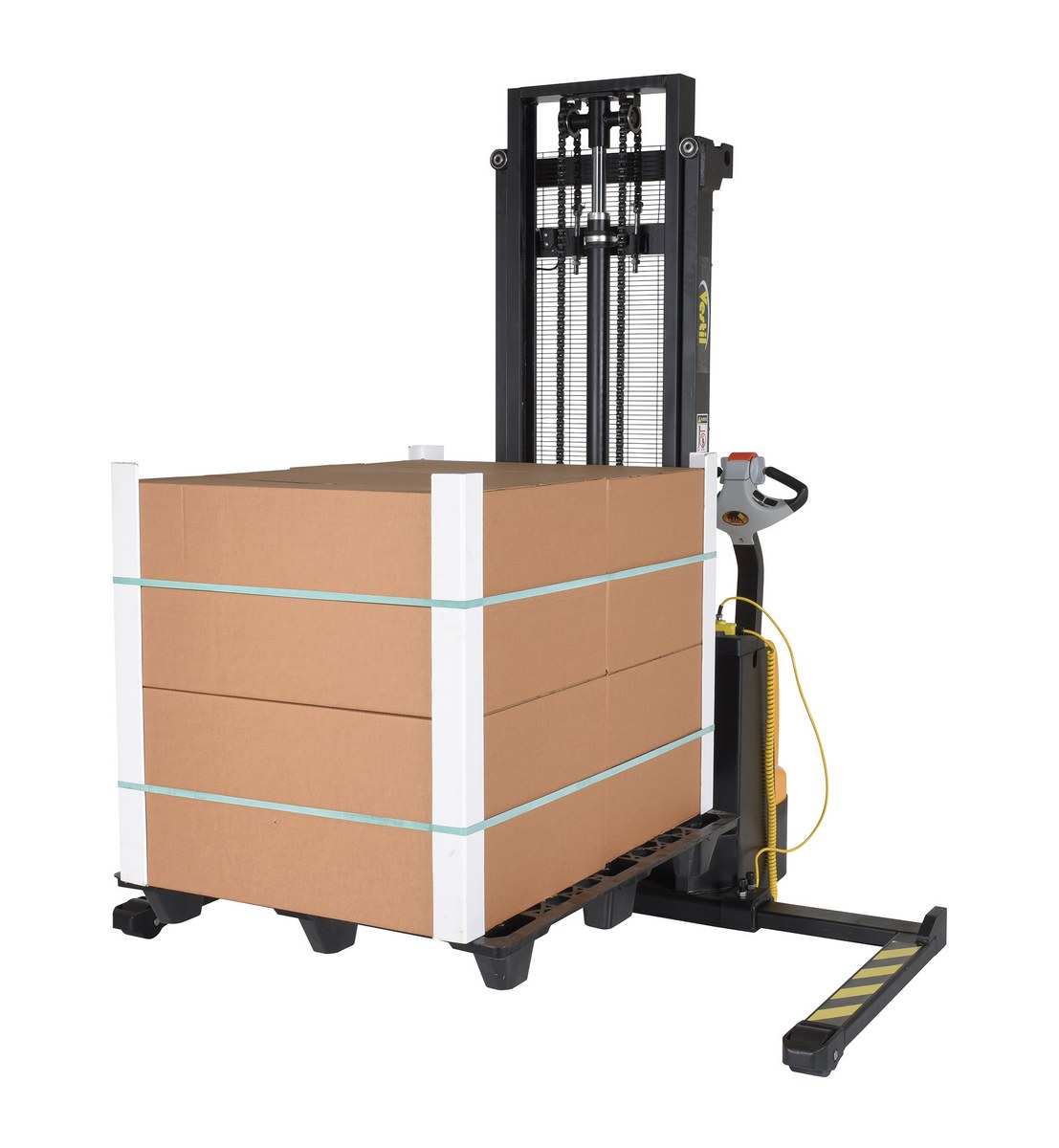

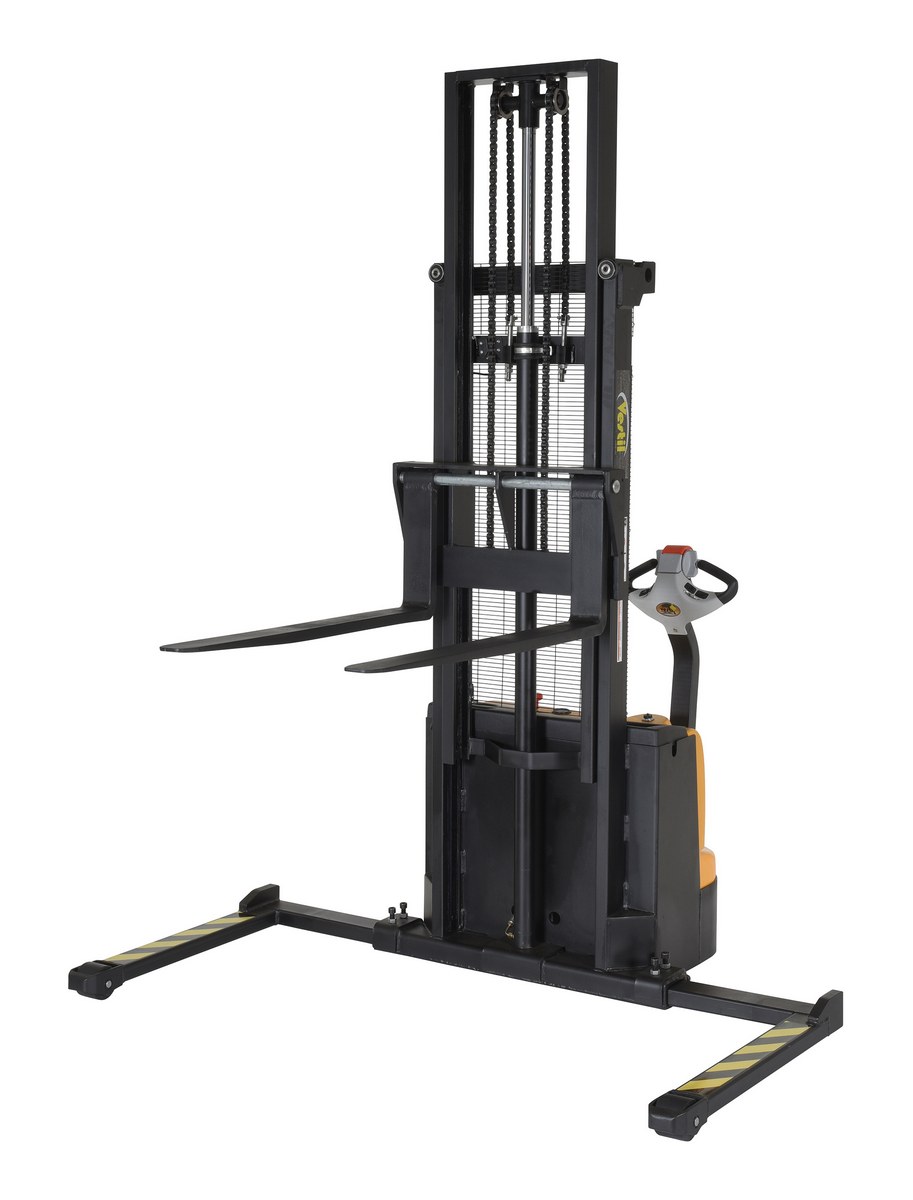

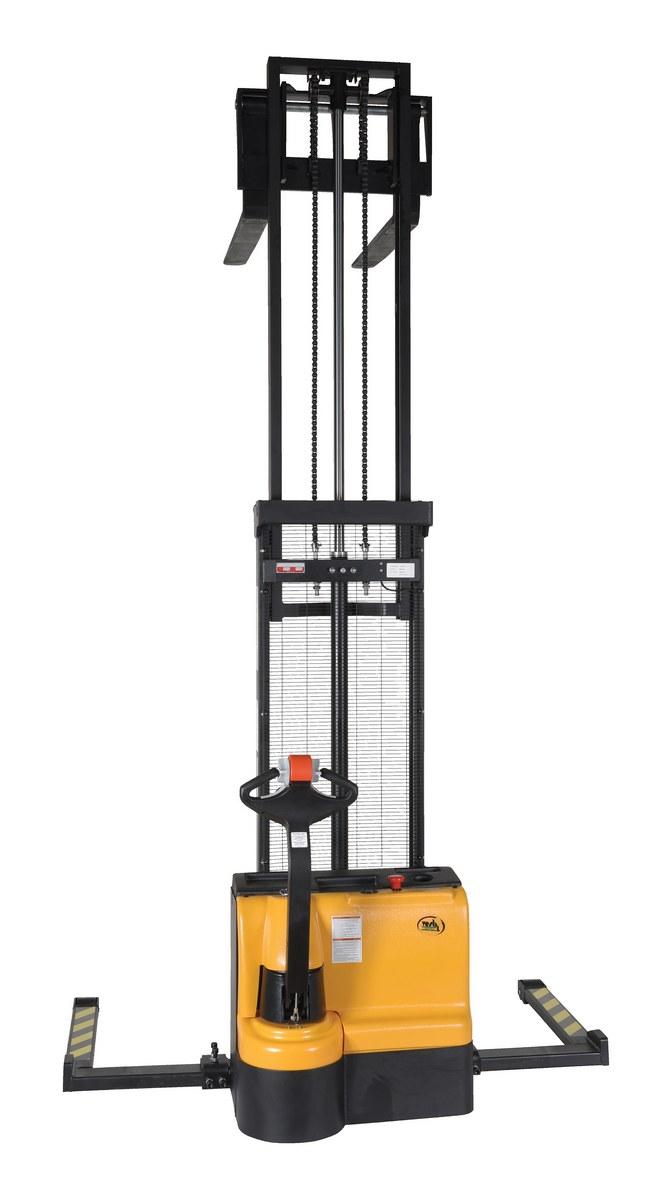

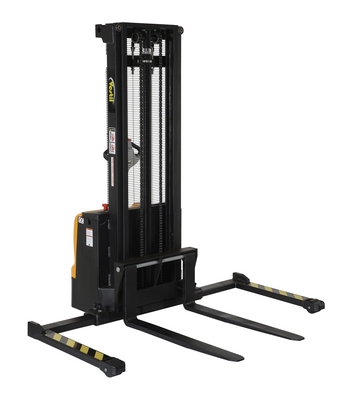

Steel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Total Ship Wt.(lbs.): 1482 (only 1 package) Size: 50"W x 69"L x 82.5"H Color: Yellow / Black

Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Uniform Capacity at 118 in to 125 in Raised Height (lb.): 1500
Fork Width Min./Max. (in.): 8.3 - 26-3/4 Lowered Height (in.): 2-1/8 Raised Height (in.): 125
Battery: (2) 12V Drive Motor: DC 24V Lift Motor: DC 24V

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-125-AA-DM


S-125-AA-DM

Steel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 50"W x 69"L x 82.5"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215114561 GTIN: 00691215114561
Warranty: -- Shipping Weight: 1482 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Uniform Capacity at 118 in to 125 in Raised Height (lb.): 1500
Fork Width Min./Max. (in.): 8.3 - 26-3/4 Lowered Height (in.): 2-1/8 Raised Height (in.): 125
Battery: (2) 12V Drive Motor: DC 24V Lift Motor: DC 24V
