S-150-AA-DM

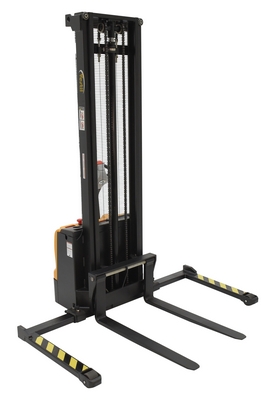

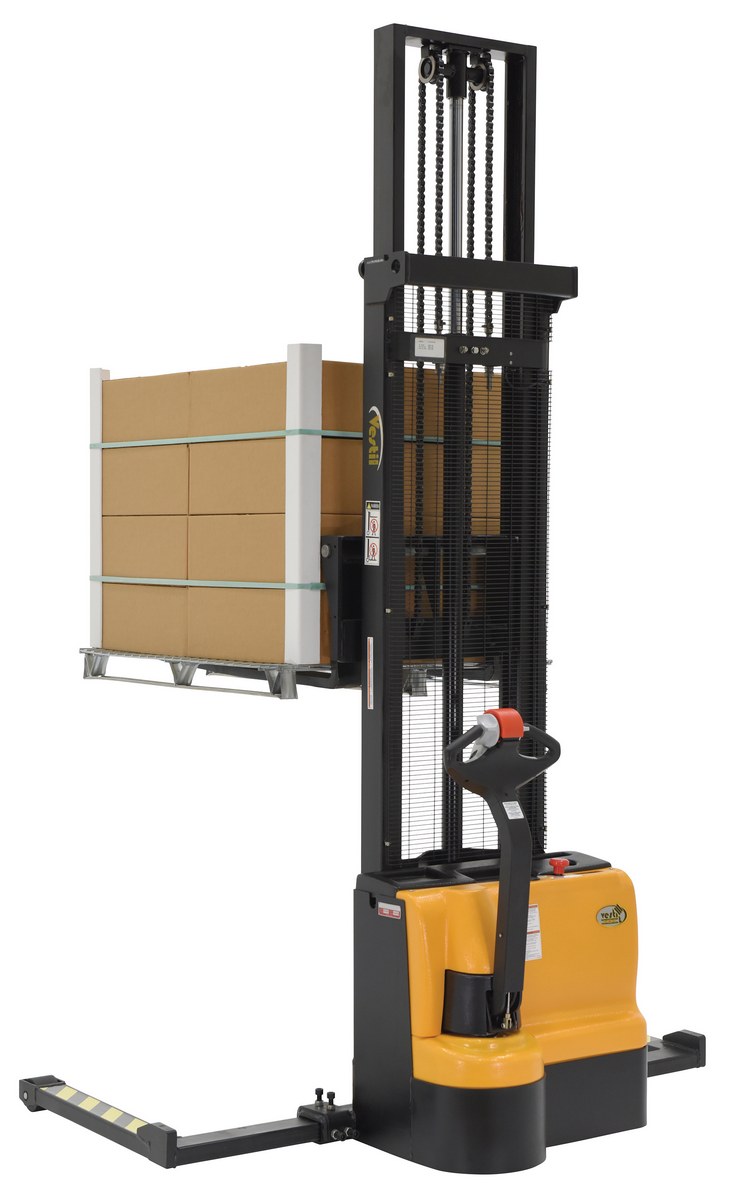

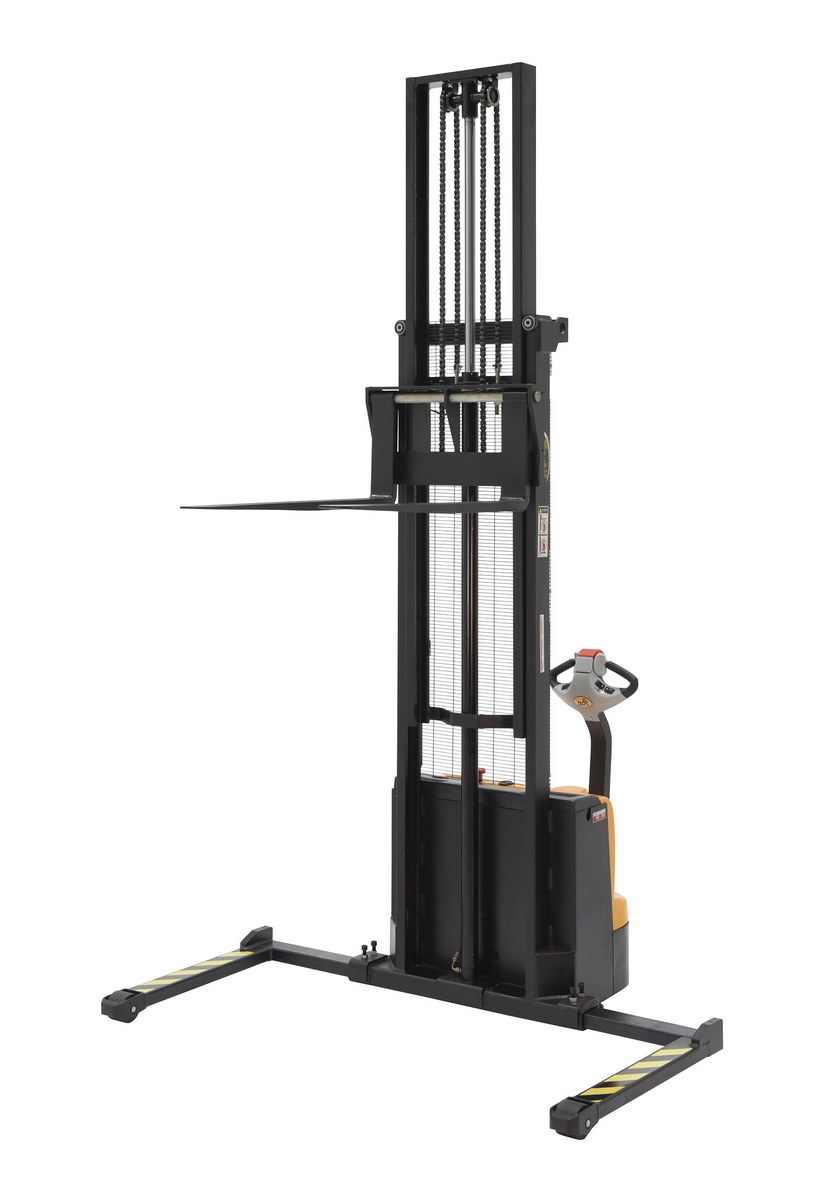

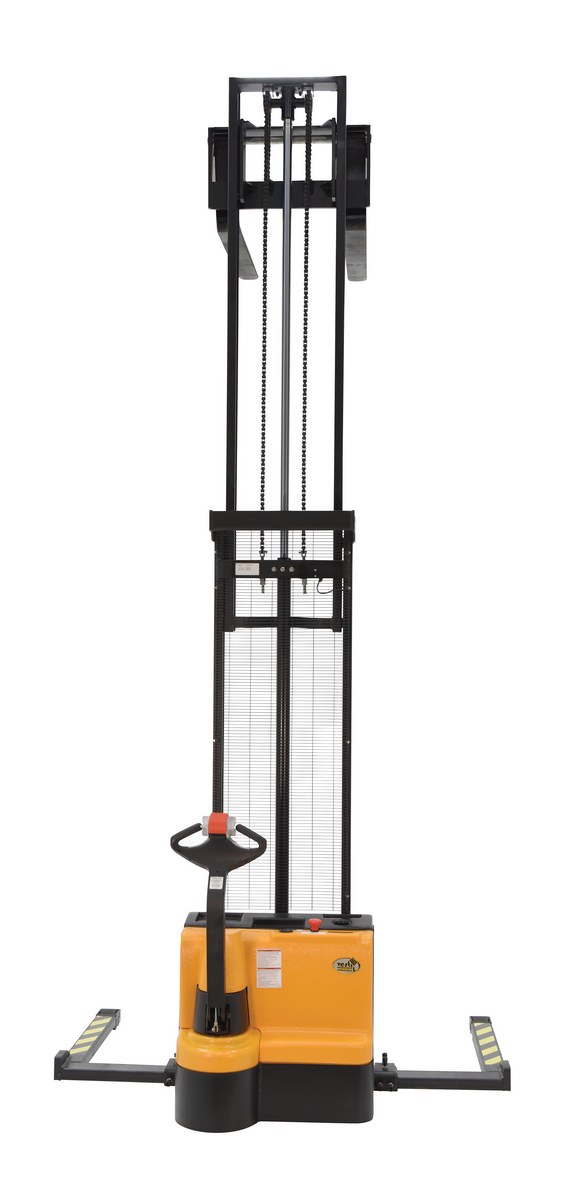

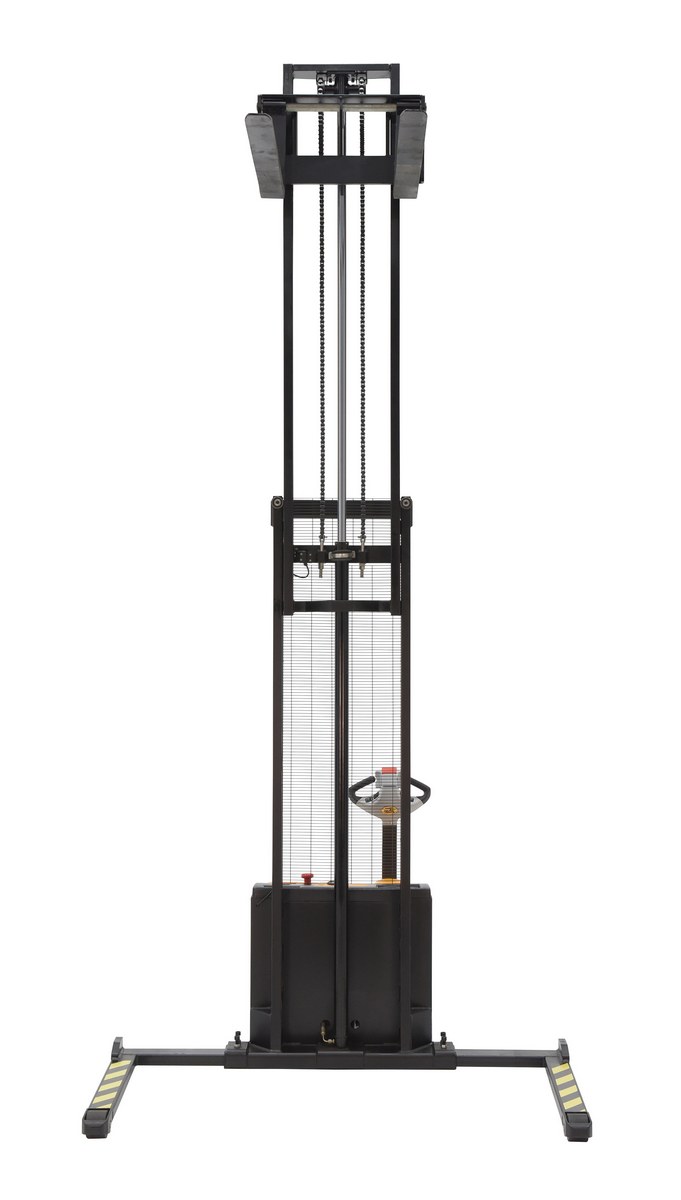

Steel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Total Ship Wt.(lbs.): 1582 (only 1 package) Size: 48"W x 72.25"L x 98.5"H Color: Yellow / Black

Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Uniform Capacity at 118 in to 150 in Raised Height (lb.): 1000
Fork Width Min./Max. (in.): 8.3 - 26-3/4 Lowered Height (in.): 2-1/8 Raised Height (in.): 150
Battery: (2) 12V Drive Motor: DC 24V Lift Motor: DC 24V

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-150-AA-DM
S-150-AA-DM

Steel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 48"W x 72.25"L x 98.5"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215114578 GTIN: 00691215114578
Warranty: -- Shipping Weight: 1582 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity at 0 in to 62 in Raised Height (lb.): 2200 Uniform Capacity at 62 in to 118 in Raised Height (lb.): 1500 Uniform Capacity at 118 in to 150 in Raised Height (lb.): 1000
Fork Width Min./Max. (in.): 8.3 - 26-3/4 Lowered Height (in.): 2-1/8 Raised Height (in.): 150
Battery: (2) 12V Drive Motor: DC 24V Lift Motor: DC 24V
