Model Details

SBM-40

Printer Friendly

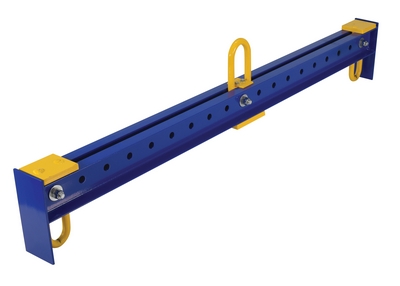

SBM-40

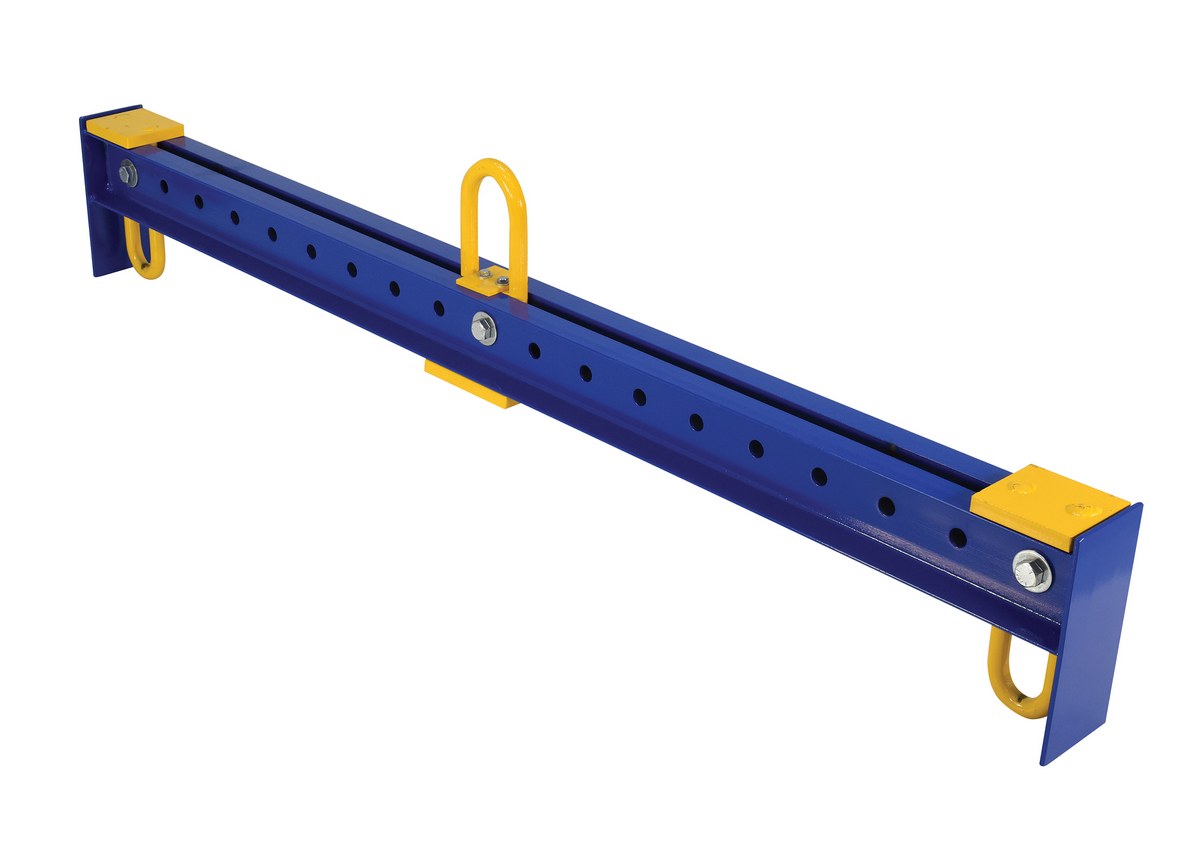

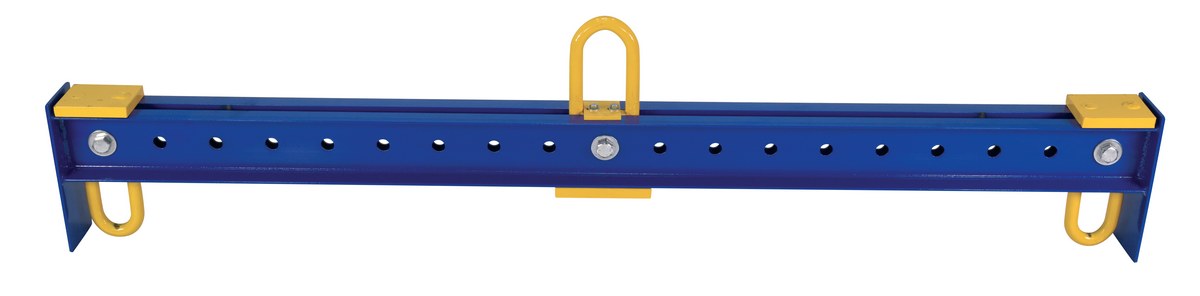

Steel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Total Ship Wt.(lbs.): 196 (only 1 package) Size: 5"W x 78"L x 17.25"H Color: Blue

Uniform Capacity (lb.): 4,000 Headroom (in.): 14-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 6 Upper Bail Width/Height (in): 3 x 5-1/2 Lower Bail Width/Height (in.): 2 x 4
Upper/Lower Bail Thickness (in.): 1 ASME: B30.20-1993 C-Channel Height (in.): 5

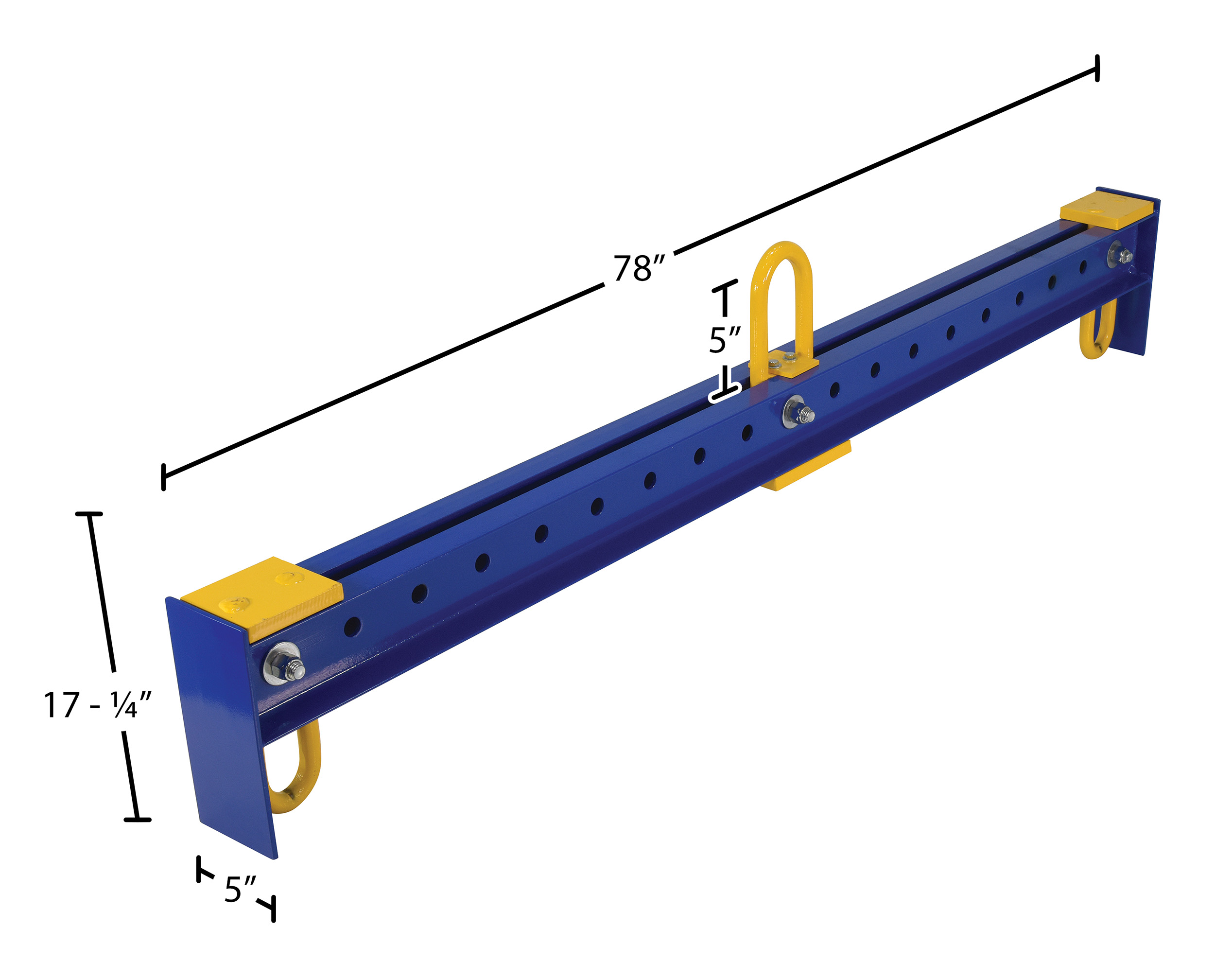

Overall Width (in.): 5 Overall Height (in.): 17-1/4 Overall Length (in.): 78

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-40
SBM-40

Steel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 5"W x 78"L x 17.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215035002 GTIN: 00691215035002
Warranty: -- Shipping Weight: 196 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Headroom (in.): 14-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 6 Upper Bail Width/Height (in): 3 x 5-1/2 Lower Bail Width/Height (in.): 2 x 4
Upper/Lower Bail Thickness (in.): 1 ASME: B30.20-1993 C-Channel Height (in.): 5
Overall Width (in.): 5 Overall Height (in.): 17-1/4 Overall Length (in.): 78
