Model Details

SBM-40-6

Printer Friendly
SBM-40-6

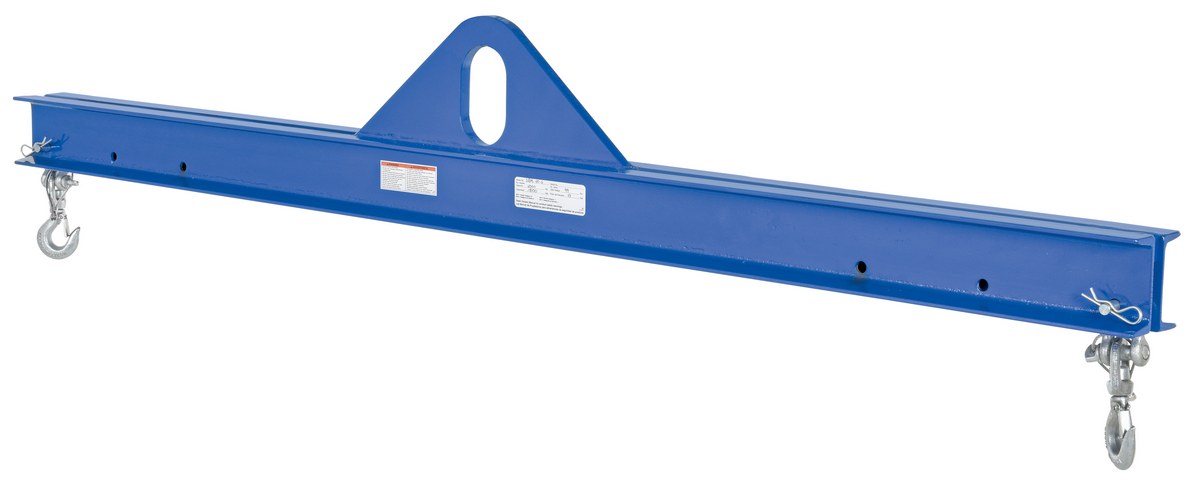

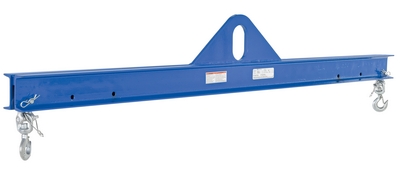

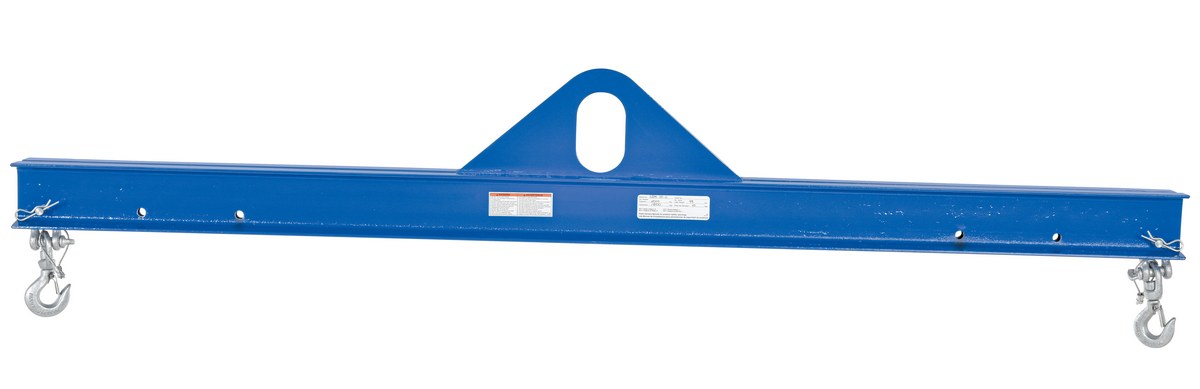

Steel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached swivel hooks allow for easy lifting and transferring of products from workstation to workstation.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Total Ship Wt.(lbs.): 150 (Multiple Packages: P1: 147 lbs + P2: 3 lbs) Size: 4.25"W x 72"L x 17.5625"H Color: Blue

Uniform Capacity (lb.): 4,000 Headroom (in.): 15-3/8 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 3/4 Minimum/Maximum Spread (in.): 45/69 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-40-6
SBM-40-6

Steel Economy Spreader Beam 72 In Length 4,000 Lb. Capacity Blue

This versatile economy spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached swivel hooks allow for easy lifting and transferring of products from workstation to workstation.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two swivel lifting hooks for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 4.25"W x 72"L x 17.5625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215055017 GTIN: 00691215055017
Warranty: -- Shipping Weight: 147 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Headroom (in.): 15-3/8 Usable Bail Width/Height (in.): 3 x 5
Upper Bail Thickness (in.): 3/4 Minimum/Maximum Spread (in.): 45/69 Swivel Hook Quantity: 2
Swivel Hook Size (ton): 1 ASME: B30.20-1993
