Model Details

SBM-BFB-100-10

Printer Friendly
SBM-BFB-100-10

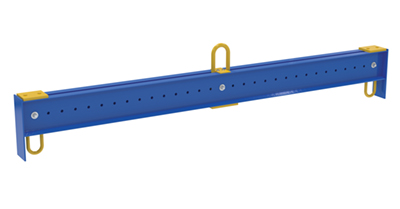

Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.

  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small

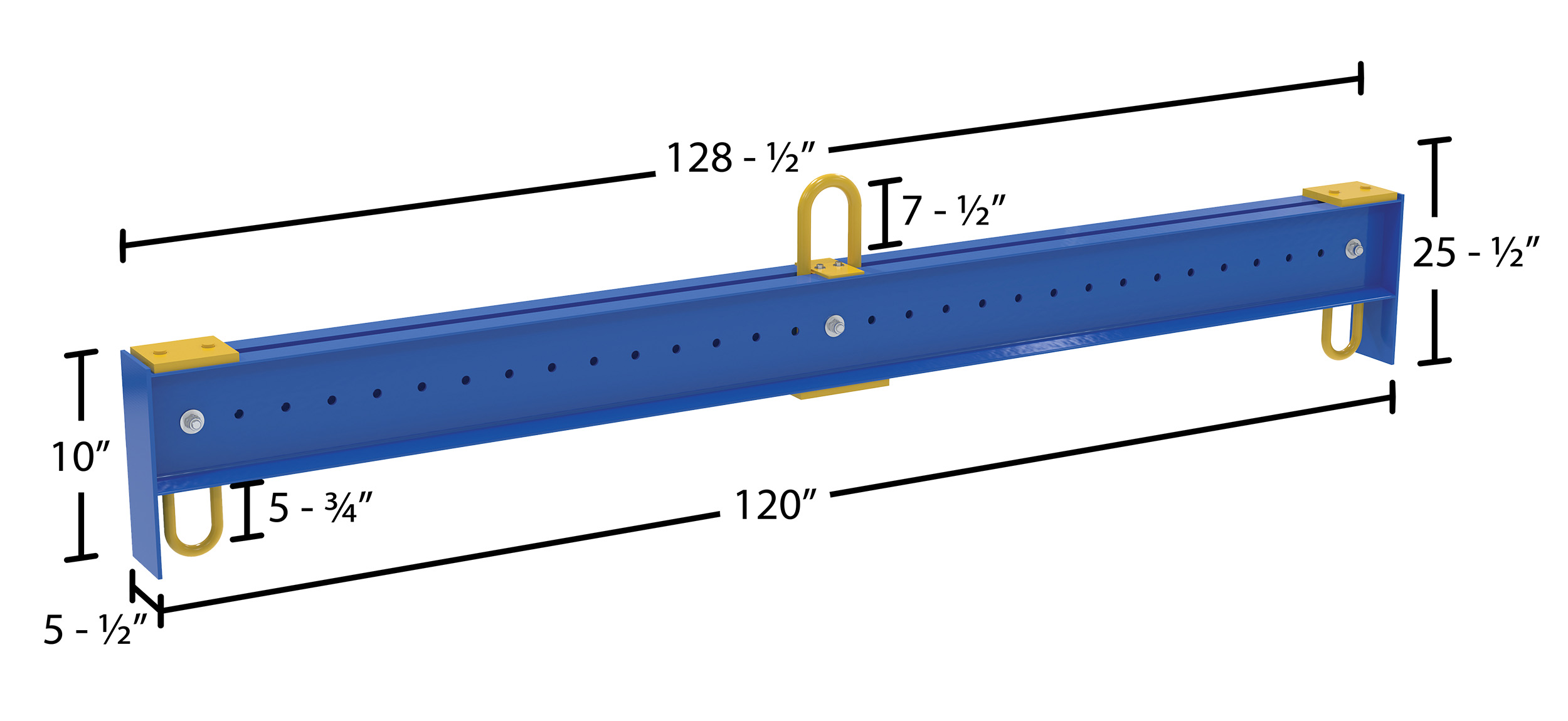

Total Ship Wt.(lbs.): 508 (only 1 package) Size: 6.5"W x 128.5"L x 25.5"H Color: Blue

Uniform Capacity (lb.): 10000 Lower Bail Width (in): 3 Lower Bail Height (in): 5-3/4"
Upper Bail Width (in): 4" Upper Bail Height (in): 7-1/2" Headroom (in.): 25-1/2"
Minimum Spread (in.): 24" Maximum Spread (in.): 120

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-BFB-100-10
SBM-BFB-100-10

Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity Blue

An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.

  • Designed to lift and move uneven and awkward loads
  • Welded steel construction for heavy duty performance
  • Adjustable bail to fit a variety of sizes
  • Large capacity for use with items both large and small
Dimensions: 6.5"W x 128.5"L x 25.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215328043 GTIN: 00691215328043
Warranty: -- Shipping Weight: 508 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Lower Bail Width (in): 3 Lower Bail Height (in): 5-3/4"
Upper Bail Width (in): 4" Upper Bail Height (in): 7-1/2" Headroom (in.): 25-1/2"
Minimum Spread (in.): 24" Maximum Spread (in.): 120
