SWA-60-AW

Steel Auto Wrap Stretch Wrap Machine 60 In. Turntable Diameter 4,000 Lb. Capacity Blue

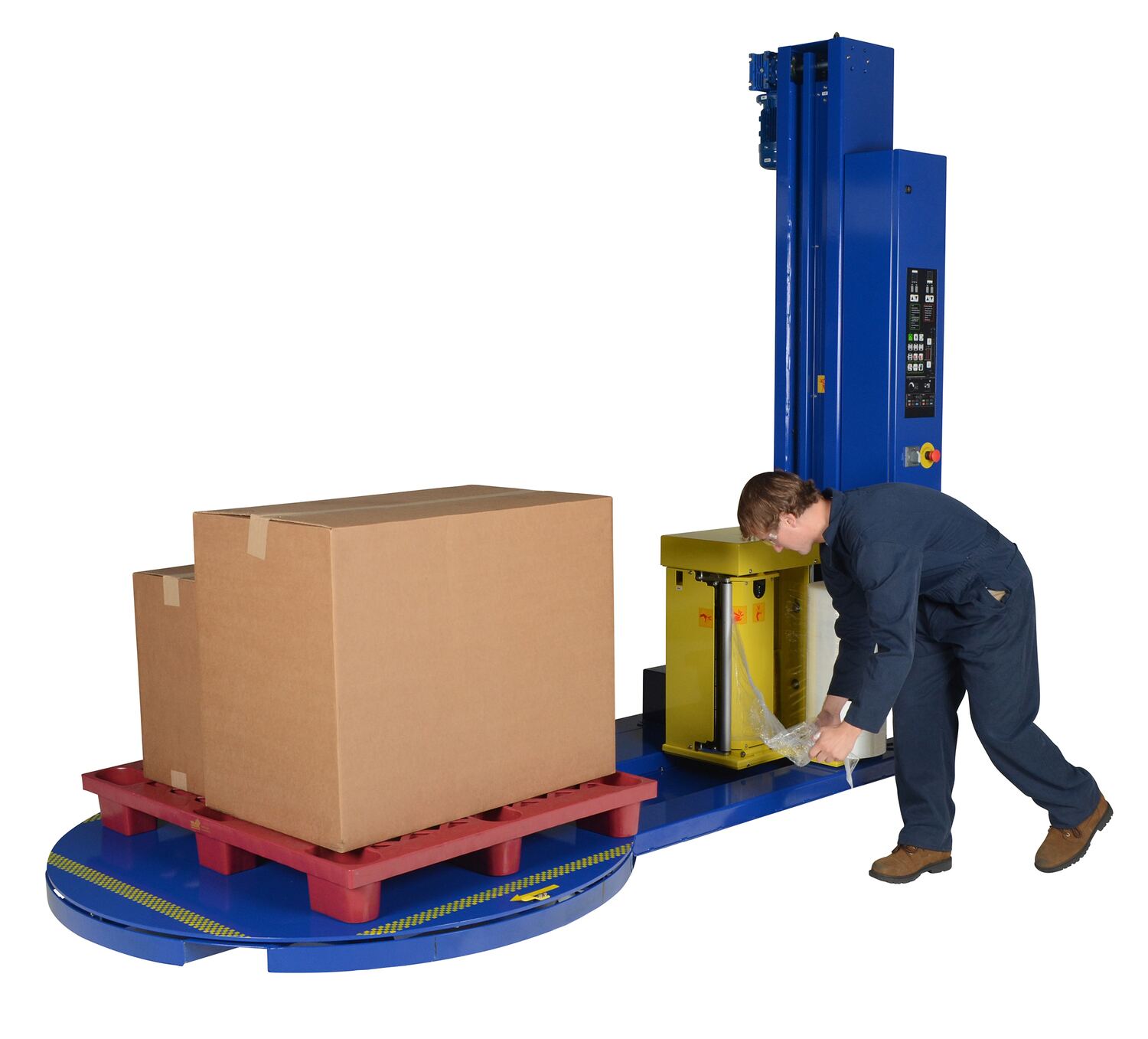

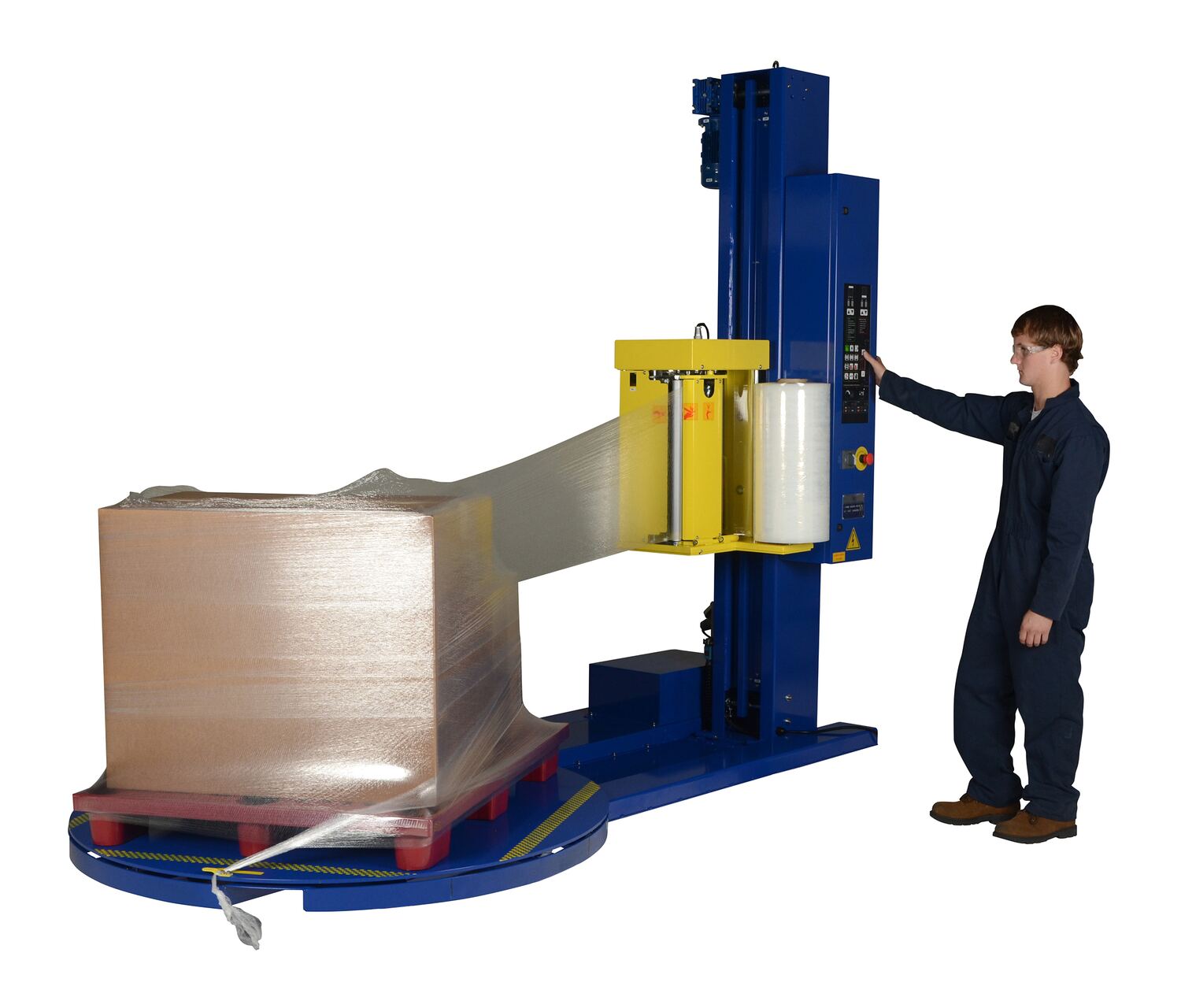

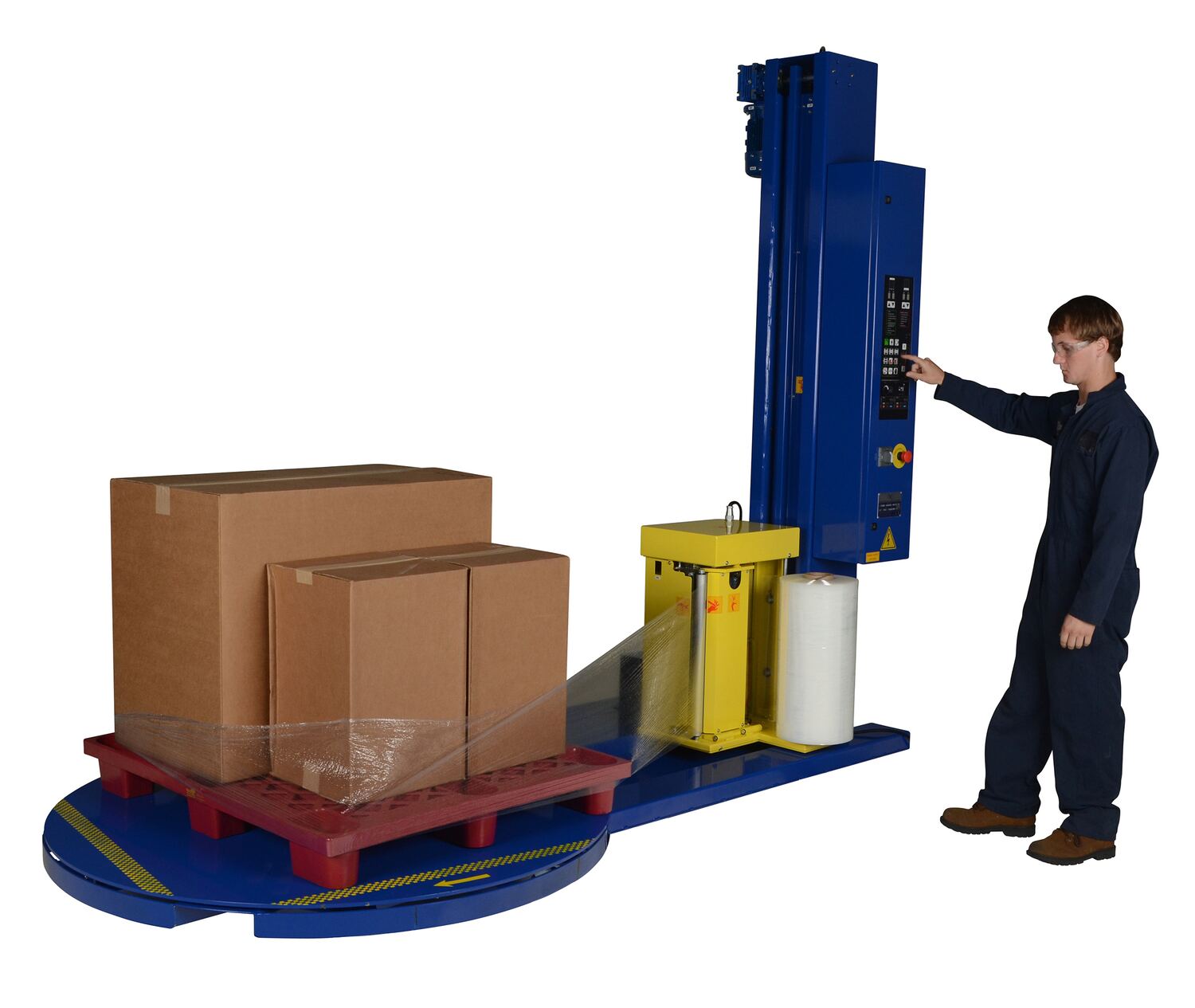

The Medium Duty high performance auto-wrap stretch wrap machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator simply ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can simply cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights.

  • Stretch wrap design increases shipping productivity
  • Simple to use automatic wrap technology
  • Adjustable wrap speed to fit users preference
  • Steel construction provides a long lasting rugged use
Total Ship Wt.(lbs.): 1512 (only 1 package) Size: 59"W x 108"L x 92"H Color: Yellow (Deck), Blue (Frame)

Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 59 Wrap Height (in.) (based on 20 (in.) high roll material): 88
Turntable Height (in.): 3-1/8 Maximum Load Diameter (in.): 94 Voltage/Phase: 115/1
R.P.M Variables: 0-13 20 (in.) High Film Wrap Setting Percentage: 240 Motor Amperage: 15
20 (in.) High Film Wrap Pre-Stretch Percentage: 340 Stretch Wrap Core Diameter (in.): 3 Max. Stretch Wrap Height (in.): 20
Min. Stretch Wrap Height (in.): 10 Max. Stretch Wrap Outside Diameter (in.): 11 Power Chord Length (ft.): 20
Features: NEMA 5-15 plug

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SWA-60-AW
SWA-60-AW

Steel Auto Wrap Stretch Wrap Machine 60 In. Turntable Diameter 4,000 Lb. Capacity Blue

The Medium Duty high performance auto-wrap stretch wrap machine has a user friendly control center that provides workers with efficient control of the wrapping process. The state of the art digital control circuit allows the operator to set the number of pallet rotations and film wrapping patterns, with four (4) standard multifunction wrapping patterns. The operator simply ties off the film wrap on the carousel and presses the start button. When the unit has completed the wrapping process, the operator can simply cut film or use auto brake feature and remove the wrapped pallet. The powered carousel has variable speeds with a soft start and stop feature. Photocell sensors automatically adjust to different pallet heights.

  • Stretch wrap design increases shipping productivity
  • Simple to use automatic wrap technology
  • Adjustable wrap speed to fit users preference
  • Steel construction provides a long lasting rugged use
Dimensions: 59"W x 108"L x 92"H Sell UOM: EA-Each Color: Yellow (Deck), Blue (Frame)
Material: Steel UPC: 691215038041 GTIN: 00691215038041
Warranty: -- Shipping Weight: 1512 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Taiwan
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 59 Wrap Height (in.) (based on 20 (in.) high roll material): 88
Turntable Height (in.): 3-1/8 Maximum Load Diameter (in.): 94 Voltage/Phase: 115/1
R.P.M Variables: 0-13 20 (in.) High Film Wrap Setting Percentage: 240 Motor Amperage: 15
20 (in.) High Film Wrap Pre-Stretch Percentage: 340 Stretch Wrap Core Diameter (in.): 3 Max. Stretch Wrap Height (in.): 20
Min. Stretch Wrap Height (in.): 10 Max. Stretch Wrap Outside Diameter (in.): 11 Power Chord Length (ft.): 20
Features: NEMA 5-15 plug
