Model Details

SY-207230

Printer Friendly
SY-207230

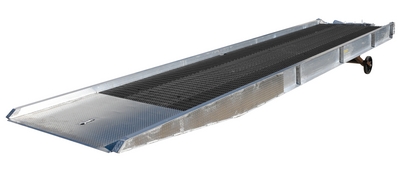

Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 20,000 Lb. Capacity Silver

The portable Aluminum Yard Ramp with steel grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Steel grating allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights
Total Ship Wt.(lbs.): 3623 (only 1 package) Size: 74"W x 360"L x 45"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 20000 Usable Width (in.): 66 Hydraulic Lift: Hand Pump
Tire Size (in.): 18 Tire Thickness (in.): 5 Curb Height (in.): 4
Lowered Height (in.): 45 Raised Height (in.): 62 Usable Lip Support Edge (in.): 13-1/2
Deck Type: Steel Bar Grating

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SY-207230
SY-207230

Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 20,000 Lb. Capacity Silver

The portable Aluminum Yard Ramp with steel grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.

  • Aluminum side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Steel grating allows snow, ice and rain to fall through
  • Hand pump hydraulic lift easily adjusts to different dock heights
Dimensions: 74"W x 360"L x 45"H Sell UOM: EA-Each Color: Silver
Material: Aluminum/Steel UPC: 691215049030 GTIN: 00691215049030
Warranty: -- Shipping Weight: 3623 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 20000 Usable Width (in.): 66 Hydraulic Lift: Hand Pump
Tire Size (in.): 18 Tire Thickness (in.): 5 Curb Height (in.): 4
Lowered Height (in.): 45 Raised Height (in.): 62 Usable Lip Support Edge (in.): 13-1/2
Deck Type: Steel Bar Grating
