VHPS-NM-800-11

Steel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / Black

A single fork skid positioner lifter is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.

  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Smooth rolling a variety of surfaces
  • Brightly colored for clear visibility

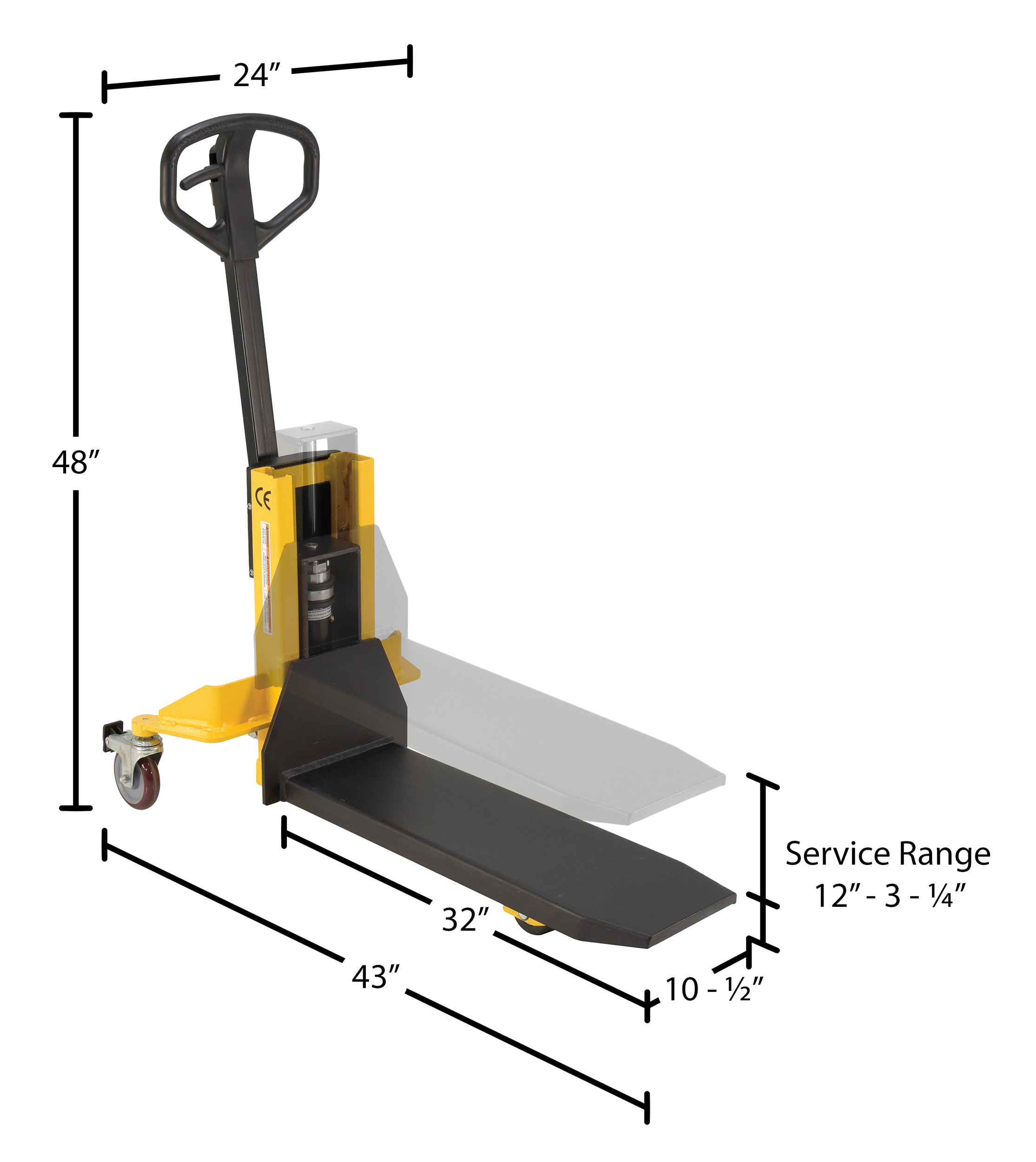

Total Ship Wt.(lbs.): 232 (only 1 package) Size: 24"W x 43"L x 48"H Color: Yellow / Black Non-Returnable

Uniform Capacity (lb.): 800 Service Range (in.): 3-1/4 to 12 Fork Width/Length (in.): 10-1/2 x 32
Steer Wheel Quantity/Diameter/Width (in.): (2) 5 x 1/4 Steer Wheel Material: Poly-on-Poly Load Wheel Quantity/Diameter/Width (in.): 3-1/8 x 1-3/8
Load Wheel Material: Poly-on-Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VHPS-NM-800-11
VHPS-NM-800-11

Steel Single Fork Skid Positioner Lifter 800 Lb. Capacity Yellow / Black

A single fork skid positioner lifter is a new design of an old classic. Instead of the usual two skinny forks to lift open bottom skids, crates, and baskets this model has one large centered fork. The fork is open on 3 sides for easy loading and unloading of products. The high handle not only allows for steering, but as the pumping mechanism to raise and lower the height of the fork. Unit rolls on casters and includes a foot brake for secured positioning during transition periods. The compact design takes up minimal storage space, when not in use.

  • Narrow leading base to fit in tight spaces
  • Manual hand pump for precise positioning
  • Smooth rolling a variety of surfaces
  • Brightly colored for clear visibility
Dimensions: 24"W x 43"L x 48"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215320948 GTIN: 00691215320948
Warranty: -- Shipping Weight: 232 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 800 Service Range (in.): 3-1/4 to 12 Fork Width/Length (in.): 10-1/2 x 32
Steer Wheel Quantity/Diameter/Width (in.): (2) 5 x 1/4 Steer Wheel Material: Poly-on-Poly Load Wheel Quantity/Diameter/Width (in.): 3-1/8 x 1-3/8
Load Wheel Material: Poly-on-Steel
