VTR-5.5-14-24

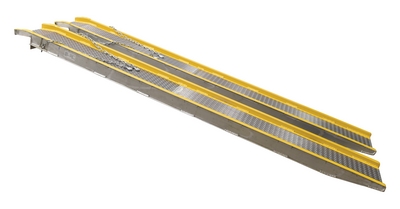

Portable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity Silver

Vehicle ramps are designed to provide a safe means for driving vans, pickup trucks and passenger vehicles between ground level and elevated building entrances. These vehicle ramps include chains and hooks to firmly secure them to loading docks. Ensure that vehicles possess the ground clearance necessary to ascend or descend the ramp. Each ramp is able to accommodate wheels that are 14" wide or smaller. These robust aluminum ramps are sold in pairs.

  • 5,500 lb capacity
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability
Total Ship Wt.(lbs.): 1083 (only 1 package) Size: 18.5625"W x 288.5"L x 9.875"H Color: Silver Non-Returnable

Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 39 Working Height Maximum (in.): 55-1/2
Usable Width (in.): 14 Curb Height (in.): 1-1/4 Security Chain Each Quantity/Length (in.): (2) 34

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VTR-5.5-14-24
VTR-5.5-14-24

Portable Aluminum Twin Vehicle Ramp 288 In. x 18 In. 5,500 Lb. Capacity Silver

Vehicle ramps are designed to provide a safe means for driving vans, pickup trucks and passenger vehicles between ground level and elevated building entrances. These vehicle ramps include chains and hooks to firmly secure them to loading docks. Ensure that vehicles possess the ground clearance necessary to ascend or descend the ramp. Each ramp is able to accommodate wheels that are 14" wide or smaller. These robust aluminum ramps are sold in pairs.

  • 5,500 lb capacity
  • 1-1/4" high steel curbs help keep wheels centered on ramps
  • Hooks and chains are included to stabilize ramps when in use
  • Constructed of robust welded aluminum tread plate for maximum strength and durability
Dimensions: 18.5625"W x 288.5"L x 9.875"H Sell UOM: PR-Pair Color: Silver
Material: Aluminum UPC: 691215046671 GTIN: 00691215046671
Warranty: -- Shipping Weight: 1083 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? Y
Uniform Capacity Per Pair (lb.): 5500 Working Height Minimum (in.): 39 Working Height Maximum (in.): 55-1/2
Usable Width (in.): 14 Curb Height (in.): 1-1/4 Security Chain Each Quantity/Length (in.): (2) 34
