Product Family Overview


Structural Cantilever Racking
SERIES: SAC,DAC

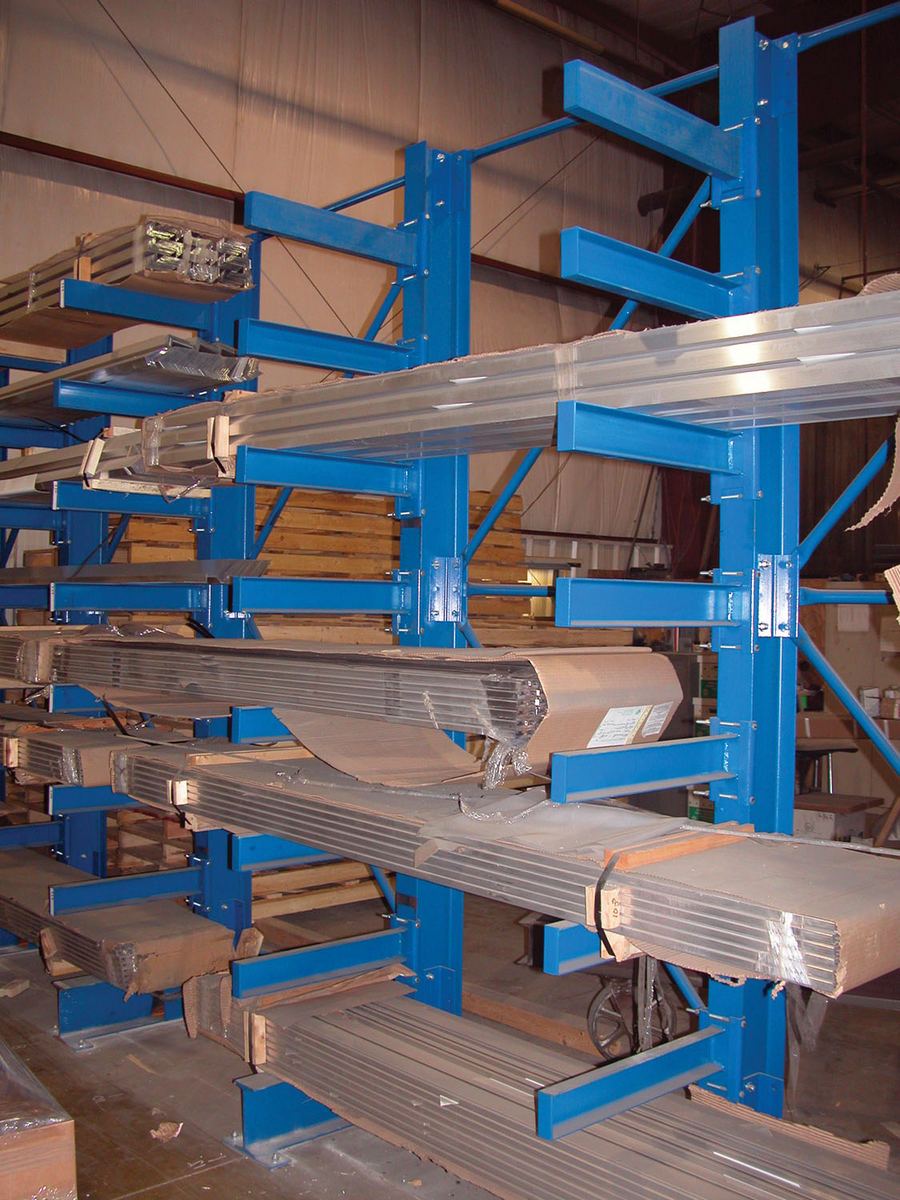

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright.

Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright.

Additional Models In This Family

SAC-812

model SAC-812

SSAL-36

model SSAL-36

SSAL-48

model SSAL-48

HBS-85

model HBS-85

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DAC-1012 DAC-101290 Days Limited WarrantySteel Double-Sided Cantilever Upright 12 In. Usable Arms 10 Ft. High 26500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright
316
DAC-1024 DAC-102490 Days Limited WarrantySteel Double-Sided Cantilever Upright 24 In. Usable Arms 10 Ft. High 16600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright
350
DAC-1036 DAC-103690 Days Limited WarrantySteel Double-Sided Cantilever Upright 36 In. Usable Arms 10 Ft. High 12250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
365
DAC-1212 DAC-121290 Days Limited WarrantySteel Double-Sided Cantilever Upright 12 In. Usable Arms 12 Ft. High 26600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright
357
DAC-1224 DAC-122490 Days Limited WarrantySteel Double-Sided Cantilever Upright 24 In. Usable Arms 12 Ft. High 16500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright
386
DAC-1236 DAC-123690 Days Limited WarrantySteel Double-Sided Cantilever Upright 36 In. Usable Arms 12 Ft. High 12250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
405
DAC-812 DAC-81290 Days Limited WarrantySteel Double-Sided Cantilever Upright 12 In. Usable Arms 8 Ft. High 18000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright
242
DAC-824 DAC-82490 Days Limited WarrantySteel Double-Sided Cantilever Upright 24 In. Usable Arms 8 Ft. High 12000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright
271

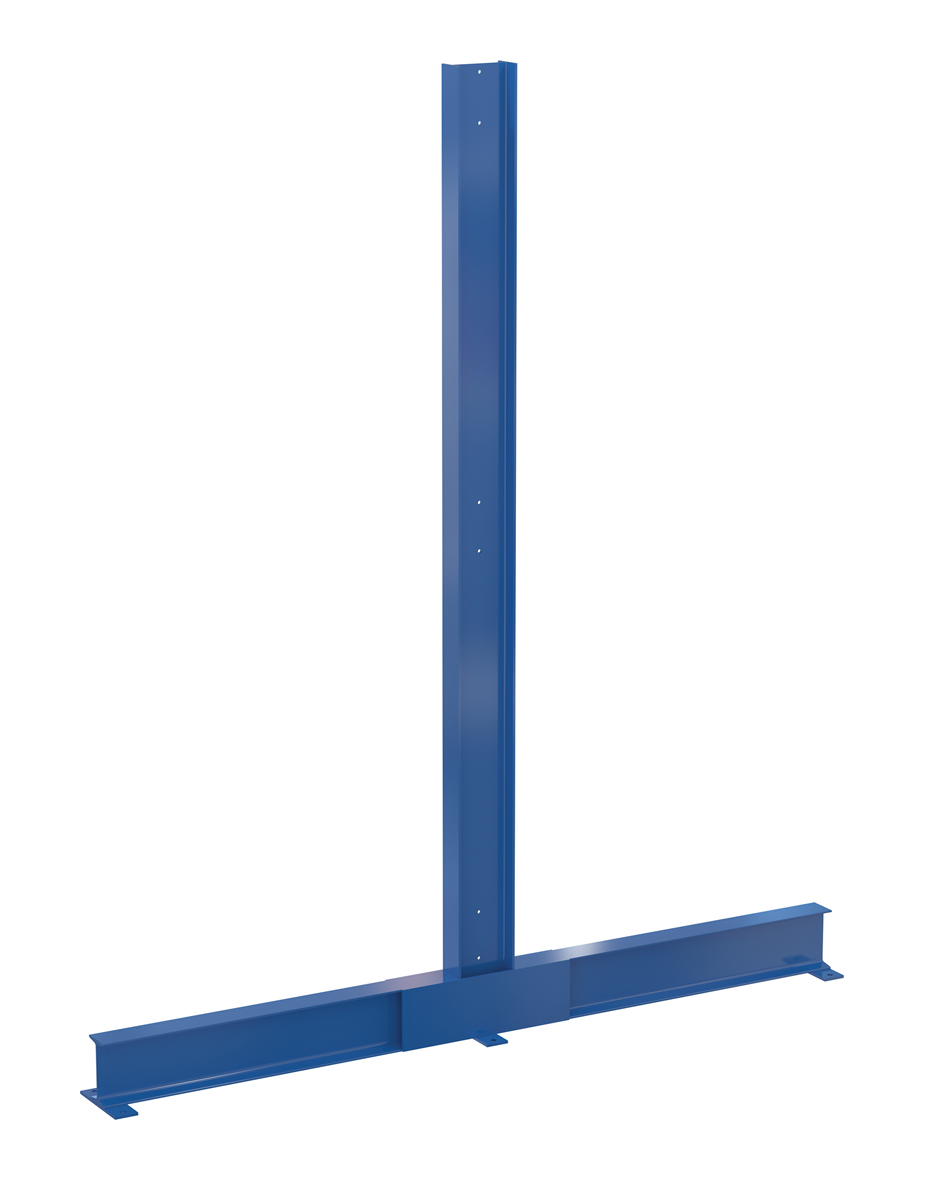

DAC-836 DAC-83690 Days Limited WarrantySteel Double-Sided Cantilever Upright 36 In. Usable Arms 8 Ft. High 9200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright
290

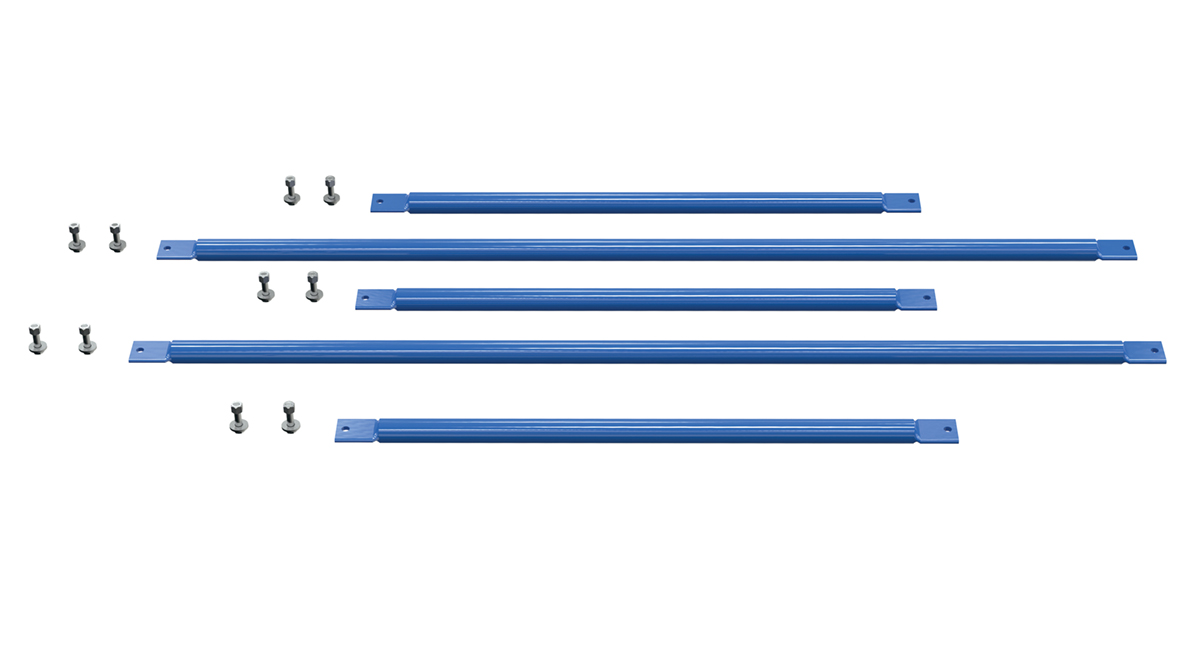

HBS-10123 HBS-101231 Year Limited WarrantySteel Structural Cantilever Brace Set 36 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
84

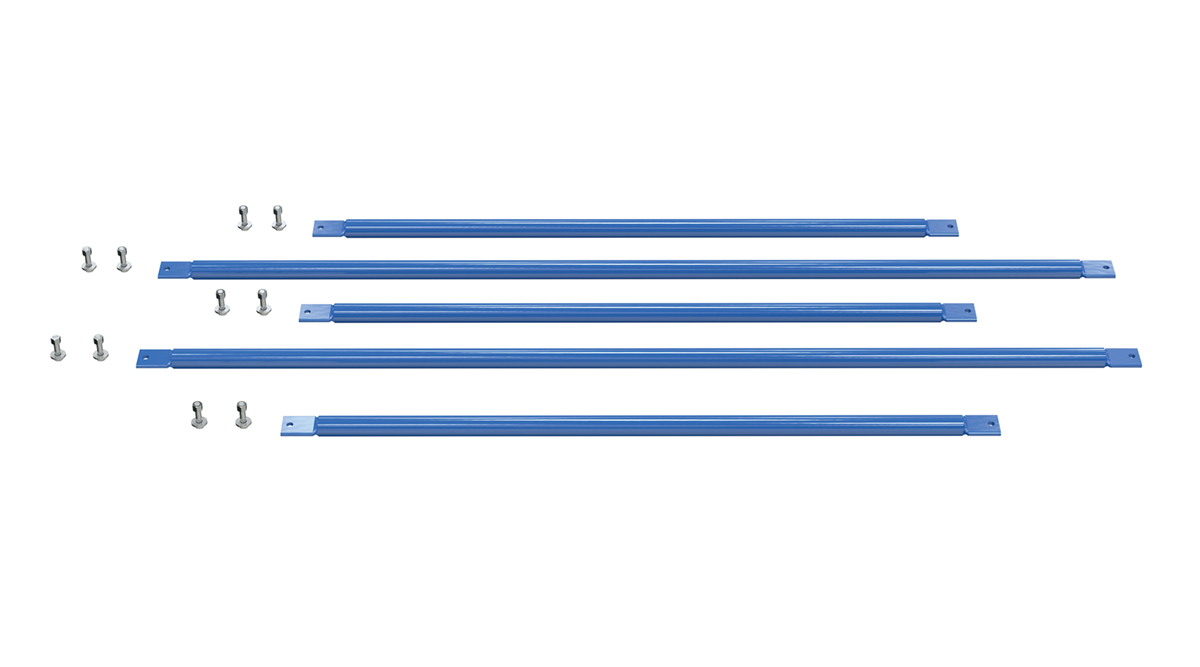

HBS-10124 HBS-101241 Year Limited WarrantySteel Structural Cantilever Brace Set 48 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
92

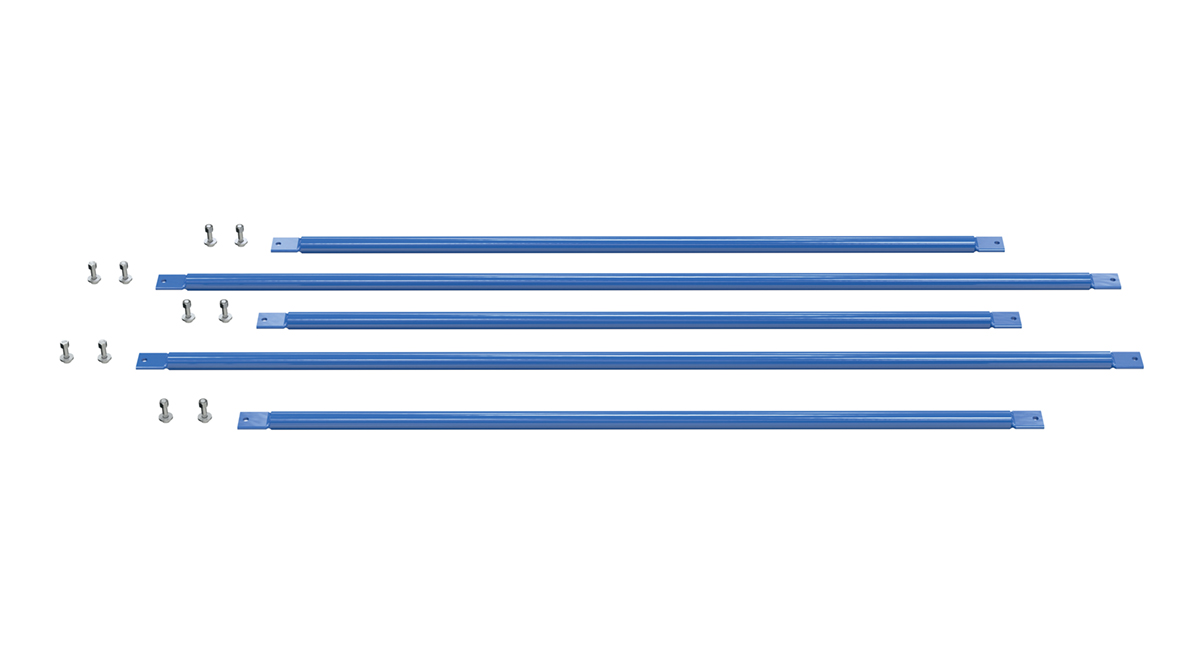

HBS-10125 HBS-101251 Year Limited WarrantySteel Structural Cantilever Brace Set 60 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
102

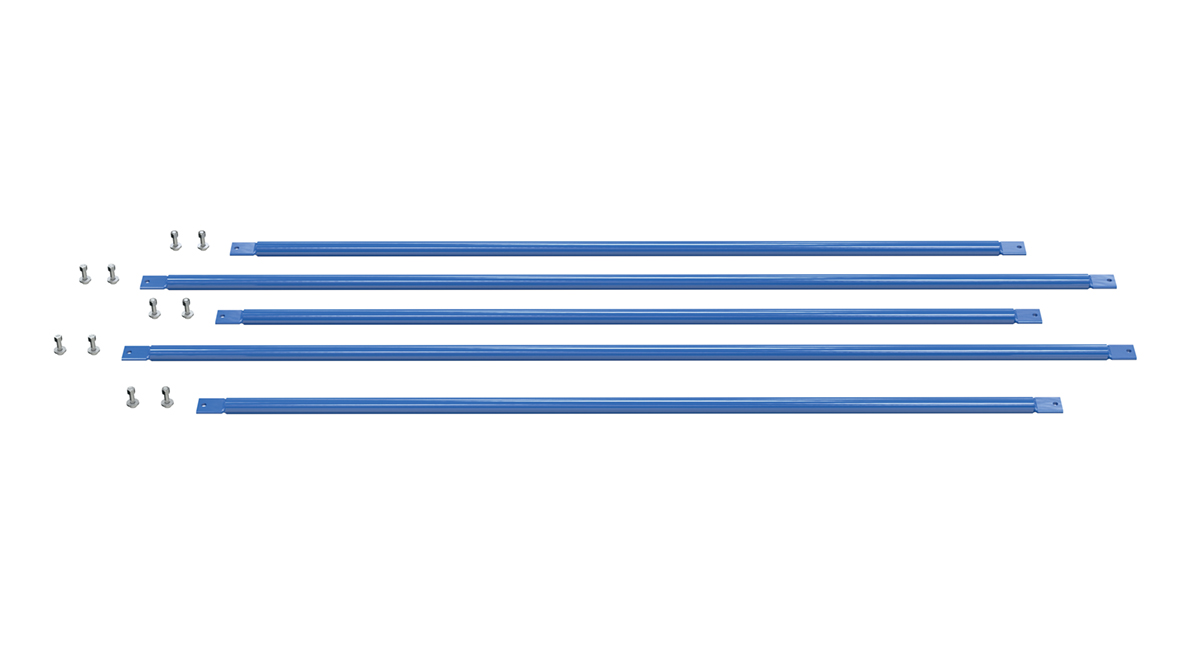

HBS-10126 HBS-101261 Year Limited WarrantySteel Structural Cantilever Brace Set 72 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
111

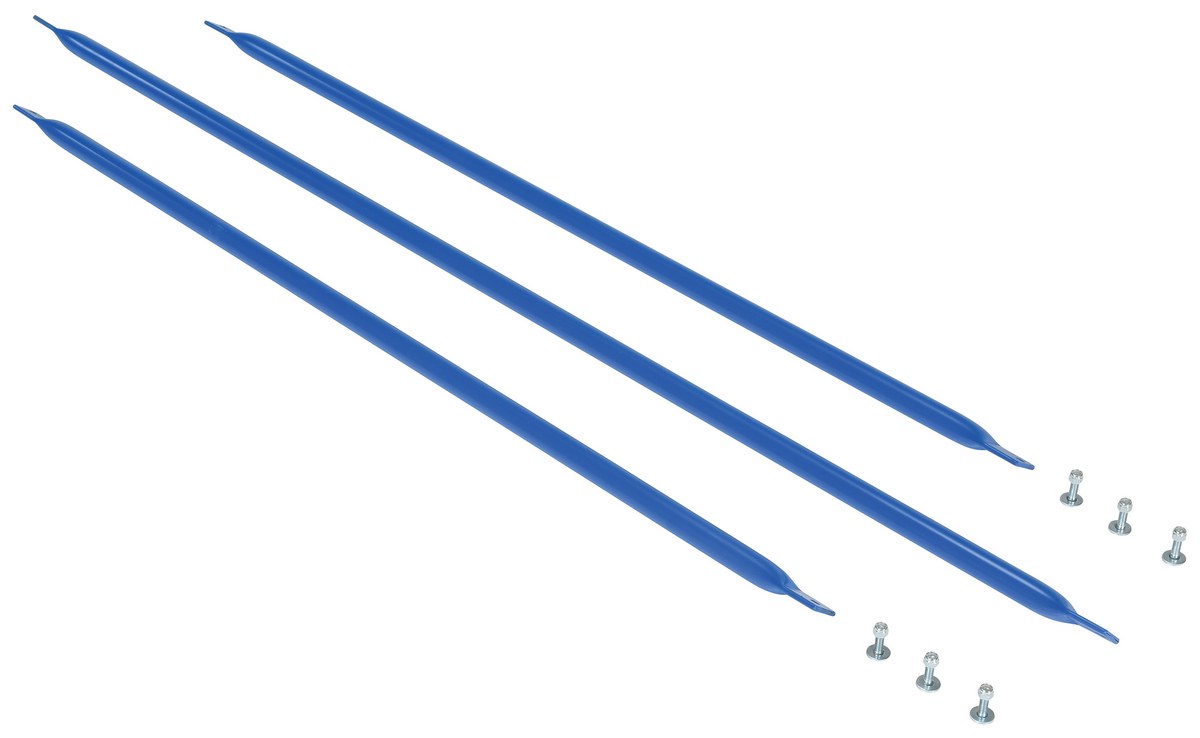

HBS-83 HBS-831 Year Limited WarrantySteel Structural Cantilever Brace Set 36 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
21
HBS-84 HBS-841 Year Limited WarrantySteel Structural Cantilever Brace Set 48 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
30
HBS-85 HBS-851 Year Limited WarrantySteel Structural Cantilever Brace Set 60 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
36
HBS-86 HBS-861 Year Limited WarrantySteel Structural Cantilever Brace Set 72 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
41

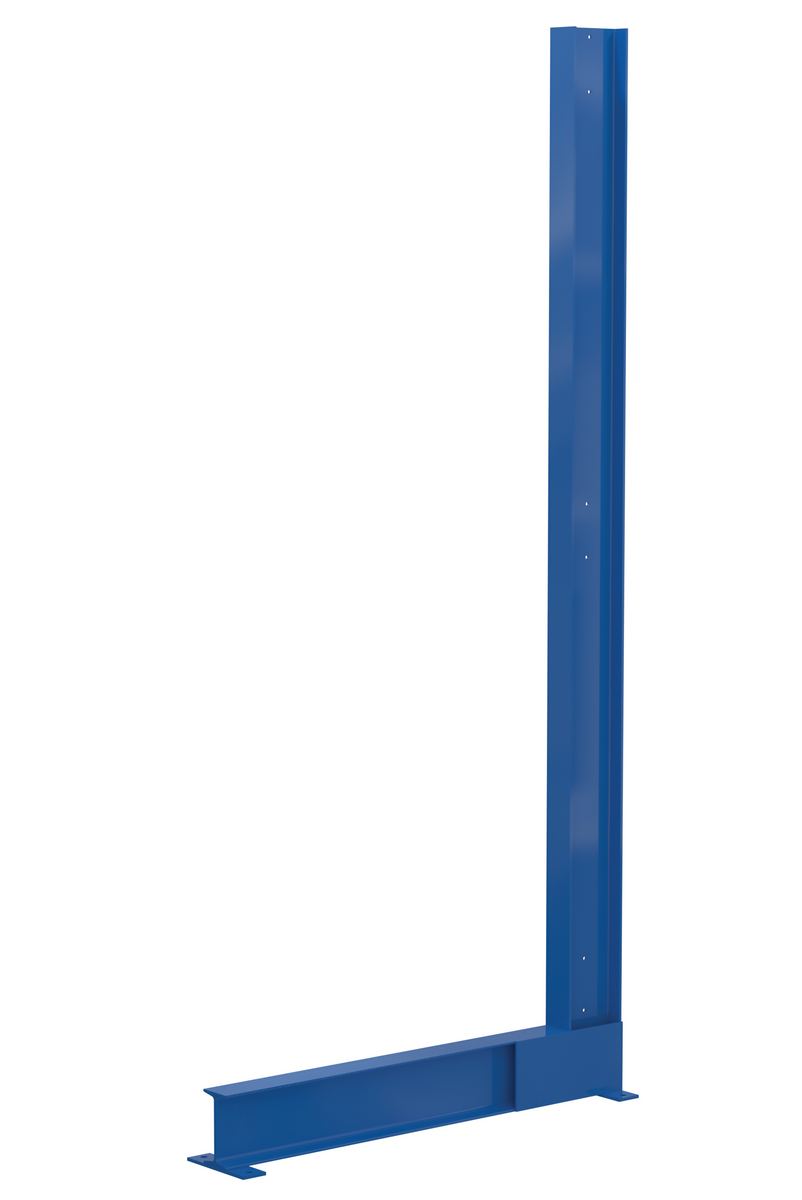

SAC-1012 SAC-10121 Year Limited WarrantySteel Single Sided Cantilever Upright 20 In. x 10 In. x 120 In. 13,250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12
285
SAC-1024 SAC-10241 Year Limited WarrantySteel Single Sided Cantilever Upright 32 In. x 20 In. x 120 In. 8,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24
294
SAC-1036 SAC-10361 Year Limited WarrantySteel Single Sided Cantilever Upright 44 In. x 10 In. x 120 In. 6,125 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
317
SAC-1048 SAC-10481 Year Limited WarrantySteel Single Sided Cantilever Upright 56 In. x 10 In. x 120 In. 4,750 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
329
SAC-1212 SAC-12121 Year Limited WarrantySteel Single Sided Cantilever Upright 20 In. x 10 In. x 144 In. 13,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12
325
SAC-1224 SAC-12241 Year Limited WarrantySteel Single Sided Cantilever Upright 32 In. x 10 In. x 144 In. 8,250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24
335
SAC-1236 SAC-12361 Year Limited WarrantySteel Single Sided Cantilever Upright 44 In. x 10 In. x 144 In. 6,125 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
358
SAC-1248 SAC-12481 Year Limited WarrantySteel Single Sided Cantilever Upright 56 In. x 10 In. x 144 In. 4,750 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
369
SAC-812 SAC-8121 Year Limited WarrantySteel Single Sided Cantilever Upright 20 In. x 10 In. x 96 In. 9,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12
220
SAC-824 SAC-8241 Year Limited WarrantySteel Single Sided Cantilever Upright 32 In. x 10 In. x 96 In. 6,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24
229
SAC-836 SAC-8361 Year Limited WarrantySteel Single Sided Cantilever Upright 44 In. x 10 In. x 96 In. 4,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36
243
SAC-848 SAC-8481 Year Limited WarrantySteel Single Sided Cantilever Upright 56 In. x 10 In. x 96 In. 3,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48
265
SSAL-12 SSAL-121 Year Limited WarrantySteel Cantilever Straight Arm with 2 In. Lip 12 In. Length 3,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
11

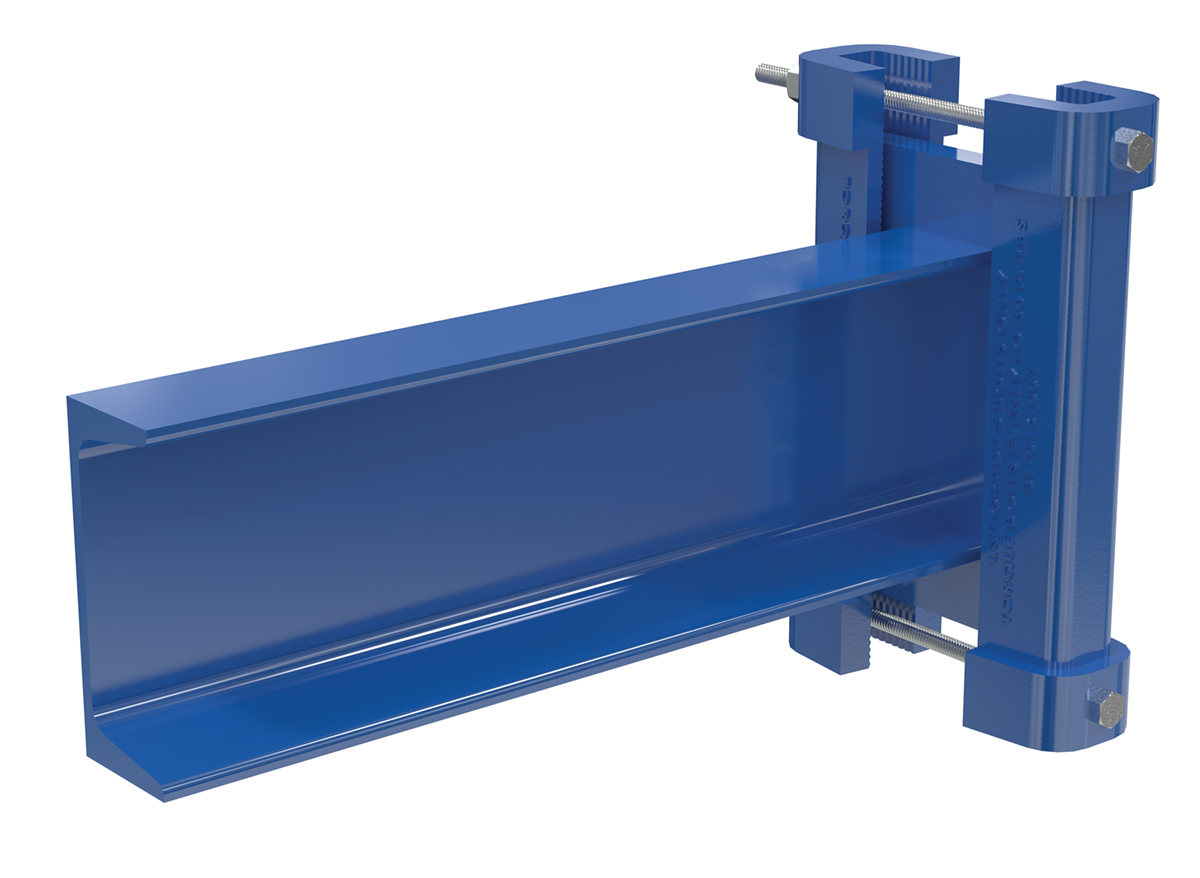

SSAL-12-NL SSAL-12-NL1 Year Limited WarrantySteel Cantilever Straight Arm No Lip 12 In. Length 3,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
11

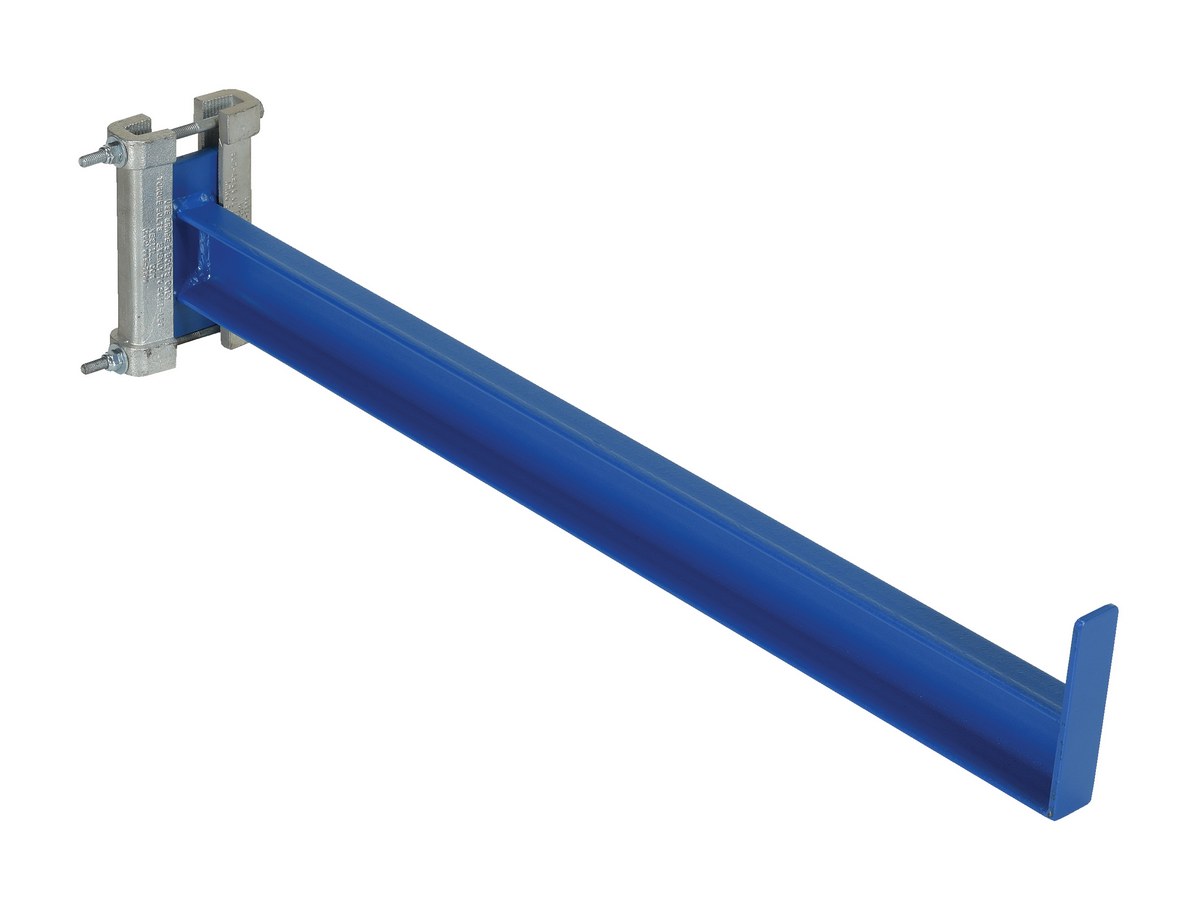

SSAL-24 SSAL-241 Year Limited WarrantySteel Cantilever Straight Arm with 2 In. Lip 24 In. Length 2,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
15

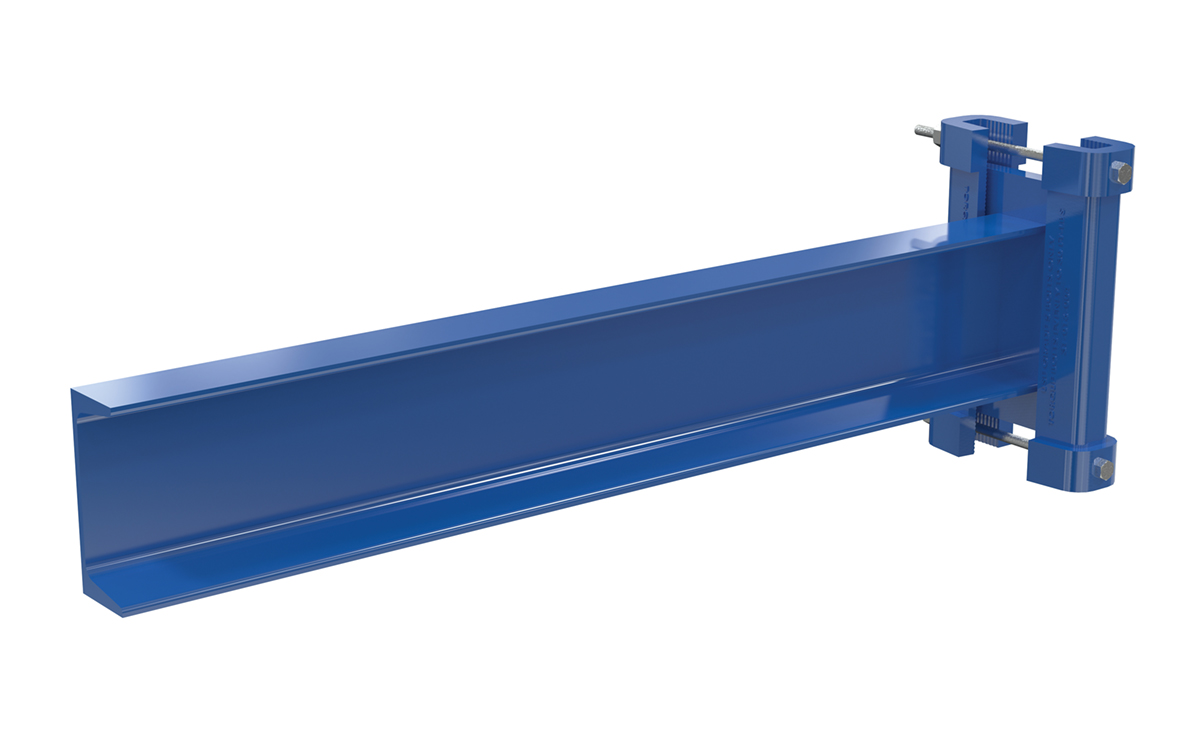

SSAL-24-NL SSAL-24-NL1 Year Limited WarrantySteel Cantilever Straight Arm No Lip 24 In. Length 2,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
15
SSAL-36 SSAL-361 Year Limited WarrantySteel Cantilever Straight Arm with 2 In. Lip 36 In. Length 1,200 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
20

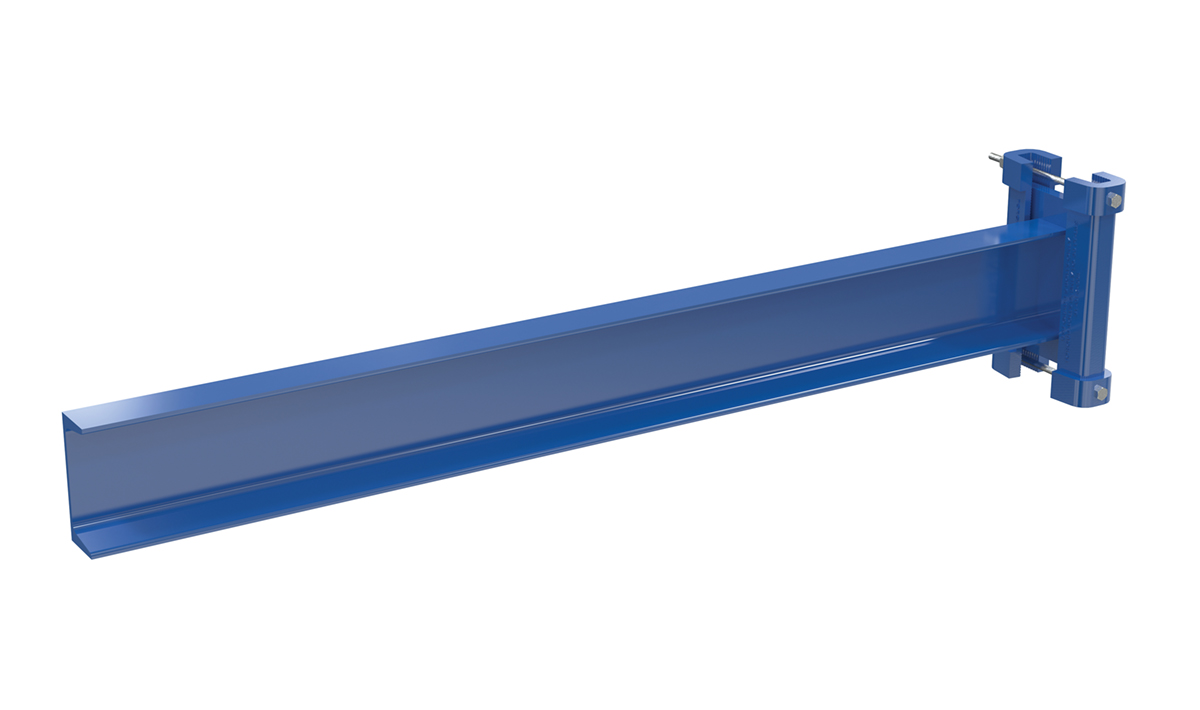

SSAL-36-NL SSAL-36-NL1 Year Limited WarrantySteel Cantilever Straight Arm No Lip 36 In. Length 1,200 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
20

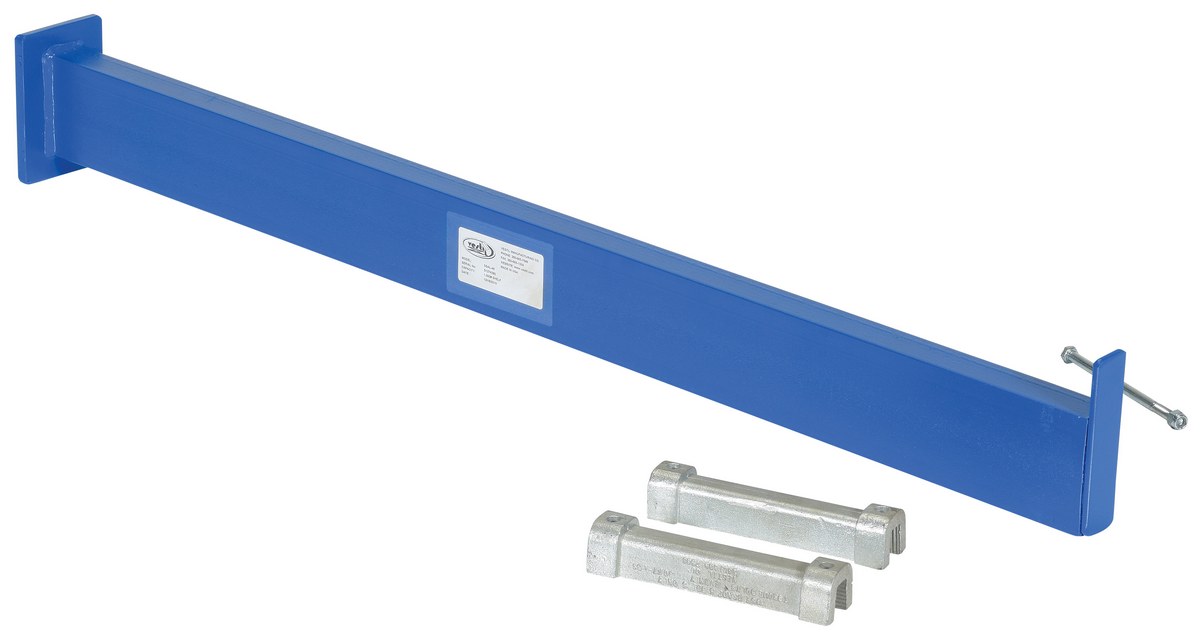

SSAL-48 SSAL-481 Year Limited WarrantySteel Cantilever Straight Arm with 2 In. Lip 48 In. Length 1,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
24

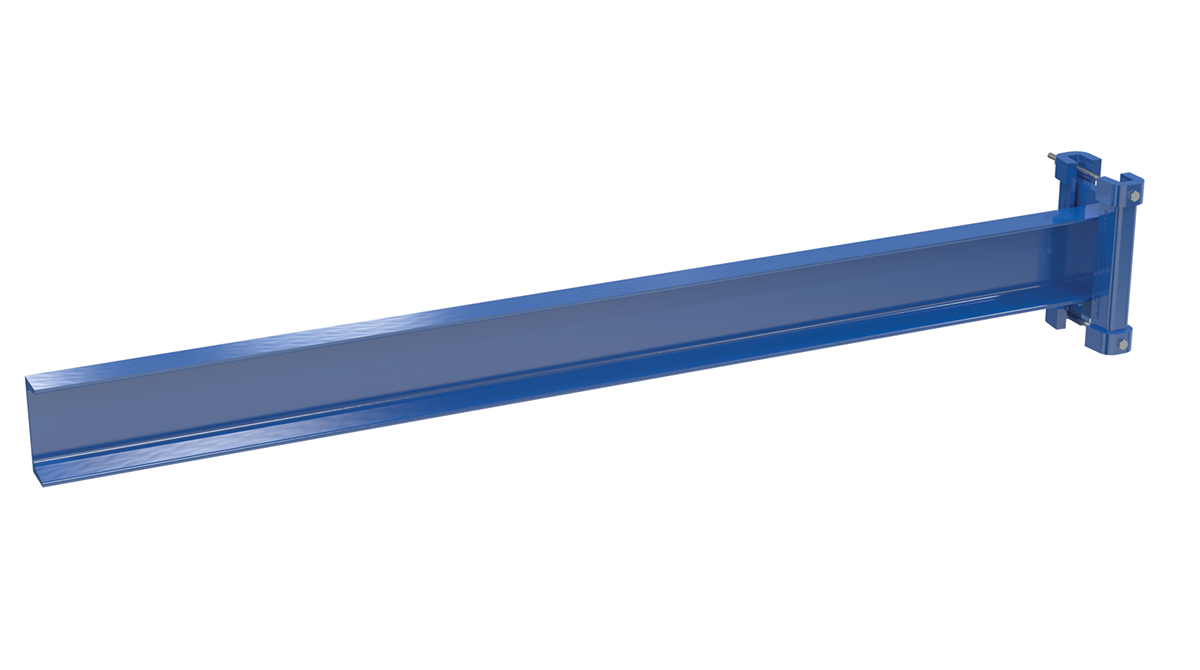

SSAL-48-NL SSAL-48-NL1 Year Limited WarrantySteel Cantilever Straight Arm No Lip 48 In. Length 1,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
24

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DAC-1012
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright

DAC-1024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright

DAC-1036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright

DAC-1212
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright

DAC-1224
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright

DAC-1236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright

DAC-812
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright

DAC-824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright

DAC-836
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright
Uniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright

HBS-10123
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

HBS-10124
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

HBS-10125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

HBS-10126
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 120 & 144
Component: Brace Set
Column Height (in.): 120 & 144

HBS-83
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-85
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

HBS-86
Unit:
Size: W x L x H
Weight:
Limited Warranty
Component: Brace Set
Column Height (in.): 96
Component: Brace Set
Column Height (in.): 96

SAC-1012
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12

SAC-1024
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24

SAC-1036
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36

SAC-1048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48

SAC-1212
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12

SAC-1224
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24

SAC-1236
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
Uniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36

SAC-1248
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
Uniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48

SAC-812
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12

SAC-824
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24

SAC-836
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36

SAC-848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48

SSAL-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16

SSAL-12-NL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
Uniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16

SSAL-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16

SSAL-24-NL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
Uniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16

SSAL-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16

SSAL-36-NL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
Uniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16

SSAL-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16

SSAL-48-NL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
Uniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16

Structural Cantilever Racking PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DAC-1012

DAC-1024

DAC-1036

DAC-1212

DAC-1224

DAC-1236

DAC-812

DAC-824

DAC-836

HBS-10123

HBS-10124

HBS-10125

HBS-10126

HBS-83

HBS-84

HBS-85

HBS-86

SAC-1012

SAC-1024

SAC-1036

SAC-1048

SAC-1212

SAC-1224

SAC-1236

SAC-1248

SAC-812

SAC-824

SAC-836

SAC-848

SSAL-12

SSAL-12-NL

SSAL-24

SSAL-24-NL

SSAL-36

SSAL-36-NL

SSAL-48

SSAL-48-NL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Structural Cantilever Racking


ASSEMBLED SINGLE SIDED CANTILEVER RACK.jpg


Cantilever Rack Systems offer flexibility to custom-fit individual applications. The unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements. Arms attach to upright with a "C" clamps that are infinitely adjustable. Capacity listed is per upright.



Model # Description Attributes Net Wt.
(lbs)
DAC-1012 DAC-1012Steel Double-Sided Cantilever Upright 12 In. Usable Arms 10 Ft. High 26500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 26500
Component: Double-Sided Upright
316
DAC-1024 DAC-1024Steel Double-Sided Cantilever Upright 24 In. Usable Arms 10 Ft. High 16600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16600
Component: Double-Sided Upright
350
DAC-1036 DAC-1036Steel Double-Sided Cantilever Upright 36 In. Usable Arms 10 Ft. High 12250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
365
DAC-1212 DAC-1212Steel Double-Sided Cantilever Upright 12 In. Usable Arms 12 Ft. High 26600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 26600
Component: Double-Sided Upright
357
DAC-1224 DAC-1224Steel Double-Sided Cantilever Upright 24 In. Usable Arms 12 Ft. High 16500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16500
Component: Double-Sided Upright
386
DAC-1236 DAC-1236Steel Double-Sided Cantilever Upright 36 In. Usable Arms 12 Ft. High 12250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12250
Component: Double-Sided Upright
405
DAC-812 DAC-812Steel Double-Sided Cantilever Upright 12 In. Usable Arms 8 Ft. High 18000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 18000
Component: Double-Sided Upright
242
DAC-824 DAC-824Steel Double-Sided Cantilever Upright 24 In. Usable Arms 8 Ft. High 12000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12000
Component: Double-Sided Upright
271
DAC-836 DAC-836Steel Double-Sided Cantilever Upright 36 In. Usable Arms 8 Ft. High 9200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9200
Component: Double-Sided Upright
290
HBS-10123 HBS-10123Steel Structural Cantilever Brace Set 36 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
84
HBS-10124 HBS-10124Steel Structural Cantilever Brace Set 48 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
92
HBS-10125 HBS-10125Steel Structural Cantilever Brace Set 60 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
102
HBS-10126 HBS-10126Steel Structural Cantilever Brace Set 72 In. x 144 In. BlueComponent: Brace Set
Column Height (in.): 120 & 144
111
HBS-83 HBS-83Steel Structural Cantilever Brace Set 36 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
21
HBS-84 HBS-84Steel Structural Cantilever Brace Set 48 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
30
HBS-85 HBS-85Steel Structural Cantilever Brace Set 60 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
36
HBS-86 HBS-86Steel Structural Cantilever Brace Set 72 In. x 96 In. BlueComponent: Brace Set
Column Height (in.): 96
41
SAC-1012 SAC-1012Steel Single Sided Cantilever Upright 20 In. x 10 In. x 120 In. 13,250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,250
Arm(s) to Use Length (in.): 12
285
SAC-1024 SAC-1024Steel Single Sided Cantilever Upright 32 In. x 20 In. x 120 In. 8,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,300
Arm(s) to Use Length (in.): 24
294
SAC-1036 SAC-1036Steel Single Sided Cantilever Upright 44 In. x 10 In. x 120 In. 6,125 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
317
SAC-1048 SAC-1048Steel Single Sided Cantilever Upright 56 In. x 10 In. x 120 In. 4,750 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
329
SAC-1212 SAC-1212Steel Single Sided Cantilever Upright 20 In. x 10 In. x 144 In. 13,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,300
Arm(s) to Use Length (in.): 12
325
SAC-1224 SAC-1224Steel Single Sided Cantilever Upright 32 In. x 10 In. x 144 In. 8,250 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,250
Arm(s) to Use Length (in.): 24
335
SAC-1236 SAC-1236Steel Single Sided Cantilever Upright 44 In. x 10 In. x 144 In. 6,125 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,125
Arm(s) to Use Length (in.): 36
358
SAC-1248 SAC-1248Steel Single Sided Cantilever Upright 56 In. x 10 In. x 144 In. 4,750 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,750
Arm(s) to Use Length (in.): 48
369
SAC-812 SAC-812Steel Single Sided Cantilever Upright 20 In. x 10 In. x 96 In. 9,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,000
Arm(s) to Use Length (in.): 12
220
SAC-824 SAC-824Steel Single Sided Cantilever Upright 32 In. x 10 In. x 96 In. 6,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,000
Arm(s) to Use Length (in.): 24
229
SAC-836 SAC-836Steel Single Sided Cantilever Upright 44 In. x 10 In. x 96 In. 4,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 36
243
SAC-848 SAC-848Steel Single Sided Cantilever Upright 56 In. x 10 In. x 96 In. 3,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 48
265
SSAL-12 SSAL-12Steel Cantilever Straight Arm with 2 In. Lip 12 In. Length 3,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
11
SSAL-12-NL SSAL-12-NLSteel Cantilever Straight Arm No Lip 12 In. Length 3,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 3,000
Usable Length (in.): 11-5/16
11
SSAL-24 SSAL-24Steel Cantilever Straight Arm with 2 In. Lip 24 In. Length 2,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
15
SSAL-24-NL SSAL-24-NLSteel Cantilever Straight Arm No Lip 24 In. Length 2,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 2,000
Usable Length (in.): 23-5/16
15
SSAL-36 SSAL-36Steel Cantilever Straight Arm with 2 In. Lip 36 In. Length 1,200 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
20
SSAL-36-NL SSAL-36-NLSteel Cantilever Straight Arm No Lip 36 In. Length 1,200 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,200
Usable Length (in.): 35-5/16
20
SSAL-48 SSAL-48Steel Cantilever Straight Arm with 2 In. Lip 48 In. Length 1,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
24
SSAL-48-NL SSAL-48-NLSteel Cantilever Straight Arm No Lip 48 In. Length 1,000 Lb. Capacity BlueUniform Capacity Per Arm (lb.): 1,000
Usable Length (in.): 47-5/16
24


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
