Product Family Overview


Medium-Duty Cantilever Racking
SERIES: MU,MDU

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.


Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking

Heavy-Duty Cantilever Racking

Cantilever Rack Kits

Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor. Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.


Check Out Vestil's Other Cantilever Racking:


Standard-Duty Cantilever Racking

Heavy-Duty Cantilever Racking

Cantilever Rack Kits

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

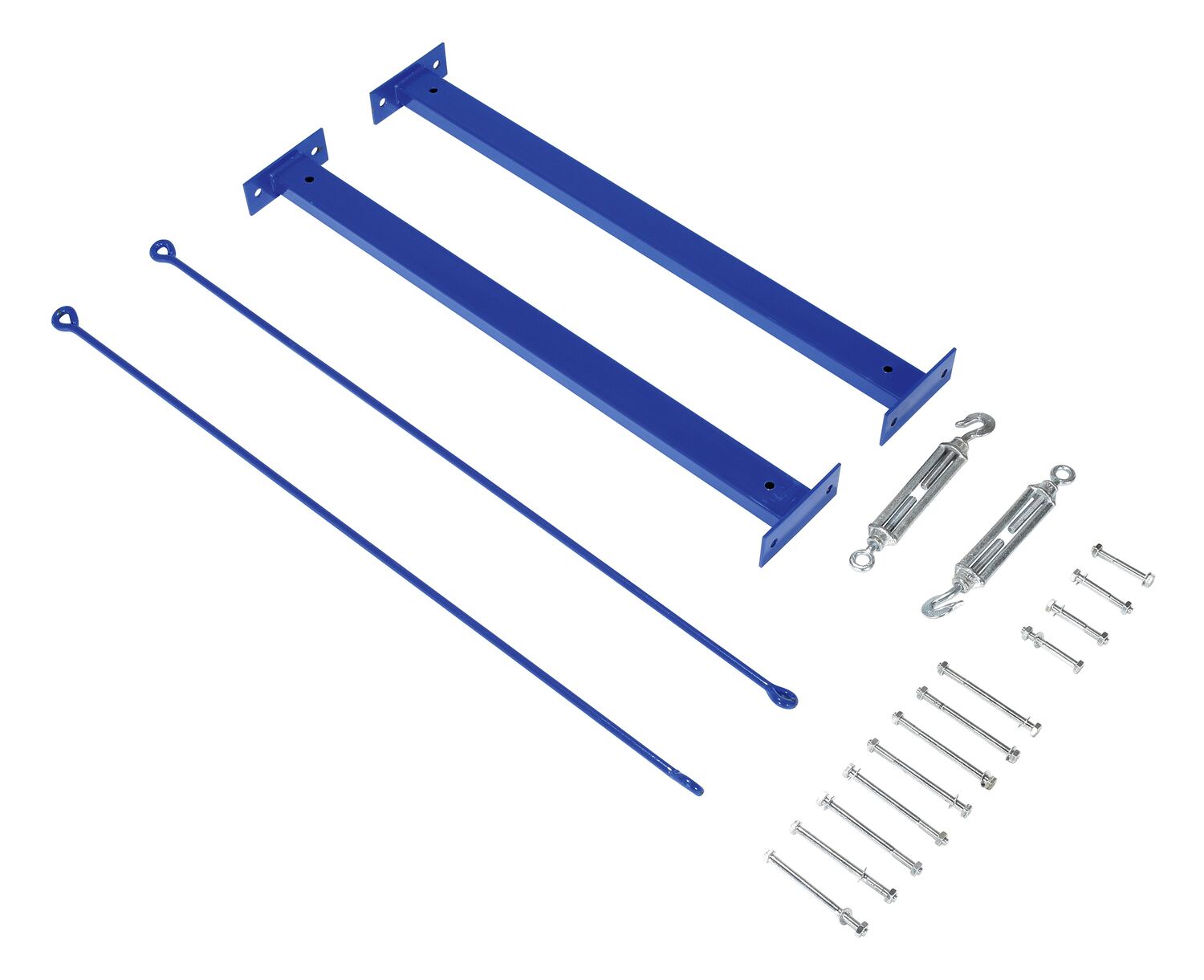

MB-C-10-36 MB-C-10-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
30
MB-C-10-48 MB-C-10-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
44
MB-C-10-60 MB-C-10-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 69 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
50
MB-C-10-72 MB-C-10-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
54
MB-C-10-96 MB-C-10-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 10
90
MB-C-6-36 MB-C-6-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 35 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
26
MB-C-6-48 MB-C-6-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 47 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
38
MB-C-6-60 MB-C-6-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 59 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
44
MB-C-6-72 MB-C-6-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
50
MB-C-6-96 MB-C-6-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 6
64

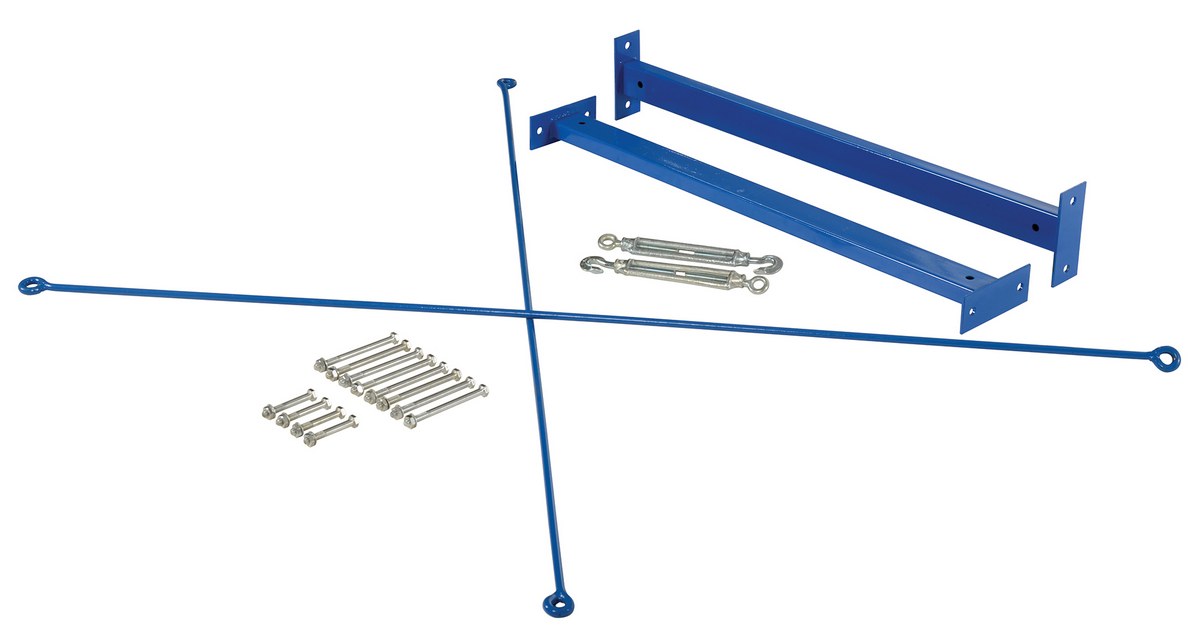

MB-C-8-36 MB-C-8-361 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 36 In. x 35 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
28
MB-C-8-48 MB-C-8-481 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 48 In. x 47 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
42
MB-C-8-60 MB-C-8-601 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 60 In. x 59 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
48
MB-C-8-72 MB-C-8-721 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 72 In. x 71 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
52
MB-C-8-96 MB-C-8-961 Year Limited WarrantySteel Medium Duty Cantilever Brace Set 96 In. x 95 In. x 6 In. BlueComponent: Brace Set
Fits Upright (ft.): 8
66

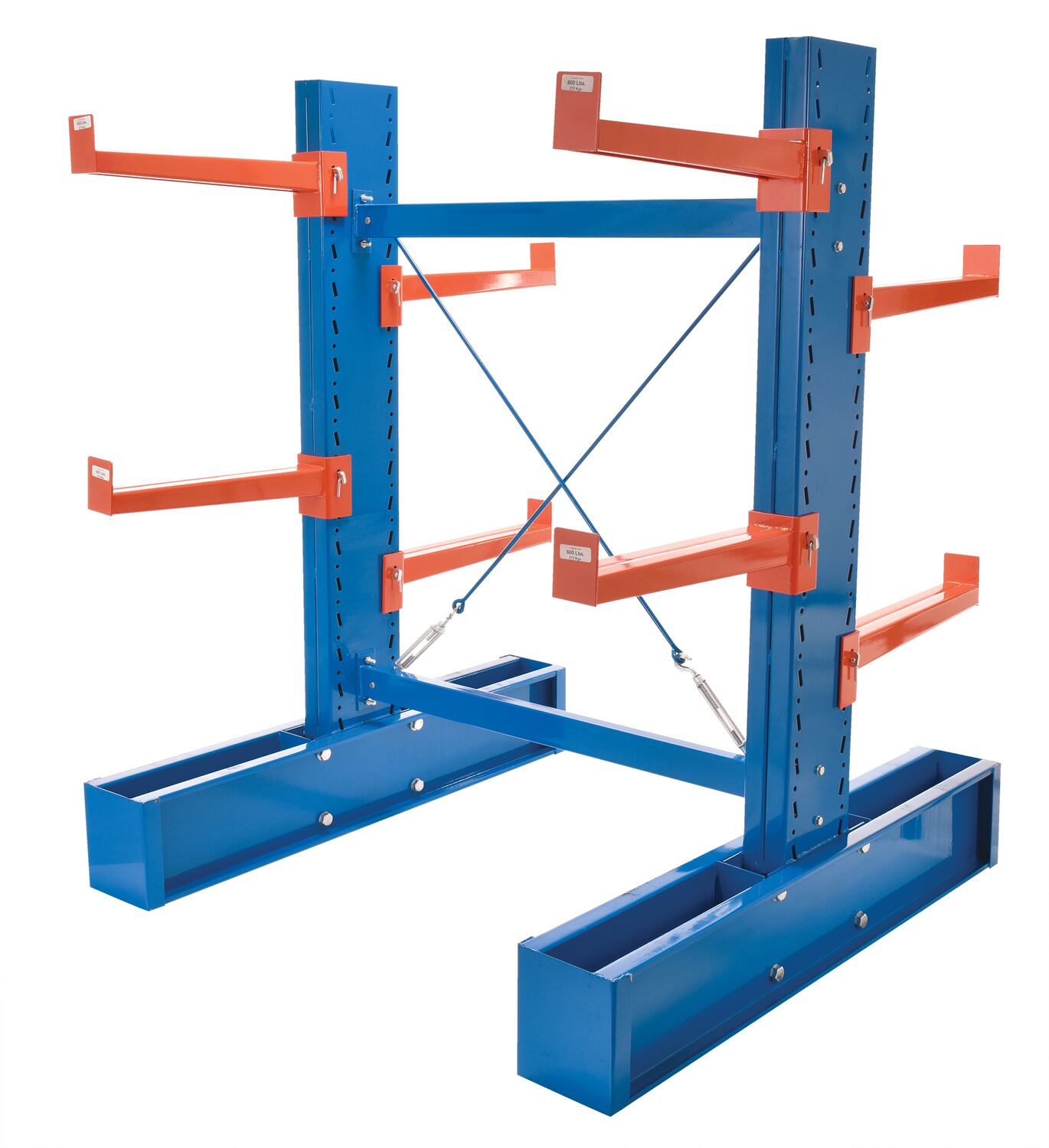

MDU-C-10-12 MDU-C-10-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 14,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 14,200
Component: Double-Sided Upright
225
MDU-C-10-18 MDU-C-10-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 11,800 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,800
Component: Double-Sided Upright
236
MDU-C-10-24 MDU-C-10-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,000
Component: Double-Sided Upright
249
MDU-C-10-36 MDU-C-10-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 8,800 or 7,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,800 or 7,600
Component: Double-Sided Upright
270
MDU-C-6-12 MDU-C-6-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 in. Arms 16,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 16,200
Component: Double-Sided Upright
172
MDU-C-6-18 MDU-C-6-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 13,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 13,200
Component: Double-Sided Upright
183
MDU-C-6-24 MDU-C-6-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Component: Double-Sided Upright
195
MDU-C-6-36 MDU-C-6-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,400 or 8,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,400 or 8,200
Component: Double-Sided Upright
215
MDU-C-8-12 MDU-C-8-121 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 12 In. Arms 15,200 Lb. Capacity BlueUniform Capacity per Upright (lb.): 15,200
Component: Double-Sided Upright
197
MDU-C-8-18 MDU-C-8-181 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 18 In. Arms 12,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 12,600
Component: Double-Sided Upright
208
MDU-C-8-24 MDU-C-8-241 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 24 In. Arms 10,500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,500
Component: Double-Sided Upright
219
MDU-C-8-36 MDU-C-8-361 Year Limited WarrantySteel Medium Duty Double Sided Cantilever Upright for 36 In. Arms 9,000 or 8,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,000 or 8,000
Component: Double-Sided Upright
242
MIA-C-12 MIA-C-121 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 12 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1000
Component: Incline Arm
11
MIA-C-18 MIA-C-181 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 18 In. 750 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Incline Arm
13
MIA-C-24 MIA-C-241 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 24 In. 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Incline Arm
15
MIA-C-30 MIA-C-301 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 30 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Incline Arm
17
MIA-C-36 MIA-C-361 Year Limited WarrantySteel Medium Duty Cantilever 10 Degree Incline Arm 36 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Incline Arm
21
MSA-C-12 MSA-C-121 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 15 In. x 4.75 In. x 6 In. 1000 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 1,000
Component: Straight Arm
10
MSA-C-18 MSA-C-181 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 21 In. x 4.75 In. x 6 In. 750 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 750
Component: Straight Arm
12
MSA-C-24 MSA-C-241 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 27 In. x 4.75 In. x 6 In. 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Straight Arm
15
MSA-C-30 MSA-C-301 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 33 In. x 4.75 In. x 6 In. 500 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 500
Component: Straight Arm
17
MSA-C-36 MSA-C-361 Year Limited WarrantySteel Medium Duty Cantilever Racking Straight Arm 39 In. x 4.75 In. x 6 In. 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm
21
MU-C-10-12 MU-C-10-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 10 Ft. 7,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,100
Component: Single-Sided Upright
214
MU-C-10-18 MU-C-10-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 10 Ft. 5,900 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,900
Component: Single-Sided Upright
219
MU-C-10-24 MU-C-10-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 10 Ft. 5,000 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,000
Component: Single-Sided Upright
225
MU-C-10-36 MU-C-10-361 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 10 Ft. 4,400 or 3,800 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,400 or 3,800
Component: Single-Sided Upright
237
MU-C-6-12 MU-C-6-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 6 Ft. 8,100 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 8,100
Component: Single-Sided Upright
161
MU-C-6-18 MU-C-6-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 6 Ft. 6,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,600
Component: Single-Sided Upright
164
MU-C-6-24 MU-C-6-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 6 Ft. 5,500 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,500
Component: Single-Sided Upright
170
MU-C-6-36 MU-C-6-361 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 30 or 36 In. Arms 6 Ft. 4,700 or 4,100 Lb. Capacity BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,700 or 4,100
Component: Single-Sided Upright
183
MU-C-8-12 MU-C-8-121 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 12 In. Arms 8 Ft. 7,600 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 7,600
Component: Single-Sided Upright
186
MU-C-8-18 MU-C-8-181 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 18 In. Arms 8 Ft. 6,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 6,300
Component: Single-Sided Upright
191
MU-C-8-24 MU-C-8-241 Year Limited WarrantySteel Medium-Duty Single Sided Cantilever Uprights for 24 In. Arms 8 Ft. 5,300 Lb. Capacity BlueUniform Capacity Per Upright (lb.): 5,300
Component: Single-Sided Upright
197
MU-C-8-36 MU-C-8-361 Year Limited WarrantySteel Medium-Duty Single Sided 24 In. Arm Set 4,500 or 4,000 Lb. Capacity Silver BlueUniform Capacity Per Upright 30" / 36" Arm (lb.): 4,500 or 4,000
Component: Single-Sided Upright
208

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
