Heavy-Duty Cantilever Racking

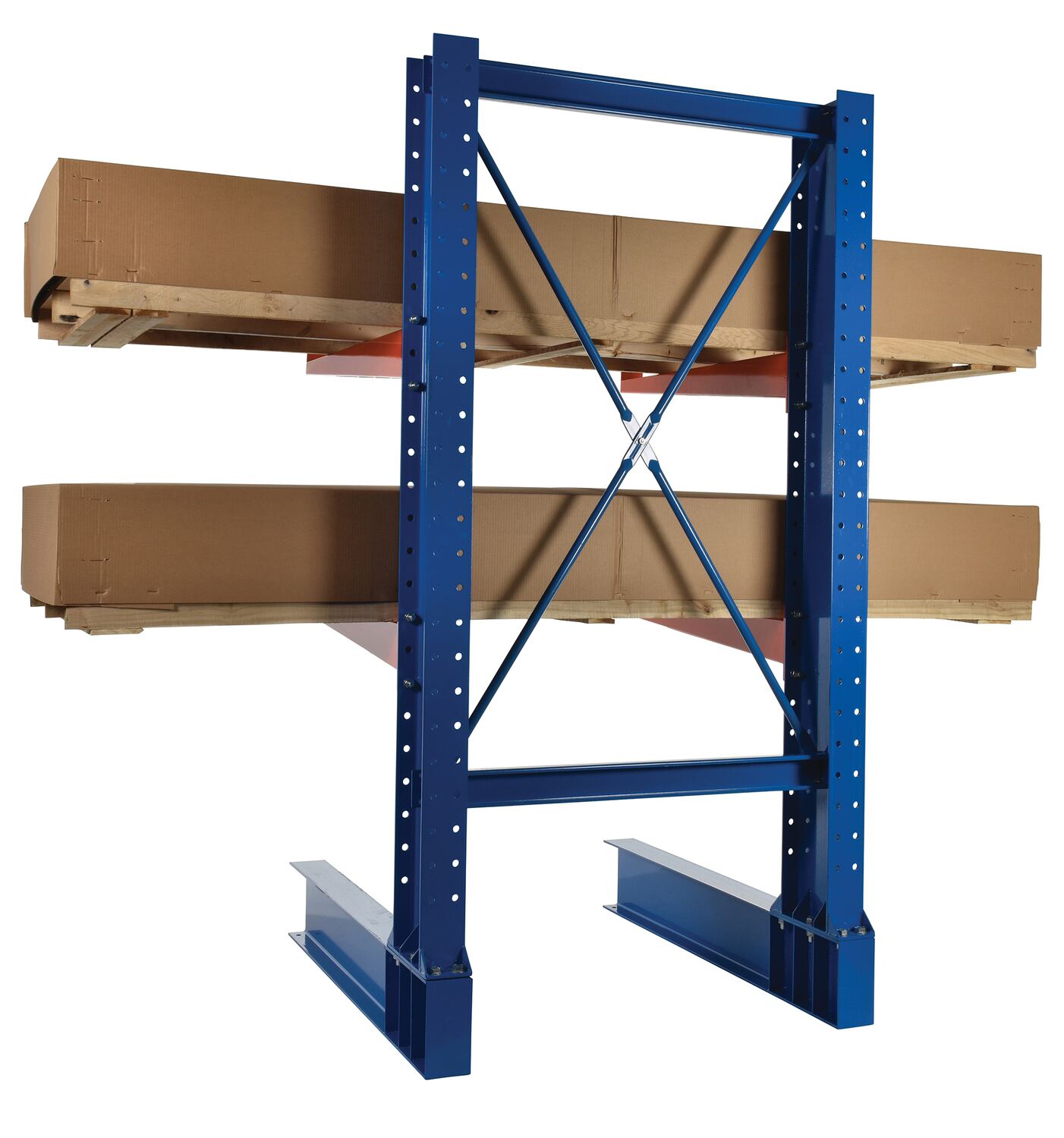

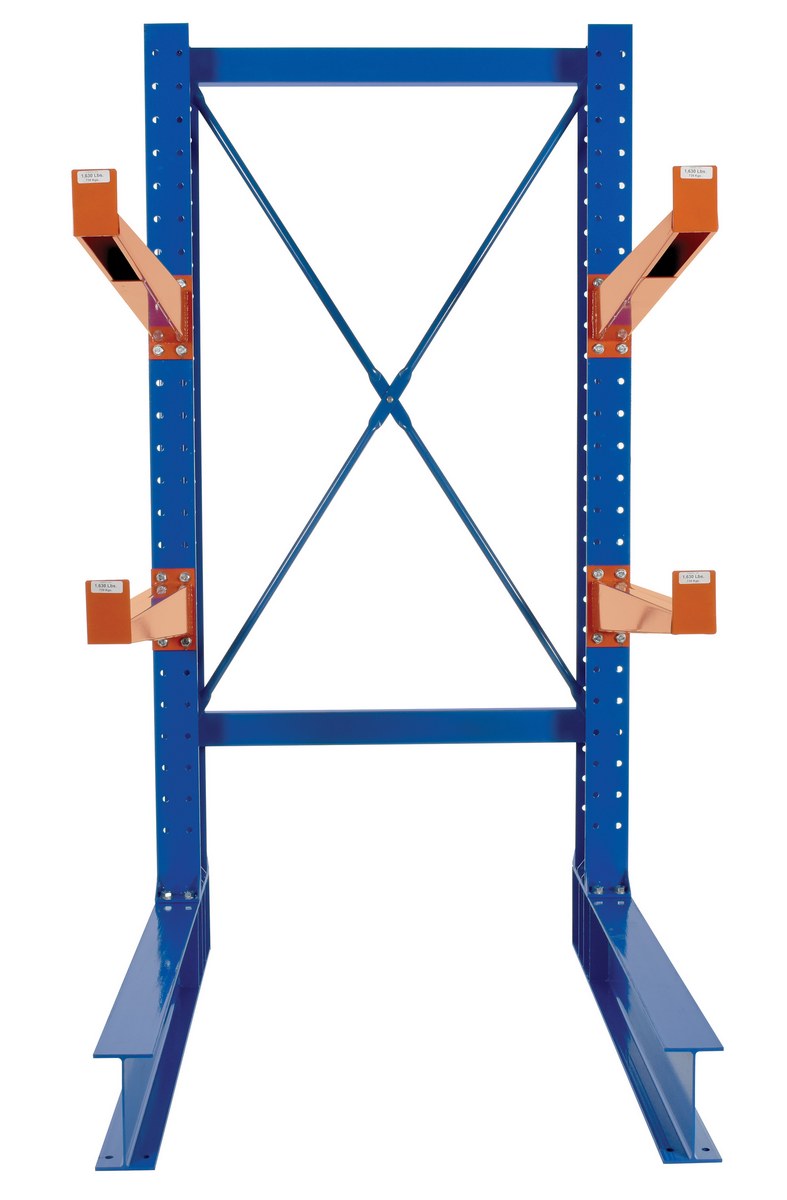

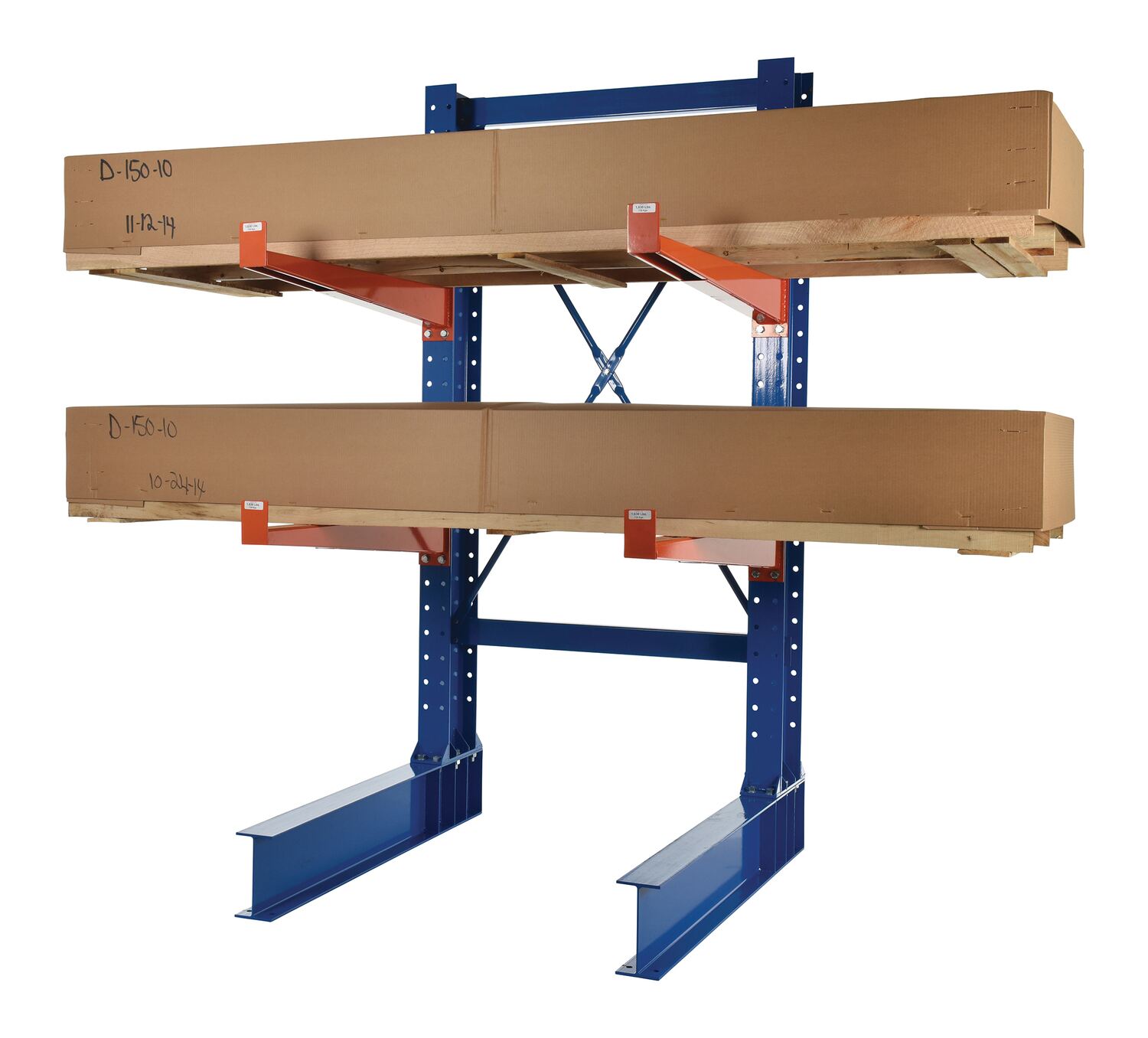

model: HU-C-8-36-SET
Heavy-Duty Cantilever RackingHeavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.
Check Out Vestil's Other Cantilever Racking:
 Standard-Duty Cantilever Racking |
 Medium-Duty Cantilever Racking |
 Cantilever Rack Kits |
Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.
Check Out Vestil's Other Cantilever Racking:
Standard-Duty Cantilever Racking |
Medium-Duty Cantilever Racking |
Cantilever Rack Kits |
HB-C-8-6
HIA-C-42
HDSA-C-48
XHDSA-C-42
HB-C-8-7
HIA-C-24
HSA-C-18
HU-C-12-36
HDU-C-14-18
HDSA-C-48
HSA-C-36
HB-C-14-7
HB-C-8-4
HU-C-14-36
HB-C-14-6
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| HB-C-14-3 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 36 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 44 | ||
| HB-C-14-4 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 48 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 54 | ||
| HB-C-14-5 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 60 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 56 | ||
| HB-C-14-6 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 72 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 66 | ||
| HB-C-14-7 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 84 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 78 | ||

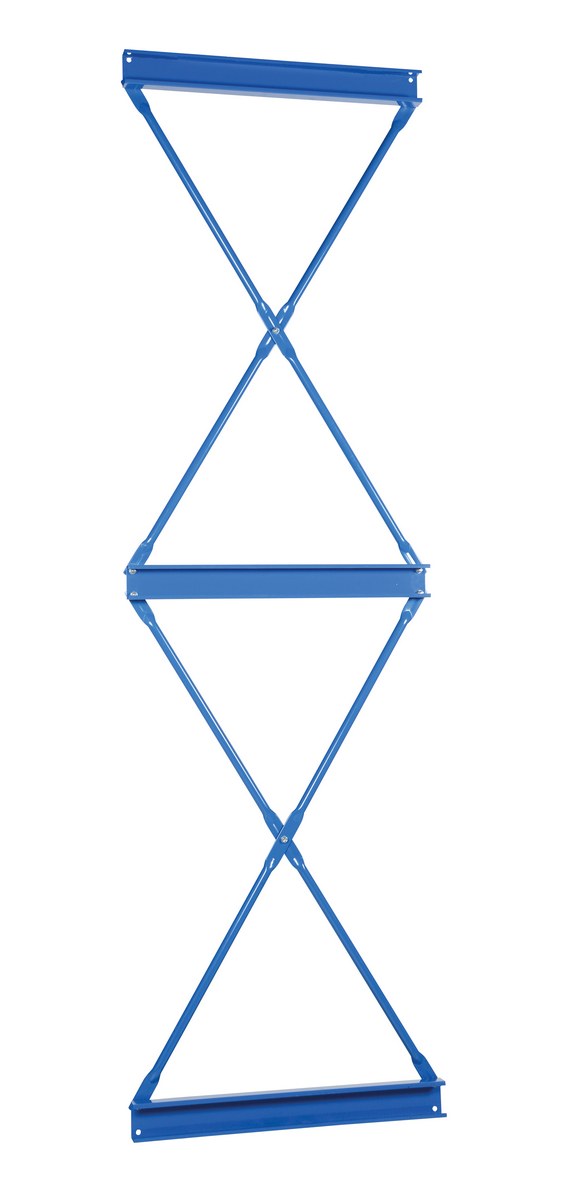

| HB-C-14-8 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 144 In. x 96 In. Blue | Component: Brace Set Fits Upright (in.): 144 and 168 | 123 | ||
| HB-C-8-3 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 36 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 28 | ||
| HB-C-8-4 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 48 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 31 | ||
| HB-C-8-5 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 60 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 38 | ||
| HB-C-8-6 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 72 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 43 | ||
| HB-C-8-7 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 84 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 98 | ||
| HB-C-8-8 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Brace Set 96 In. x 96 In. Blue | Component: Brace Set Fits Upright (in.): 96 and 120 | 107 | ||
| HDSA-C-36 |
 | 1 Year Limited Warranty | Steel Heavy-Duty Cantilever Straight Arm 36 In. Length 2,175 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,175 Component: Heavy-Duty Arm | 26 | ||
| HDSA-C-42 |
 | 1 Year Limited Warranty | Steel Heavy-Duty Cantilever Straight Arm 42 In. Length 1,865 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,865 Component: Heavy-Duty Arm | 29 | ||

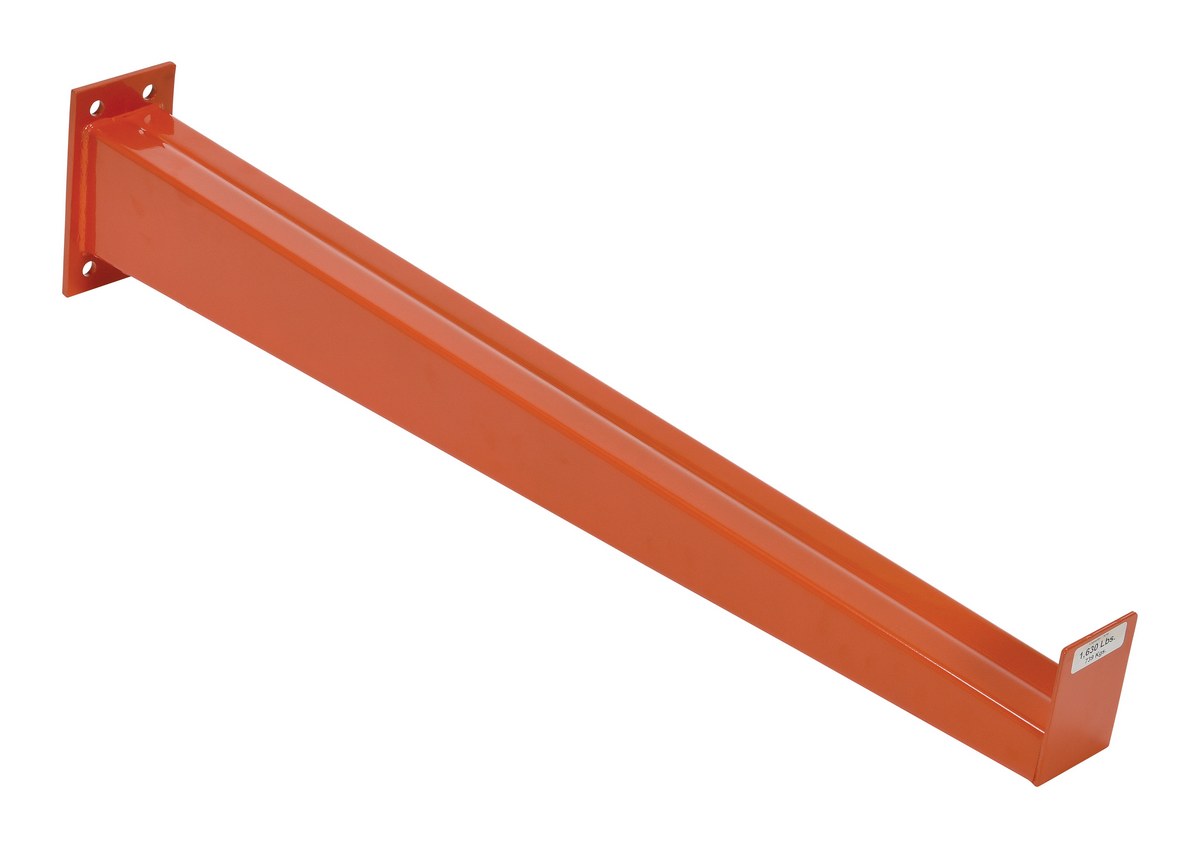

| HDSA-C-48 |
 | 1 Year Limited Warranty | Steel Heavy-Duty Cantilever Straight Arm 48 In. Length 1,630 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,630 Component: Heavy-Duty Arm | 31 | ||
| HDSA-C-48M |
 | 1 Year Limited Warranty | Steel Heavy-Duty Cantilever Straight Arm 48 In. Length 2,000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,000 Component: Heavy-Duty Arm | 33 | ||
| HDU-C-10-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Cantilever Uprights 10 Ft. 49,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 49,200 Component: Double-Sided Upright | 336 | ||
| HDU-C-10-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Cantilever Uprights 10 Ft. 42,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 42,600 Component: Double-Sided Upright | 355 | ||
| HDU-C-10-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Cantilever Uprights 10 Ft. 36,400 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 36,400 or 31,600 Component: Double-Sided Upright | 391 | ||
| HDU-C-10-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 10 Ft. 28,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 28,200 or 25,200 Component: Double-Sided Upright | 427 | ||
| HDU-C-12-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 12 Ft. 48,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 48,800 Component: Double-Sided Upright | 374 | ||
| HDU-C-12-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 12 Ft. 41,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 41,800 Component: Double-Sided Upright | 393 | ||
| HDU-C-12-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 30 and 36 In. Arms 12 Ft. 35,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 35,600 or 31,200 Component: Double-Sided Upright | 429 | ||
| HDU-C-12-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 42 and 48 In. Arms 12 Ft. 27,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 27,800 or 25,000 Component: Double-Sided Upright | 465 | ||
| HDU-C-14-18 |
| 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 14 Ft. 46,800 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 46,800 Component: Double-Sided Upright | 413 | ||
| HDU-C-14-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 24 In. Arms 14 Ft. 40,400 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 40,400 Component: Double-Sided Upright | 432 | ||
| HDU-C-14-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 14 Ft. 35,200 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 35,200 or 30,800 Component: Double-Sided Upright | 467 | ||
| HDU-C-14-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 14 Ft. 27,400 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 27,400 or 24,800 Component: Double-Sided Upright | 507 | ||
| HDU-C-8-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 49,900 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 49,400 Component: Double-Sided Upright | 288 | ||
| HDU-C-8-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 18 In. Arms 8 Ft. 43,000 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 43,000 Component: Double-Sided Upright | 307 | ||
| HDU-C-8-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 30 In. and 36 In. Arms 8 Ft. 36,600 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 36,600 or 32,000 Component: Double-Sided Upright | 342 | ||
| HDU-C-8-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Double Sided Cantilever Uprights for 42 In. and 48 In. Arms 8 Ft. 27,400 Lb. Capacity Blue | Uniform Capacity per Upright (lb.): 28,400 or 25,600 Component: Double-Sided Upright | 378 | ||
| HIA-C-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 18 In. Length 2,500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,500 Component: Incline Arm | 16 | ||
| HIA-C-24 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 24 In. Length 2,500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,000 Component: Incline Arm | 21 | ||
| HIA-C-30 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 30 In. Length 1,500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,500 Component: Incline Arm | 22 | ||
| HIA-C-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 36 In. Length 1,200 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,200 Component: Incline Arm | 26 | ||
| HIA-C-42 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 42 In. Length 1,100 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,100 Component: Incline Arm | 29 | ||
| HIA-C-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Incline Arm 48 In. Length 1,000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,000 Component: Incline Arm | 32 | ||
| HSA-C-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,500 Component: Straight Arm | 16 | ||
| HSA-C-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 24 In. 2,000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,000 Component: Straight Arm | 21 | ||
| HSA-C-30 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 30 In. 1,500 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,500 Component: Straight Arm | 22 | ||
| HSA-C-36 |
| 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 36 In. 1,200 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,200 Component: Straight Arm | 26 | ||
| HSA-C-42 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 42 In. 1,100 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,100 Component: Straight Arm | 29 | ||
| HSA-C-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Cantilever Straight Arm 48 In. 1,000 Lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 1,000 Component: Straight Arm | 32 | ||
| HU-C-10-18 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 18 In. Arms 10 Ft. 24,700 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 24,700 Component: Single-Sided Upright | 313 | ||
| HU-C-10-24 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 24 In. Arms 10 Ft. 21,500 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 21,500 Base Length (in.): 36-1/2 | 323 | ||
| HU-C-10-36 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 10 Ft. 18,300 Lb. Capacity Blue | Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000 Base Length (in.): 48-1/2 | 340 | ||
| HU-C-10-48 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 10 Ft. 14,200 Lb. Capacity Blue | Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800 Base Length (in.): 60-1/2 | 357 | ||
| HU-C-12-18 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 18 In. Arms 12 Ft. 24,400 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 24,400 Component: Single-Sided Upright | 351 | ||
| HU-C-12-24 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 24 In. Arms 12 Ft. 20,900 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 20,900 Base Length (in.): 36-1/2 | 362 | ||
| HU-C-12-36 |
| 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 30 In. and 36 In. Arms 12 Ft. 17,800 Lb. Capacity Blue | Uniform Upright Capacity 30"/36" Arm (lb.): 17,800 or 15,600 Base Length (in.): 48-1/2 | 378 | ||
| HU-C-12-48 |
 | 1 Year Limited Warranty | Steel Single Sided Cantilever Upright with 42 In. and 48 In. Arms 12 Ft. 13,900 Lb. Capacity Blue | Uniform Upright Capacity 42"/48" Arm(lb.): 13,900 or 12,500 Base Length (in.): 60-1/2 | 396 | ||
| HU-C-14-18 |
 | 1 Year Limited Warranty | Single Sided Cantilever Upright with 18 In. Arms 14 Ft. 23,400 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 23,400 Component: Single-Sided Upright | 390 | ||
| HU-C-14-24 |
 | 1 Year Limited Warranty | Single Sided Cantilever Upright with 24 In. Arms 14 Ft. 20,200 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 20,200 Component: Single-Sided Upright | 401 | ||
| HU-C-14-36 |
| 1 Year Limited Warranty | Single Sided Cantilever Upright with 30 In. and 36 In. Arms 14 Ft. 17,600 Lb. Capacity Blue | Uniform Upright Capacity 30"/36" Arm (lb.): 17,600 or 15,400 Component: Single-Sided Upright | 417 | ||
| HU-C-14-48 |
 | 1 Year Limited Warranty | Single Sided Cantilever Upright with 42 In. and 48 In. Arms 14 Ft. 13,700 Lb. Capacity Blue | Uniform Upright Capacity 42"/48" Arm(lb.): 13,700 or 12,400 Component: Single-Sided Upright | 435 | ||
| HU-C-8-18 |
 | 1 Year Limited Warranty | Steel Heavy Duty Single Sided Cantilever Upright 18 In. Arms 8 Ft. 24,700 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 24,700 Component: Single-Sided Upright | 265 | ||
| HU-C-8-24 |
 | 1 Year Limited Warranty | Steel Heavy Duty Single Sided Cantilever Upright 24 In. Arms 8 Ft. 21,500 Lb. Capacity Blue | Uniform Upright Capacity (lb.): 21,500 Component: Single-Sided Upright | 275 | ||
| HU-C-8-36 |
 | 1 Year Limited Warranty | Steel Heavy Duty Single Sided Cantilever Upright 30 In. and 36 In. Arms 8 Ft. 18,300-16,000 Lb. Capacity Blue | Uniform Upright Capacity 30"/36" Arm (lb.): 18,300 or 16,000 Component: Single-Sided Upright | 292 | ||
| HU-C-8-48 |
 | 1 Year Limited Warranty | Steel Heavy Duty Single Sided Cantilever Upright with 42 In. and 48 In. Arms 8 Ft. 14,200-12,800 Lb. Capacity Blue | Uniform Upright Capacity 42"/48" Arm(lb.): 14,200 or 12,800 Component: Single-Sided Upright | 310 | ||
| XHDSA-C-36 |
 | 1 Year Limited Warranty | Steel Extra Heavy Duty Cantilever Arm 36 In. Length 2,500 lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 3,400 Component: Extra Heavy-Duty Arm | 30 | ||
| XHDSA-C-42 |
| 1 Year Limited Warranty | Steel Extra Heavy Duty Cantilever Arm 42 In. Length 2,500 lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,900 Component: Extra Heavy-Duty Arm | 33 | ||
| XHDSA-C-48 |
 | 1 Year Limited Warranty | Steel Extra Heavy Duty Cantilever Arm 48 In. Length 2,500 lb. Capacity Orange | Uniform Capacity Per Arm (lb.): 2,500 Component: Extra Heavy-Duty Arm | 36 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The powder used for the cantilever racking is not suitable for outdoor use.
A: Yes, the hardware for the cantilever racking is metric.
A: The lip height is 3-1/8" usable height.
A: The lip height is 3-1/8" usable height
A: Yes, you can store product on the base of the upright.
A: The base is 36"
