Product Family Overview


Premium Heavy Duty Polyurethane

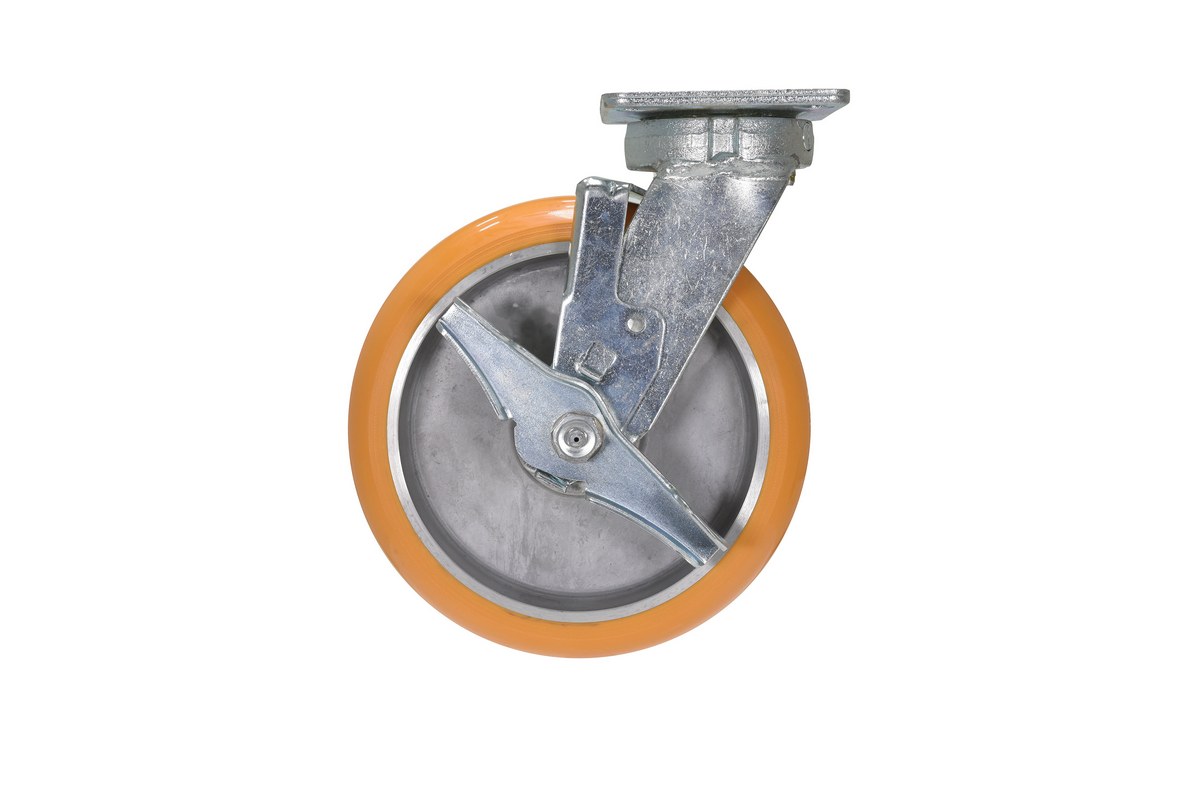

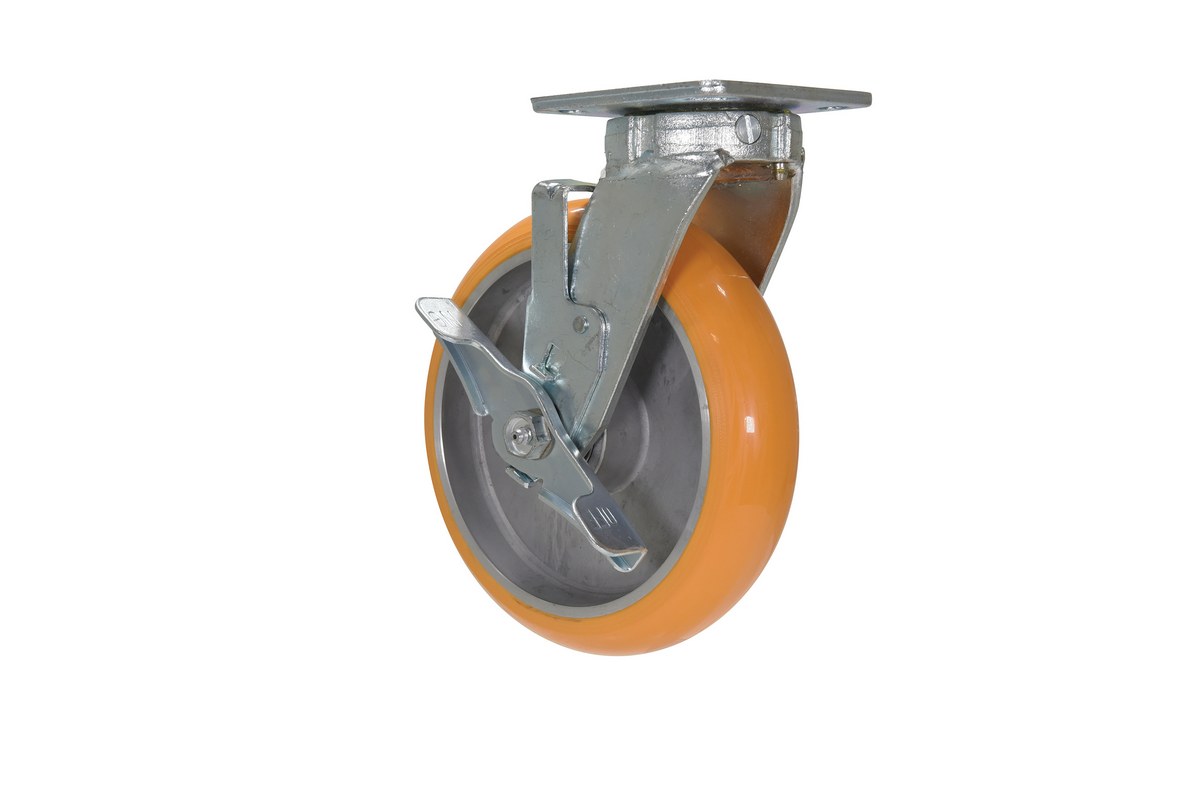

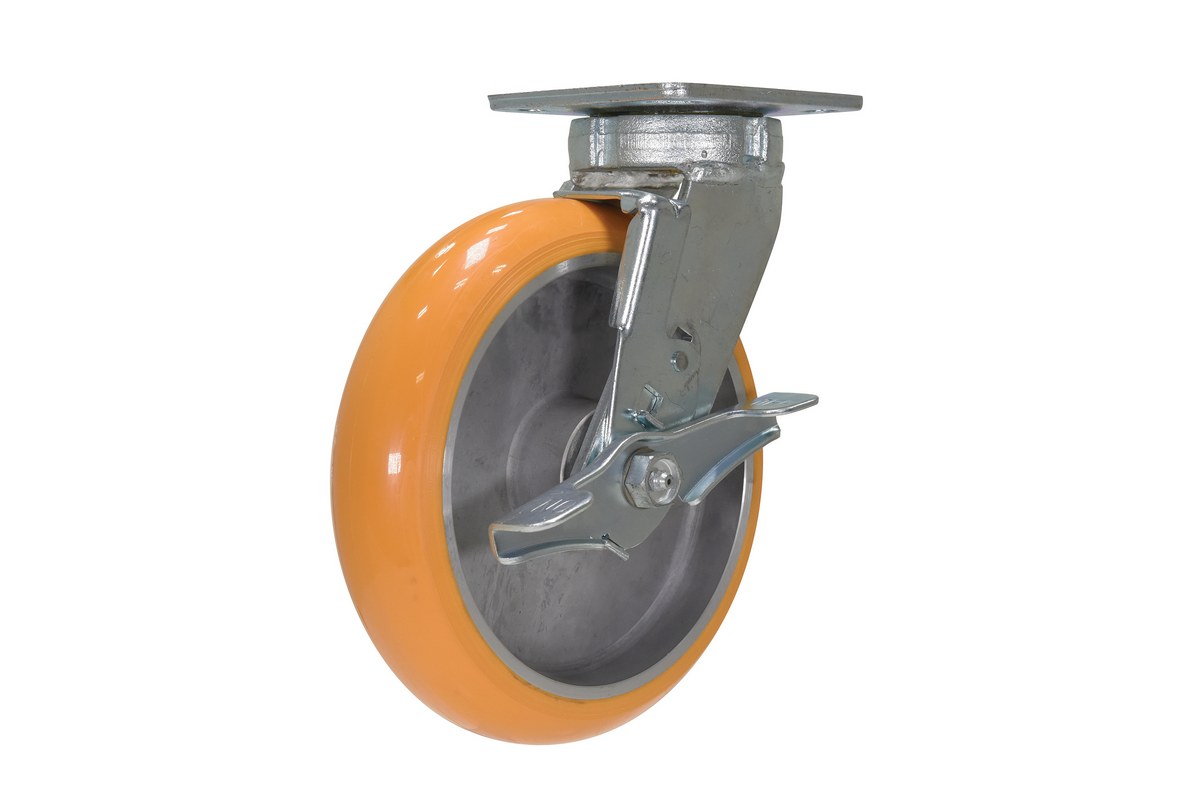

SERIES: CST-F40-SI

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.


  • Kingpinless
  • High Capacity
  • Non-Marking
  • Precision Sealed Ball Bearing
  • Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
  • Donut Tread Allows for Easier Roll Ability
  • Precision Machined and Induction Hardened Raceway

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.


  • Kingpinless
  • High Capacity
  • Non-Marking
  • Precision Sealed Ball Bearing
  • Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
  • Donut Tread Allows for Easier Roll Ability
  • Precision Machined and Induction Hardened Raceway

Additional Models In This Family

CST-F40-6X2SI-S

model CST-F40-6X2SI-S

CST-F40-6X2SI-SWB

model CST-F40-6X2SI-SWB

CST-F40-8X2SI-S

model CST-F40-8X2SI-S

CST-F40-6X2SI-R

model CST-F40-6X2SI-R

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)
CST-F40-6X2SI-R CST-F40-6X2SI-R3 YEARS Limited Warranty6 x 2RIGID15007-1/2 4 x 4-1/25.75
CST-F40-8X2SI-R CST-F40-8X2SI-R3 YEARS Limited Warranty8 x 2RIGID20009-1/2 4 x 4-1/27.25
CST-F40-6X2SI-S CST-F40-6X2SI-S3 YEARS Limited Warranty6 x 2SWIVEL15007-1/2 4 x 4-1/26.25
CST-F40-8X2SI-S CST-F40-8X2SI-S3 YEARS Limited Warranty8 x 2SWIVEL20009-1/2 4 x 4-1/27.75
CST-F40-6X2SI-SWB CST-F40-6X2SI-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE15007-1/2 4 x 4-1/26.63
CST-F40-8X2SI-SWB CST-F40-8X2SI-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE20009-1/2 4 x 4-1/28

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Premium Heavy Duty Polyurethane PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F40-6X2SI-R

CST-F40-6X2SI-S

CST-F40-6X2SI-SWB

CST-F40-8X2SI-R

CST-F40-8X2SI-S

CST-F40-8X2SI-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Premium Heavy Duty Polyurethane




Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.


  • Kingpinless
  • High Capacity
  • Non-Marking
  • Precision Sealed Ball Bearing
  • Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
  • Donut Tread Allows for Easier Roll Ability
  • Precision Machined and Induction Hardened Raceway
