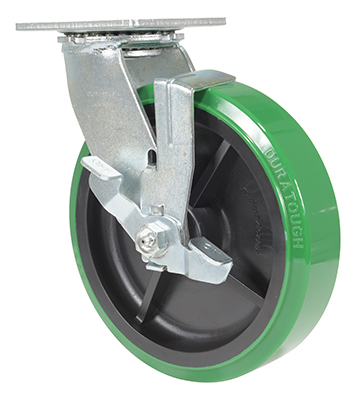

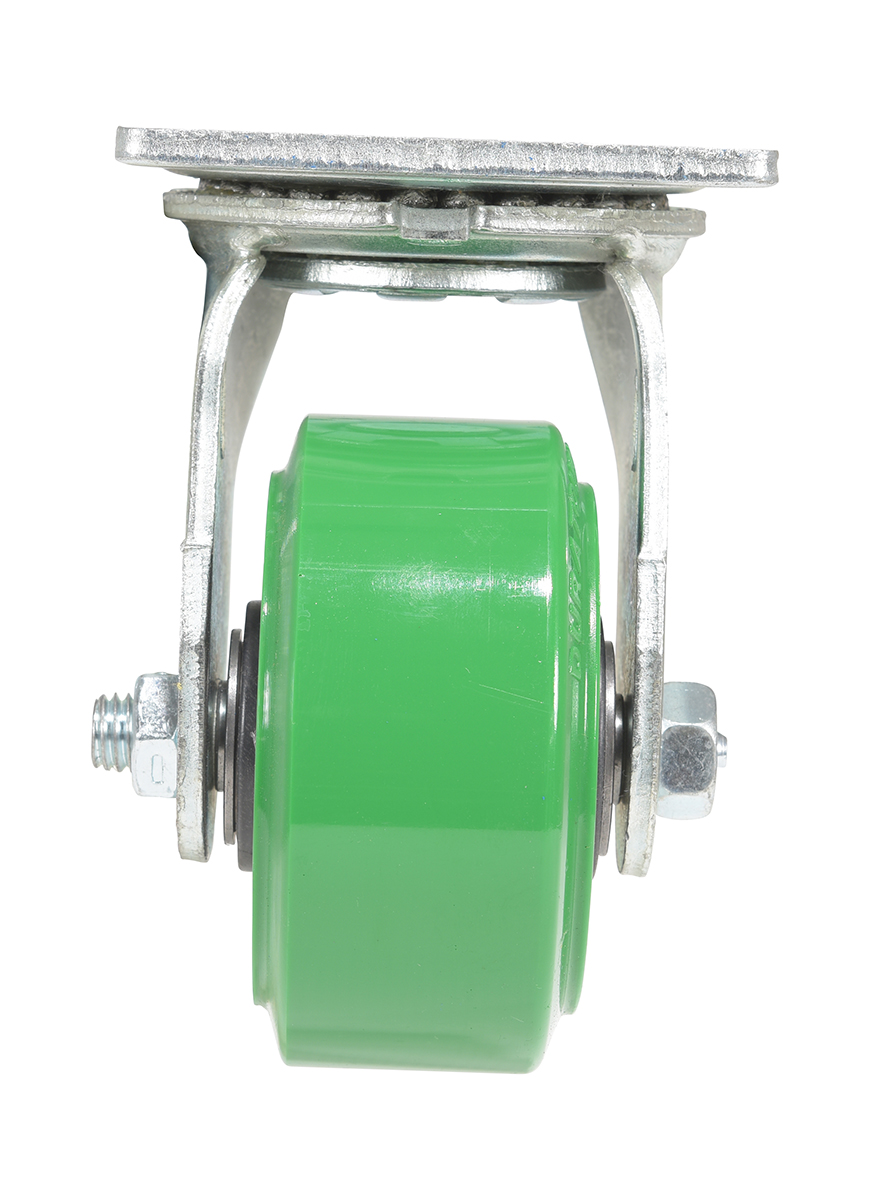

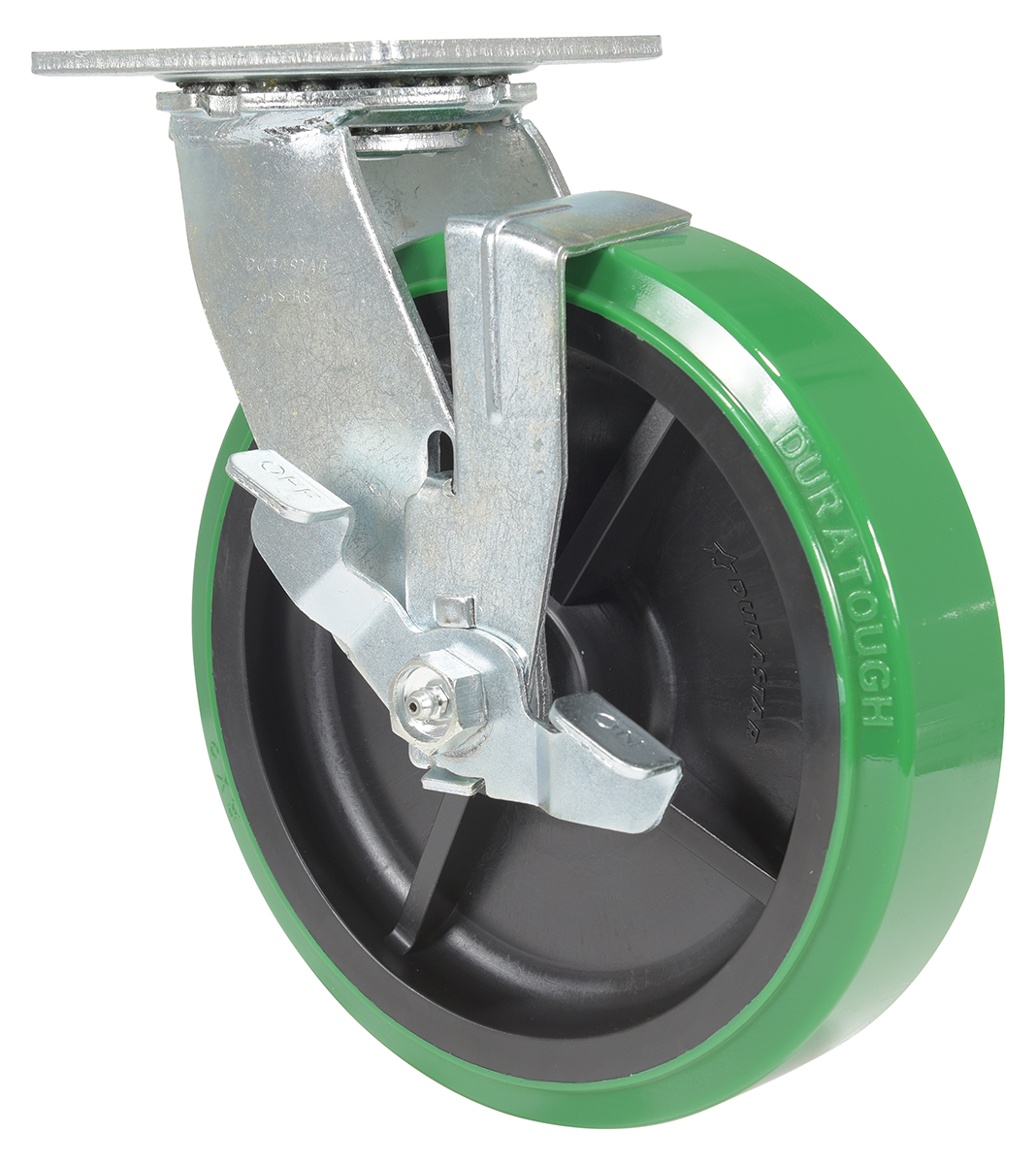

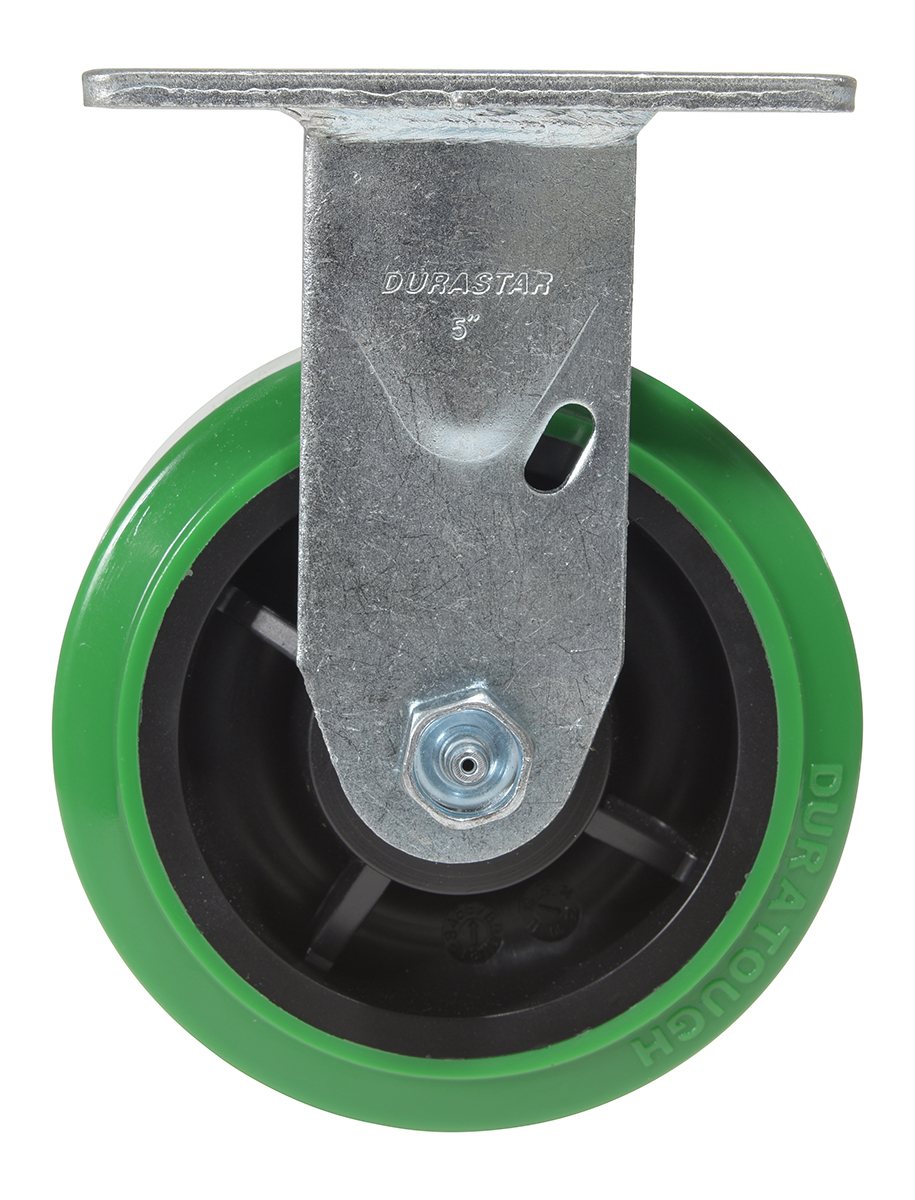

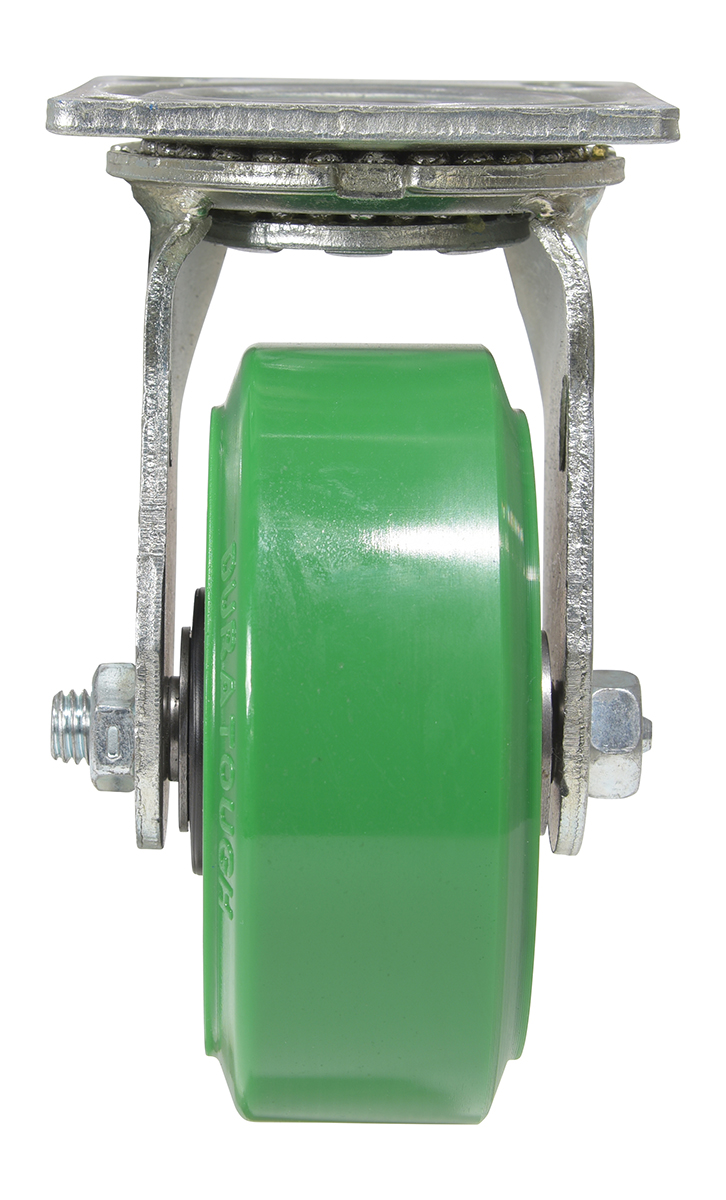

Polyurethane (DT, Green) Casters

SERIES: CST-F34-DT

Made with 100% pure polyurethane tread. This caster is a great upgrade for standard polyurethane. Designed using a new liquid cast flow fusion that ensures a 100% mechanical bond to core and "zero" trapped air. It has a high resistance to debris and most chemicals. The proprietary tread provides good floor preservation, and has a longer life performance than standard polyurethanes. Green tread color. 90-95 shore a. Wheel center is constructed of polyolefin.

Non-marking high-quality proprietary tread
100% Mechanical bond to core
Resists mosts solvents, oils, grease, and water
Premium precision ball bearings

Non-marking high-quality proprietary tread
100% Mechanical bond to core
Resists mosts solvents, oils, grease, and water
Premium precision ball bearings

Other "Go-To" Casters

TPR(Thermoplastic Rubber) On Stainless Steel Casters

Flat-Free (Foam-Filled) Casters

Cast Iron/ Semi-Steel Casters

Phenolic Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

CST-F34-5X2DT-R

CST-F34-4X2DT-SWB

CST-F34-5X2DT-SWTB1

CST-F34-5X2DT-R

CST-F34-8X2DT-S

CST-F34-4X2DT-R

CST-F34-8X2DT-S

CST-F34-5X2DT-SWTB1

CST-F34-6X2DT-S

CST-F34-6X2DT-SWB

CST-F34-6X2DT-S

CST-F34-4X2DT-SWB

CST-F34-6X2DT-SWB

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

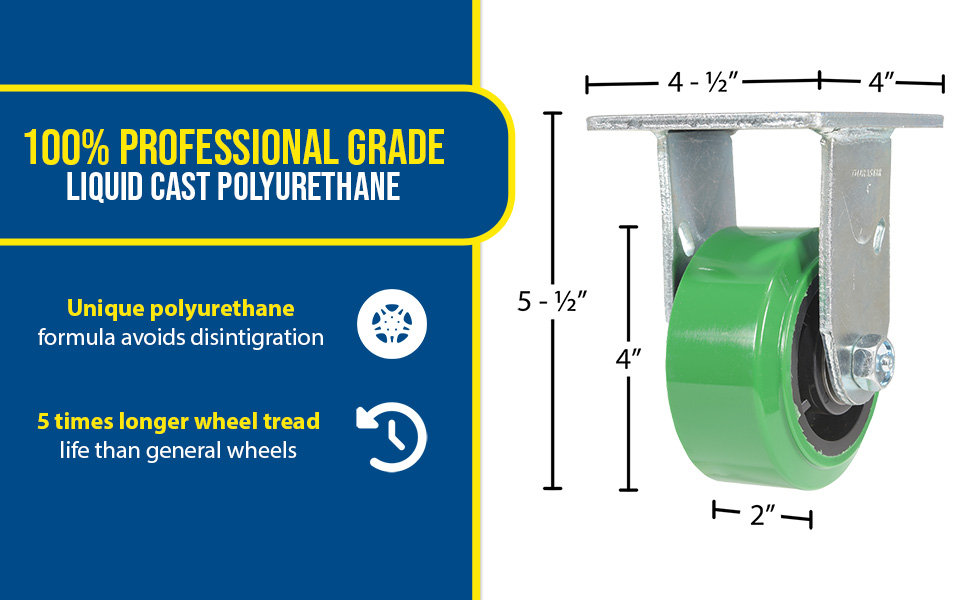

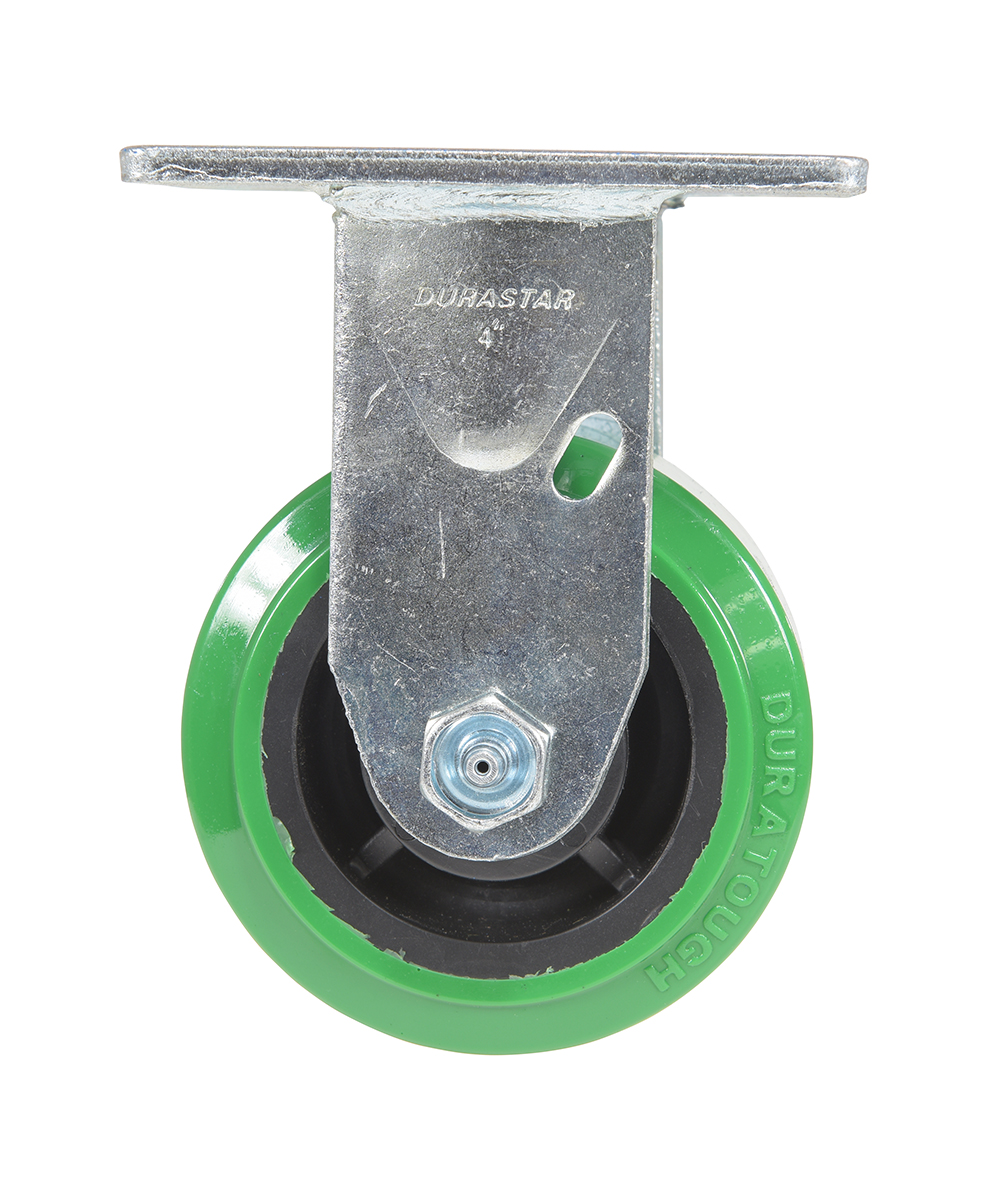

CST-F34-4X2DT-R	1 YEAR Limited Warranty	4 x 2	RIGID	700	5-1/2	4 x 4-1/2	2.9
CST-F34-5X2DT-R	1 YEAR Limited Warranty	5 x 2	RIGID	750	6-1/2	4 x 4-1/2	3.3
CST-F34-6X2DT-R	1 YEAR Limited Warranty	6 x 2	RIGID	900	7-1/2	4 x 4-1/2	3.82
CST-F34-8X2DT-R	1 YEAR Limited Warranty	8 x 2	RIGID	1000	9-3/8	4 x 4-1/2	4.65

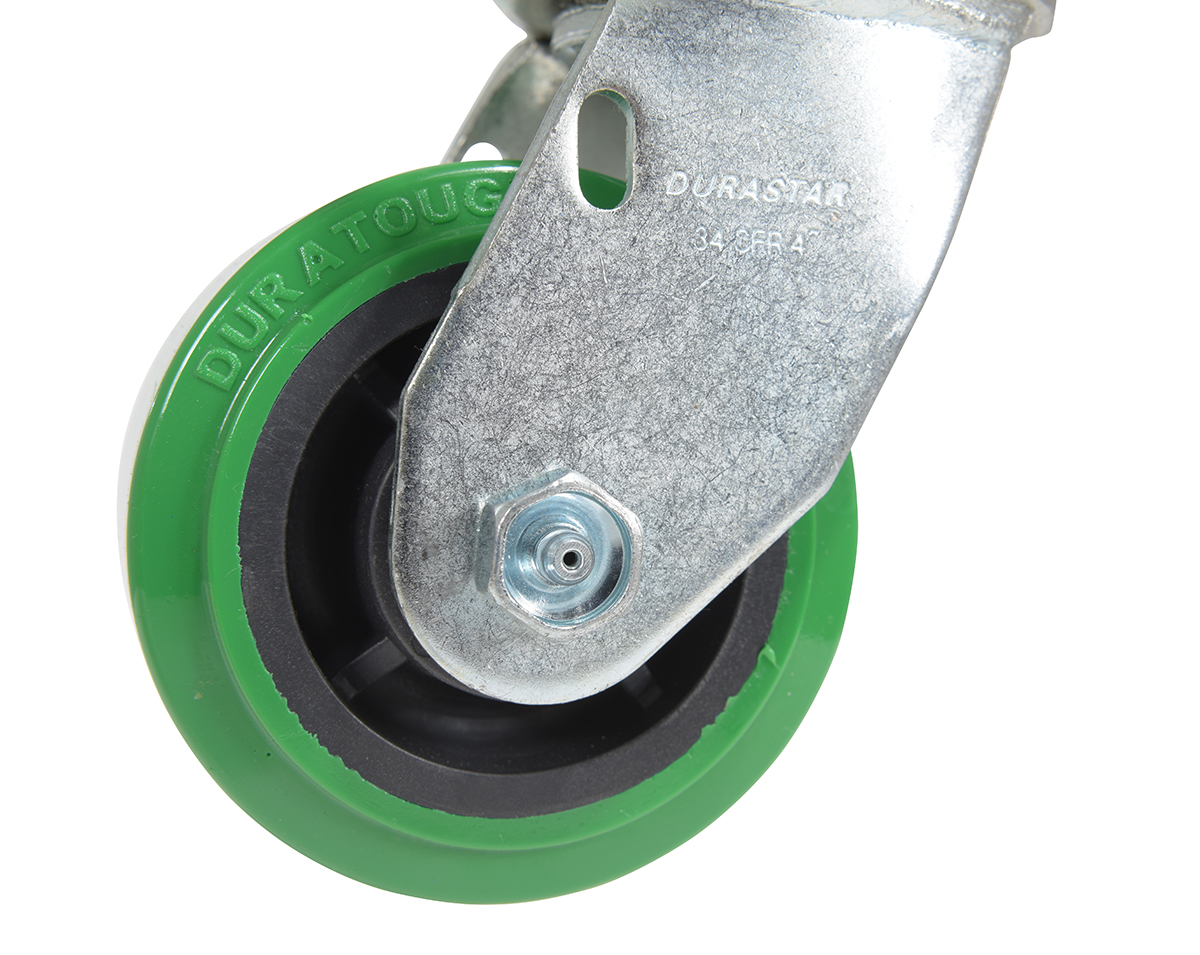

CST-F34-4X2DT-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	700	5-1/2	4 x 4-1/2	3.7
CST-F34-5X2DT-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	750	6-1/2	4 x 4-1/2	4.04
CST-F34-6X2DT-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	900	7-1/2	4 x 4-1/2	4.5
CST-F34-8X2DT-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1000	9-3/8	4 x 4-1/2	5.46
CST-F34-4X2DT-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	700	5-1/2	4 x 4-1/2	4.05
CST-F34-5X2DT-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	750	6-1/2	4 x 4-1/2	4.4
CST-F34-6X2DT-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	900	7-1/2	4 x 4-1/2	4.8

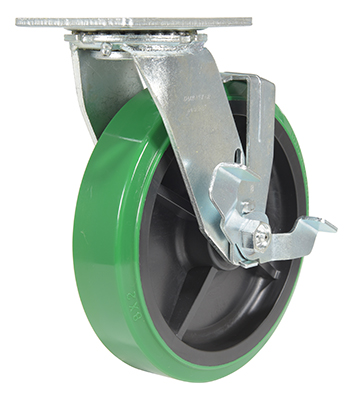

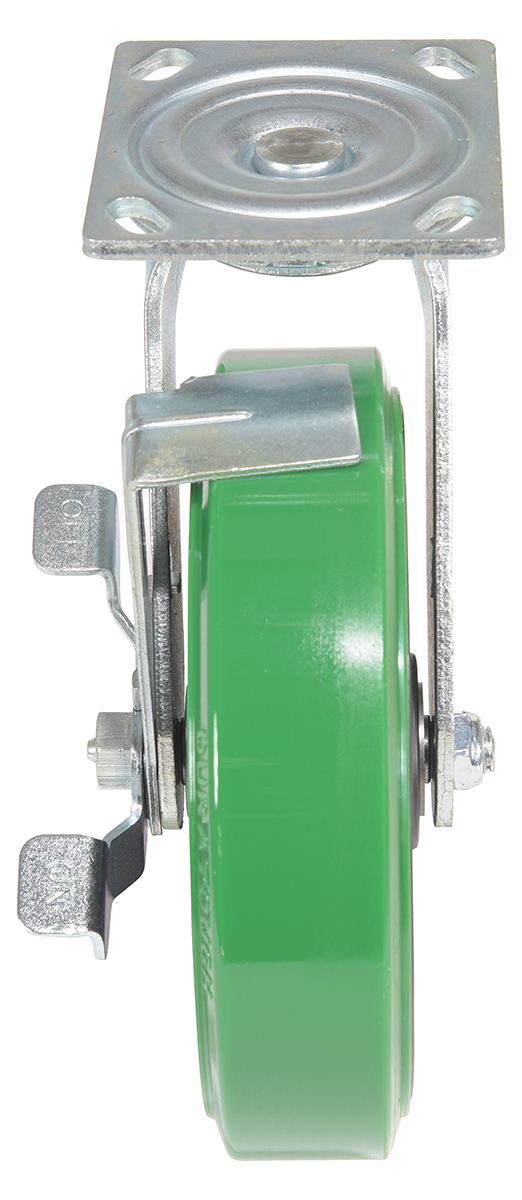

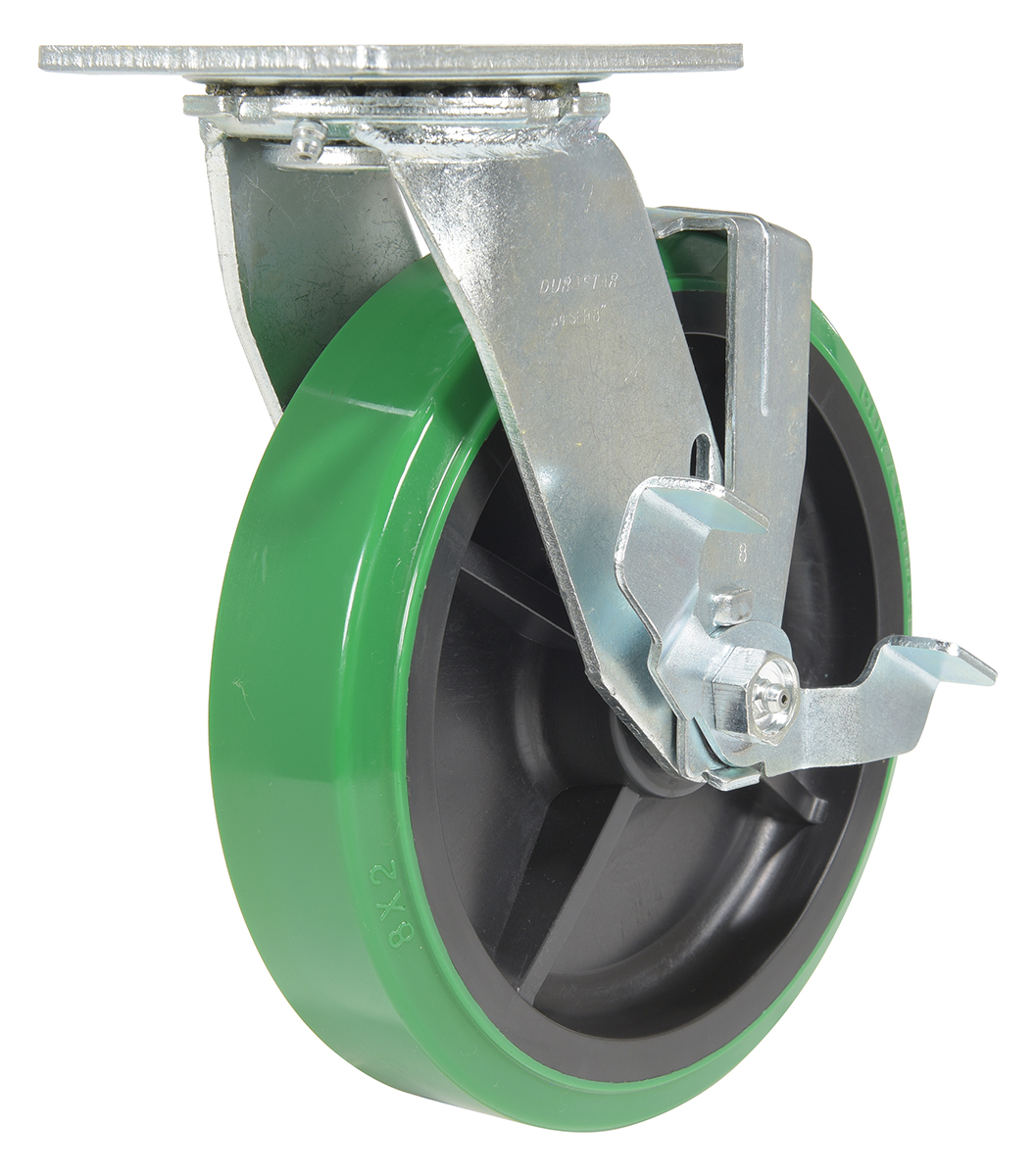

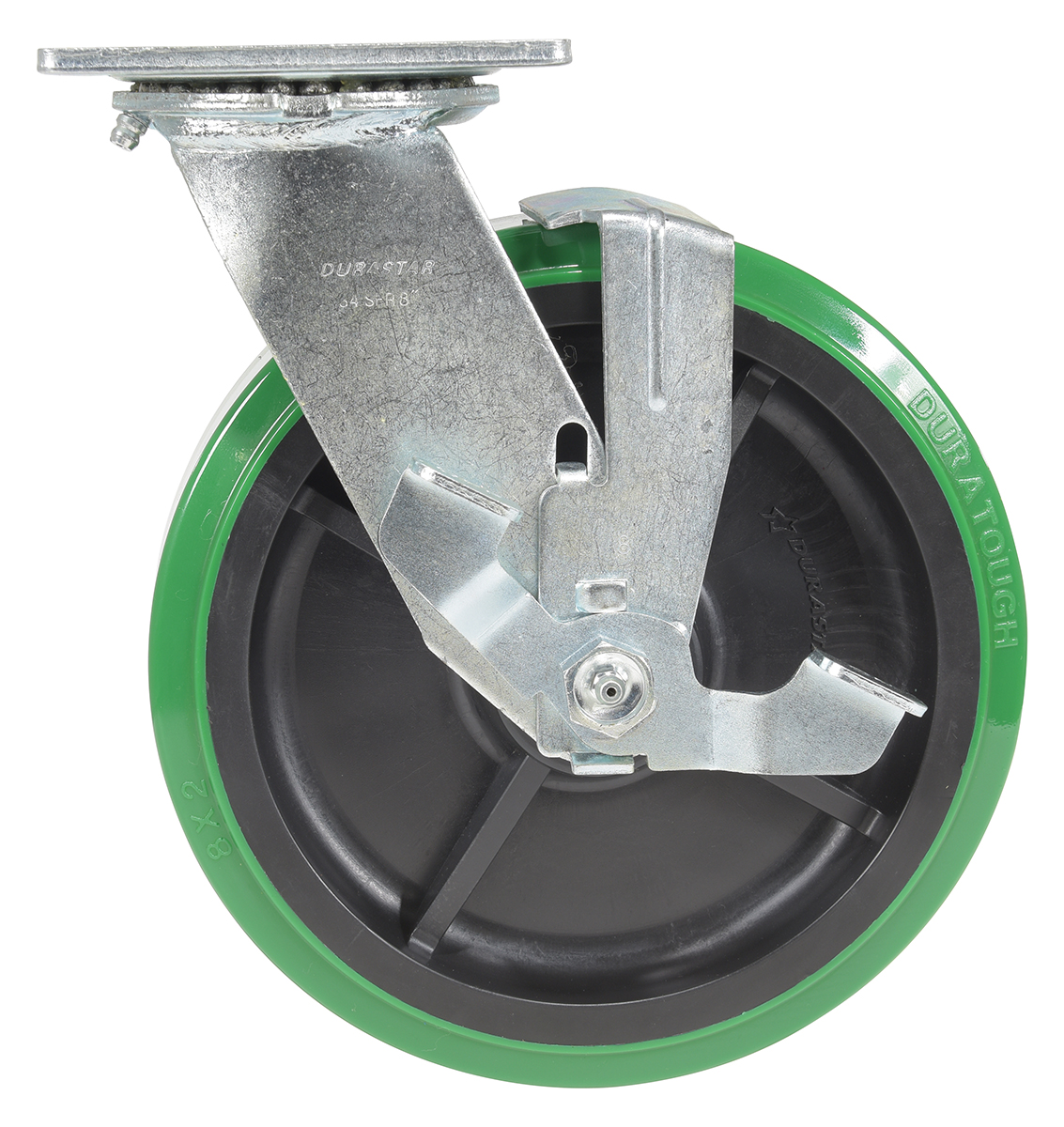

CST-F34-8X2DT-SWB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/BRAKE	1000	9-3/8	4 x 4-1/2	5.98

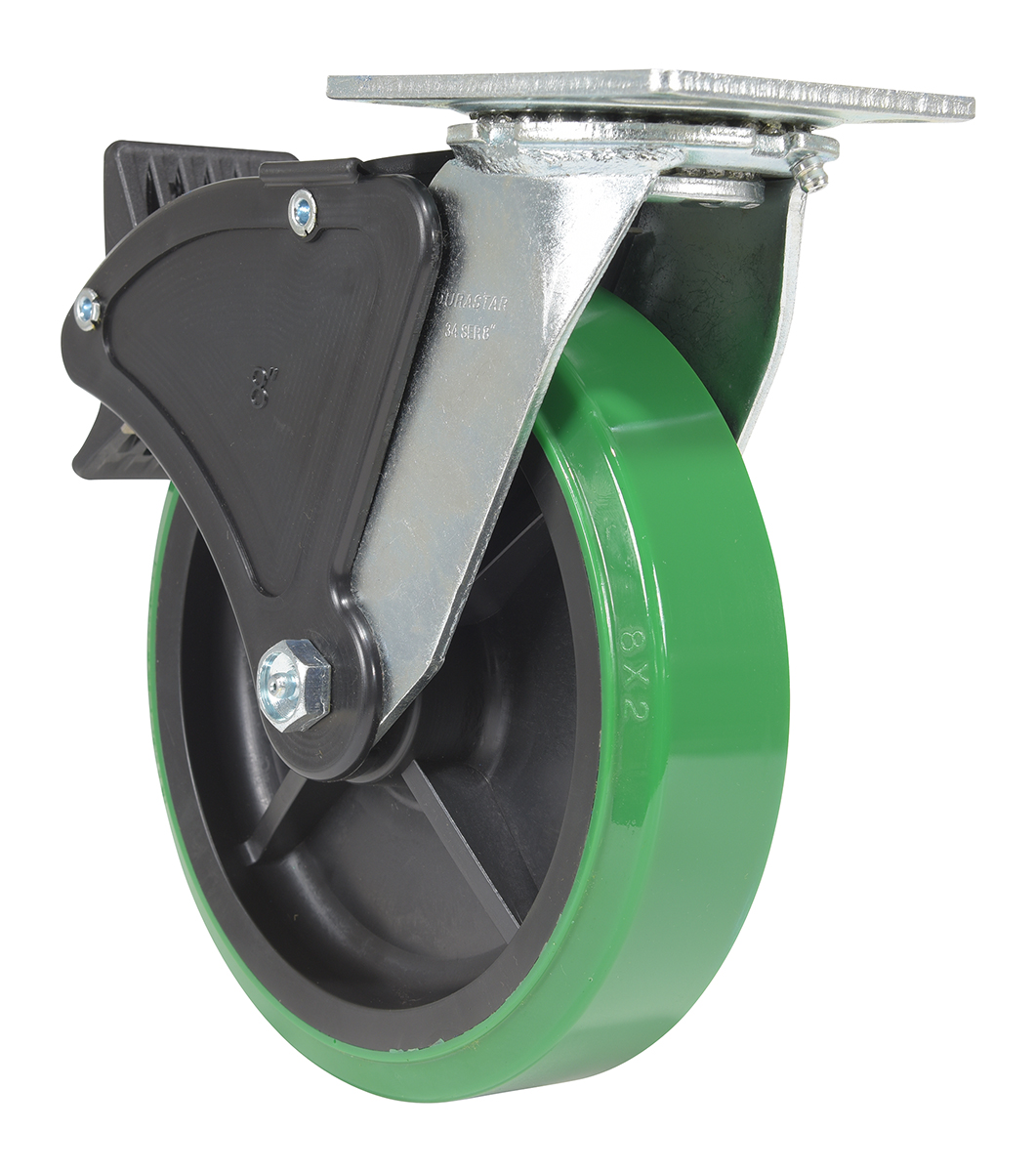

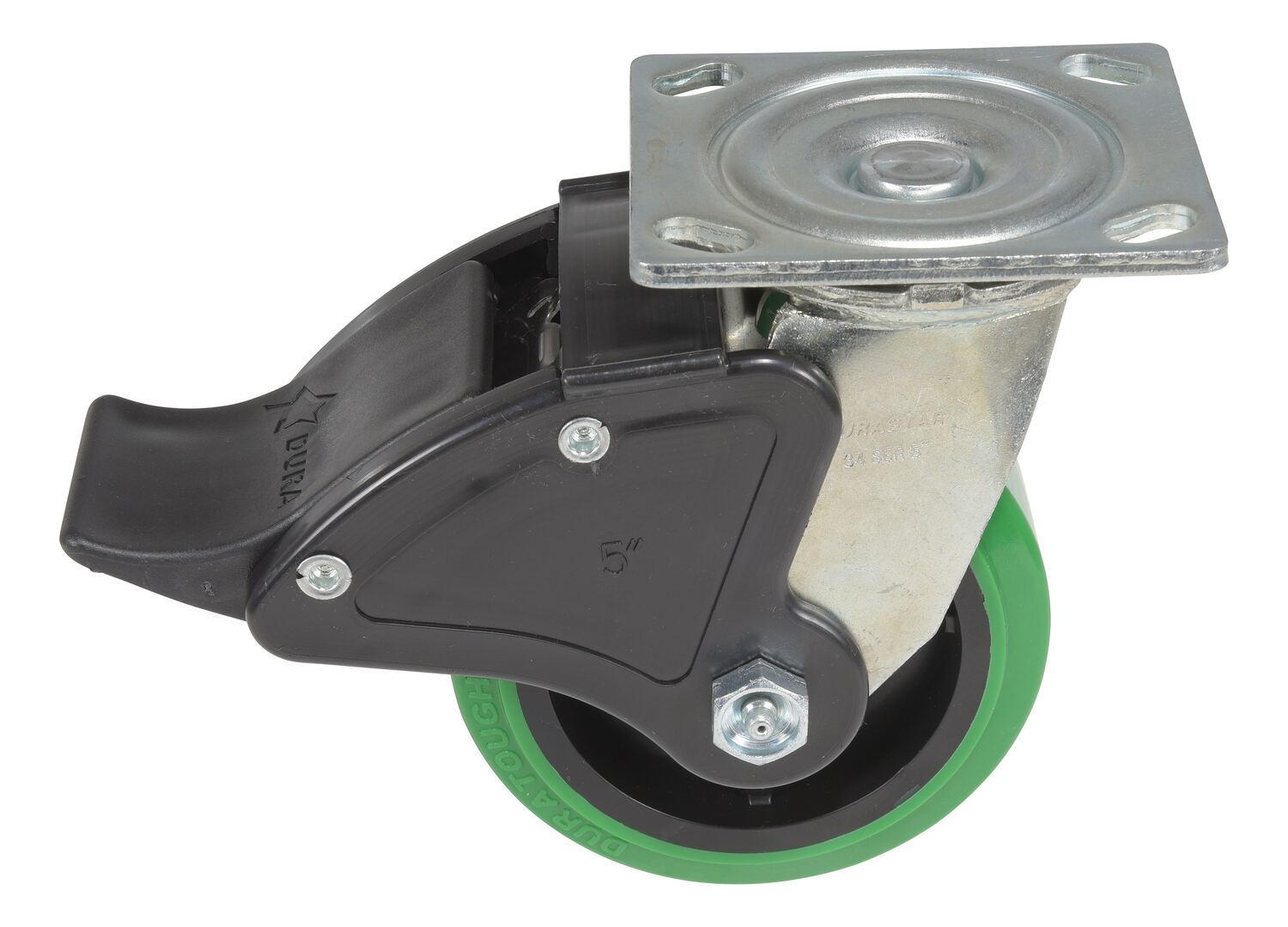

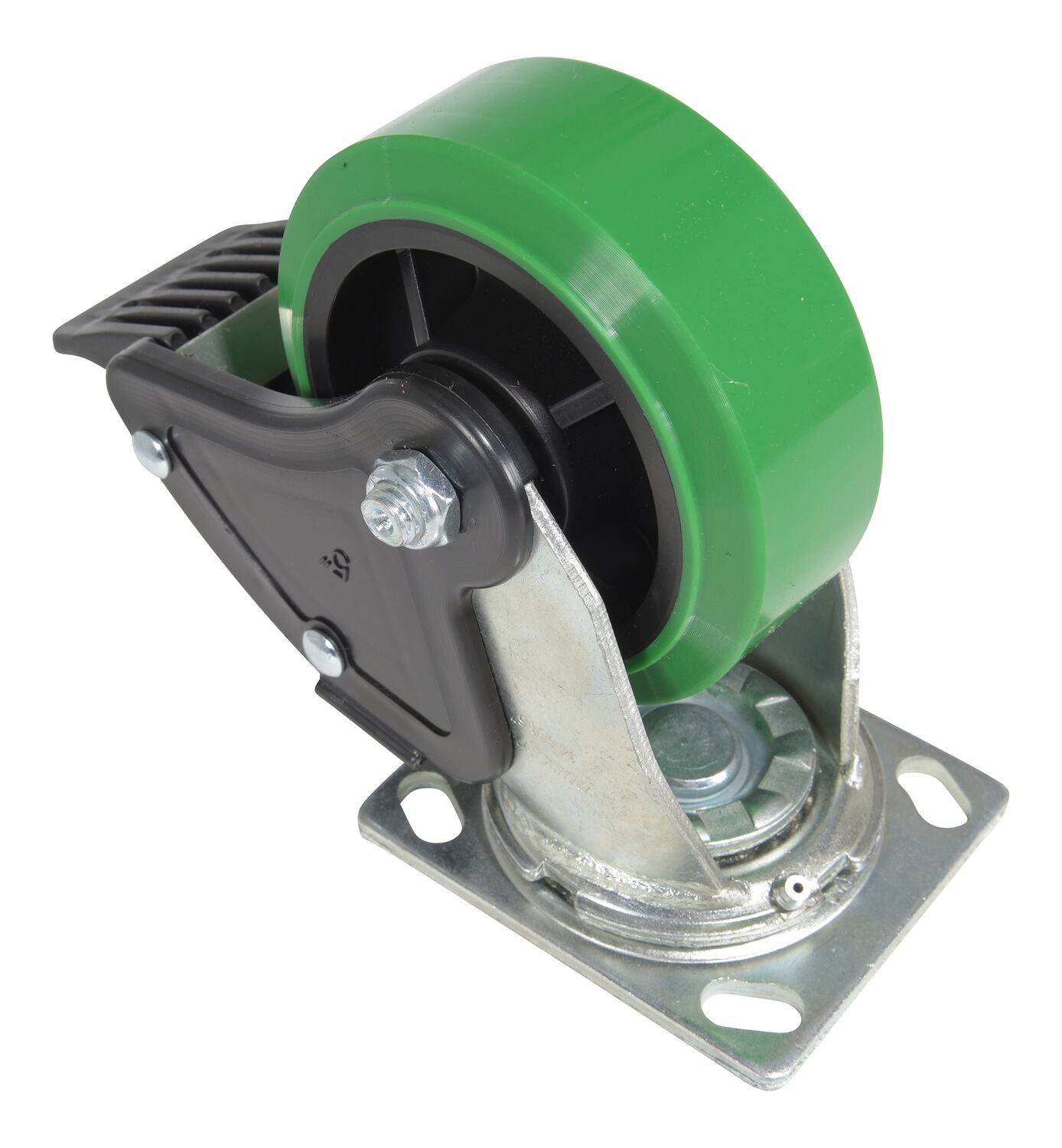

CST-F34-5X2DT-SWTB1	1 YEAR Limited Warranty	5 x 2	Swivel w/Total Brake	750	6-1/2	4 x 4-1/2	4.5
CST-F34-6X2DT-SWTB1	1 YEAR Limited Warranty	6 x 2	Swivel w/Total Brake	900	7-3/8	4 x 4-1/2	5.095

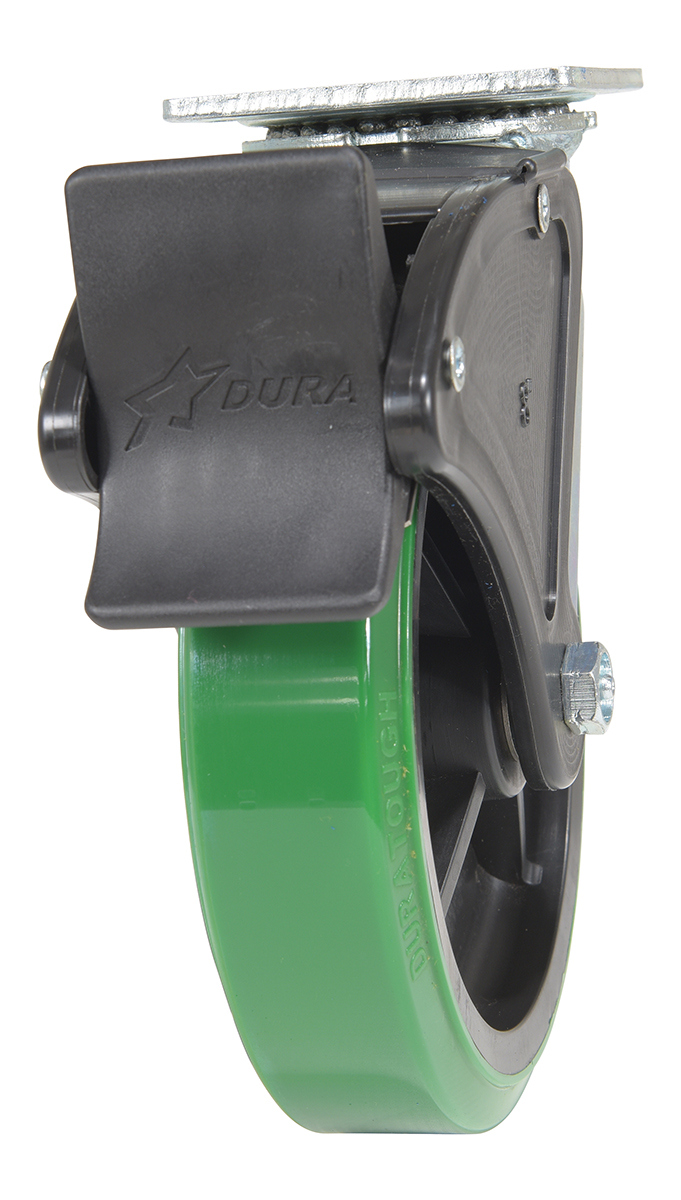

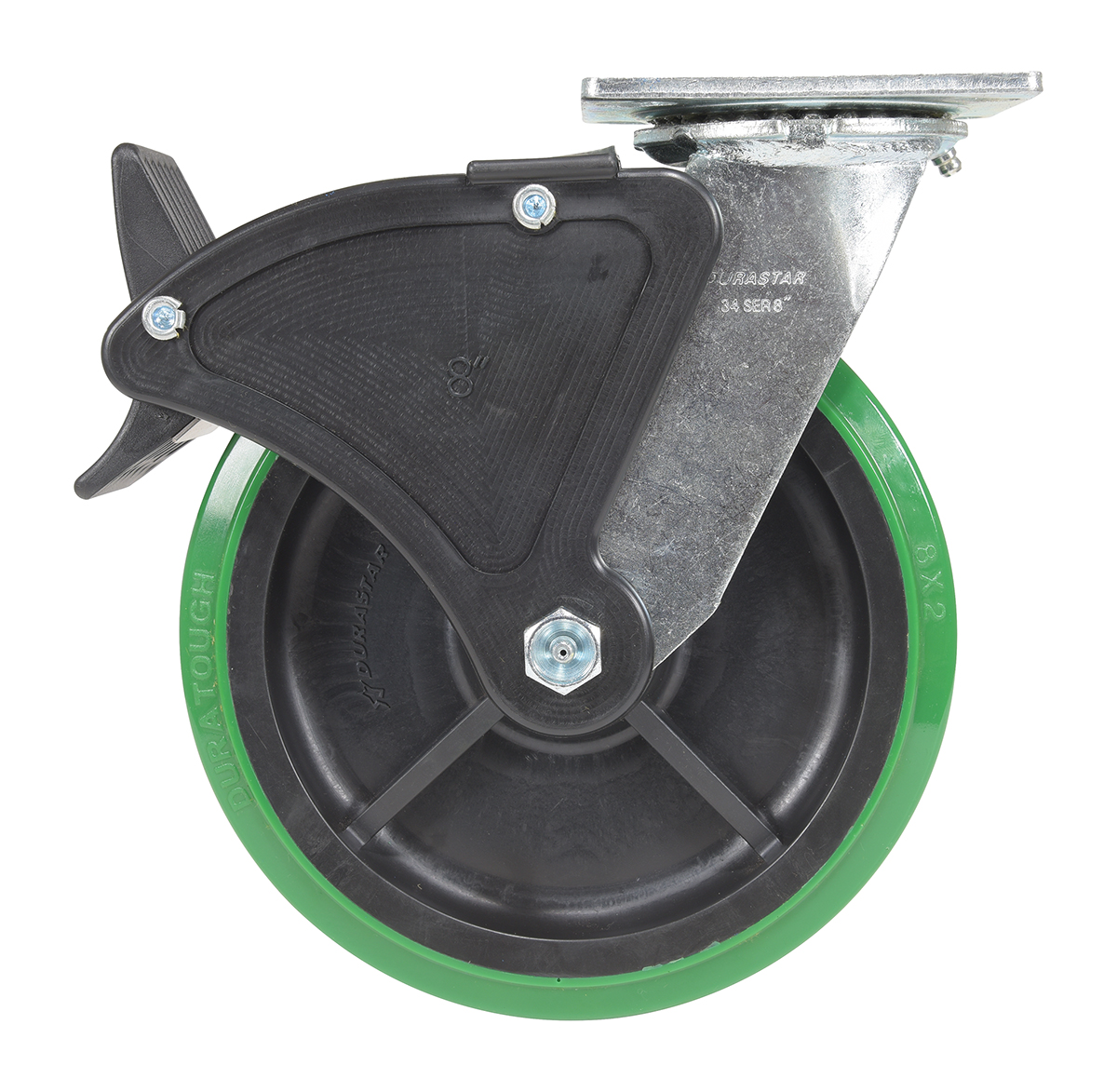

CST-F34-8X2DT-SWTB1	1 YEAR Limited Warranty	8 x 2	Swivel w/Total Brake	1000	9-3/8	4 x 4-1/2	6.19
CST-F34-4X2DT-SWTB1	1 YEAR Limited Warranty	4 x 2	SWTB1	700	5-1/2	4 x 4-1/2	4.1
