Product Family Overview

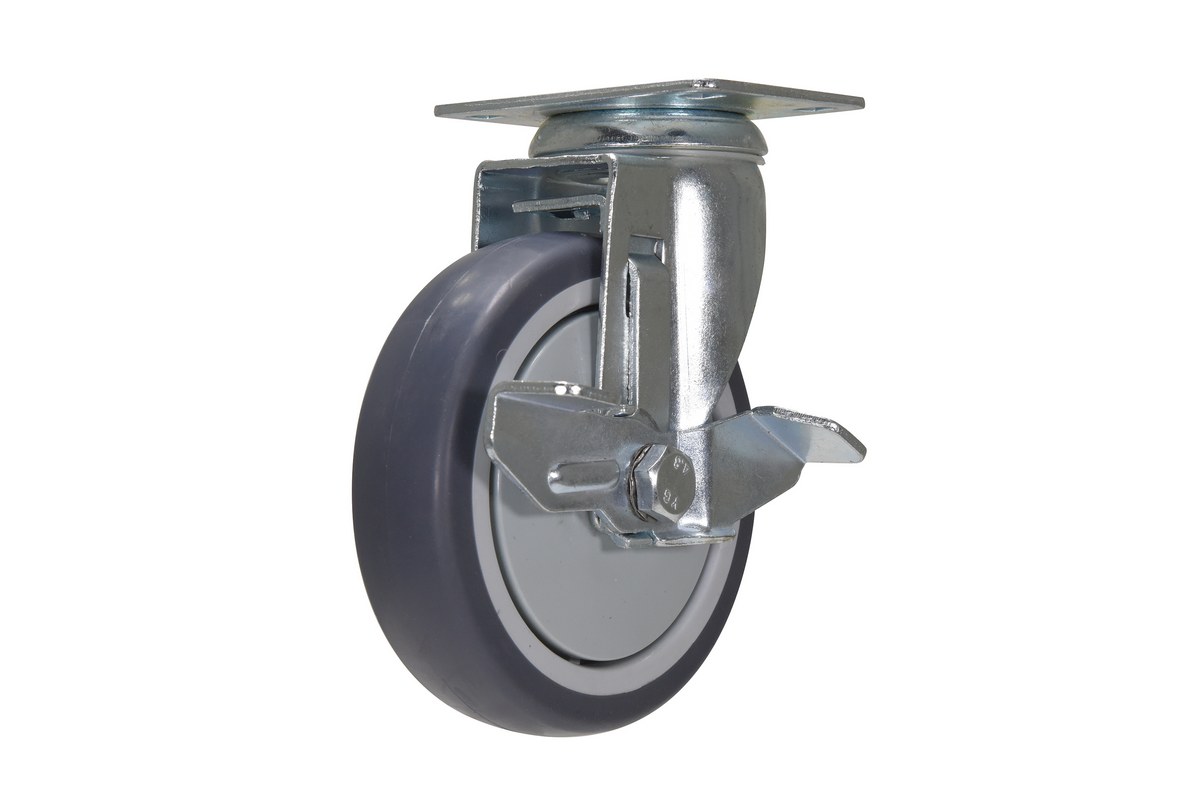

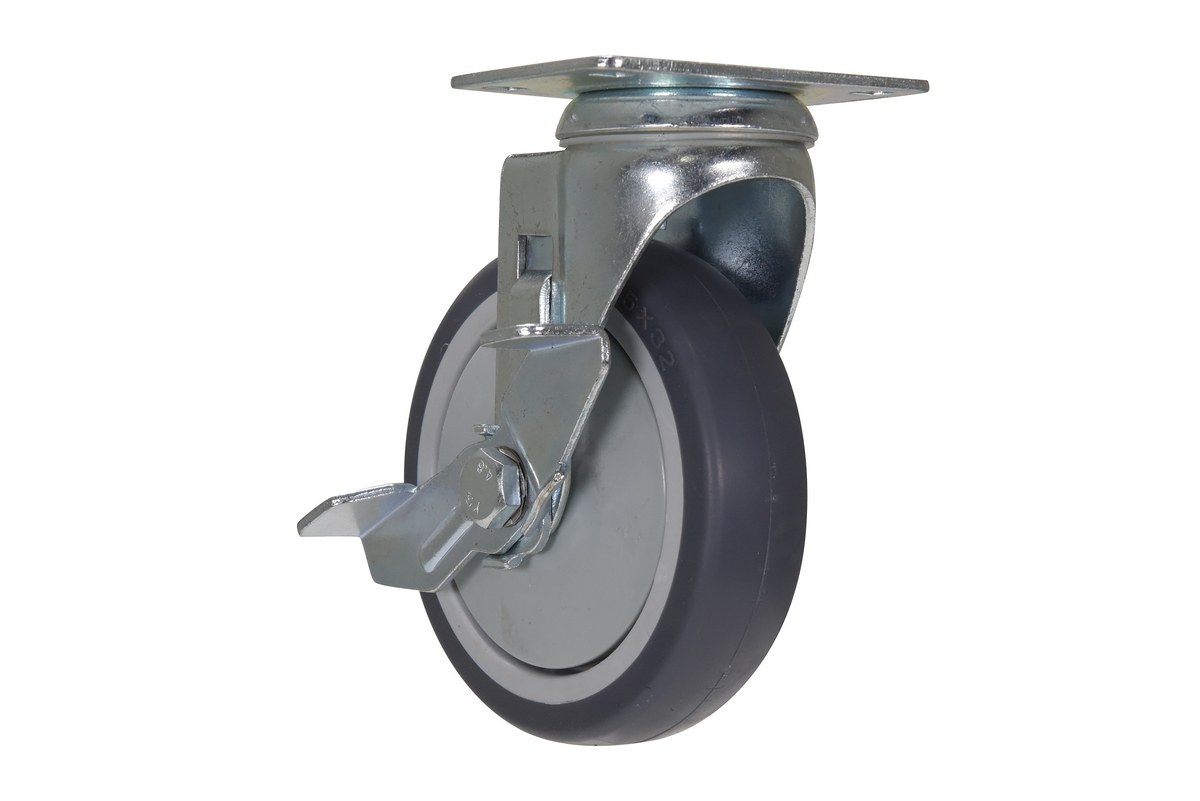

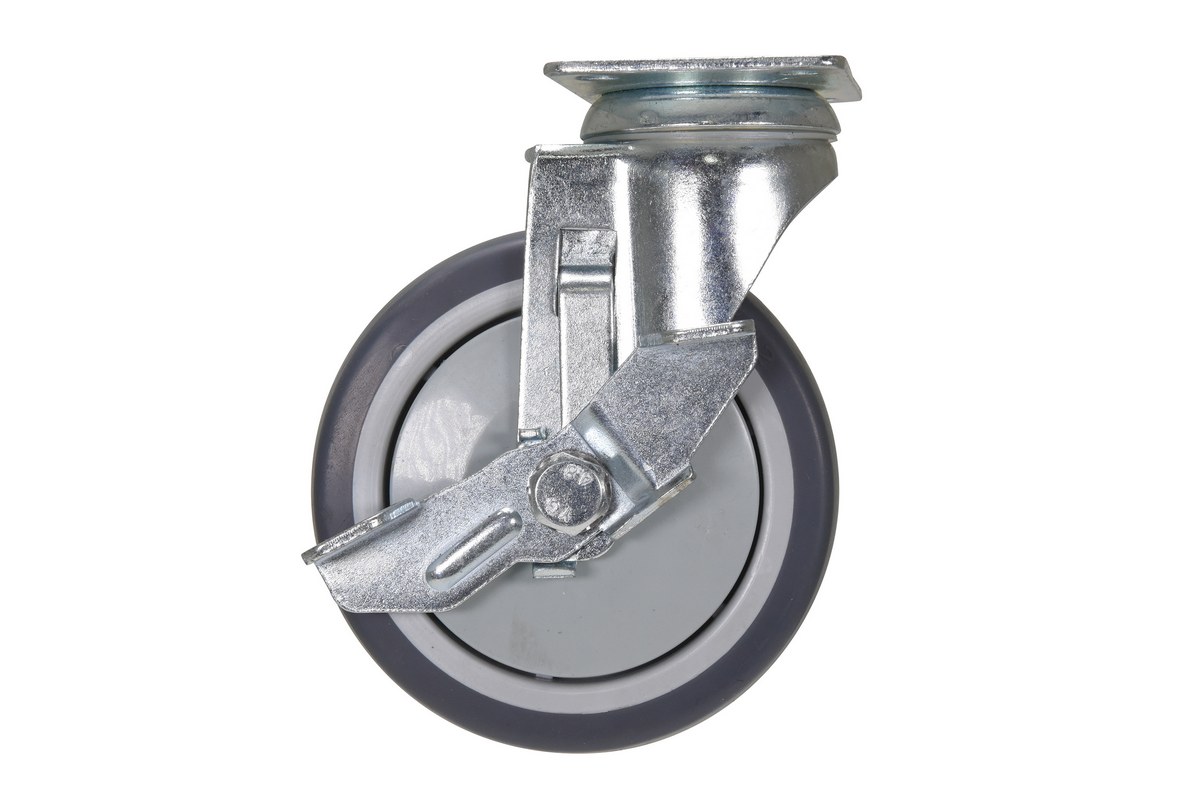

Thermoplastic Polyurethane Rubber Casters
SERIES: CST-B23-TPR

Thermoplastic polyurethane rubber casters provide low resistance when maneuvering with heavy loads. Resistant to chemicals, acids, bases, alcohol, salts, and steam. Gray tread color. Wheel core is constructed of polypropylene. CST-B23 90 +/-5 Shore A / CST-B28 85 +/-5 Shore A. Made in China.

  • Resistant to chemical, acids, bases, alcohol, salts, & The Steam
  • Hardened Bearing Raceway
  • Anti-Corrosive & Rust Resistant Zinc Plate Finish
  • Precision Ball Bearing

Thermoplastic polyurethane rubber casters provide low resistance when maneuvering with heavy loads. Resistant to chemicals, acids, bases, alcohol, salts, and steam. Gray tread color. Wheel core is constructed of polypropylene. CST-B23 90 +/-5 Shore A / CST-B28 85 +/-5 Shore A. Made in China.

  • Resistant to chemical, acids, bases, alcohol, salts, & The Steam
  • Hardened Bearing Raceway
  • Anti-Corrosive & Rust Resistant Zinc Plate Finish
  • Precision Ball Bearing

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)
CST-B23-2X1TPR-R CST-B23-2X1TPR-R1YEAR Limited Warranty2 x 13/16RIGID772-5/8 1-7/8 x 2-1/41.23
CST-B28-4X1TPR-R CST-B28-4X1TPR-R1YEAR Limited Warranty4 x 1-1/4RIGID2205-1/4 2-5/8 x 3-3/41.18
CST-B28-5X1TPR-R CST-B28-5X1TPR-R1YEAR Limited Warranty5 x 1-1/4RIGID3086-1/4 2-16/25 x 3-3/41.34
CST-B23-2X1TPR-S CST-B23-2X1TPR-S1YEAR Limited Warranty2 x 13/16SWIVEL772-5/8 1-7/8 x 2-1/41.34
CST-B28-4X1TPR-S CST-B28-4X1TPR-S1YEAR Limited Warranty4 x 1-1/4SWIVEL2205-1/4 2-5/8 x 3-3/41.69
CST-B28-5X1TPR-S CST-B28-5X1TPR-S1YEAR Limited Warranty5 x 1-1/4SWIVEL3086-1/4 2-16/25 x 3-3/41.92
CST-B23-2X1TPR-SWB CST-B23-2X1TPR-SWB1YEAR Limited Warranty2 x 13/16SWIVEL W/BRAKE772-5/8 1-7/8 x 2-1/41.37
CST-B28-4X1TPR-SWB CST-B28-4X1TPR-SWB1YEAR Limited Warranty4 x 1-1/4SWIVEL W/BRAKE2205-1/4 2-5/8 x 3-3/41.91
CST-B28-5X1TPR-SWB CST-B28-5X1TPR-SWB1YEAR Limited Warranty5 x 1-1/4SWIVEL W/BRAKE3086-1/4 2-16/25 x 3-3/42.2

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Thermoplastic Polyurethane Rubber Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-B23-2X1TPR-R

CST-B23-2X1TPR-S

CST-B23-2X1TPR-SWB

CST-B28-4X1TPR-R

CST-B28-4X1TPR-S

CST-B28-4X1TPR-SWB

CST-B28-5X1TPR-R

CST-B28-5X1TPR-S

CST-B28-5X1TPR-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
