Polyurethane with Thread Guard Casters

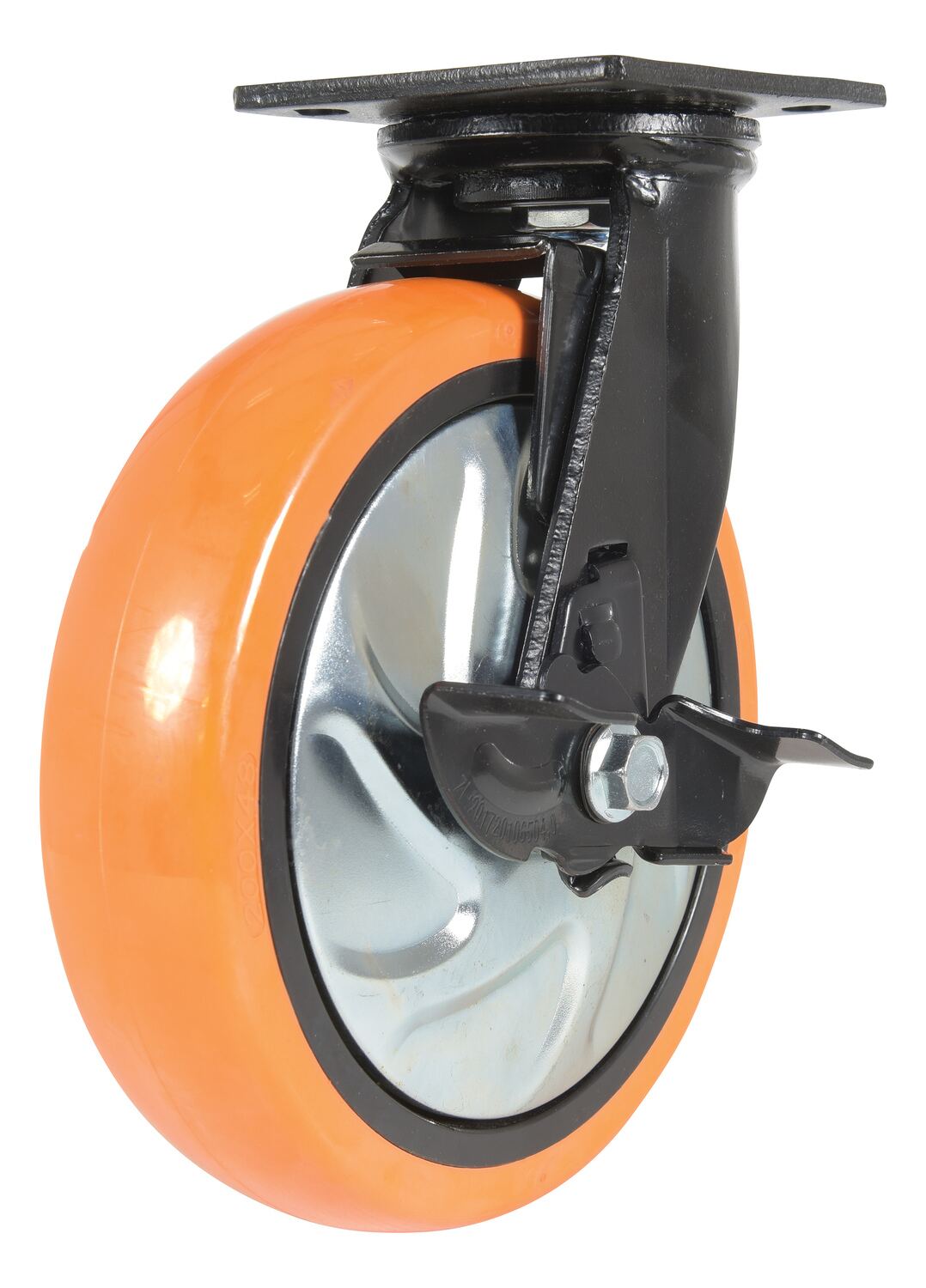

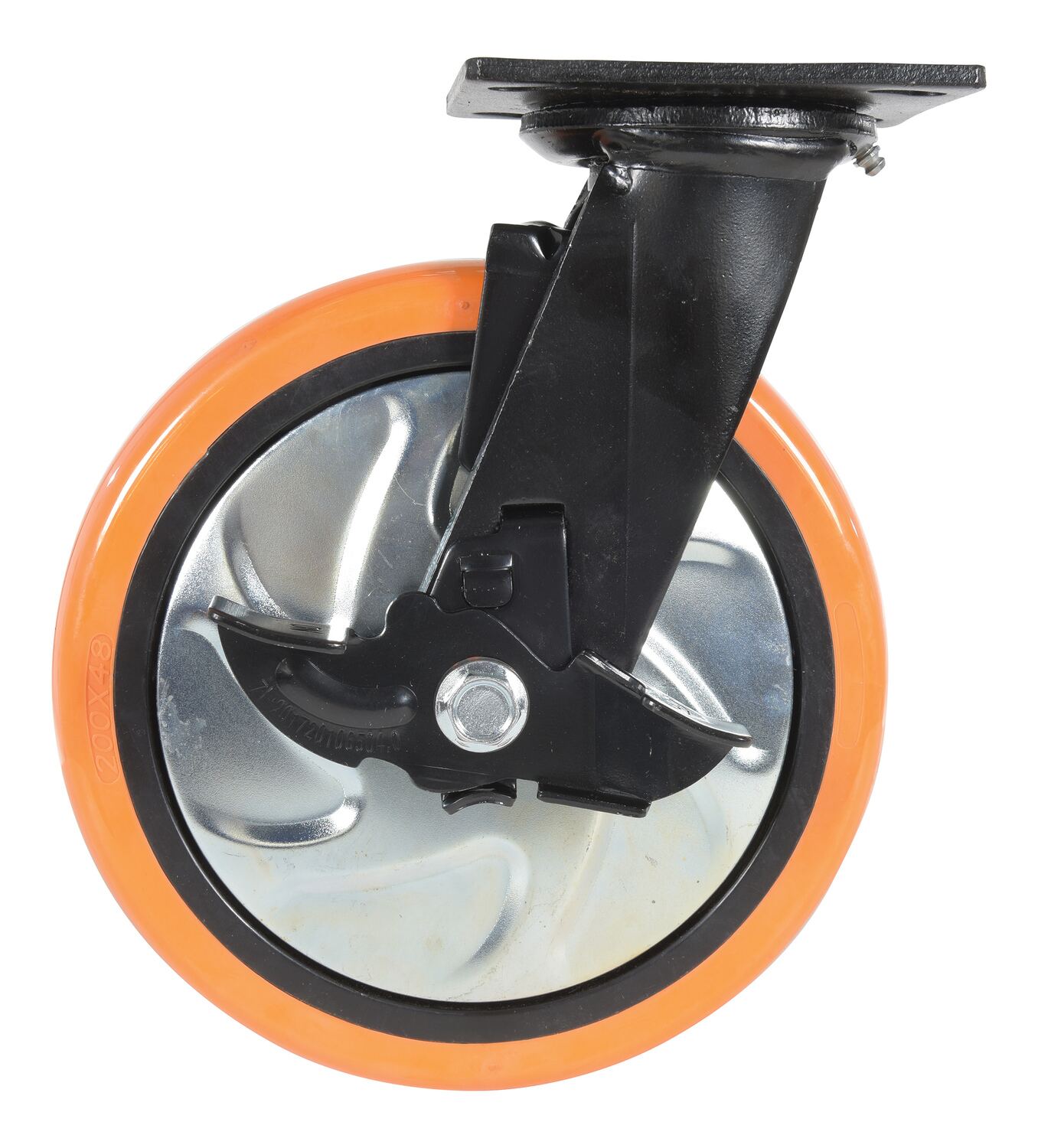

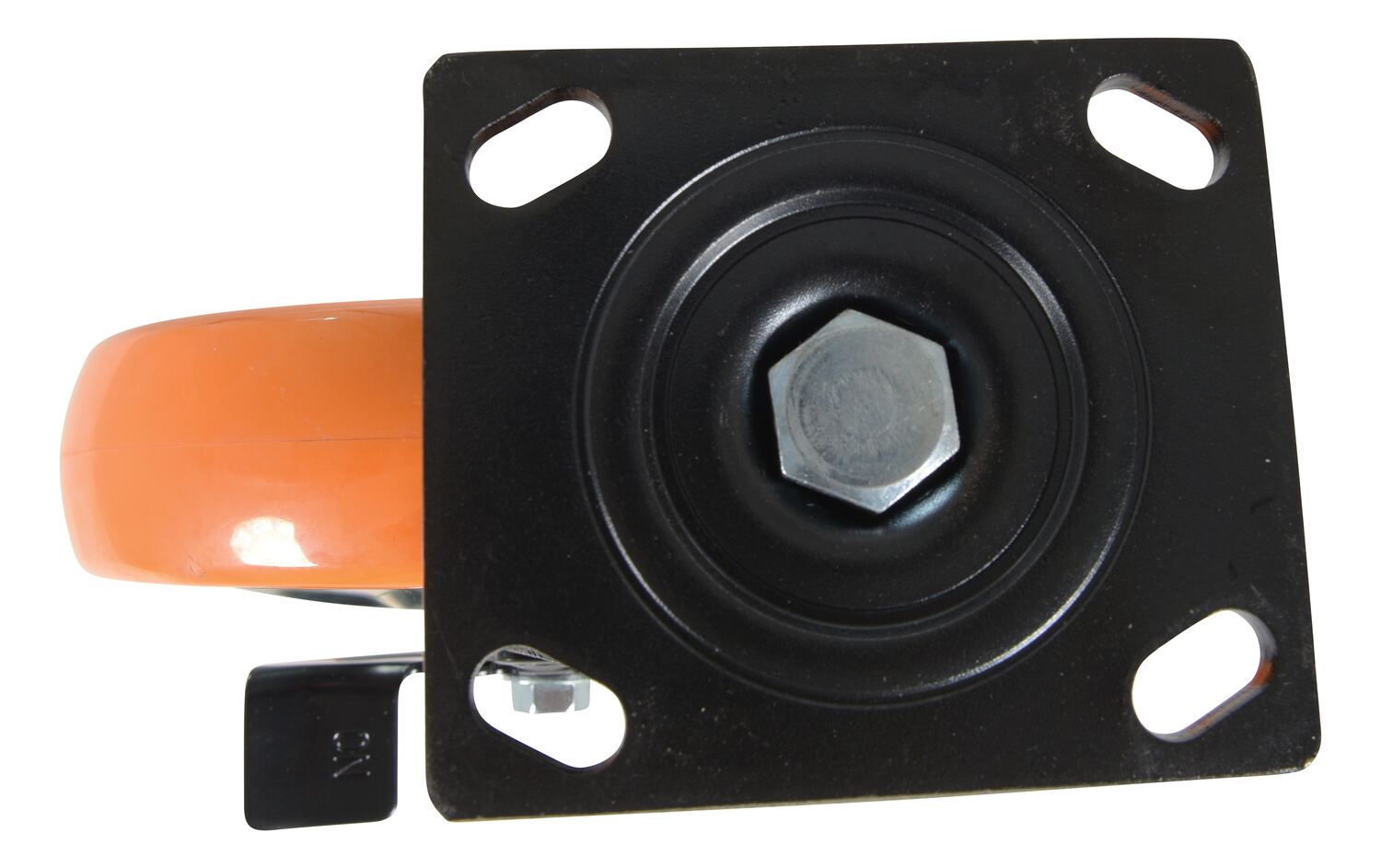

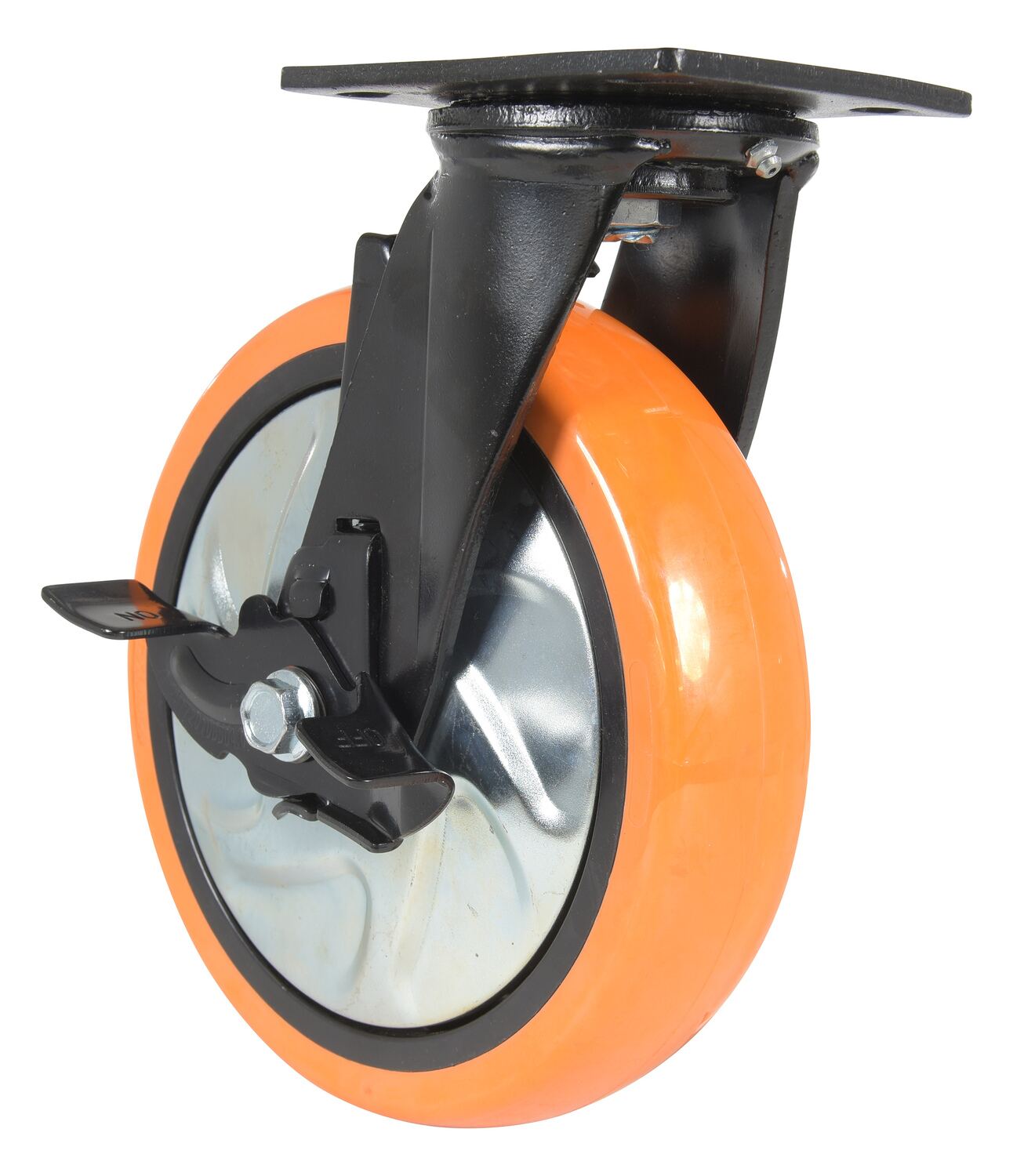

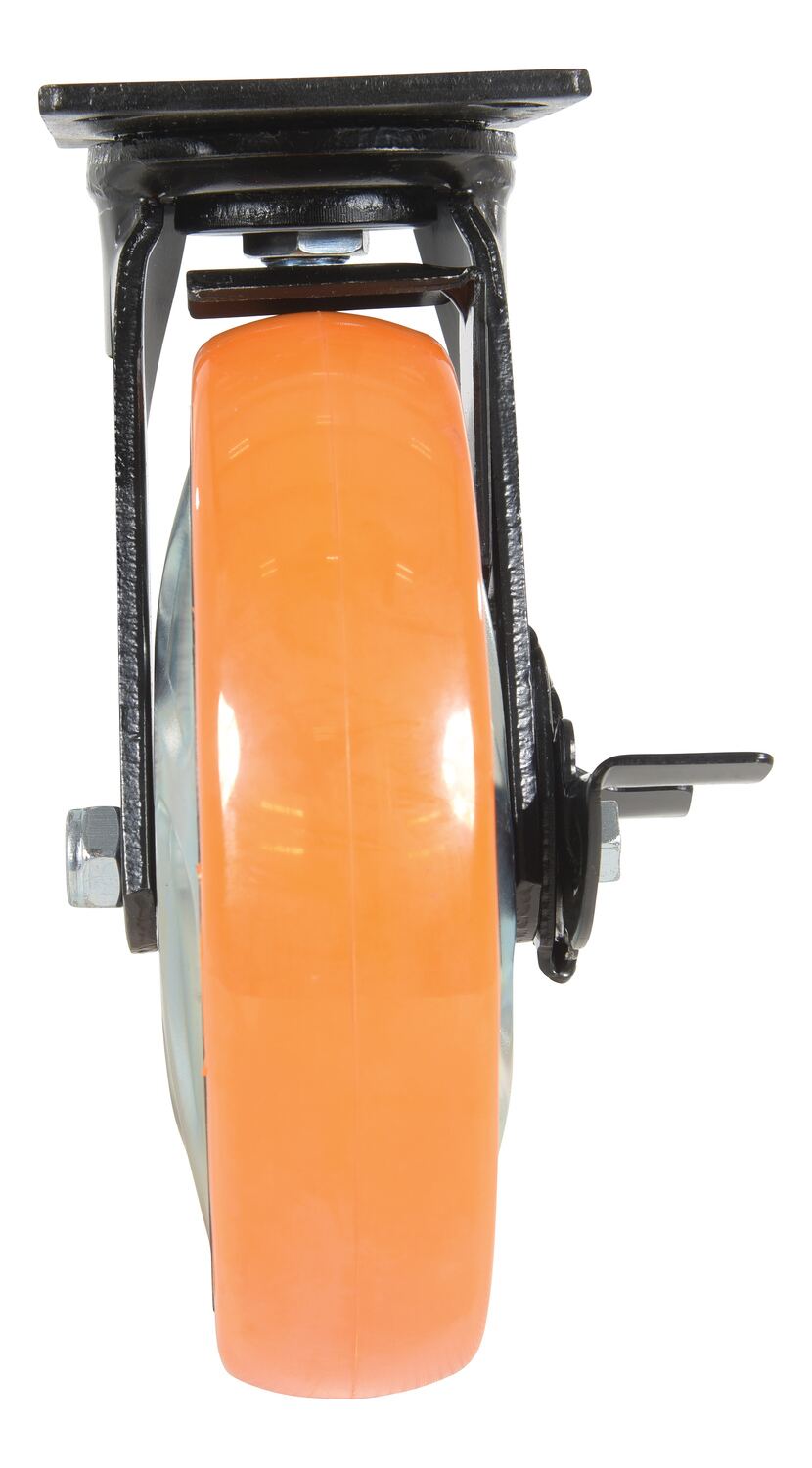

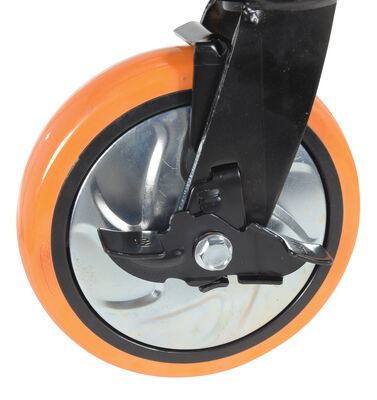

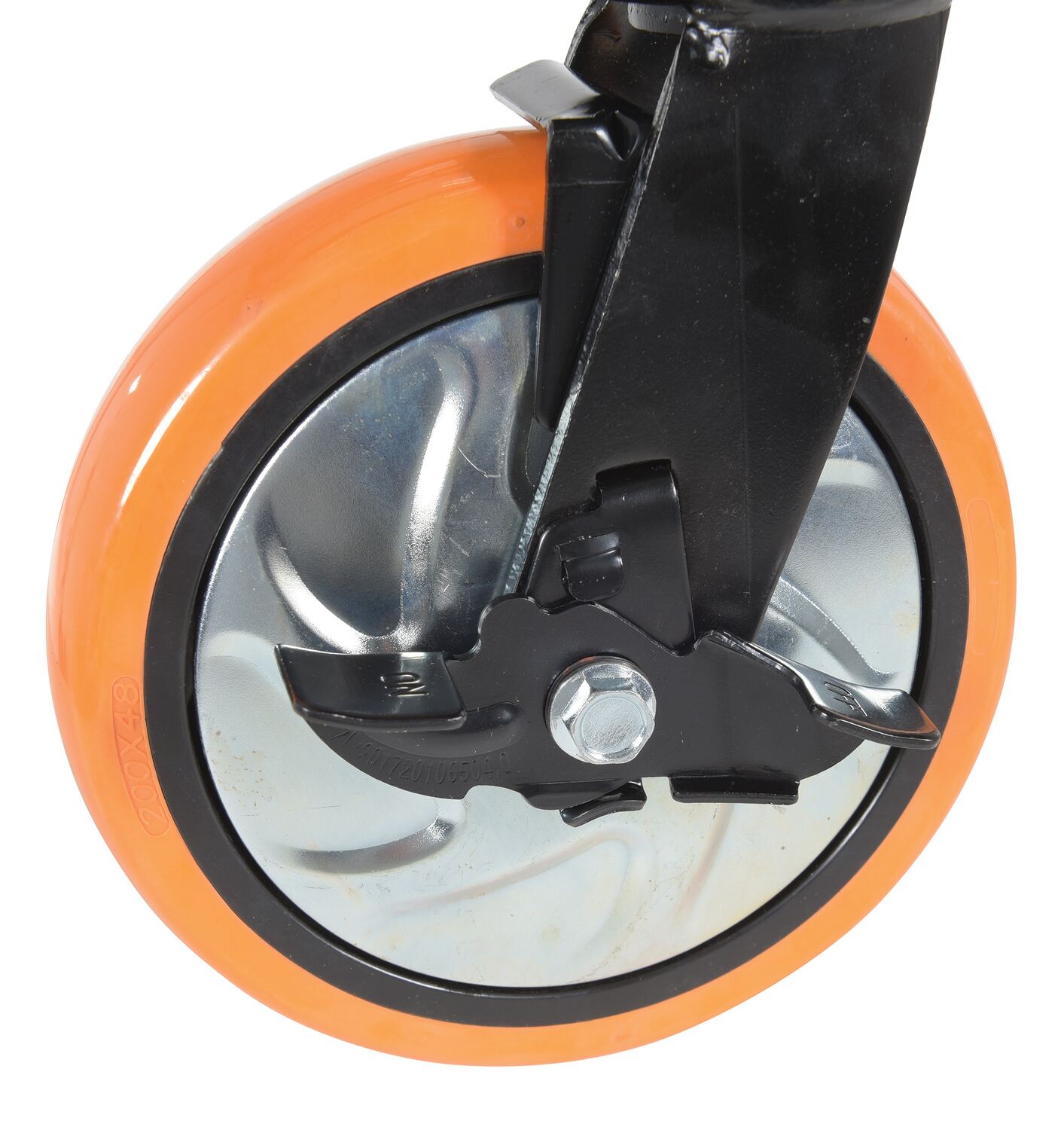

model: CST-E6-8X2PUP-SWB

Featured Casters & Wheels

Pneumatic Wheels

TPR(Thermoplastic Rubber) On Stainless Steel Casters

Cast Iron Casters

Economical Floor Locks

Best Casters

Urethane Solid Foam Wheels

High Quality Non-Marking Polyurethane Elastomer

Polyurethane Casters (Blue)

TPR - Thermoplatic Rubber (DK) Casters

model chart

Product Family Overview

Print Friendly

Polyurethane with Thread Guard Casters

SERIES: CST-E6-PUP

Polyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The large capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. It is resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Orange tread color. Wheel core is made of polypropylene. 95 +/-5 Shore A. Made in China.

Thread Guard Provides Added Protection Against Debris & Corrosion
Resistant to a Variety of Chemicals
Precision Ball Bearing
Hardened Bearing Raceway
Anti-Corrosive Paint Finish
S and SWTB have Swivel Rig Zerk Fitting

Thread Guard Provides Added Protection Against Debris & Corrosion
Resistant to a Variety of Chemicals
Precision Ball Bearing
Hardened Bearing Raceway
Anti-Corrosive Paint Finish
S and SWTB have Swivel Rig Zerk Fitting

Other "Go-To" Casters

Glass Filled Nylon Casters

Polyurethane (SI - Electrostatic Dissipating) Casters

Polyurethane Casters

High-Temp Phenolic Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model CST-E6-8X2PUP-SWTB

model CST-E6-6X2PUP-S

model CST-E6-8X2PUP-R

model CST-E6-8X2PUP-S

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)
CST-E6-4X2PUP-R	1 YEAR Limited Warranty	4 x 2	RIGID	551	5-5/8	4 x 4-1/2	3.1

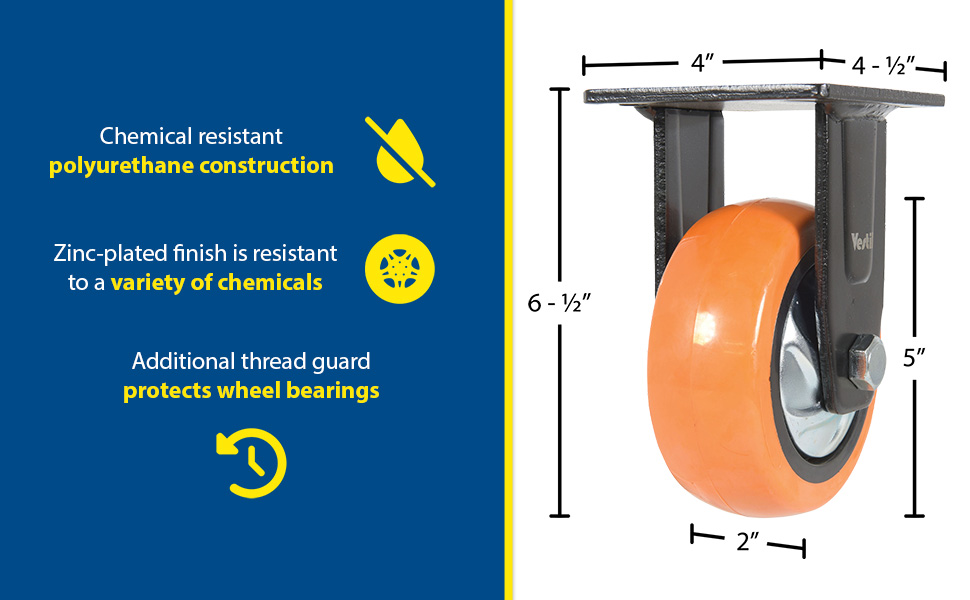

CST-E6-5X2PUP-R	1 YEAR Limited Warranty	5 x 2	RIGID	639	6-1/2	4 x 4-1/2	3.7
CST-E6-8X2PUP-R	1 YEAR Limited Warranty	8 x 2	RIGID	925	9-1/2	4 x 4-1/2	5.5
CST-E6-4X2PUP-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	551	5-5/8	4 x 4-1/2	4.1
CST-E6-5X2PUP-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	639	6-1/2	4 x 4-1/2	4.7
CST-E6-6X2PUP-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	837	7-1/2	4 x 4-1/2	5.3
CST-E6-8X2PUP-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	925	9-1/2	4 x 4-1/2	6.6
CST-E6-4X2PUP-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	551	5-5/8	4 x 4-1/2	4.4
CST-E6-5X2PUP-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	639	6-1/2	4 x 4-1/2	5
CST-E6-6X2PUP-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	837	7-1/2	4 x 4-1/2	5.5
CST-E6-8X2PUP-SWB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/BRAKE	925	9-1/2	4 x 4-1/2	6.9
CST-E6-4X2PUP-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	551	5-5/8	4 x 4-1/2	5.2
CST-E6-5X2PUP-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	639	6-1/2	4 x 4-1/2	5.7
CST-E6-6X2PUP-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	837	7-1/2	4 x 4-1/2	6.2
CST-E6-8X2PUP-SWTB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/TOTAL BRAKE	925	9-1/2	4 x 4-1/2	7.7
