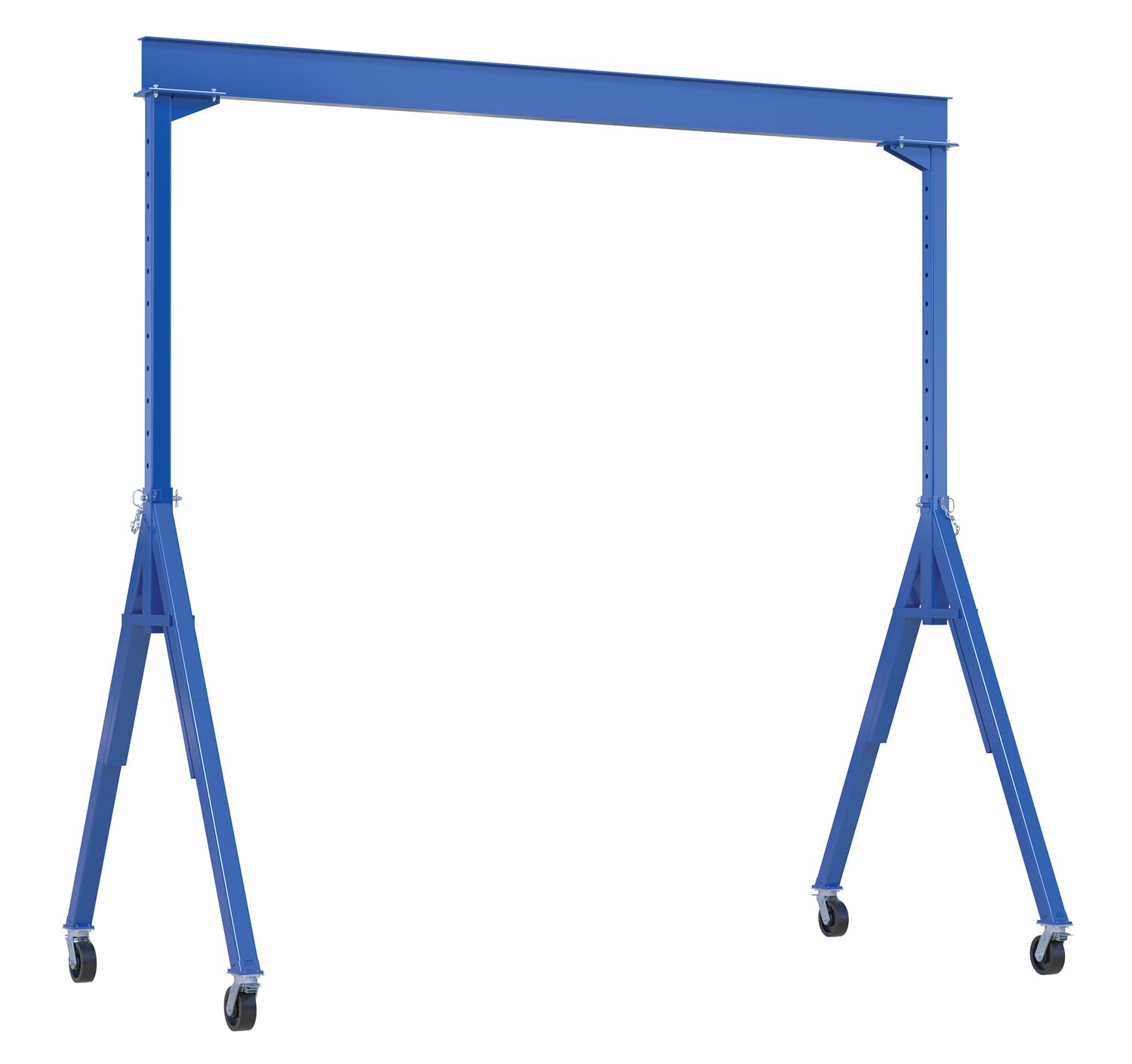

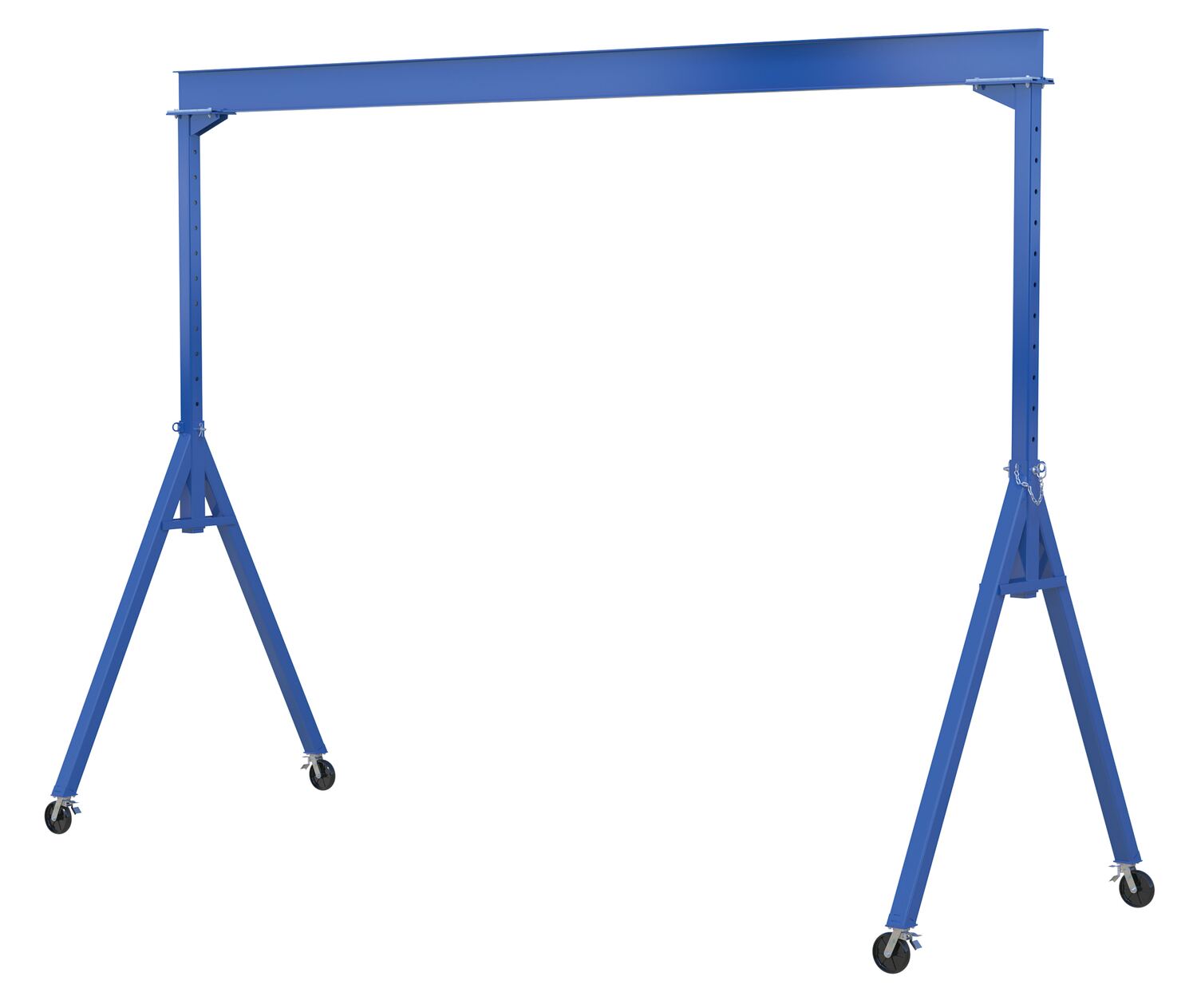

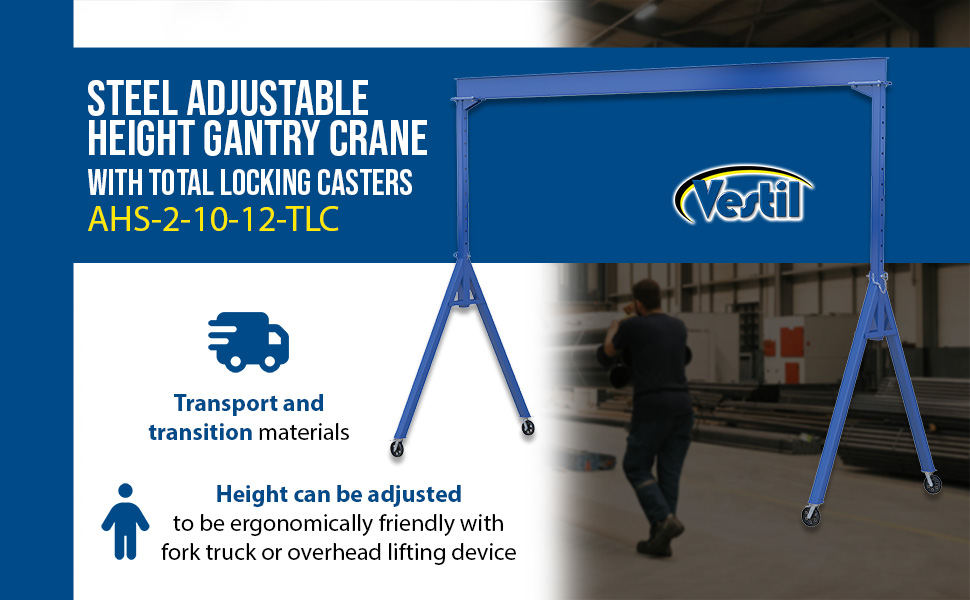

Adjustable Steel Gantry Cranes with Total Locking Casters

SERIES: AHS-TLC

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking casters. The total locking casters lock the wheels from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Hoists & Trollies can be ordered seperately.

Heavy-duty welded steel construction for long lasting use

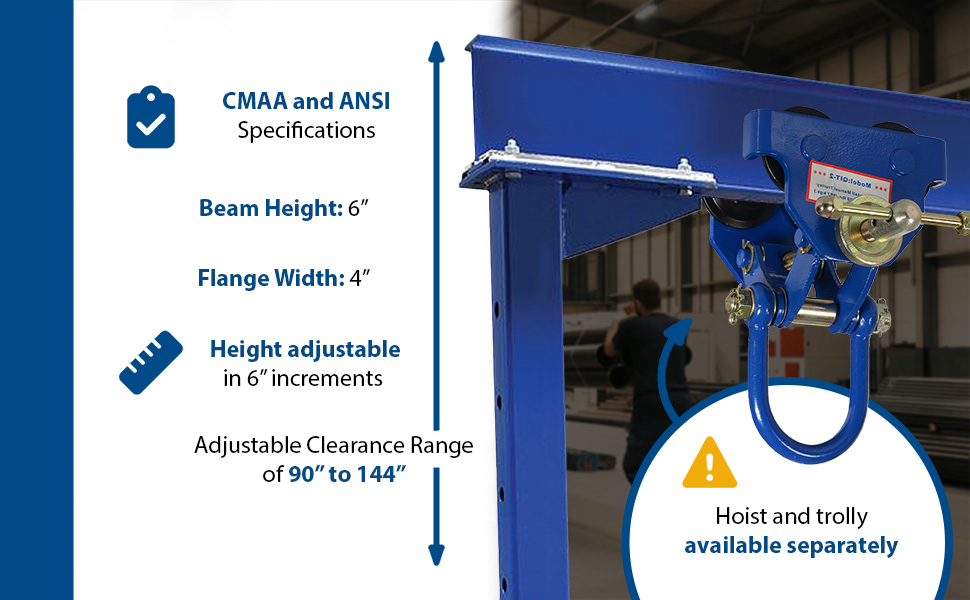

Easy adjustable height can be done with fork truck or other overhead lifting device
Beam length allows for use with items, both large and small
All units comply with applicable CMAA and ANSI specifications

Heavy-duty welded steel construction for long lasting use
Easy adjustable height can be done with fork truck or other overhead lifting device
Beam length allows for use with items, both large and small
All units comply with applicable CMAA and ANSI specifications

Other Gantry Cranes

Fixed Steel Gantry Cranes with Total Locking Casters

Fixed Steel Gantry Cranes with Pneumatic Casters

Self-Supporting Bridge Cranes

Steel Gantry Crane Power Traction Drive Options

Follow @vestilmfg

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)
AHS-2-10-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft.Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2869
AHS-2-10-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft.Wide x 14 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2939
AHS-2-10-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft.Wide x 16 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2979
AHS-2-15-10-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2845
AHS-2-15-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2936
AHS-2-15-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 14 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	21015
AHS-2-15-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 16 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	21081
AHS-2-15-7-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 7 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2777
AHS-2-15-9-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft.Wide x 9 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	2833
AHS-2-20-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 20 Ft.Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	21127
AHS-2-20-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 20 Ft.Wide x 14 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	21216
AHS-2-20-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 20 Ft.Wide x 16 Ft. Max Usable Height 2,000 Lb. Capacity Blue	Uniform Capacity (lbs): 2000 Casters Swivel with Brakes (Qty): 4	21247
AHS-4-10-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2901
AHS-4-10-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2966
AHS-4-10-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21003
AHS-4-15-10-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2879
AHS-4-15-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2963
AHS-4-15-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21036
AHS-4-15-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21063
AHS-4-15-7-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 7 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2772
AHS-4-15-9-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 9 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	2849
AHS-4-20-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21075
AHS-4-20-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21155
AHS-4-20-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity Blue	Uniform Capacity (lbs): 4000 Casters Swivel with Brakes (Qty): 4	21203
AHS-6-10-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	2968
AHS-6-10-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 14 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21027
AHS-6-10-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21063
AHS-6-15-10-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 10 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	2990
AHS-6-15-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21075
AHS-6-15-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 14 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21166
AHS-6-15-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21226
AHS-6-15-7-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 7 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	2868
AHS-6-15-9-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 9 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	2952
AHS-6-20-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21491
AHS-6-20-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 14 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21591
AHS-6-20-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 16 Ft. Max Usable Height 6,000 Lb. Capacity Blue	Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4	21633
AHS-8-10-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 12 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	2974
AHS-8-10-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 14 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21091
AHS-8-10-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 10 Ft.Wide x 16 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21162
AHS-8-15-10-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 10 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21018
AHS-8-15-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 12 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21102
AHS-8-15-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 14 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21190
AHS-8-15-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 16 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21252
AHS-8-15-7-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 7 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	2862
AHS-8-15-9-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft.Wide x 9 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	2963
AHS-8-20-12-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21484
AHS-8-20-14-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 14 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21592
AHS-8-20-16-TLC	1 Year Limited Warranty	Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft.Wide x 16 Ft. Max Usable Height 8,000 Lb. Capacity Blue	Uniform Capacity (lbs): 8000 Casters Swivel with Brakes (Qty): 4	21660

* Usable Distance Between Uprights is Overall Beam Length Minus 12" * Usable Trolley Travel Length is Overall Beam Length Minus 30"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHS-2-10-12-TLC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 2000
Casters Swivel with Brakes (Qty): 4
Uniform Capacity (lbs): 2000
Casters Swivel with Brakes (Qty): 4

AHS-2-10-14-TLC

AHS-2-10-16-TLC

AHS-2-15-10-TLC

AHS-2-15-12-TLC

AHS-2-15-14-TLC

AHS-2-15-16-TLC

AHS-2-15-7-TLC

AHS-2-15-9-TLC

AHS-2-20-12-TLC

AHS-2-20-14-TLC

AHS-2-20-16-TLC

AHS-4-10-12-TLC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 4000
Casters Swivel with Brakes (Qty): 4
Uniform Capacity (lbs): 4000
Casters Swivel with Brakes (Qty): 4

AHS-4-10-14-TLC

AHS-4-10-16-TLC

AHS-4-15-10-TLC

AHS-4-15-12-TLC

AHS-4-15-14-TLC

AHS-4-15-16-TLC

AHS-4-15-7-TLC

AHS-4-15-9-TLC

AHS-4-20-12-TLC

AHS-4-20-14-TLC

AHS-4-20-16-TLC

AHS-6-10-12-TLC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 6000
Casters Swivel with Brakes (Qty): 4
Uniform Capacity (lbs): 6000
Casters Swivel with Brakes (Qty): 4

AHS-6-10-14-TLC

AHS-6-10-16-TLC

AHS-6-15-10-TLC

AHS-6-15-12-TLC

AHS-6-15-14-TLC

AHS-6-15-16-TLC

AHS-6-15-7-TLC

AHS-6-15-9-TLC

AHS-6-20-12-TLC

AHS-6-20-14-TLC

AHS-6-20-16-TLC

AHS-8-10-12-TLC

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs): 8000
Casters Swivel with Brakes (Qty): 4
Uniform Capacity (lbs): 8000
Casters Swivel with Brakes (Qty): 4

AHS-8-10-14-TLC

AHS-8-10-16-TLC

AHS-8-15-10-TLC

AHS-8-15-12-TLC

AHS-8-15-14-TLC

AHS-8-15-16-TLC

AHS-8-15-7-TLC

AHS-8-15-9-TLC

AHS-8-20-12-TLC

AHS-8-20-14-TLC

AHS-8-20-16-TLC

For More Details of the Option Click the Red Model Button

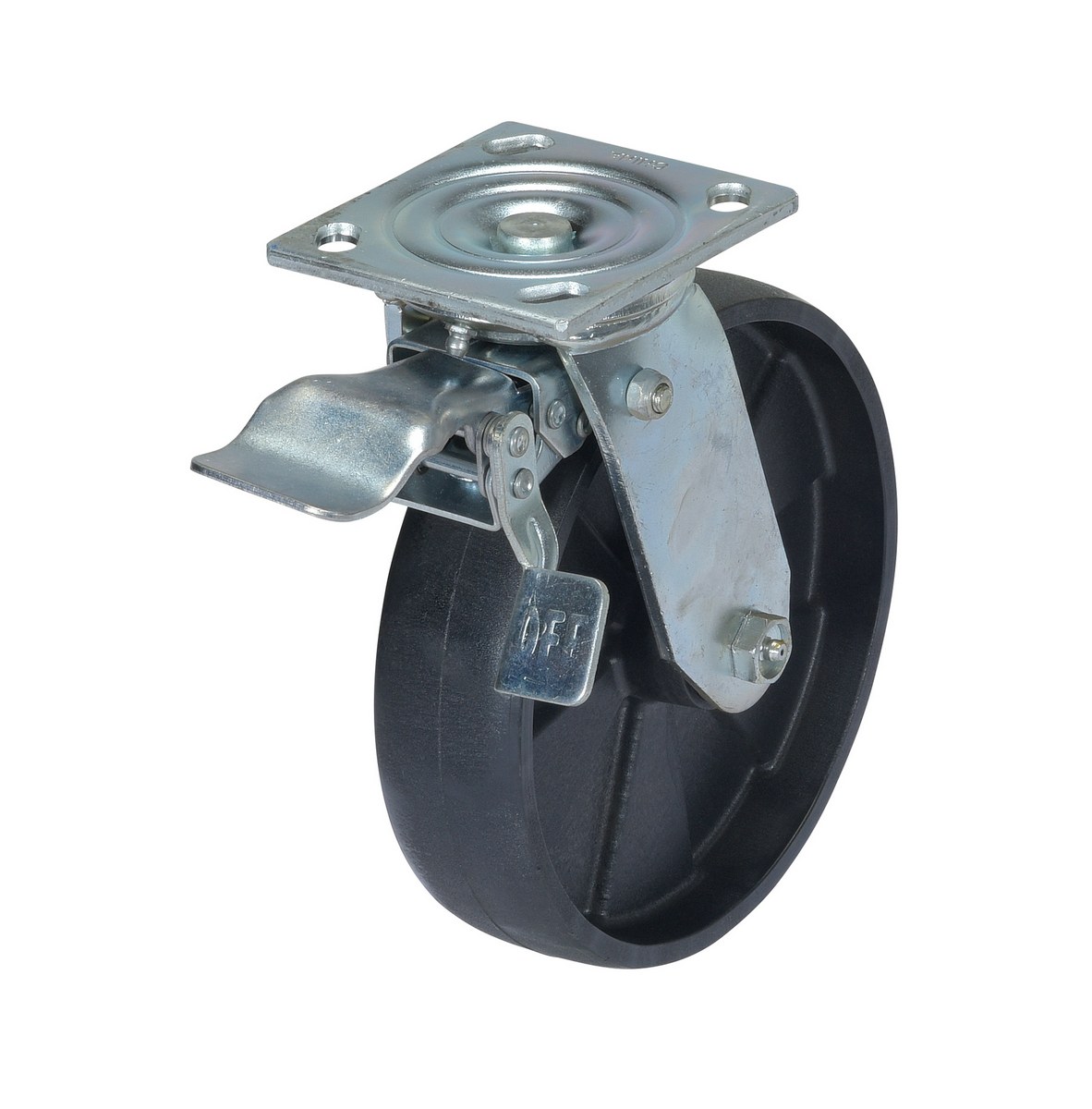

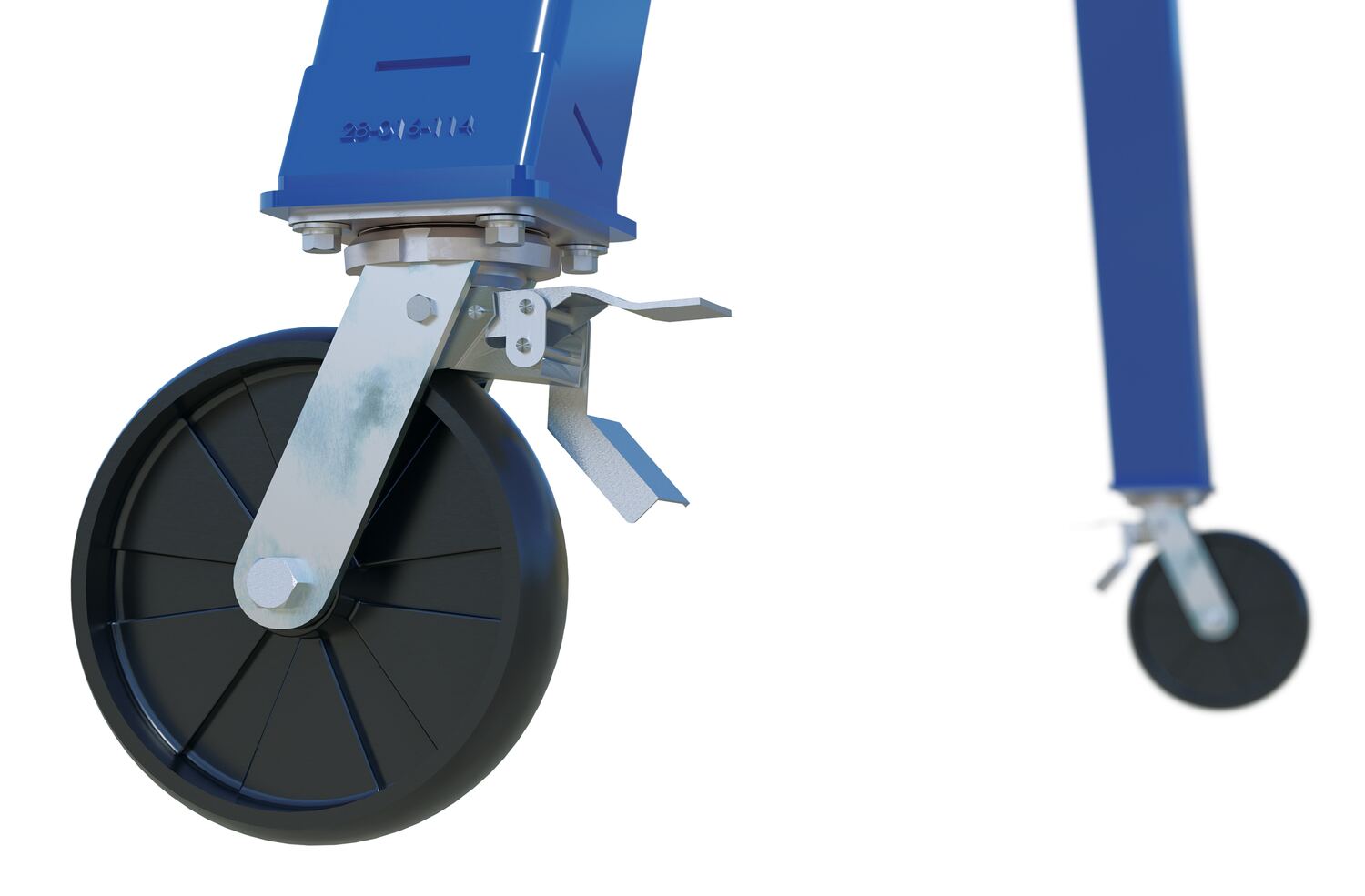

AHS-2/4-TLC			90 Days Limited Warranty	Glass Filled Nylon Total Locking Swivel Casters 8 In. x 2 In. For Steel Gantry Cranes 2,000 Lb. to 4,000 Lb. Capacity	Capacity (lb.): 2000/4000 Caster Material: Glass-Filled Nylon	30

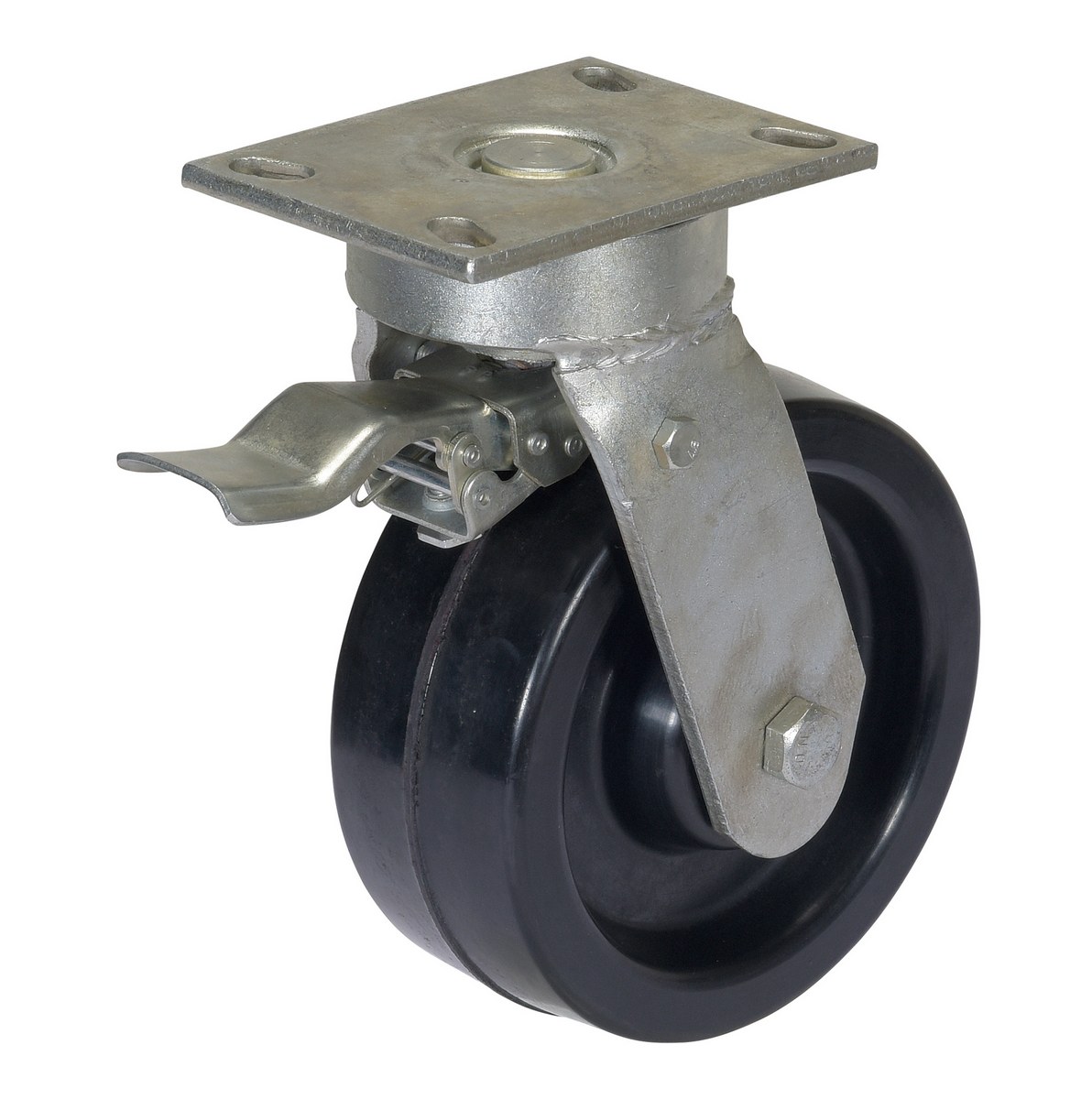

AHS-6/8-TLC			90 Days Limited Warranty	Phenolic Total Locking Swivel Casters 8 In. x 3 In. For Steel Gantry Cranes 6,000 Lb. to 8,000 Lb. Capacity	Capacity (lb.): 6000/8000 Caster Material: Phenolic	71

Model	Image	PDFs	Description
AHS-KIT			(2) Come-A-Longs for height adjustment (Not for lifting)
AHS-STLO			STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with ASH-10-15-10
AHS-STLO-RF			STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with ASH-10-15-10

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Adjustable Steel Gantry Cranes with Total Locking Casters PDF's will open in a new window when clicked.

Manuals

AHS
Owners Manual

AHS-KIT
Owners Manual

Survey Sheets

AHS
Survey Sheet

Approval Drawings

No Approval Drawings For This Product
