Fixed Steel Gantry Cranes with Total Locking Casters

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

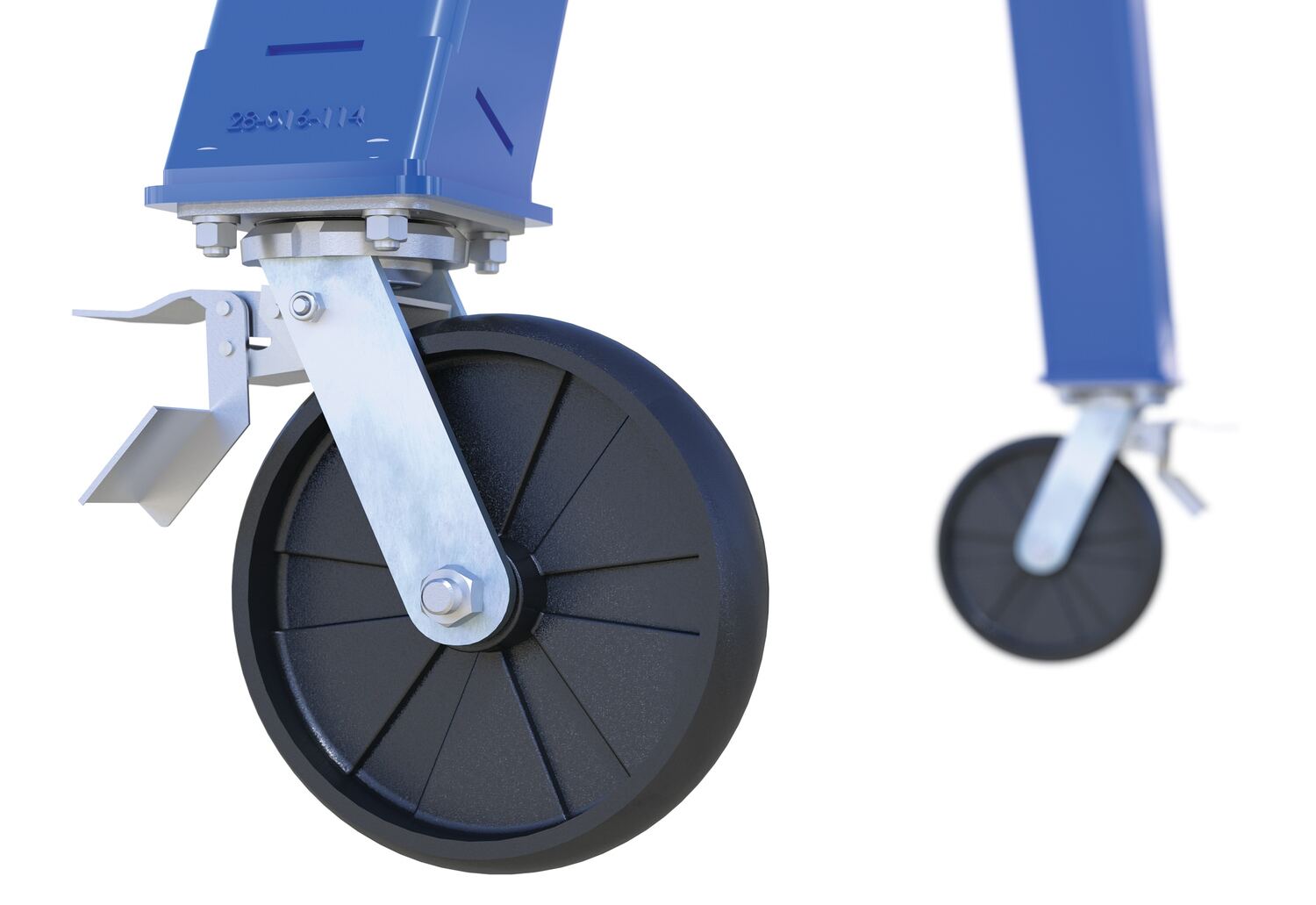

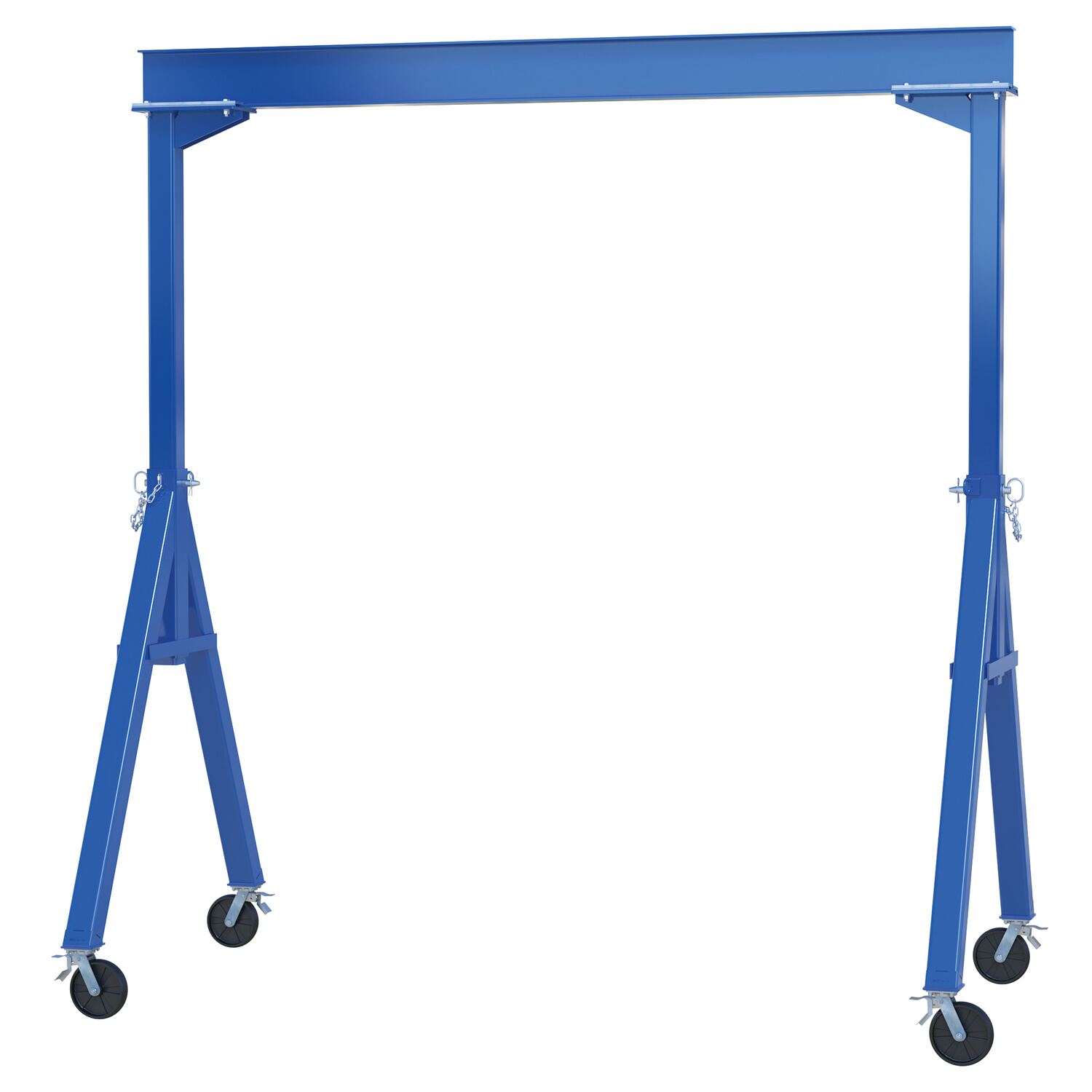

FHS-4-20-TLC_A.jpg FHS-4-20-TLC_B.jpg
Fixed Steel Gantry Cranes with Total Locking Casters

model: FHS-4-20-TLC



Featured Overhead Lifting


Coil Lifter
Roto Grip Magnets
Fixed Height Steel Gantry Cranes - Knockdown
Horizontal Plate Clamps
Overhead Load Lifters
Overhead Coil Hooks
Multi-Station Transportable Jib Cranes
Magnetic Spreader Beams
Mini Cable Hoists
model chart

Product Family Overview

Print Friendly
Fixed Steel Gantry Cranes with Total Locking Casters
SERIES: FHS-TLC

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the wheels from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the wheels from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit. Hoists & Trollies can be ordered seperately.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Other Gantry Cranes

 Adjustable Steel Gantry Cranes with Total Locking Casters Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown Adjustable Height Aluminum Gantry Cranes Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FHS-2-10-TLC FHS-2-10-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4		2783
FHS-2-15-TLC FHS-2-15-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4		2862
FHS-2-20-TLC FHS-2-20-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4		21044
FHS-4-10-TLC FHS-4-10-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4		2828
FHS-4-15-TLC FHS-4-15-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4		2895
FHS-4-20-TLC FHS-4-20-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4		21017
FHS-6-10-TLC FHS-6-10-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4		2841
FHS-6-15-TLC FHS-6-15-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4		2941
FHS-6-20-TLC FHS-6-20-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4		21348
FHS-8-10-TLC FHS-8-10-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4		2896
FHS-8-15-TLC FHS-8-15-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4		2996
FHS-8-20-TLC FHS-8-20-TLC1 Year Limited WarrantySteel Fixed Gantry Crane with Total Locking Phenolic Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4		21357

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FHS-2-10-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4

FHS-2-15-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4

FHS-2-20-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 2000
Casters Swivel with Brakes(Qty): 4

FHS-4-10-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4

FHS-4-15-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4

FHS-4-20-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 4000
Casters Swivel with Brakes(Qty): 4

FHS-6-10-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4

FHS-6-15-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4

FHS-6-20-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 6000
Casters Swivel with Brakes(Qty): 4

FHS-8-10-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4

FHS-8-15-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4

FHS-8-20-TLC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4
Uniform Capacity (lbs.): 8000
Casters Swivel with Brakes(Qty): 4
For More Details of the Option Click the Red Model Button
Model Image PDFs Description
FHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with 10,000 lbs. units
FHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with 10,000 lbs. units
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fixed Steel Gantry Cranes with Total Locking Casters PDF's will open in a new window when clicked.

Manuals


FHS
Owners Manual

Survey Sheets


FHS
Survey Sheet

Approval Drawings

No Approval Drawings For This Product

Testing Certificates


FHS-2-10-TLC

FHS-2-15-TLC

FHS-2-20-TLC

FHS-4-10-TLC

FHS-4-15-TLC

FHS-4-20-TLC

FHS-6-10-TLC

FHS-6-15-TLC

FHS-6-20-TLC

FHS-8-10-TLC

FHS-8-15-TLC

FHS-8-20-TLC

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
