Fixed Height Aluminum Gantry Cranes

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

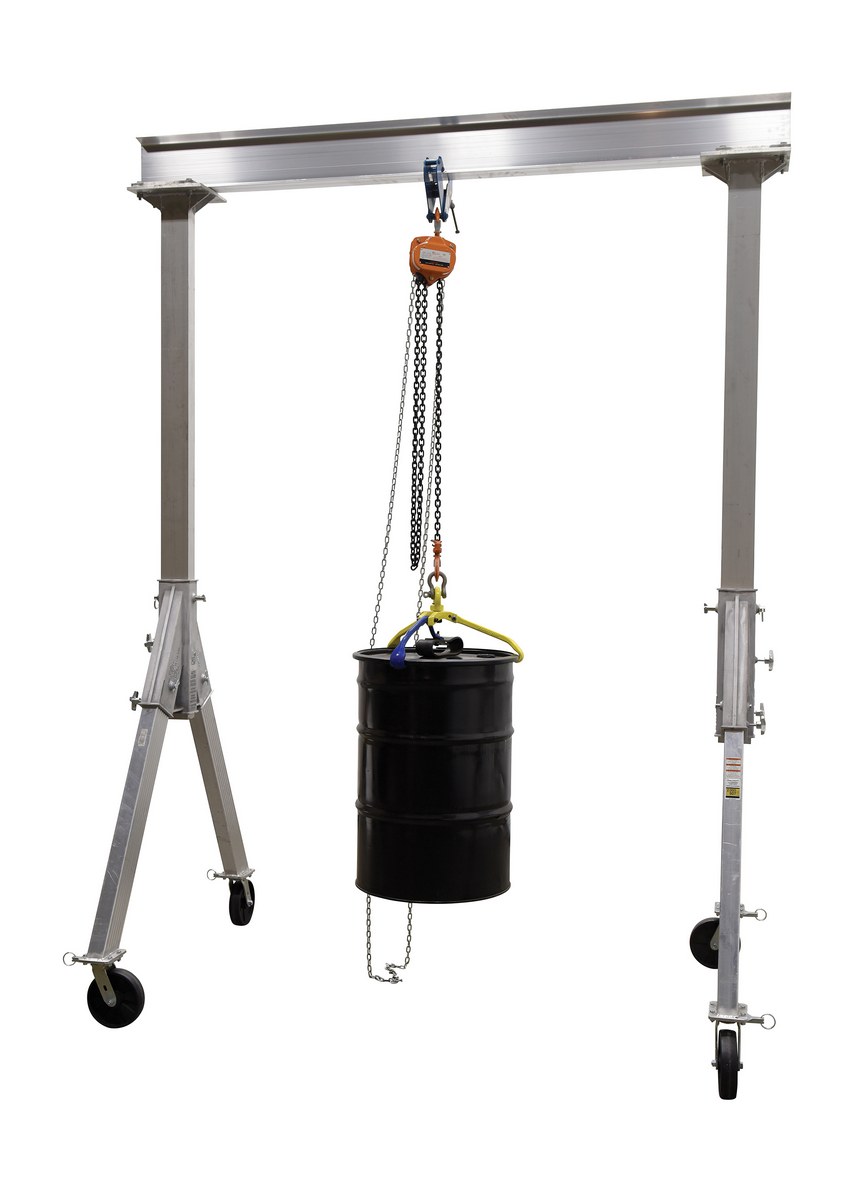

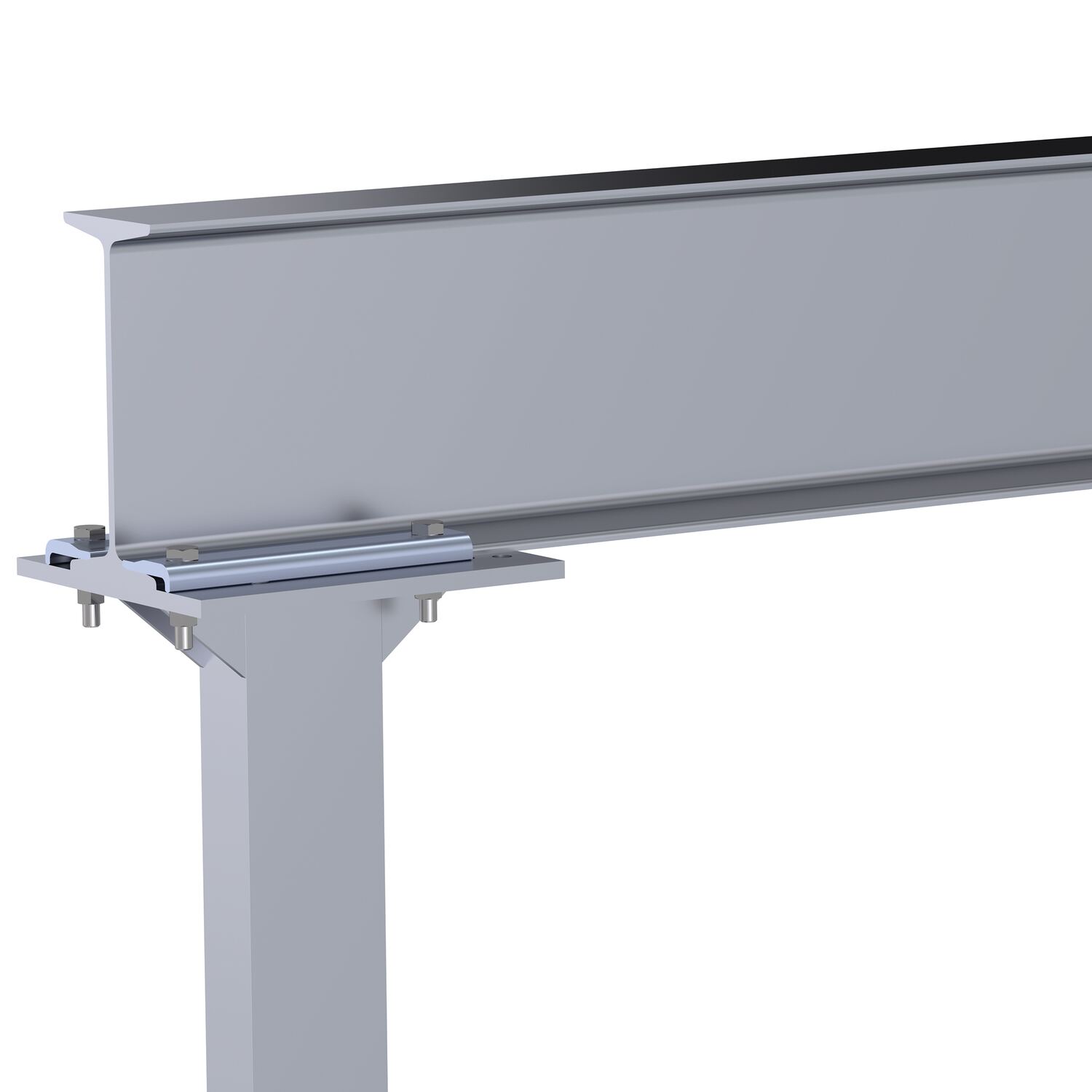

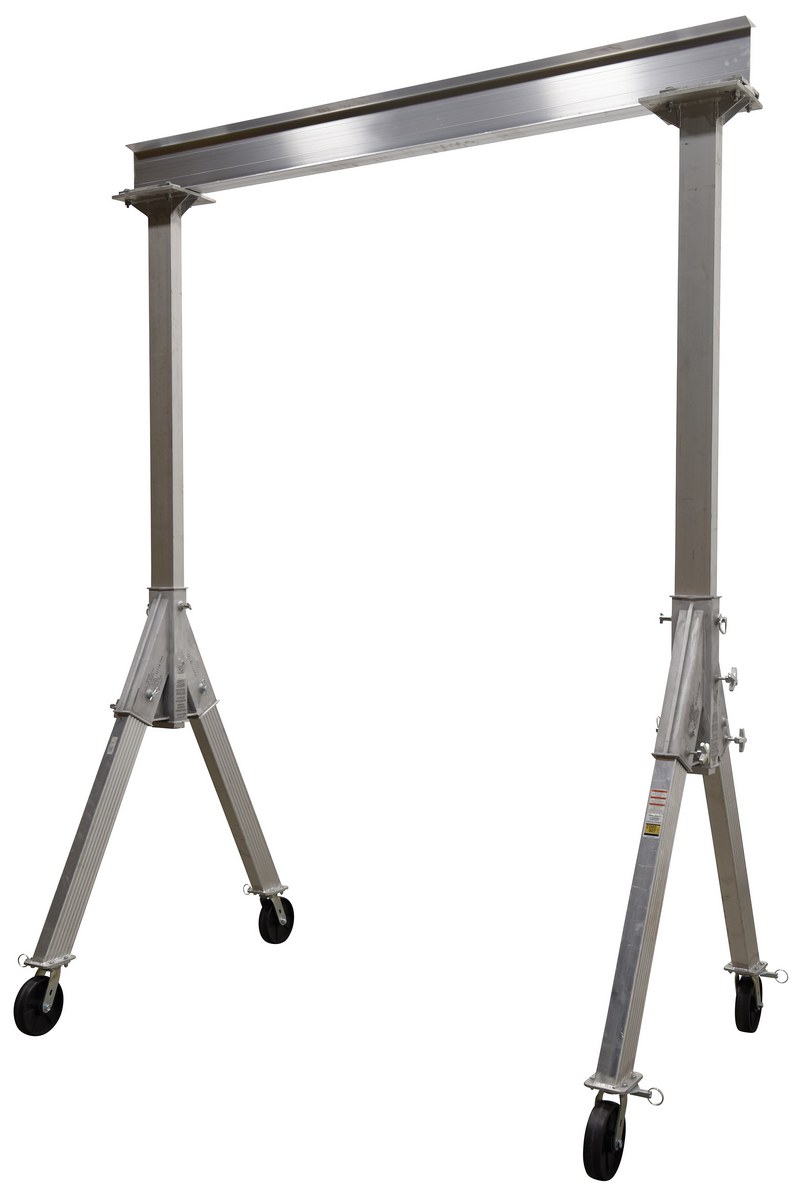

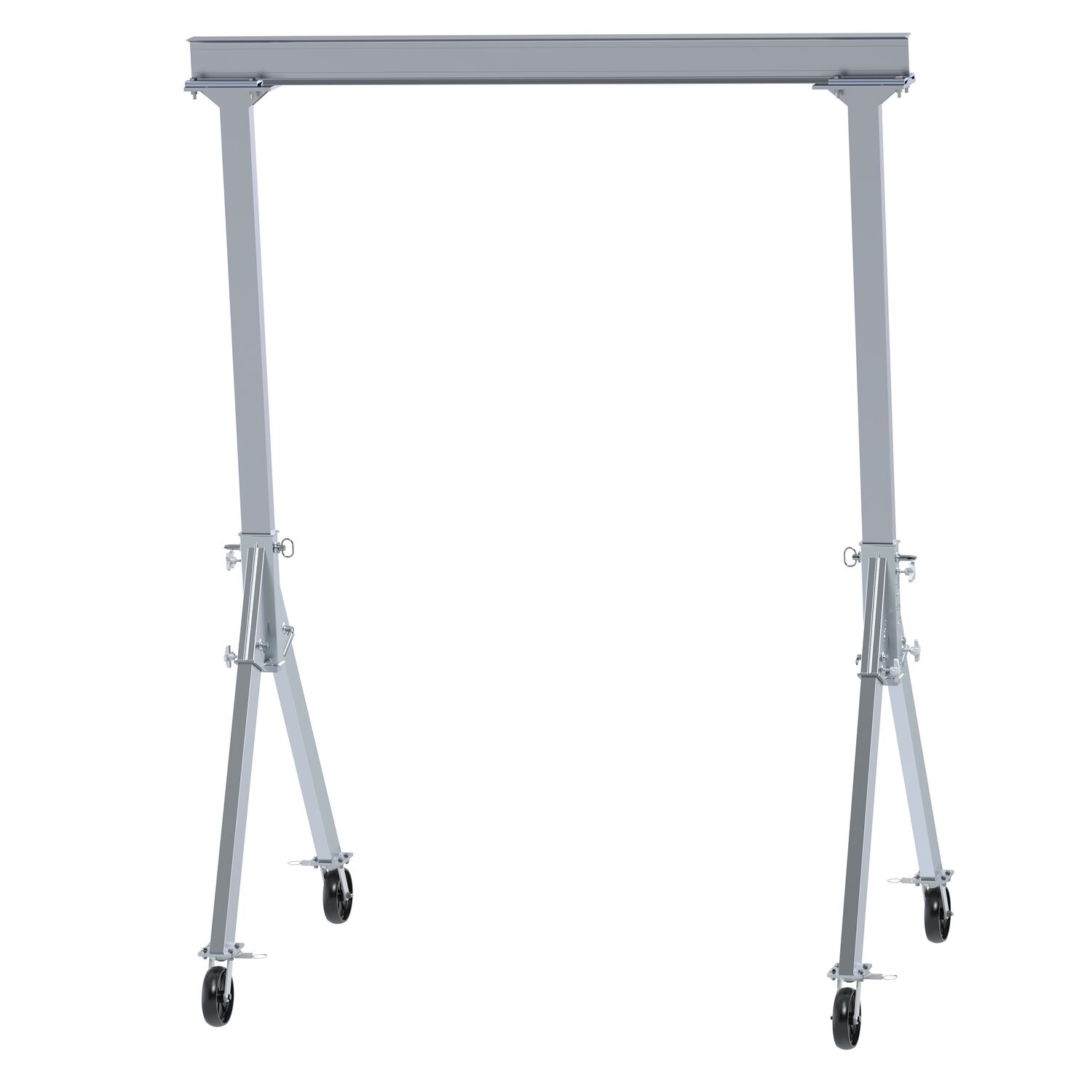

FHA-2-8-10_D.jpg FHA-2-8-10_C.jpg
Fixed Height Aluminum Gantry Cranes

model: FHA-2-8-10



Featured Overhead Lifting


Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Floor Mounted Jibs
Jib Cranes
Air Powered Chain Hoists
Mechanical & Pneumatic Hoist Attachments
Non-Marring Plate Clamps
Compact & Lightweight Lever Hoist (disc brake)
Gantry Sling Racks
Wall Jibs
model chart

Product Family Overview

Print Friendly
Fixed Height Aluminum Gantry Cranes
SERIES: FHA

The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production. The aluminum design is easily manageable and can be simply assembled for immediate use. A fixed height is perfect for working in a permanent or semi-permanent environment where the surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if changing locations is needed. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-6K units have phenolic casters). A strong construction allows for long lasting strength through the harshest of environments. Hoists & Trollies can be ordered seperately.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production. The aluminum design is easily manageable and can be simply assembled for immediate use. A fixed height is perfect for working in a permanent or semi-permanent environment where the surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if changing locations is needed. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-6K units have phenolic casters). A strong construction allows for long lasting strength through the harshest of environments. Hoists & Trollies can be ordered seperately.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Other Gantry Cranes

 Adjustable Steel Gantry Cranes with Total Locking Casters - Knockdown Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters Steel Gantry Crane Power Traction Drive Options Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

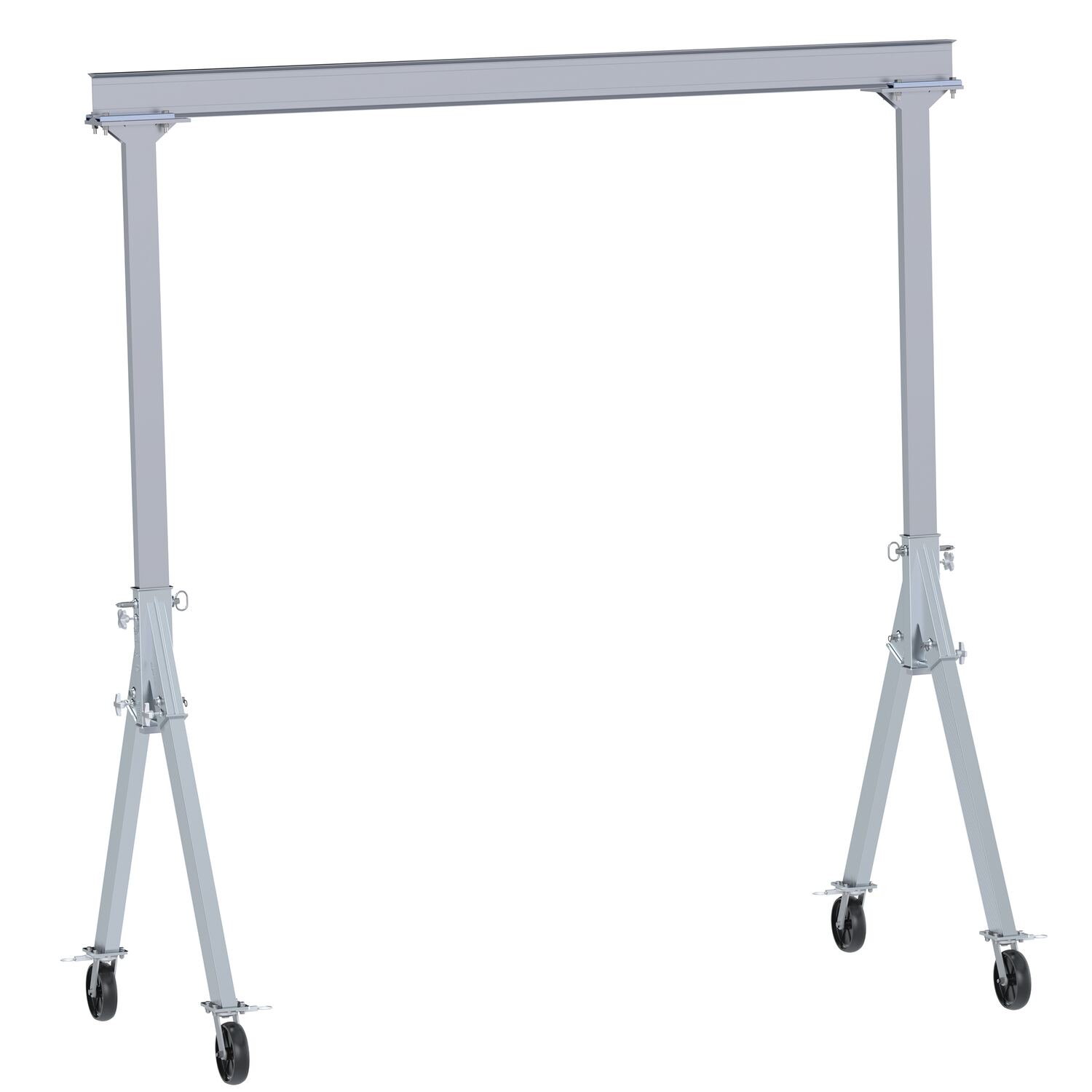

FHA-2-10-10 FHA-2-10-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 10 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 120		333

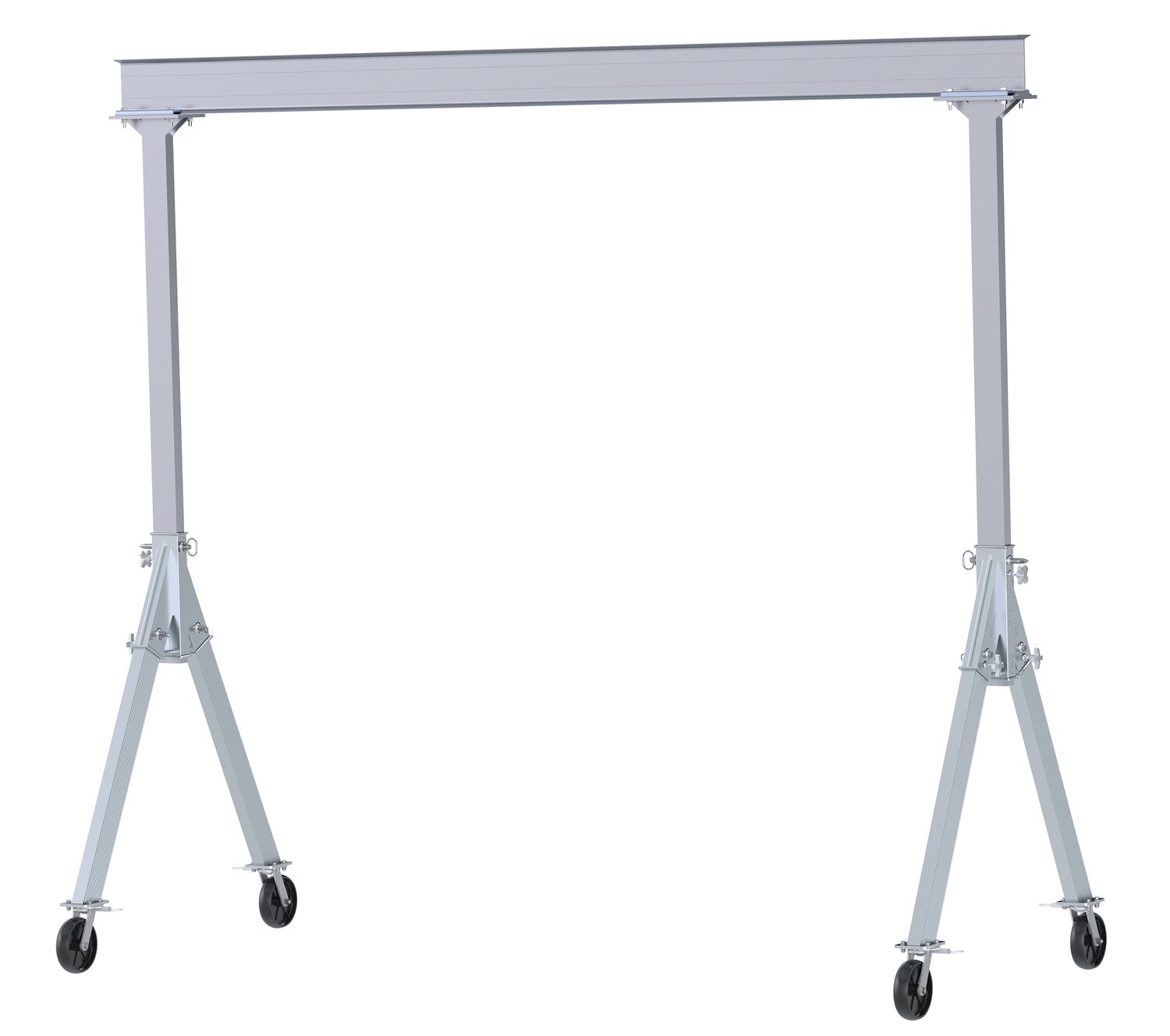

FHA-2-12-10 FHA-2-12-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 12 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 144		355

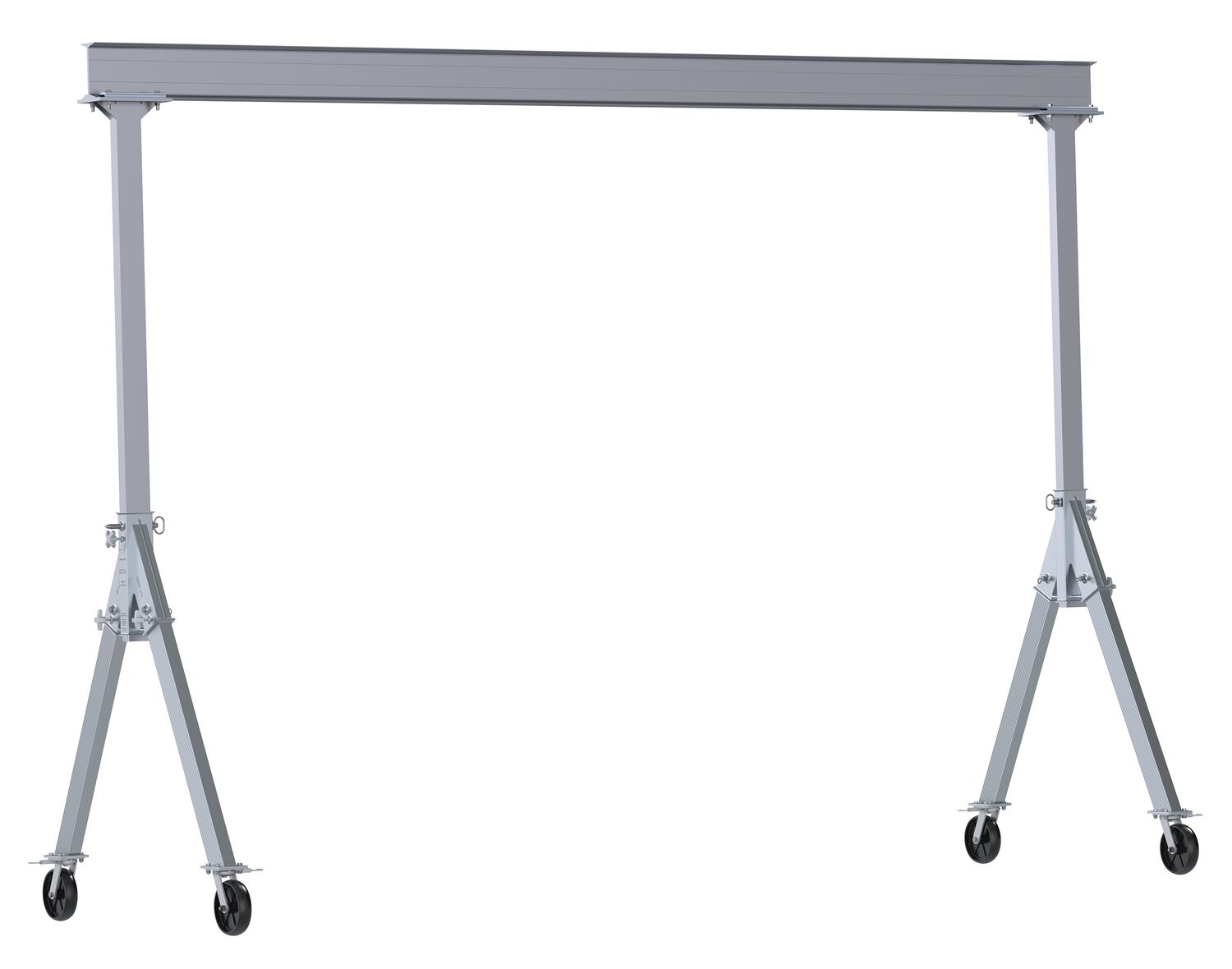

FHA-2-15-10 FHA-2-15-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 15 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 180		445
FHA-2-8-10 FHA-2-8-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Glass Filled Nylon Locking Casters 8 Ft. x 10 Ft. 2000 Lb. Capacity SilverUniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 96		331

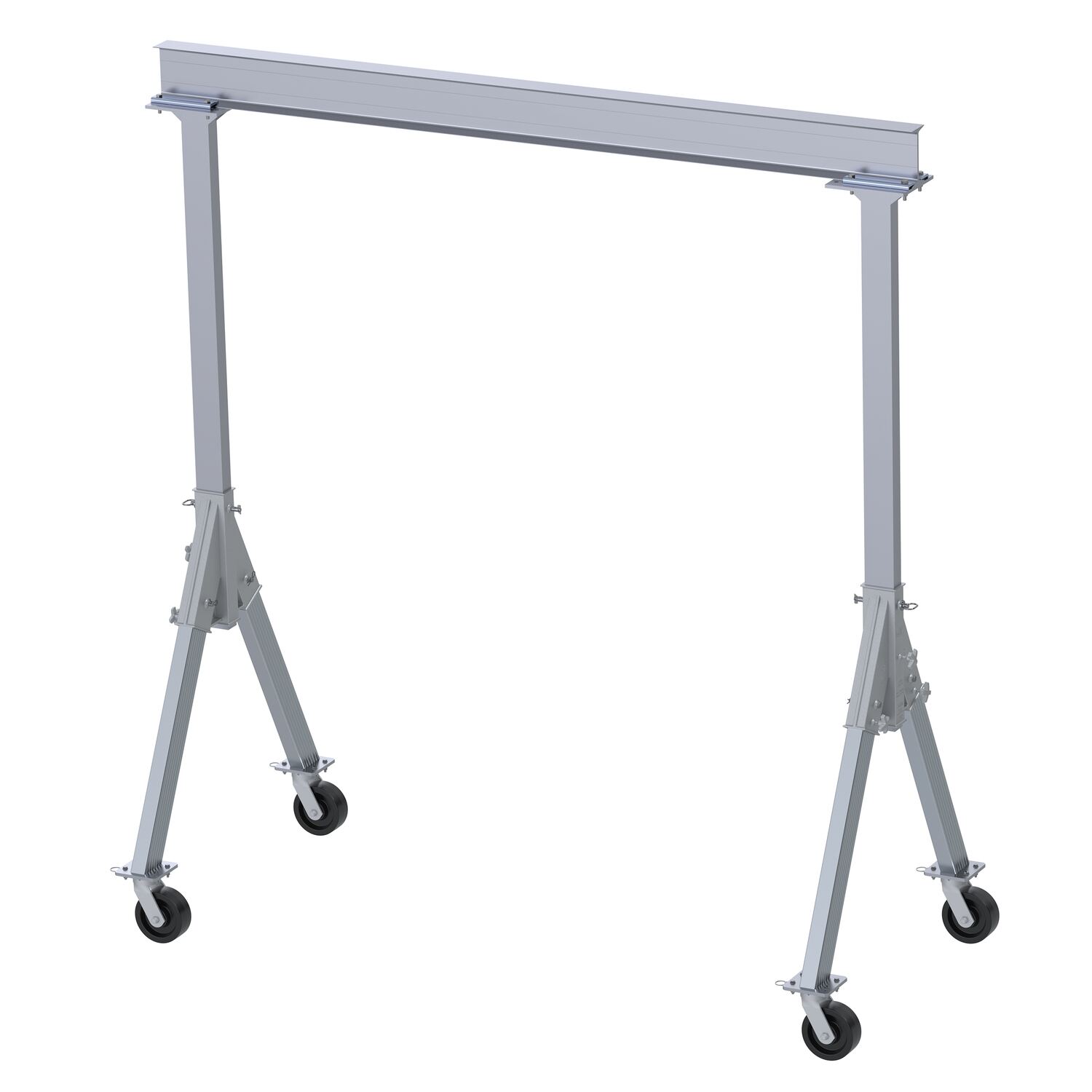

FHA-4-10-10 FHA-4-10-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 10 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 120		390

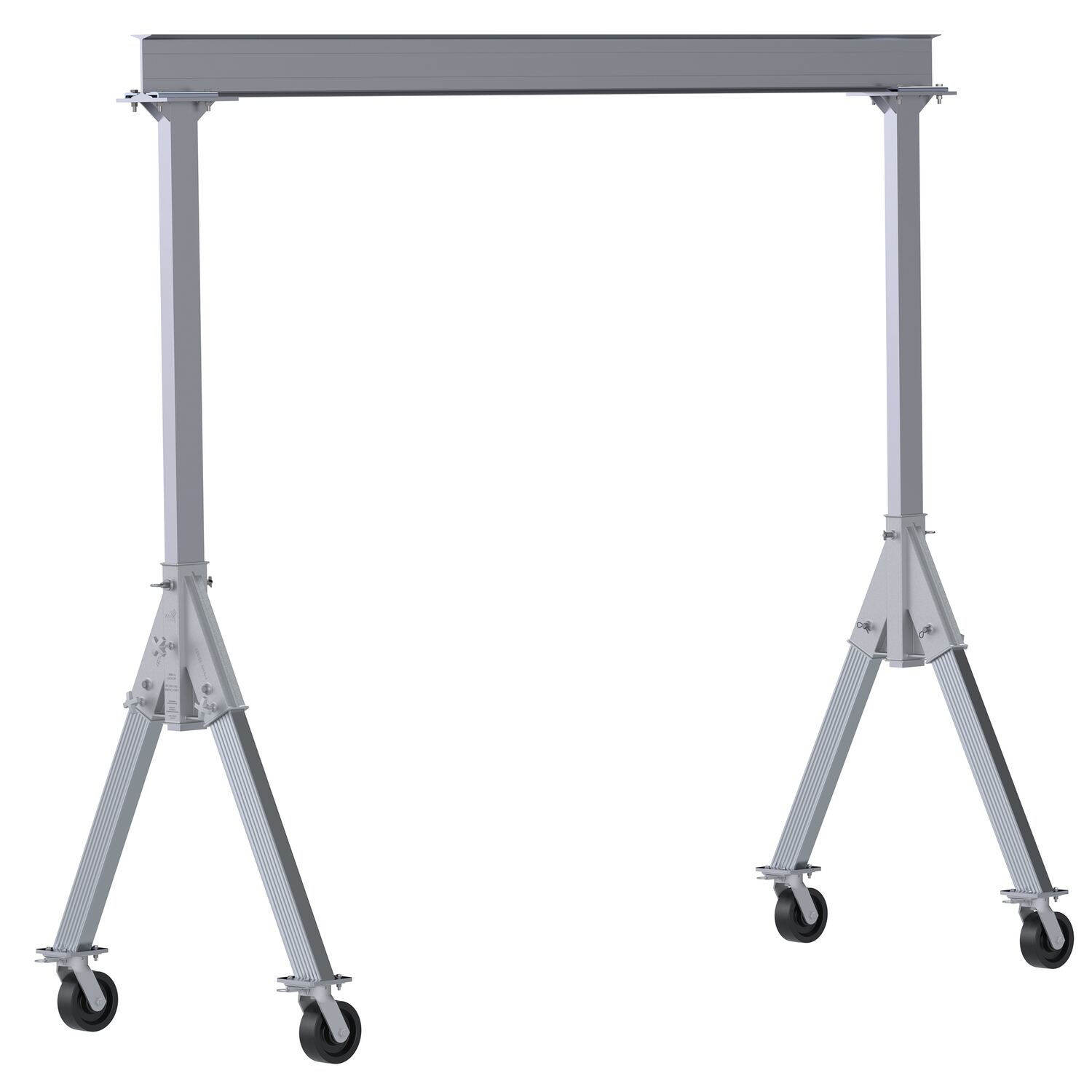

FHA-4-12-10 FHA-4-12-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 144		406

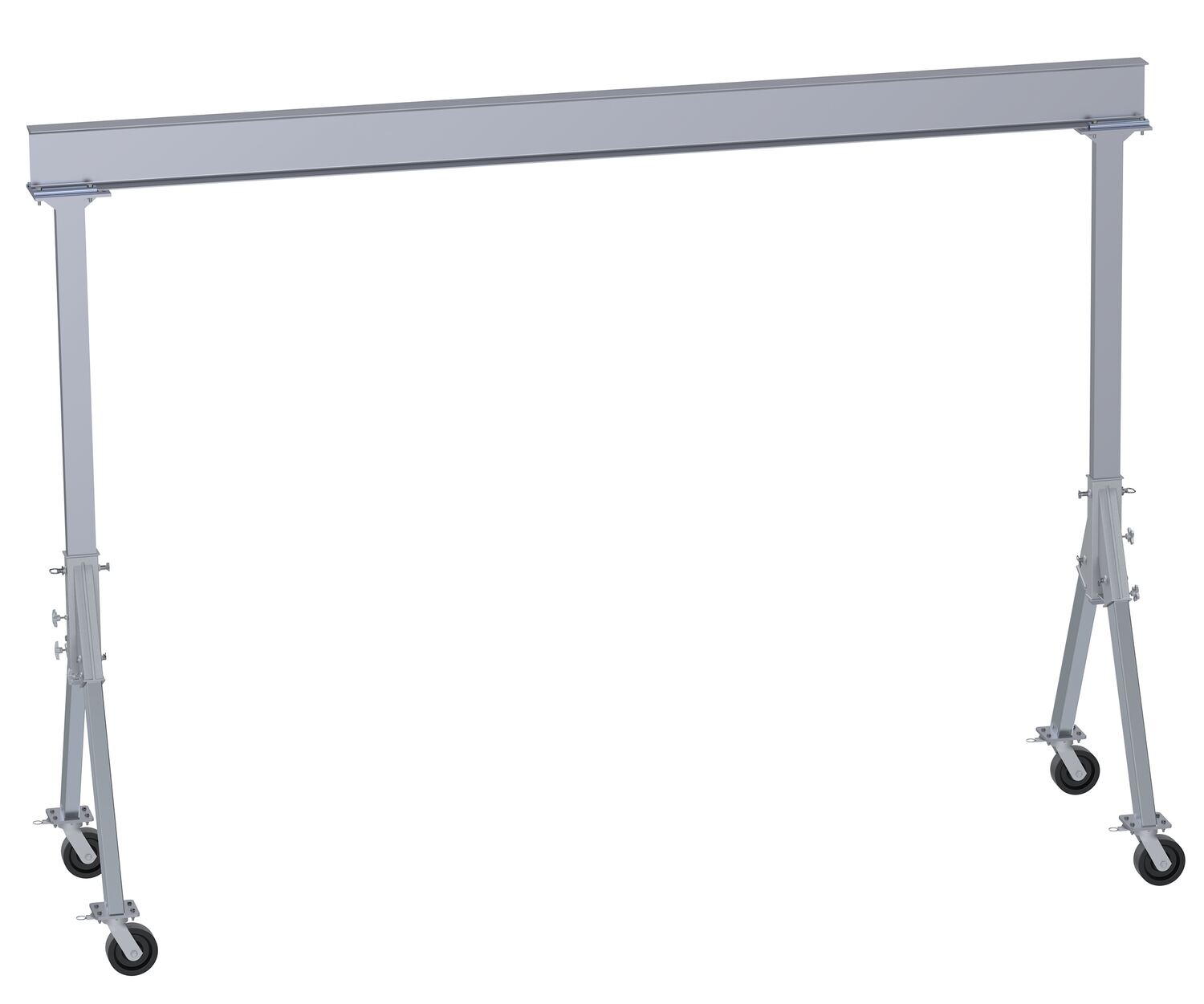

FHA-4-15-10 FHA-4-15-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 180		442

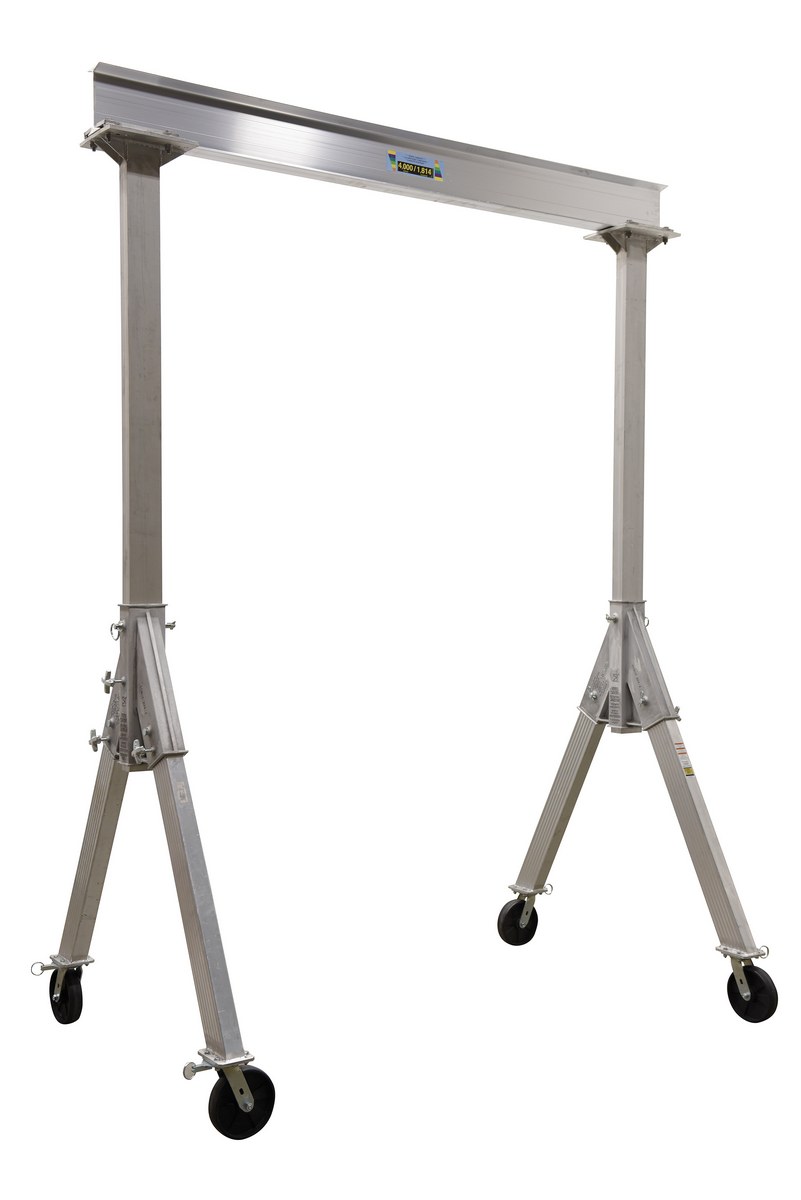

FHA-4-8-10 FHA-4-8-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 8 Ft. x 10 Ft. 4000 Lb. Capacity SilverUniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 96		390
FHA-6-10-10 FHA-6-10-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 10 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 120		2734
FHA-6-12-10 FHA-6-12-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 144		2993
FHA-6-15-10 FHA-6-15-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 15 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 180		2914
FHA-6-8-10 FHA-6-8-101 Year Limited WarrantyAluminum Fixed Gantry Crane with Phenolic Locking Casters 8 Ft. x 10 Ft. 6000 Lb. Capacity SilverUniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 96		2639

* Usable distance between uprights is overall I-Beam length minus 15-7/8 Usable trolley travel length is overall I-Beam length minus 23-3/4

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

FHA-2-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 120
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 120

FHA-2-12-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 144
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 144

FHA-2-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 180
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 180

FHA-2-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 96
Uniform Capacity (lb.): 2000
Overall I-Beam Length (in.): 96

FHA-4-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 120
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 120

FHA-4-12-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 144
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 144

FHA-4-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 180
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 180

FHA-4-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 96
Uniform Capacity (lb.): 4000
Overall I-Beam Length (in.): 96

FHA-6-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 120
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 120

FHA-6-12-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 144
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 144

FHA-6-15-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 180
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 180

FHA-6-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 96
Uniform Capacity (lb.): 6000
Overall I-Beam Length (in.): 96
For More Details of the Option Click the Red Model Button
FHA-STLO FHA-STLO1 Year Limited WarrantyFactory Installed Steel Stationary Legs Kit Quantity 4 For Fixed Height Aluminum Gantry CranesQuantity: 4
85

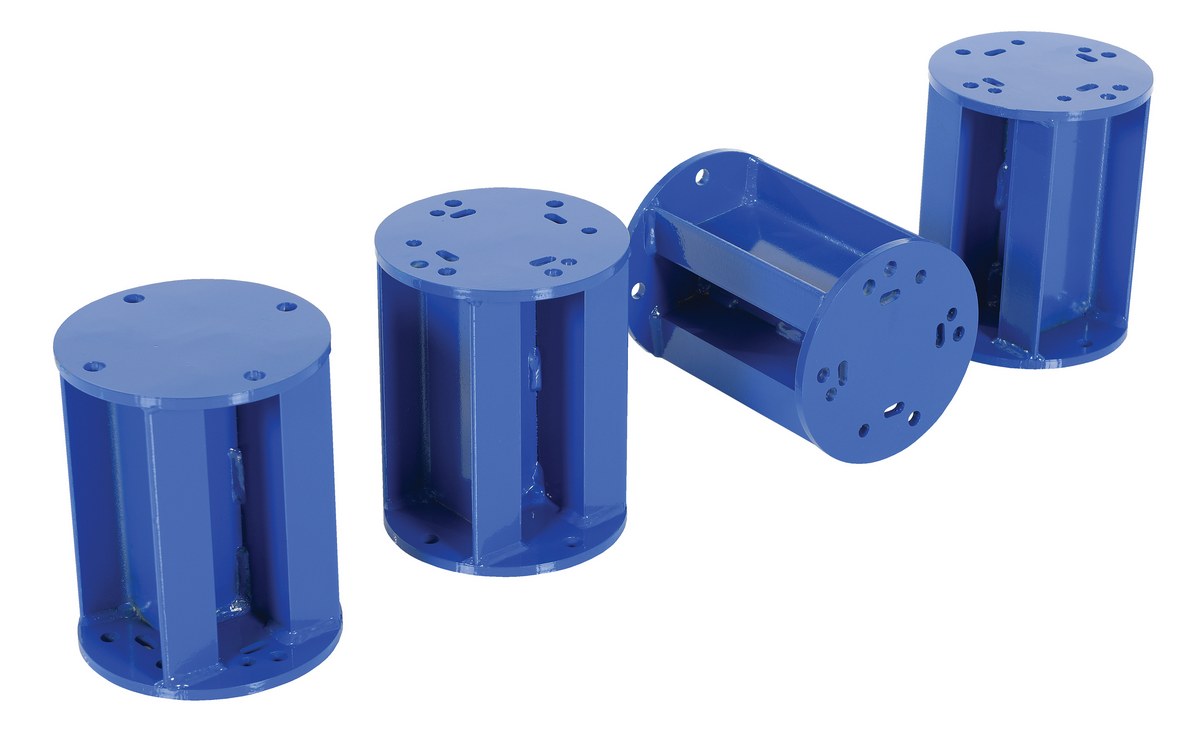

FHA-STLO-RF FHA-STLO-RF1 Year Limited WarrantySteel Field Installed Stationary Legs For Fixed Height Aluminum Gantry Crane Models BlueQuantity: 4
85

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fixed Height Aluminum Gantry Cranes PDF's will open in a new window when clicked.

Manuals


FHA
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FHA-2-10-10

FHA-2-12-10

FHA-2-15-10

FHA-2-8-10

FHA-4-10-10

FHA-4-12-10

FHA-4-15-10

FHA-4-8-10

FHA-6-10-10

FHA-6-12-10

FHA-6-15-10

FHA-6-8-10

FHA-STLO

FHA-STLO-RF

Testing Certificates


FHA-2-10-10

FHA-2-12-10

FHA-2-15-10

FHA-2-8-10

FHA-4-10-10

FHA-4-12-10

FHA-4-15-10

FHA-4-8-10

FHA-6-10-10

FHA-6-12-10

FHA-6-15-10

FHA-6-8-10

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: If we order the V-Groove system, is it possible to keep the gantry on the rail if we only have one person pushing the crane on one side?

A: We recommend pushing the gantry on both sides when re-positioning it. The V-groove options makes moving much easier.
