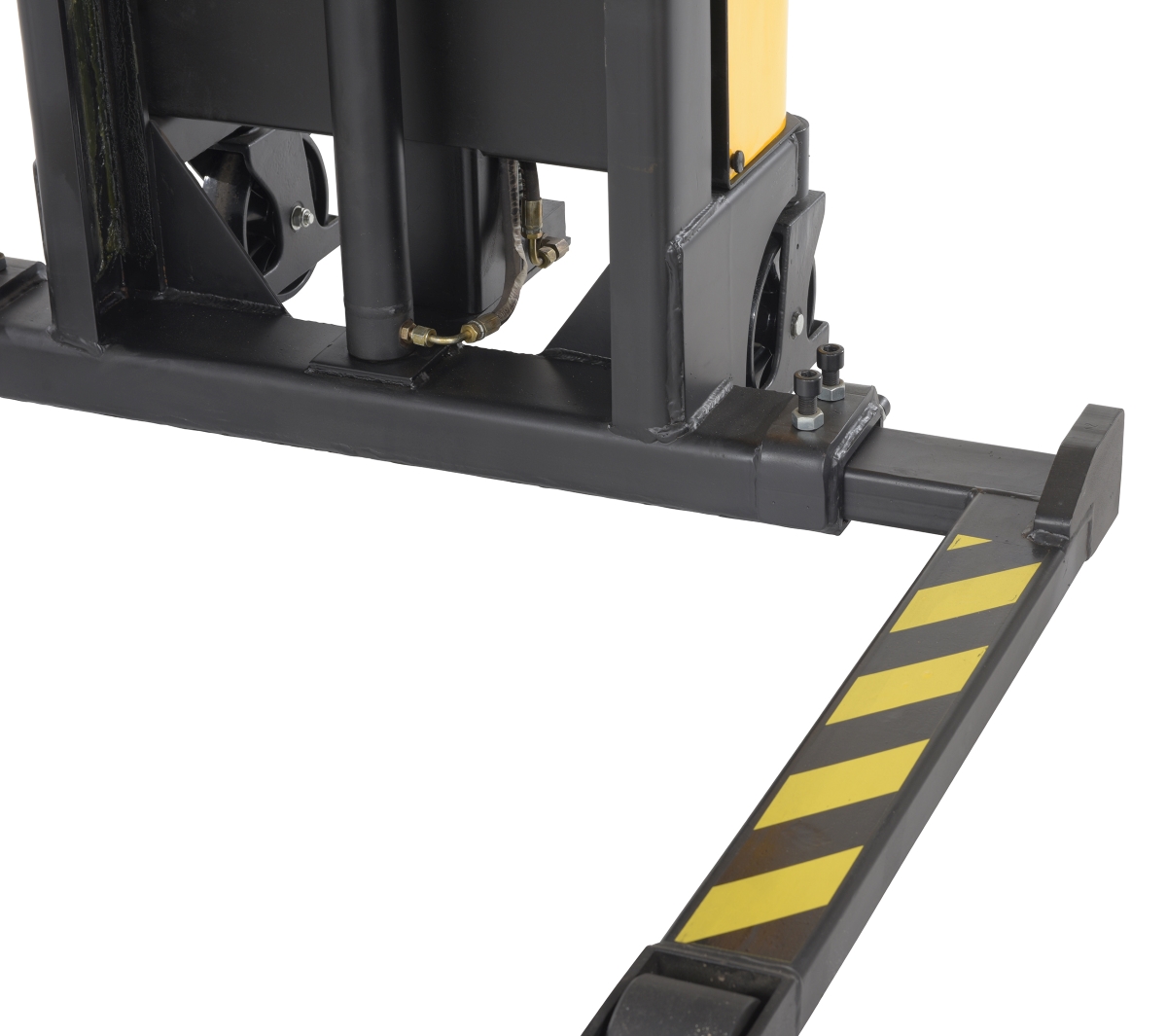

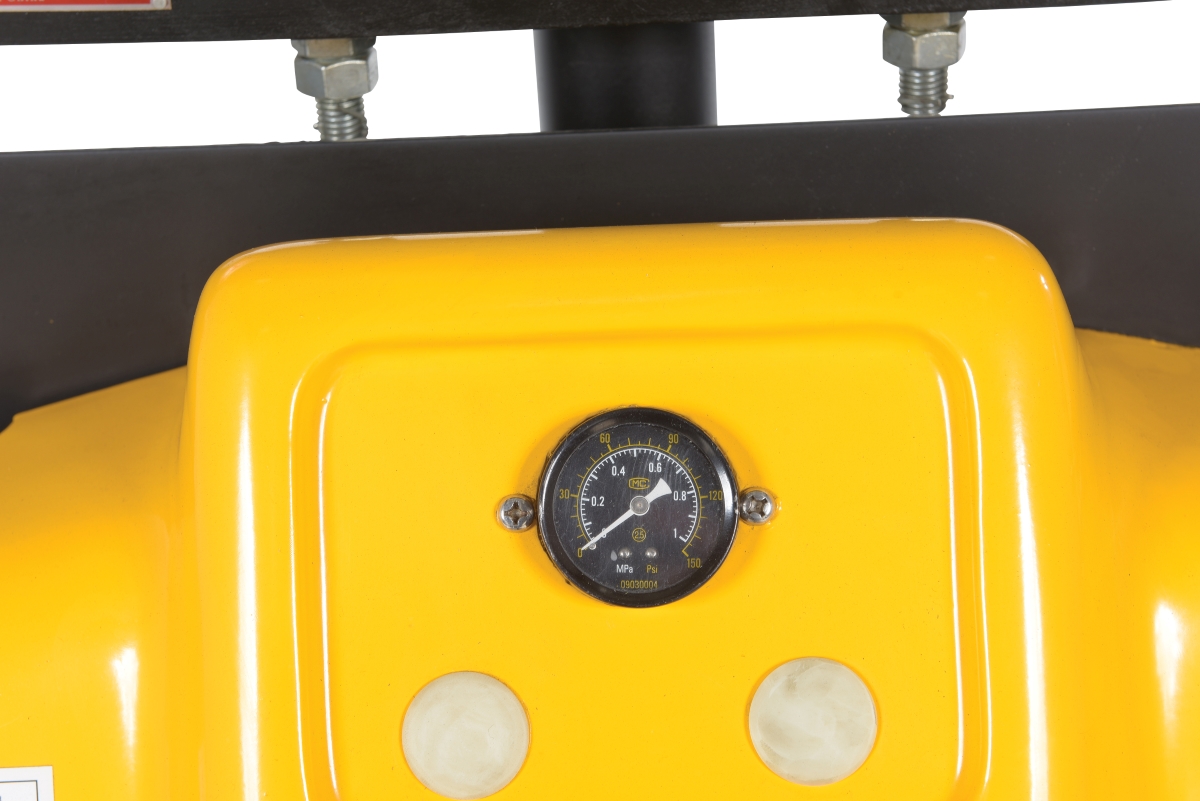

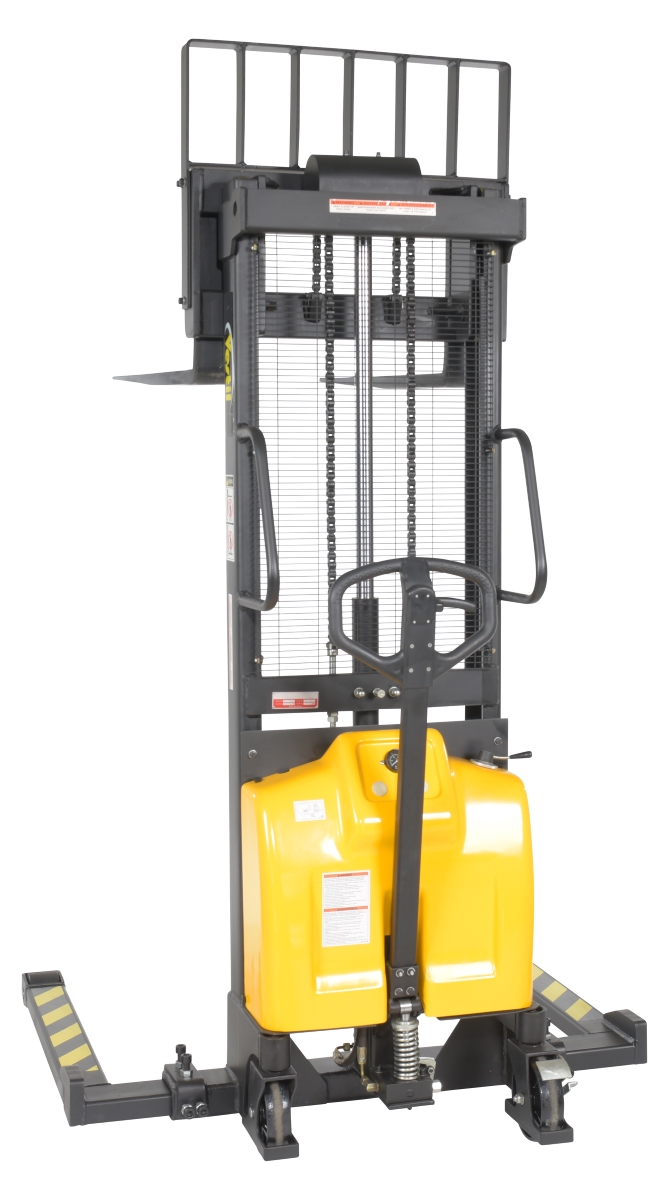

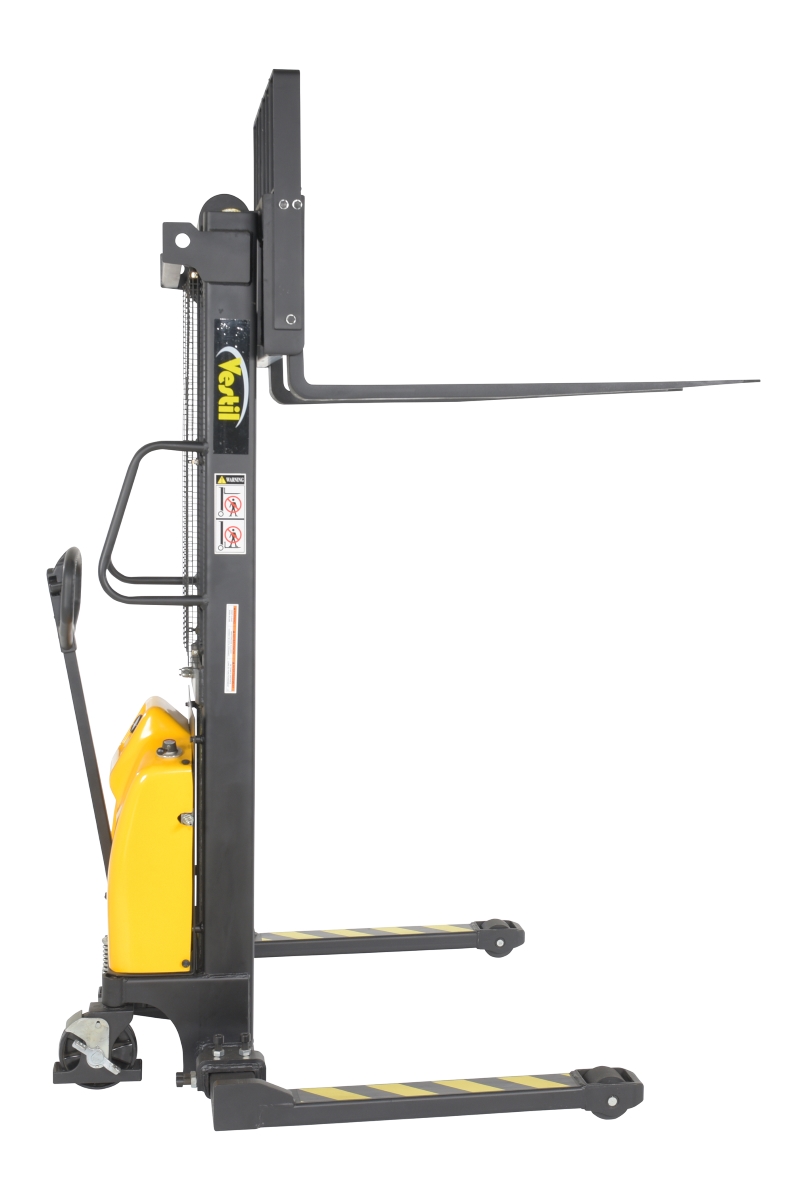

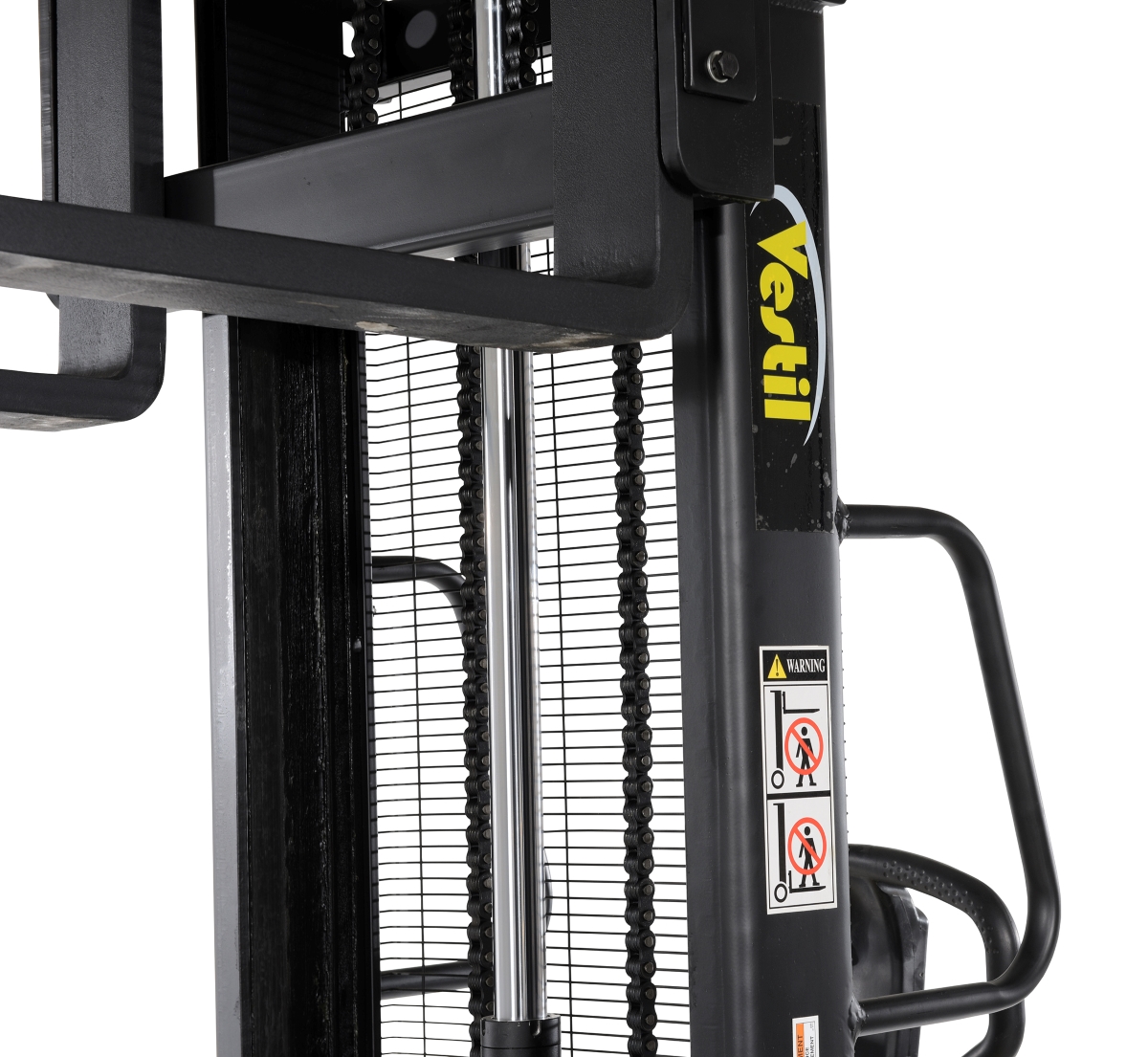

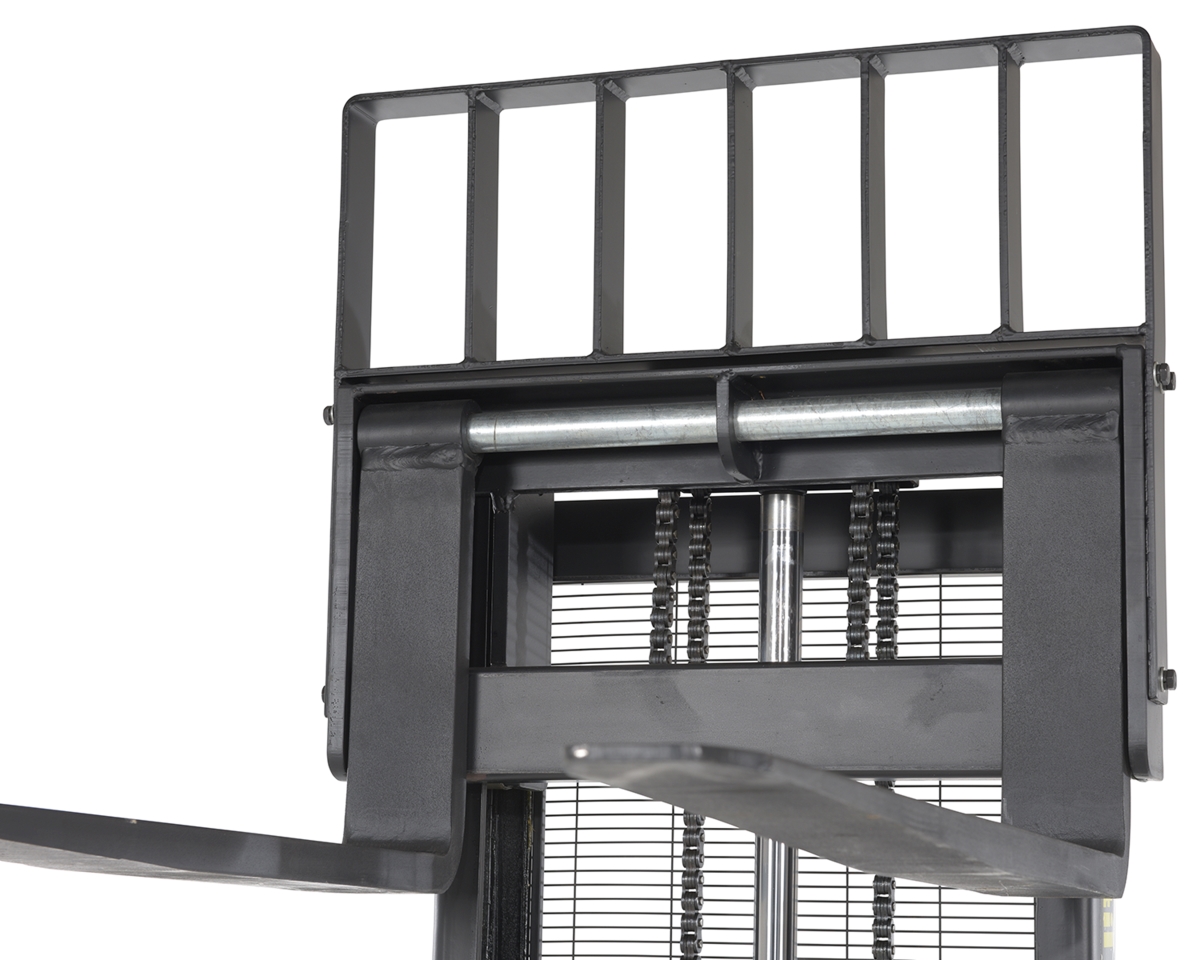

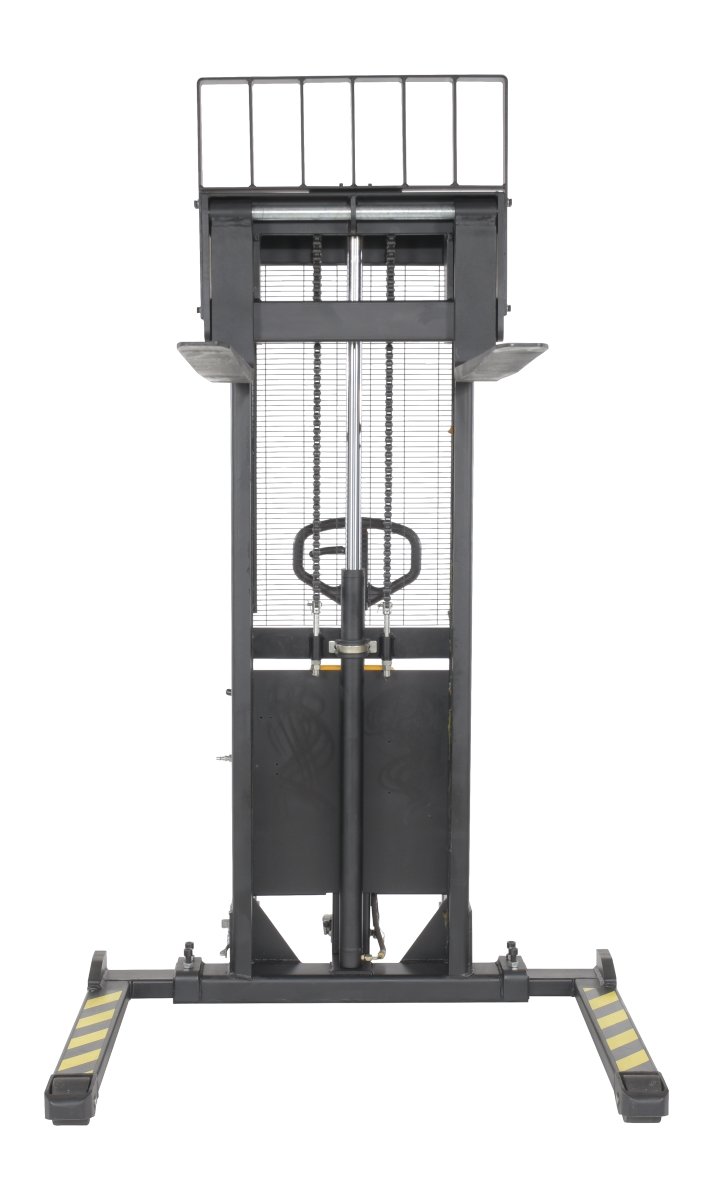

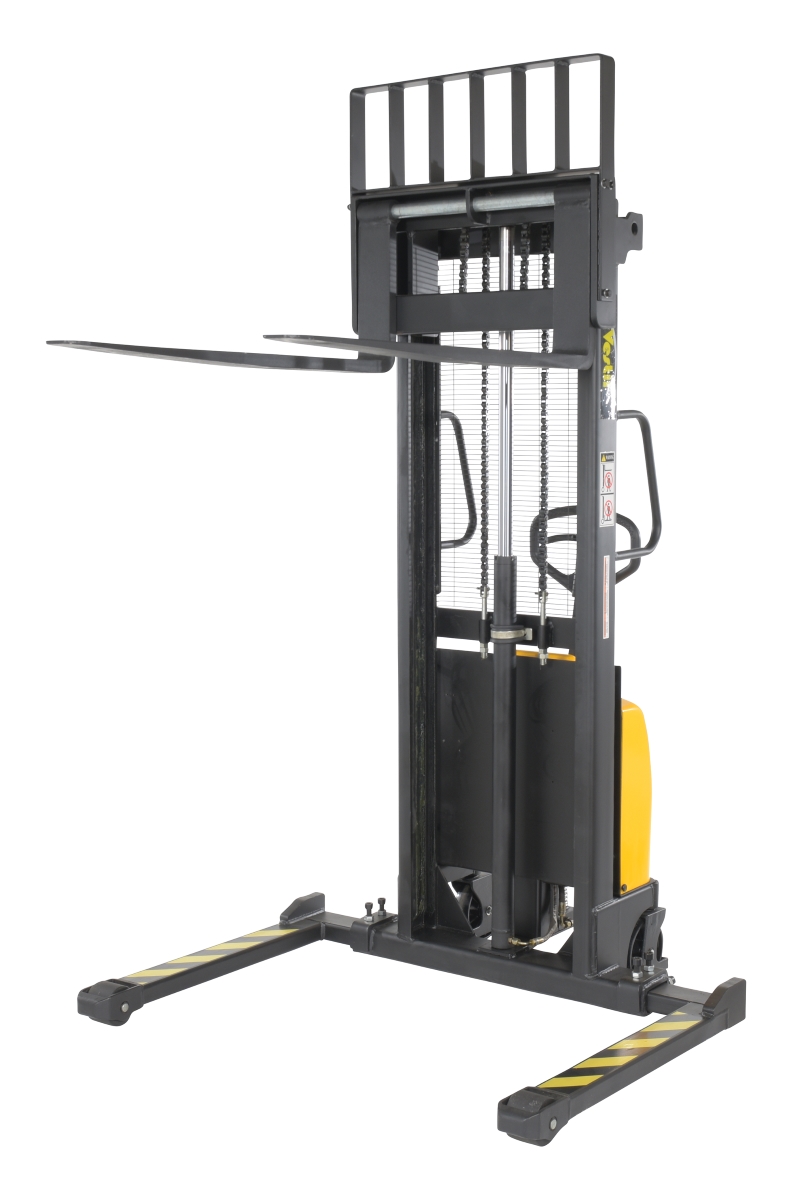

SE-HP-63-AA-AIR_B.jpg SE-HP-63-AA-AIR_C.jpg SE-HP-63-AA-AIR_F.jpg SE-HP-63-AA-AIR_J.jpg
SE-HP-63-AA-AIR_E.jpg SE-HP-63-AA-AIR_D.jpg SE-HP-63-AA-AIR_H.jpg SE-HP-63-AA-AIR_K.jpg
Combination Hand Pump and Electric Stackers

model: SE-HP-63-AA-AIR



Featured Ergonomic Solutions


Ergonomic Pack Carrying Belt
Options For Electric Hydraulic Equipment
Bench Top Tilters
Hydraulic Motorcycle Lift
Electric Hydraulic Scissor Lift Tables
Tilters
Portable Aluminum Load Lifter
Hydraulic Elevating Carts (partially stainless steel)
Manual & Electric Stackers (Pramac)
model chart

Product Family Overview

Print Friendly
Combination Hand Pump and Electric Stackers
SERIES: SE/HP

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V, 40Ah batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Individual forks are 6" wide.

An economical alternative DC powered lift stacker. Ideal for maintenance and commercial applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile construction. An economical lift to handle tasks such as transporting dies, molds, and skids. Powered with two (2) 12V, 40Ah batteries. Integral battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Individual forks are 6" wide.

Other Stackers

 Manual & Electric Stackers Narrow Mast Stackers with Powered Lift Powered Stacker with Power Drive, Power Lift, & Power Fork Reach Basket & Skid Stackers

Additional Models In This Family
view entire Image Gallery

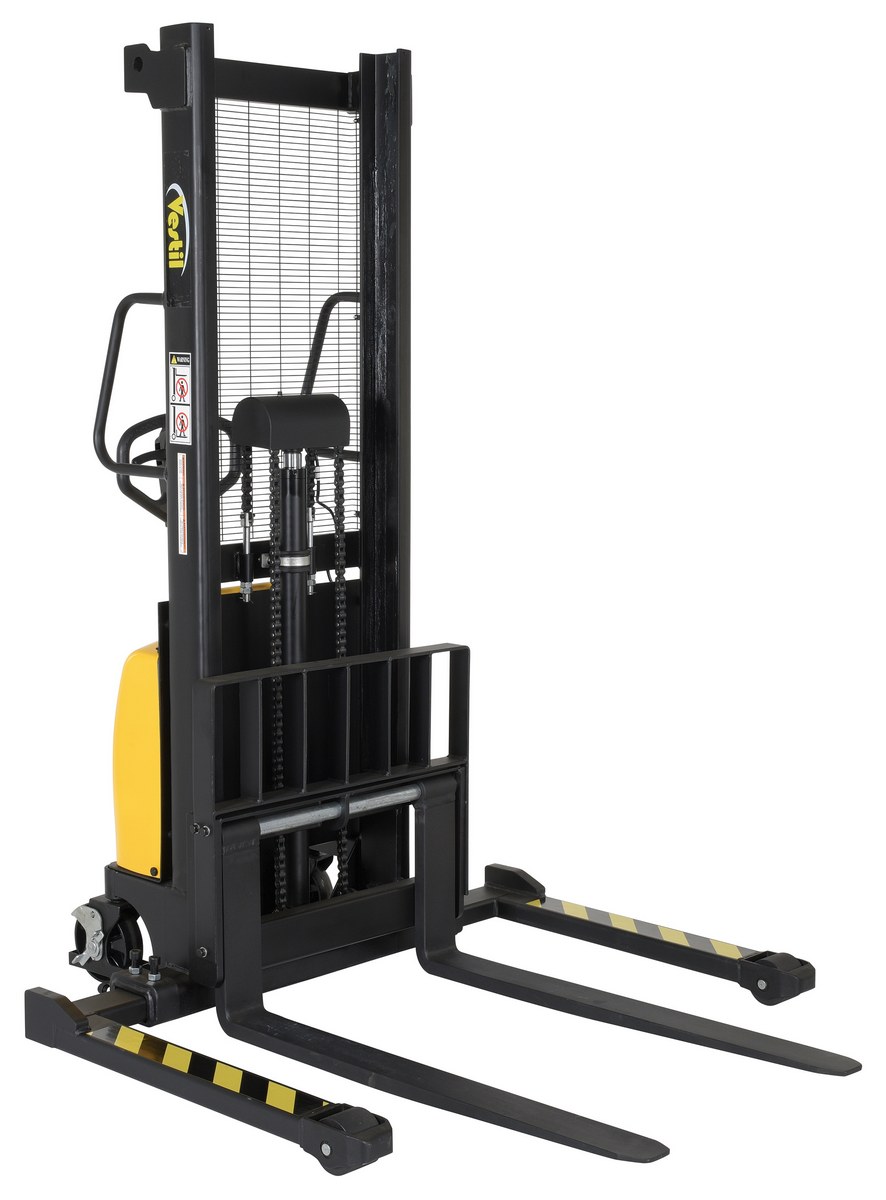

SE-HP-63-AA

model SE-HP-63-AA

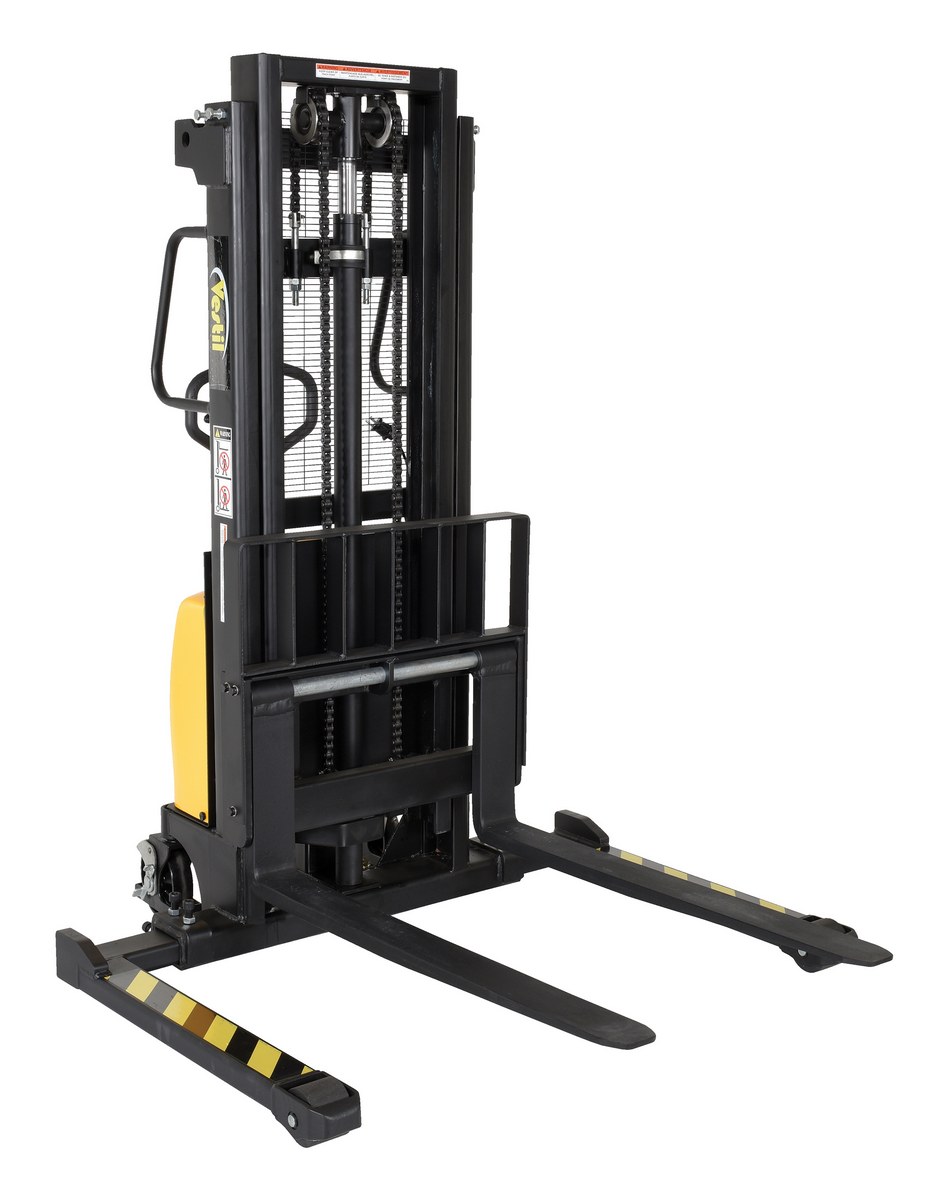

SE-HP-98-AA

model SE-HP-98-AA

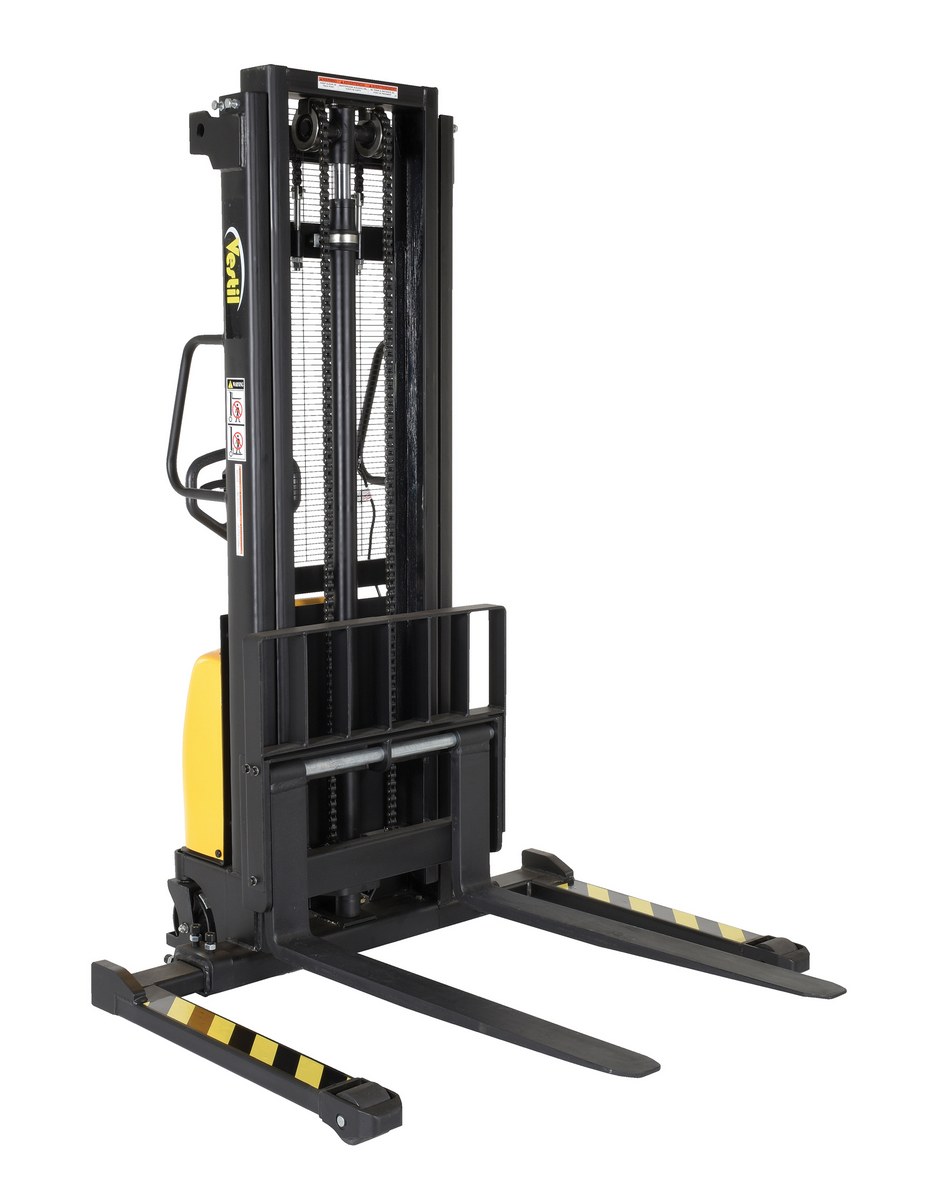

SE-HP-118-AA

model SE-HP-118-AA

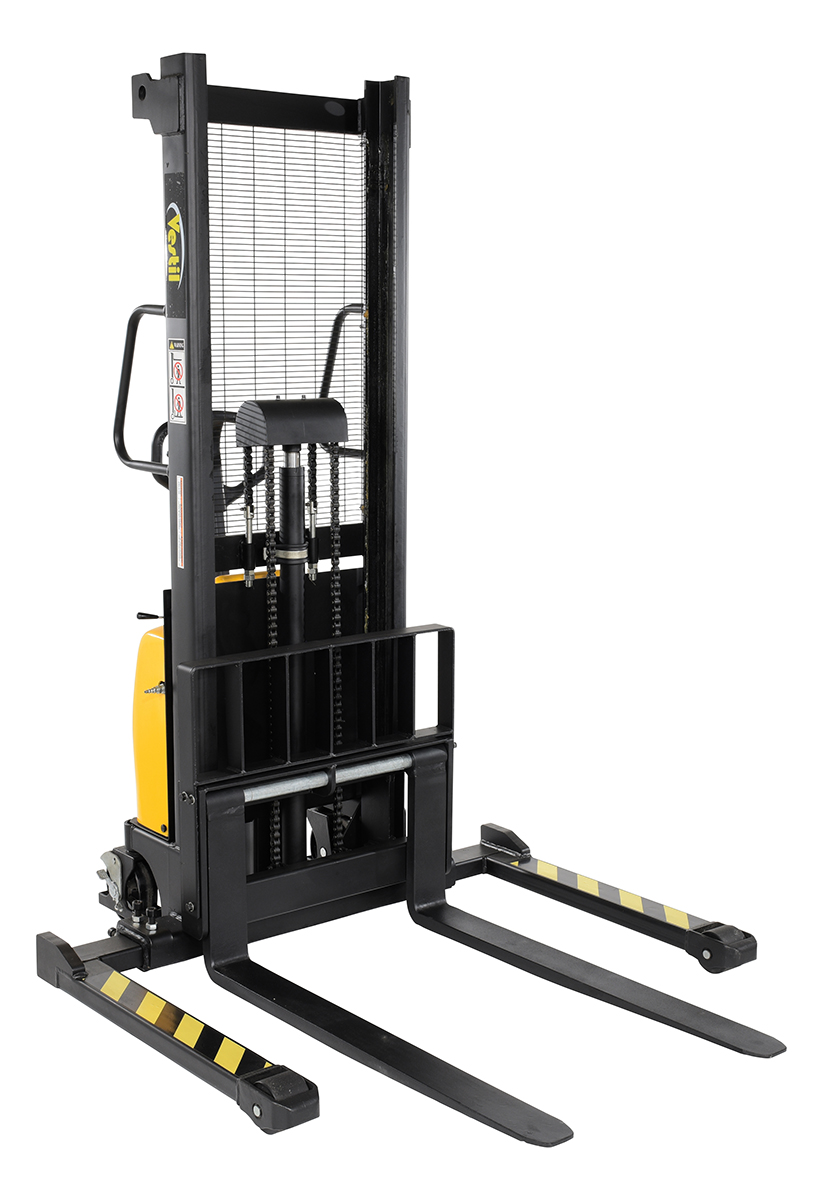

SE-HP-63-AA-AIR

model SE-HP-63-AA-AIR

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

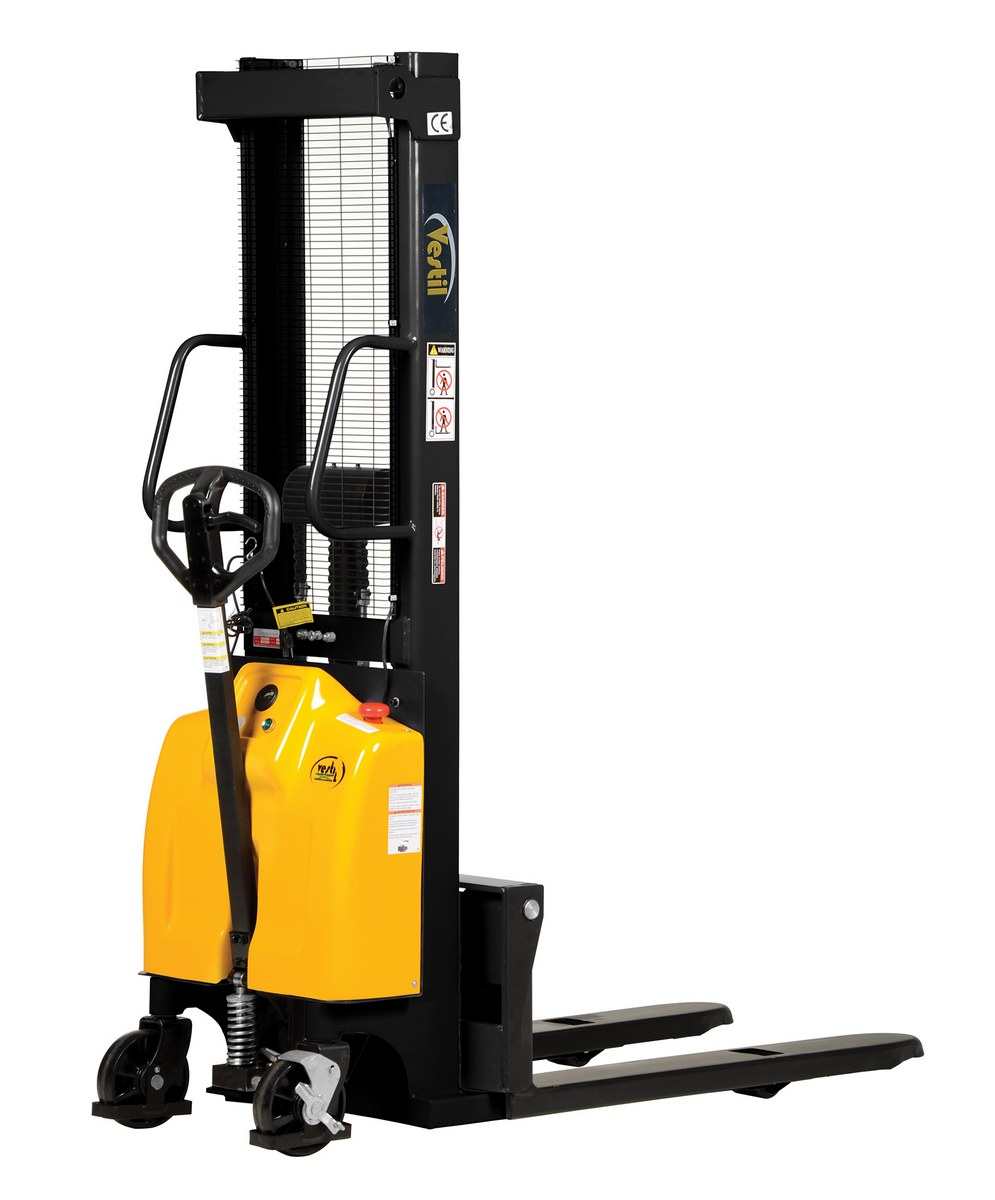

SE/HP-118 SE/HP-1181 Year Limited WarrantySteel Hand Pump DC Powered Stacker with Fixed Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500		984
SE/HP-118-AA SE/HP-118-AA1 Year Limited WarrantySteel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500		1160

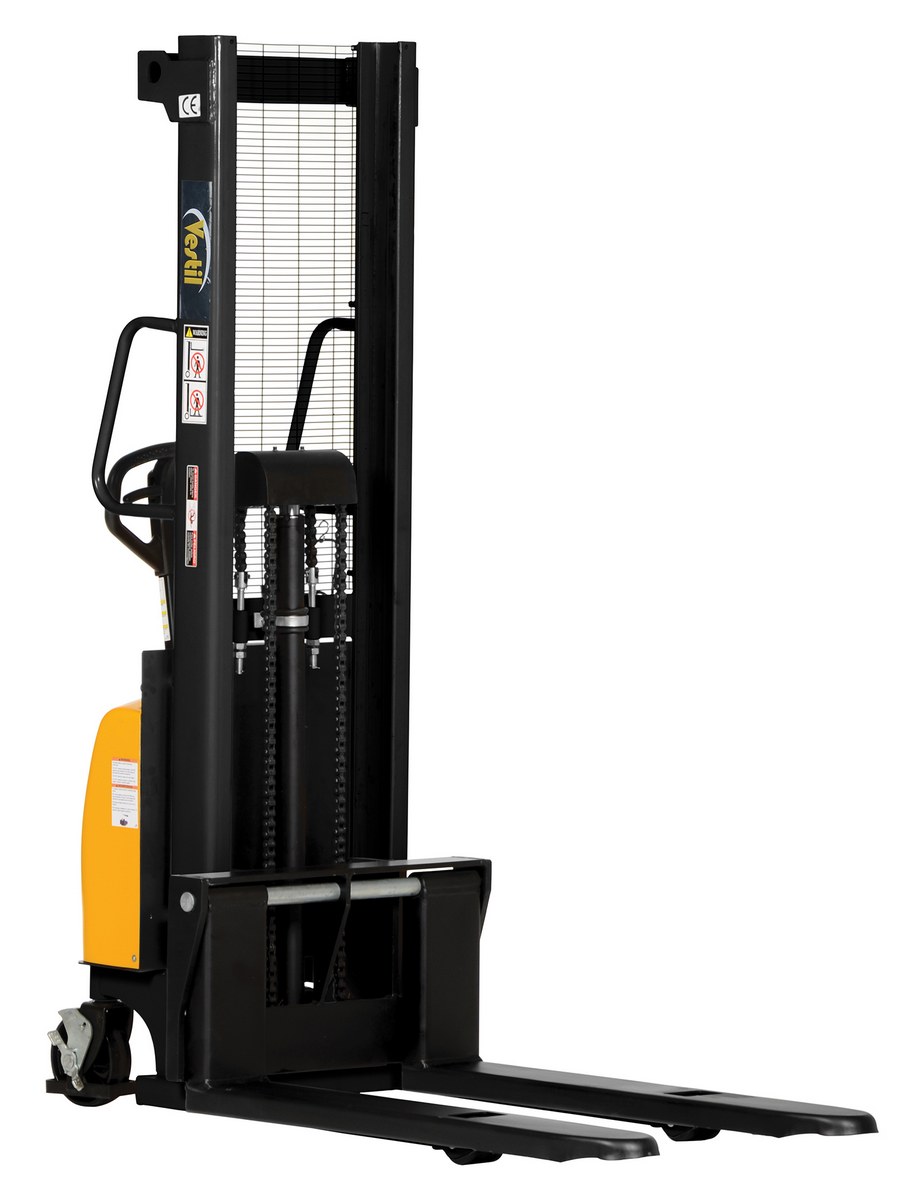

SE/HP-63 SE/HP-631 Year Limited WarrantySteel Hand Pump DC Powered Stacker with Fixed Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42		759
SE/HP-63-AA SE/HP-63-AA1 Year Limited WarrantySteel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42		958
SE/HP-63-AA-AIR
SE/HP-63-AA-AIR1 Year Limited WarrantySteel/Fiberglass Hand Pump Air Powered Stacker with Adjustable Forks and Legs 63 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42		958
SE/HP-98 SE/HP-981 Year Limited WarrantySteel Hand Pump DC Powered Stacker with Fixed Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity YellowUniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500		941
SE/HP-98-AA SE/HP-98-AA1 Year Limited WarrantySteel/Plastic Hand Pump DC Powered Stacker with Adjustable Forks and Legs 98 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500		1108

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SE/HP-118
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500

SE/HP-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500

SE/HP-63
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42

SE/HP-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42

SE/HP-63-AA-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42
Uniform Capacity 0-63" (lb.): 2000
Fork WxL (in.): 26-3/4 x 42

SE/HP-98
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500

SE/HP-98-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
Uniform Capacity 0-63" (lb.): 2000
Uniform Capacity 63-118" (lb.): 1500
For More Details of the Option Click the Red Model Button

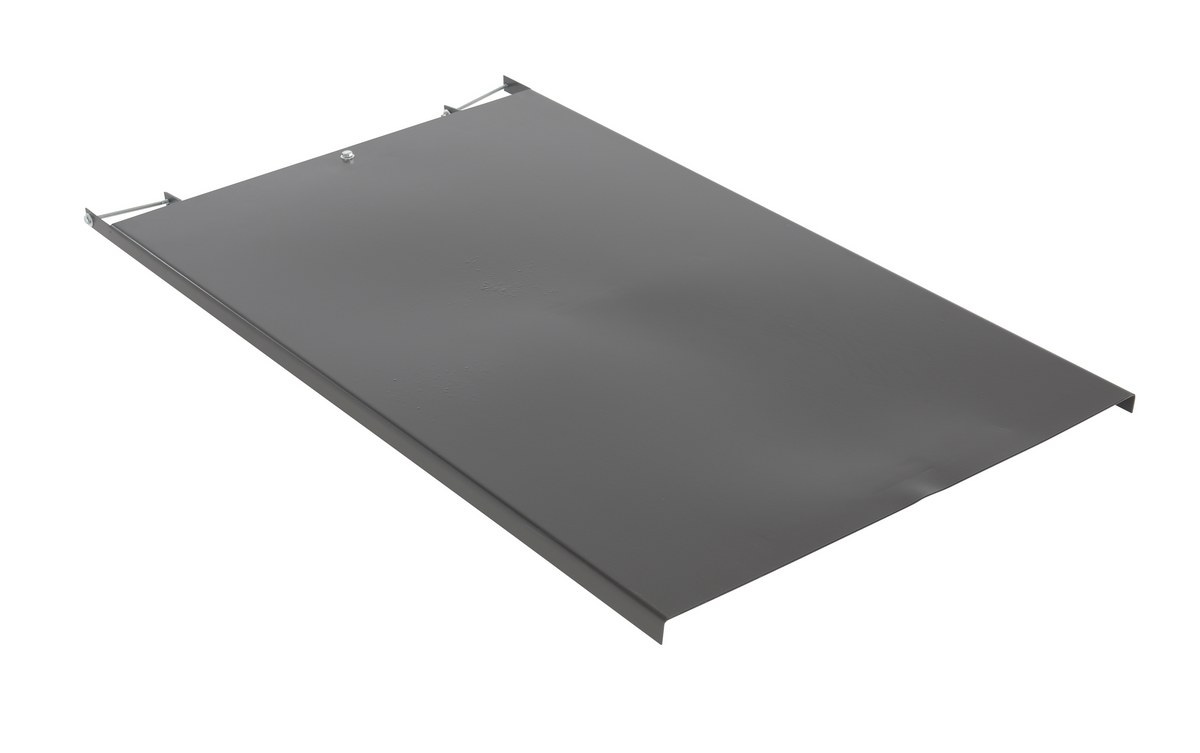

SE/HP-DK SE/HP-DK30 Days Limited WarrantyFactory Installed Steel Removable Platform 46 In. x 28 In. x 2 In. For Combination Hand Pump/Electric StackersWeight Capacity (lbs): 2000
Attachment Method: Factory Installed		40

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Combination Hand Pump and Electric Stackers PDF's will open in a new window when clicked.

Manuals


SE-HP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SE/HP-118

SE/HP-118-AA

SE/HP-63

SE/HP-63-AA

SE/HP-98

SE/HP-98-AA

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

Hydraulic Oil SDS Sheet for: SE/HP-118
Hydraulic Oil SDS Sheet for: SE/HP-118-AA
Hydraulic Oil SDS Sheet for: SE/HP-63
Hydraulic Oil SDS Sheet for: SE/HP-63-AA
Hydraulic Oil SDS Sheet for: SE/HP-98
Hydraulic Oil SDS Sheet for: SE/HP-98-AA
Hydraulic Oil SDS Sheet for: SE/HP-DK

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the turning radius on the fixed fork stacker?

A: The turning radius of the SE/HP-118 is 47-1/4".

Q: What size hex socket is required to adjust the outriggers on model SE/HP-63-AA?

A: The stacker can be adjusted with a 12mm hex socket.

Q: What voltage can be used to charge this stacker?

A: Charger is designed to accept dual voltage; 115V and 220/230V.

Q: What should the output voltage be on the solenoid model SE/HP-98?

A: 12V system.
