Rough Terrain Stacker

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

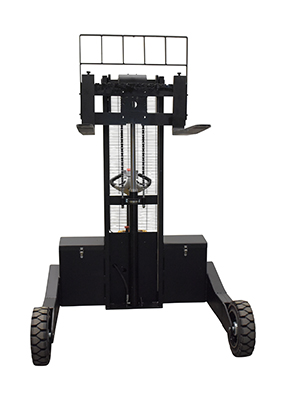

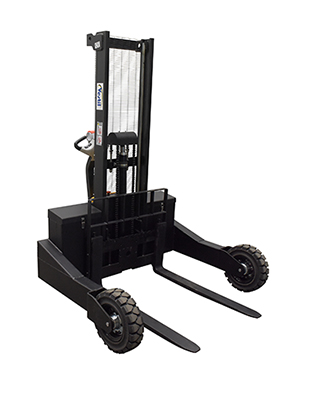

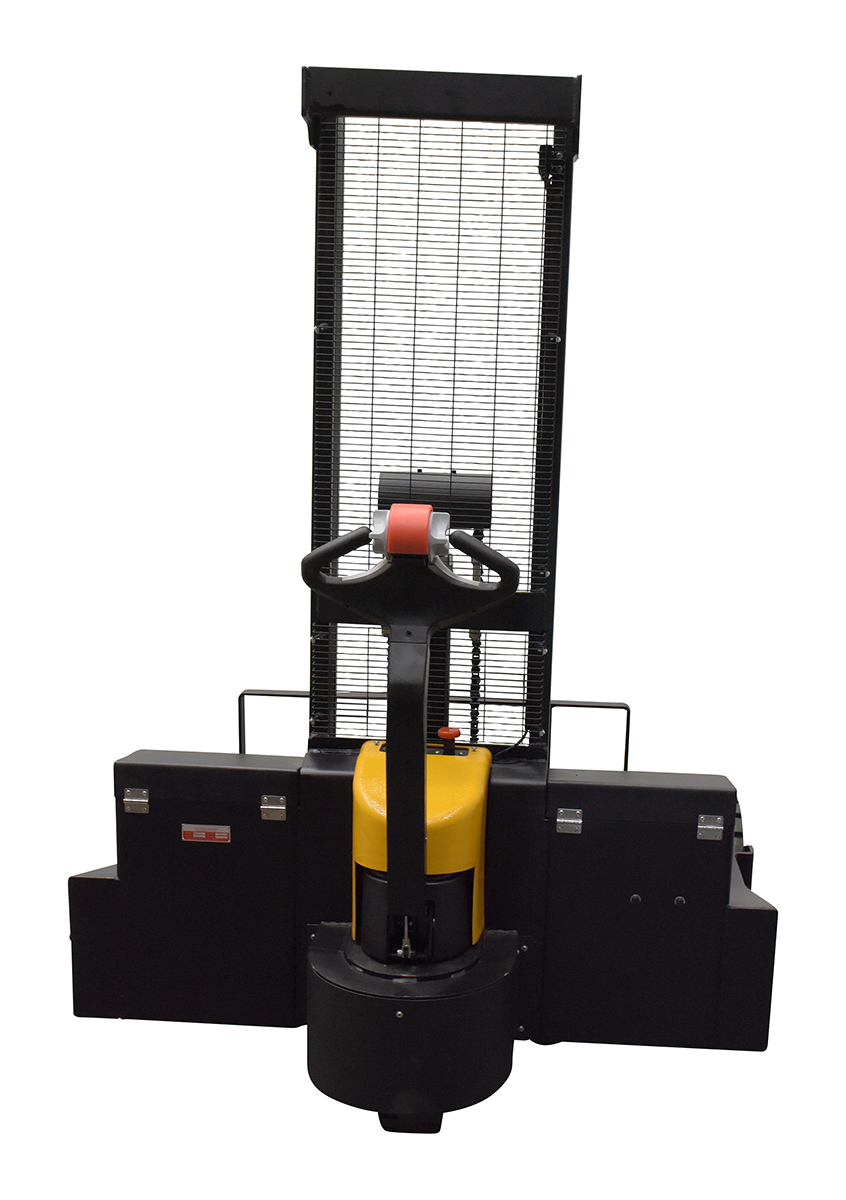

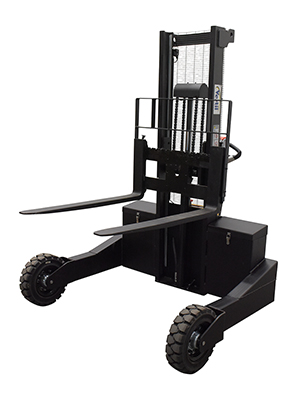

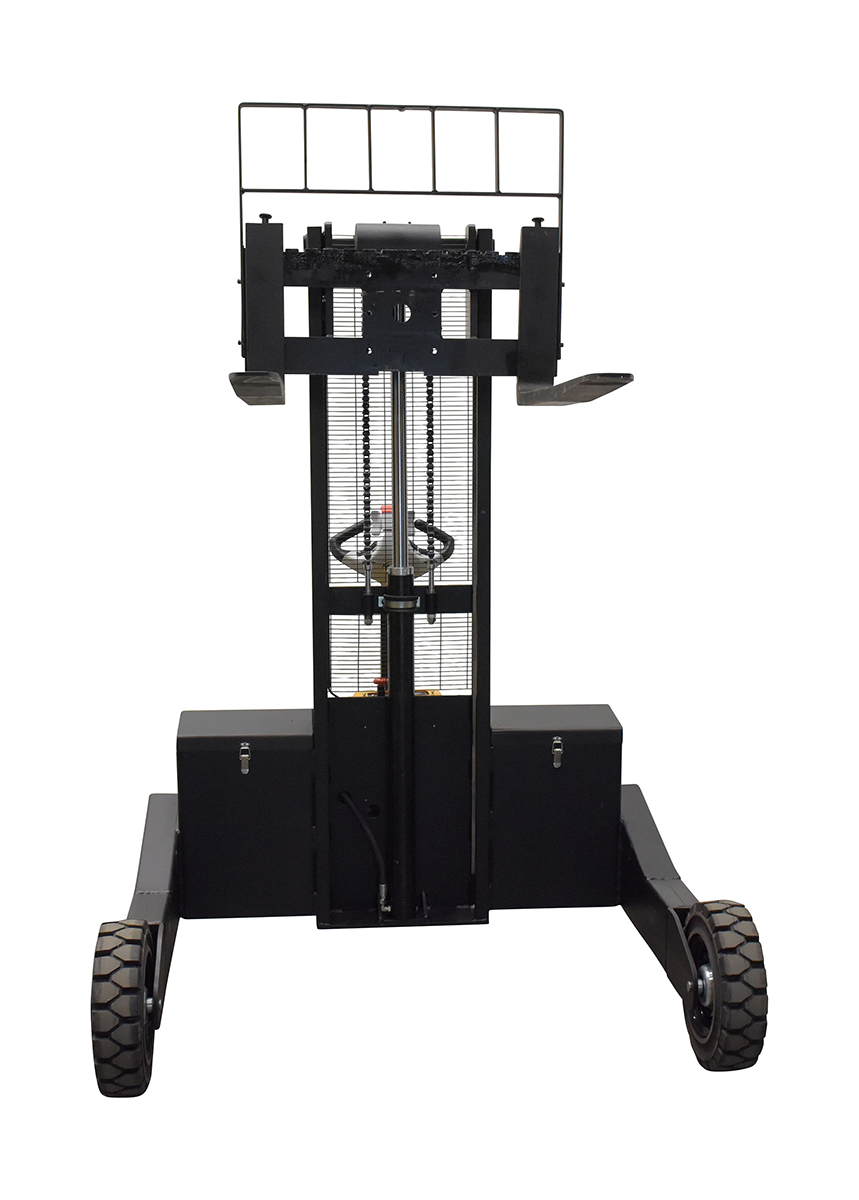

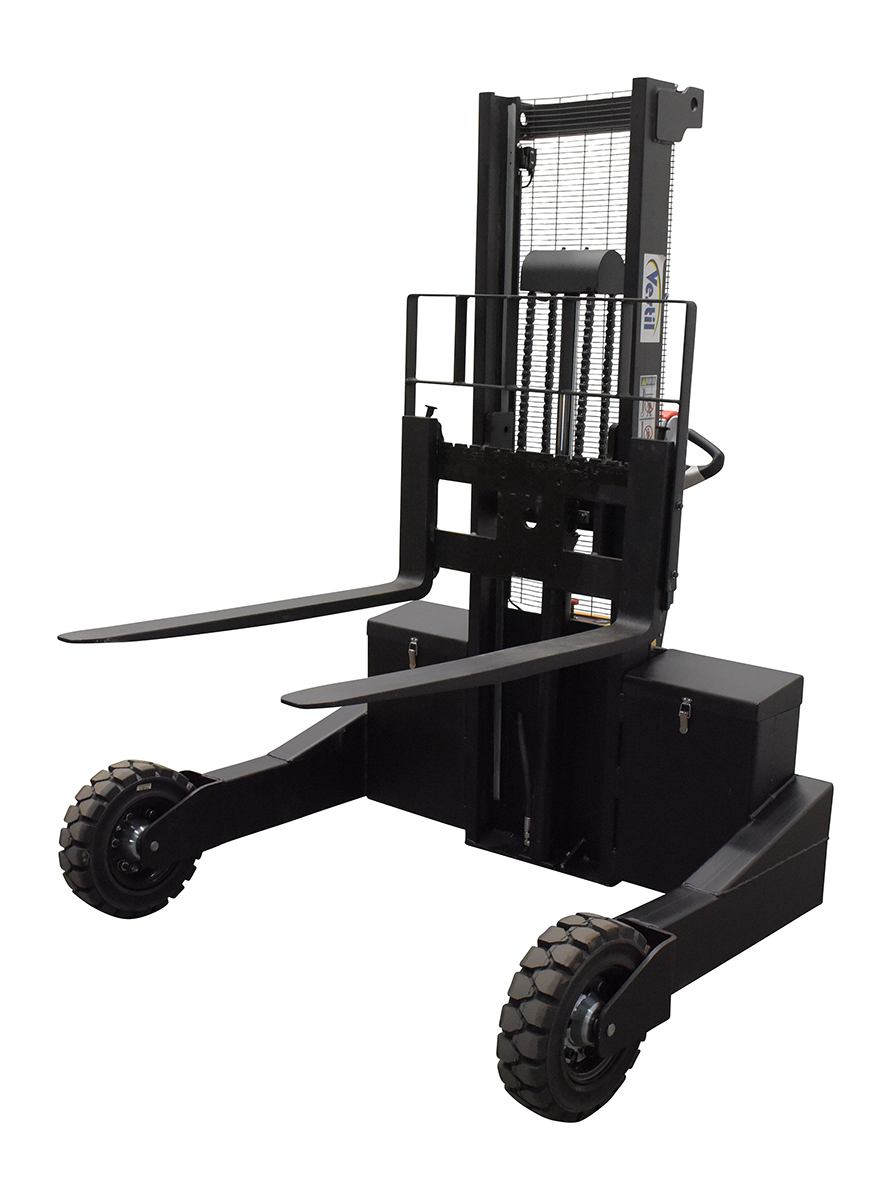

RT-S-62-AF_A.jpg RT-S-62-AF_B.jpg RT-S-62-AF_C.jpg RT-S-62-AF_D.jpg

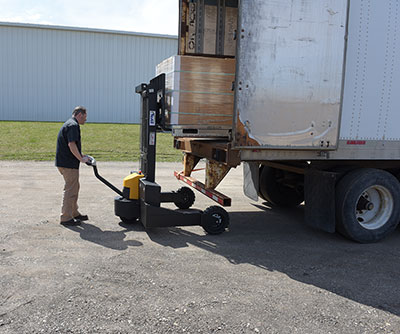

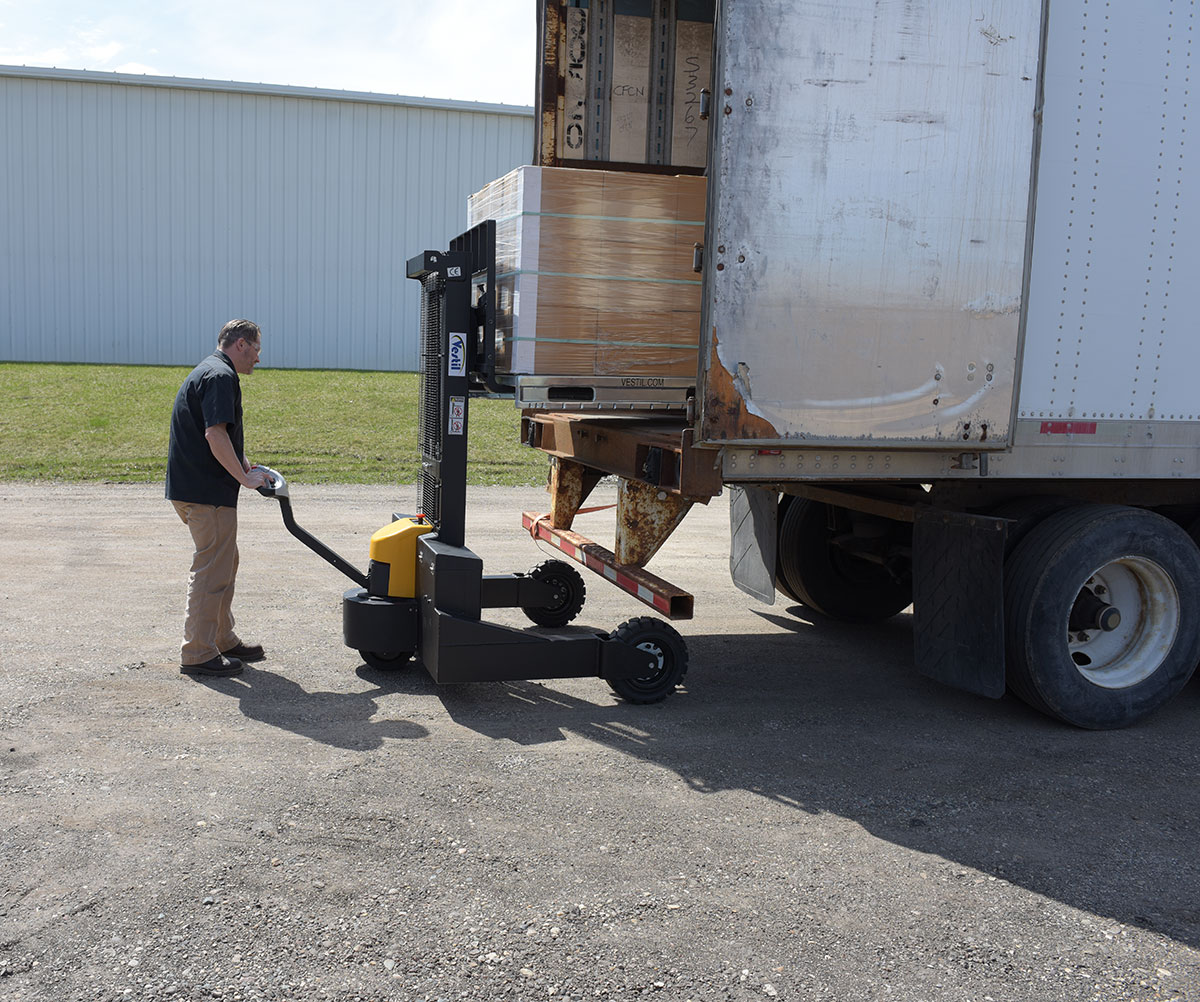

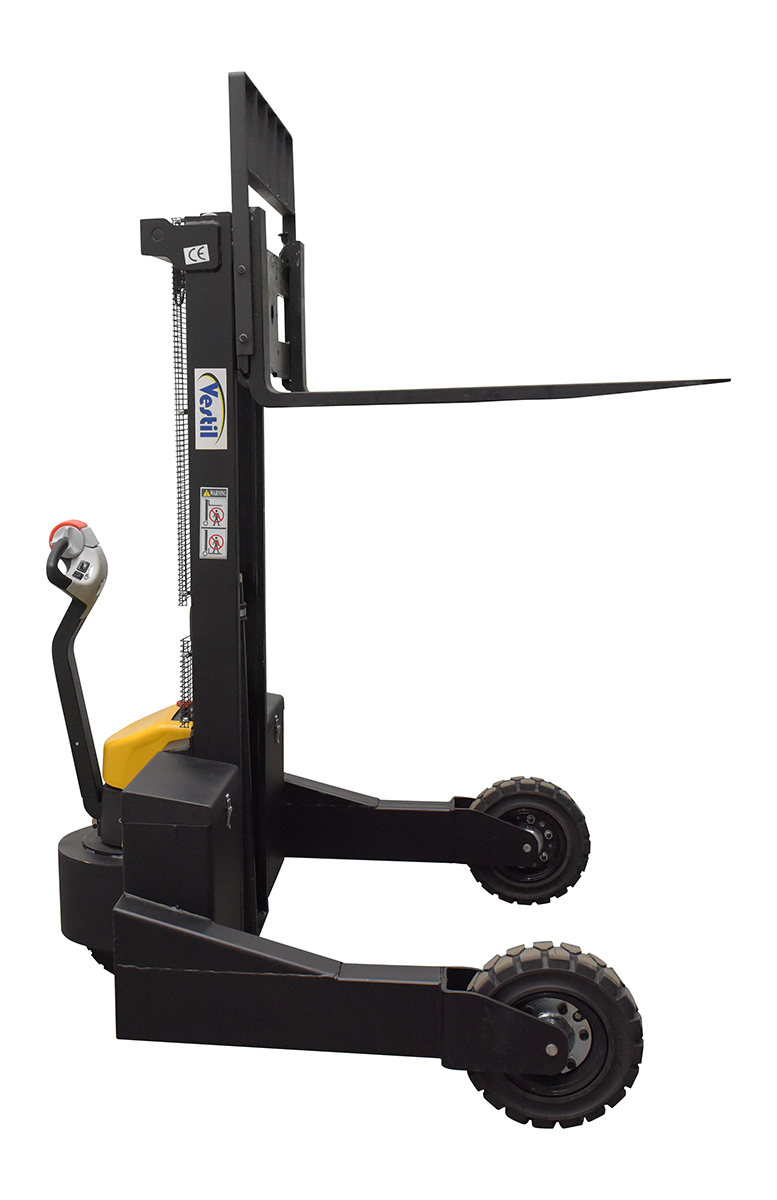

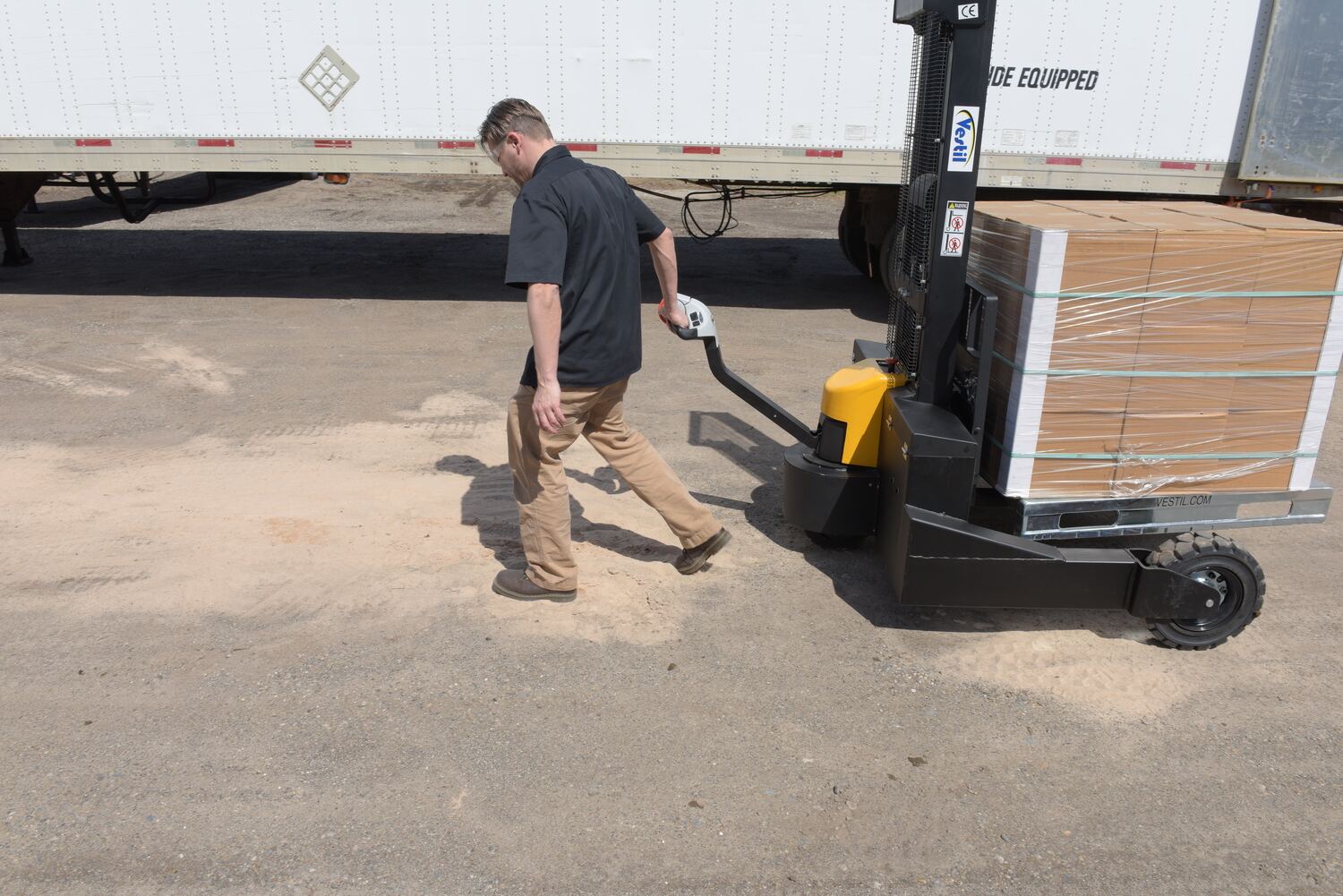

RT-S-62-AF_E.jpg RT-S-62-AF_L.jpg RT-S-62-AF_M.jpg RT-S-62-AF_K.jpg
Rough Terrain Stacker

model: RT-S-62-AF



Featured Ergonomic Solutions


Specialized Pallet Trucks
Powered Lift Table With Manual Rotation
Tilt Master & Tilt Master Straddle
Electric Adjustable-Height Work Benches
DC Powered Tilt Master
Hydraulic Roll Lifter & Roller Work Positioner
Electric Hydraulic Tandem Lifting Tables
Foot Pump & Powered Scissor Lift Tables
Counter-Balanced Stackers
model chart

Product Family Overview

Print Friendly
Rough Terrain Stacker
SERIES: RT-S, RT-MS

Powered Rough Terrain Stackers:
When goods have to be transferred over uneven and rough surfaces, look no further than the electric powered rough terrain stacker. With its large front and back rubber tires this unit can easily be used both indoors and out. A multi-function driving handle features an infinite speed adjustment, simple controls for finding the perfect height, and an emergency reverse function. Forks are adjustable to precisely fit what is being maneuvered. And, even more, the unit is equipped with batteries, integral battery charger, and battery level indicator.

  • Large usable width to transfer a variety of product sizes
  • Diverse height ranges to meet users' needs
  • Robust capacity to maneuver items, both big and small
  • Wide wheel base for added stability

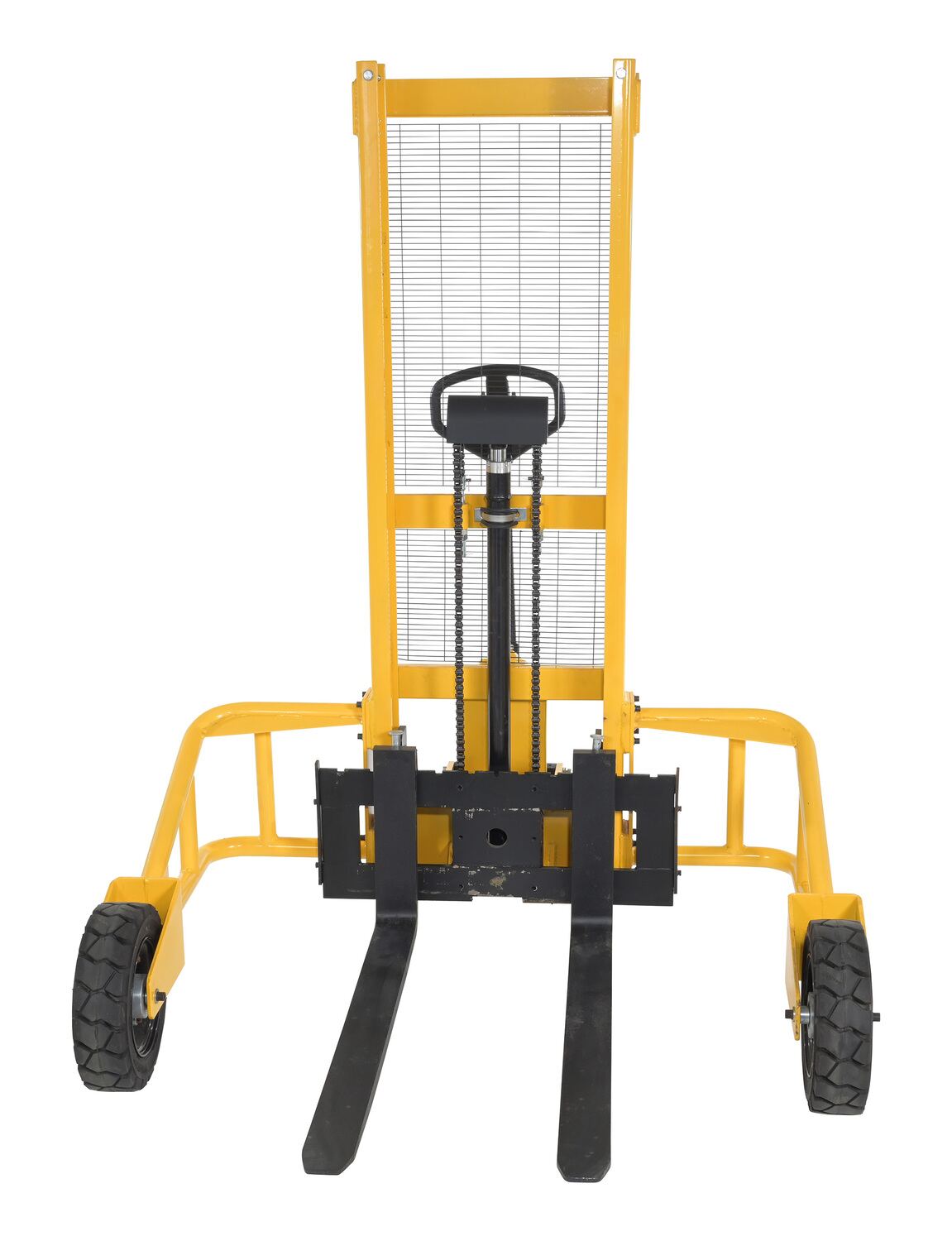

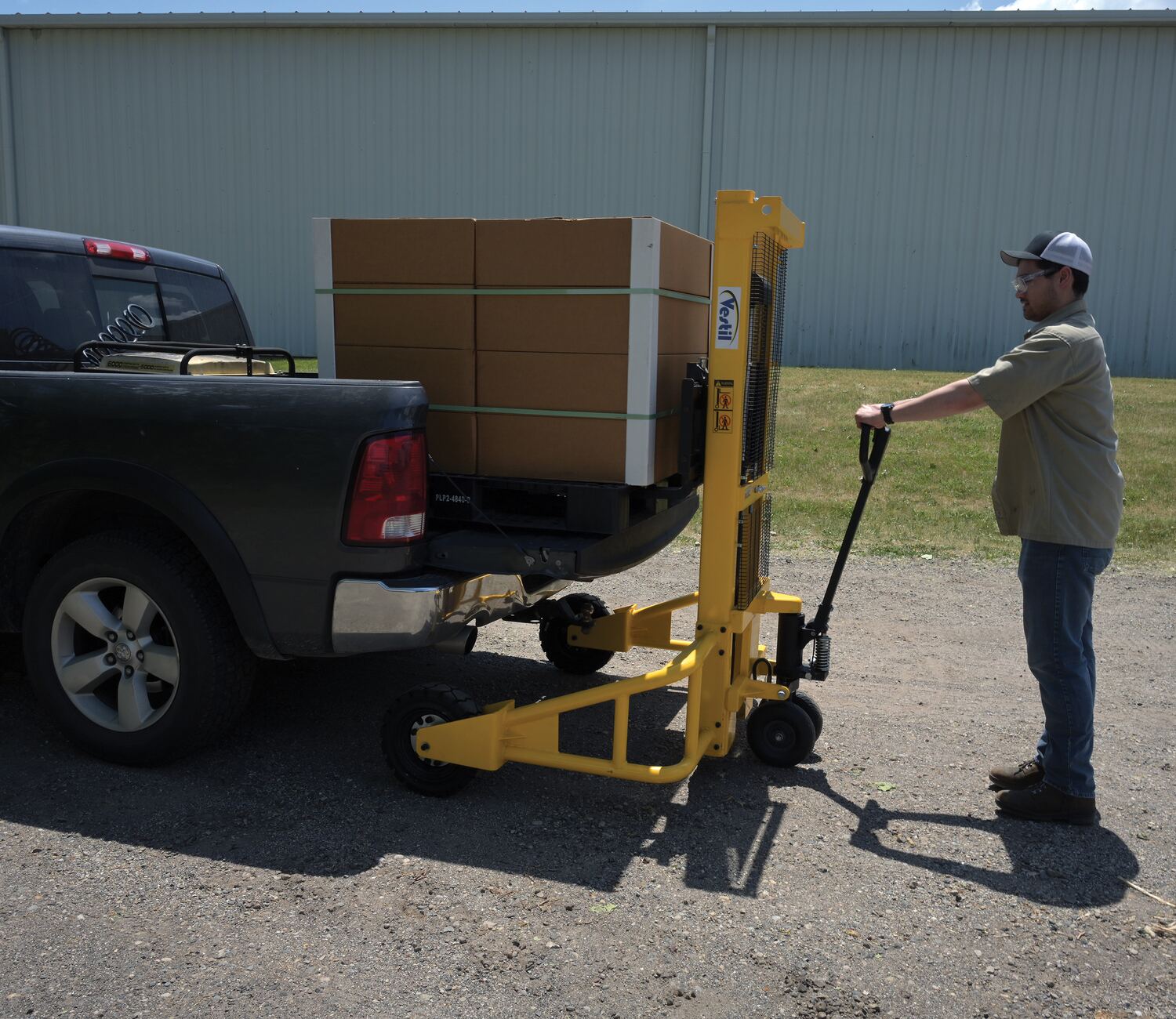

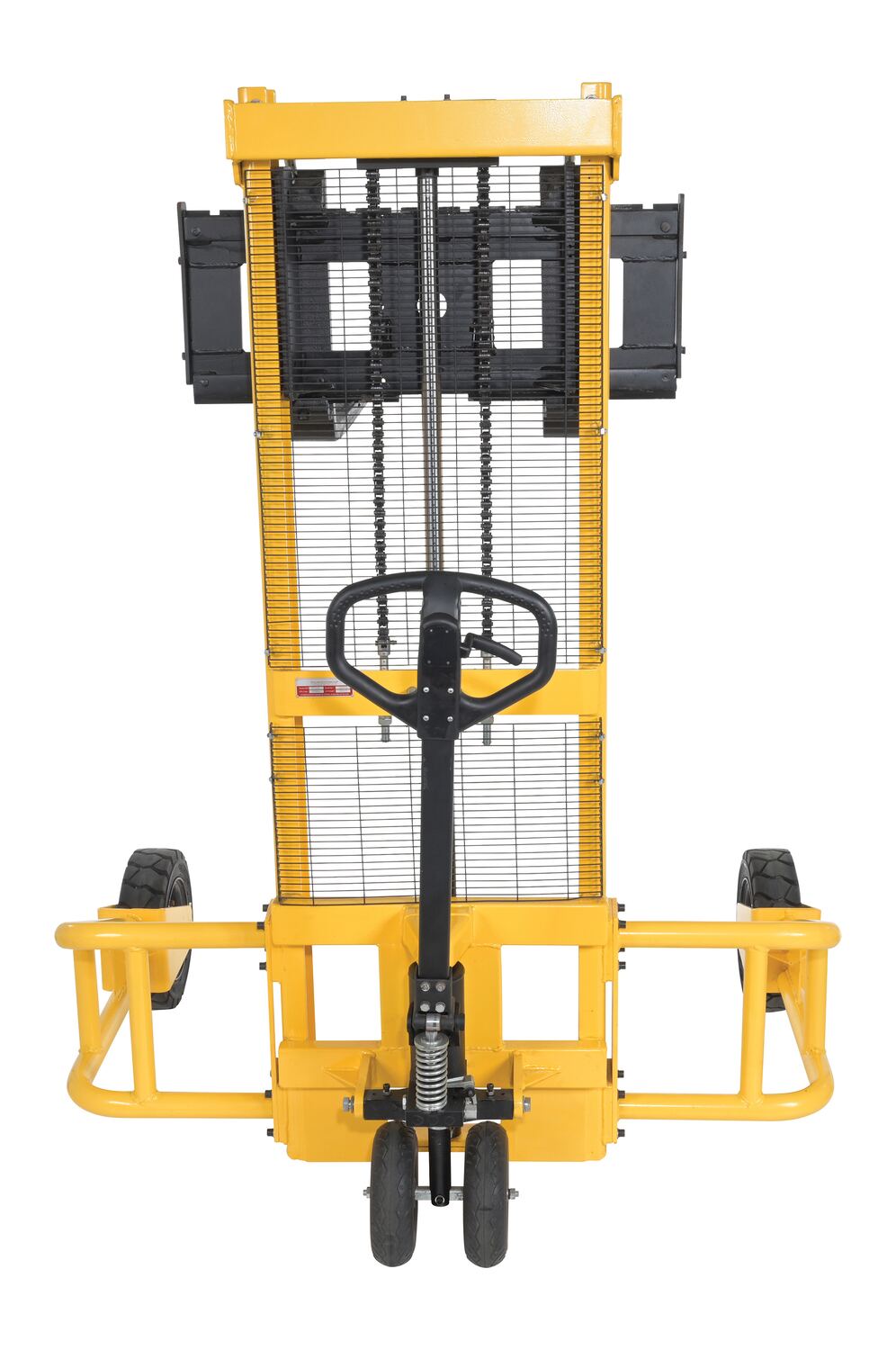

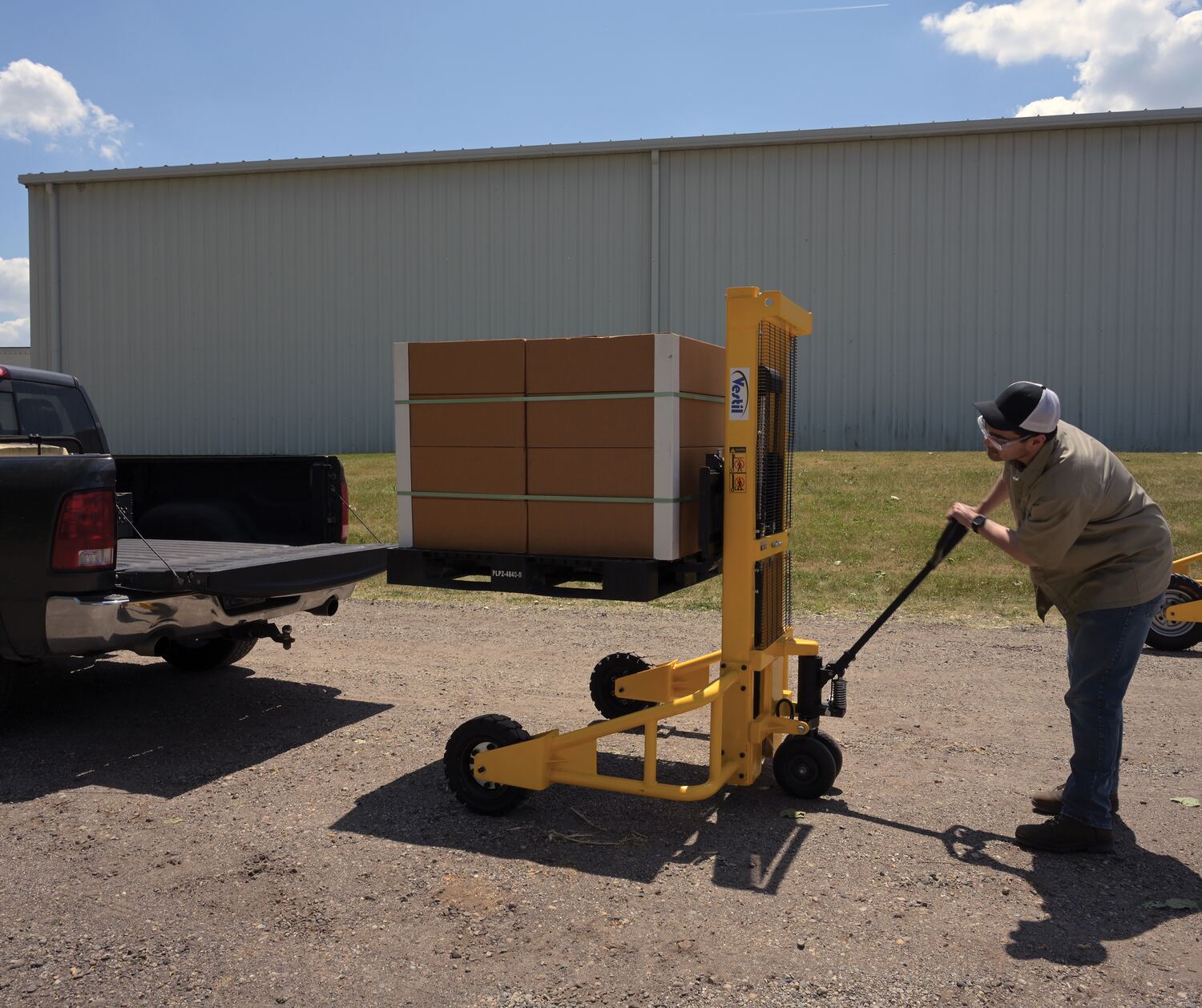

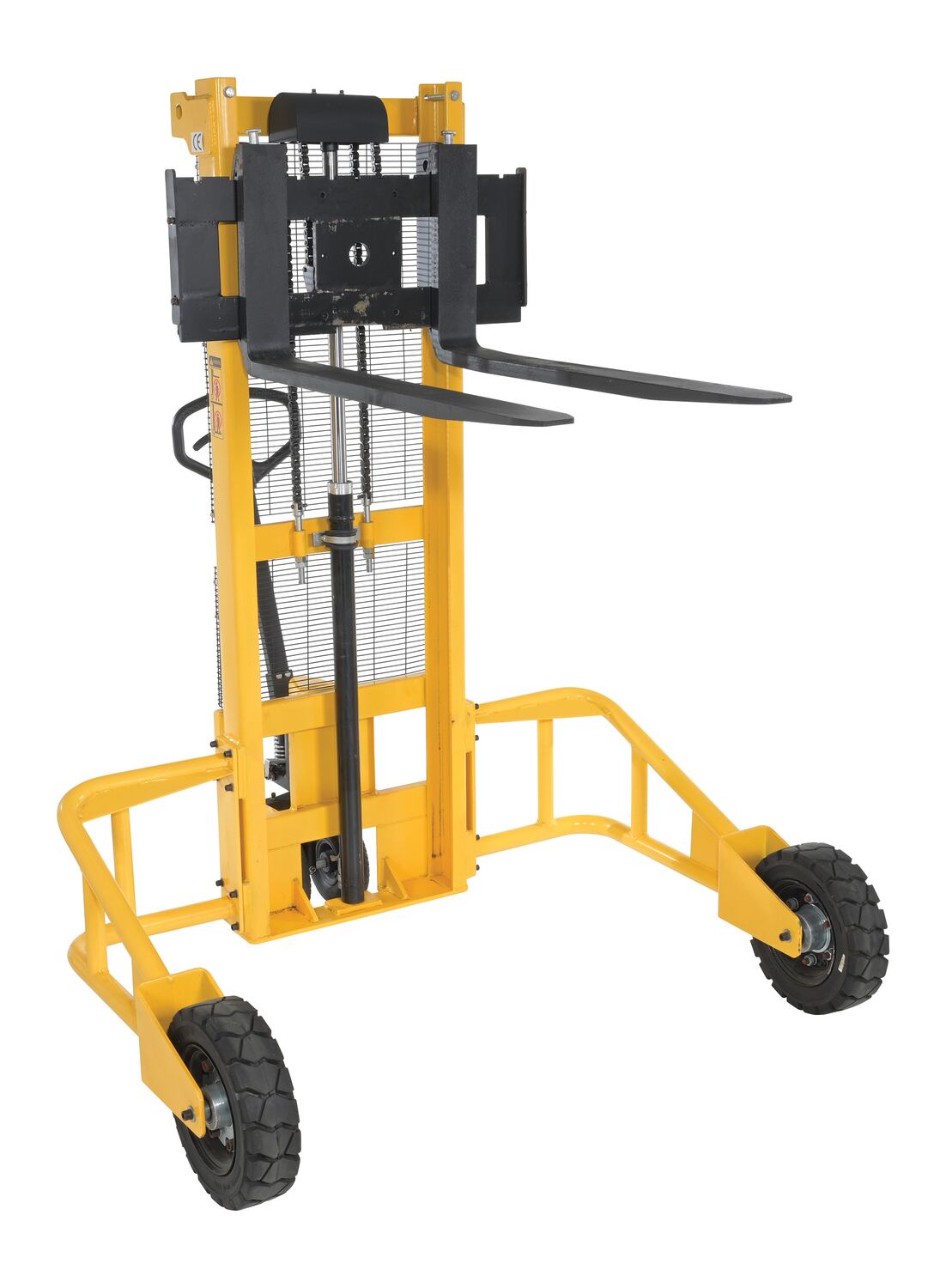

Manual Rough Terrain Stackers:RT-MS-62-AF
A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

These units are intended to be transported with the load in the lowered position & never try to raise the load on uneven surfaces


See Our Rough Terrain Pallet Trucks!
See Our All Terrain Stackers and Pallet Trucks!

Powered Rough Terrain Stackers:
When goods have to be transferred over uneven and rough surfaces, look no further than the electric powered rough terrain stacker. With its large front and back rubber tires this unit can easily be used both indoors and out. A multi-function driving handle features an infinite speed adjustment, simple controls for finding the perfect height, and an emergency reverse function. Forks are adjustable to precisely fit what is being maneuvered. And, even more, the unit is equipped with batteries, integral battery charger, and battery level indicator.

  • Large usable width to transfer a variety of product sizes
  • Diverse height ranges to meet users' needs
  • Robust capacity to maneuver items, both big and small
  • Wide wheel base for added stability

Manual Rough Terrain Stackers:RT-MS-62-AF
A rough terrain stacker is capable of going where other stackers can't. The manual design benefits the user by giving precise movement of the unit in particular areas. A simple handle pump lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

These units are intended to be transported with the load in the lowered position & never try to raise the load on uneven surfaces


See Our Rough Terrain Pallet Trucks!
See Our All Terrain Stackers and Pallet Trucks!

Other Stackers

 Rough Terrain Stacker Manual & Electric Stackers (Pramac) Narrow Mast Stackers with Powered Lift Narrow Mast Stackers with Powered Drive and Powered Lift

Additional Models In This Family
view entire Image Gallery

RT-NMS-60-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-S-62-AF

RT-S-62-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-S-35-AF

RT-S-35-AF

RT-NMS-60-AF

RT-NMS-60-AF

RT-MS-62-AF

RT-MS-62-AF

RT-MS-62-AF

RT-MS-62-AF

RT-S-35-AF

RT-S-35-AF

RT-S-62-AF

RT-S-62-AF

RT-MS-62-AF

RT-MS-62-AF

RT-S-62-AF

RT-S-62-AF

RT-MS-62-AF

RT-MS-62-AF

RT-NMS-60-AF

RT-NMS-60-AF

Rough Terrain Stacker Attachments:

RT-EPT-DBH
RT-EPT-DBH_A.jpgThe Double Ball Hitch can easily be attached to an electric pallet truck and used in a wide variety of applications. This attachment features a two ball hitch on one unit for user convenience. Steel construction with powder coat black finish for baked in added toughness. More...

RT-EPT-MLH
RT-EPT-MLH_A.jpgThe manual lock Hitch is the perfect accessory to an electric pallet truck. With a simple attachment the hitch can be in place and ready to use, quickly. The design allows the user to secure the lock in place for the utmost confidence. Steel construction with powder coat black finish for baked in added toughness. More...

RT-EPT-SDG
RT-EPT-SDG_A.jpgThe single Drum Gripper Hitch is a great addition to an electric pallet truck. The drum gripper can be in place and ready to use, quickly. The design allows the user to secure drums in place and easily transfer from area to area. This unit minimizes manual labor associated with maneuvering heavy drums. Steel construction with powder coat black finish for baked in added toughness. More...

Applications



Construction Projects

Municipalities

Trucking Companies

Warehouses

Do It Yourself

Military

Farming and Agriculture

Moving Companies

Maintenance Yards

Recycling Areas

Packaging Areas
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
RT-MS-62-AF NEW RT-MS-62-AF1 Year Limited WarrantySteel Manual Rough Terrain Stacker 62 In. Raised Height 2,000 Lb. Capacity YellowUniform Capacity (lb.): 2,000
Raised Height: 62"		868

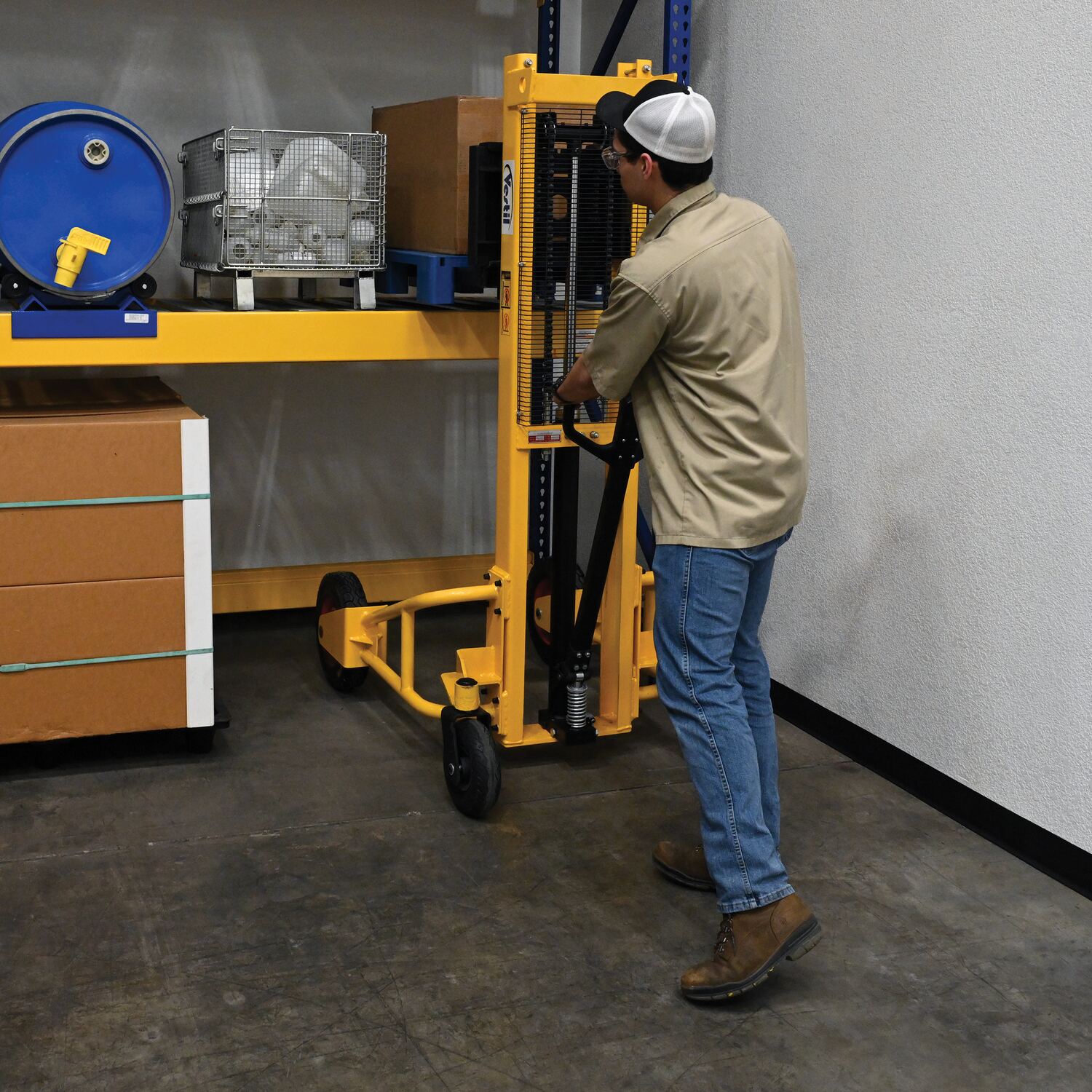

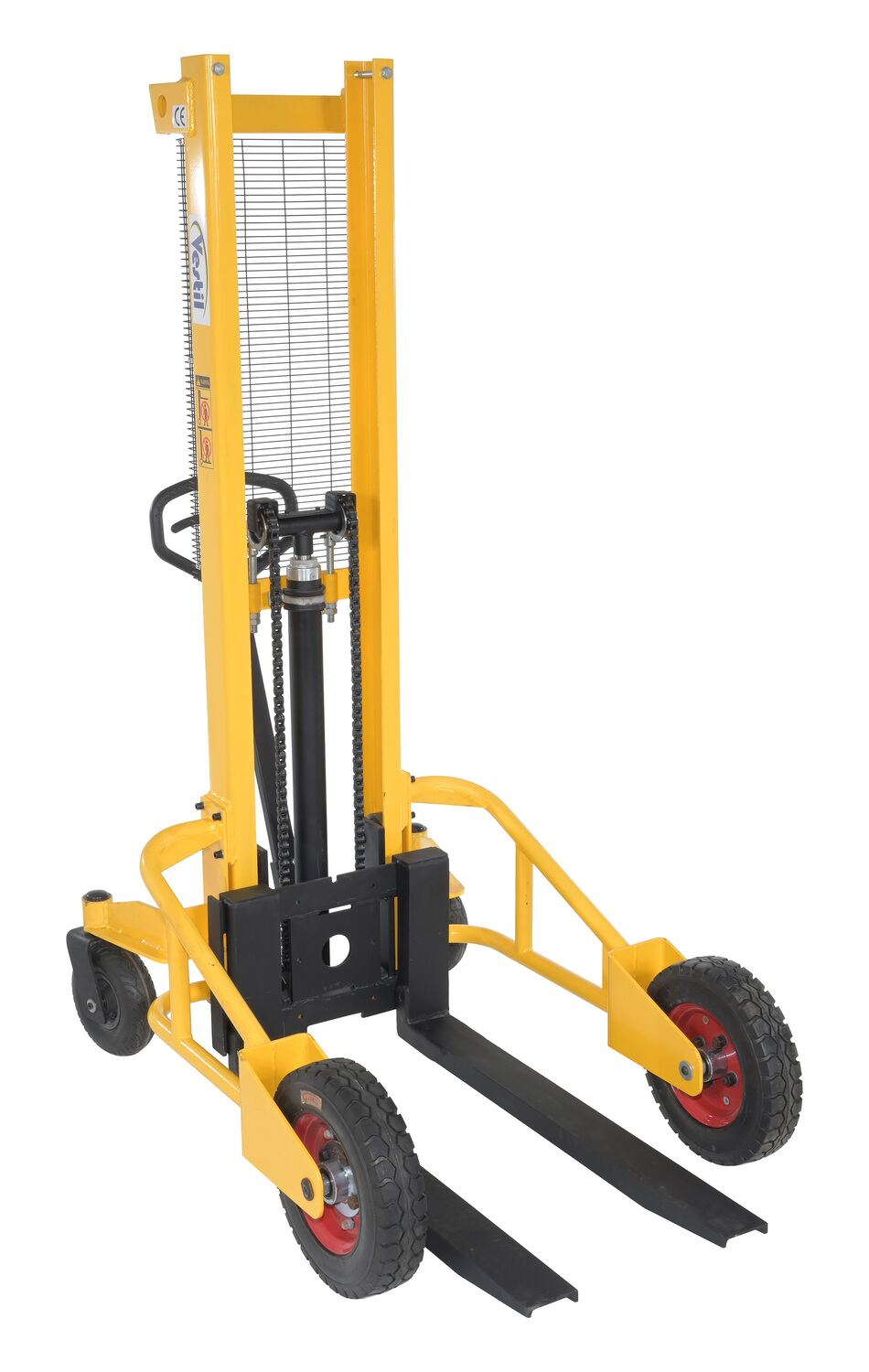

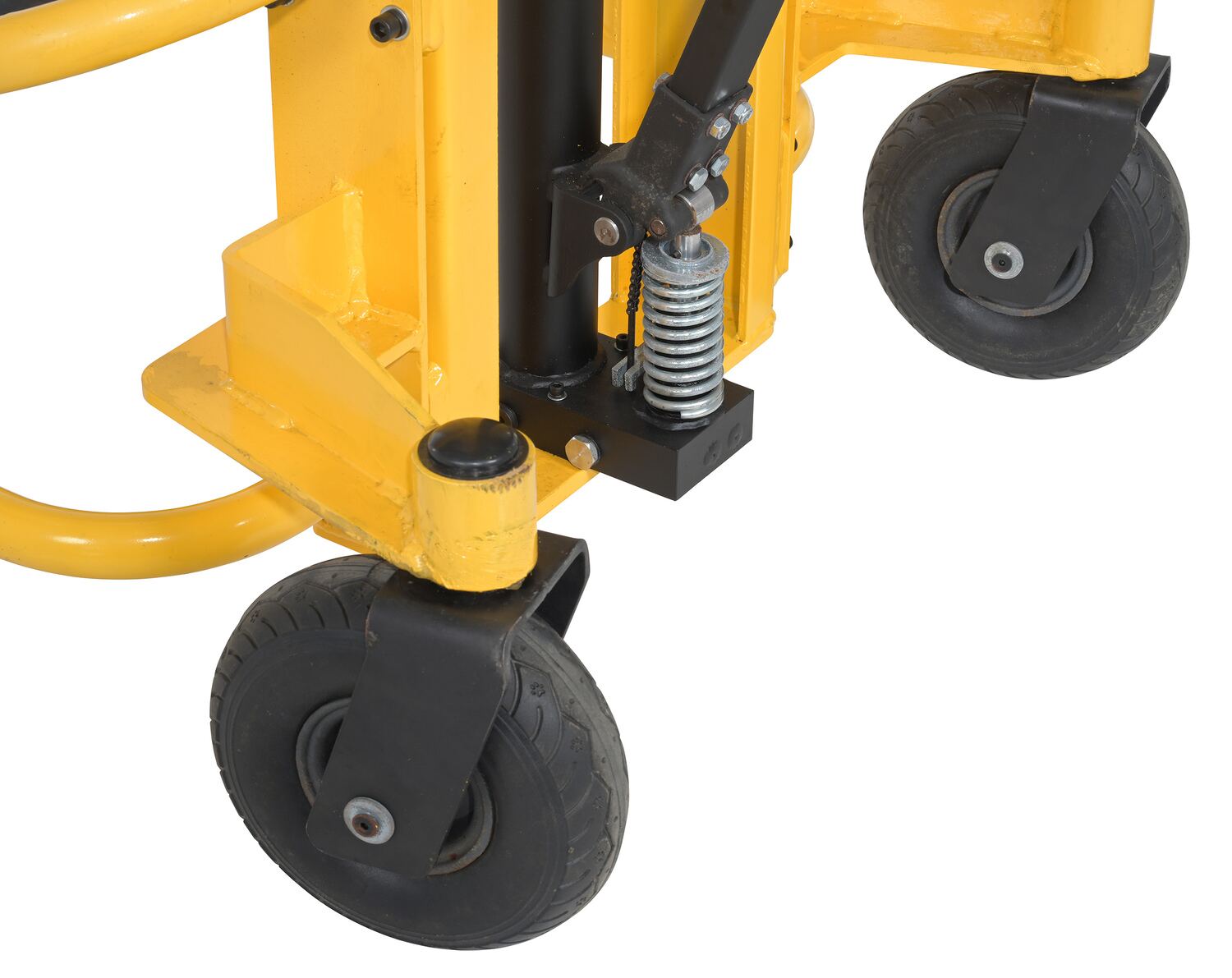

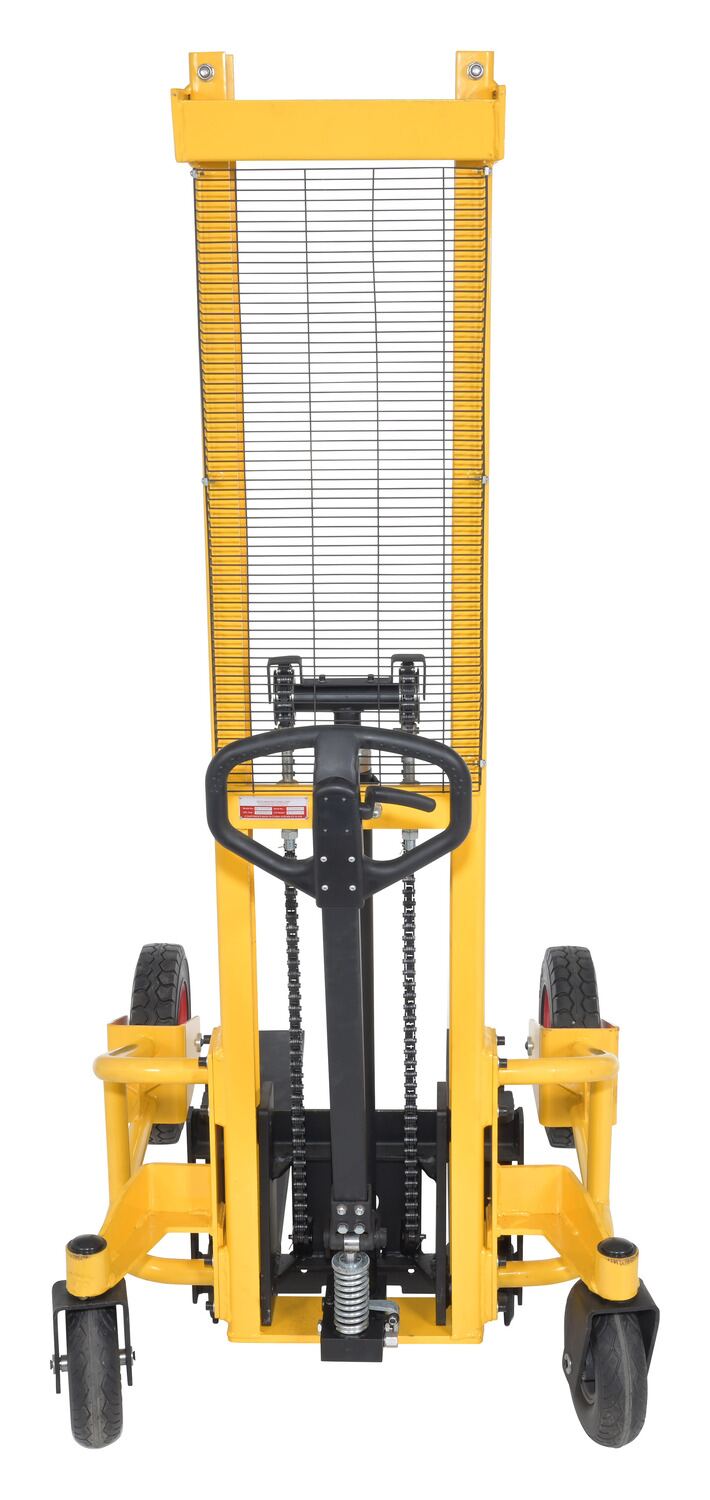

RT-NMS-60-AF NEW RT-NMS-60-AF90 Days Limited WarrantySteel Narrow Manual Rough Terrain Stacker 60 In. Raised Height 1,500 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 1,500
Raised Height: 60"		565

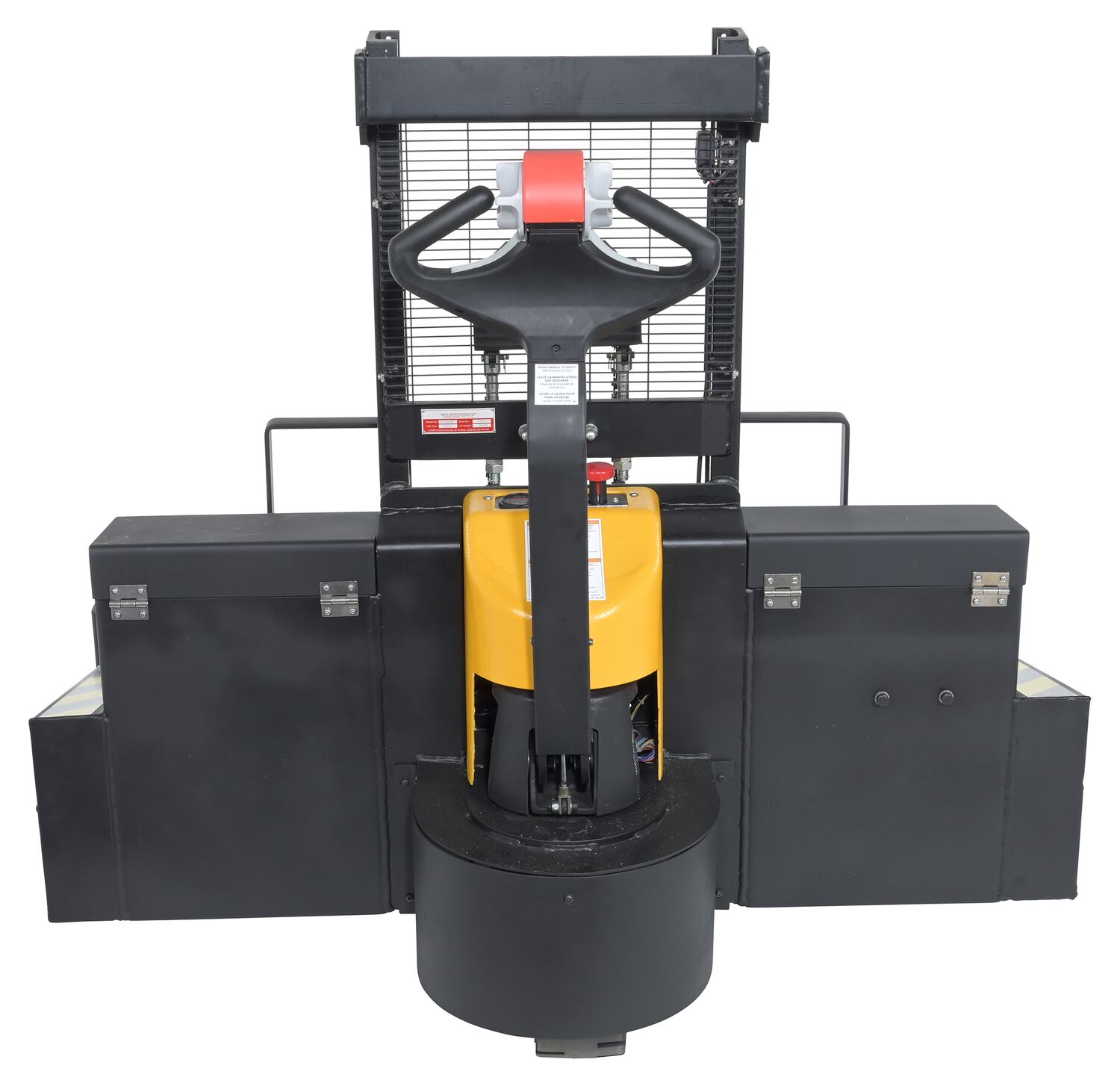

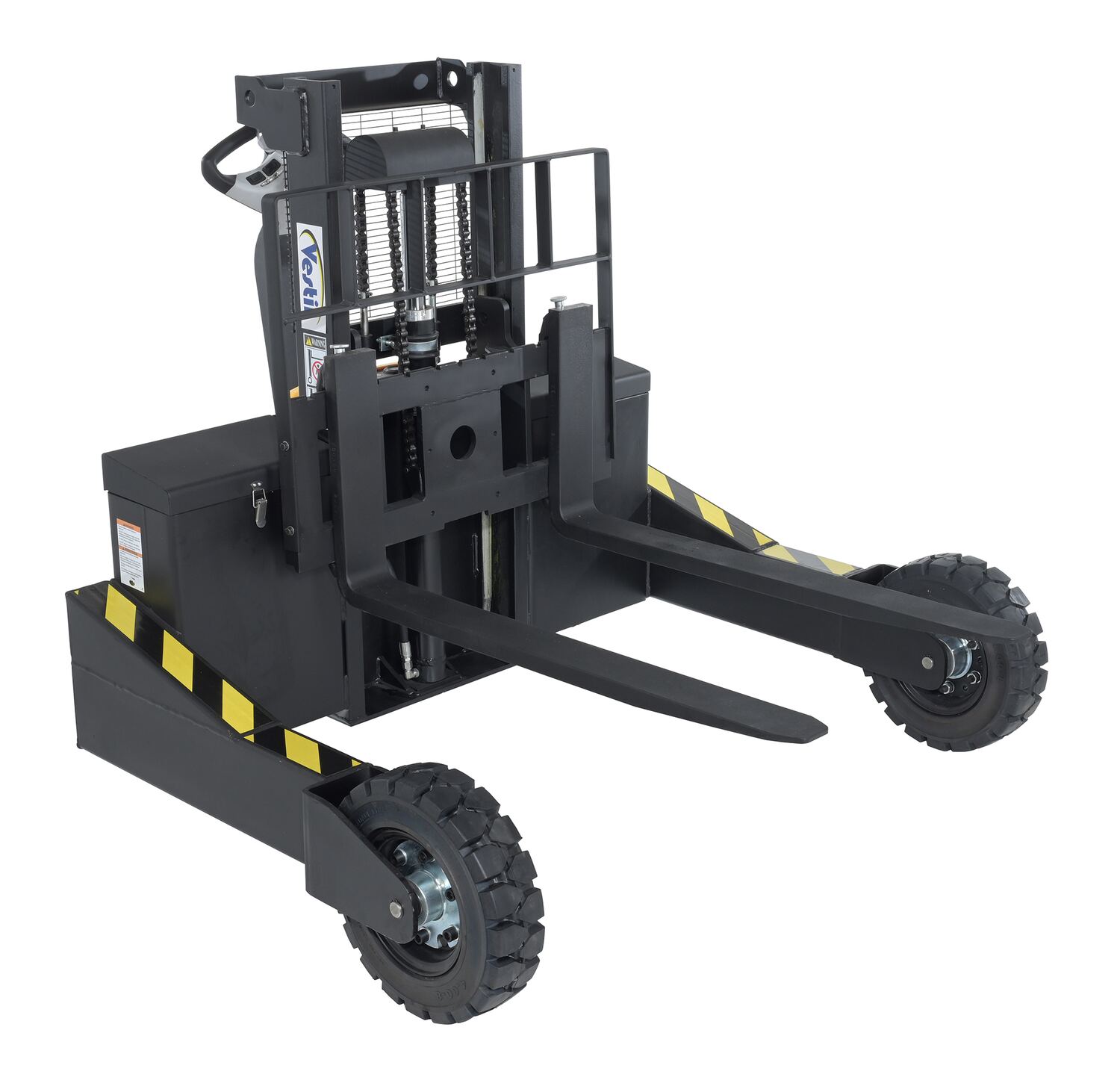

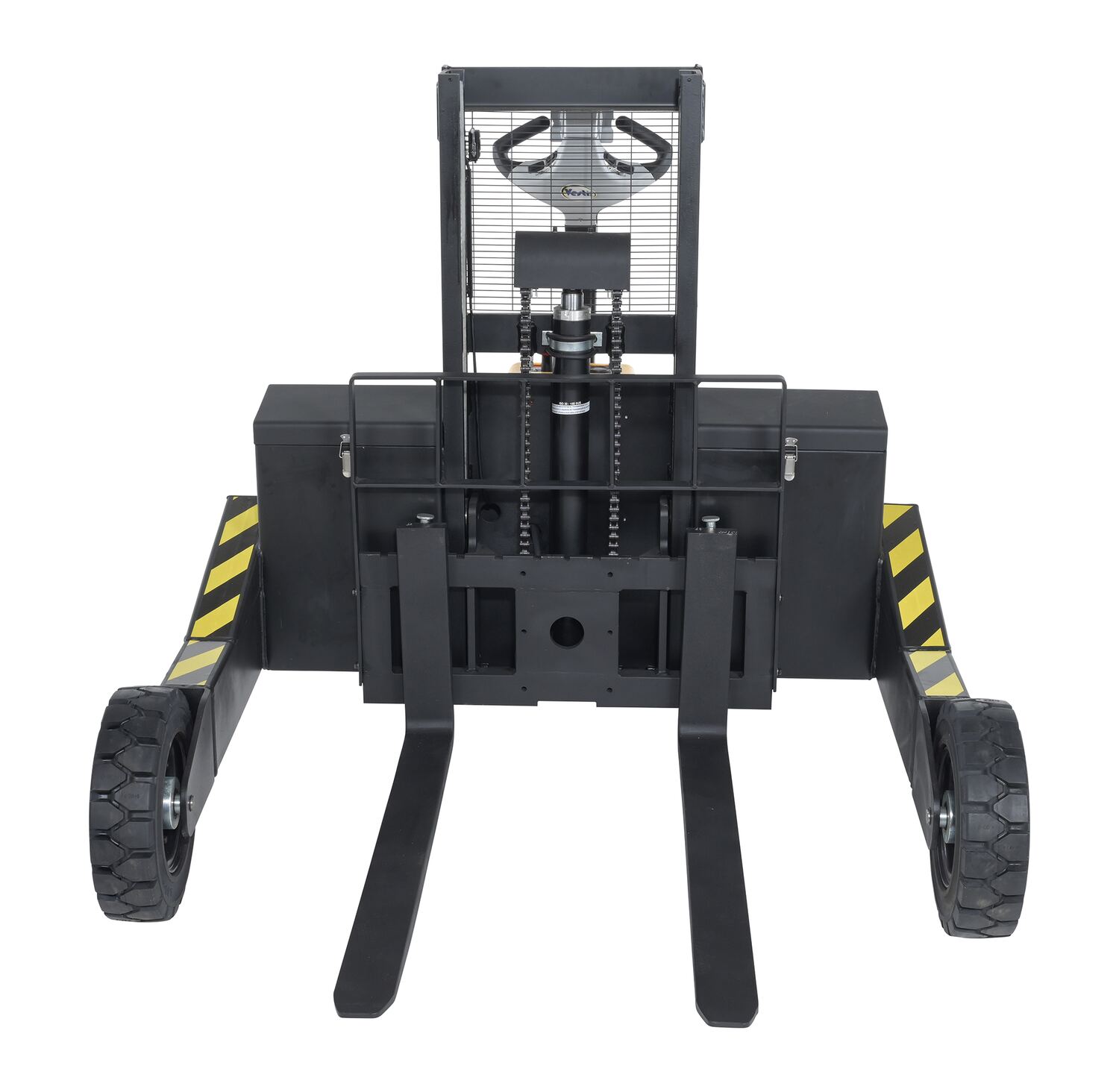

RT-S-35-AF NEW RT-S-35-AF1 Year Limited WarrantySteel Rough Terrain Stacker 35 Raised Height 3000 Lb CapacityUniform Capacity (lb.): 3,000
Raised Height: 35"		1241
RT-S-62-AF
RT-S-62-AF1 Year Limited WarrantySteel Rough Terrain Powered Stacker 62 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3,000
Raised Height: 62"		1588

* These units are intended to be transported with the load in the lowered position & never try to raise the load on uneven surfaces

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

RT-S-62-AF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Raised Height: 62"
Uniform Capacity (lb.): 3,000
Raised Height: 62"

RT-MS-62-AF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Raised Height: 62"
Uniform Capacity (lb.): 2,000
Raised Height: 62"

RT-NMS-60-AF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Raised Height: 60"
Uniform Capacity (lb.): 1,500
Raised Height: 60"

RT-S-35-AF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Raised Height: 35"
Uniform Capacity (lb.): 3,000
Raised Height: 35"
For More Details of the Option Click the Red Model Button
Model Image PDFs Description Overall Size
(LxWxH)		 Net Wt.
(lbs)
RT-EPT-DBH - Double Ball Hitch Attachment 22"x10"x13" 37
RT-EPT-MLH - Manual Locking Hitch Attachment 22"x10"x13" 40
RT-EPT-SDG - Single Drum Gripper Attachment 7"x15.5"x36" 65
RT-EPT-RR-FK - Reel/Roll transport Forks 46"x6x21.25 116
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Rough Terrain Stacker PDF's will open in a new window when clicked.

Manuals


RT-S-62-AF
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


RT-MS-62-AF

RT-S-35-AF

RT-S-62-AF

Testing Certificates


RT-MS-62-AF

RT-S-35-AF

RT-S-62-AF

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: RT-S-62-AF
Hydraulic Oil SDS Sheet for: RT-S-62-AF
Hydraulic Oil SDS Sheet for: RT-S-35-AF
Acid Battery SDS Sheet for: RT-S-35-AF
Hydraulic Oil SDS Sheet for: RT-NMS-60-AF
Hydraulic Oil SDS Sheet for: RT-MS-62-AF

Other PDF's


Rough Terrain Stacker Mailing Brochure
MODEX Rough Terrain Truck Brochure

Narrow Manual Rough Terrain Stacker Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Are there fork options for the stacker?

A: We offer three options. RT- EPT-DBH double ball hitch, RT-EPT-MLH manual lock hitch, and the RT-EPT-SDG single drum gripper.

Q: Are the forks removable?

A: Yes, the forks on the RT-S-62-AF are removable.

Q: What degree of incline can this handle loaded?

A: 6 degrees

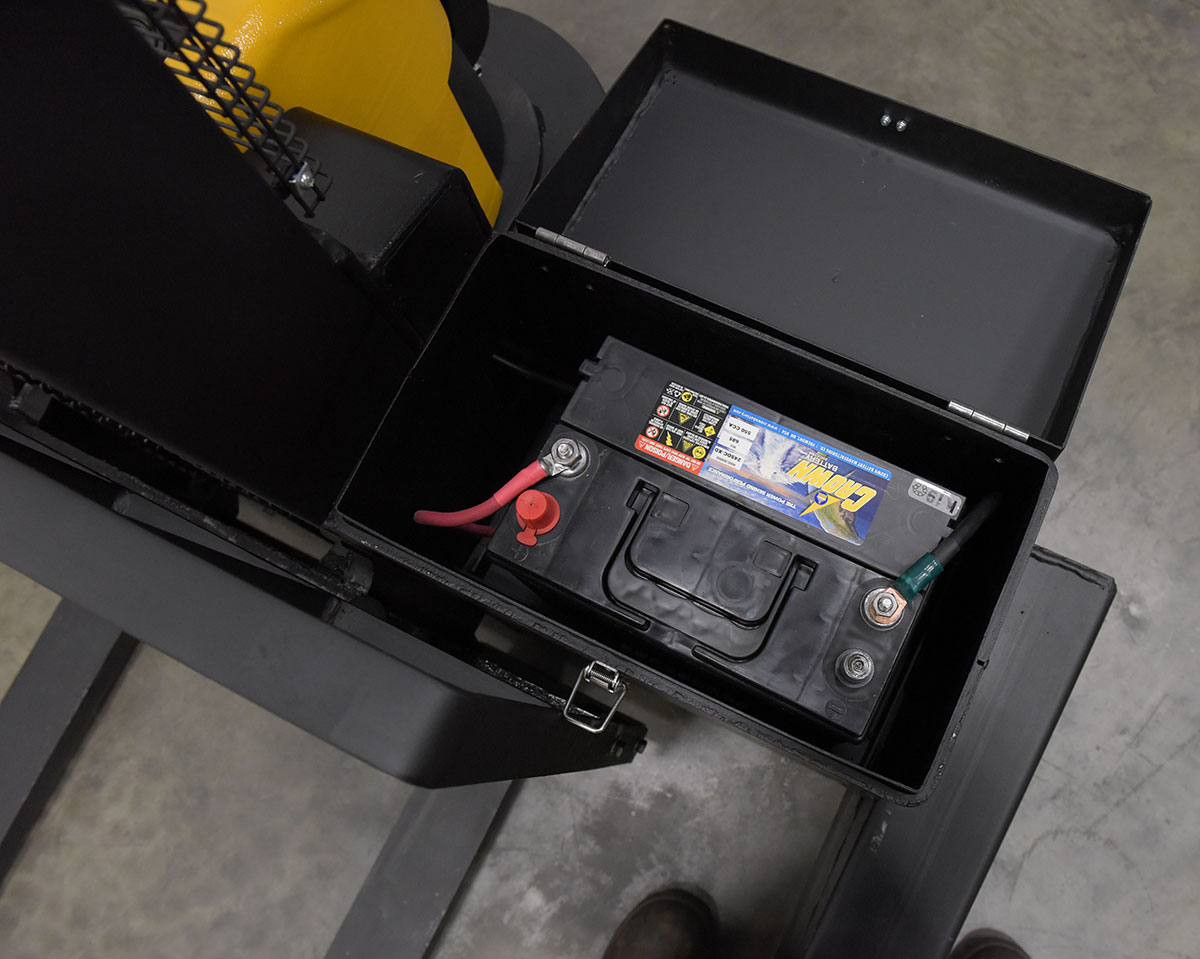

Q: How long does the battery charge last?

A: Continuous usage: 2 hours Intermittent use: 6-8 hours

Q: How long to charge the battery?

A: Charging time: 8-10 hours.

Q: Can this stacker be used in the sand?

A: No, the stacker is not intended to be used in the sand.

Q: Is the model RT-MS-62-AF compatible with the following accessories as well: RT-EPT-DBH, RT-EPT-MLH and RT-EPT-SDG?

A: Yes! The accessories work with the manual rough terrain stacker
