Product Family Overview

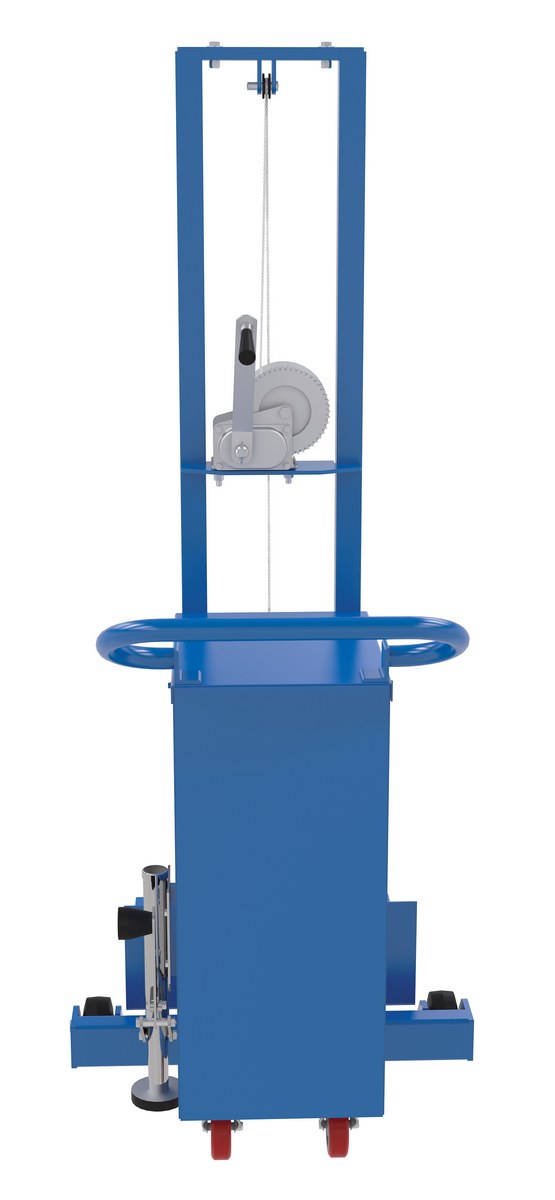

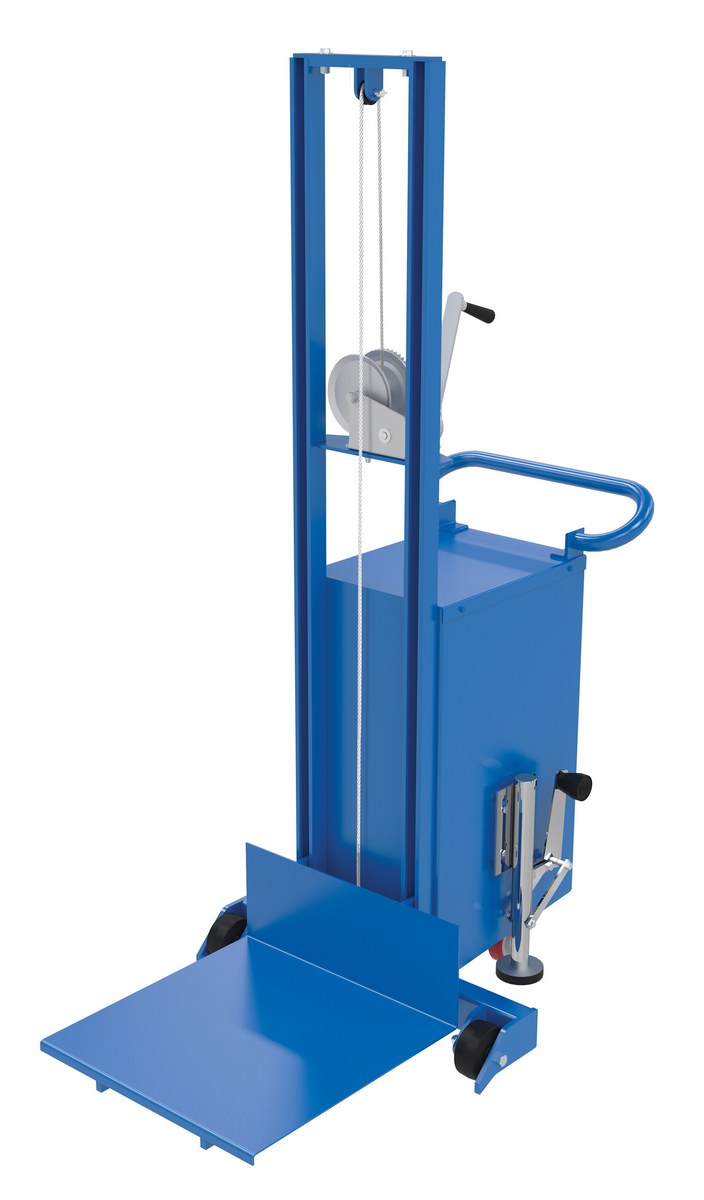

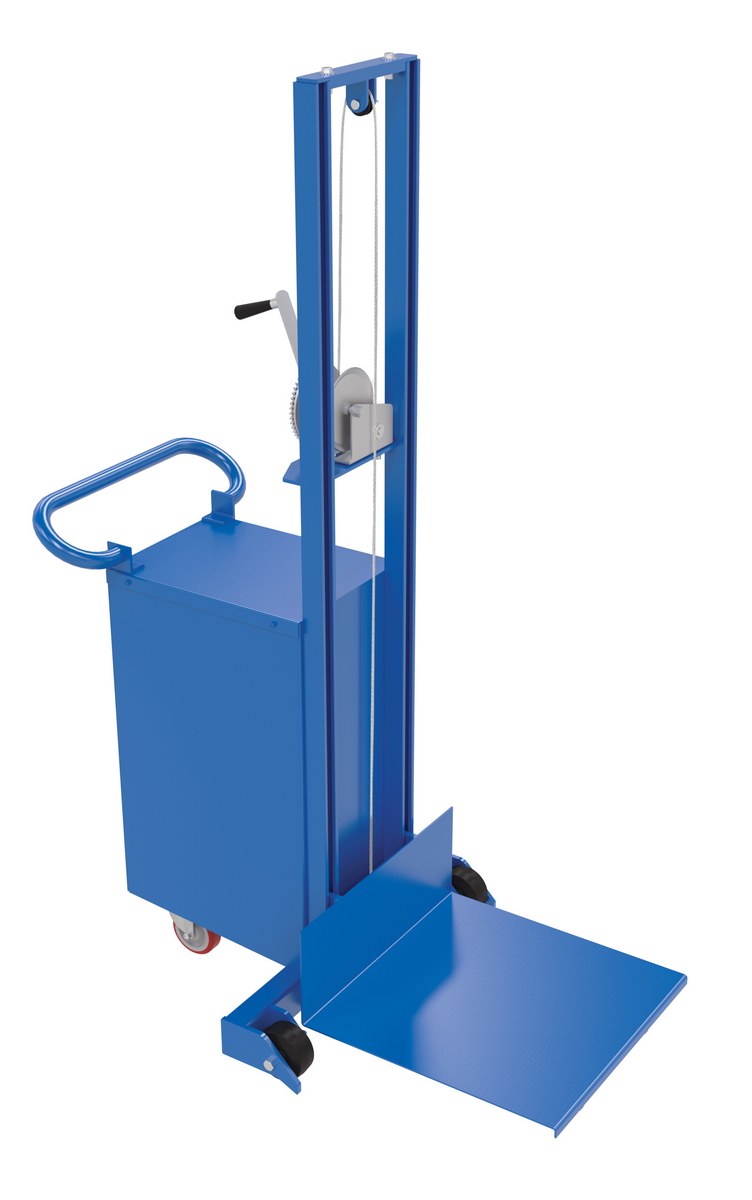

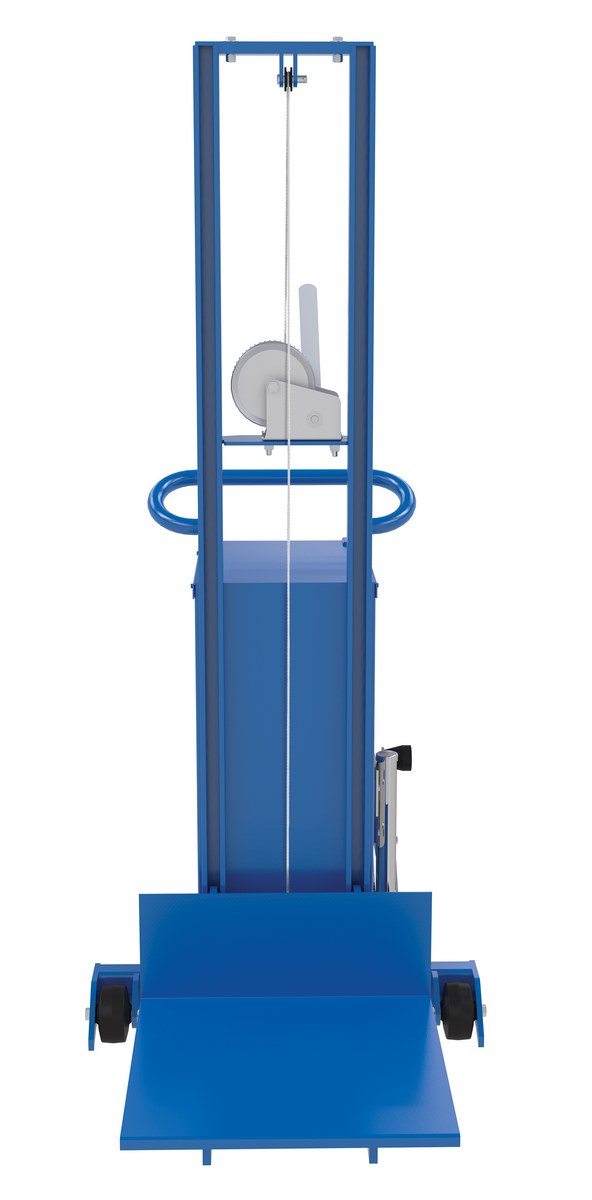

Counter Balanced Lite Load Lift
SERIES: LLCB

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems because of the counter-balance design. This lift has an easy to operate hand winch with a steel construction. The unit rolls smoothly on front mold on rubber wheels, rear hard rubber swivel wheels and a foot operated floor lock.

  • Ideal for lifting and transporting loads from delivery trucks to docks
  • Features hand winch which is easy to operate
  • Counter-balance design is ideal for inventory storage systems
  • Strong construction is perfect for longtime use

Raise and Lower The Platform

To raise and lower the platform, the lifter is equipped with a manual winch. Raise the platform by rotating the handle clockwise. The platform rises ~1 inch with each rotation. Lower the platform by turning the handle counterclockwise. Lay the handle on the winch mounting bracket as shown when the platform is elevated.

Counter Balanced Design

Extra weight added to the back of the Lite Load Lifter aids in moving and raising the awkward loads- which is perfect for inventory storage systems.

central rudder
central rudder

Sturdy Floor Lock for User Safety

Apply the floor lock by using your hand to firmly press down on the lock lever. Confirm that the foot pad of the floor lock solidly contacts the floor by trying to push the lifter. The lifter should resist forward/backward movement while the lock is applied. The floor lock will not prevent movement.


Check Out Our Standard Lite Load Lifts

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems because of the counter-balance design. This lift has an easy to operate hand winch with a steel construction. The unit rolls smoothly on front mold on rubber wheels, rear hard rubber swivel wheels and a foot operated floor lock.

  • Ideal for lifting and transporting loads from delivery trucks to docks
  • Features hand winch which is easy to operate
  • Counter-balance design is ideal for inventory storage systems
  • Strong construction is perfect for longtime use

Raise and Lower The Platform

To raise and lower the platform, the lifter is equipped with a manual winch. Raise the platform by rotating the handle clockwise. The platform rises ~1 inch with each rotation. Lower the platform by turning the handle counterclockwise. Lay the handle on the winch mounting bracket as shown when the platform is elevated.

Counter Balanced Design

Extra weight added to the back of the Lite Load Lifter aids in moving and raising the awkward loads- which is perfect for inventory storage systems.

central rudder
central rudder

Sturdy Floor Lock for User Safety

Apply the floor lock by using your hand to firmly press down on the lock lever. Confirm that the foot pad of the floor lock solidly contacts the floor by trying to push the lifter. The lifter should resist forward/backward movement while the lock is applied. The floor lock will not prevent movement.


Check Out Our Standard Lite Load Lifts

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LLCB-202058 LLCB-20205890 Days Limited WarrantySteel Counter Balanced Lite Load Lift 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 20
540

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LLCB-202058
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width (in.): 20
Uniform Capacity (lb.): 300
Platform Width (in.): 20

Counter Balanced Lite Load Lift PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LLCB-202058

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Counter Balanced Lite Load Lift




The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems because of the counter-balance design. This lift has an easy to operate hand winch with a steel construction. The unit rolls smoothly on front mold on rubber wheels, rear hard rubber swivel wheels and a foot operated floor lock.

  • Ideal for lifting and transporting loads from delivery trucks to docks
  • Features hand winch which is easy to operate
  • Counter-balance design is ideal for inventory storage systems
  • Strong construction is perfect for longtime use

Raise and Lower The Platform

To raise and lower the platform, the lifter is equipped with a manual winch. Raise the platform by rotating the handle clockwise. The platform rises ~1 inch with each rotation. Lower the platform by turning the handle counterclockwise. Lay the handle on the winch mounting bracket as shown when the platform is elevated.

Counter Balanced Design

Extra weight added to the back of the Lite Load Lifter aids in moving and raising the awkward loads- which is perfect for inventory storage systems.

central rudder
central rudder

Sturdy Floor Lock for User Safety

Apply the floor lock by using your hand to firmly press down on the lock lever. Confirm that the foot pad of the floor lock solidly contacts the floor by trying to push the lifter. The lifter should resist forward/backward movement while the lock is applied. The floor lock will not prevent movement.


Check Out Our Standard Lite Load Lifts



Model # Description Attributes Net Wt.
(lbs)
LLCB-202058 LLCB-202058Steel Counter Balanced Lite Load Lift 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 20
540
