Heavy-Duty King Pin Carousels

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

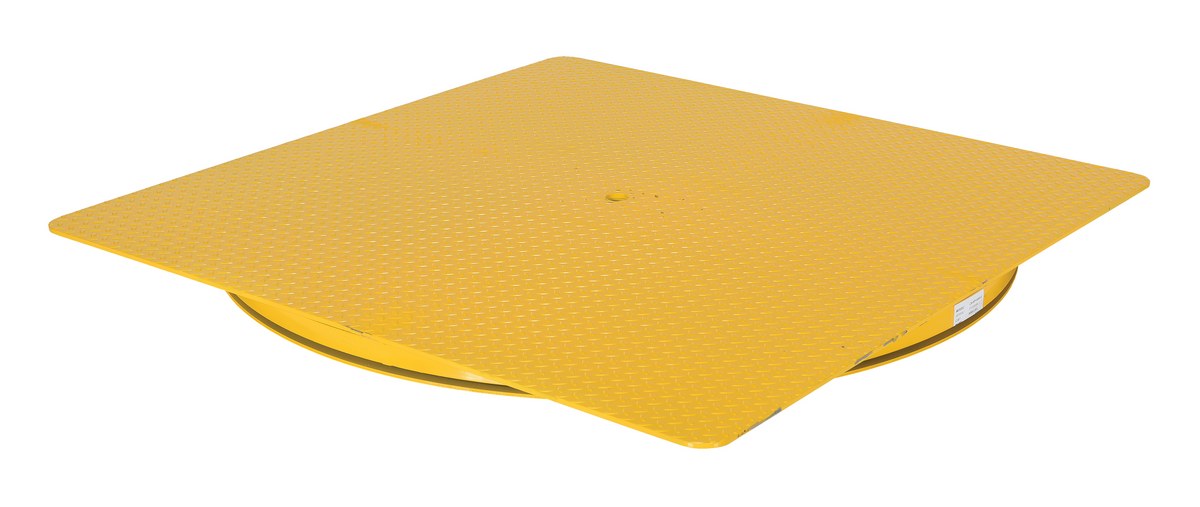

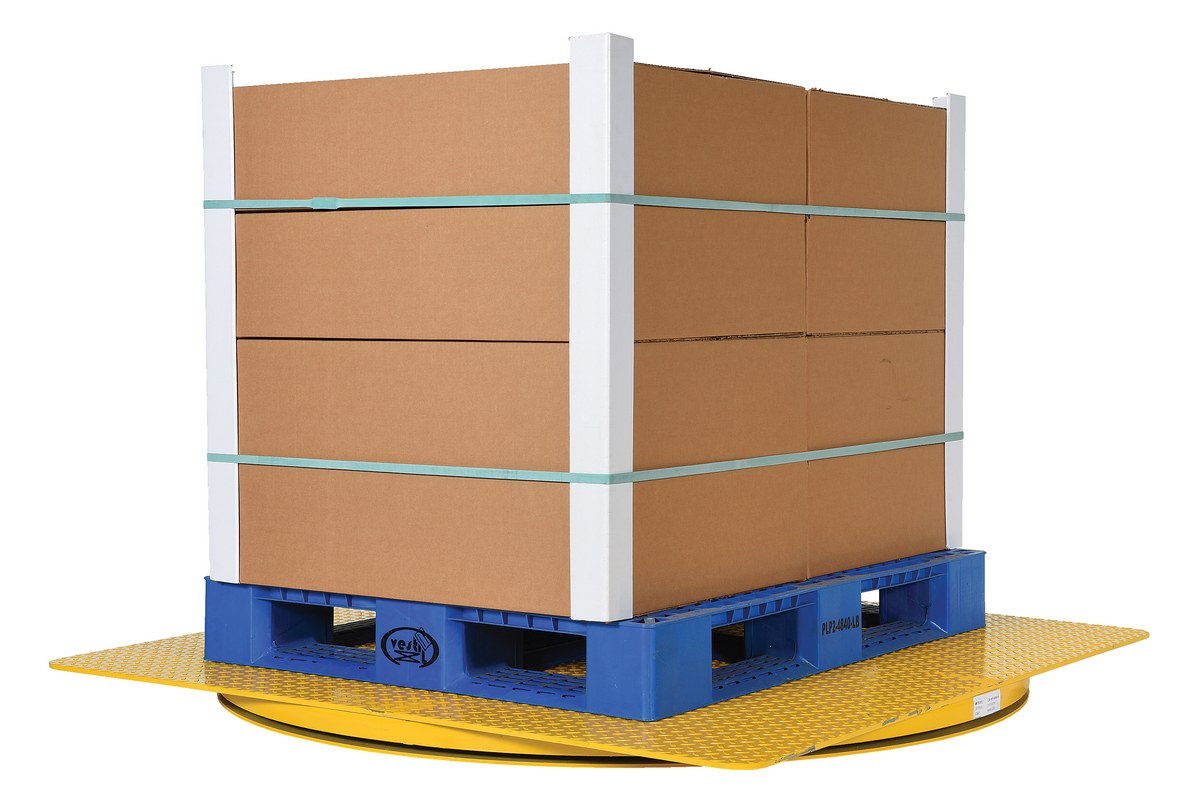

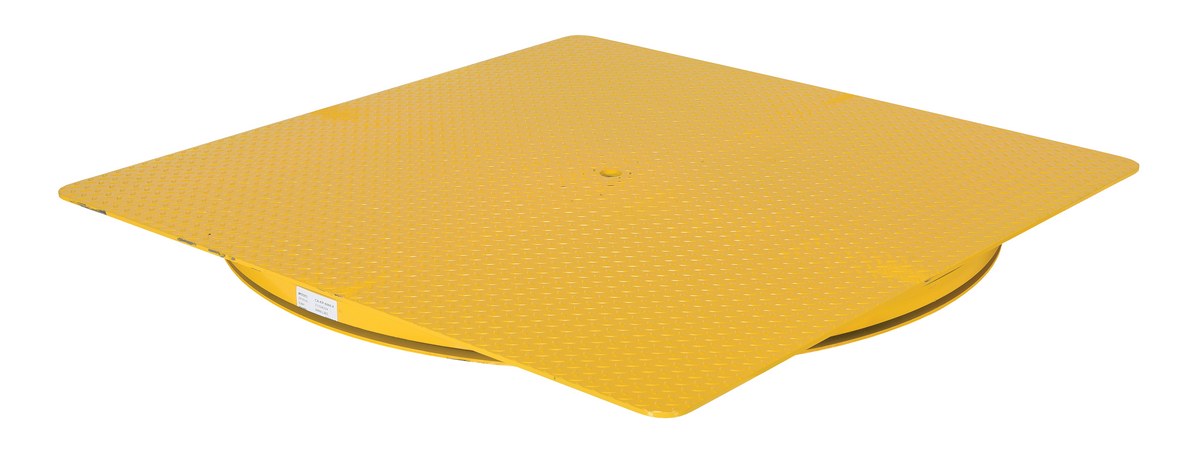

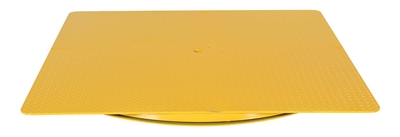

CA-KP-6060-6_D.jpg CA-KP-6060-6_A.jpg CA-KP-6060-6_B.jpg CA-KP-6060-6_C.jpg
Heavy-Duty King Pin Carousels

model: CA-KP-6060-6



Featured Packaging Equipment


Polypropylene Woven Parts/Sand Bags
Electronic Digital Floor Scales
Pallet Wedge
Bench Scales - Legal for Trade
Manual Pallet Probe Strapping Cart
Stand Alone Powered Carousels
Galvanized Welded Wire Pallets
Turntables with Powered Height Adjustment
Low-Profile Powered Carousels
model chart

Product Family Overview

Print Friendly
Heavy-Duty King Pin Carousels
SERIES: CA-KP

The Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.

  • Center kingpin design allows for precise rotation of top plate
  • Maintenance-free bearings allow for smooth rotation

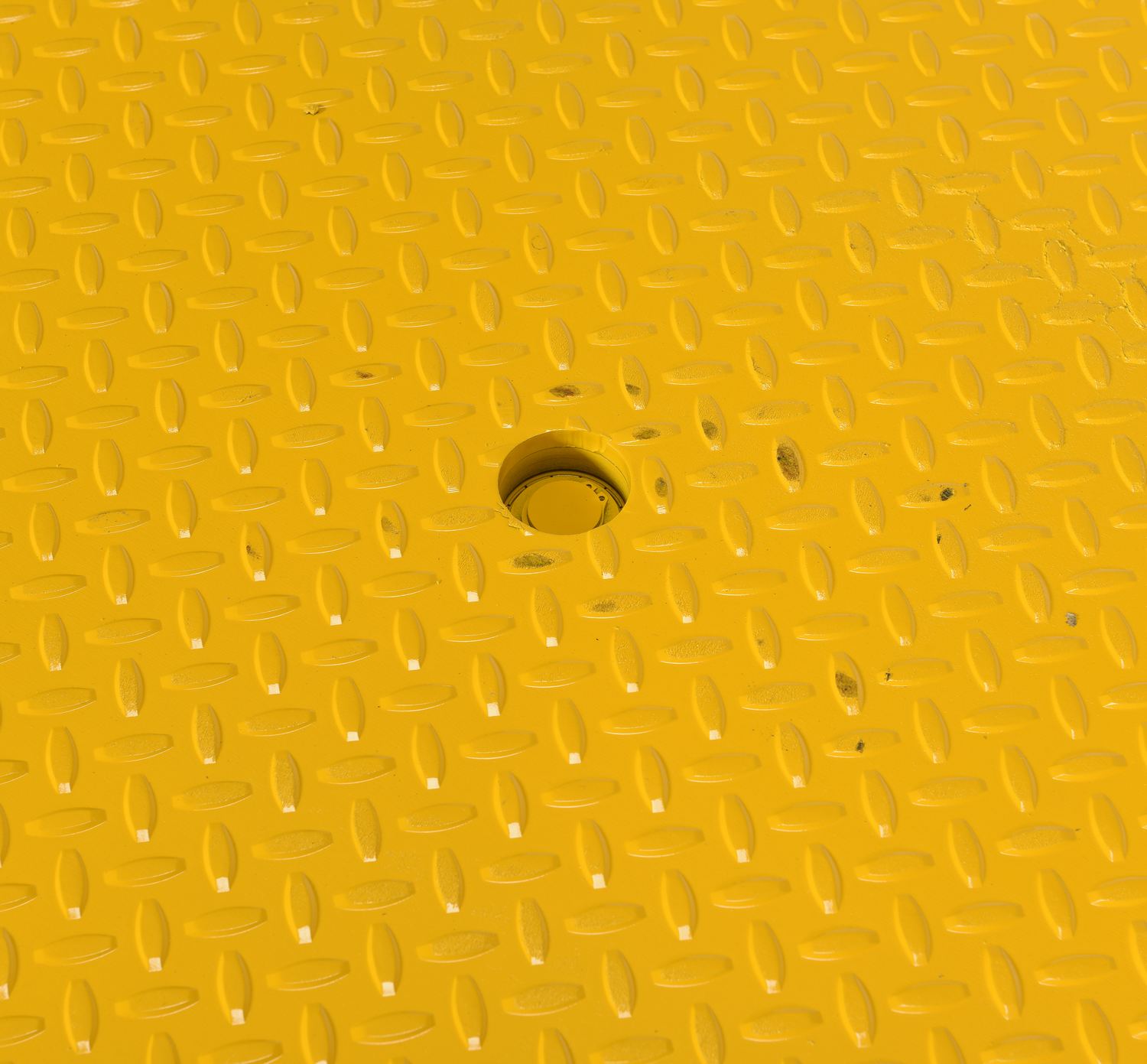

  • Diamond tread plate surface provides added traction
  • Rounded corner top plate provides user safety

The Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.

  • Center kingpin design allows for precise rotation of top plate
  • Maintenance-free bearings allow for smooth rotation
  • Diamond tread plate surface provides added traction
  • Rounded corner top plate provides user safety

Other Carousels

 Heavy-Duty Manual Turntables Aluminum Mini Carousels Turntables with Powered Height Adjustment Thin Spins

Additional Models In This Family
view entire Image Gallery

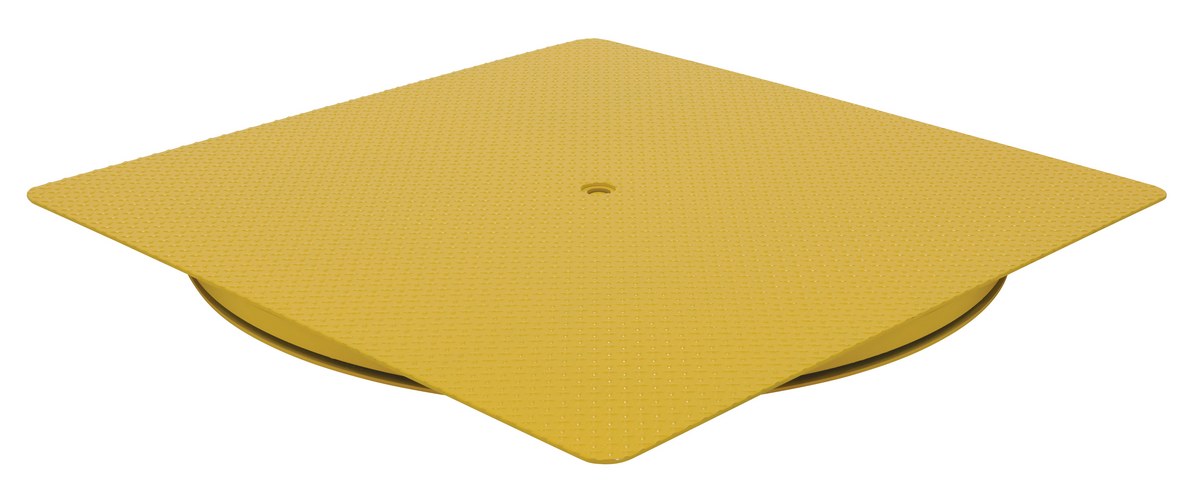

CA-KP-6060-4

CA-KP-6060-4

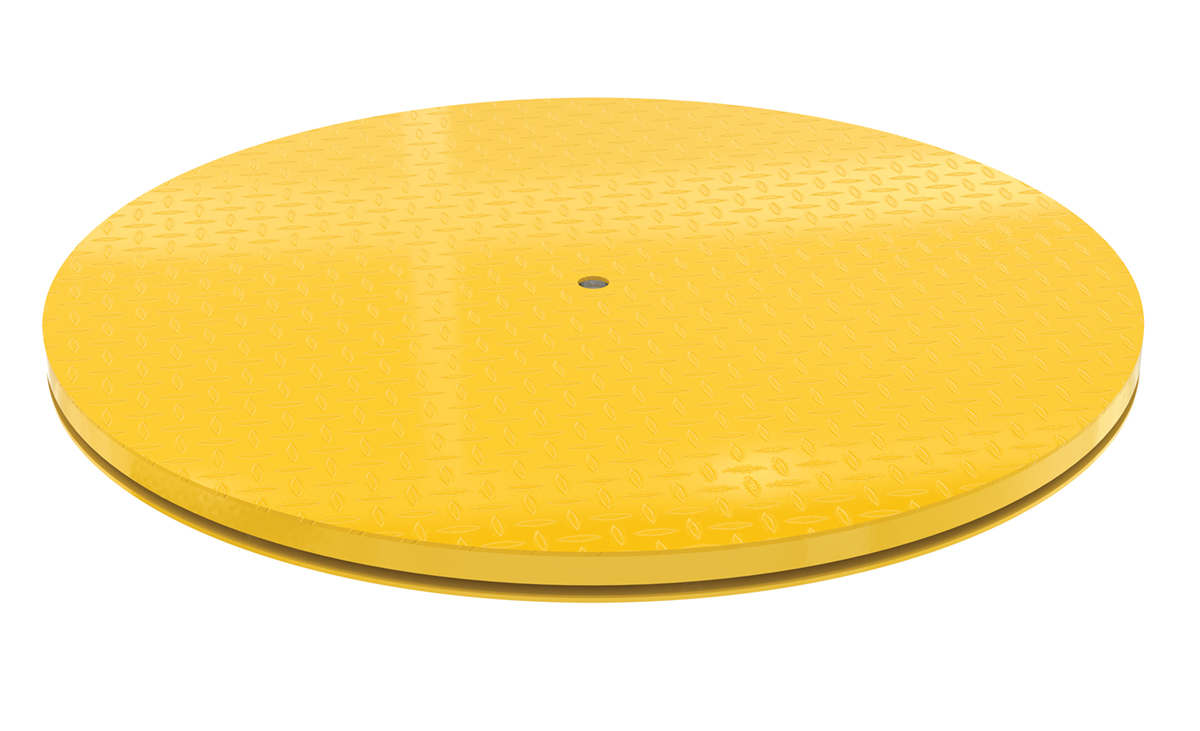

CA-KP-60R-4

CA-KP-60R-4

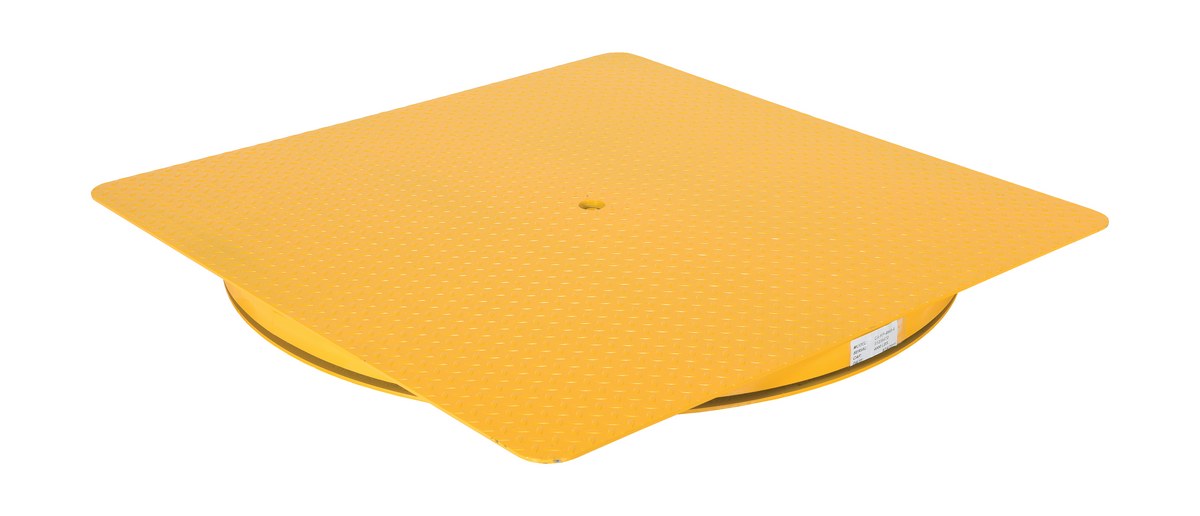

CA-KP-4848-4

CA-KP-4848-4

CA-KP-60R-6

CA-KP-60R-6

CA-KP-4848-4

CA-KP-4848-4

CA-KP-4848-4

CA-KP-4848-4

CA-KP-3636-4

CA-KP-3636-4

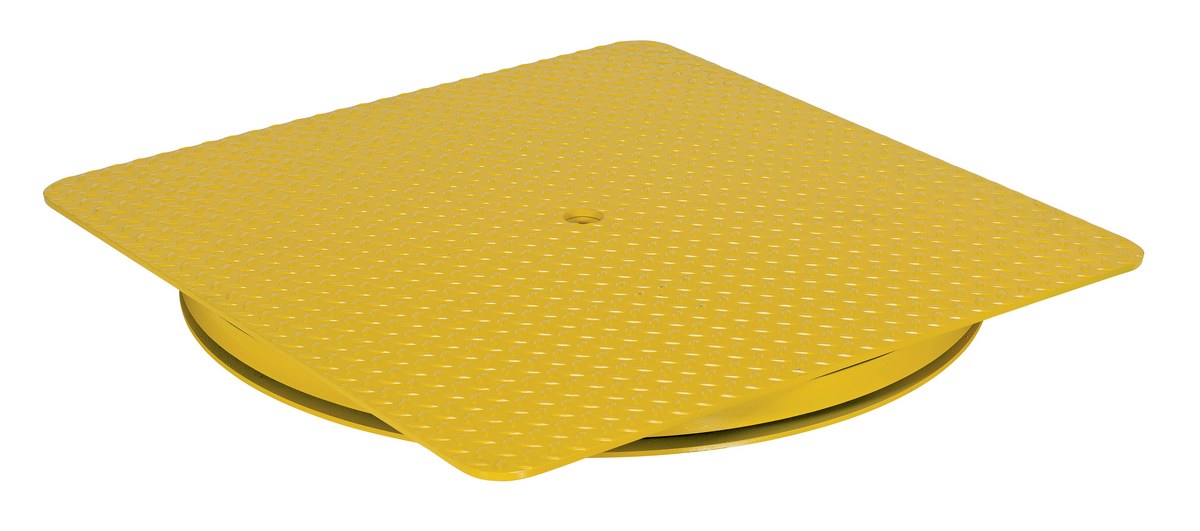

CA-KP-3636-6

CA-KP-3636-6

CA-KP-36R-4

CA-KP-36R-4

CA-KP-4848-6

CA-KP-4848-6

CA-KP-4848-6

CA-KP-4848-6

CA-KP-3636-6

CA-KP-3636-6

CA-KP-4848-6

CA-KP-4848-6

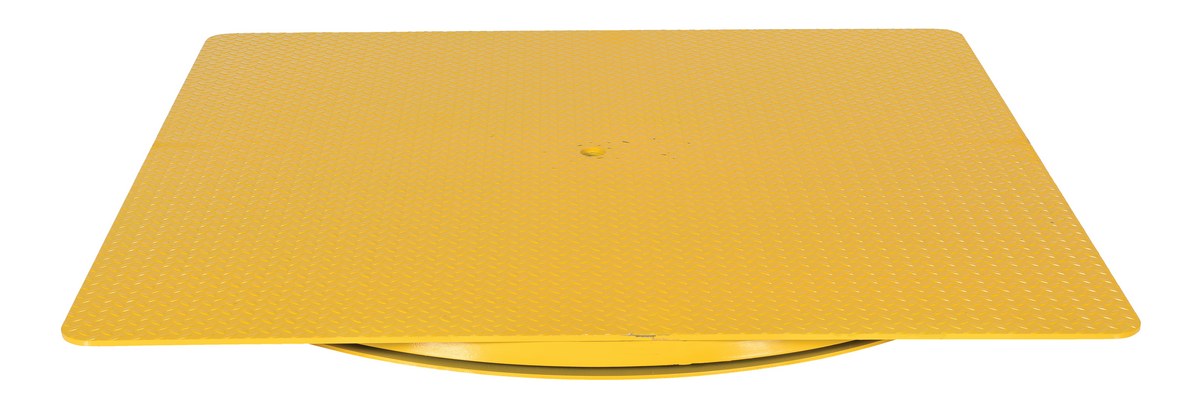

CA-KP-6060-6

CA-KP-6060-6

CA-KP-6060-4

CA-KP-6060-4

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CA-KP-3636-4 CA-KP-3636-490 Days Limited WarrantyHeavy Duty Square King Pin Carousel 36 In. x 36 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		269
CA-KP-3636-6 CA-KP-3636-690 Days Limited WarrantyHeavy Duty Square King Pin Carousel 36 In. x 36 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		306

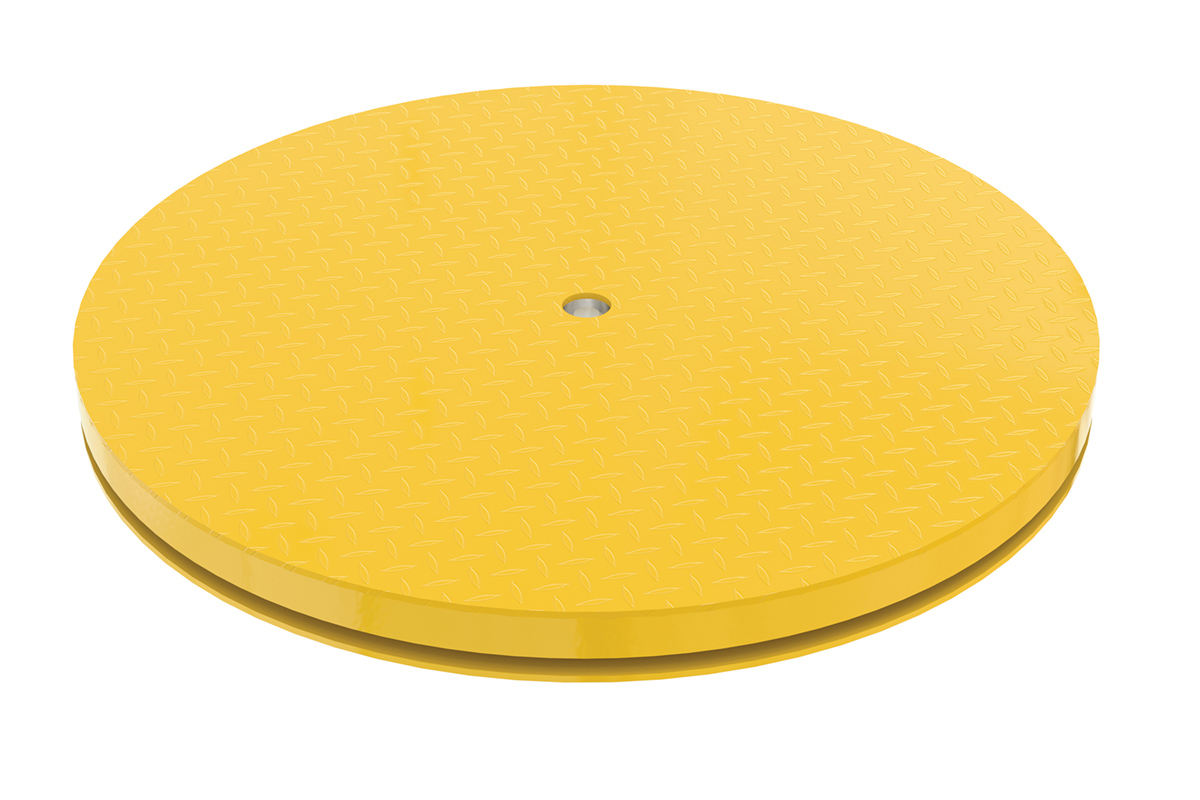

CA-KP-36R-4 CA-KP-36R-490 Days Limited WarrantyHeavy Duty Round King Pin Carousel 36 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		224

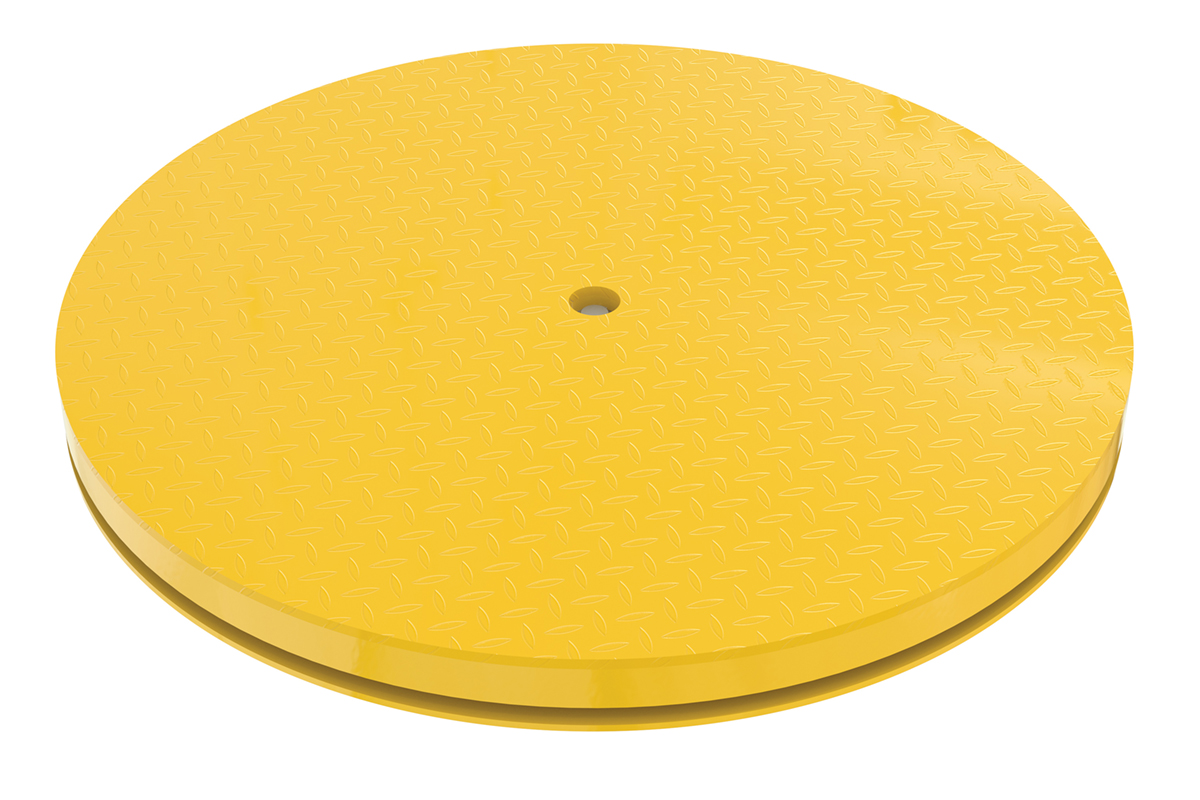

CA-KP-36R-6 CA-KP-36R-690 Days Limited WarrantyHeavy Duty Round King Pin Carousel 36 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		267
CA-KP-4848-4 CA-KP-4848-490 Days Limited WarrantyHeavy Duty Square King Pin Carousel 48 In. x 48 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		422

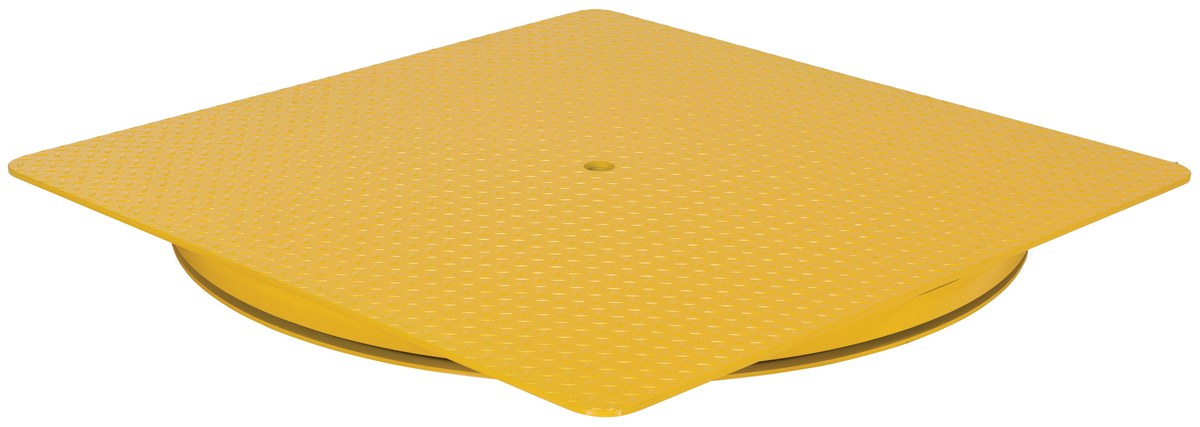

CA-KP-4848-6 CA-KP-4848-690 Days Limited WarrantyHeavy Duty Square King Pin Carousel 48 In. x 48 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		506

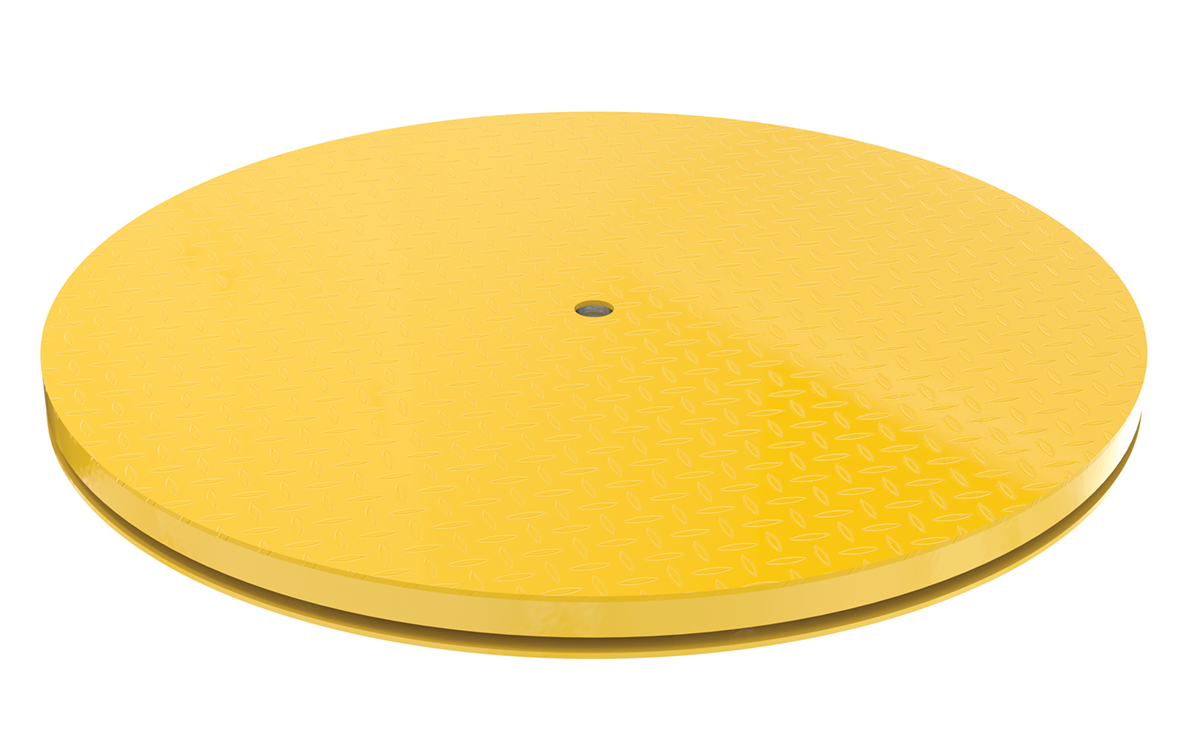

CA-KP-48R-4 CA-KP-48R-490 Days Limited WarrantyHeavy Duty Round King Pin Carousel 48 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		400

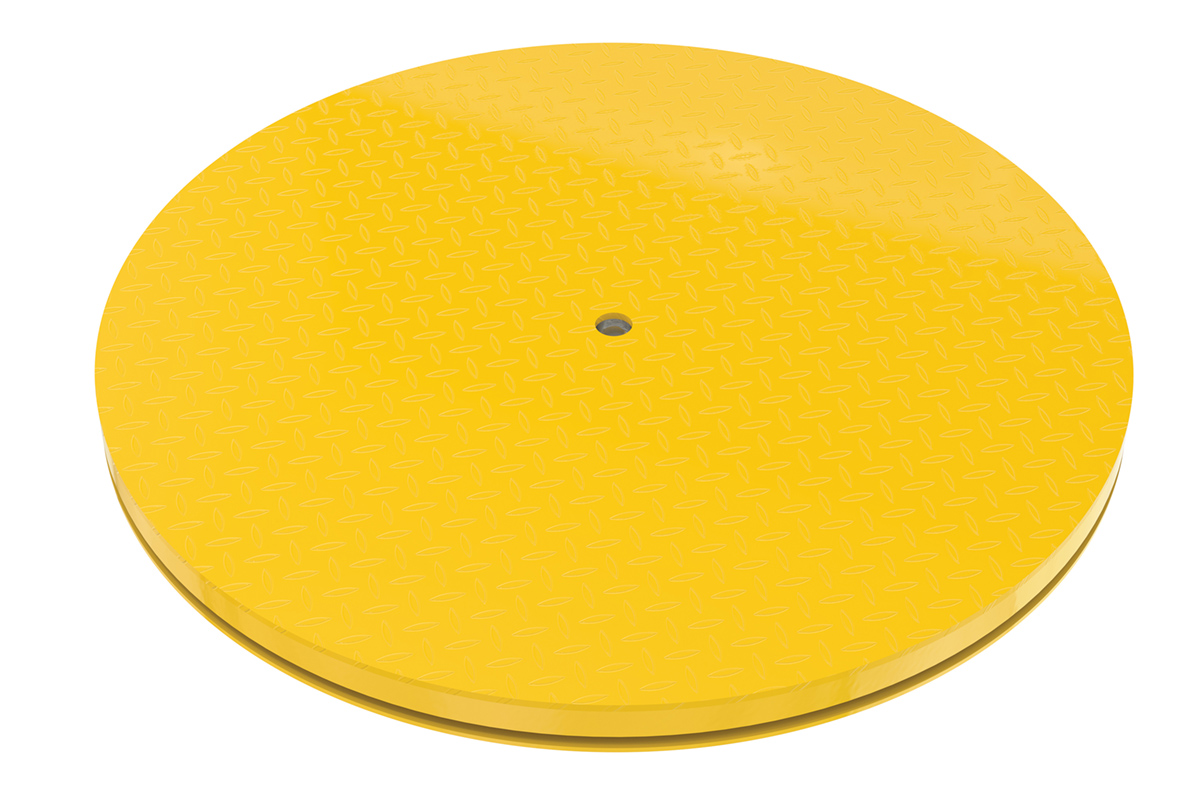

CA-KP-48R-6 CA-KP-48R-690 Days Limited WarrantyHeavy Duty Round King Pin Carousel 48 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		478
CA-KP-6060-4 CA-KP-6060-490 Days Limited WarrantyHeavy Duty Square King Pin Carousel 60 In. x 60 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		641
CA-KP-6060-6 CA-KP-6060-690 Days Limited WarrantyHeavy Duty Square King Pin Carousel 60 In. x 60 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		749
CA-KP-60R-4 CA-KP-60R-490 Days Limited WarrantyHeavy Duty Round King Pin Carousel 60 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		568

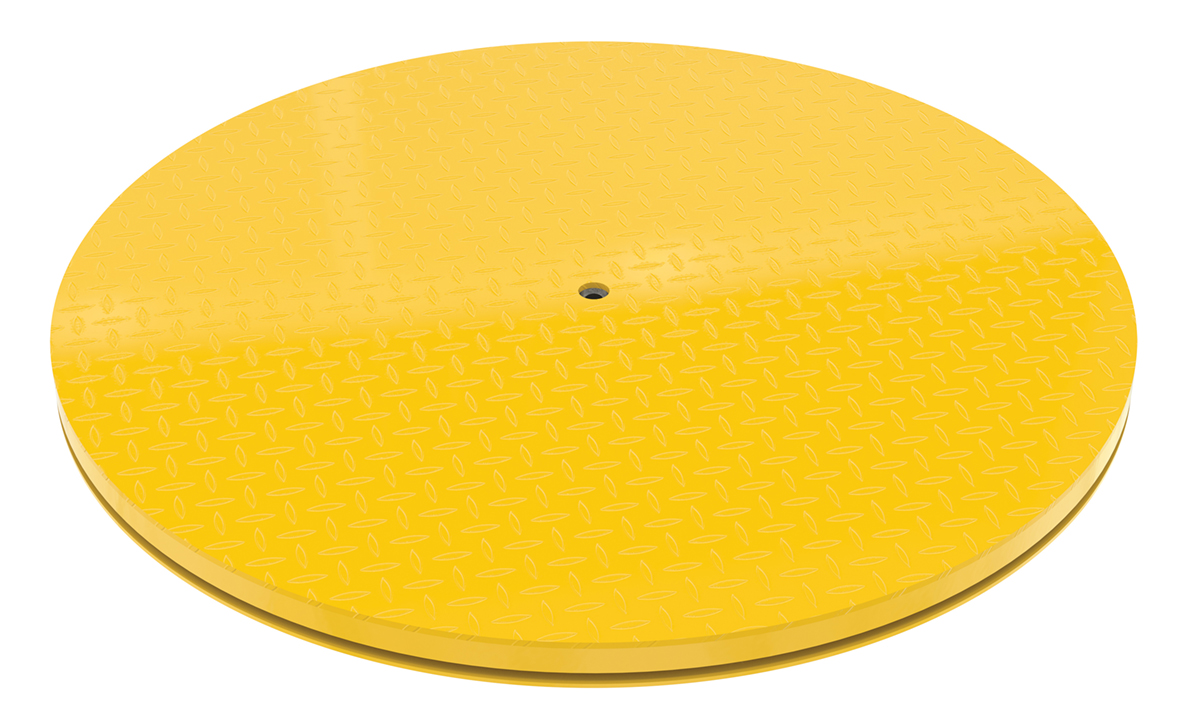

CA-KP-60R-6 CA-KP-60R-690 Days Limited WarrantyHeavy Duty Round King Pin Carousel 60 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		694

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CA-KP-3636-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-3636-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8

CA-KP-36R-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-36R-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8

CA-KP-4848-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-4848-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8

CA-KP-48R-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-48R-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8

CA-KP-6060-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-6060-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8

CA-KP-60R-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4
Uniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4

CA-KP-60R-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
Uniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8
For More Details of the Option Click the Red Model Button
Carousel Options (In Addition to the Carousel)
Model Image Description Wt.
CA-HBK* Manual Brake (field installed) 3
CA-HOD Hand Operated Locking Detent (Factory Installed) 2
CA-FTK* Foot Operated Locking Detent (factory Installed) 3
PLATF-MTG-CA Mounting of conveyor or CA-Series Carousel to platform -
*Only Available with round top
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy-Duty King Pin Carousels PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets


CA-KP
Survey Sheet

Approval Drawings


CA-KP-3636-4

CA-KP-3636-6

CA-KP-36R-4

CA-KP-36R-6

CA-KP-4848-4

CA-KP-4848-6

CA-KP-48R-4

CA-KP-48R-6

CA-KP-6060-4

CA-KP-6060-6

CA-KP-60R-4

CA-KP-60R-6

Testing Certificates


CA-KP-3636-4

CA-KP-3636-6

CA-KP-36R-4

CA-KP-36R-6

CA-KP-4848-4

CA-KP-4848-6

CA-KP-48R-4

CA-KP-48R-6

CA-KP-6060-4

CA-KP-6060-6

CA-KP-60R-4

CA-KP-60R-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How many detents (CA-HOD) are there if we add that option to the king pin carousel?

A: There will be one locking detent welded to the base, and (4) locking positions welded to the top plate, 90 degrees apart.




Related or Similar Products:

Medium Duty Powered Stretch Wrap Machines
Product

Medium Duty Powered Stretch Wrap Machines

Powered Stretch Wrap Machines
Product

Powered Stretch Wrap Machines

Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
Product

Medium Duty High Performance Auto-Wrap Stretch Wrap Machine

Material Pallet Stretch Wrap Machines
Product

Material Pallet Stretch Wrap Machines

Stand Alone Powered Carousels
Product

Stand Alone Powered Carousels

Low-Profile Powered Carousels
Product

Low-Profile Powered Carousels

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty King Pin Carousels




The Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.

  • Center kingpin design allows for precise rotation of top plate
  • Maintenance-free bearings allow for smooth rotation
  • Diamond tread plate surface provides added traction
  • Rounded corner top plate provides user safety

Model # Description Attributes Net Wt.
(lbs)
CA-KP-3636-4 CA-KP-3636-4Heavy Duty Square King Pin Carousel 36 In. x 36 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		269
CA-KP-3636-6 CA-KP-3636-6Heavy Duty Square King Pin Carousel 36 In. x 36 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		306
CA-KP-36R-4 CA-KP-36R-4Heavy Duty Round King Pin Carousel 36 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		224
CA-KP-36R-6 CA-KP-36R-6Heavy Duty Round King Pin Carousel 36 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		267
CA-KP-4848-4 CA-KP-4848-4Heavy Duty Square King Pin Carousel 48 In. x 48 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		422
CA-KP-4848-6 CA-KP-4848-6Heavy Duty Square King Pin Carousel 48 In. x 48 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		506
CA-KP-48R-4 CA-KP-48R-4Heavy Duty Round King Pin Carousel 48 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		400
CA-KP-48R-6 CA-KP-48R-6Heavy Duty Round King Pin Carousel 48 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		478
CA-KP-6060-4 CA-KP-6060-4Heavy Duty Square King Pin Carousel 60 In. x 60 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		641
CA-KP-6060-6 CA-KP-6060-6Heavy Duty Square King Pin Carousel 60 In. x 60 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		749
CA-KP-60R-4 CA-KP-60R-4Heavy Duty Round King Pin Carousel 60 In. 4000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Tread Plate Height (in.): 1/4		568
CA-KP-60R-6 CA-KP-60R-6Heavy Duty Round King Pin Carousel 60 In. 6000 Lb. Capacity YellowUniform Capacity (lb.): 6,000
Tread Plate Height (in.): 3/8		694

Options


Carousel Options (In Addition to the Carousel)
Model Image Description Wt.
CA-HBK* Manual Brake (field installed) 3
CA-HOD Hand Operated Locking Detent (Factory Installed) 2
CA-FTK* Foot Operated Locking Detent (factory Installed) 3
PLATF-MTG-CA Mounting of conveyor or CA-Series Carousel to platform -
*Only Available with round top

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
