Glass Filled Nylon (RX)

model: CST-HLD2-6X2GFN-S

Featured Casters & Wheels

Rubber Casters

TPR (Thermoplastic Rubber) Casters

High Quality Non-Marking Polyurethane-Elastomer (butterscotch)

High Quality Non-Marking Polyurethane-Elastomer

Polyurethane (SI) Casters

Cast Iron/ Semi-Steel Casters

High Quality Non-Marking Polyurethane-Elastomer (blue)

Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters

Metal Alloy Wheel

model chart

Product Family Overview

Print Friendly

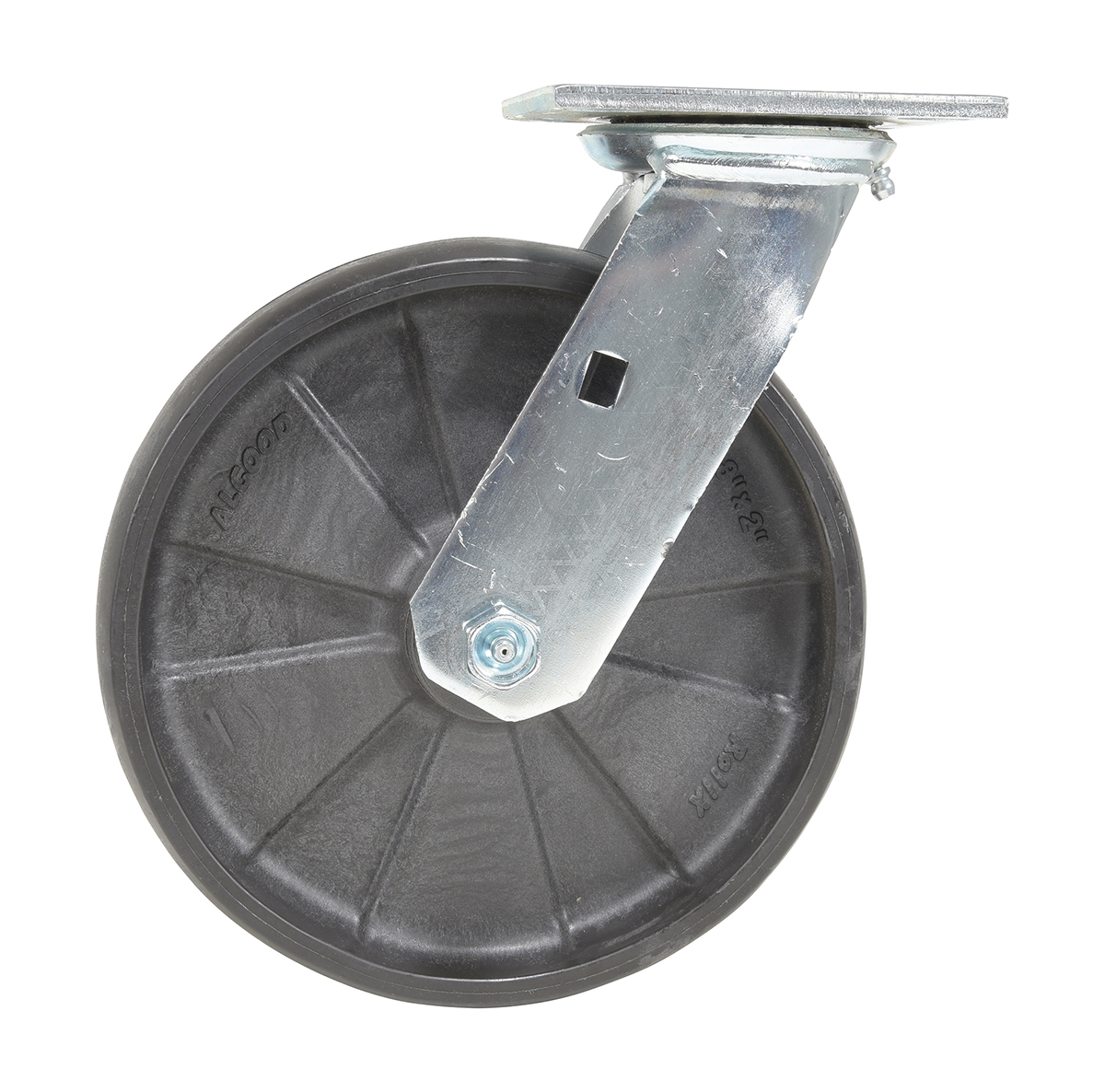

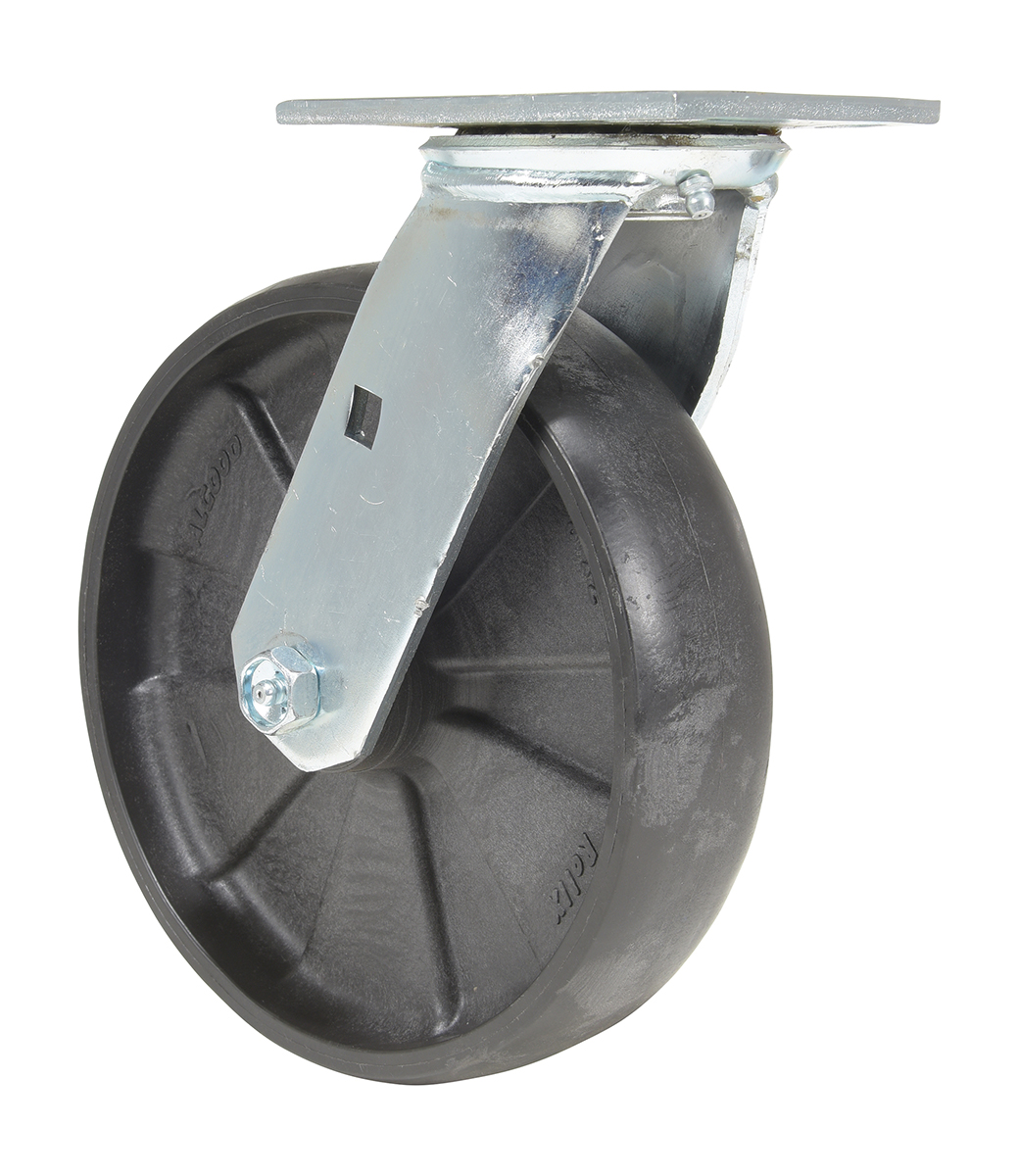

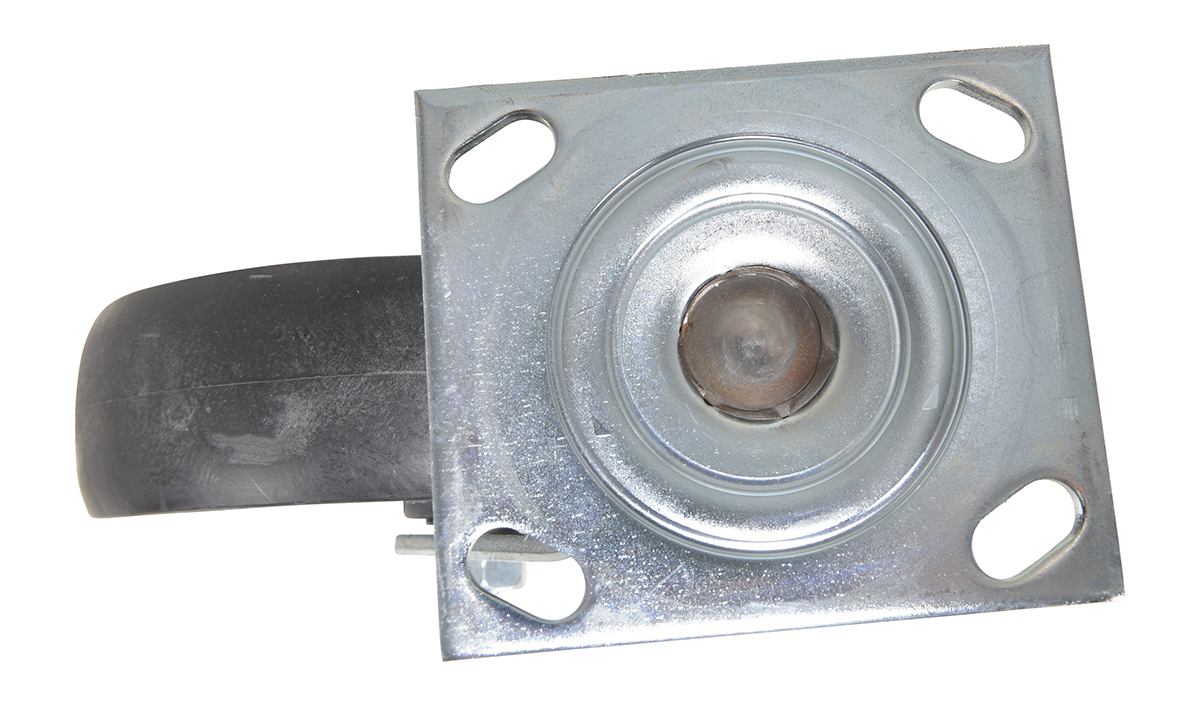

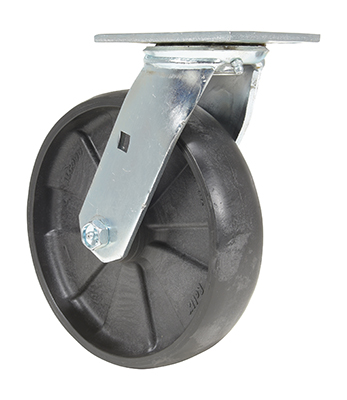

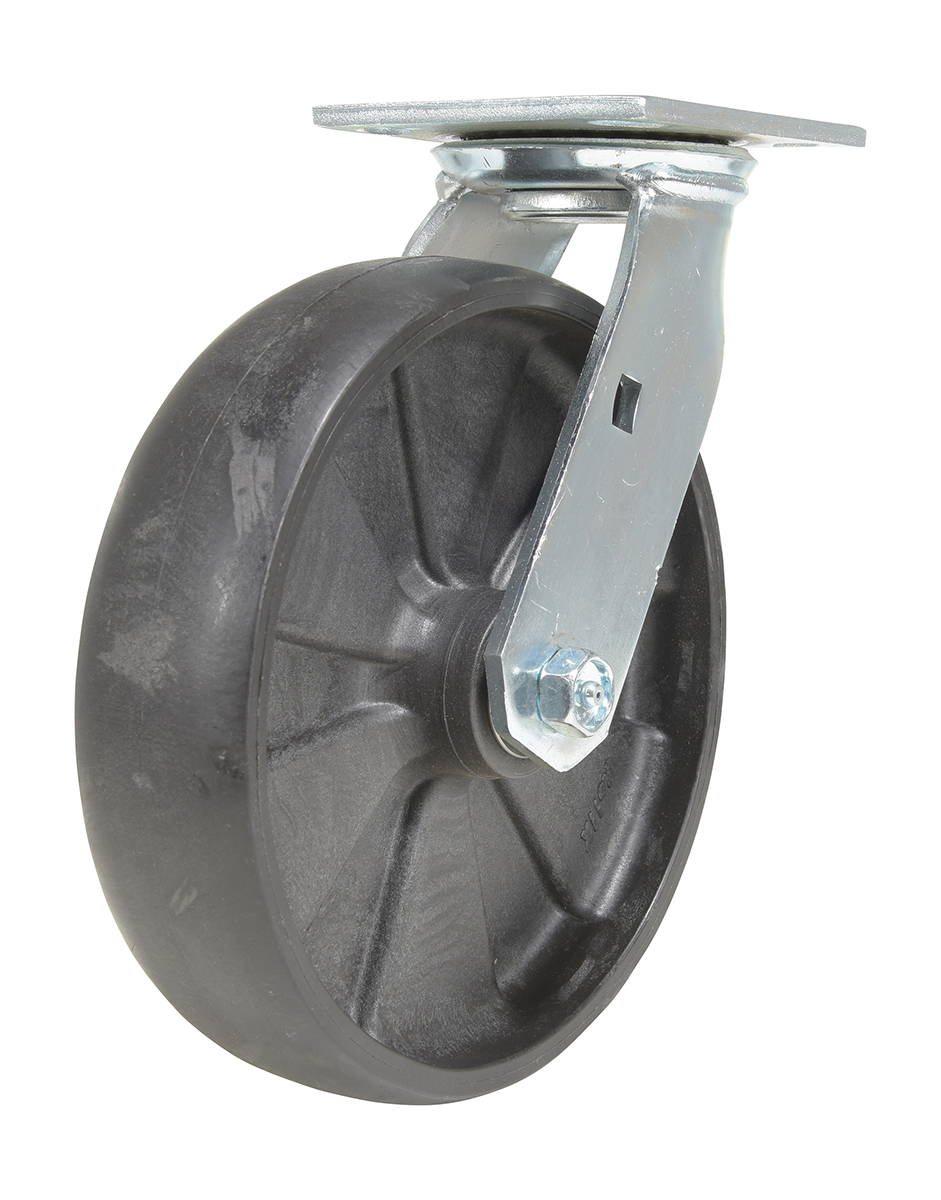

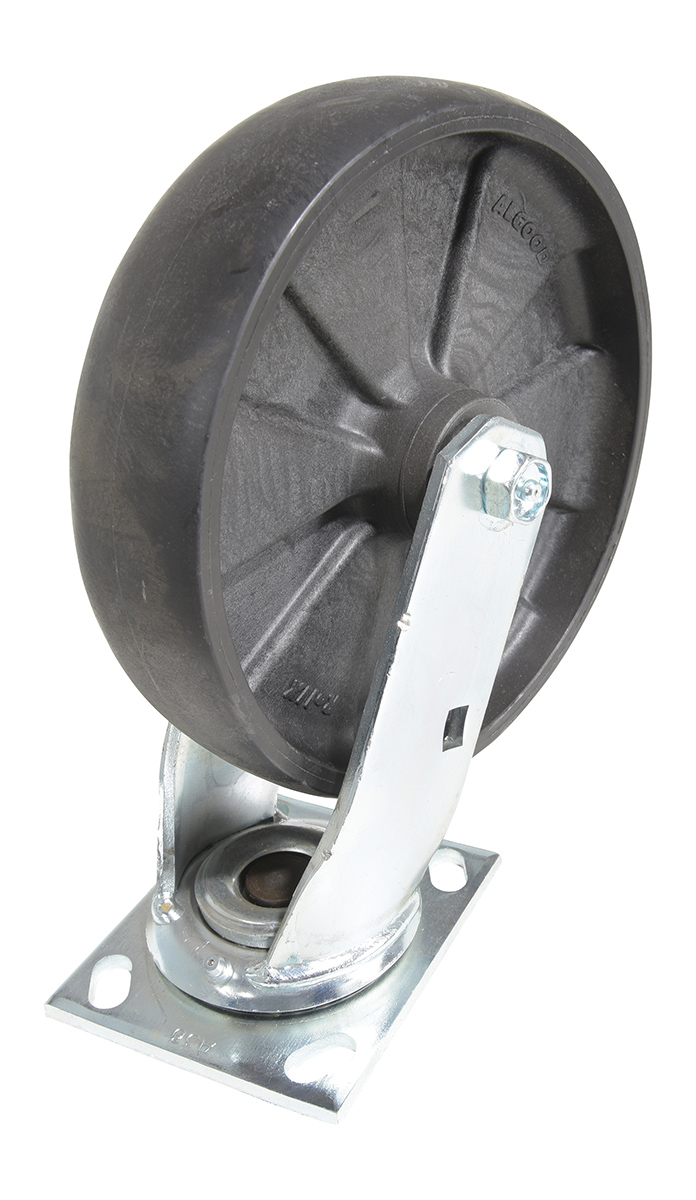

Glass Filled Nylon (RX)

SERIES: CST-HLD2-GFN

Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon (RX). Made in Canada. 3 year warranty.

Non-making high-quality proprietary tread
Lightweight design
Absorbs impact
Moisture resistant
Easy roll performance
Environmentally friendly
Sealed ground precision ball bearings
Compatible with caster pads

Non-making high-quality proprietary tread
Lightweight design
Absorbs impact
Moisture resistant
Easy roll performance
Environmentally friendly
Sealed ground precision ball bearings
Compatible with caster pads

Other "Go-To" Casters

Mold On Rubber (On Aluminum) Casters

Rubber Casters

Polyurethane Casters

Upgraded Glass Filled Nylon, Light Duty (RX) Casters

Follow @vestilmfg

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)
CST-HLD2-4X2GFN-R	3 YEARS Limited Warranty	4 x 2	RIGID	1250	5-1/2	4 x 4-1/2	3.5
CST-HLD2-5X2GFN-R	3 YEARS Limited Warranty	5 x 2	RIGID	1250	6-1/2	4 x 4-1/2	3.94
CST-HLD2-6X2GFN-R	3 YEARS Limited Warranty	6 x 2	RIGID	1250	7-1/2	4 x 4-1/2	4.43
CST-HLD2-8X2GFN-R	3 YEARS Limited Warranty	8 x 2	RIGID	1250	9-1/2	4 x 4-1/2	4.88
CST-HLD2-4X2GFN-S	3 YEARS Limited Warranty	4 x 2	SWIVEL	1250	5-1/2	4 x 4-1/2	4.35
CST-HLD2-5X2GFN-S	3 YEARS Limited Warranty	5 x 2	SWIVEL	1250	6-1/2	4 x 4-1/2	4.75
CST-HLD2-6X2GFN-S	3 YEARS Limited Warranty	6 x 2	SWIVEL	1250	7-1/2	4 x 4-1/2	5.27
CST-HLD2-8X2GFN-S	3 YEARS Limited Warranty	8 x 2	SWIVEL	1250	9-1/2	4 x 4-1/2	5.77
CST-HLD2-8X2GFN-4PSL	3 YEARS Limited Warranty	8 x 2	SWIVEL 4 LOCK	1250	9-1/2	4 x 4-1/2	6.04
CST-HLD2-4X2GFN-SWB	3 YEARS Limited Warranty	4 x 2	SWIVEL W/BRAKE	1250	5-1/2	4 x 4-1/2	4.65
CST-HLD2-5X2GFN-SWB	3 YEARS Limited Warranty	5 x 2	SWIVEL W/BRAKE	1250	6-1/2	4 x 4-1/2	5.05
CST-HLD2-6X2GFN-SWB	3 YEARS Limited Warranty	6 x 2	SWIVEL W/BRAKE	1250	7-1/2	4 x 4-1/2	5.59
CST-HLD2-8X2GFN-SWB	3 YEARS Limited Warranty	8 x 2	SWIVEL W/BRAKE	1250	9-1/2	4 x 4-1/2	6.18
