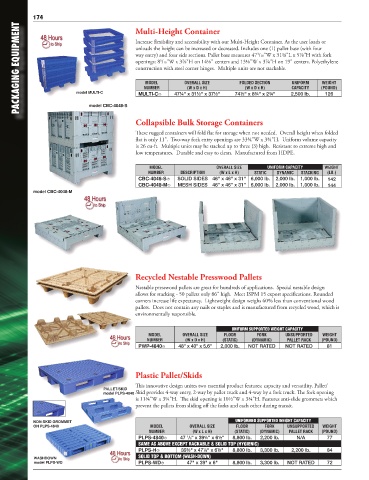

Page 168 - Vestil Catalog 112

174 Multi-Height Container
PACKAGING EQUIPMENT model MULTI-C unloads the height can be increased or decreased. Includes one (1) pallet base (with four (POUND)

Increase flexibility and accessibility with our Multi-Height Container. As the user loads or
way entry) and four side sections. Pallet base measures 47 /16"W x 31⅜"L x 5⅞"H with fork
3
5
openings: 8 /16"W x 3⅞"H on 14⅛" centers and 13⅛"W x 3⅞"H on 19" centers. Polyethylene
construction with steel corner hinges. Multiple units are not stackable.
WEIGHT
OVERALL SIZE
MODEL
UNIFORM
FOLDED SECTION
CAPACITY
NUMBER
(W x D x H)
(W x D x H)
2,500 lb.
126
47¼" x 31½" x 37½"
74½" x 8¾" x 2¾"
MULTI-C�
model CBC-4048-S
Collapsible Bulk Storage Containers
These rugged containers will fold flat for storage when not needed. Overall height when folded
flat is only 11". Two-way fork entry openings are 33¾"W x 3¾"H. Uniform volume capacity
is 26 cu-ft. Multiple units may be stacked up to three (3) high. Resistant to extreme high and
low temperatures. Durable and easy to clean. Manufactured from HDPE.
MODEL OVERALL SIZE UNIFORM CAPACITY WEIGHT
NUMBER DESCRIPTION (W x L x H) STATIC DYNAMIC STACKING (LB.)
CBC-4048-S� SOLID SIDES 46" x 46" x 31" 6,000 lb. 2,000 lb. 1,000 lb. 142
CBC-4048-M� MESH SIDES 46" x 46" x 31" 6,000 lb. 2,000 lb. 1,000 lb. 144
model CBC-4048-M

Recycled Nestable Presswood Pallets
Nestable presswood pallets are great for hundreds of applications. Special nestable design
allows for stacking - 50 pallets only 86" high. Meet ISPM 15 export specifications. Rounded
corners increase life expectancy. Lightweight design weighs 60% less than conventional wood
pallets. Does not contain any nails or staples and is manufactured from recycled wood, which is
environmentally responsible.

UNIFORM SUPPORTED WEIGHT CAPACITY
MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT
NUMBER (W x D x H) (STATIC) (DYNAMIC) PALLET RACK (POUND)
PWP-4840� 48" x 40" x 5.6" 2,000 lb. NOT RATED NOT RATED 81

Plastic Pallet/Skids
This innovative design unites two essential product features; capacity and versatility. Pallet/
PALLET/SKID
model PLPS-4840 Skid provides 4-way entry, 2-way by pallet truck and 4-way by a fork truck. The fork opening
is 11¾"W x 3¼"H. The skid opening is 10½"W x 3¾"H. Features anti-slide grommets which
prevent the pallets from sliding off the forks and each other during transit.

NON-SKID GROMMET UNIFORMED SUPPORTED WEIGHT CAPACITY
ON PLPS-4840 MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT
NUMBER (W x L x H) (STATIC) (DYNAMIC) PALLET RACK (POUND)
1
PLPS-4840� 47 /8" x 39¼" x 6½" 8,800 lb. 2,200 lb. N/A 77
SAME AS ABOVE EXCEPT RACKABLE & SOLID TOP (HYGIENIC)
PLPS-H� 39½" x 47¼" x 6½" 8,800 lb. 3,300 lb. 2,200 lb. 84
SOLID TOP & BOTTOM (WASH-DOWN)
WASHDOWN
model PLPS-WD PLPS-WD� 47" x 39" x 6" 8,800 lb. 3,300 lb. NOT RATED 72
