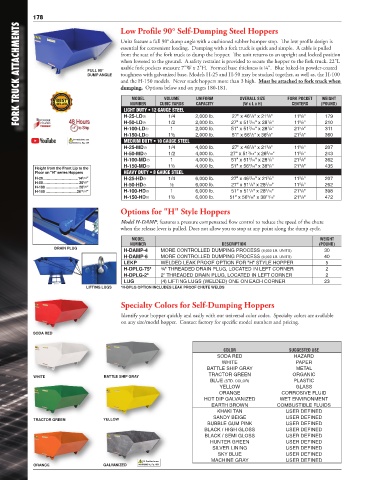

178 Low Profile 90° Self-Dumping Steel Hoppers
FORK TRUCK ATTACHMENTS FULL 90° essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled

Units feature a full 90° dump angle with a cushioned rubber bumper stop. The low profile design is
from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position
when lowered to the ground. A safety restraint is provided to secure the hopper to the fork truck. 22"L
usable fork pockets measure 7"W x 2"H. Formed base thickness is ¼". Blue baked-in powder-coated
toughness with galvanized base. Models H-25 and H-50 may be stacked together, as well as, the H-100
DUMP ANGLE
and the H-150 models. Never stack hoppers more than 3 high. Must be attached to fork truck when
dumping. Options below and on pages 180-181.

OVERALL SIZE
VOLUME
MODEL
WEIGHT
UNIFORM
FORK POCKET
CAPACITY
(W x L x H)
NUMBER
LIGHT DUTY • 12 GAUGE STEEL
1
3
5
179
11 /8"
1/4
H-25-LD�
27" x 46 /8" x 21 /8"
5
1
3
2,000 lb.
210
1/2
11 /8"
H-50-LD�
3
5
1
21 /8"
51" x 51 /16" x 28 /8"
2,000 lb.
1
H-100-LD� CUBIC YARDS 2,000 lb. 27" x 51 /16" x 28 /8" CENTERS (POUND)
311
5
H-150-LD� 1½ 2,000 lb. 51" x 56 /2" x 38 /8" 21 /8" 360
5
1
CA Residents see MEDIUM DUTY • 10 GAUGE STEEL
WARNING A, Pg. 459
5
1
3
H-25-MD� 1/4 4,000 lb. 27" x 46 /8" x 21 /8" 11 /8" 207
5
3
3
H-50-MD� 1/2 4,000 lb. 27" x 51 /16" x 28 /16" 11 /8" 243
1
3
5
H-100-MD� 1 4,000 lb. 51" x 51 /16" x 28 /8" 21 /8" 362
5
9
5
H-150-MD� 1½ 4,000 lb. 51" x 56 /16" x 38 /8" 21 /8" 435
Height from the Front Lip to the
Floor on "H" series Hoppers HEAVY DUTY • 8 GAUGE STEEL
H-25....................................14 9 / 16 " H-25-HD� 1/4 6,000 lb. 27" x 46 /16" x 21 /8" 11 /8" 207
3
5
3
H-50..................................... 20 5 / 8 " 1 3 5
H-100 .................................. 20 5 / 8 " H-50-HD� ½ 6,000 lb. 27" x 51 /4" x 28 /16" 11 /8" 262
5
3
1
H-150 ................................26 15 / 16 " H-100-HD� 1 6,000 lb. 51" x 51 /4" x 28 /16" 21 /8" 398
11
9
5
H-150-HD� 1½ 6,000 lb. 51" x 56 /16" x 38 /16" 21 /8" 472
Options for "H" Style Hoppers
Model H-DAMP, features a pressure compensated flow control to reduce the speed of the chute
when the release lever is pulled. Does not allow you to stop at any point along the dump cycle.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
DRAIN PLUG H-DAMP-4 MORE CONTROLLED DUMPING PROCESS (4,000 LB. UNITS) 30
H-DAMP-6 MORE CONTROLLED DUMPING PROCESS (6,000 LB. UNITS) 40
LEKP WELDED LEAK PROOF OPTION FOR "H" STYLE HOPPER 5
H-DPLG-75* ¾" THREADED DRAIN PLUG, LOCATED IN LEFT CORNER 2
H-DPLG-2* 2" THREADED DRAIN PLUG, LOCATED IN LEFT CORNER 2
LUG (4) LIFTING LUGS (WELDED) ONE ON EACH CORNER 23
LIFTING LUGS *H-DPLG OPTION INCLUDES LEAK PROOF CHUTE WELDS
Specialty Colors for Self-Dumping Hoppers
Identify your hopper quickly and easily with our universal color codes. Specialty colors are available
on any size/model hopper. Contact factory for specific model numbers and pricing.
SODA RED
COLOR SUGGESTED USE
SODA RED HAZARD
WHITE PAPER
BATTLE SHIP GRAY METAL
WHITE BATTLE SHIP GRAY TRACTOR GREEN ORGANIC
BLUE (STD. COLOR) PLASTIC
YELLOW GLASS
ORANGE CORROSIVE FLUID
HOT DIP GALVANIZED WET ENVIRONMENT
EARTH BROWN COMBUSTIBLE FLUIDS
KHAKI TAN USER DEFINED
TRACTOR GREEN YELLOW SANDY BEIGE USER DEFINED
BUBBLE GUM PINK USER DEFINED
BLACK / HIGH GLOSS USER DEFINED
BLACK / SEMI GLOSS USER DEFINED
HUNTER GREEN USER DEFINED
SILVER LINING USER DEFINED
SKY BLUE USER DEFINED
CA Residents see MACHINE GRAY USER DEFINED
ORANGE GALVANIZED WARNING A, Pg. 459
