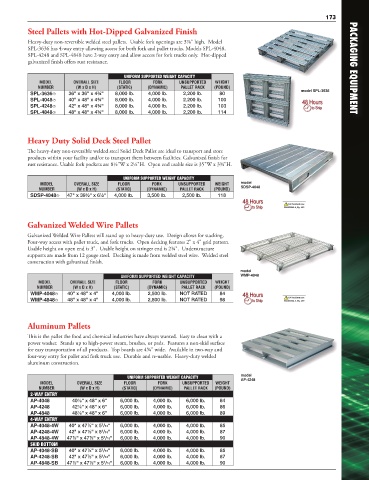

Page 167 - Vestil Catalog 112

173
Steel Pallets with Hot-Dipped Galvanized Finish

Heavy-duty non-reversible welded steel pallets. Usable fork openings are 3⅞" high. Model
SPL-3636 has 4-way entry allowing access for both fork and pallet trucks. Models SPL-4048,
SPL-4248 and SPL-4848 have 2-way entry and allow access for fork trucks only. Hot-dipped
galvanized finish offers rust resistance. PACKAGING EQUIPMENT

UNIFORM SUPPORTED WEIGHT CAPACITY
MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT
NUMBER (W x D x H) (STATIC) (DYNAMIC) PALLET RACK (POUND)
SPL-3636� 36" x 36" x 4¾" 8,000 lb. 4,000 lb. 2,200 lb. 80 model SPL-3636
SPL-4048� 40" x 48" x 4¾" 8,000 lb. 4,000 lb. 2,200 lb. 100
SPL-4248� 42" x 48" x 4¾" 8,000 lb. 4,000 lb. 2,200 lb. 103
SPL-4848� 48" x 48" x 4¾" 8,000 lb. 4,000 lb. 2,200 lb. 114

Heavy Duty Solid Deck Steel Pallet
The heavy-duty non-reversible welded steel Solid Deck Pallet are ideal to transport and store
products within your facility and/or to transport them between facilities. Galvanized finish for
rust resistance. Usable fork pockets are 8½"W x 2½"H. Open end usable size is 35"W x 3¾"H.

UNIFORM SUPPORTED WEIGHT CAPACITY
MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT model
NUMBER (W x D x H) (STATIC) (DYNAMIC) PALLET RACK (POUND) SDSP-4048
SDSP-4048� 47" x 39½" x 6½" 4,000 lb. 3,500 lb. 2,500 lb. 118
CA Residents see
WARNING A, Pg. 459

Galvanized Welded Wire Pallets
Galvanized Welded Wire Pallets will stand up to heavy-duty use. Design allows for stacking.
Four-way access with pallet truck, and fork trucks. Open decking features 2" x 4" grid pattern.
Usable height on open end is 3". Usable height on stringer end is 2¾". Understructure
supports are made from 12 gauge steel. Decking is made from welded steel wire. Welded steel
construction with galvanized finish.
model
UNIFORM SUPPORTED WEIGHT CAPACITY WMP-4048
MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT
NUMBER (W x D x H) (STATIC) (DYNAMIC) PALLET RACK (POUND)
WMP-4048� 40" x 48" x 4" 4,000 lb. 2,500 lb. NOT RATED 84
CA Residents see
WMP-4848� 48" x 48" x 4" 4,000 lb. 2,500 lb. NOT RATED 98 WARNING A, Pg. 459

Aluminum Pallets

This is the pallet the food and chemical industries have always wanted. Easy to clean with a
power washer. Stands up to high-power steam, brushes, or pads. Features a non-skid surface
for easy transportation of all products. Top boards are 4¾" wide. Available in two-way and
four-way entry for pallet and fork truck use. Durable and re-usable. Heavy-duty welded
aluminum construction.

UNIFORM SUPPORTED WEIGHT CAPACITY model
AP-4248
MODEL OVERALL SIZE FLOOR FORK UNSUPPORTED WEIGHT
NUMBER (W x D x H) (STATIC) (DYNAMIC) PALLET RACK (POUND)
2-WAY ENTRY
AP-4048 40⅛" x 48" x 6" 6,000 lb. 4,000 lb. 6,000 lb. 84
AP-4248 42⅛" x 48" x 6" 6,000 lb. 4,000 lb. 6,000 lb. 86
AP-4848 48⅛" x 48" x 6" 6,000 lb. 4,000 lb. 6,000 lb. 89
4-WAY ENTRY
AP-4048-4W 40" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 85
1
1
AP-4248-4W 42" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 87
1
AP-4848-4W 47⅞" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 90
SKID BOTTOM
1
AP-4048-SB 40" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 85
1
AP-4248-SB 42" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 87
1
AP-4848-SB 47⅞" x 47⅞" x 5 /16" 6,000 lb. 4,000 lb. 4,000 lb. 90
