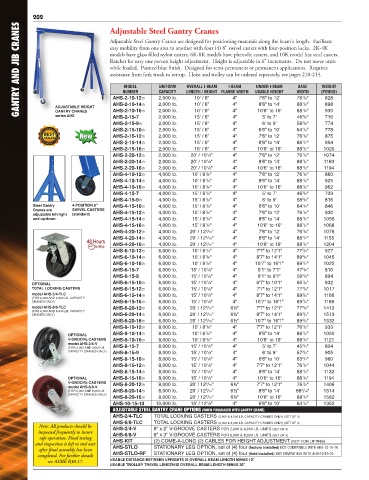

Page 196 - Vestil Catalog 112

202 Adjustable Steel Gantry Cranes
GANTRY AND JIB CRANES easy mobility from one area to another with four (4) 8" swivel casters with four-position locks. 2K-4K

Adjustable Steel Gantry Cranes are designed for positioning materials along the beam's length. Facilitate
models have glass filled nylon casters, 6K-8K models have phenolic casters, and 10K model has steel casters.
Ratchet for easy one person height adjustment. Height is adjustable in 6" increments. Do not move units
while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires
assistance from fork truck to set-up. Hoist and trolley can be ordered separately, see pages 210-214.

MODEL
UNDER I-BEAM
OVERALL I-BEAM
BASE
WEIGHT
UNIFORM
I-BEAM
NUMBER
USABLE HEIGHT
WIDTH
(POUND)
CAPACITY
LENGTH / HEIGHT FLANGE WIDTH
1
7'6" to 12'
AHS-2-10-12�
1
4"
AHS-2-10-14�
898
10' / 6"
8'6" to 14'
2,000 lb.
88 /2"
ADJUSTABLE HEIGHT
88 /2"
930
4"
2,000 lb.
1
10' / 6"
AHS-2-10-16�
GANTRY CRANES
series AHS
AHS-2-15-7
46 /8"
4"
5' to 7'
716
2,000 lb.
15' / 6"
3
2,000 lb.
774
58 /8"
6' to 9'
3
4"
15' / 6"
AHS-2-15-9� 2,000 lb. 10' / 6" 4" 10'6" to 16' 76 /8" 828
1
AHS-2-15-10� 2,000 lb. 15' / 6" 4" 6'6" to 10' 64 /4" 778
New AHS-2-15-12� 2,000 lb. 15' / 6" 4" 7'6" to 12' 76 /8" 875
1
1
AHS-2-15-14� 2,000 lb. 15' / 6" 4" 8'6" to 14' 88 /2" 954
1
AHS-2-15-16� 2,000 lb. 15' / 6" 4" 10'6" to 16' 88 /2" 1020
AHS-2-20-12� 2,000 lb. 20' / 10 /8" 4" 7'6" to 12' 76 /8" 1074
1
1
1
1
AHS-2-20-14� 2,000 lb. 20' / 10 /8" 4" 8'6" to 14' 88 /2" 1163
1
1
AHS-2-20-16� 2,000 lb. 20' / 10 /8" 4" 10'6" to 16' 88 /2" 1194
1
1
AHS-4-10-12� 4,000 lb. 10' / 8 /8" 4" 7'6" to 12' 76 /8" 860
1
1
AHS-4-10-14� 4,000 lb. 10' / 8 /8" 4" 8'6" to 14' 88 /2" 925
1
1
AHS-4-10-16� 4,000 lb. 10' / 8 /8" 4" 10'6" to 16' 88 /2" 962
AHS-4-15-7 4,000 lb. 15' / 8 /8" 4" 5' to 7' 46 /8" 739
3
1
1
3
AHS-4-15-9� 4,000 lb. 15' / 8 /8" 4" 6' to 9' 58 /8" 816
Steel Gantry 4-POSITION 8" AHS-4-15-10� 4,000 lb. 15' / 8 /8" 4" 6'6" to 10' 64 /4" 846
1
1
Cranes are SWIVEL CASTERS 1 1
adjustable left/right (standard) AHS-4-15-12� 4,000 lb. 15' / 8 /8" 4" 7'6" to 12' 76 /8" 930
and up/down. AHS-4-15-14� 4,000 lb. 15' / 8 /8" 4" 8'6" to 14' 88 /2" 1055
1
1
1
1
AHS-4-15-16� 4,000 lb. 15' / 8 /8" 4" 10'6" to 16' 88 /2" 1068
3
1
AHS-4-20-12� 4,000 lb. 20' / 12 /16" 4" 7'6" to 12' 76 /8" 1076
3
AHS-4-20-14� 4,000 lb. 20' / 12 /16" 4" 8'6" to 14' 88 /2" 1155
1
1
3
AHS-4-20-16� 4,000 lb. 20' / 12 /16" 4" 10'6" to 16' 88 /2" 1204
1
3
AHS-6-10-12� 6,000 lb. 10' / 8 /8" 4" 7'7" to 12'1" 77 /8" 927
1
3
AHS-6-10-14� 6,000 lb. 10' / 8 /8" 4" 8'7" to 14'1" 89 /4" 1045
1
3
AHS-6-10-16� 6,000 lb. 10' / 8 /8" 4" 10'7" to 16'1" 89 /4" 1022
AHS-6-15-7 6,000 lb. 15' / 10 /8" 4" 5'1" to 7'1" 47 /8" 810
5
1
AHS-6-15-9 6,000 lb. 15' / 10 /8" 4" 6'1" to 9'1" 59 /8" 894
1
5
1
1
OPTIONAL AHS-6-15-10� 6,000 lb. 15' / 10 /8" 4" 6'7" to 10'1" 65 /2" 932
TOTAL LOCKING CASTERS AHS-6-15-12� 6,000 lb. 15' / 10 /8" 4" 7'7" to 12'1" 77 /8" 1017
3
1
model AHS-2/4-TLC AHS-6-15-14� 6,000 lb. 15' / 10 /8" 4" 8'7" to 14'1" 89 /4" 1108
1
3
(FOR 2,000 AND 4,000 LB. CAPACITY
1
3
CRANES ONLY) AHS-6-15-16� 6,000 lb. 15' / 10 /8" 4" 10'7" to 16'1" 89 /4" 1168
model AHS-6/8-TLC AHS-6-20-12� 6,000 lb. 20' / 12 /16" 6½" 7'7" to 12'1" 77 /8" 1413
3
5
(FOR 6,000 AND 8,000 LB. CAPACITY 5 3
CRANES ONLY) AHS-6-20-14� 6,000 lb. 20' / 12 /16" 6½" 8'7" to 14'1" 89 /4" 1513
AHS-6-20-16� 6,000 lb. 20' / 12 /16" 6½" 10'7" to 16'1" 89 /4" 1532
3
5
1
1
AHS-8-10-12� 8,000 lb. 10' / 8 /8" 4" 7'7" to 12'1" 76 /2" 933
1
1
OPTIONAL AHS-8-10-14� 8,000 lb. 10' / 8 /8" 4" 8'6" to 14' 88 /4" 1050
V-GROOVE CASTERS AHS-8-10-16� 8,000 lb. 10' / 8 /8" 4" 10'6" to 16' 88 /4" 1121
1
1
model AHS-2/4-V 1 3
(FOR 2,000 AND 4,000 LB. AHS-8-15-7 8,000 lb. 15' / 10 /8" 4" 5' to 7' 45 /4" 804
CAPACITY CRANES ONLY) AHS-8-15-9 8,000 lb. 15' / 10 /8" 4" 6' to 9' 57 /4" 905
1
3
3
1
AHS-8-15-10� 8,000 lb. 15' / 10 /8" 4" 6'6" to 10' 63 /4" 960
AHS-8-15-12� 8,000 lb. 15' / 10 /8" 4" 7'7" to 12'1" 76 /2" 1044
1
1
1
1
AHS-8-15-14� 8,000 lb. 15' / 10 /8" 4" 8'6" to 14' 88 /4" 1132
OPTIONAL AHS-8-15-16� 8,000 lb. 15' / 10 /8" 4" 10'6" to 16' 88 /4" 1194
1
1
V-GROOVE CASTERS 5 1
model AHS-6/8-V AHS-8-20-12� 8,000 lb. 20' / 12 /16" 6½" 7'7" to 12'1" 76 /2" 1406
5
5
(FOR 6,000 AND 8,000 LB. AHS-8-20-14� 8,000 lb. 20' / 12 /16" 6½" 8'6" to 14' 88 /16" 1514
CAPACITY CRANES ONLY)
5
1
AHS-8-20-16� 8,000 lb. 20' / 12 /16" 6½" 10'6" to 16' 88 /4" 1582
AHS-10-15-10 10,000 lb. 15' / 12 /8" 4" 6'6" to 10' 64 /2" 1352
1
1
ADJUSTABLE STEEL GANTRY CRANE OPTIONS (WHEN PURCHASED WITH GANTRY CRANE)
AHS-2/4-TLC TOTAL LOCKING CASTERS (2,000 & 4,000 LB. CAPACITY CRANES ONLY) (SET OF 4)
AHS-6/8-TLC TOTAL LOCKING CASTERS (6,000 & 8,000 LB. CAPACITY CRANES ONLY) (SET OF 4)
Note: All products should be AHS-2/4-V
inspected frequently to insure AHS-6/8-V 8" x 2" V-GROOVE CASTERS FOR 2,000 & 4,000 LB. UNITS (SET OF 4)
safe operation. Final testing AHS-KIT 8" x 3" V-GROOVE CASTERS FOR 6,000 & 8,000 LB. UNITS (SET OF 4)
and inspection is left to end user AHS-STLO (2) COME-A-LONG (2) CABLES FOR HEIGHT ADJUSTMENT (NOT FOR LIFTING)
after final assembly has been STATIONARY LEG OPTION, set of (4) four (factory installed) NOT COMPATIBLE WITH AHS-10-15-10
completed. For further details AHS-STLO-RF STATIONARY LEG OPTION, set of (4) four (field installed) NOT COMPATIBLE WITH AHS-10-15-10
see ASME B30.17. USABLE DISTANCE BETWEEN UPRIGHTS IS OVERALL BEAM LENGTH MINUS 12"
USABLE TROLLEY TRAVEL LENGTH IS OVERALL BEAM LENGTH MINUS 30"
