205

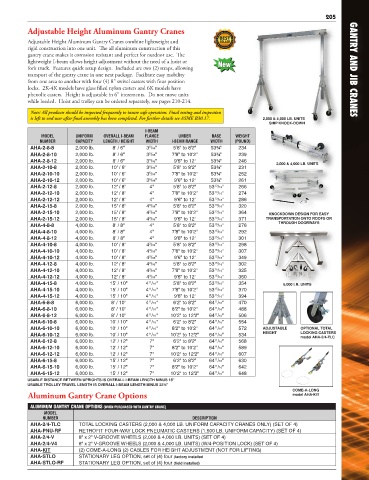

Adjustable Height Aluminum Gantry Cranes

Adjustable Height Aluminum Gantry Cranes combine lightweight and
rigid construction into one unit. The all aluminum construction of this
gantry crane makes it corrosion resistant and perfect for outdoor use. The
lightweight I-beam allows height adjustment without the need of a hoist or New
fork truck. Features quick setup design. Included are two (2) straps, allowing GANTRY AND JIB CRANES
transport of the gantry crane in one neat package. Facilitate easy mobility
from one area to another with four (4) 8" swivel casters with four position
locks. 2K-4K models have glass filled nylon casters and 6K models have
phenolic casters. Height is adjustable in 6" increments. Do not move units
while loaded. Hoist and trolley can be ordered separately, see pages 210-214.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection
is left to end user after final assembly has been completed. For further details see ASME B30.17. 2,000 & 4,000 LB. UNITS
SHIP KNOCK-DOWN
I-BEAM
MODEL UNIFORM OVERALL I-BEAM FLANGE UNDER BASE WEIGHT
NUMBER CAPACITY LENGTH / HEIGHT WIDTH I-BEAM RANGE WIDTH (POUND)
AHA-2-8-8 2,000 lb. 8' / 6" 3 /16" 5'8" to 8'2" 53¾" 234
5
AHA-2-8-10 2,000 lb. 8' / 6" 3 /16" 7'8" to 10'2" 53¾" 239
5
AHA-2-8-12 2,000 lb. 8' / 6" 3 /16" 9'6" to 12' 53¾" 246 2,000 & 4,000 LB. UNITS
5
AHA-2-10-8 2,000 lb. 10' / 6" 3 /16" 5'8" to 8'2" 53¾" 231
5
AHA-2-10-10 2,000 lb. 10' / 6" 3 /16" 7'8" to 10'2" 53¾" 252
5
AHA-2-10-12 2,000 lb. 10' / 6" 3 /16" 9'6" to 12' 53¾" 261
5
AHA-2-12-8 2,000 lb. 12' / 8" 4" 5'8" to 8'2" 53 /16" 266
13
AHA-2-12-10 2,000 lb. 12' / 8" 4" 7'8" to 10'2" 53 /16" 274
13
AHA-2-12-12 2,000 lb. 12' / 8" 4" 9'6" to 12' 53 /16" 286
13
AHA-2-15-8 2,000 lb. 15' / 8" 4 /16" 5'8" to 8'2" 53 /16" 320
13
3
AHA-2-15-10 2,000 lb. 15' / 8" 4 /16" 7'8" to 10'2" 53 /16" 364 KNOCKDOWN DESIGN FOR EASY
3
13
AHA-2-15-12 2,000 lb. 15' / 8" 4 /16" 9'6" to 12' 53 /16" 371 TRANSPORTATION ONTO ROOFS OR
13
3
AHA-4-8-8 4,000 lb. 8' / 8" 4" 5'8" to 8'2" 53 /16" 276 THROUGH DOORWAYS
15
AHA-4-8-10 4,000 lb. 8' / 8" 4" 7'8" to 10'2" 53 /16" 292
15
AHA-4-8-12 4,000 lb. 8' / 8" 4" 9'6" to 12' 53 /16" 301
15
AHA-4-10-8 4,000 lb. 10' / 8" 4 /16" 5'8" to 8'2" 53 /16" 298
15
3
AHA-4-10-10 4,000 lb. 10' / 8" 4 /16" 7'8" to 10'2" 53 /16" 307
3
15
AHA-4-10-12 4,000 lb. 10' / 8" 4 /16" 9'6" to 12' 53 /16" 349
15
3
AHA-4-12-8 4,000 lb. 12' / 8" 4 /16" 5'8" to 8'2" 53 /16" 302
3
15
AHA-4-12-10 4,000 lb. 12' / 8" 4 /16" 7'8" to 10'2" 53 /16" 325
3
15
AHA-4-12-12 4,000 lb. 12' / 8" 4 /16" 9'6" to 12' 53 /16" 350
3
15
AHA-4-15-8 4,000 lb. 15' / 10" 4 /16" 5'8" to 8'2" 53 /16" 354 6,000 LB. UNITS
15
11
AHA-4-15-10 4,000 lb. 15' / 10" 4 /16" 7'8" to 10'2" 53 /16" 370
15
11
AHA-4-15-12 4,000 lb. 15' / 10" 4 /16" 9'6" to 12' 53 /16" 394
15
11
AHA-6-8-8 6,000 lb. 8' / 10" 4 /16" 6'2" to 8'2" 64 /16" 470
11
11
AHA-6-8-10 6,000 lb. 8' / 10" 4 /16" 8'2" to 10'2" 64 /16" 488
11
11
AHA-6-8-12 6,000 lb. 8' / 10" 4 /16" 10'2" to 12'2" 64 /16" 506
11
11
AHA-6-10-8 6,000 lb. 10' / 10" 4 /16" 6'2" to 8'2" 64 /16" 554
11
11
AHA-6-10-10 6,000 lb. 10' / 10" 4 /16" 8'2" to 10'2" 64 /16" 572 ADJUSTABLE OPTIONAL TOTAL
11
11
AHA-6-10-12 6,000 lb. 10' / 10" 4 /16" 10'2" to 12'2" 64 /16" 534 HEIGHT LOCKING CASTERS
11
11
model AHA-2/4-TLC
AHA-6-12-8 6,000 lb. 12' / 12" 7" 6'2" to 8'2" 64 /16" 568
11
AHA-6-12-10 6,000 lb. 12' / 12" 7" 8'2" to 10'2" 64 /16" 589
11
AHA-6-12-12 6,000 lb. 12' / 12" 7" 10'2" to 12'2" 64 /16" 607
11
AHA-6-15-8 6,000 lb. 15' / 12" 7" 6'2" to 8'2" 64 /16" 630
11
AHA-6-15-10 6,000 lb. 15' / 12" 7" 8'2" to 10'2" 64 /16" 642
11
AHA-6-15-12 6,000 lb. 15' / 12" 7" 10'2" to 12'2" 64 /16" 648
11
USABLE DISTANCE BETWEEN UPRIGHTS IS OVERALL I-BEAM LENGTH MINUS 18"
USABLE TROLLEY TRAVEL LENGTH IS OVERALL I-BEAM LENGTH MINUS 23¾"
COME-A-LONG
Aluminum Gantry Crane Options model AHA-KIT
ALUMINUM GANTRY CRANE OPTIONS (WHEN PURCHASED WITH GANTRY CRANE)
MODEL
NUMBER DESCRIPTION
AHA-2/4-TLC TOTAL LOCKING CASTERS (2,000 & 4,000 LB. UNIFORM CAPACITY CRANES ONLY) (SET OF 4)
AHA-PNU-RF RETROFIT FOUR-WAY LOCK PNEUMATIC CASTERS (1,500 LB. UNIFORM CAPACITY) (SET OF 4)
AHA-2/4-V 8" x 2" V-GROOVE WHEELS (2,000 & 4,000 LB. UNITS) (SET OF 4)
AHA-2/4-V4 8" x 2" V-GROOVE WHEELS (2,000 & 4,000 LB. UNITS) (W/4-POSITION LOCK) (SET OF 4)
AHA-KIT (2) COME-A-LONG (2) CABLES FOR HEIGHT ADJUSTMENT (NOT FOR LIFTING)
AHA-STLO STATIONARY LEG OPTION, set of (4) four (factory installed
AHA-STLO-RF STATIONARY LEG OPTION, set of (4) four (field installed)
