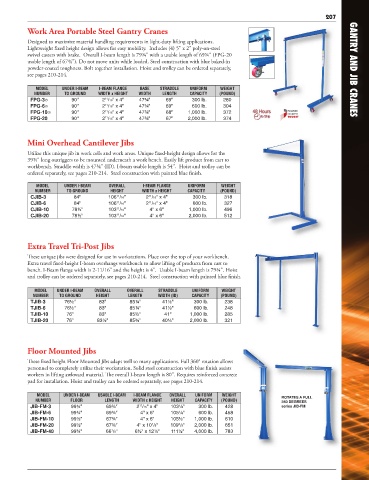

Work Area Portable Steel Gantry Cranes

Designed to maximize material handling requirements in light-duty lifting applications.
Lightweight fixed height design allows for easy mobility. Includes (4) 5" x 2" poly-on-steel
swivel casters with brake. Overall I-beam length is 79¾" with a usable length of 69¾" (FPG-20
usable length of 67¾"). Do not move units while loaded. Steel construction with blue baked-in
powder-coated toughness. Bolt together installation. Hoist and trolley can be ordered separately, GANTRY AND JIB CRANES
see pages 210-214.

MODEL UNDER I-BEAM I-BEAM FLANGE BASE STRADDLE UNIFORM WEIGHT
NUMBER TO GROUND WIDTH x HEIGHT WIDTH LENGTH CAPACITY (POUND)
11
FPG-3� 90" 2 /16" x 4" 47¾" 69" 300 lb. 280
11
FPG-6� 90" 2 /16" x 4" 47¾" 69" 600 lb. 304
FPG-10� 90" 2 /16" x 4" 47¾" 68" 1,000 lb. 372
11
FPG-20 90" 2 /16" x 4" 47¾" 67" 2,000 lb. 374
11
Mini Overhead Cantilever Jibs
Utilize this unique jib in work cells and work areas. Unique fixed-height design allows for the
39¾" long outriggers to be mounted underneath a work bench. Easily lift product from cart to
workbench. Straddle width is 47¾" (ID). I-beam usable length is 54". Hoist and trolley can be
ordered separately, see pages 210-214. Steel construction with painted blue finish.
MODEL UNDER I-BEAM OVERALL I-BEAM FLANGE UNIFORM WEIGHT
NUMBER TO GROUND HEIGHT WIDTH x HEIGHT CAPACITY (POUND)
CJIB-3 84" 106 /16" 2 /16" x 4" 300 lb. 318
11
11
CJIB-6 84" 106 /16" 2 /16" x 4" 600 lb. 327
11
11
CJIB-10 78½" 103 /16" 4" x 6" 1,000 lb. 496
11
CJIB-20 78½" 103 /16" 4" x 6" 2,000 lb. 512
11
Extra Travel Tri-Post Jibs
These unique jibs were designed for use in workstations. Place over the top of your workbench.
Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to
bench. I-Beam flange width is 2-11/16" and the height is 4". Usable I-beam length is 79¾". Hoist
and trolley can be ordered separately, see pages 210-214. Steel construction with painted blue finish.

MODEL UNDER I-BEAM OVERALL OVERALL STRADDLE UNIFORM WEIGHT
NUMBER TO GROUND HEIGHT LENGTH WIDTH (ID) CAPACITY (POUND)
TJIB-3 76½" 83" 85¼" 41½" 300 lb. 238
TJIB-6 76½" 83" 85¼" 41½" 600 lb. 248
TJIB-10 76" 83" 85½" 41" 1,000 lb. 285
TJIB-20 76" 83½" 85¾" 40¼" 2,000 lb. 321

Floor Mounted Jibs

These fixed height Floor Mounted Jibs adapt well to many applications. Full 360° rotation allows
personnel to completely utilize their workstation. Solid steel construction with blue finish assists
workers in lifting awkward material. The overall I-beam length is 80". Requires reinforced concrete
pad for installation. Hoist and trolley can be ordered separately, see pages 210-214.

MODEL UNDER I-BEAM USABLE I-BEAM I-BEAM FLANGE OVERALL UNIFORM WEIGHT ROTATES A FULL
NUMBER FLOOR LENGTH WIDTH x HEIGHT HEIGHT CAPACITY (POUND) 360 DEGREES
JIB-FM-3 99¼" 69¾" 2 /16" x 4" 103¼" 300 lb. 428 series JIB-FM
11
JIB-FM-6 99¼" 69¾" 4" x 6" 105¼" 600 lb. 458
JIB-FM-10 99½" 67¾" 4" x 6" 105½" 1,000 lb. 610
JIB-FM-20 99½" 67¾" 4" x 10 /8" 109 /8" 2,000 lb. 651
1
5
JIB-FM-40 99¼" 66 /8" 6½" x 12¼" 111½" 4,000 lb. 783
1
