247

CUSTOMER INFORMATION

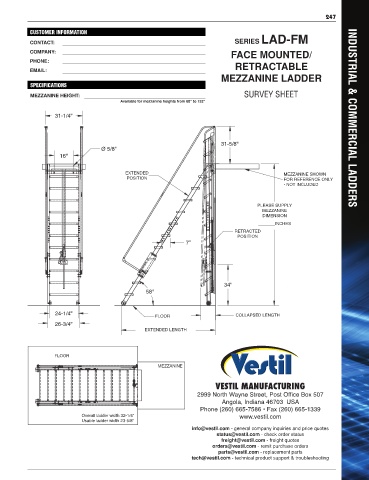

CONTACT: SERIES LAD-FM
COMPANY: FACE MOUNTED/
PHONE:
EMAIL: RETRACTABLE
MEZZANINE LADDER
SPECIFICATIONS
MEZZANINE HEIGHT: SURVEY SHEET
Available for mezzanine heights from 60" to 132"

31-1/4" INDUSTRIAL & COMMERCIAL LADDERS

31-5/8"
Ø 5/8"
16"

EXTENDED MEZZANINE SHOWN
POSITION FOR REFERENCE ONLY
- NOT INCLUDED

PLEASE SUPPLY
MEZZANINE
DIMENSION
_______INCHES
RETRACTED
POSITION
7"

34"
58°

24-1/4" COLLAPSED LENGTH
FLOOR
26-3/4"
EXTENDED LENGTH

FLOOR
MEZZANINE

VESTIL MANUFACTURING
2999 North Wayne Street, Post Office Box 507
Angola, Indiana 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
Overall ladder width 32-1/4" www.vestil.com
Usable ladder width 23-5/8"
