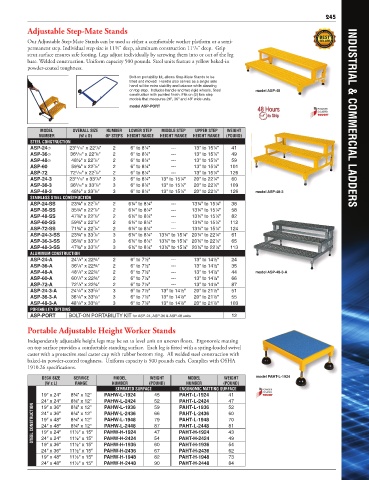

Page 239 - Vestil Catalog 112

245
Adjustable Step-Mate Stands

Our Adjustable Step-Mate Stands can be used as either a comfortable worker platform or a semi-
7
permanent step. Individual step size is 11¾" deep, aluminum construction 11 /8" deep. Grip
strut surface ensures safe footing. Legs adjust individually by screwing them into or out of the leg
base. Welded construction. Uniform capacity 500 pounds. Steel units feature a yellow baked-in
powder-coated toughness.
Bolt-on portability kit, allows Step-Mate Stands to be
tilted and moved. Handle also serves as a single side
hand rail for extra stability and balance while standing
on top step. Includes handle and two rigid wheels. Steel model ASP-48
construction with painted finish. Fits on (2) two step
models that measures 24", 36" and 48" wide units.
model ASP-PORT

MODEL OVERALL SIZE NUMBER LOWER STEP MIDDLE STEP UPPER STEP WEIGHT INDUSTRIAL & COMMERCIAL LADDERS
NUMBER (W x D) OF STEPS HEIGHT RANGE HEIGHT RANGE HEIGHT RANGE (POUND)
STEEL CONSTRUCTION
13
7
ASP-24� 23 /16" x 22 /8" 2 6" to 8¼" --- 13" to 15¼" 41
7
3
ASP-36� 36 /16" x 22 /8" 2 6" to 8¼" --- 13" to 15¼" 49
7
ASP-48� 48½" x 22 /8" 2 6" to 8¼" --- 13" to 15¼" 59
ASP-60 59¾" x 22 /8" 2 6" to 8¼" --- 13" to 15¼" 101
7
ASP-72 72 /16" x 22 /8" 2 6" to 8¼" --- 13" to 15¼" 126
1
7
ASP-24-3 23 /16" x 33 /8" 3 6" to 8¼" 13" to 15¼" 20" to 22¼" 60
13
7
ASP-36-3 36 /16" x 33 /8" 3 6" to 8¼" 13" to 15¼" 20" to 22¼" 109
3
7
ASP-48-3 48½" x 33 /8" 3 6" to 8¼" 13" to 15¼" 20" to 22¼" 126 model ASP-48-3
7
STAINLESS STEEL CONSTRUCTION
ASP-24-SS 23¾" x 22 /8" 2 6¼" to 8¼" --- 13¼" to 15¼" 38
7
ASP-36-SS 35¾" x 22 /8" 2 6¼" to 8¼" --- 13¼" to 15¼" 58
7
ASP-48-SS 47¾" x 22 /8" 2 6¼" to 8¼" --- 13¼" to 15¼" 82
7
ASP-60-SS 59¾" x 22 /8" 2 6¼" to 8¼" --- 13¼" to 15¼" 112
7
ASP-72-SS 71¾" x 22 /8" 2 6¼" to 8¼" --- 13¼" to 15¼" 124
7
ASP-24-3-SS 23¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 61
7
ASP-36-3-SS 35¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 65
7
ASP-48-3-SS 47¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 113
7
ALUMINUM CONSTRUCTION
ASP-24-A 24 /8" x 22¾" 2 6" to 7½" --- 13" to 14½" 24
1
ASP-36-A 36 /8" x 22¾" 2 6" to 7½" --- 13" to 14½" 35
1
ASP-48-A 48 /8" x 22¾" 2 6" to 7½" --- 13" to 14½" 44 model ASP-48-3-A
1
ASP-60-A 60 /8" x 22¾" 2 6" to 7½" --- 13" to 14½" 66
1
ASP-72-A 72 /8" x 22¾" 2 6" to 7½" --- 13" to 14½" 87
1
ASP-24-3-A 24 /8" x 33 /8" 3 6" to 7½" 13" to 14½" 20" to 21½" 51
5
1
ASP-36-3-A 36 /8" x 33 /8" 3 6" to 7½" 13" to 14½" 20" to 21½" 55
1
5
ASP-48-3-A 48 /8" x 33 /8" 3 6" to 7½" 13" to 14½" 20" to 21½" 103
5
1
PORTABILITY OPTOINS
ASP-PORT BOLT-ON PORTABILITY KIT for ASP-24, ASP-36 & ASP-48 units 12
Portable Adjustable Height Worker Stands
Independently adjustable height legs may be set to level unit on uneven floors. Ergonomic matting
on top surface provides a comfortable standing surface. Each leg is fitted with a spring-loaded swivel
caster with a protective steel caster cup with rubber bottom ring. All welded steel construction with
baked-in powder-coated toughness. Uniform capacity is 500 pounds each. Complies with OSHA
1910.26 specifications.
DECK SIZE SERVICE MODEL WEIGHT MODEL WEIGHT model PAHT-L-1924
(W x L) RANGE NUMBER (POUND) NUMBER (POUND)
SERRATED SURFACE ERGONOMIC MATTING SURFACE
19" x 24" 8¾" x 12" PAHW-L-1924 45 PAHT-L-1924 41
24" x 24" 8¾" x 12" PAHW-L-2424 52 PAHT-L-2424 47
STEEL CONSTRUCTION 24" x 36" 11½" x 15" PAHW-L-2436 66 PAHT-L-2436 60
PAHW-L-1936
PAHT-L-1936
59
19" x 36"
52
8¾" x 12"
8¾" x 12"
PAHW-L-1948
PAHT-L-1948
19" x 48"
70
8¾" x 12"
79
PAHW-L-2448
PAHT-L-2448
87
81
8¾" x 12"
24" x 48"
PAHT-H-1924
PAHW-H-1924
19" x 24"
43
47
24" x 24"
PAHW-H-1936
PAHT-H-1936
60
11½" x 15"
54
19" x 36" 11½" x 15" PAHW-H-2424 54 PAHT-H-2424 49
24" x 36" 11½" x 15" PAHW-H-2436 67 PAHT-H-2436 62
19" x 48" 11½" x 15" PAHW-H-1948 82 PAHT-H-1948 73
24" x 48" 11½" x 15" PAHW-H-2448 90 PAHT-H-2448 84
