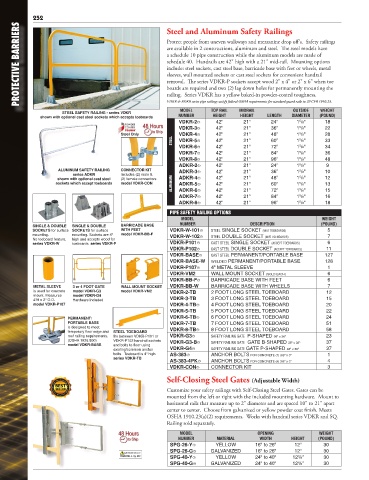

252 Steel and Aluminum Safety Railings
PROTECTIVE BARRIERS Protect people from uneven walkways and mezzanine drop off's. Safety railings

are available in 2 constructions, aluminum and steel. The steel models have
a schedule 10 pipe construction while the aluminum models are made of
schedule 40. Handrails are 42" high with a 21" mid-rail. Mounting options
include: steel sockets, cast steel base, barricade base with feet or wheels, metal
sleeves, wall mounted sockets or cast steel sockets for convenient handrail
removal. The series VDKR-P sockets accept wood 2" x 4" or 2" x 6" when toe
boards are required and two (2) lag down holes for permanently mounting the
railing. Series VDKR has a yellow baked-in powder-coated toughness.
VDKR & ADKR series pipe railings satisfy federal OSHA requirements for standard guard rails in 29 CFR 1910.23.
MODEL TOP RAIL MIDRAIL OUTSIDE WEIGHT
STEEL SAFETY RAILING • series VDKR
shown with optional cast steel sockets which accepts toeboards NUMBER HEIGHT HEIGHT LENGTH DIAMETER (POUND)
5
VDKR-2� 42" 21" 24" 1 /8" 18
5
VDKR-3� 42" 21" 36" 1 /8" 22
Steel Only VDKR-4� 42" 21" 48" 1 /8" 28
5
STEEL VDKR-5� 42" 21" 60" 1 /8" 33
5
5
VDKR-6� 42" 21" 72" 1 /8" 34
5
VDKR-7� 42" 21" 84" 1 /8" 36
5
VDKR-8� 42" 21" 96" 1 /8" 48
5
ADKR-2� 42" 21" 24" 1 /8" 9
ALUMINUM SAFETY RAILING CONNECTOR KIT ADKR-3� 42" 21" 36" 1 /8" 10
5
series ADKR Includes (2) male &
5
shown with optional cast steel (2) female connectors ADKR-4� 42" 21" 48" 1 /8" 12
sockets which accept toeboards model VDKR-CON ALUMINUM ADKR-5� 42" 21" 60" 1 /8" 13
5
ADKR-6�
5
21"
42"
84"
5
1 /8"
16
ADKR-7� 42" 21" 72" 1 /8" 15
5
ADKR-8� 42" 21" 96" 1 /8" 18
PIPE SAFETY RAILING OPTIONS
MODEL WEIGHT
SINGLE & DOUBLE SINGLE & DOUBLE BARRICADE BASE NUMBER DESCRIPTION (POUND)
SOCKETS for surface SOCKETS for surface WITH FEET VDKR-W-101� STEEL SINGLE SOCKET (W/O TOEBOARDS) 5
mounting. mounting. Sockets are 4" model VDKR-BB-F VDKR-W-102� STEEL DOUBLE SOCKET (W/O TOEBOARDS) 7
No toeboard feature. high and accepts wood for
series VDKR-W toeboards. series VDKR-P VDKR-P101� CAST STEEL SINGLE SOCKET (ACCEPT TOEBOARDS) 6
VDKR-P102� CAST STEEL DOUBLE SOCKET (ACCEPT TOEBOARDS) 11
VDKR-BASE� CAST STEEL PERMANENT/PORTABLE BASE 127
VDKR-BASE-W WELDED PERMANENT/PORTABLE BASE 128
VDKR-P107� 4" METAL SLEEVE 1
VDKR-VM2 WALL MOUNT SOCKET (SOLD EACH) 6
VDKR-BB-F� BARRICADE BASE WITH FEET 6
METAL SLEEVE 3 or 4 FOOT GATE WALL MOUNT SOCKET VDKR-BB-W BARRICADE BASE WITH WHEELS 7
is used for concrete model VDKR-G3 model VDKR-VM2 VDKR-2-TB 2 FOOT LONG STEEL TOEBOARD 12
mount. Measures model VDKR-G4
4"H x 2" O.D. Hardware included VDKR-3-TB 3 FOOT LONG STEEL TOEBOARD 15
model VDKR-P107 VDKR-4-TB� 4 FOOT LONG STEEL TOEBOARD 20
VDKR-5-TB 5 FOOT LONG STEEL TOEBOARD 22
PERMANENT/ VDKR-6-TB� 6 FOOT LONG STEEL TOEBOARD 24
PORTABLE BASE VDKR-7-TB 7 FOOT LONG STEEL TOEBOARD 51
is designed to meet
temporary floor edge and STEEL TOEBOARD VDKR-8-TB� 8 FOOT LONG STEEL TOEBOARD 58
roof railing requirements. fits between VDKR-P101 or VDKR-G3� SAFETY RAILING GATE P-SHAPED 36" x 36" 23
(OSHA 1926.500) VDKR-P102 handrail sockets VDKR-G3-B� 37
model VDKR-BASE and bolts to floor using SAFETY RAILING GATE GATE B-SHAPED 36" x 36"
existing/common anchor VDKR-G4� SAFETY RAILING GATE GATE P-SHAPED 48" x 36" 37
bolts. Toeboard is 4" high. AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" 1
series VDKR-TB
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" 4
VDKR-CON� CONNECTOR KIT 3
Self-Closing Steel Gates (Adjustable Width)
Customize your safety railings with Self-Closing Steel Gates. Gates can be
mounted from the left or right with the included mounting hardware. Mount to
horizontal rails that measure up to 2" diameter and are spaced 10" to 21" apart
center to center. Choose from galvanized or yellow powder coat finish. Meets
OSHA 1910.23(a)(2) requirements. Works with handrail series VDKR and SQ.
Railing sold separately.
MODEL OPENING WEIGHT
NUMBER MATERIAL WIDTH HEIGHT (POUND)
SPG-26-Y YELLOW 16" to 26" 12" 30
SPG-26-G GALVANIZED 16" to 26" 12" 30
CA Residents see
WARNING A, Pg. 459
SPG-40-Y YELLOW 24" to 40" 12¼" 30
SPG-40-G GALVANIZED 24" to 40" 12¼" 30
